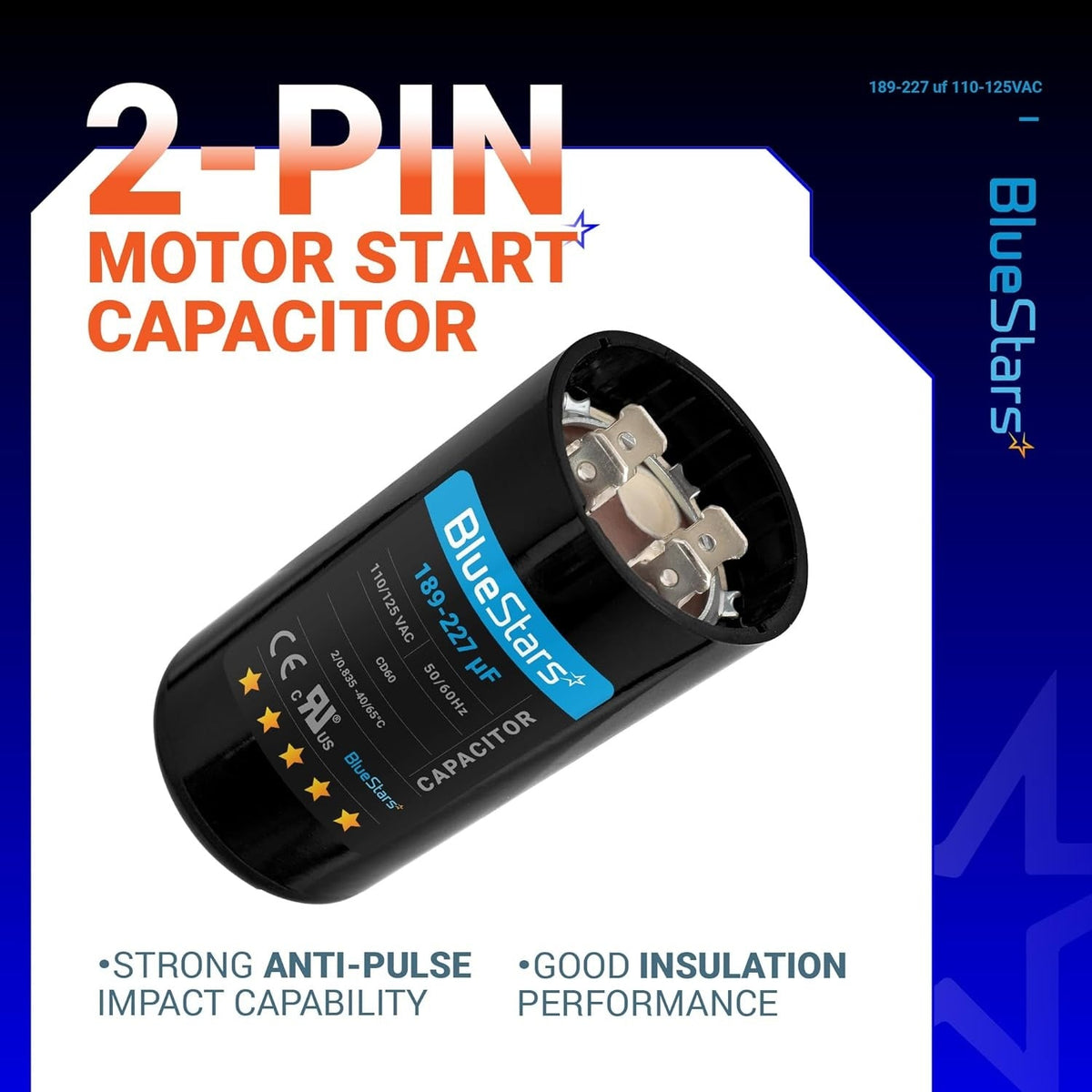

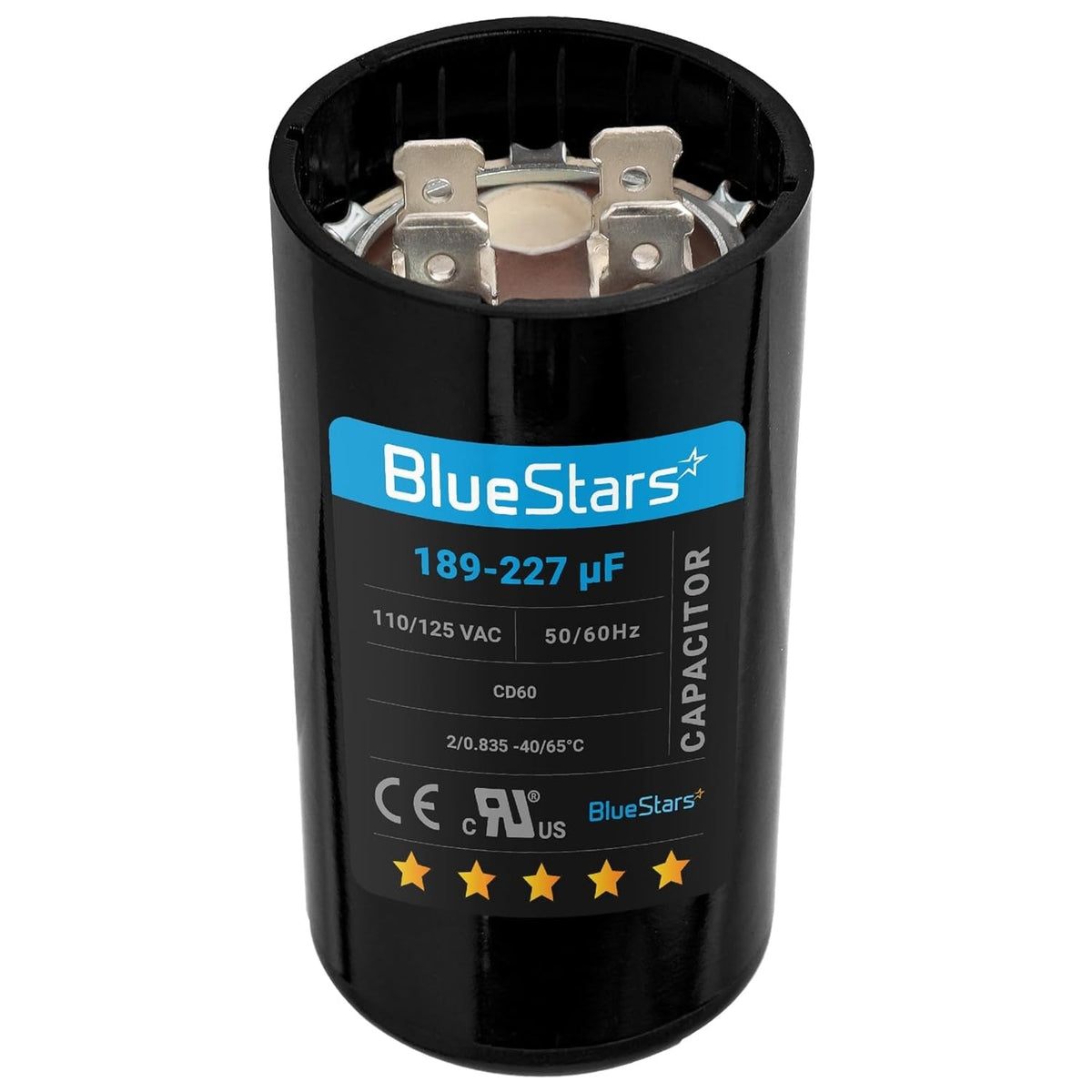

189-227 uF 125VAC CBB60 Universal Round Start Capacitor for Pool & Well Pumps
0.00
Regular price
$11.99
Regular price
Save 11%
$13.43
Sale price
$11.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
189-227 uF/MFD 125 VAC Volts Round Start Capacitor 50/60 Hz AC Electric

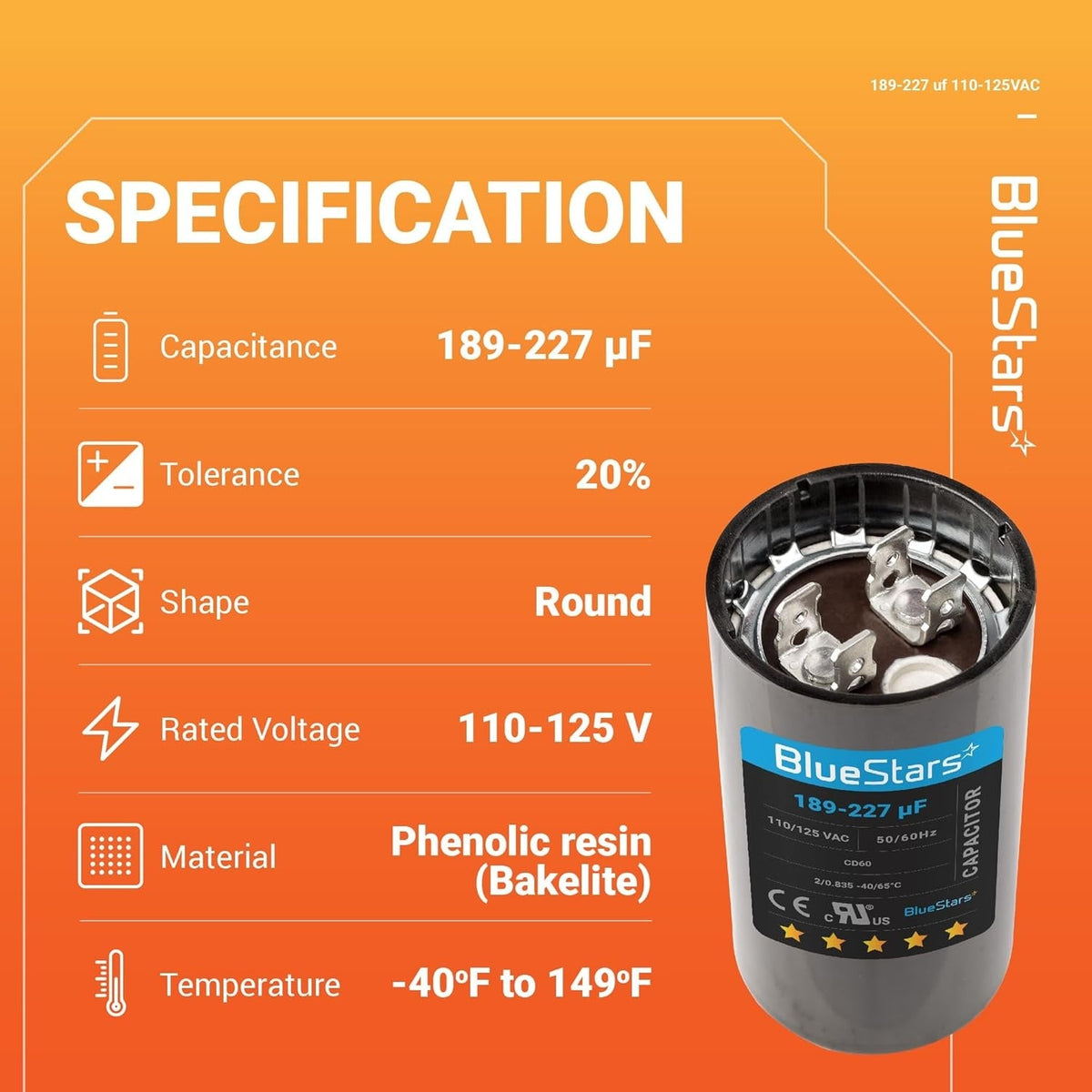

Key Features
- Capacitance: 189-227 uF/MFD
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Shape: Round
- Case Material: Aluminum, Plastic

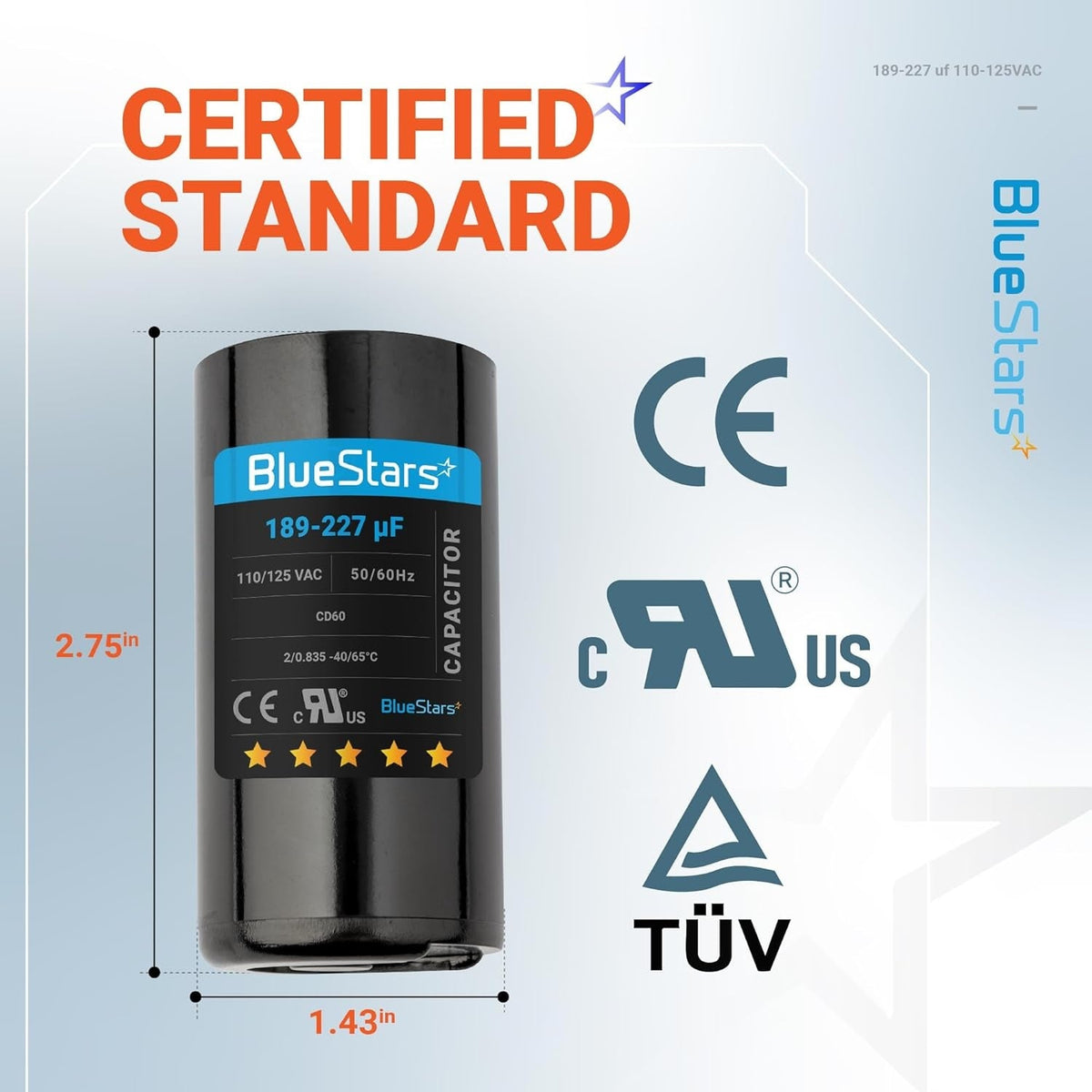

- Dimensions: 1.44 in. Diameter
- Dielectric Fluid: Non-PCB Oil Filled
- Terminals: 1/4 in. Male Quick Connect
Replaces / Cross-Reference Part Numbers
- Replaces any round motor start capacitor with matching capacitance and voltage specifications.
- Compatible with generic type CD60 capacitors.
Compatibility & Fitment

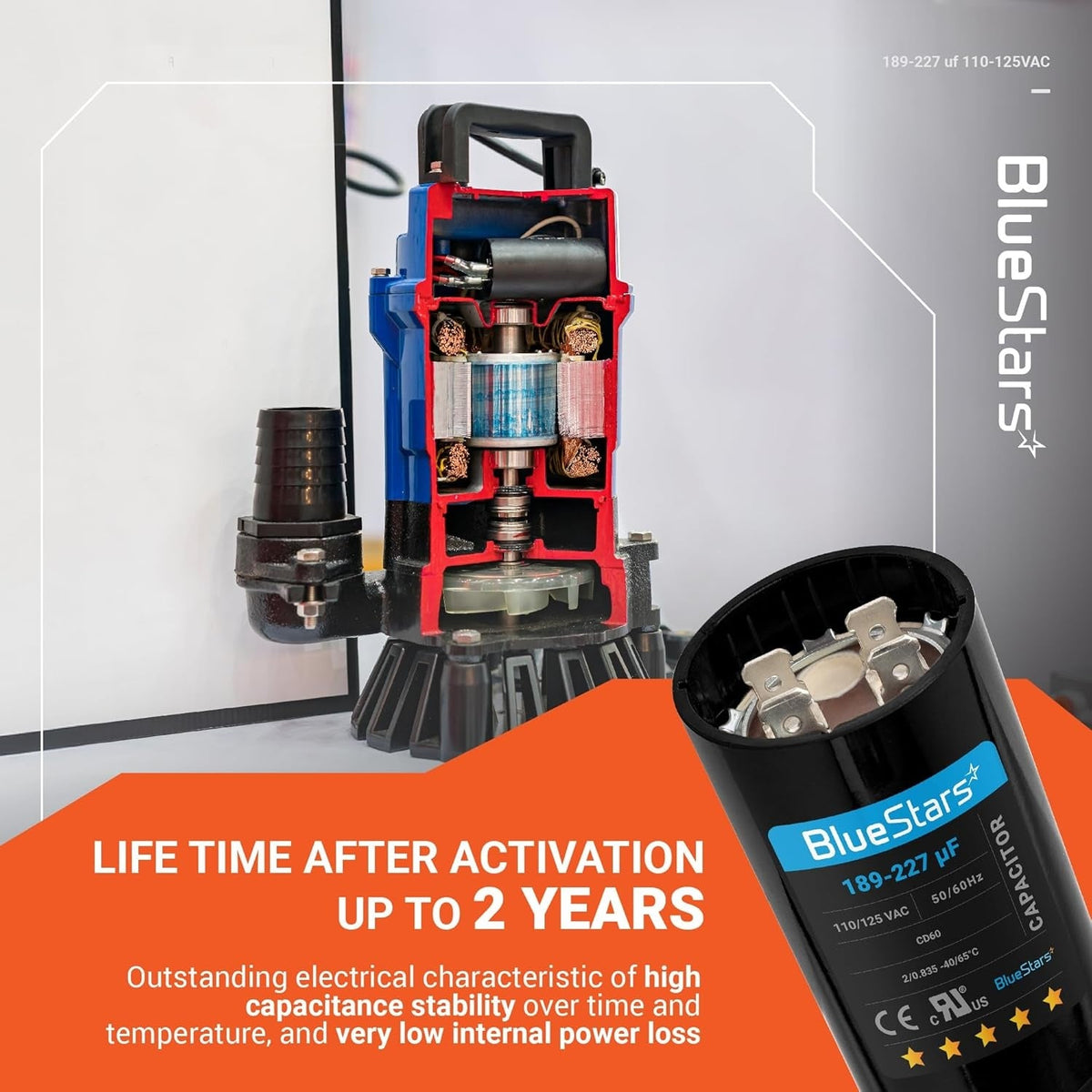

- Designed for intermittent duty in single-phase AC motor starting circuits.
- Common applications include HVAC units, air compressors, well pumps, and other electric motors.

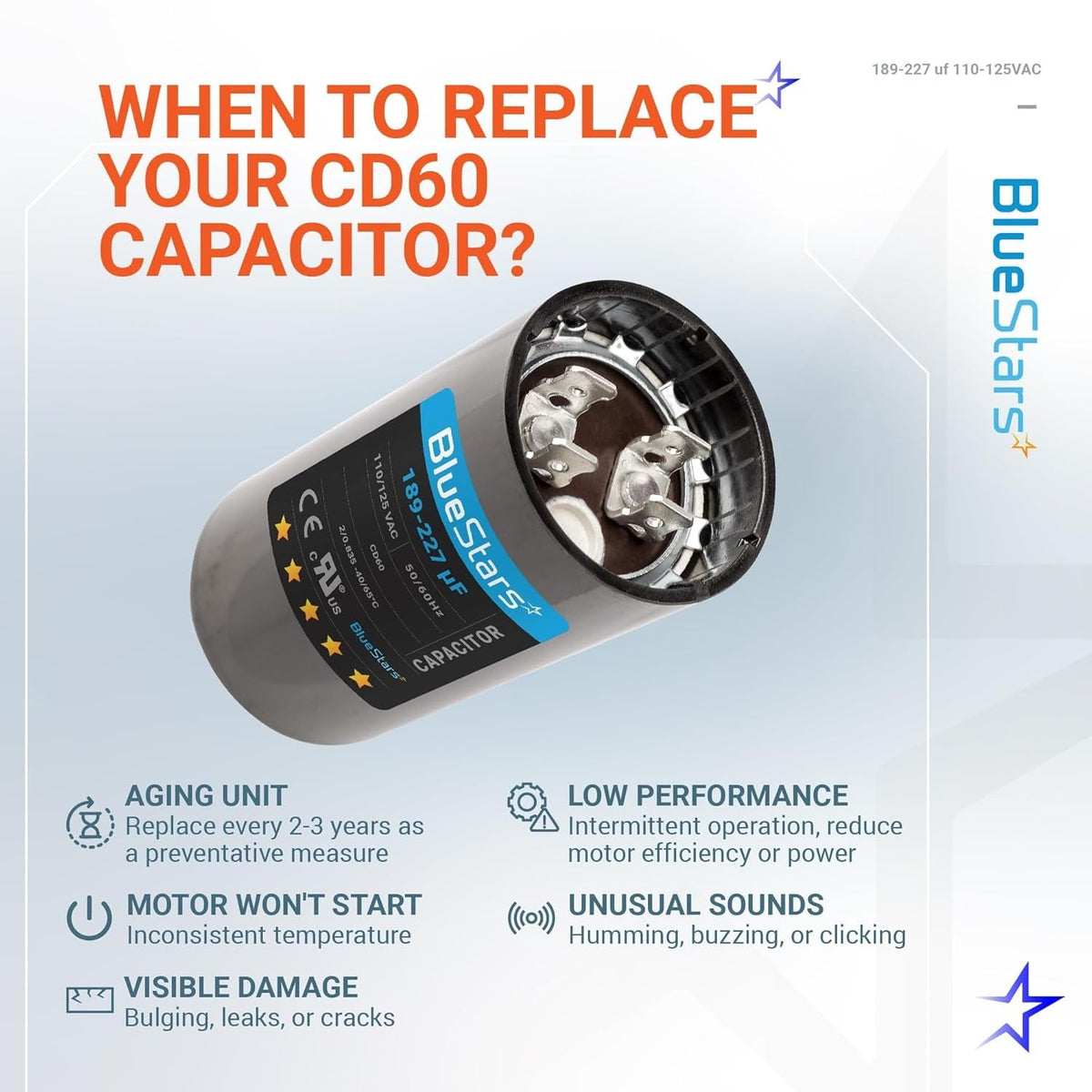

When to Replace
- Motor hums but fails to start or starts slowly.
- Circuit breaker trips at motor startup.
- Capacitor shows physical damage such as bulging, cracking, or leaking fluid.
- Capacitance measures outside of the 189-227 uF range when tested with a multimeter.

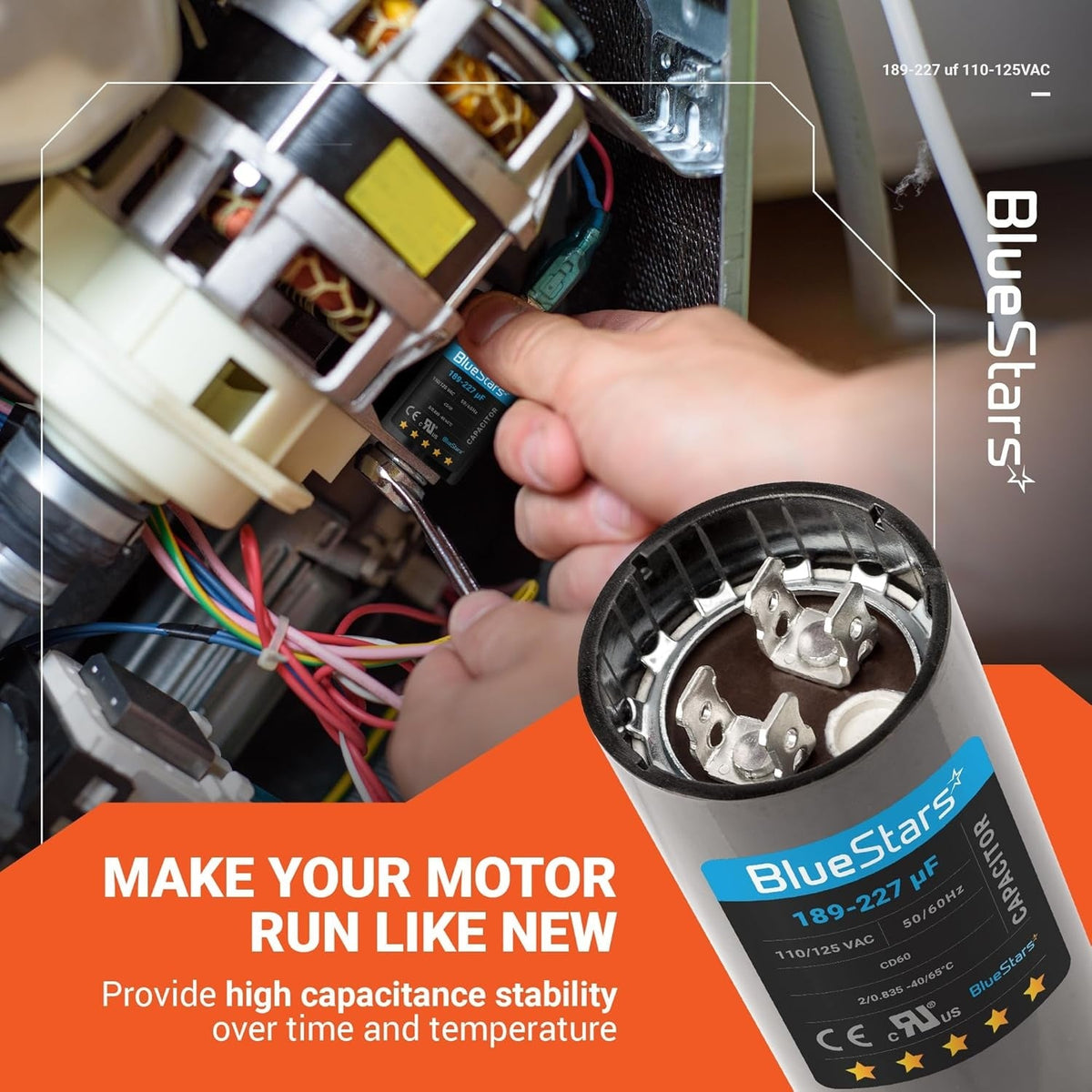

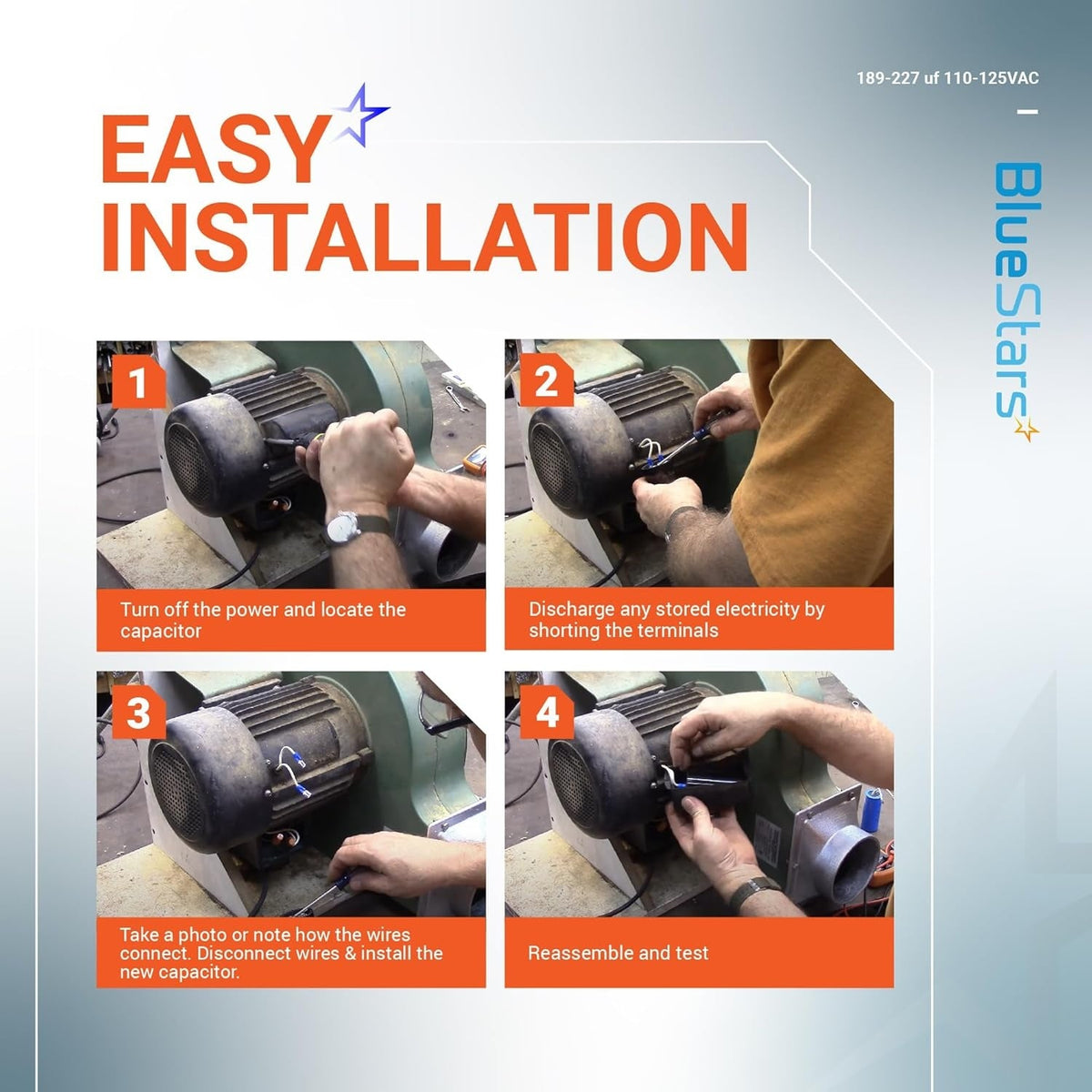

Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver or appropriate tool.

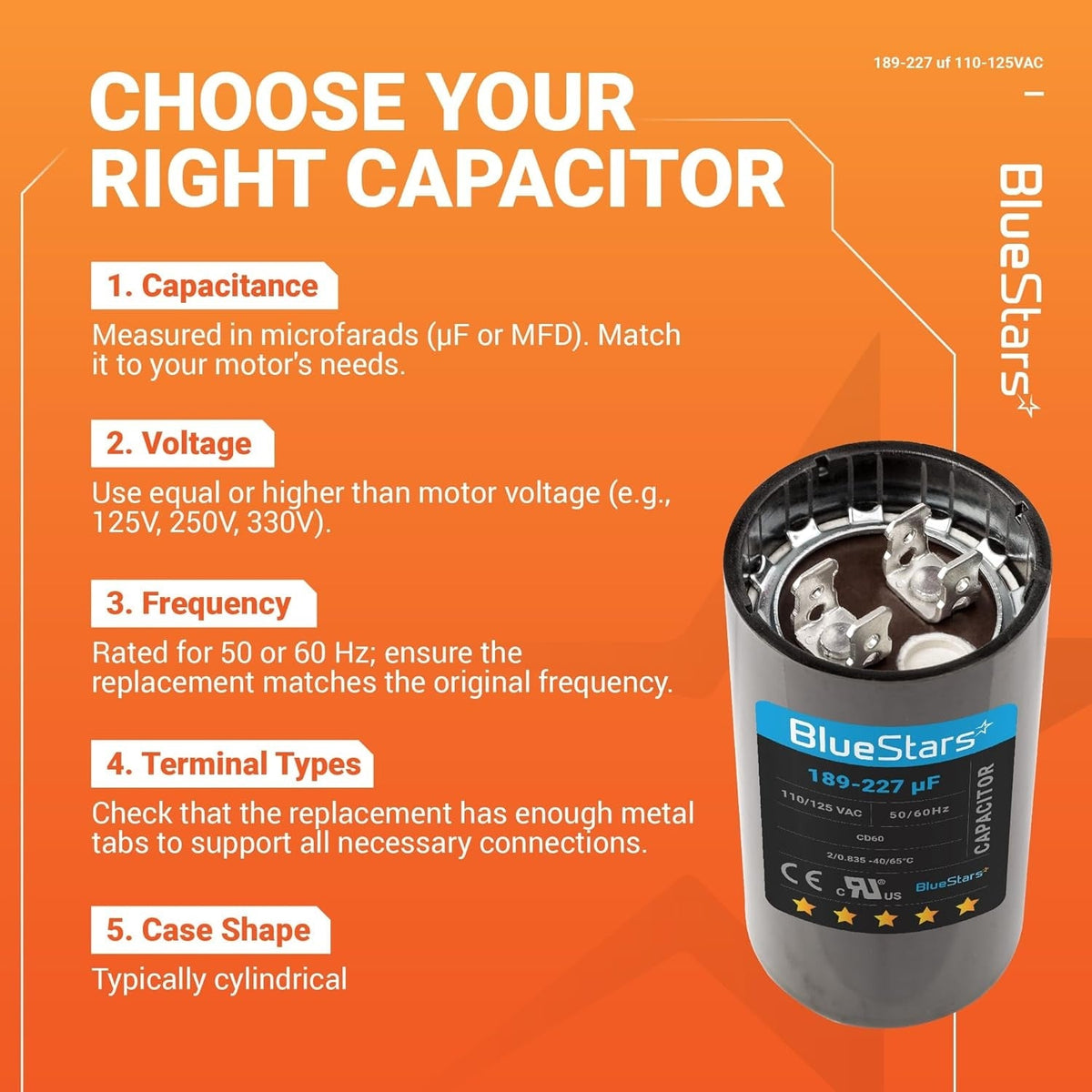

- Ensure the replacement capacitor's uF/MFD rating matches the original component.
- The voltage rating of the new capacitor must be equal to or greater than the original.
- This is a non-polarized capacitor; wires can be connected to either terminal.
-
Perfect fit
Universal fit with any brands with the same ratings -

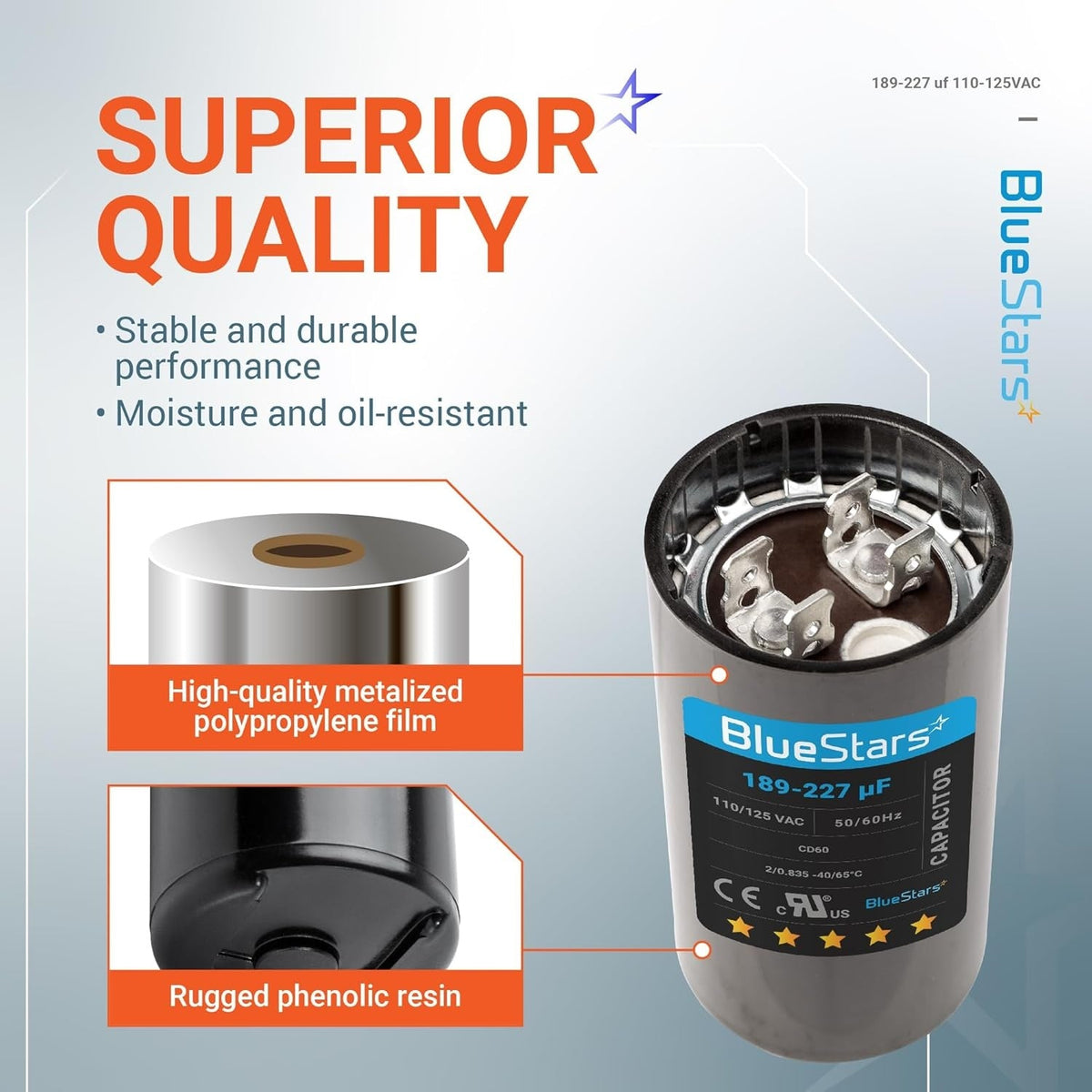

Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
