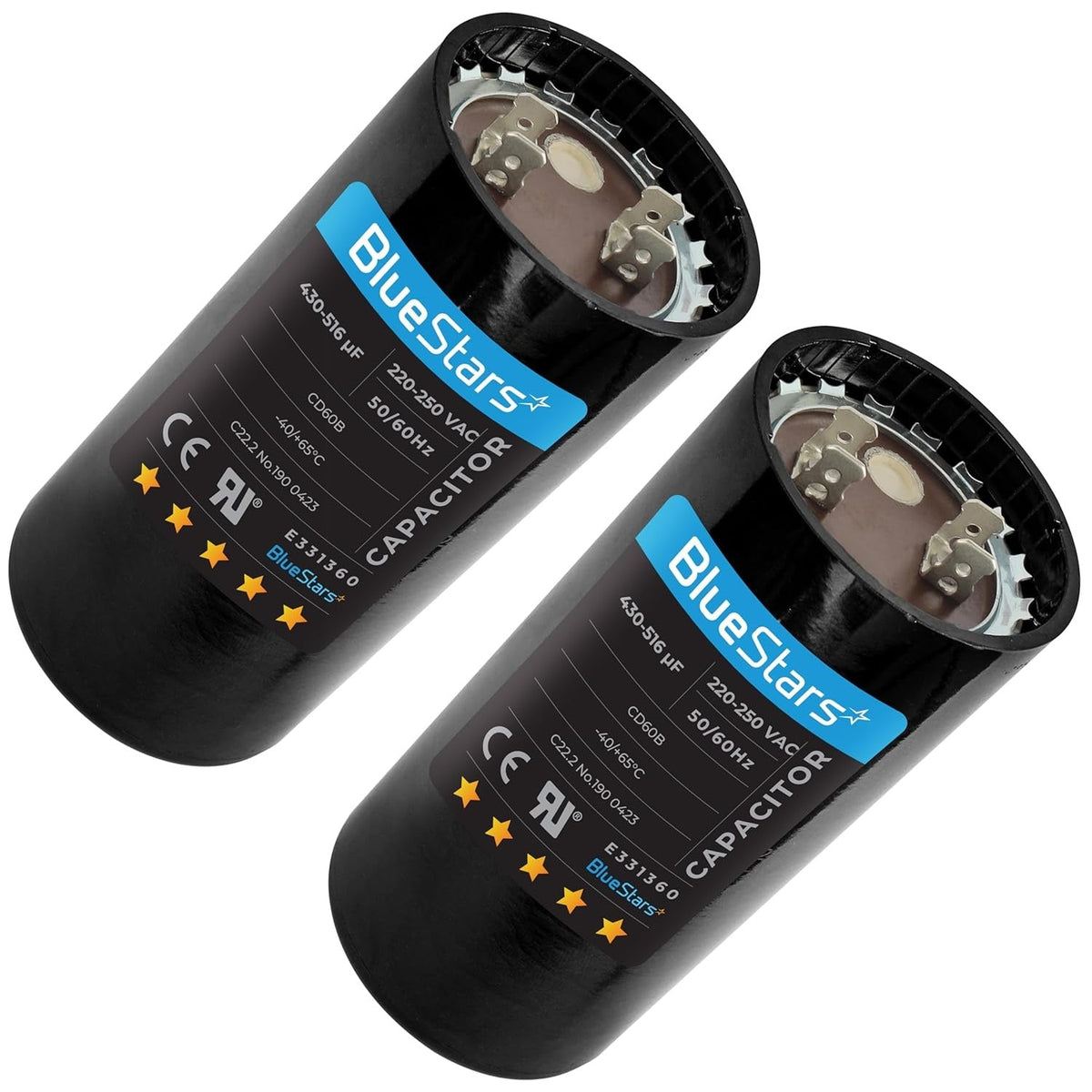

430-516 uF 220-250VAC Round Start Capacitor for Single-Phase Motors - 2 Pack
0.00
Regular price
$22.79
Regular price
Save 11%
$25.52
Sale price
$22.79
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

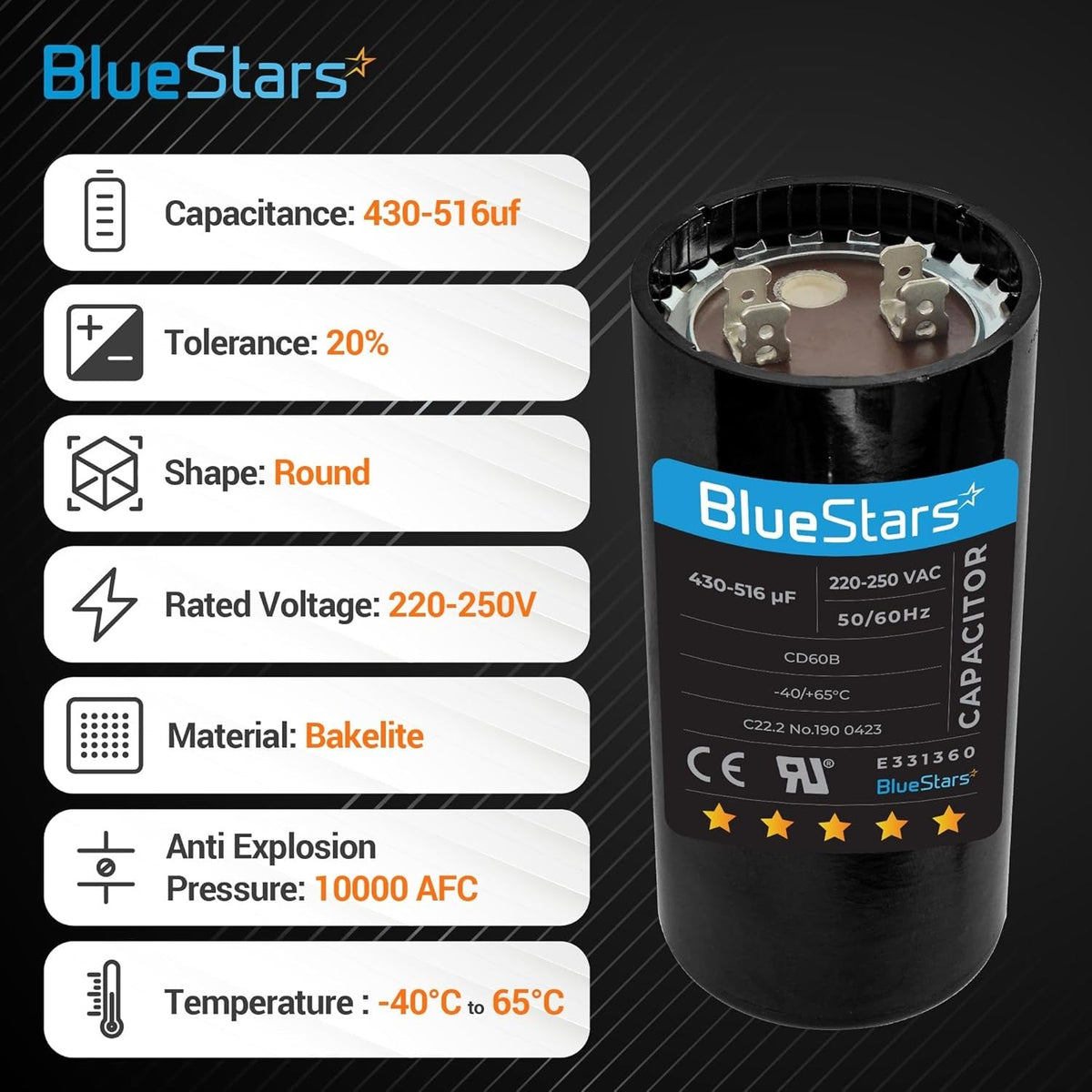

430-516 uF/MFD 220-250 VAC ±20% Volts Round Start Capacitor
Key Features
- Capacitance Range: 430-516 uF (Microfarad)
- Voltage Rating: 220-250 Volts AC
- Frequency: 50/60 Hz
- Tolerance: ±20%
- Type: Dry, electrolytic, non-polarized
- Terminal Type: 1/4 inch male quick-connect
- Shape: Round

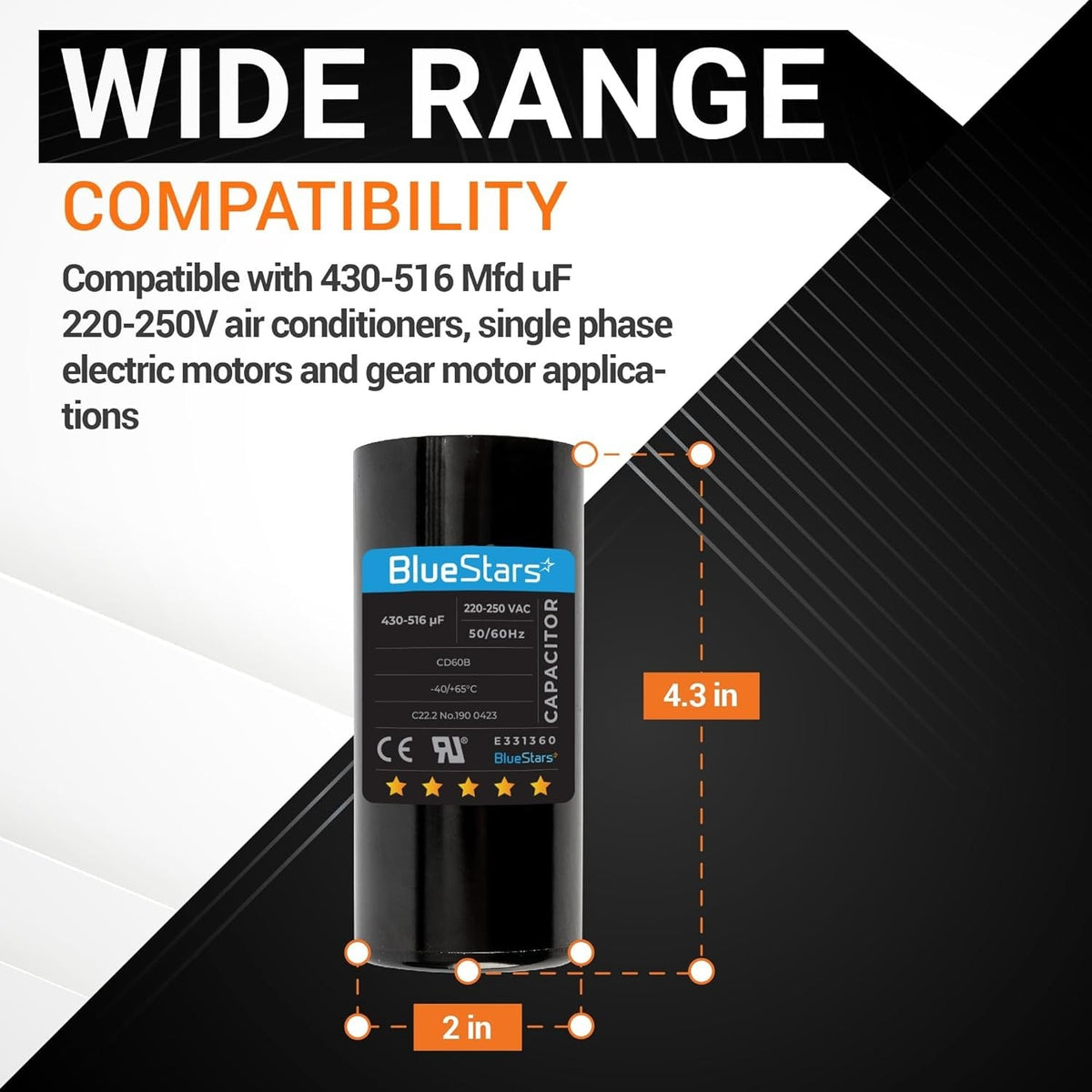

- Dimensions: 2-1/8 inch diameter x 4-3/8 inch height
Replaces / Cross-Reference Part Numbers
- Replaces any round motor start capacitor with matching capacitance (uF/MFD) and voltage (VAC) ratings.
- Common generic type: CD60
- Industry Part Number: 2-430
Compatibility & Fitment
- Designed for starting single-phase electric motors
- Common applications include HVAC units, air compressors, well pumps, and other fractional horsepower motors
When to Replace
- Motor hums but does not start or turn
- Motor starts slowly or requires manual assistance
- Start winding circuit trips the breaker or blows a fuse
- Capacitor case is visibly bulging, cracked, or leaking fluid
Installation Tips
- Disconnect all electrical power to the unit before servicing.
- Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver or appropriate discharge tool.
- Verify the capacitance (uF/MFD) and voltage (VAC) ratings of the new capacitor match the original part's specifications.
- A replacement capacitor with an equal or higher voltage rating is acceptable.
- Ensure capacitance is within the motor manufacturer's recommended range.
- Note the wire positions before disconnecting the old capacitor.
-

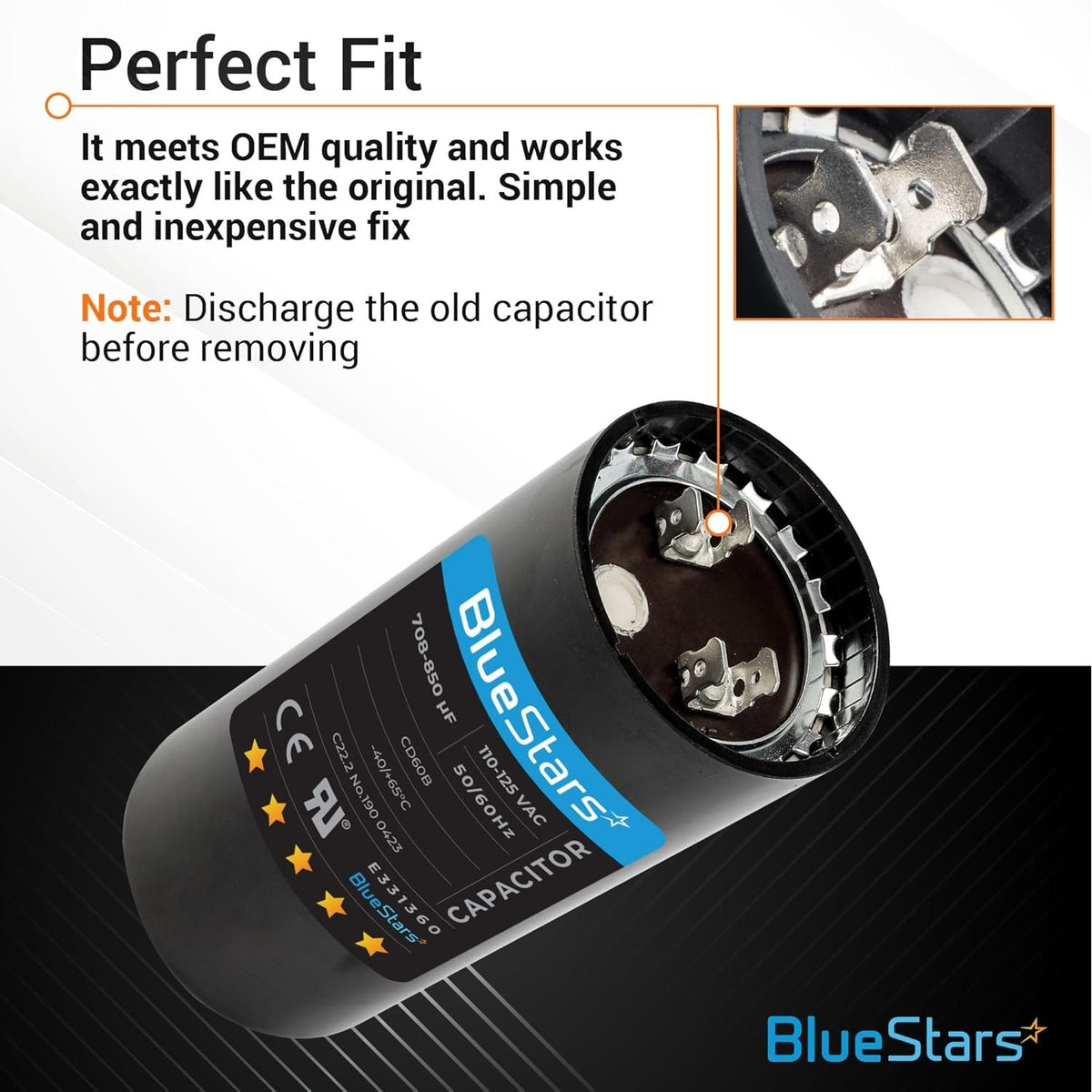

Perfect fit
Universal fit with any brands with the same ratings -
Premium quality

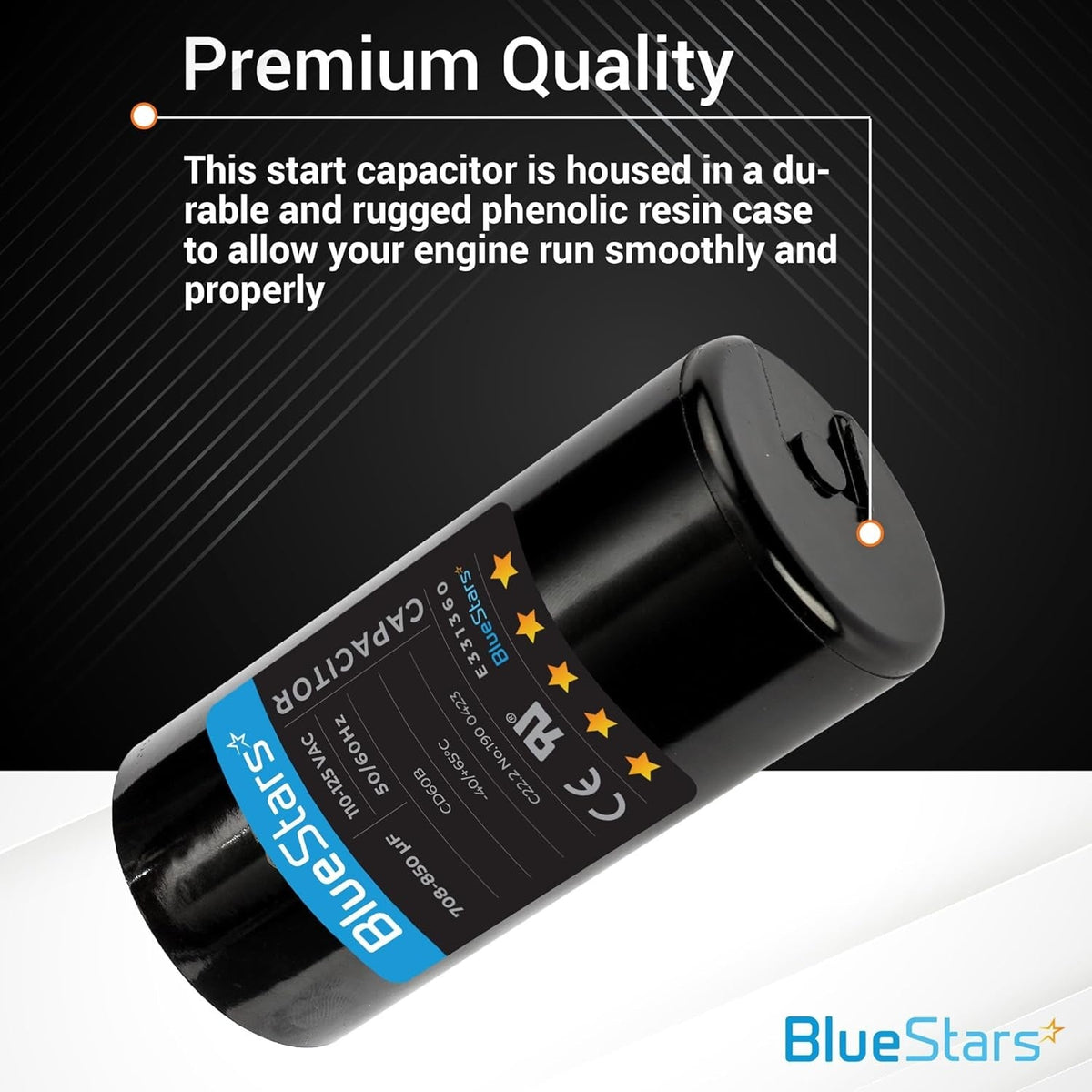

This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
