Amana Brand 3363394 Washer Drain Pump & 285753A Core Motor Coupling Kit - For Whirlpool Kenmore Washers

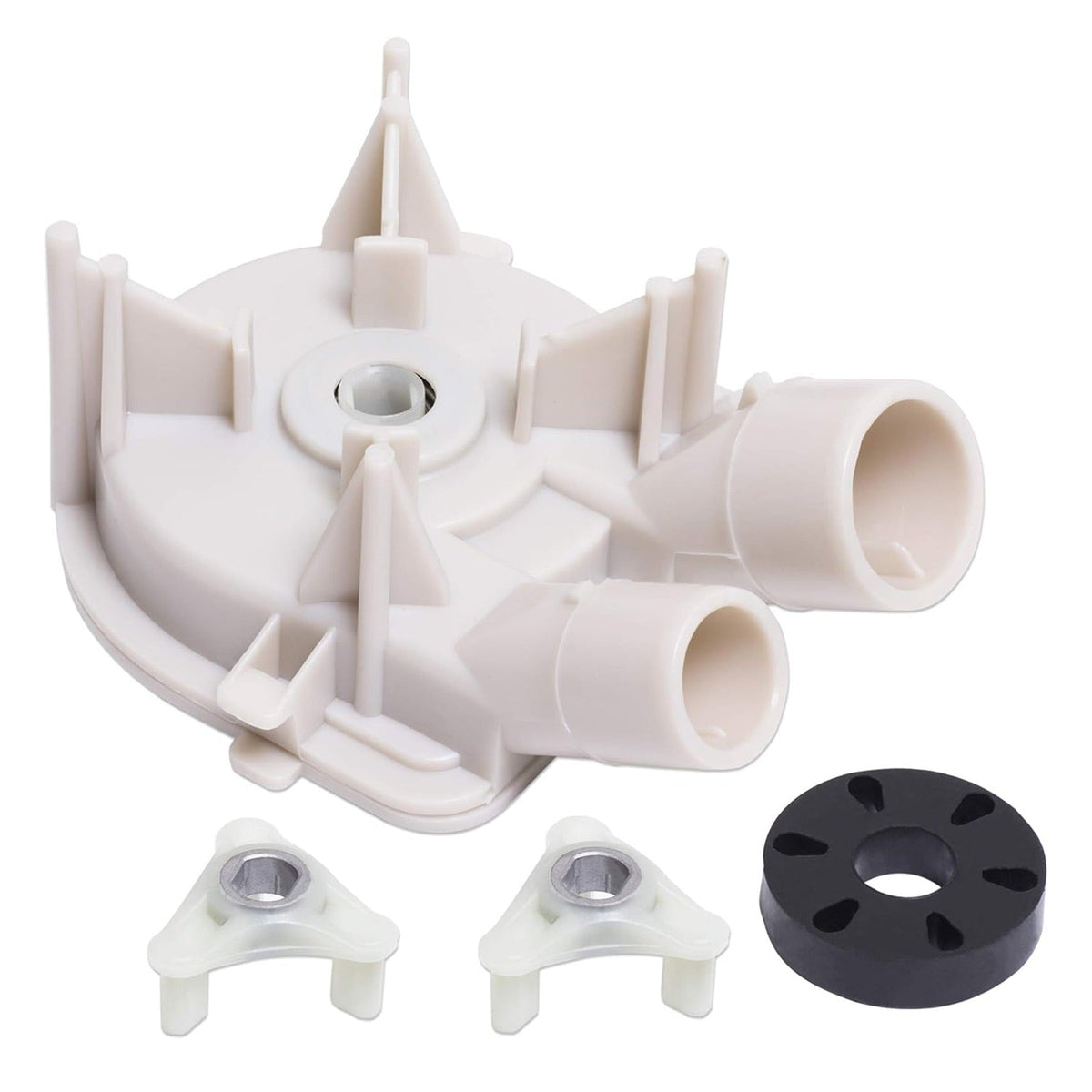

Washer drain pump assembly with motor coupling kit for Whirlpool and Kenmore washing machines.

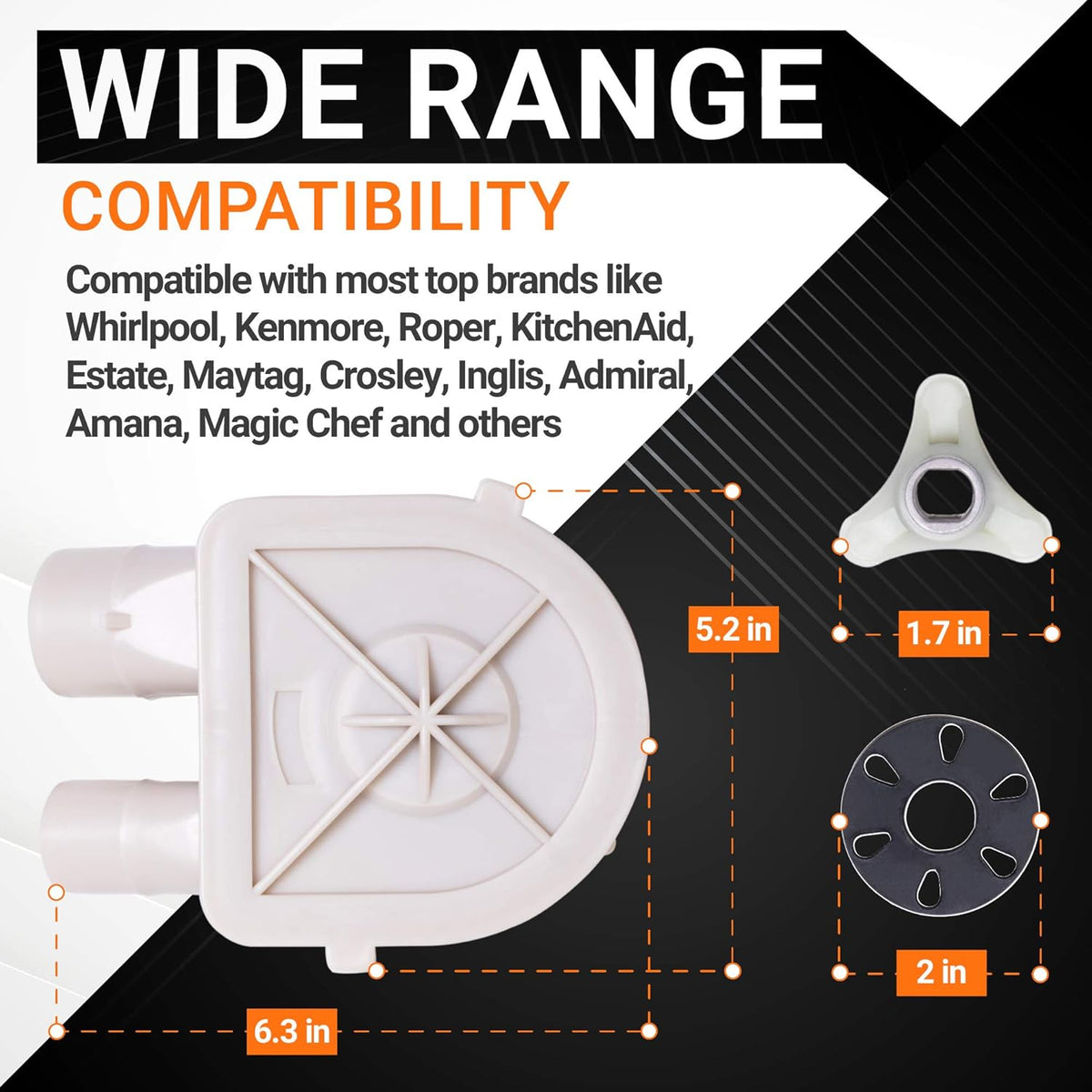

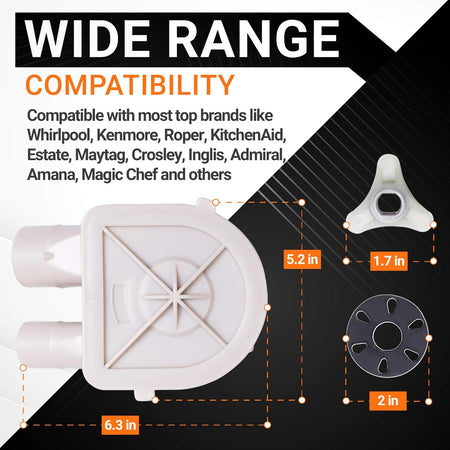

Washer drain pump and motor coupling kit with dimensions for Whirlpool and Kenmore compatibility.
Graphic showing a washing machine with laundry and bubbles, illustrating symptoms fixed by drain pump and motor coupling.
Close-up of washer motor coupling with reinforced metal core for Whirlpool and Kenmore washing machines.
Replacement washer drain pump and motor coupling kit for Whirlpool and Kenmore washing machines.
Washer drain pump assembly with motor coupling kit for Whirlpool and Kenmore washing machines.
Washer drain pump and motor coupling kit with dimensions for Whirlpool and Kenmore compatibility.
Graphic showing a washing machine with laundry and bubbles, illustrating symptoms fixed by drain pump and motor coupling.
Close-up of washer motor coupling with reinforced metal core for Whirlpool and Kenmore washing machines.
Replacement washer drain pump and motor coupling kit for Whirlpool and Kenmore washing machines.
Lifetime Warranty

3363394 Washer Drain Pump & 285753A Core Motor Coupling Kit - For Whirlpool Kenmore Washers

Save 13%
0.00
$26.68
$30.68
$26.68
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

3363394 & 285753A Washer Drain Pump With Washer Motor Coupling Kit

Key Features

  • Includes one washer drain pump and one motor coupling kit.
  • Drain pump removes water from the washer tub during the drain cycle.
  • Pump Port Diameters: 1-3/4 inch inlet, 1-1/4 inch outlet.
  • Motor coupling connects the motor to the transmission, with a reinforced metal core.
  • Designed for direct-drive washing machines without a belt.

Replaces / Cross-Reference Part Numbers

  • Washer Drain Pump (3363394): WP3363394, AP6008107, PS11741239, WP3363394VP, 3348015, 3348014, 3348215, 3352492, EAP11741239, PD00002328
  • Motor Coupling Kit (285753A): AP3963893, PS1485646, 285753AVP, 1195967, 285753, 3352470, 3363664, 280152, 285743, ER285753

Compatibility & Fitment

  • Fits specific direct-drive models from major brands including Whirlpool, Kenmore, Maytag, and Amana.
  • Example compatible model: Whirlpool WTW5500ST0.
  • Verify fitment with your appliance's model number before ordering.

When to Replace

  • Failing Drain Pump Symptoms: Washer will not drain, leaks water from the pump area, or makes loud noises during the drain cycle.
  • Failing Motor Coupling Symptoms: Washer fills and agitates but will not spin or drain; loud rattling or grinding noises during operation.

Installation Tips

  • Disconnect the washer from power and water sources before beginning repairs.
  • Place towels under the pump and hoses to catch residual water.
  • Ensure hoses are securely clamped to the new pump to prevent leaks.
  • Align the motor and transmission shafts correctly when installing the new coupling.
Product image 1
Product image 2
  • PERFECT FIT

    PERFECT FIT

    3363394 & 285753A Washer Drain Pump With Washer Motor Coupling Kit replaces part numbers: 21024, 3348015, 3352492, WP3363394; 1195967, 280152, etc.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    3363394 & 285753A Washer Drain Pump With Washer Motor Coupling Kit is made from high-quality plastic and well-tested by the manufacturer.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your washer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The 3363394 & 285753A Washer Drain Pump With Washer Motor Coupling Kit is very simple that anyone with basic hand tools can do.
COMPLETE KIT

COMPLETE KIT

The 285753A Motor Coupling Kit includes 2 plastic motor couplings and 1 motor isolation

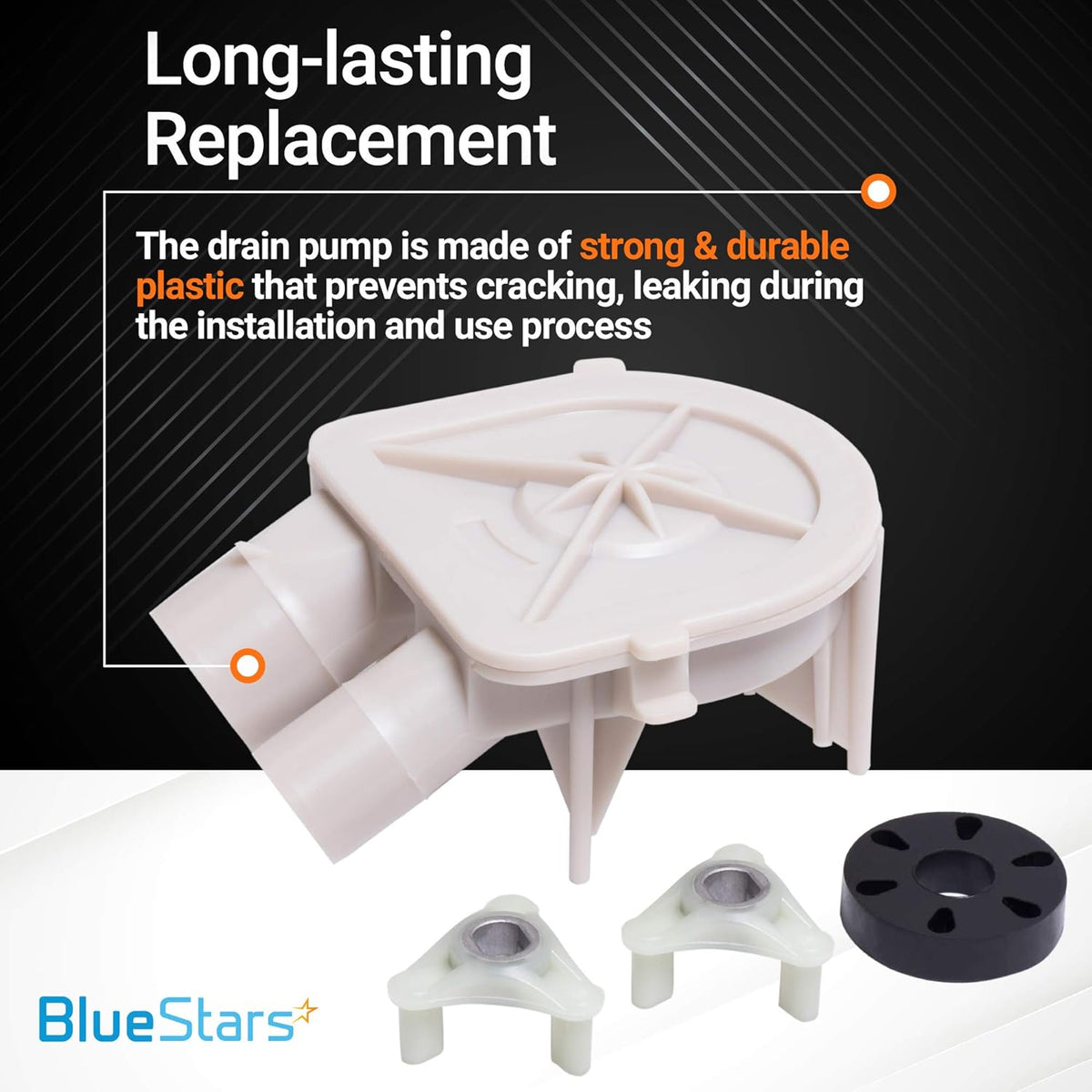

LONG-LASTING REPLACEMENT

LONG-LASTING REPLACEMENT

The drain pump is made of strong and durable plastic that prevents cracking, leaking during the installation and use process

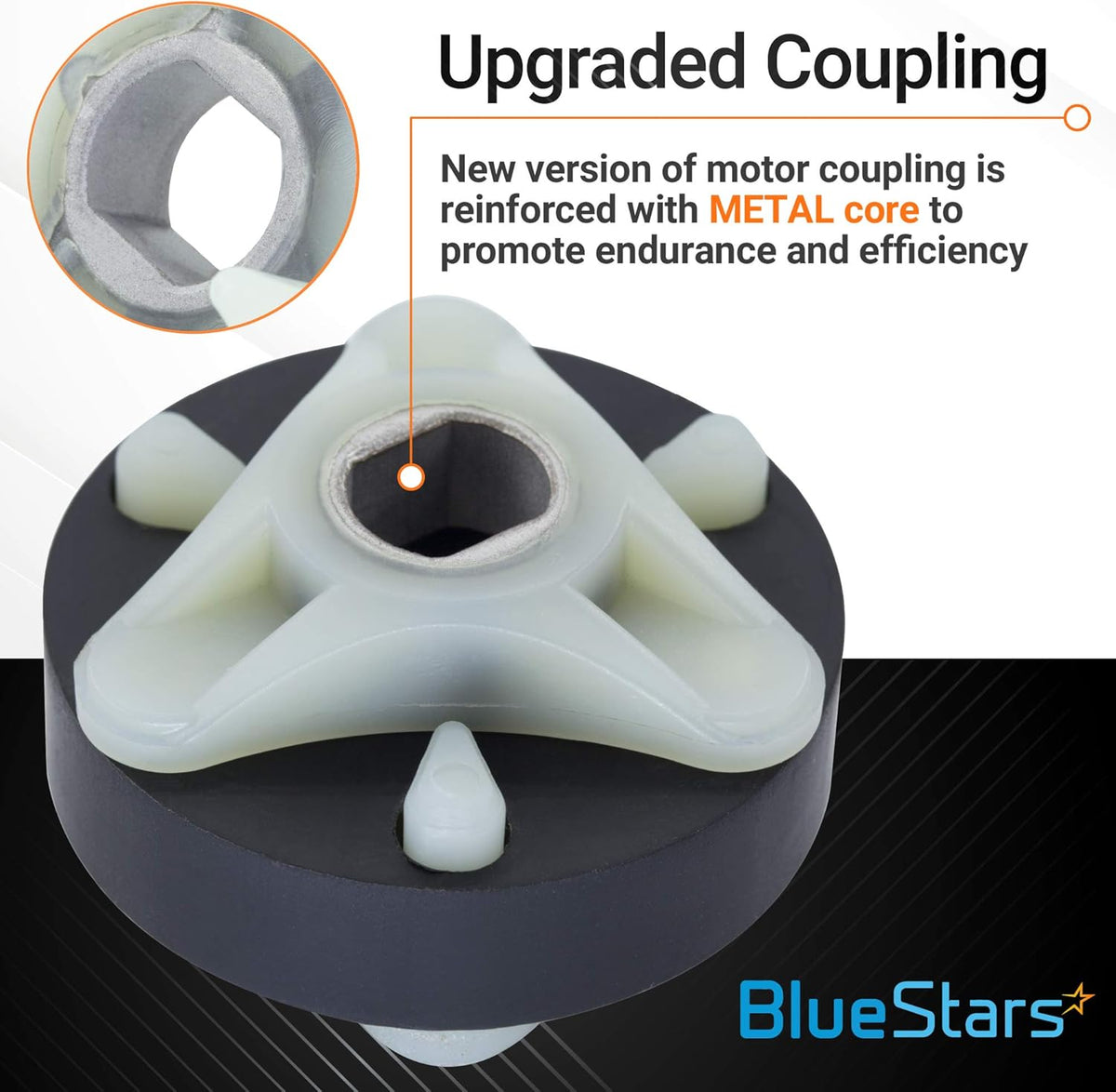

UPGRADED COUPLING

UPGRADED COUPLING

New version of motor coupling is reinforced with METAL core to promote endurance and efficiency
ECONOMICAL DIY REPAIR

ECONOMICAL DIY REPAIR

Enjoy the comfort that our washer drain pump with washer motor coupling kit brings into your washer - BlueStars provides DIY solutions to help you deal with any troubles
Brand Model Number
Replaces 3363394 3296, 3348014, 3348015, 3348215, 3352492, 8235, 21024, 62516, 63347, 64076, AP6008107, EAP11741239, LP116, PD00002328, PS11741239, WP3363394, WP3363394VP
Replaces 285753A 21003, 80008, 280152, 285140, 285743, 285753, 285753AVP, 661560, 1195967, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 8559748, AH1485646, AP3963893, EA1485646, EAP1485646, ER285753, PD00002353, PS1485646, TJ285753
Admiral LAT1000AAE, LAT2000AAE
Amana AAV1000AWW, AAV2000AWW, NAV2020AWW, NAW3030AWW
Crosley CAWS833RQ0, CAWS953RB0, CAWS966RQ0, CAWS9234VQ0
Estate ETW4300SQ0, ETW4400TQ0, ETW4400VQ0, TAWS700EQ0, TAWS700EQ1, TAWS800JQ0, TAWS800JQ1, TAWS800MQ0, TAWS800PQ0
Inglis ITW4300SQ0, ITW4400TQ0, ITW4400VQ0
Kenmore 11019802800, 11020802990, 11020902990, 11021202010, 11022802991, 11022812990, 11023812100, 11024612300, 11024802300, 11024812300, 11024992201, 11025132410, 11025912200, 11026004010, 11026014010, 11026014011, 11026604010, 11026604011, 11026664011, 11026814690, 11026814691, 11026852691, 11026952690, 11027002012, 11027014010, 11027862600, 11028002011, 11028012011, 11028802010, 11029802890, 11029862890, 11029882890, 11082980110, 11092273100, 11092562100, 11092572100, 11092573110, 11092582100, 11092583100, 11092962101
KitchenAid KAWE450VAL0, KAWE540WWH2, KAWE660WWH1, KAWE667BWH0, KAWE677BWH0, KAWE677BWH1, KAWE678BAL1, KAWE742VWH0, KAWE742VWH3, KAWE742WWH3, KAWE760WWH3, KAWE777BWH1, KAWS677EQ0, KAWS700GQ0, KAWS700GT0, KAWS700GZ0, KAWS700JQ3, KAWS750JQ4, KAWS850JQ4, KAWS850LE0
Maytag MAT20CSAGW0, MAT20MNAGW0, MAT20PDAGW0
Roper RAS7133KQ0, RAS8245EN1, RAS8333RQ3, RAS8445JQ0, RAS8445KQ0, RAX7244EN0, RAX7244EQ0, RAX7244KQ1, RTW4000SW0, RTW4400TQ0, RTW4516FW0
Whirlpool LA4800XTN0, LA4800XTW0, LA5300XSW0, LA5300XTW0, LA5330XTF0, LA5400XSW0, LA5430XTW0, LA5460XSW1, LA5500XPW2, LA5500XTF0, LA5500XTG0, LA5530XTF0, LA5578XTW0, LA5580XSW3, LA5600XSW2, LA5600XTF0, LA5705XTW1, LA6055XTG0, LA6150XSW0, LA6150XSW1, LA6300XSW1, LA6300XTN0, LA6800XSN1, LA6800XSW0, LA6800XTF0, LA7000XTF0, LA7800XTN0, LA7801XTF0, LA7900XTN0, LA9100XTW1, LA9320XTW0, LA9500XTG0, LA9500XTM0, LC4900XTM0, LT4900XSW2, LT7000XTW0
Whirlpool LBR5432PQ0, LBR5432PT0, LBR6133DQ0, LBR6233AN0, LBR6233DQ0, LBR6233EQ0, LBR6233JQ0, LBR6432LQ0, LBR6432PQ0, LBR6432PT0, LBT6233AN0, LBT6233DQ0, LBT6233DQ1, LBT6233JQ0, LBT6233JQ1, LLR6144BQ0, LLR6233AW0, LLR7144EQ0, LER3622PQ0, LER4634EQ1, LER5636PQ0
Whirlpool LSB6300LW2, LSB6300PW0, LSB6300PW3, LSB6400LW0, LSB6500PW0, LSC5000PQ2, LSC8244DQ0, LSC9355EQ0, LSN1000JQ1, LSQ7030LQ0, LSQ8000JQ0, LSQ8020HQ0, LSQ8243HQ0, LSQ8543JQ0, LSQ8543JQ1, LSQ9010PW0, LSQ9110PW0, LSQ9549LW0, LSQ9659LW0, LSR5132HQ0, LSR5233AW0, LSR6232EQ0, LSR6233AN0, LSR6233BW2, LSR6332KQ1, LSR6334LQ0, LSR7233BW2, LSR7233EQ0, LSR7233EQ1, LSR8233EQ1, LSR8433KQ0, LSW9750PQ3
Whirlpool LTE5243DQA, LTE5243DQB, LXR6232EQ0, LXR7244JT1, LXR7244PT0, SAWS800MQ0, WTW5540SQ0
Color
‎White
Material
‎ABS Plastic, Stainless Steel
Product Dimensions
‎7.6"L x 6"W x 3.3"H
Maximum Flow Rate
‎40 Liters Per Minute
Voltage
‎110 Volts (AC)
Manufacturer
‎BlueStars
UPC
‎700884006708
Part Number
‎3363394 & 285753A
Included Components
‎1 x 3363394 Washer Drain Pump, 1 x 285753A Dryer Motor Coupling Kit

FAQ

This kit is designed for direct-drive washing machines manufactured by Whirlpool, Kenmore, Maytag, Roper, Estate, and Kirkland. It is a universal fit for most direct-drive style washers from these brands that utilize the 3363394 pump and 285753A coupling system.
The drain pump replaces OEM numbers 3363394, WP3363394, 3352492, 3352493, 3352293, 3352292, 3348215, 3348014, 3348015, 21024, 8235, 64076, 63347, and 62516. The motor coupling replaces 285753A, 1195967, 21003, 280152, 285140, 285743, 285753, 285753AVP, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 661560, 80008, and 8559748.
You likely need the drain pump if your washer is leaking water from the pump area, failing to drain, or making loud grinding noises during the drain cycle. The motor coupling typically needs replacement if the motor is running but the agitator or spin basket is not moving, often accompanied by a burning rubber smell or a complete lack of agitation.
Replacing these parts is a moderate repair that typically takes 45 to 90 minutes. You will need a flat-head screwdriver to release the console clips, a 5/16-inch nut driver to remove the cabinet screws, and potentially a pair of pliers for the hose clamps. Always disconnect the power and water supply before beginning.
The drain pump often fails due to debris or small items like coins or hairpins entering the impeller, which can crack the housing or seize the motor. The motor coupling is a sacrificial part designed to break if the washer is overloaded or if the transmission locks up, protecting the motor from burning out.
When installing the new 285753A coupling, ensure the metal inserts are fully seated on the motor shaft and the transmission shaft. It is helpful to lightly tap them into place with a rubber mallet if they are tight. Avoid forcing them at an angle, as this can damage the plastic housing.
