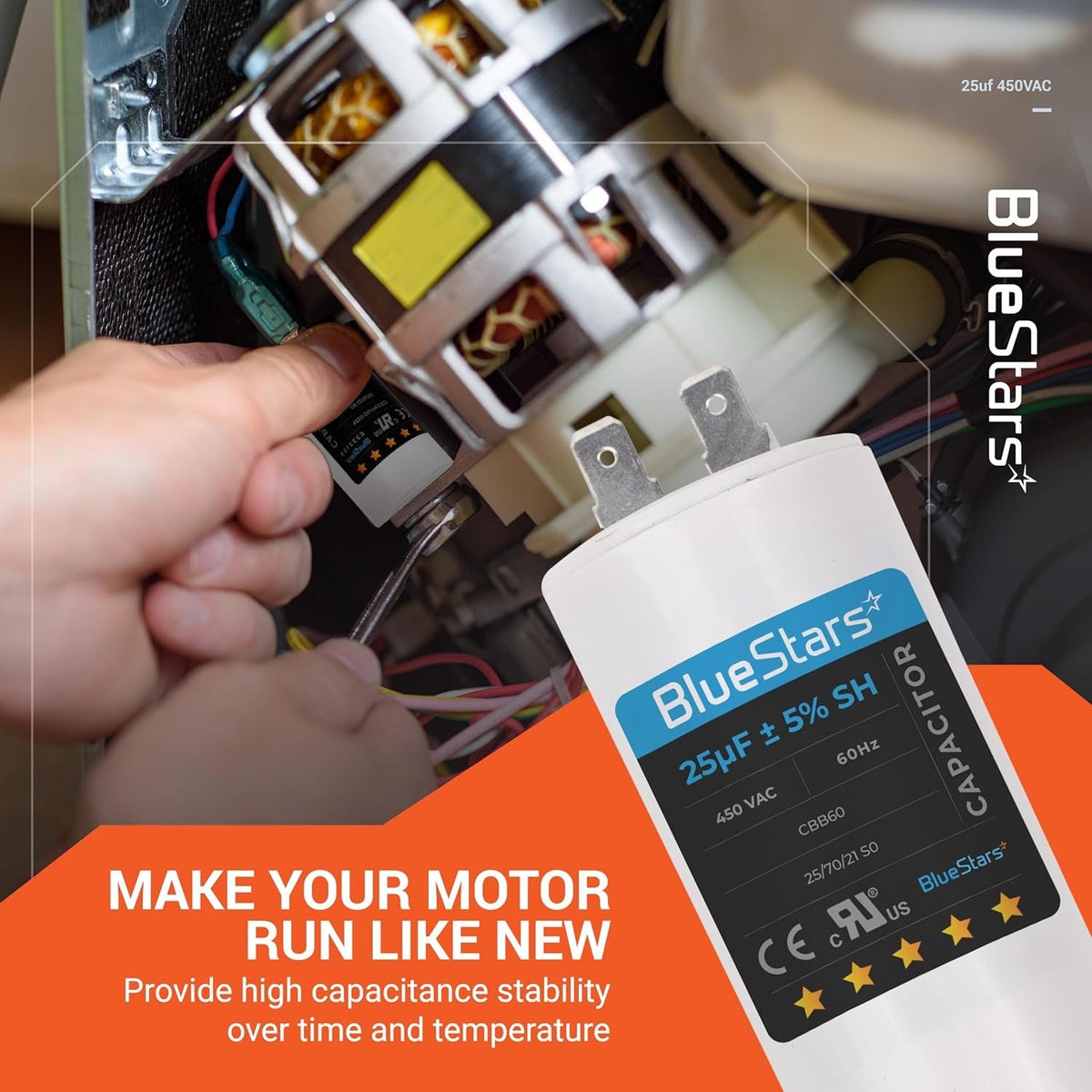

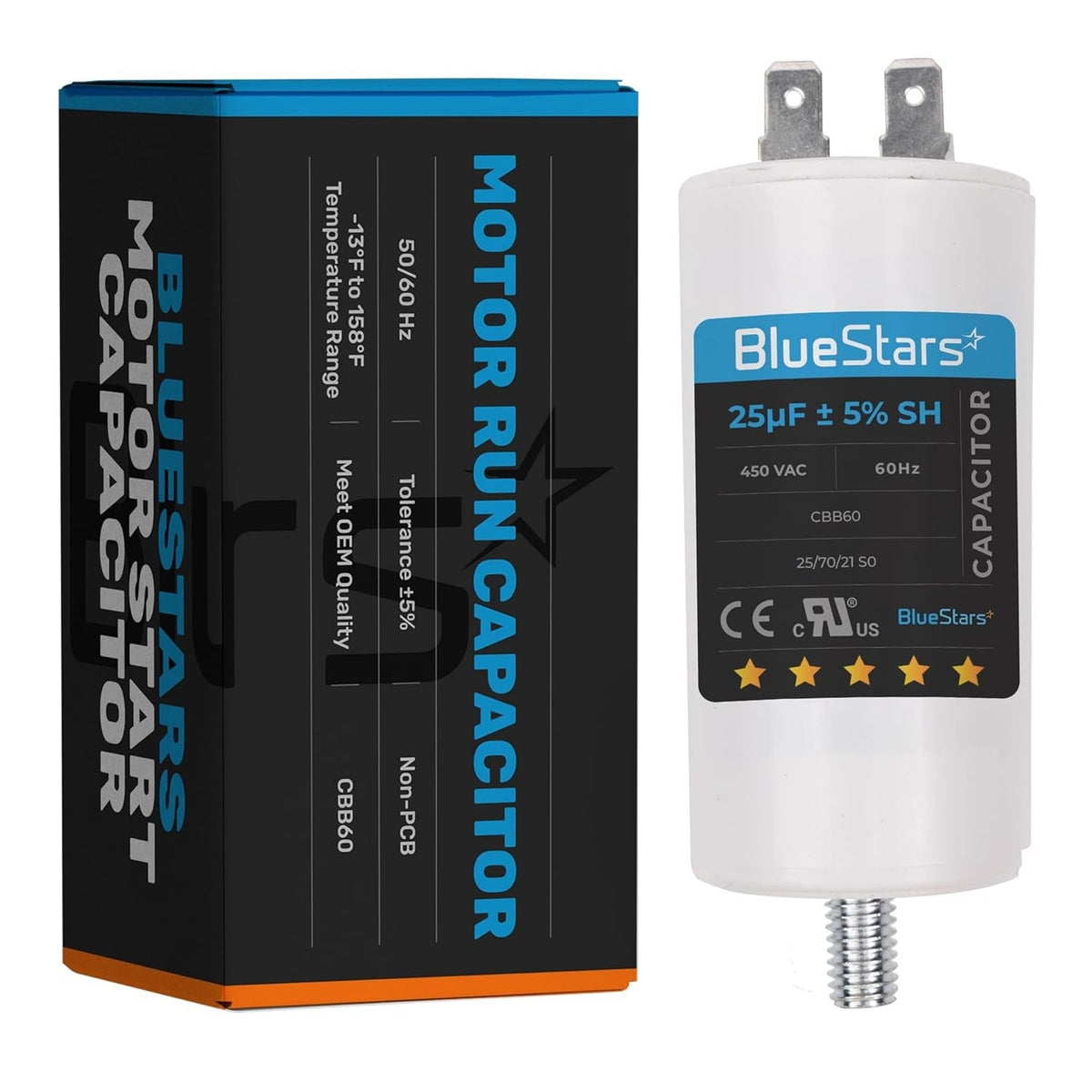

25 uF 450VAC CBB60 Run Capacitor with Screw for Motors Pumps
0.00
Regular price
$11.99
Regular price
Save 11%
$13.43
Sale price
$11.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
25 uF/MFD/Microfarad 450 VAC Volts CBB60 50Hz/60Hz Run Capacitor with Screw

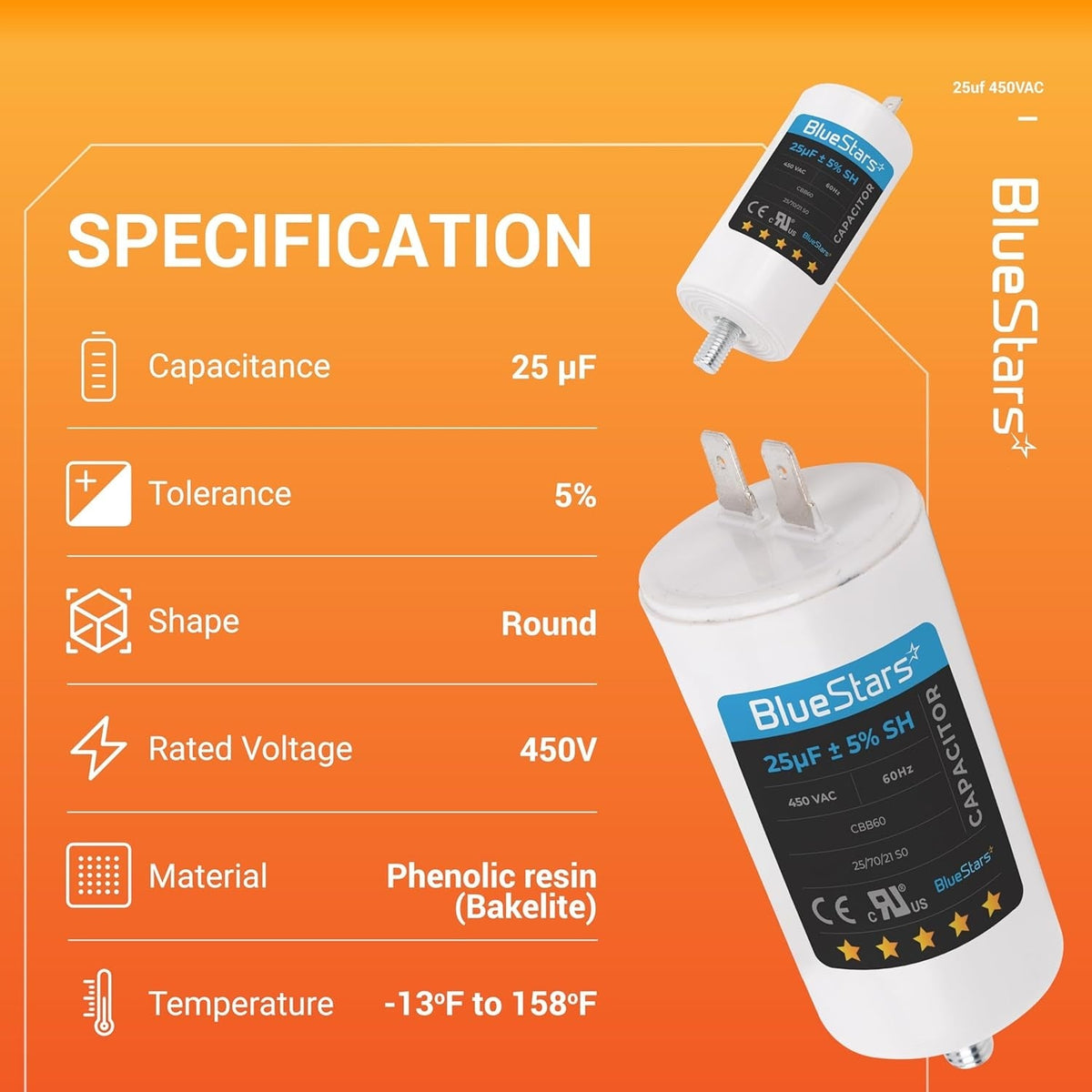

Key Features
- Model: CBB60
- Capacitance: 25 µF (MFD)
- Capacitance Tolerance: ±5%
- Voltage Rating: 450 VAC
- Frequency: 50Hz / 60Hz
- Operating Temperature: -40°C to +70°C
- Construction: Metallized polypropylene film in a sealed case

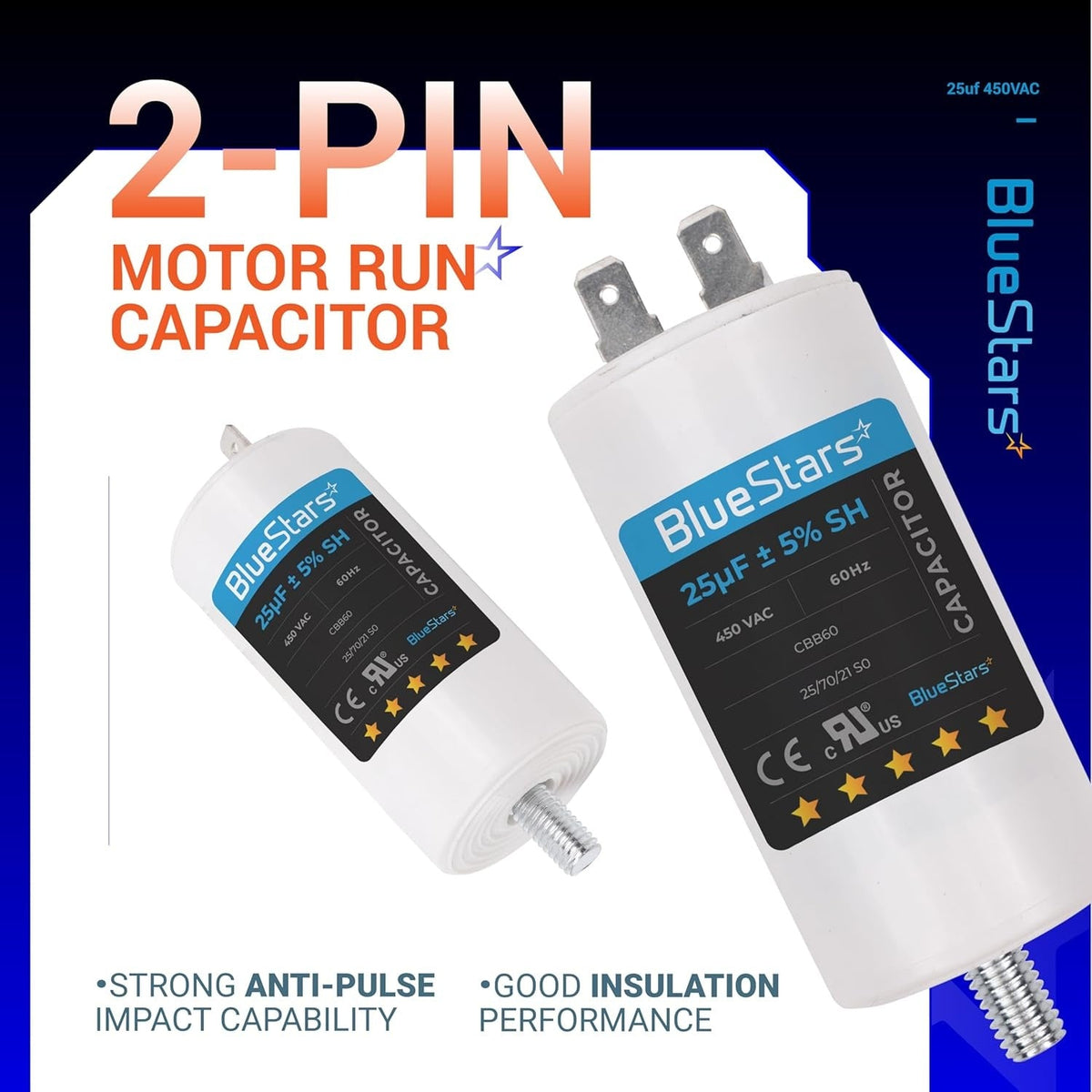

- Termination: Multi-pin terminal with screw connection
- Mounting: M8 threaded stud integrated into the base
- Safety: Features a pressure-sensitive safety mechanism
Replaces / Cross-Reference Part Numbers
- Direct replacement for any CBB60 capacitor with matching specifications.
- Interchangeable with other run capacitors rated at 25 uF and 450V AC.
Compatibility & Fitment
- Designed for starting and running single-phase AC motors.

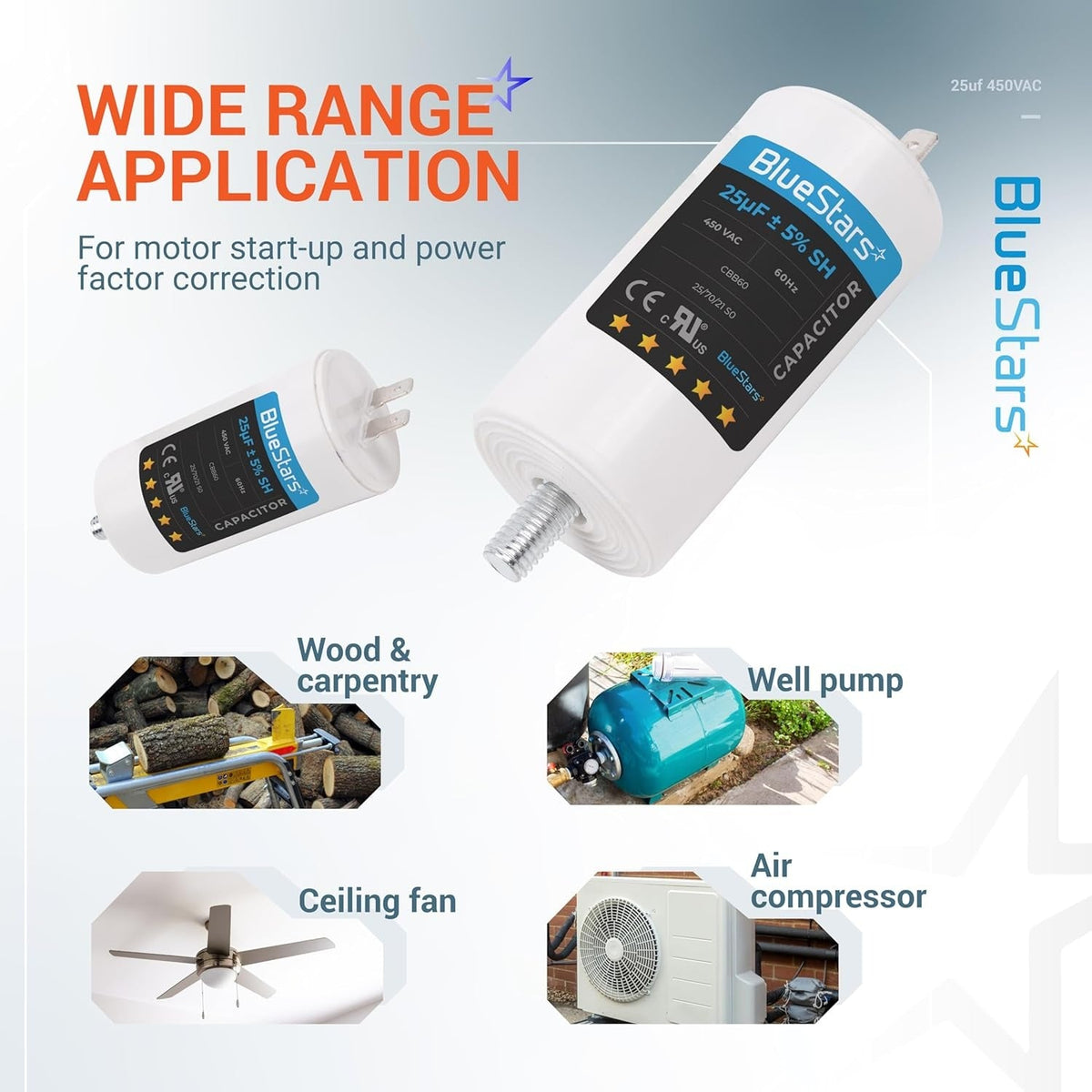

- Common applications include water pumps, pressure washers, air compressors, HVAC systems, fans, and washing machines.
- Verify physical dimensions of the original capacitor to ensure proper fit.
When to Replace
- Motor hums but struggles to start or fails to start.
- Reduced motor power or performance.
- Motor overheats during operation.
- Capacitor case is visibly bulging, cracked, or leaking oil.
- Capacitance measures outside the specified tolerance range when tested.
Installation Tips
- Disconnect all electrical power to the appliance before installation.
- Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver.
- Note the wire placement on the old capacitor terminals before disconnecting.
- Confirm that the voltage (VAC) and microfarad (uF) ratings match the original part.
- Securely mount the new capacitor using the M8 screw and attach wire connections firmly.
-
PERFECT FIT
Universal fit with any brands with the same ratings. -
PREMIUM QUALITY

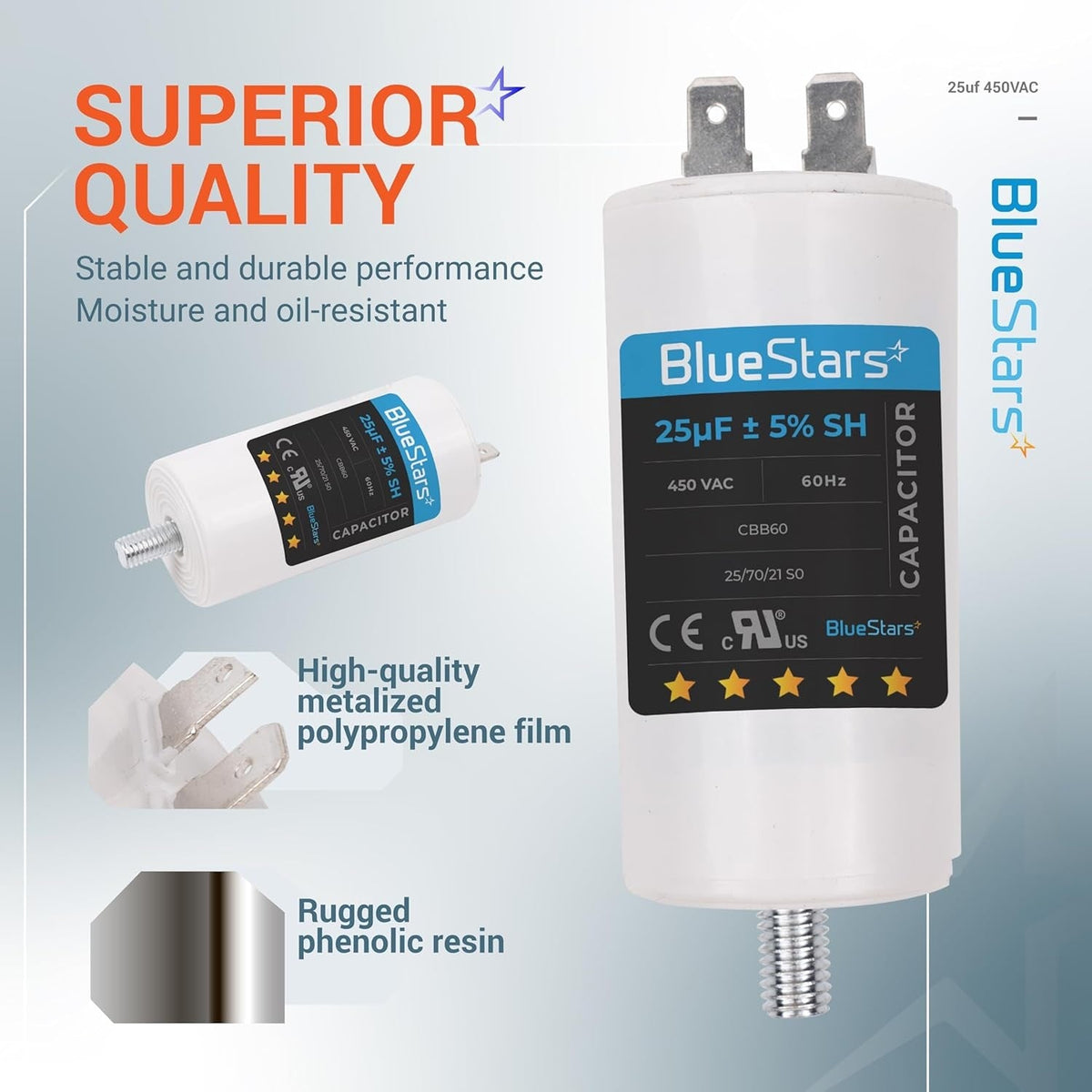

This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
SAVING SOLUTION
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
SIMPLE INSTALLATION
Because the capacitor is a relatively simple part, the installation just takes few minutes and will save you at least a hundred bucks in labor.
