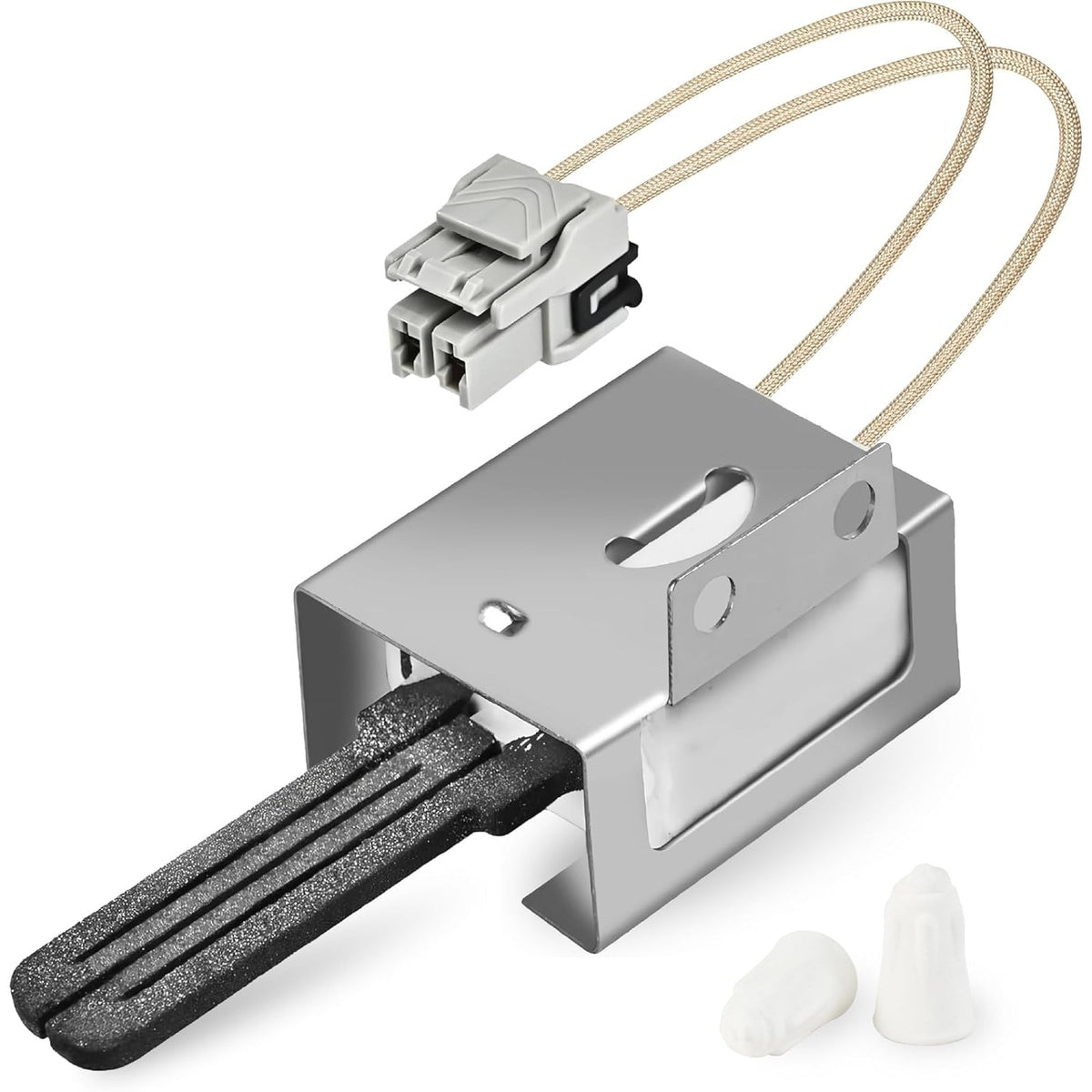

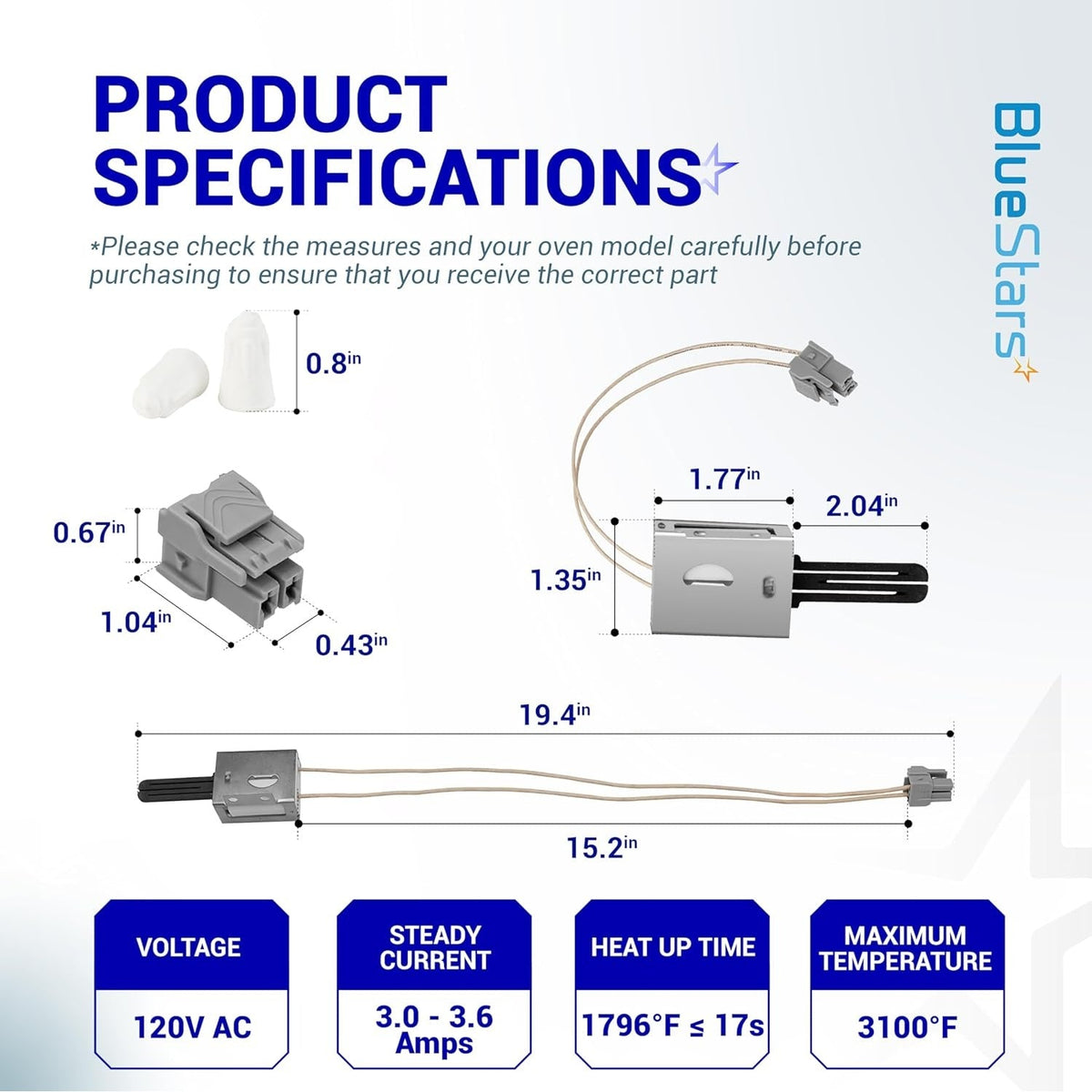

WB13X25500 Gas Range Oven Igniter for GE

WB13X25500 Gas Range Oven Burner Igniter

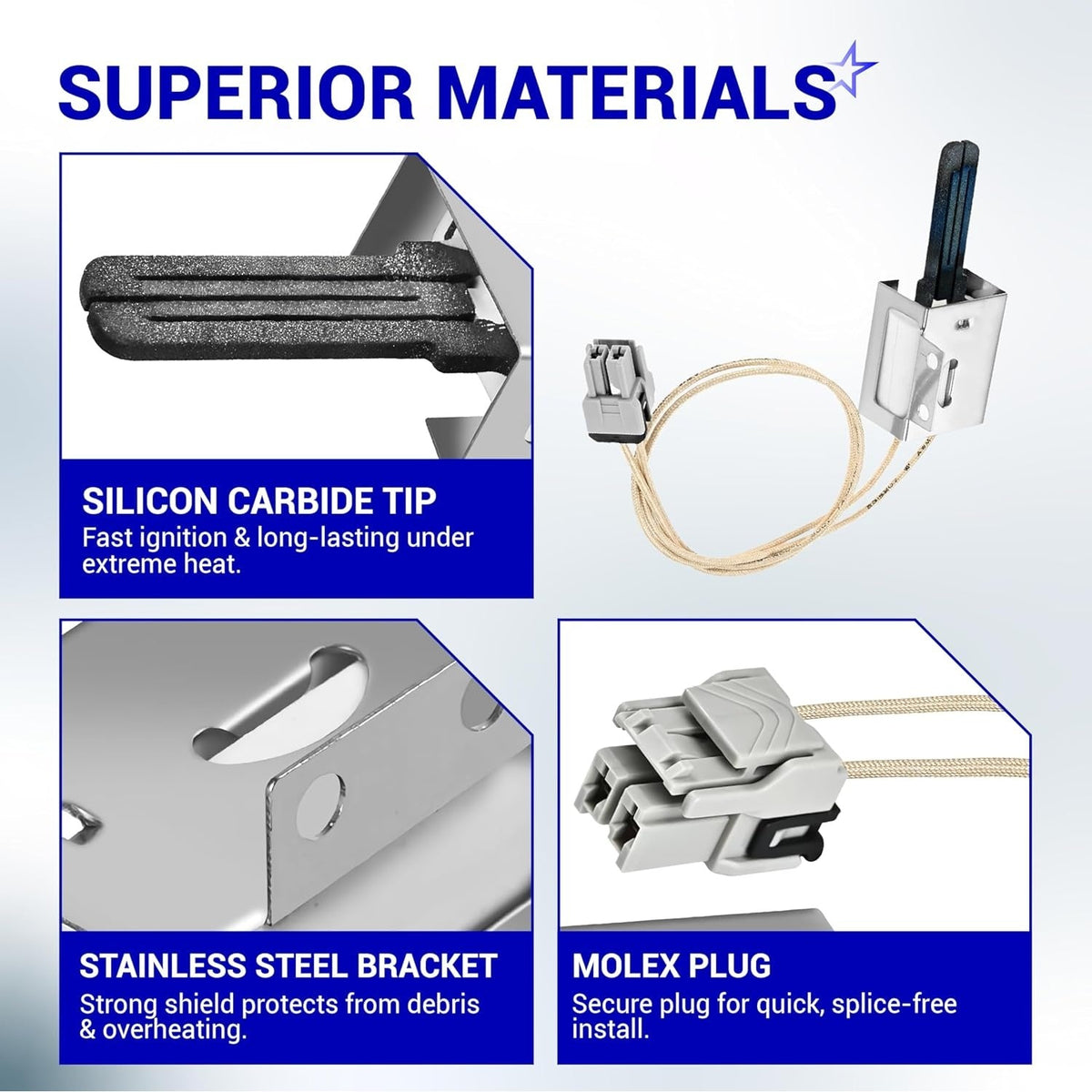

Key Features

• Rapid-Glow Silicon Carbide Element: Engineered to reach ignition temperatures of 2200°F–2800°F within 30–60 seconds, ensuring the gas safety valve opens promptly for efficient oven heating.
• Safety Amperage Interlock: Acts as a precision electrical resistor; the gas valve is designed to open ONLY when the igniter draws between 3.2 and 3.6 Amps, preventing gas from flowing if the igniter is too weak to light it.
• Reinforced Stainless Steel Shield: Features a perforated metal cage that protects the fragile ceramic heating element from physical impact and falling food debris during installation and use.
• High-Temperature Ceramic Base: The mounting block is constructed from premium, non-conductive ceramic to withstand the intense thermal environment of the bake burner without cracking.

Replaces / Cross-Reference Part Numbers

• WB13X40206
• AP5986244
• PS11726670
• 4369880
• EAP11726670
• PD00041940
• DS043KX
• WB13X25500CM
• 223C3381G029
• 501RB

Compatibility & Fitment

This hot surface igniter is the primary ignition component for newer generation GE-manufactured gas ranges. Key compatible series include:

• GE JGB Series: Fits hundreds of models including JGB660SEJ4SS, JGB700SEJ4SS, JGB630, and JGB645 series.
• GE Profile PGB Series: Compatible with high-end models such as PGB930SEJ4SS and PGB911SEJ2SS.
• Hotpoint & Kenmore (362 Series): Direct fit for various RGB and 362-prefix gas ranges utilizing the flat-style GE igniter.
• Note: This part is typically used as the Bake Igniter (bottom burner). While it may look similar to the broil igniter, always verify your model's parts list as the mounting bracket or wire length may differ for the top burner.

When to Replace

• Oven Won't Light: The oven control board clicks and the display shows "Bake," but the igniter remains dark and no gas is released.
• Glows but No Flame: The igniter glows bright orange but fails to reach the specific amperage required to trigger the gas safety valve.
• Takes Too Long to Preheat: If the oven takes 20+ minutes to reach 350°F, the igniter is likely "weak" and cycling the gas valve too slowly.
• Gas Odor During Start: If you smell gas before the burner lights, the igniter is taking too long to reach ignition temperature, causing gas to pool in the cavity.
• Visible Cracks: Upon inspection, the black silicon carbide element shows white "hot spots" or hairline fractures.

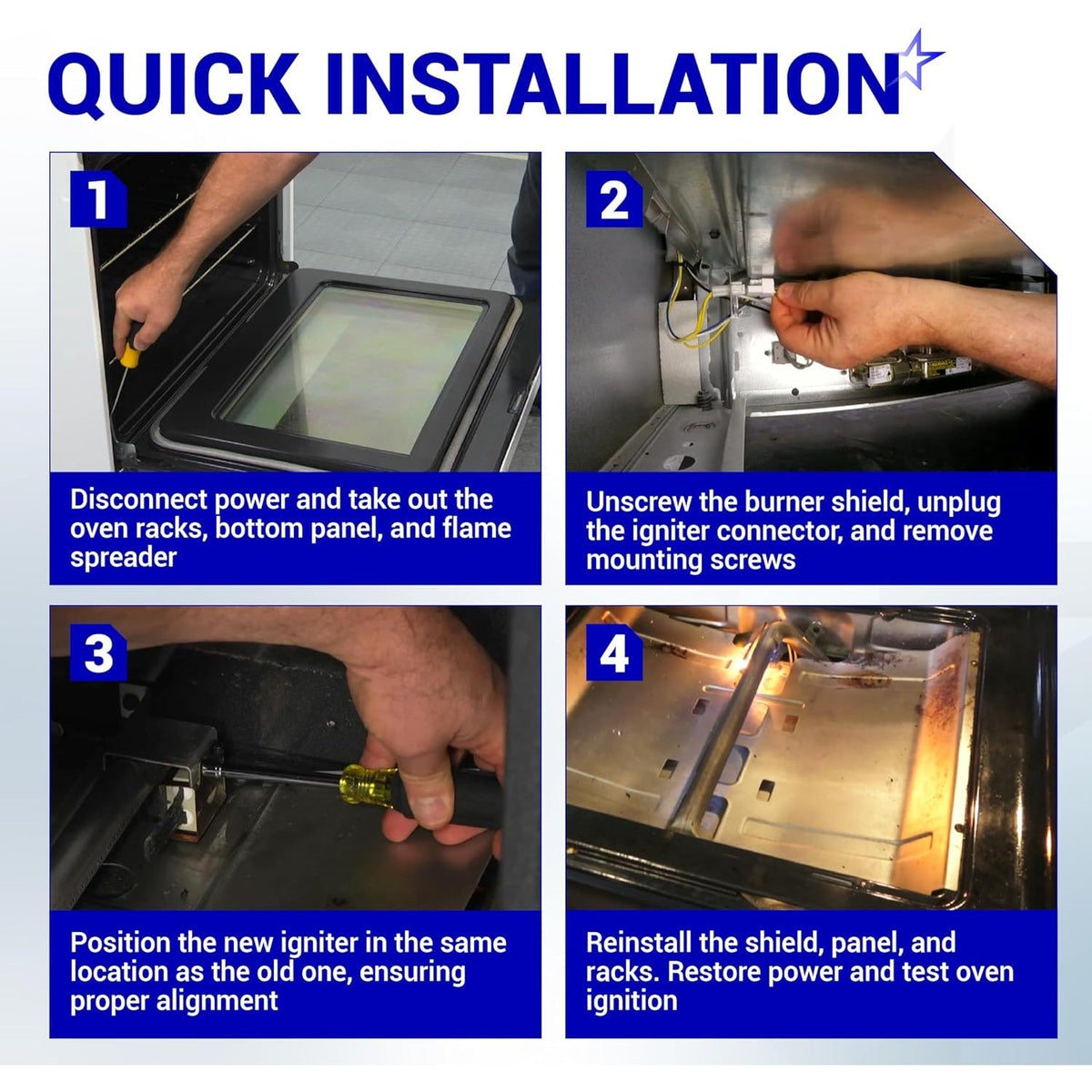

Installation Tips

• Safety First: You MUST unplug the range and shut off the gas supply. Oven repairs involve live electrical terminals and flammable gas.
• The "No-Touch" Rule: **CRITICAL:** Do not touch the black/gray element with your bare hands. Natural skin oils create "hot spots" that lead to premature failure. If you touch it, clean it gently with rubbing alcohol.
• Accessing the Burner: Remove the oven racks and the bottom metal floor pan. You will typically find the igniter mounted to the side of the burner tube near the back of the oven.
• Check the Harness: Inspect the plastic connector on the range side for melting or charring. If the connector is damaged, you must cut it off and use ceramic wire nuts to connect the new igniter.
• Mounting Tension: Ensure the mounting screws are snug but do not overtightening, as excessive vibration from a loose mount can cause the fragile ceramic element to snap.
