108-130 uF 110-125VAC ±20% CD60 Start Capacitor for Pool & Well Pumps
0.00
Regular price
$14.39
Regular price
Save 11%
$16.11
Sale price
$14.39
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
108-130 uF MFD 110-125 VAC Volts ±20% 50/60 Hz AC CD60 Round Start Capacitor

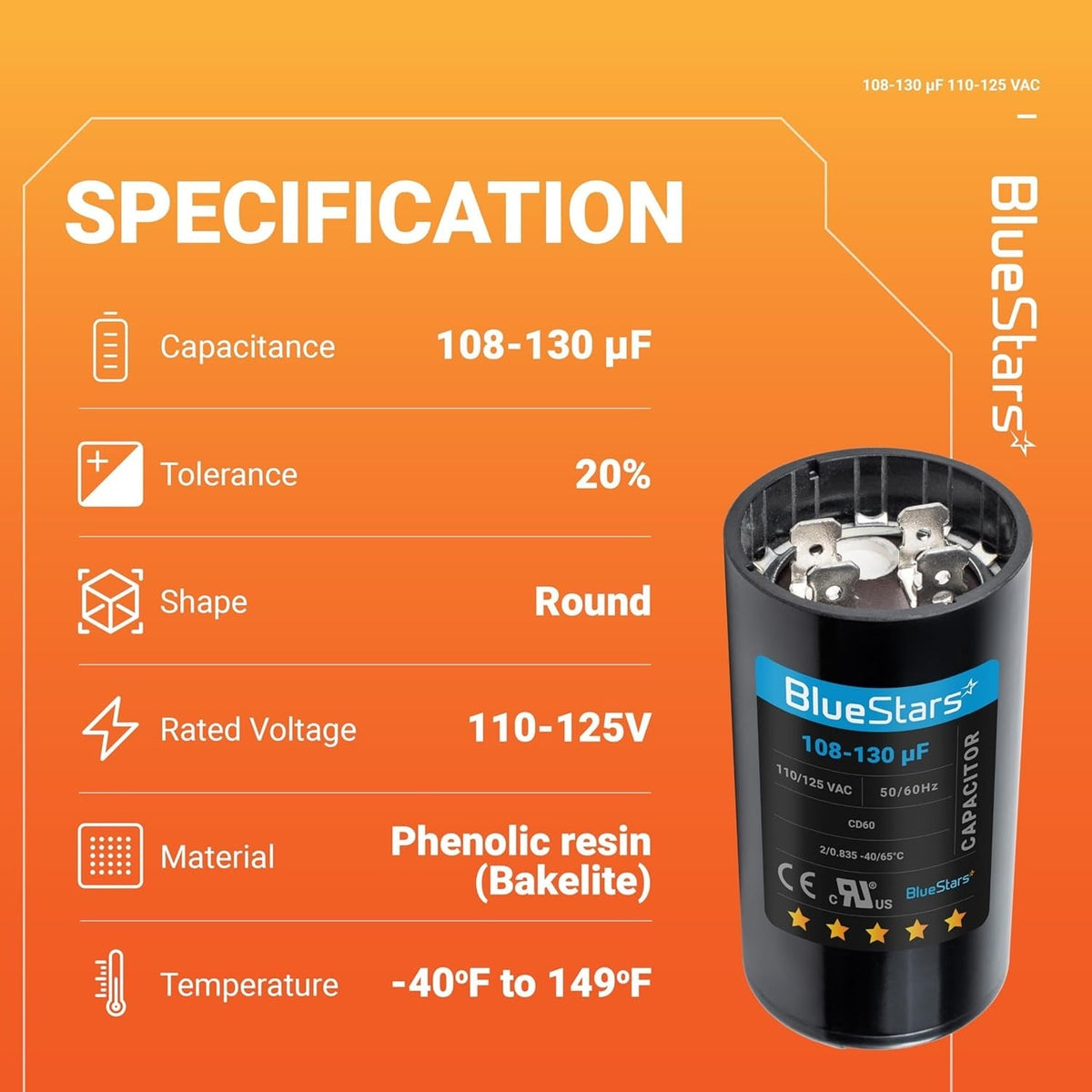

Key Features
- Capacitance: 108-130 µF/MFD
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Tolerance: ±20%
- Operating Temperature: -40°C to +65°C (-40°F to 149°F)
- Case: Round, moisture-resistant housing
- Terminals: 1/4 inch male quick-connect

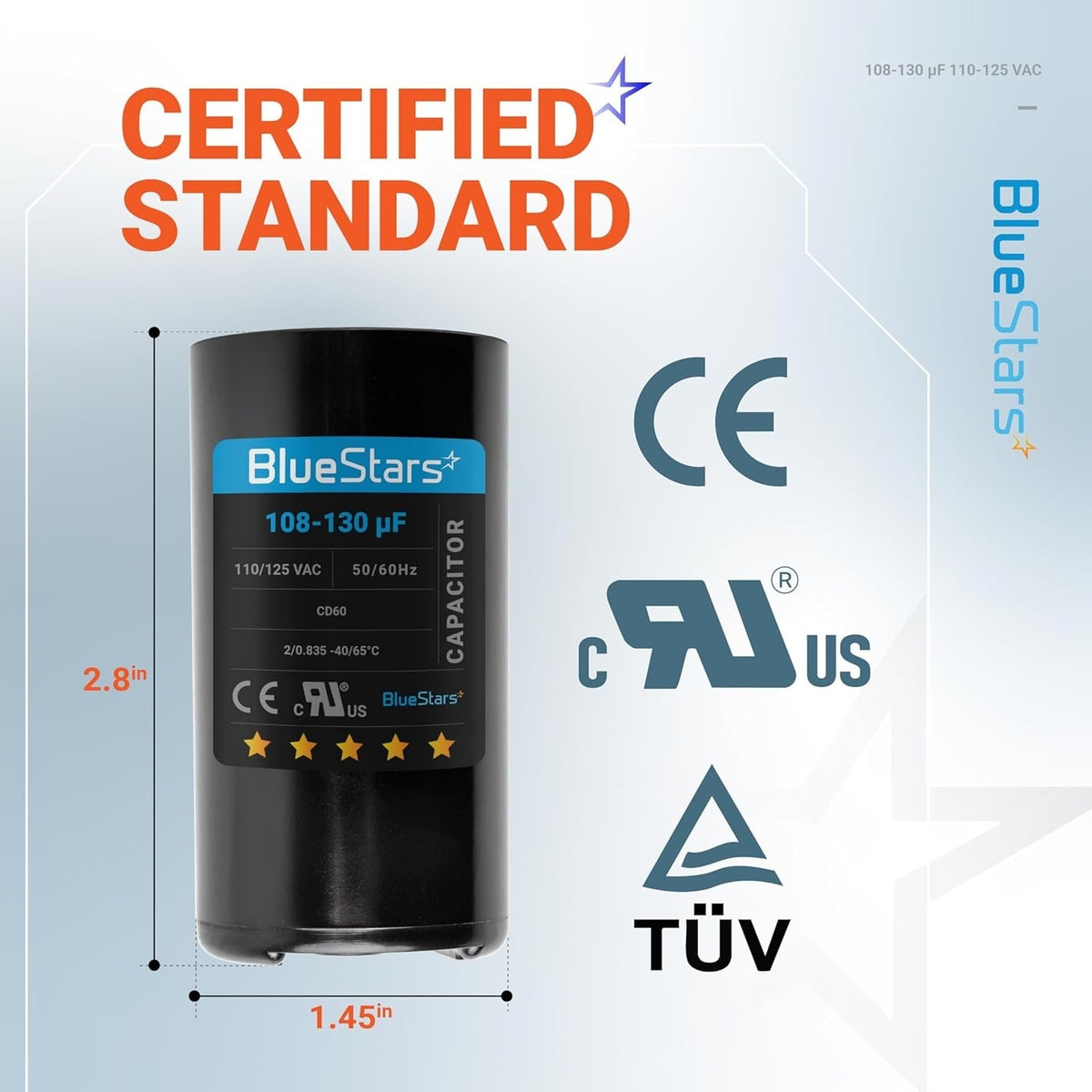

- Dimensions: 1.44 in Diameter x 2.75 in Height (36.5 mm x 69.9 mm)
- Contains no Polychlorinated Biphenyls (PCBs)
Replaces / Cross-Reference Part Numbers
- Type: CD60
- Packard: PMJ108
- Replaces any start capacitor with matching capacitance, voltage, and physical specifications.
Compatibility & Fitment
- Designed for intermittent duty in single-phase AC motor starting circuits.
- Common applications include HVAC units, air compressors, well pumps, refrigeration units, and other electric motors.
- Ensure the µF/MFD rating, VAC rating, and physical dimensions match the original capacitor. The voltage rating can be equal to or greater than the original, but not lower.

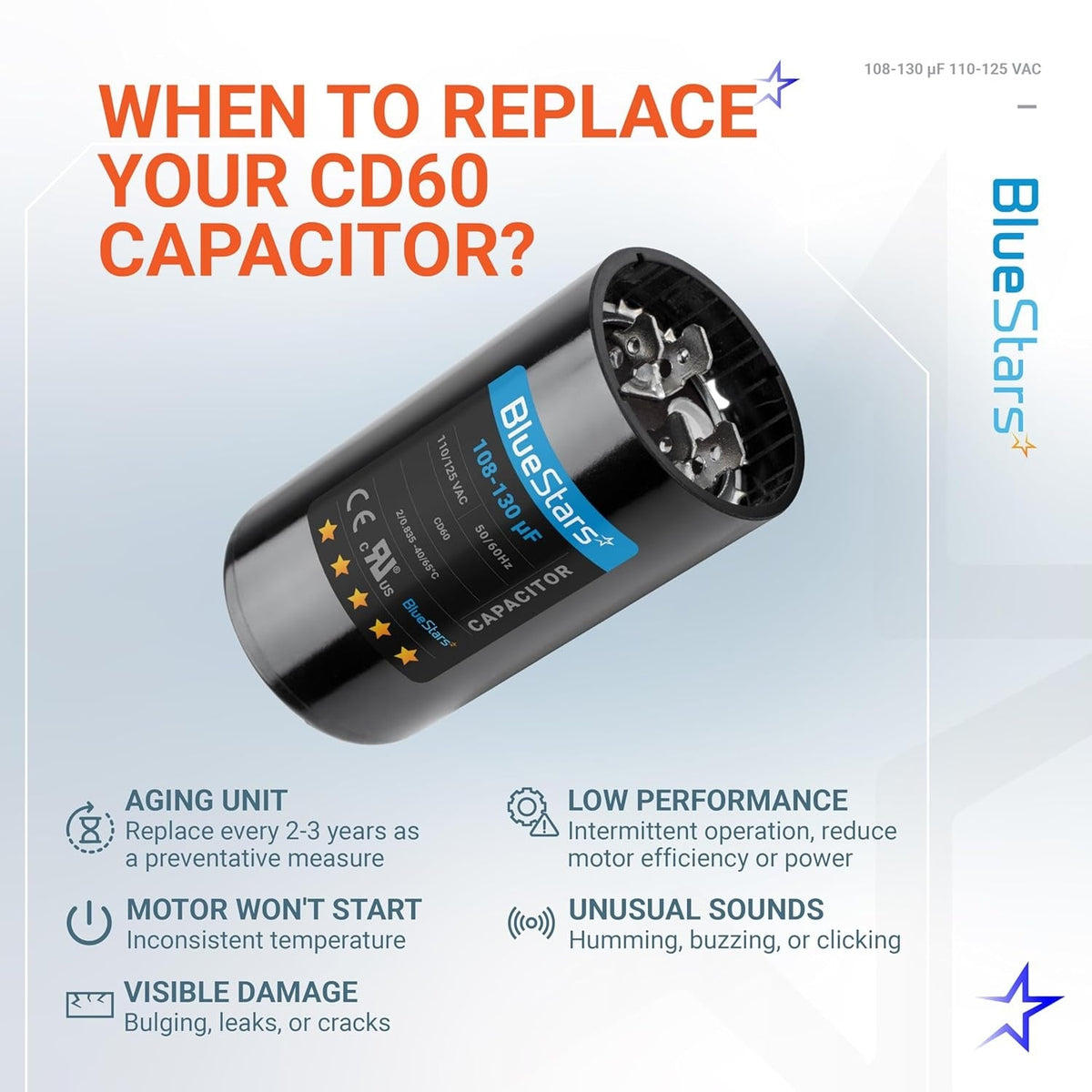

When to Replace
- Motor hums but will not start or struggles to start.
- Start-up is slow or requires manual help.
- Circuit breaker trips when the motor attempts to start.
- Capacitor case is visibly bulged, cracked, or leaking fluid.

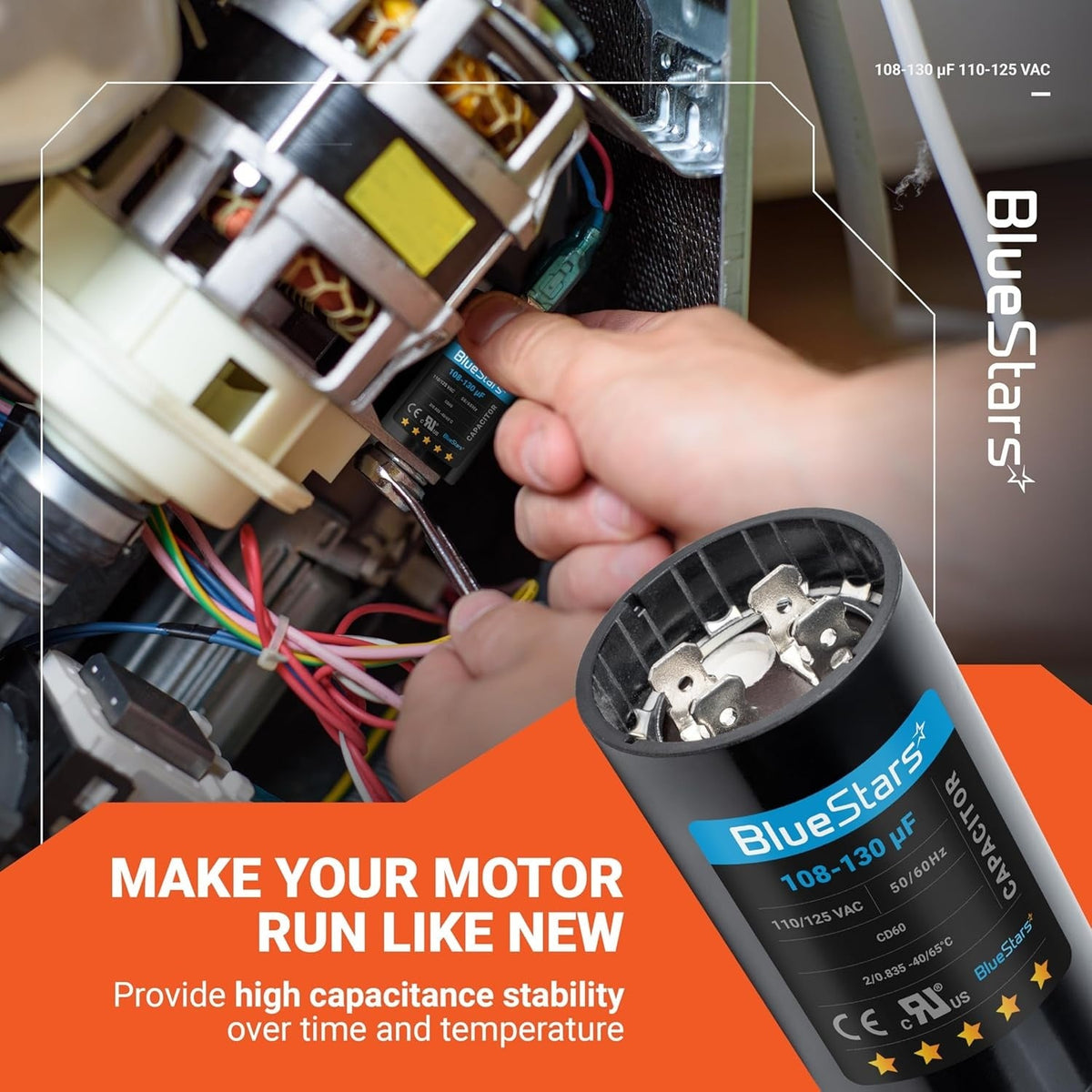

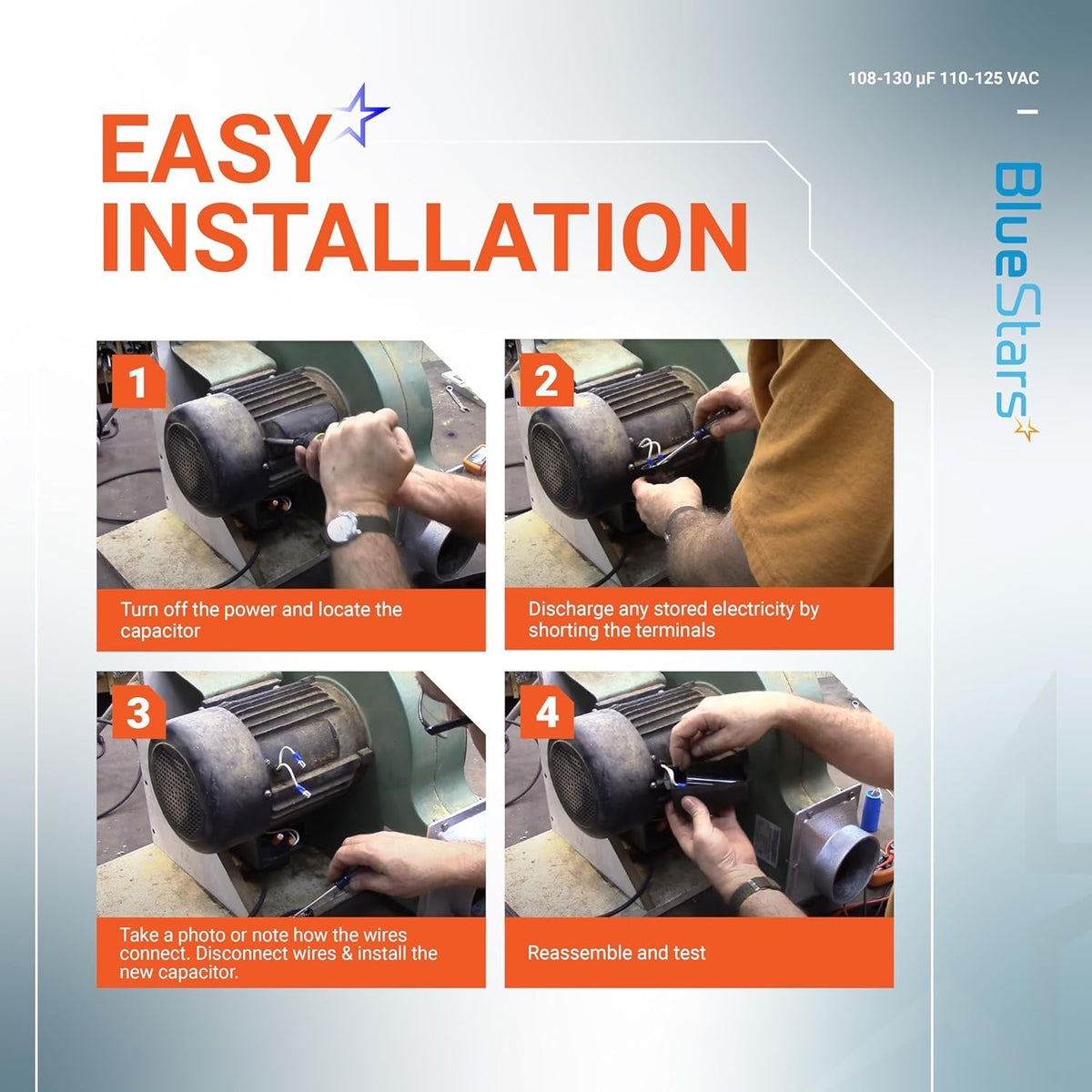

Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated-handle screwdriver.
- Note or photograph the original wire connections before disconnecting.
- Confirm the specifications (µF, VAC) on the new capacitor match the component being replaced.
- Secure the new capacitor in the mounting bracket and reconnect the wires to the correct terminals.
-
Perfect fit
Universal fit with any brands with the same ratings -
Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
