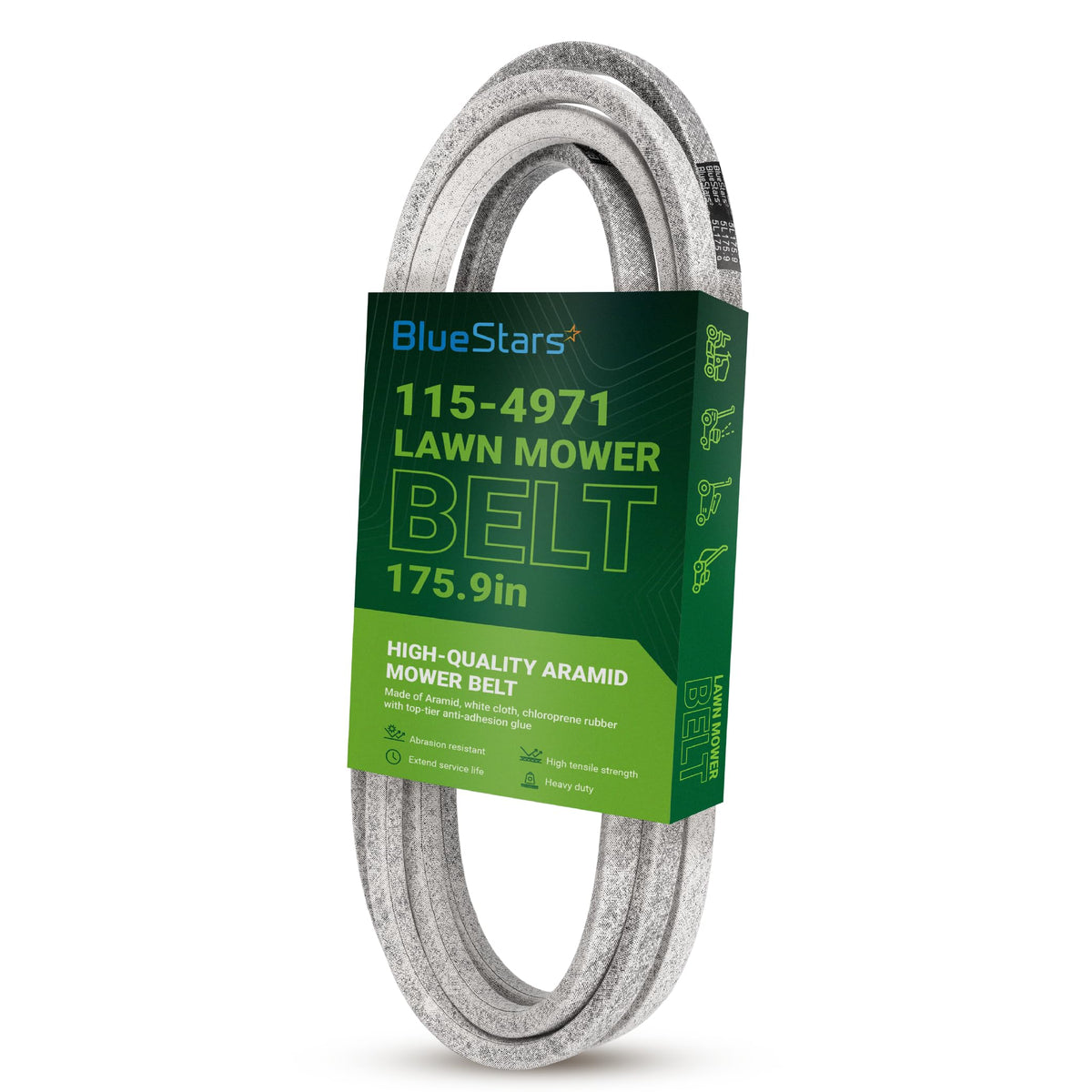

115-4971, 133-1167 Deck Belt | Fits Toro Titan 54" Mower | 175.9"
0.00
Regular price
$31.89
Regular price
Save 11%
$35.72
Sale price
$31.89
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
115-4971, 133-1167 Deck Belt | 175.9"
Key Features

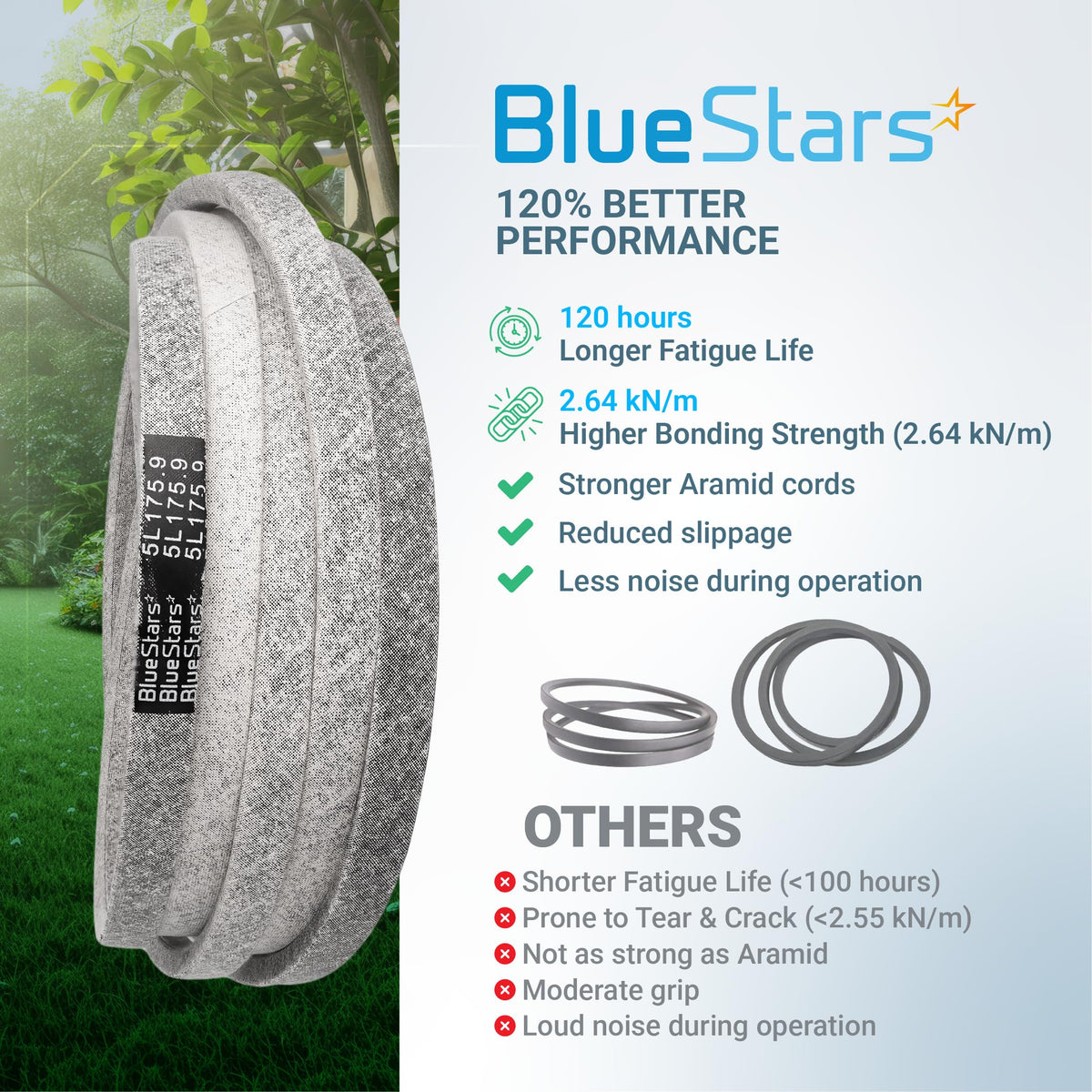

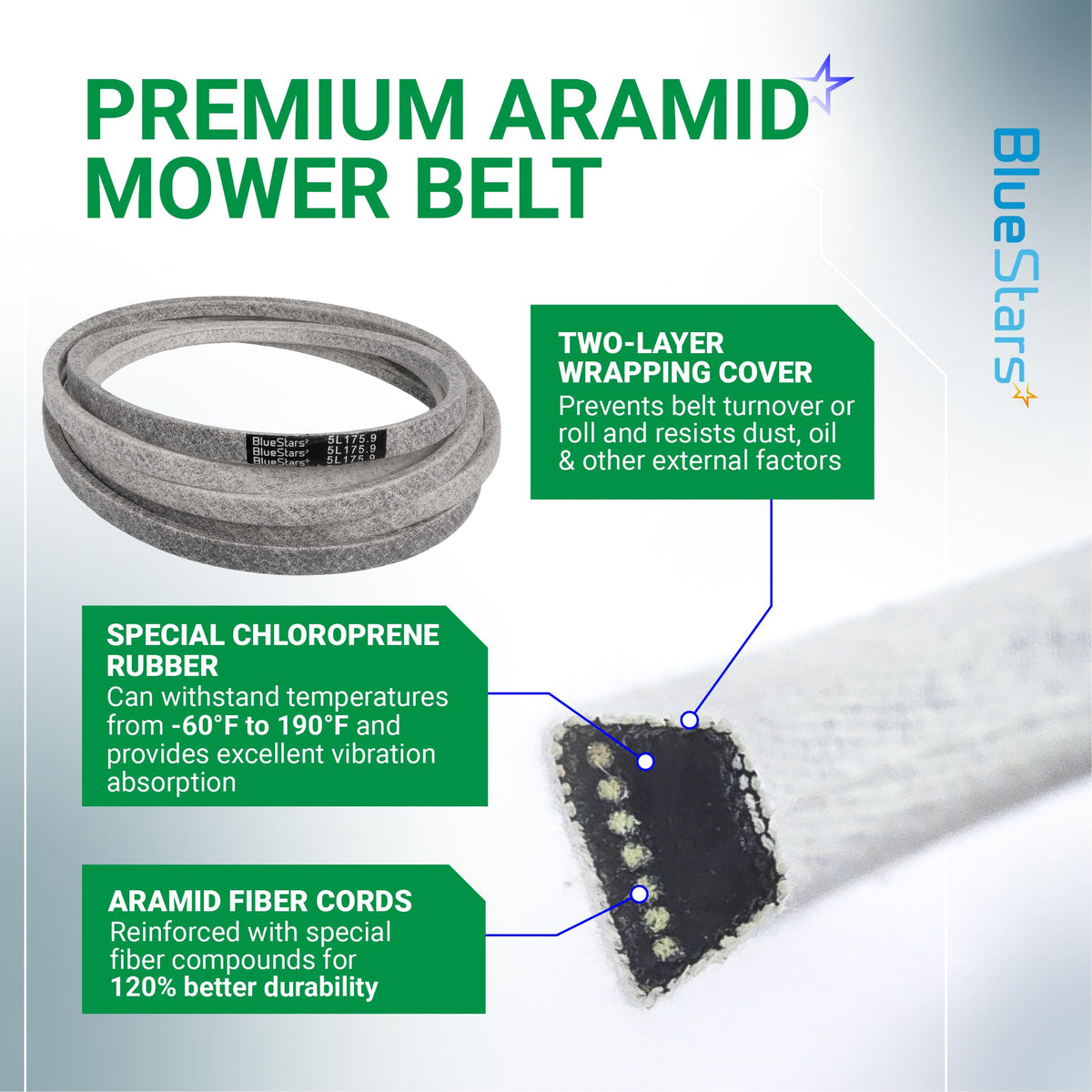

- High-strength aramid cord construction for resistance against stretching and heat.
- Durable outer wrap designed to reduce wear on pulleys.

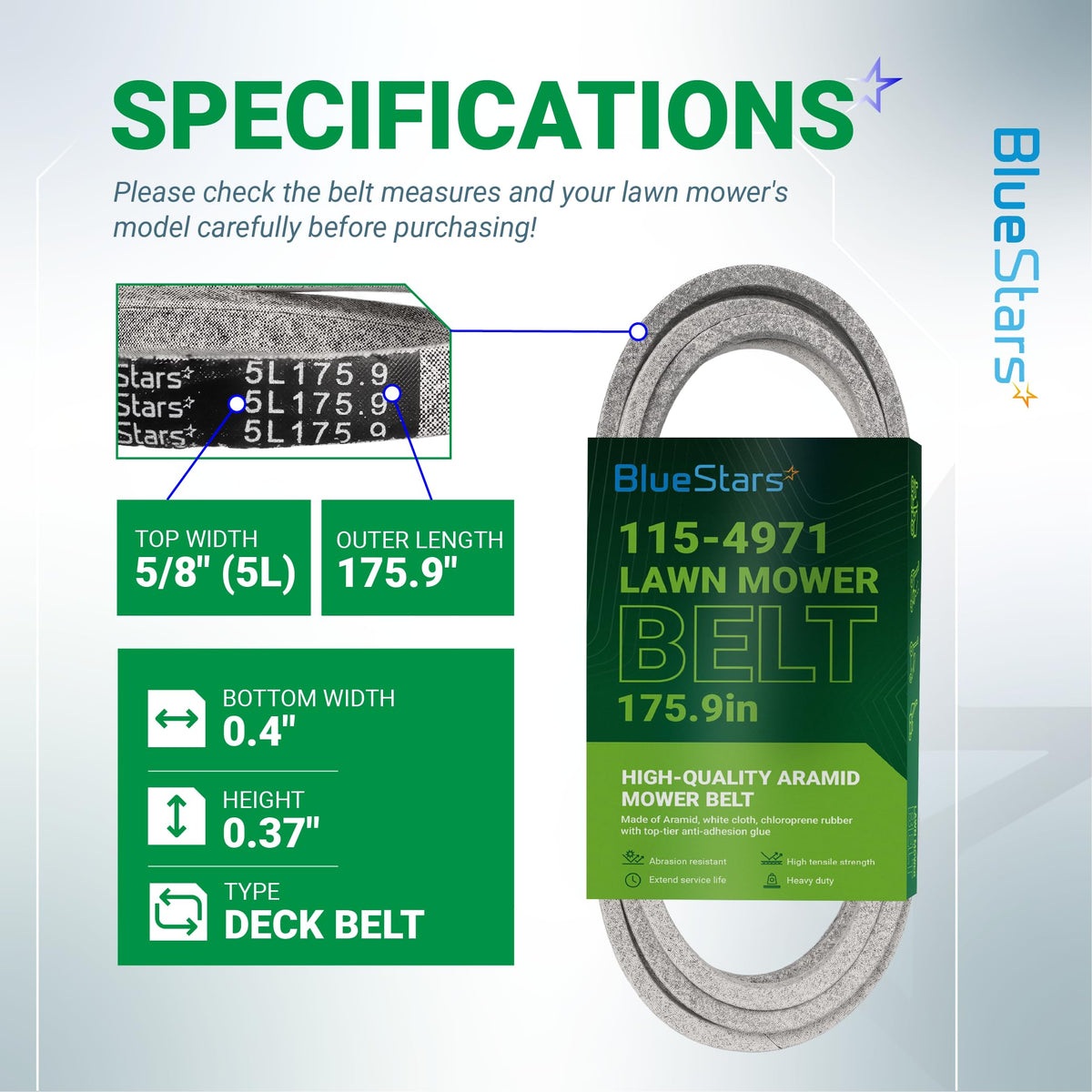

- Precision dimensions: 5/8" width x 175.9" effective length.
- Engineered for consistent power transfer in heavy-duty mowing conditions.
Replaces / Cross-Reference Part Numbers
- 115-4971
- 133-1167
- 265-501
- 14318
- 810-CBL2241T
- 5LK1760

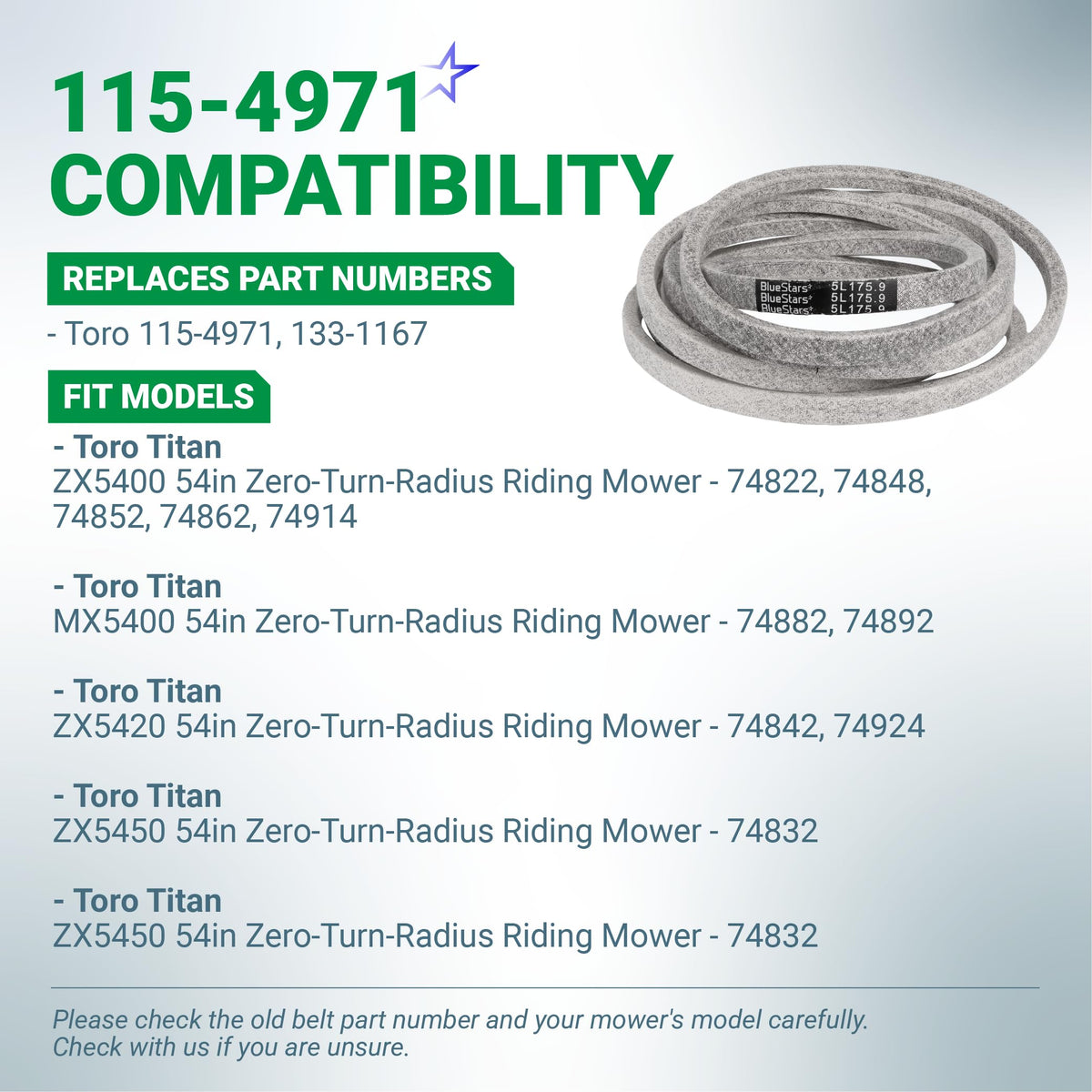

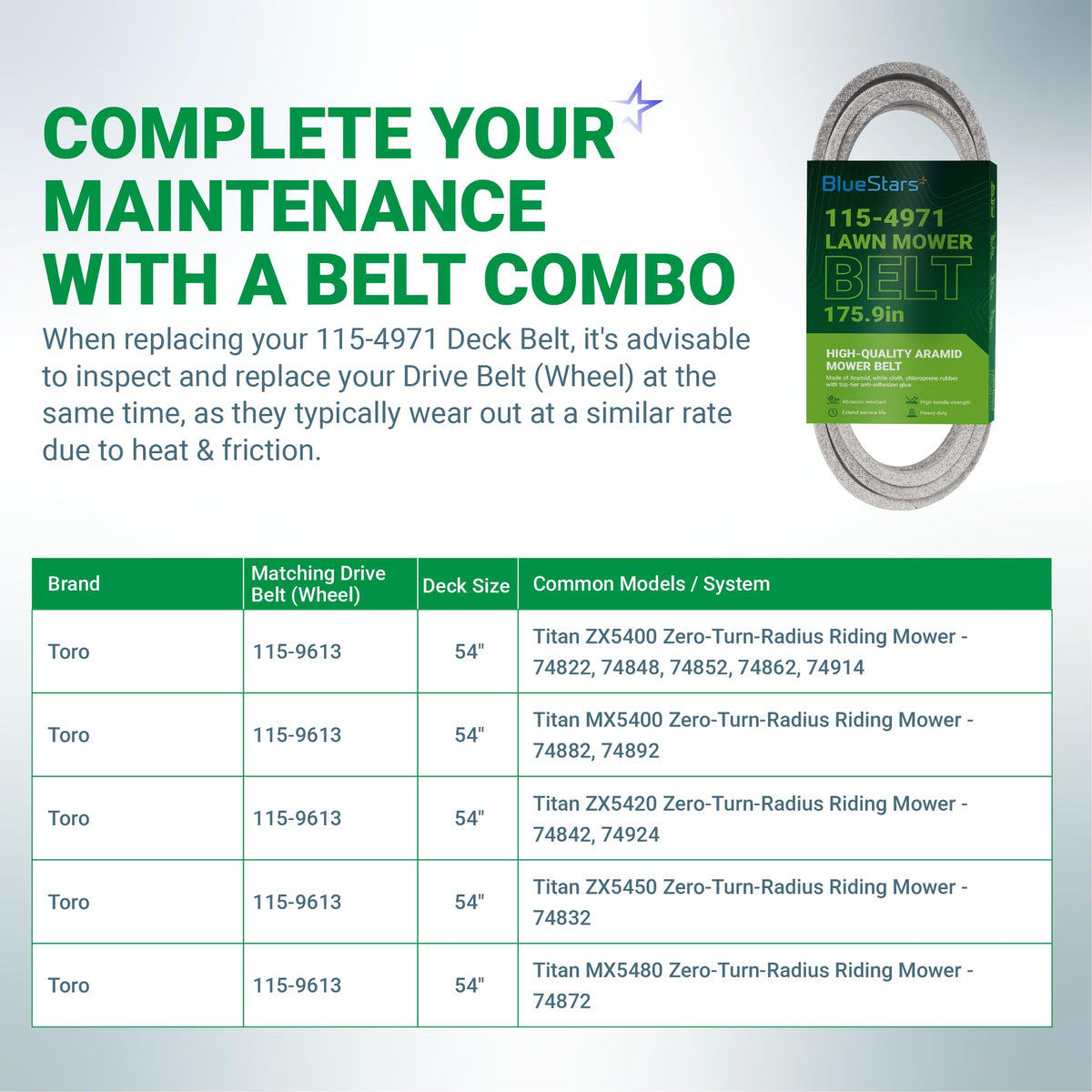

Compatibility & Fitment
- Toro Titan 54" Zero Turn Mowers including:
- ZX5400 (74832, 74848)
- MX5400 (74862)
- ZX5420 (74822)
- MX5480 (74882)
- ZX5450 (74852)
When to Replace
- Visible fraying, cracks, or splitting along the belt edges or underside.
- Excessive slipping during operation or inability to reach full blade speed.
- Stretching that prevents proper tension adjustment.
- Evidence of glazing (shiny appearance) caused by persistent heat buildup.
Installation Tips
- Ensure the engine is off and the spark plug wire is disconnected before servicing.
- Clean debris from pulleys and deck housing prior to installing the new belt.
- Verify correct routing according to the mower’s deck diagram decal.
- Check pulley alignment and bearings for smooth rotation before tensioning the belt.
- Cycle the deck engagement lever and rotate the blades manually to ensure the belt is seated properly in all pulley grooves.
-
PART NUMBER
This Deck Belt replaces part number: Toro 115-4971, 133-1167. -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble. -
FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades. -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

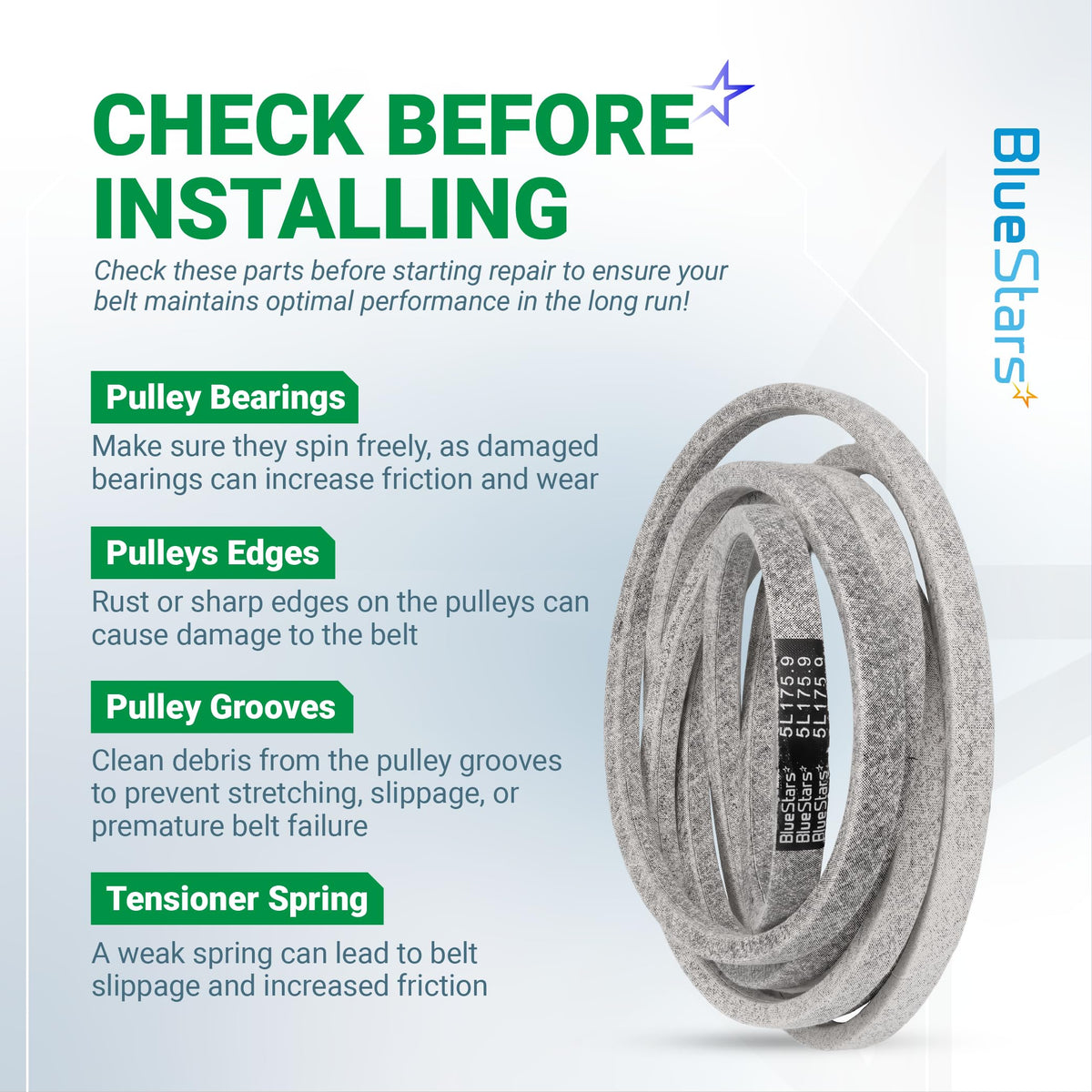

CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool.
2. Raise & secure deck, remove belt covers.
3. Release tension, remove old belt (note/take photos of routing).
4. Install new belt, rotate blades/spindle to check alignment & operation.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
