124-149 uF MFD 165 VAC Round Run Start Capacitor - 2 Pack
0.00
Regular price
$21.59
Regular price
Save 11%
$24.18
Sale price
$21.59
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

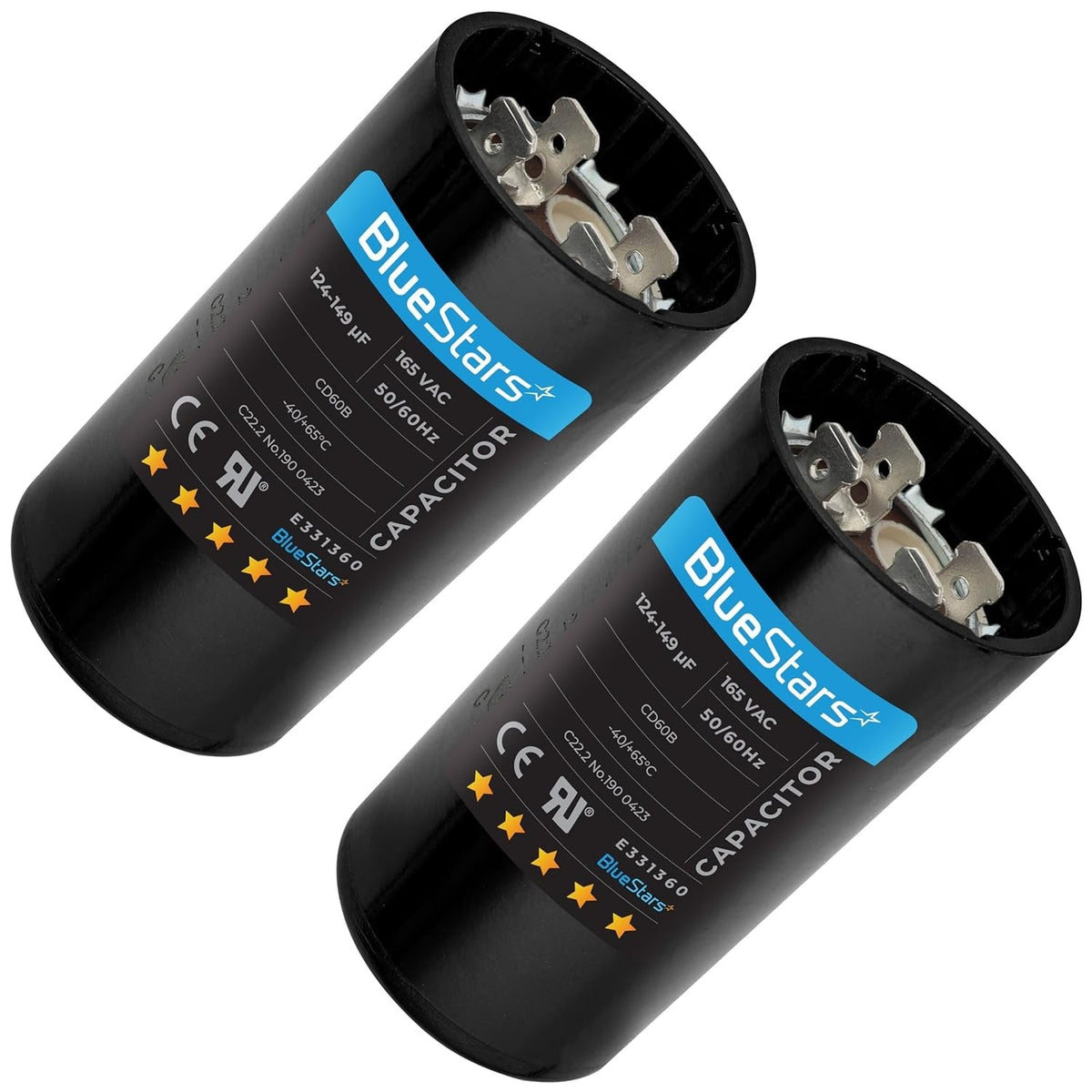

124-149 uF/MFD 165VAC Round Run Start Capacitor

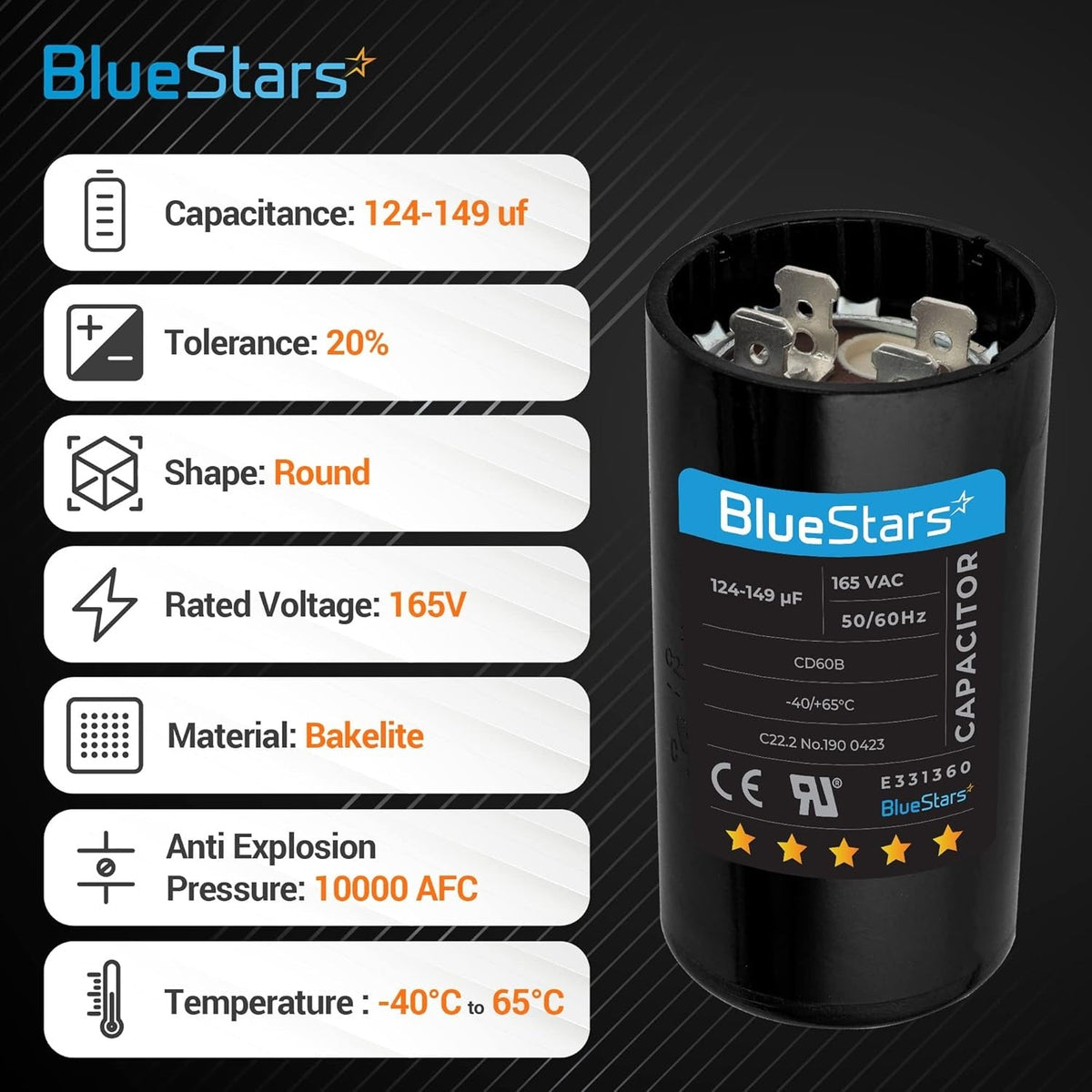

Key Features
- Capacitance: 124-149 Microfarad (µF/MFD)
- Voltage Rating: 165 VAC
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to 65°C (-40°F to 149°F)
- Tolerance: -0% / +20%

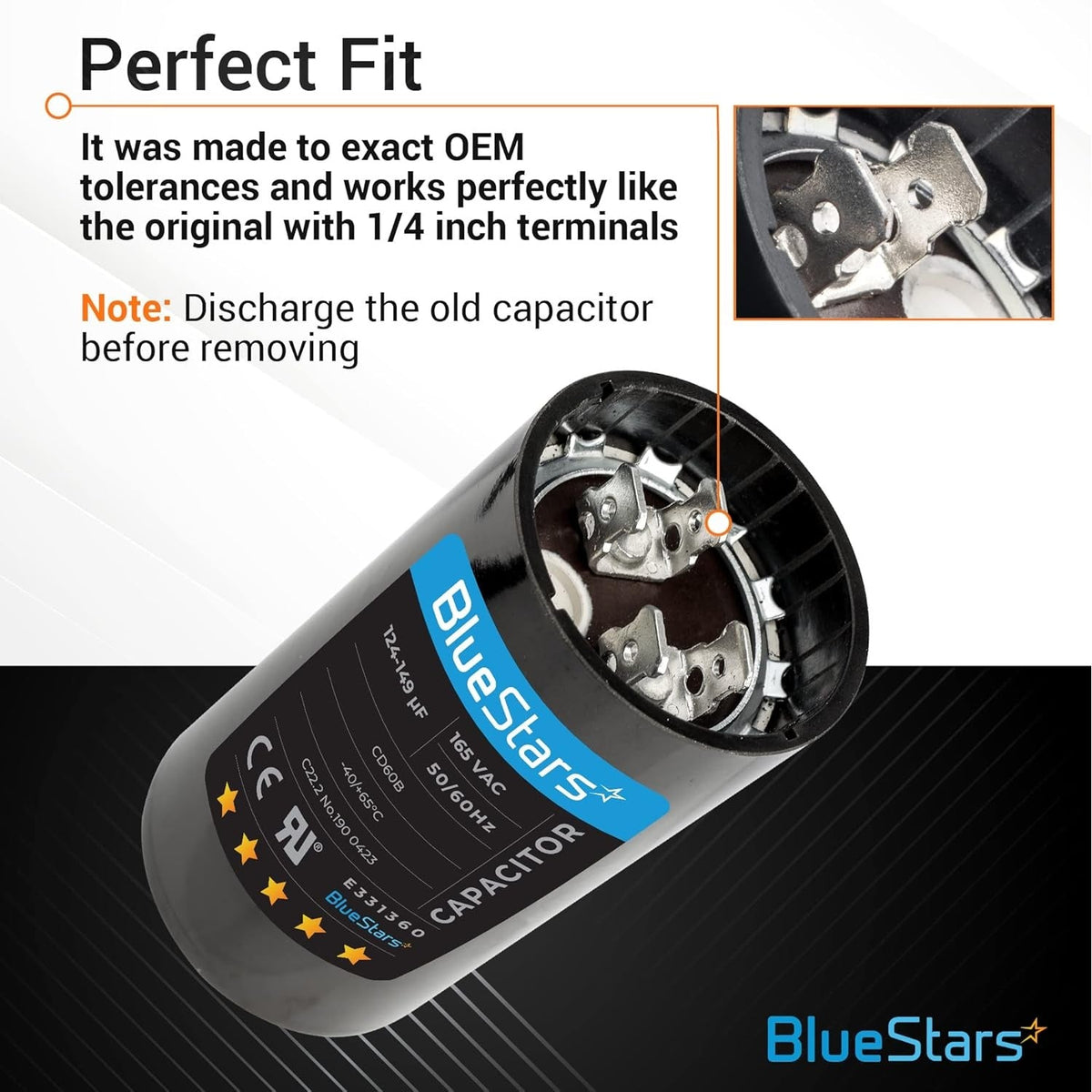

- Terminals: 1/4 inch quick disconnect
- Case: Round, moisture and oil-resistant plastic
- Dielectric Fluid: PCB-free
- Certifications: UL 810 Recognized
Replaces / Cross-Reference Part Numbers
- Direct replacement for any capacitor with matching capacitance (124-149 µF) and voltage (165VAC or higher) ratings.
- Commonly used to replace parts from brands such as Mars, TEMCo, and Seentech.
- Compatible with generic model type CD60.
- Replaces part number TEMCo SC0092.
Compatibility & Fitment
- Designed for intermittent duty motor starting applications.
- Suitable for single-phase and three-phase AC electric motors.
- Commonly used in HVAC systems, air conditioners, compressors, refrigeration units, and other motor-driven equipment.
When to Replace
- Motor hums but fails to start.
- Motor starts slowly or requires assistance.
- A clicking sound is heard with no motor activity.
- The capacitor case is visibly bulged, cracked, or leaking fluid.
- Capacitance measures outside the specified 124-149 µF range when tested with a multimeter.
Installation Tips
- Disconnect all electrical power to the unit before beginning installation.
- Safely discharge the existing capacitor by shorting the terminals with an insulated tool.
- Confirm the new capacitor's µF rating matches the original component's specifications. The voltage rating must be equal to or greater than the original.
- Ensure firm connections to the quick disconnect terminals.
- Mount the capacitor securely to prevent movement and vibration during operation.
