3387134 3392519 3977393 3977767 Dryer Thermostat & Thermal Fuse Kit - Whirlpool/Kenmore/Maytag
0.00
Regular price
$14.29
Regular price
Save 11%
$16.00
Sale price
$14.29
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
3387134 Cycling Thermostat & Dryer Thermal Cut-Off Kit
Key Features

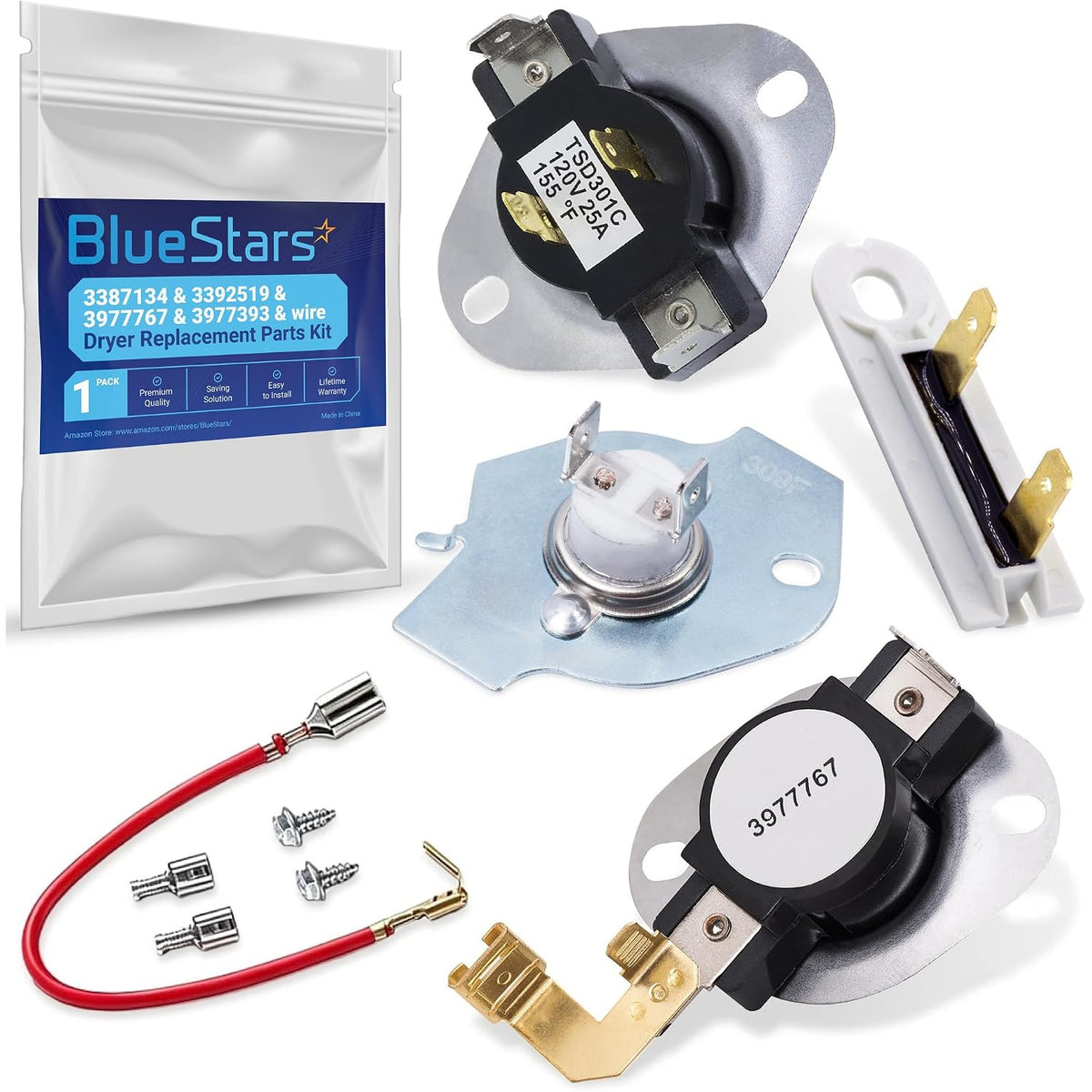

- Includes cycling thermostat, thermal fuse, high-limit thermostat, thermal cut-off kit, and jumper wire.
- Helps correct no heat, insufficient heat, extended drying time, excessive heat, failure to start, premature shutoff, and a timer that does not advance when a failed temperature-control component is the cause.
Replaces / Cross-Reference Part Numbers
- Cycling Thermostat: 3387134, WP3387134, 3387135, 3387139, 306910, WP3387134VP, AP6008270, PS11741405, EAP11741405
- Thermal Fuse: 3392519, WP3392519, 3388651, 694511, 80005, WP3392519VP, AP6008325, PS11741460, EAP11741460
- Thermal Cut-off Switch: 3977393, 279816, 279816VP, 3399848, 2651, WP3977393VP, AP3094244, PS334299, EAP334299
- High-Limit Thermostat: 3977767, WP3977767, 3399693, 898078, WP3977767VP, AP3131941, PS351925, EAP351925
Compatibility & Fitment
Compatible with selected Whirlpool, Kenmore, Maytag, Roper, Crosley, Inglis, Estate, Amana, KitchenAid, Admiral, and Magic Chef dryers. Supported Kenmore model examples include:
- 110.6012990
- 110.76862692
- 110.76901690
- 110.77834792
- 110.796228
- 110.97263100
- 110.97263800
- 110.98762790
- 11060012000
- 11060012001
- 11060012002
- 11060022010
- 1106012510
These are model examples rather than a complete fitment list. Confirm the dryer model number and the original part markings before installation.
When to Replace
Replace the relevant thermostat, fuse, or thermal cut-off when the dryer has no heat, produces too little or too much heat, takes too long to dry, shuts off too soon, will not start, or the timer fails to advance. A blocked vent, restricted airflow, failed heating element, or other wiring fault can produce similar symptoms, so inspect airflow and test the circuit before replacing parts.

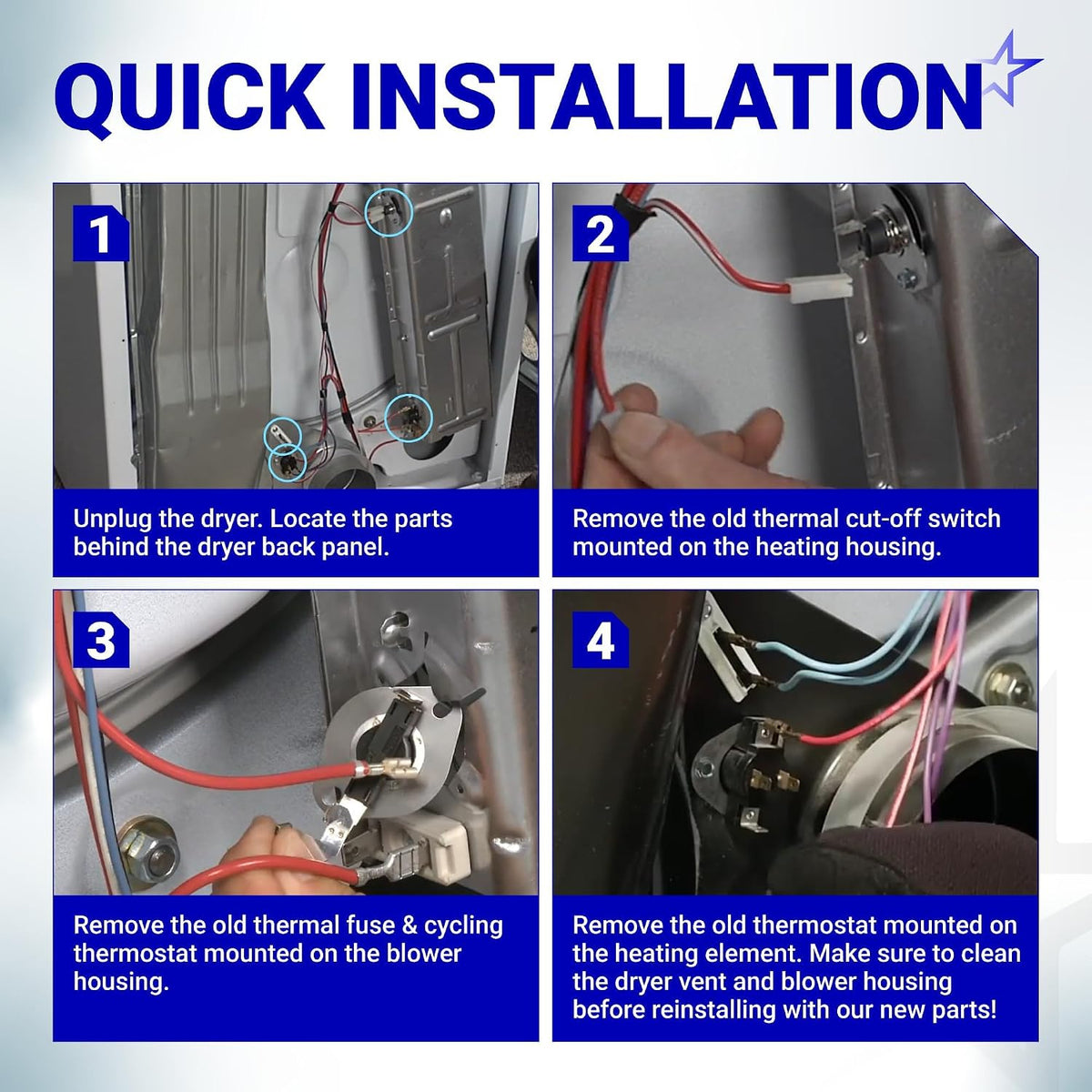

Installation Tips
- Disconnect the dryer from electrical power before opening the cabinet or handling temperature-control wiring.
- Allow the dryer to cool completely, then photograph the original wiring and transfer each wire to the matching replacement terminal.
- Use a screwdriver and a multimeter for typical access and continuity checks. Replace a thermal fuse or cut-off only after checking for restricted airflow and a blocked exhaust vent.
- Install the included jumper wire only where the original wiring layout and service instructions call for it; do not bypass a safety fuse or thermal cut-off.
- A straightforward replacement can usually be completed in a few minutes after the correct access panel is removed, but cabinet design and testing time vary by model.
-
WIDE COMPATIBILITY
Compatible with Whirlpool, Kenmore, Maytag, and other dryers. Easily restores machine performance. -
DURABLE PERFORMANCE
High-quality replacement parts built to last, providing a reliable and heat-efficient solution for your dryer. -
SAVING SOLUTION
An affordable, all-in-one repair solution that optimizes time and savings. -
SIMPLE INSTALLATION
Quick and easy setup, get your dryer back up and running like new in just a few minutes.

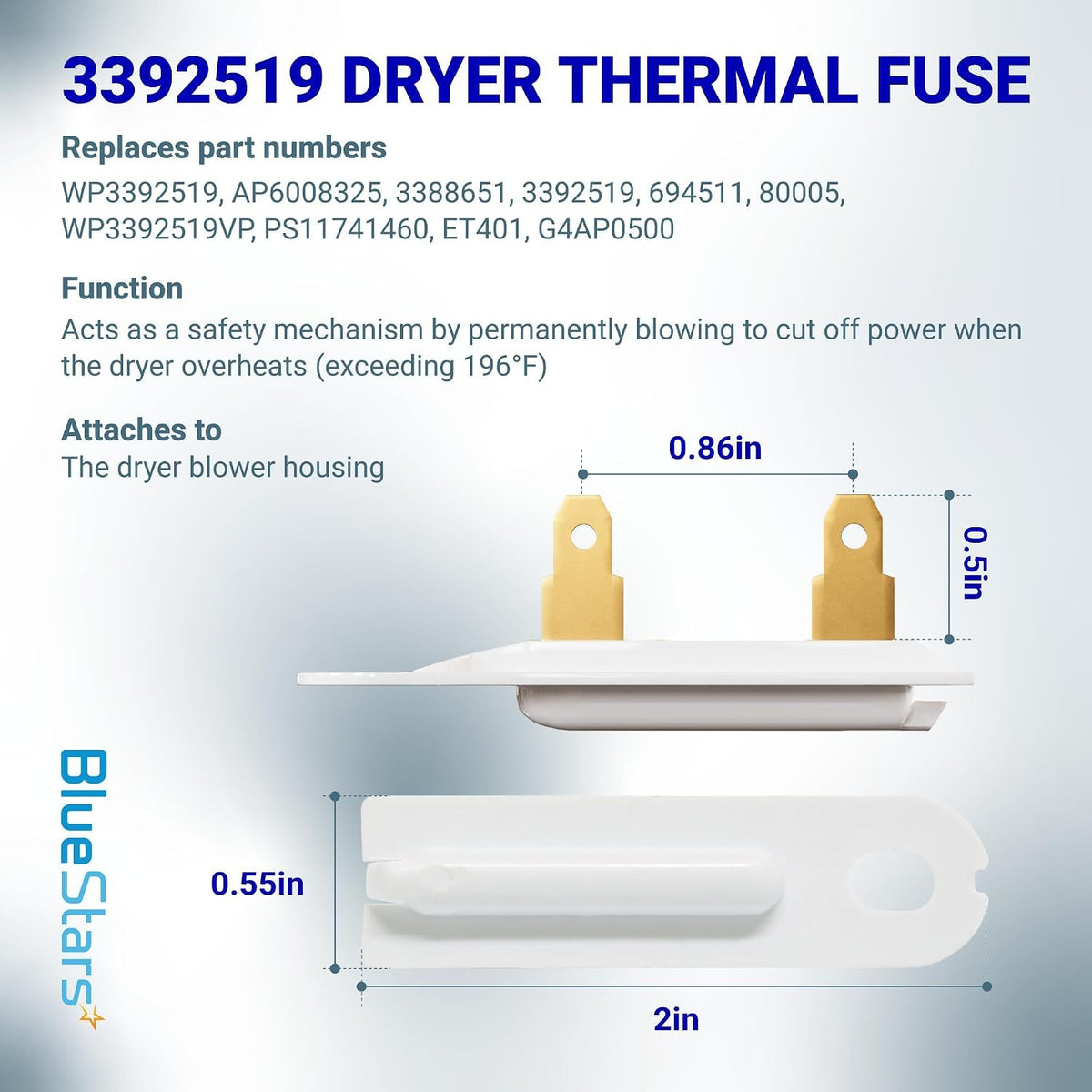

3392519 Thermal Fuse
Safety device that blows if the dryer overheats, avoiding fires.
3977393 Thermal Cut-Off Switch
Replaces part numbers: 3388651, 3392519, 694511, 80005, WP3392519VP, WP3392519, PS11741460.
3387134 Dryer Cycling Thermostat
Stops the dryer if it detects dangerous overheating conditions.

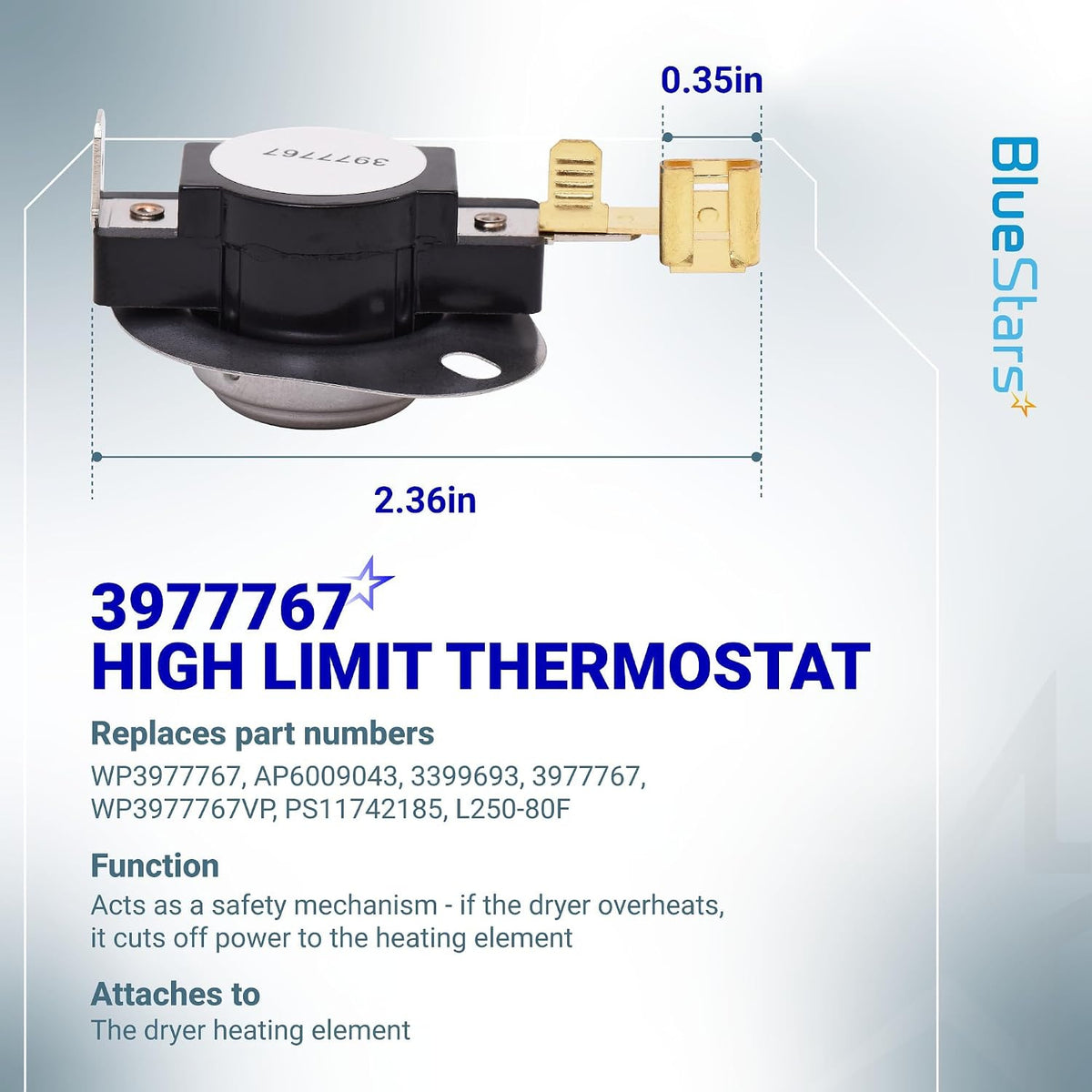

3977767 High-Limit Thermostat
Replaces part numbers: 279816, 3399848, AP3094244, PS334299.
ECONOMICAL DIY REPAIR
Enjoy the comfort that our dryer thermostat & fuse kit brings into your dryer - BlueStars provides DIY solutions to help you deal with any troubles
