8547174 Dryer Idler Pulley 8547168 Drive Drum Belt for Whirlpool Amana
0.00
Regular price
$17.99
Regular price
Save 11%
$20.15
Sale price
$17.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
8547174 Dryer Idler Pulley 8547168 Drive Drum Belt
Key Features

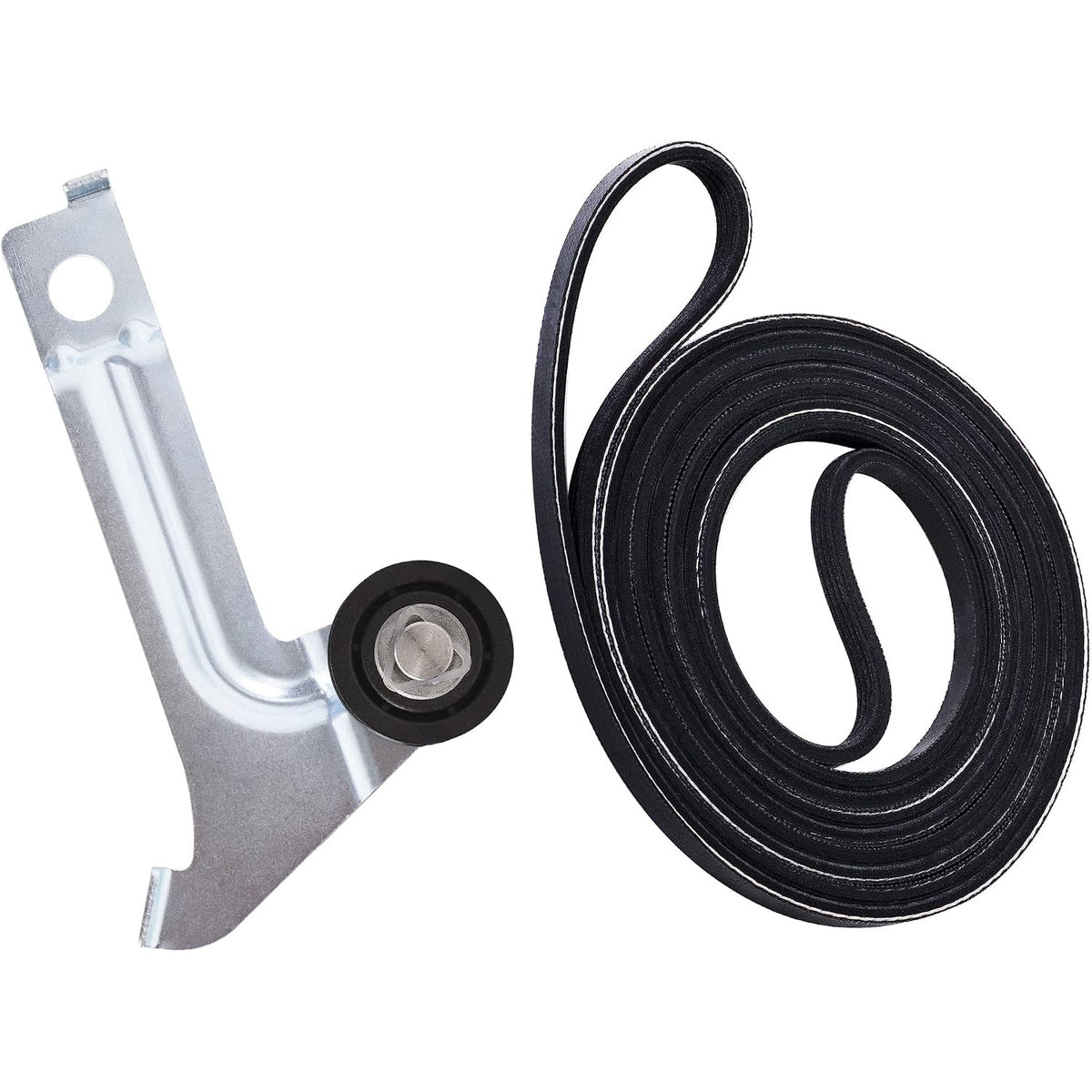

- Kit includes one 8547174 idler pulley assembly and one 8547168 drive drum belt.
- Maintains proper tension on the drive belt to spin the dryer drum.

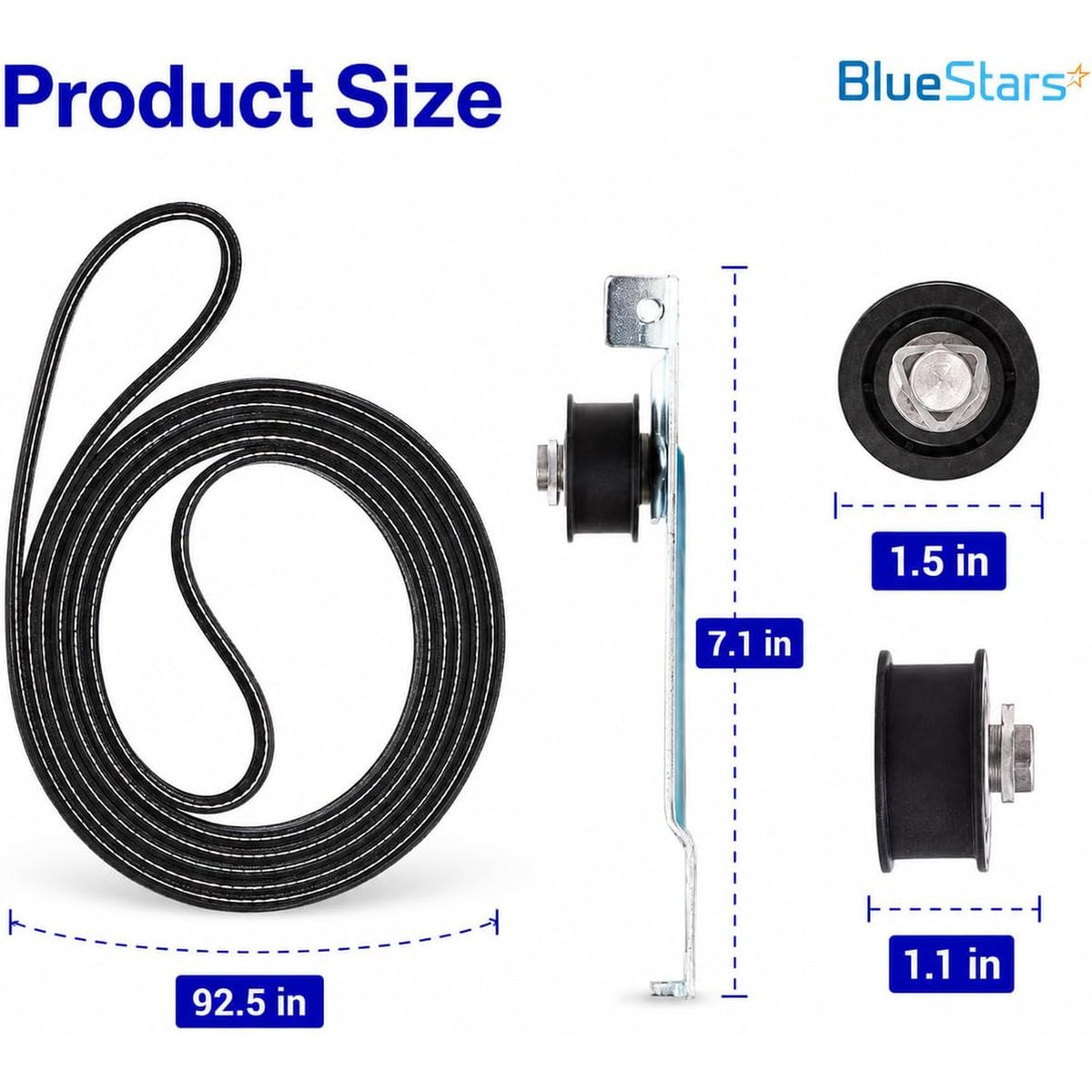

- Idler Pulley Dimensions: 7.1 in arm length; 1.5 in pulley diameter; 1.1 in pulley width.
- Drive Belt Specifications: 4 ribs, approximately 92.25 inches in length.

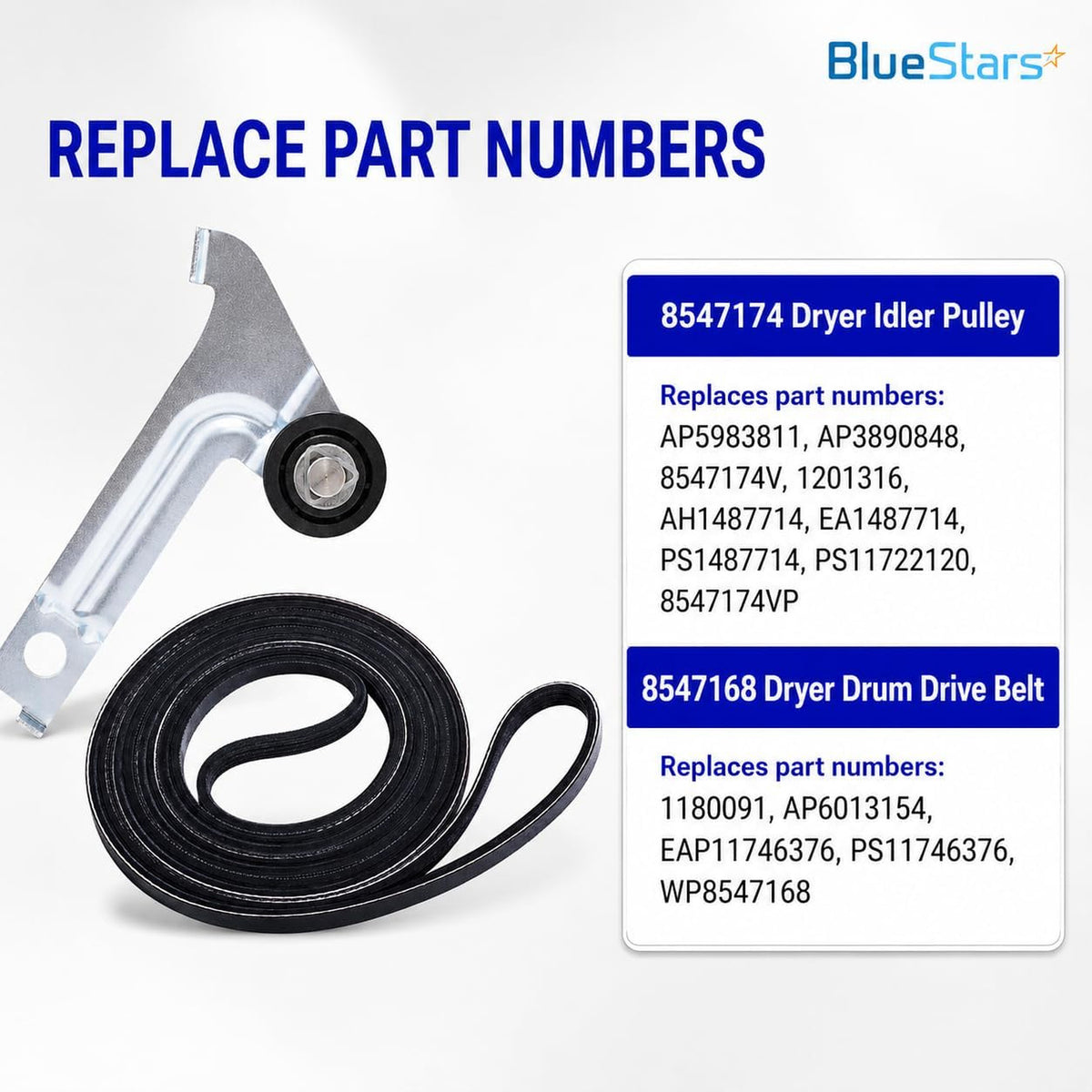

Replaces / Cross-Reference Part Numbers
- Dryer Idler Pulley (8547174): AP5983811, PS11722120, 8547174V, 8547174VP, W10007500, 4248254, AH1487714, EA1487714, DE7174, PD00024142
- Dryer Drive Drum Belt (8547168): WP8547168, AP6013154, PS11746376, WP8547168VP, 1180091, LB7168, EAP11746376, PD00002997, B0050O2B3A
Compatibility & Fitment
Designed to fit specific appliance models from brands including:
- Whirlpool
- Maytag
- Amana
- KitchenAid
- Magic Chef
Verify your model number for correct part compatibility.
When to Replace
- Dryer drum fails to turn or tumbles intermittently.
- Loud squeaking, grinding, or thumping noises during operation.
- Drive belt is visibly cracked, frayed, broken, or stretched.
- Dryer stops turning mid-cycle.

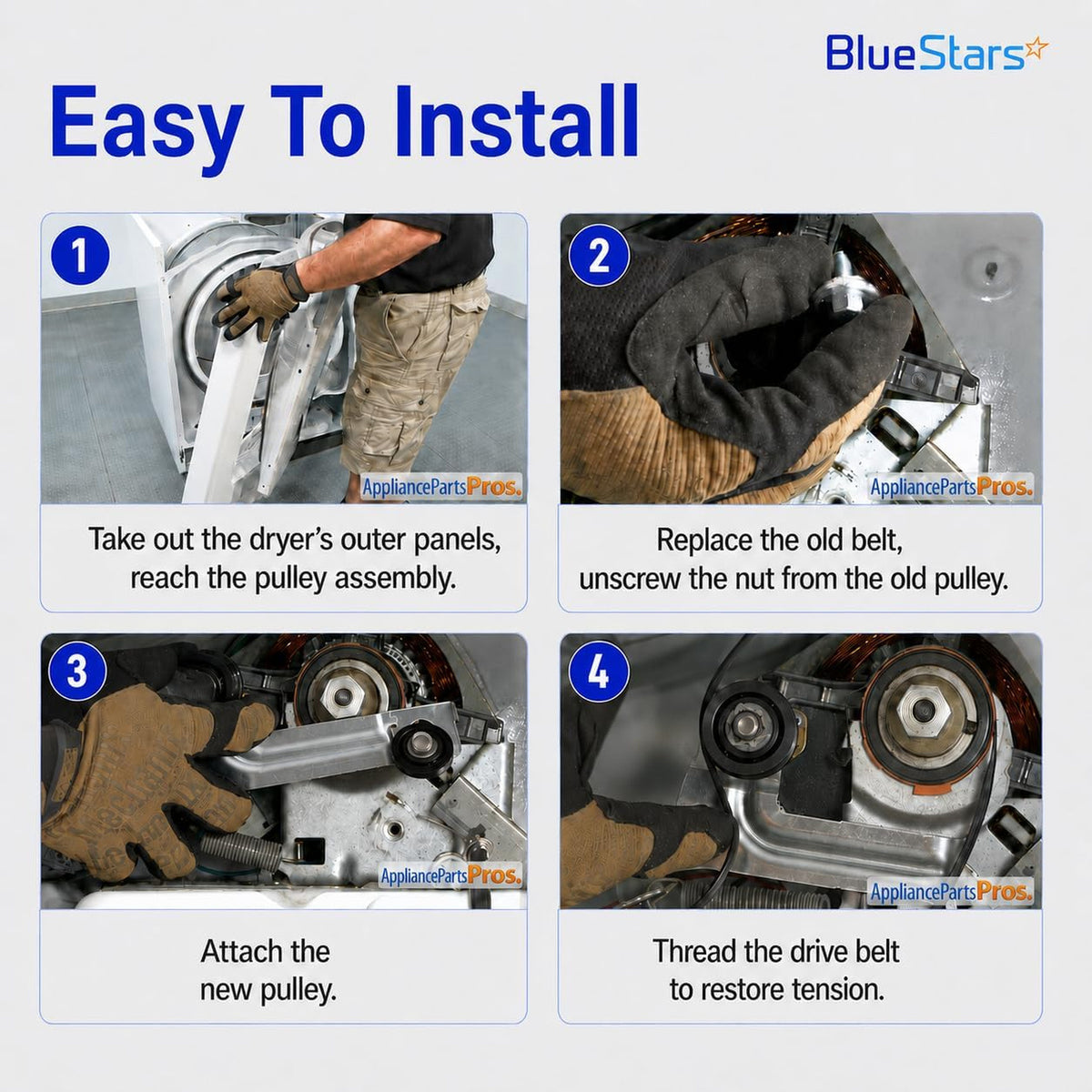

Installation Tips
- Disconnect the dryer from its electrical power source before beginning any repairs.
- Document the original belt's routing path with a photo before removal.
- Ensure the new belt is installed with the grooved side facing the drum.
- Confirm the idler pulley arm moves freely to apply correct tension.
- Consult your dryer's service manual for model-specific instructions.
-
PERFECT FIT
8547174 Dryer Idler Pulley & 8547168 Drive Drum Belt replace part numbers: WP691366, 99989677, W10612905; 3392665, 3399844, AP2946843, W10127457, etc. -
PREMIUM QUALITY
8547174 Dryer Idler Pulley & 8547168 Drive Drum Belt are made of of high quality material and is well tested by the manufacturer -
SAVING SOLUTION
Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
The 8547174 Dryer Idler Pulley & 8547168 Drive Drum Belt are straightforward to attach, load, and use. Anyone with basic hand tools can install it.
PREMIUM DESIGN

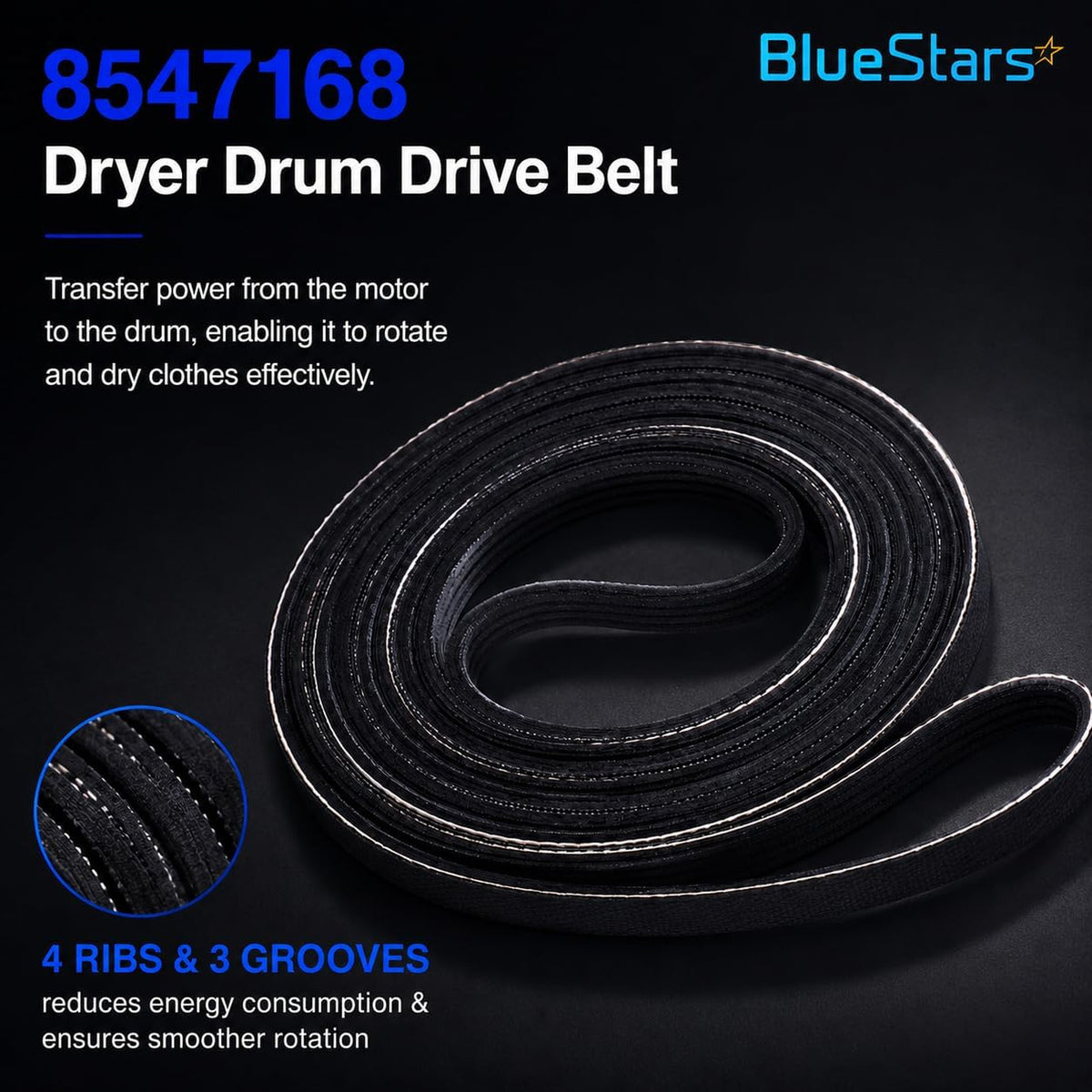

It has 4 ribs and 3 grooves on the inside to ensure a better grip and a smooth operation
IMPROVED DURABILITY

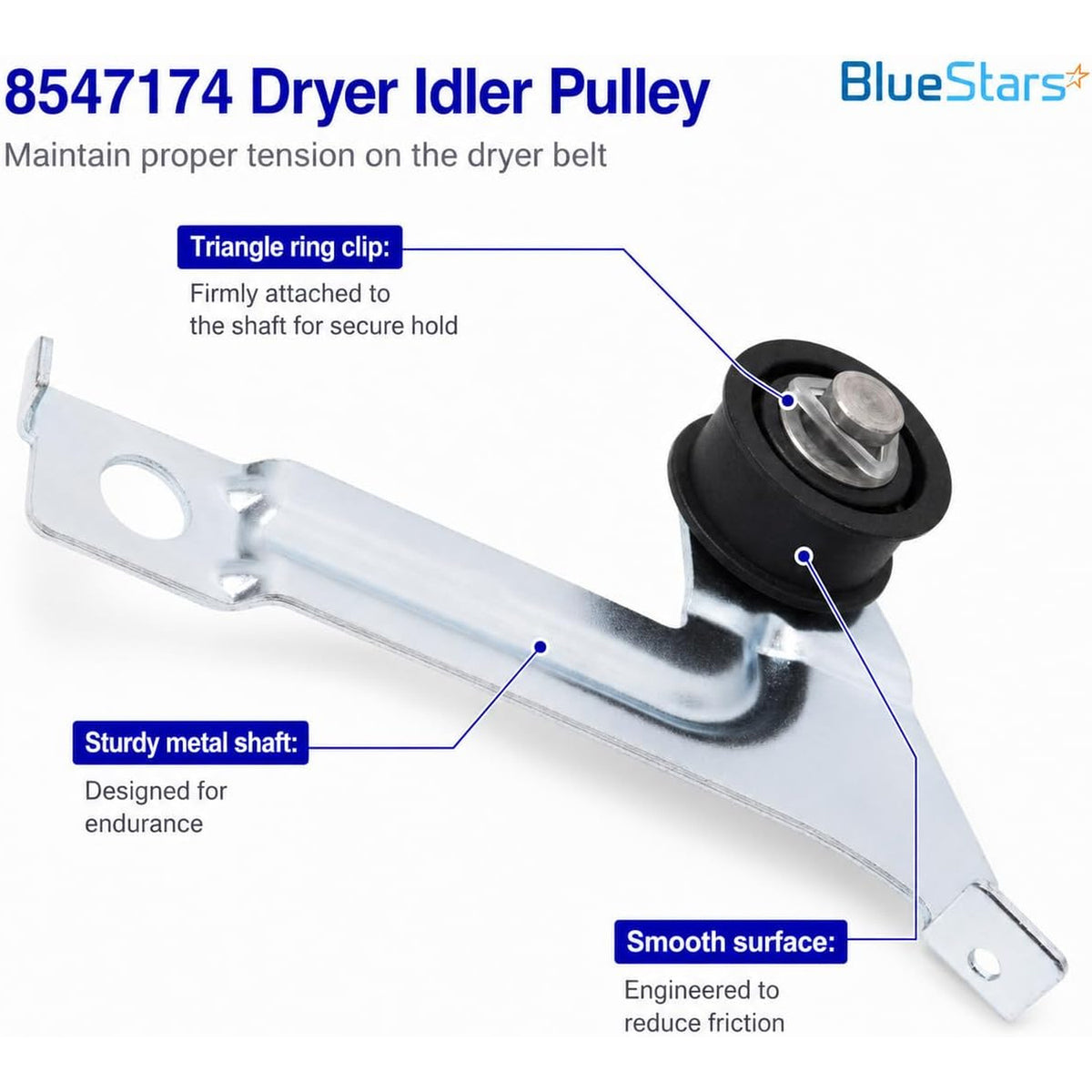

The part includes a triangle ring clip firmly attached to the pulley shaft to secure its hold and increase endurance
ECONOMICAL DIY REPAIR
Enjoy the comfort that our dryer idler pulley & drive drum belt brings into your dryer - BlueStars provides DIY solutions to help you deal with any troubles
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Manufacturer
BlueStars
Part Number
8547174 & 8547168
Item Weight
9.7 ounces
Package Dimensions
9.92 x 3.43 x 1.57 inches
Color
As Pictured
