GRLP4 LP Gas Conversion Kit - 12 Brass Orifices & Wrench - Frigidaire/Kenmore/Electrolux
0.00
Regular price
$16.49
Regular price
Save 11%
$18.47
Sale price
$16.49
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
GRLP4 LP Gas Conversion Kit
Key Features
- Converts compatible natural gas range, cooktop, oven, and stove appliances for liquefied petroleum gas (LP or propane) use.

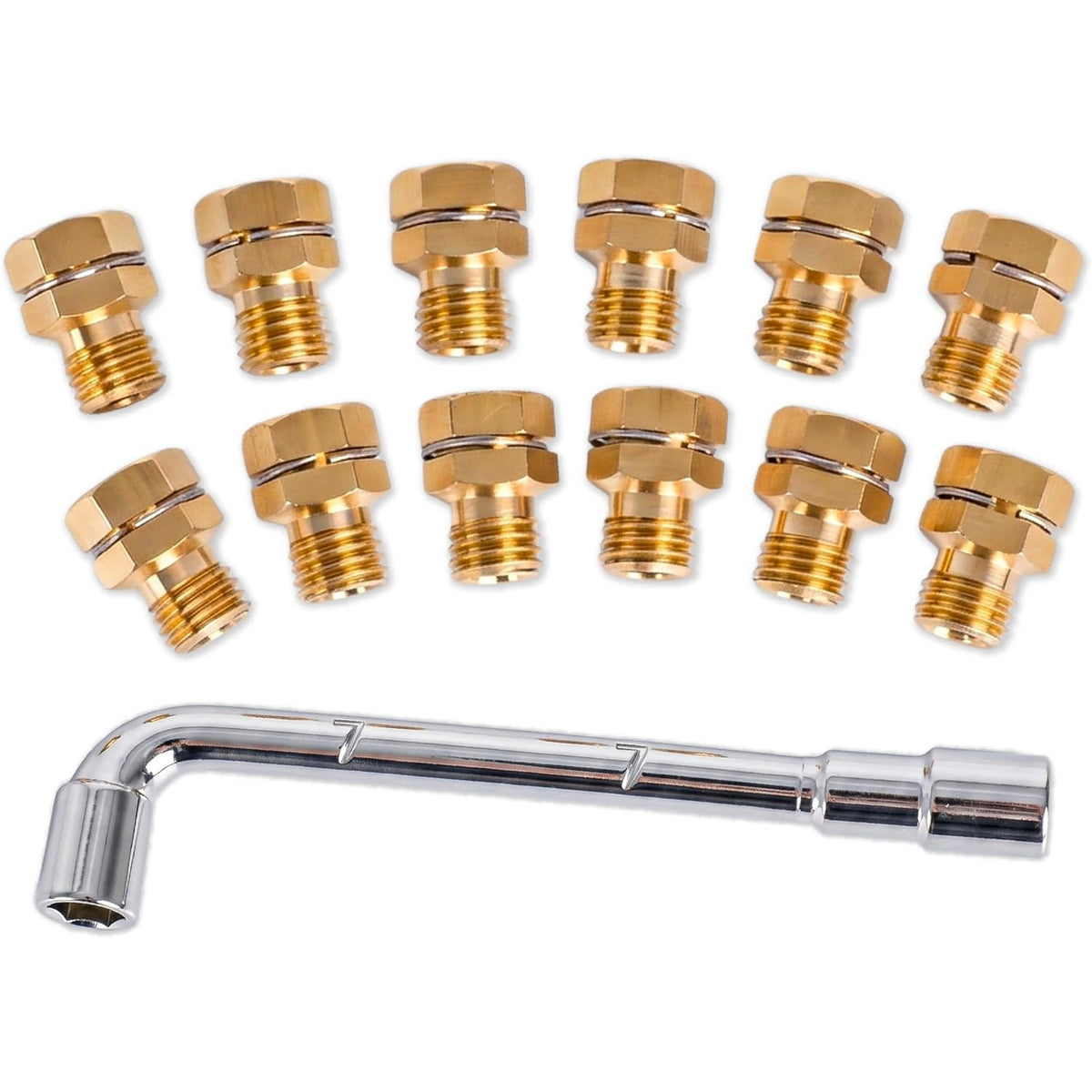

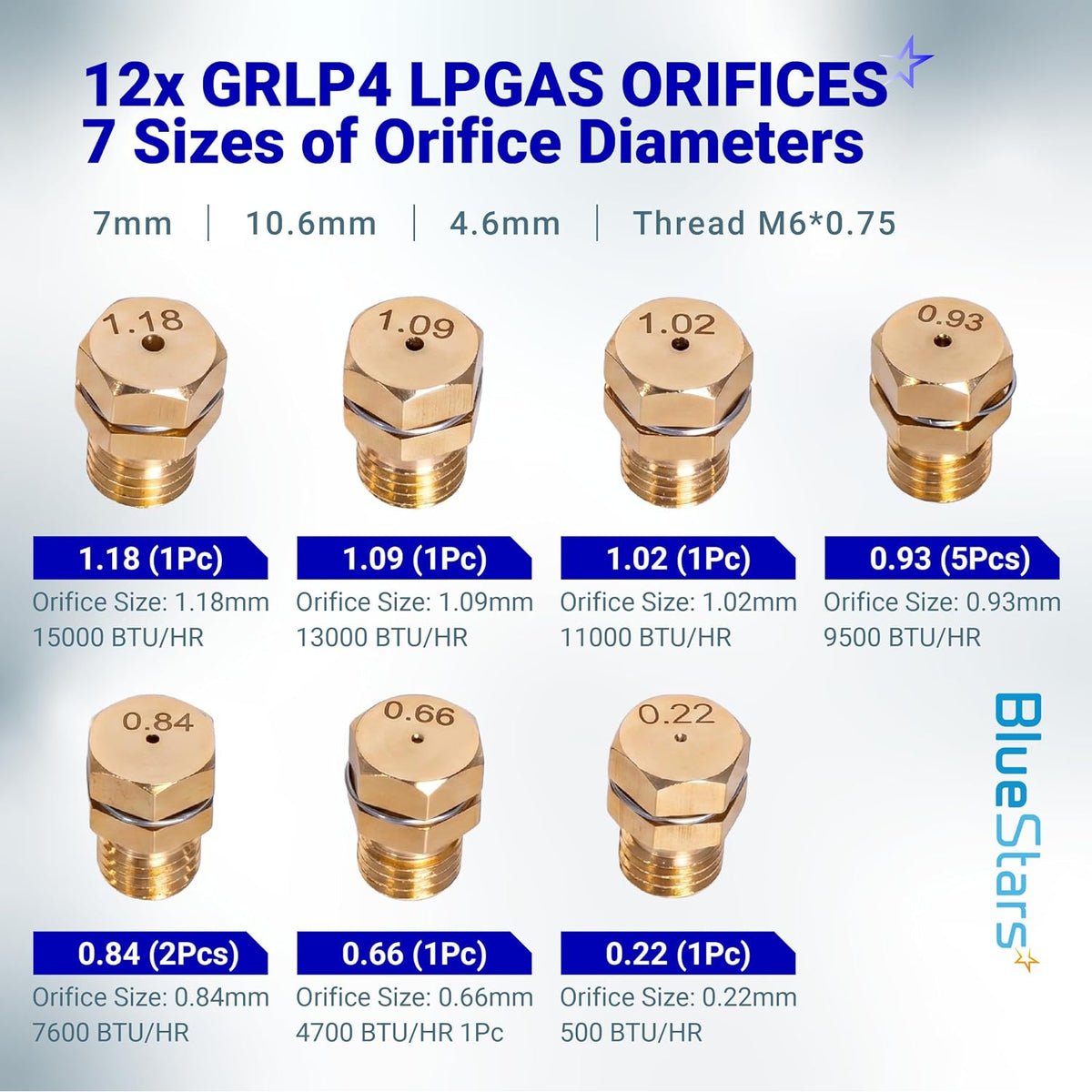

- Includes 12 brass conversion orifices in 07 orifice diameter sizes.

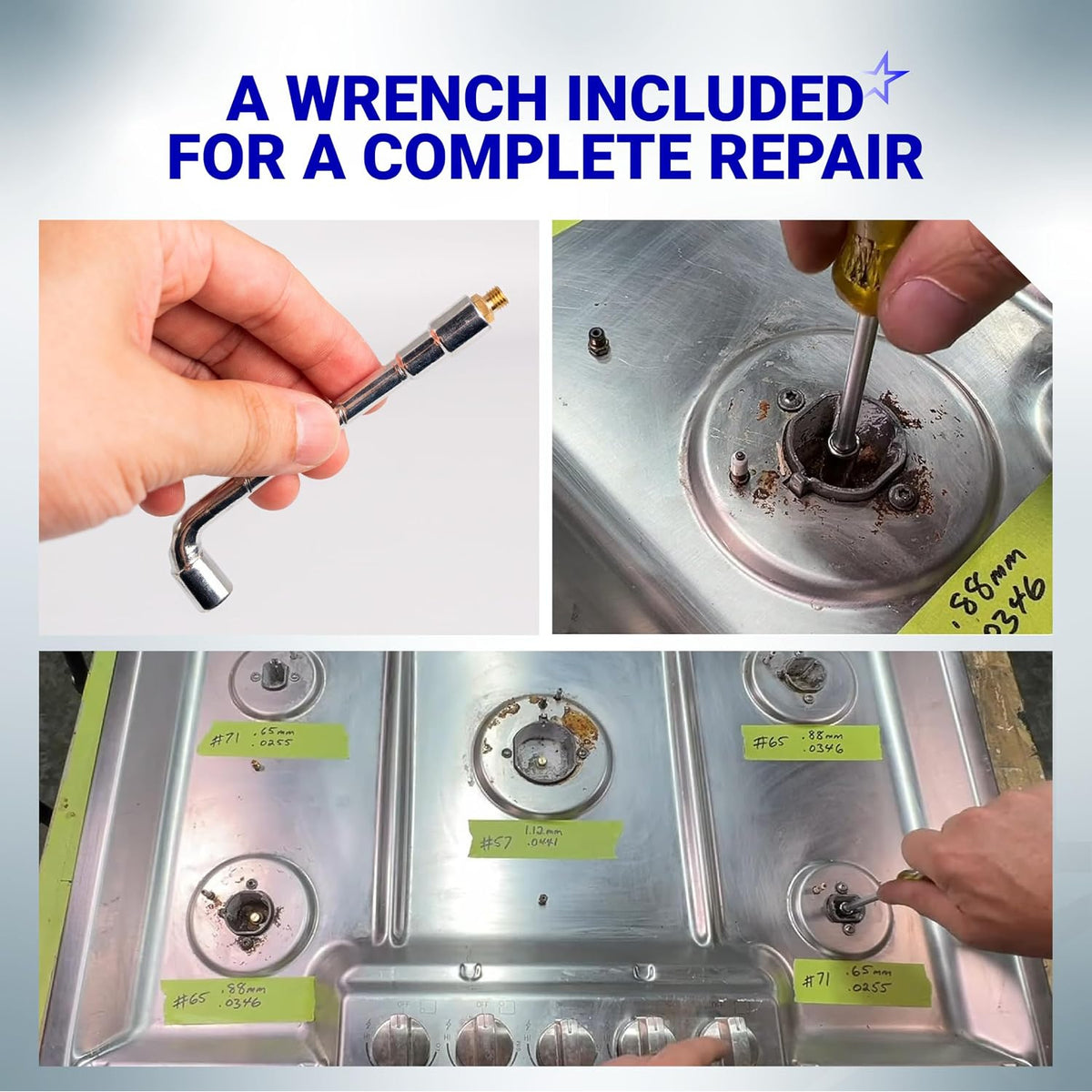

- Includes one wrench for orifice replacement.

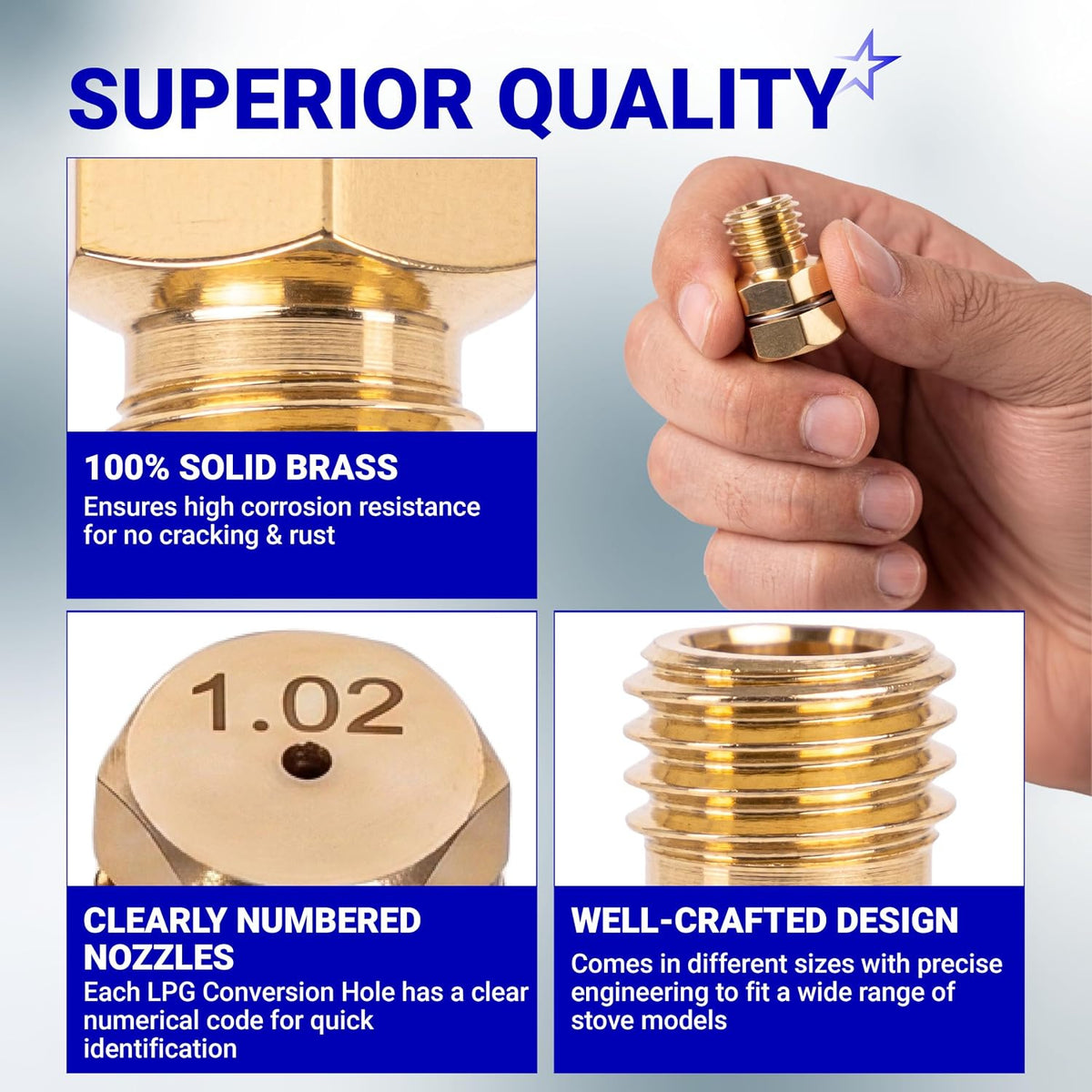

- Made from solid brass for corrosion resistance and long-term service.
- Each orifice has a numerical size code to help identify the correct piece during installation.

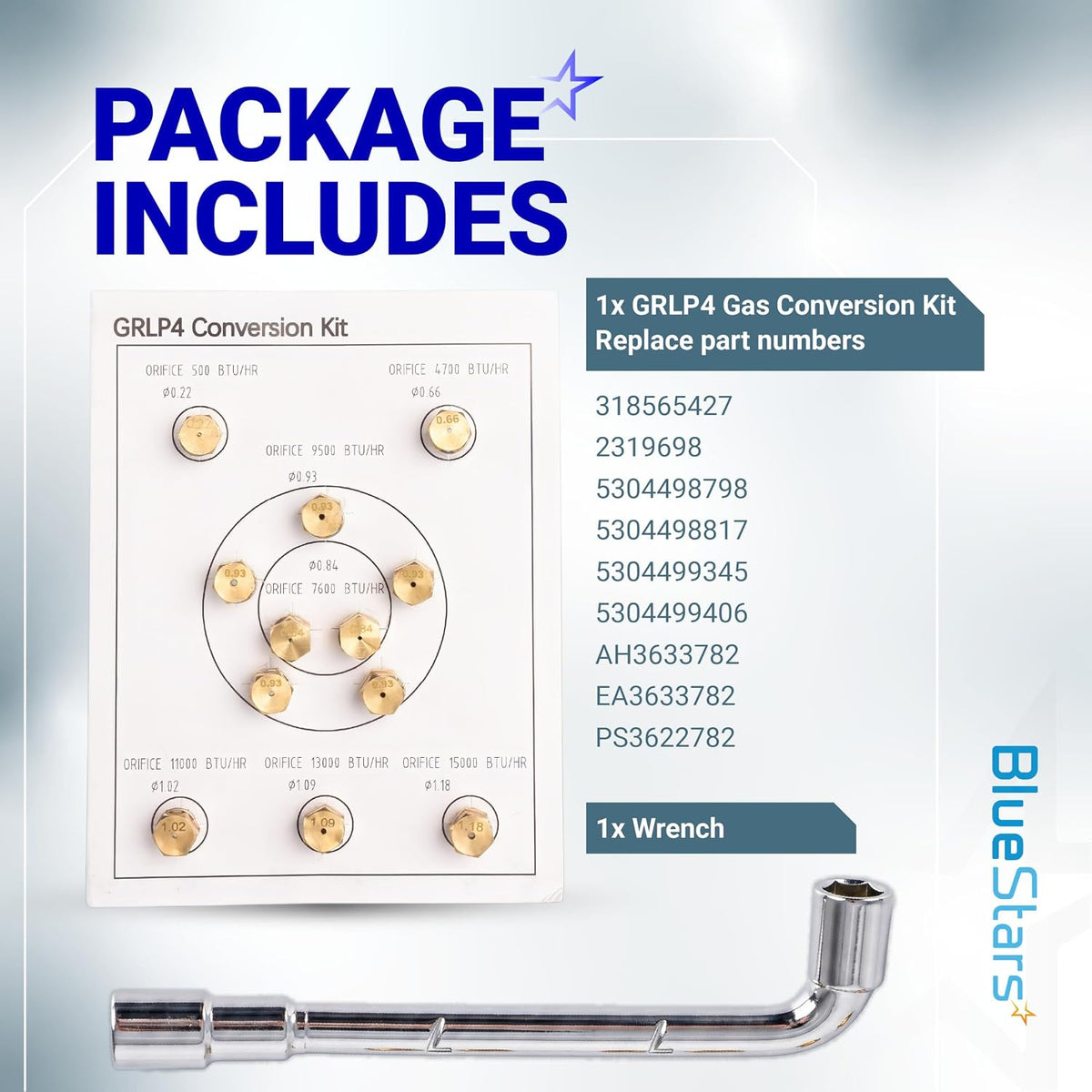

- Includes an instruction sheet with installation guidance.
Replaces / Cross-Reference Part Numbers
- GRLP4
- 316542414
- 316542416
- 318565417
- 5304498798
- 5304499345
- 808752801
- AP5608114
- PS3633782
- EA3633782

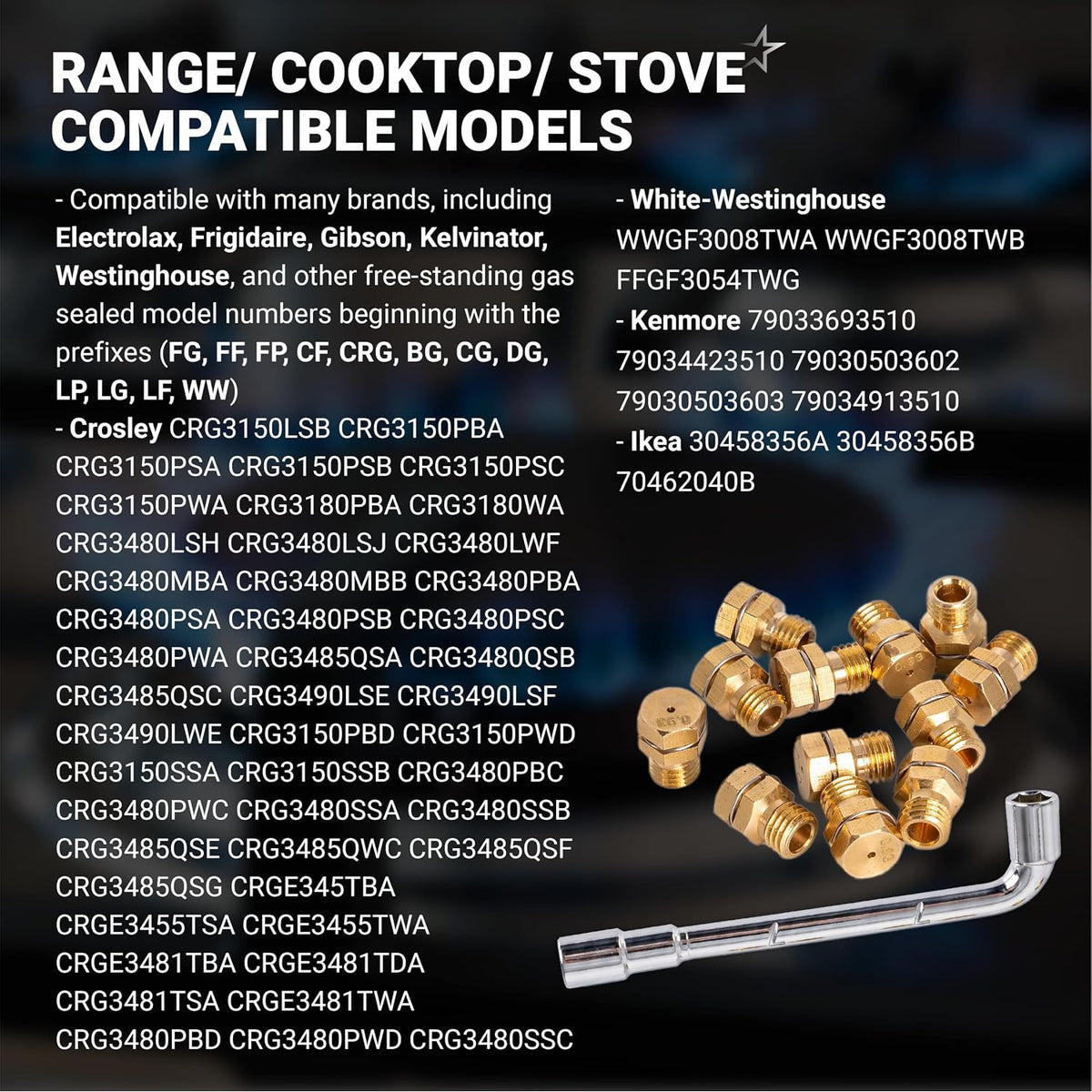

Compatibility & Fitment
- Compatible with many Frigidaire, Kenmore, and Electrolux gas ranges, stoves, and cooktops.
- The kit is also designed for sealed-burner models with prefixes FG, FF, FP, CF, CRG, BG, CG, DG, LP, LG, LF, and WW.
Confirm the full appliance model and the required gas type before installation, since a model prefix alone does not establish fitment.
When to Replace
Use this kit when a compatible appliance is being converted from natural gas to LP gas, or when the existing conversion orifices are damaged, corroded, blocked, or missing. Incorrect orifices can cause poor fuel delivery, weak yellow flames, unstable combustion, or burner performance problems after conversion.
Installation Tips
- Shut off the gas supply and disconnect the appliance from power before beginning work.
- Use the included wrench and the instruction sheet to identify and install the correct numerical orifice size at each burner position.
- Do not mix natural-gas and LP orifices. Install only the sizes specified for the appliance and burner configuration.
- After installation, check connections for leaks and confirm that the burners produce a stable blue flame.
- Gas conversion should be completed and tested by a qualified appliance technician where required by local regulations.
