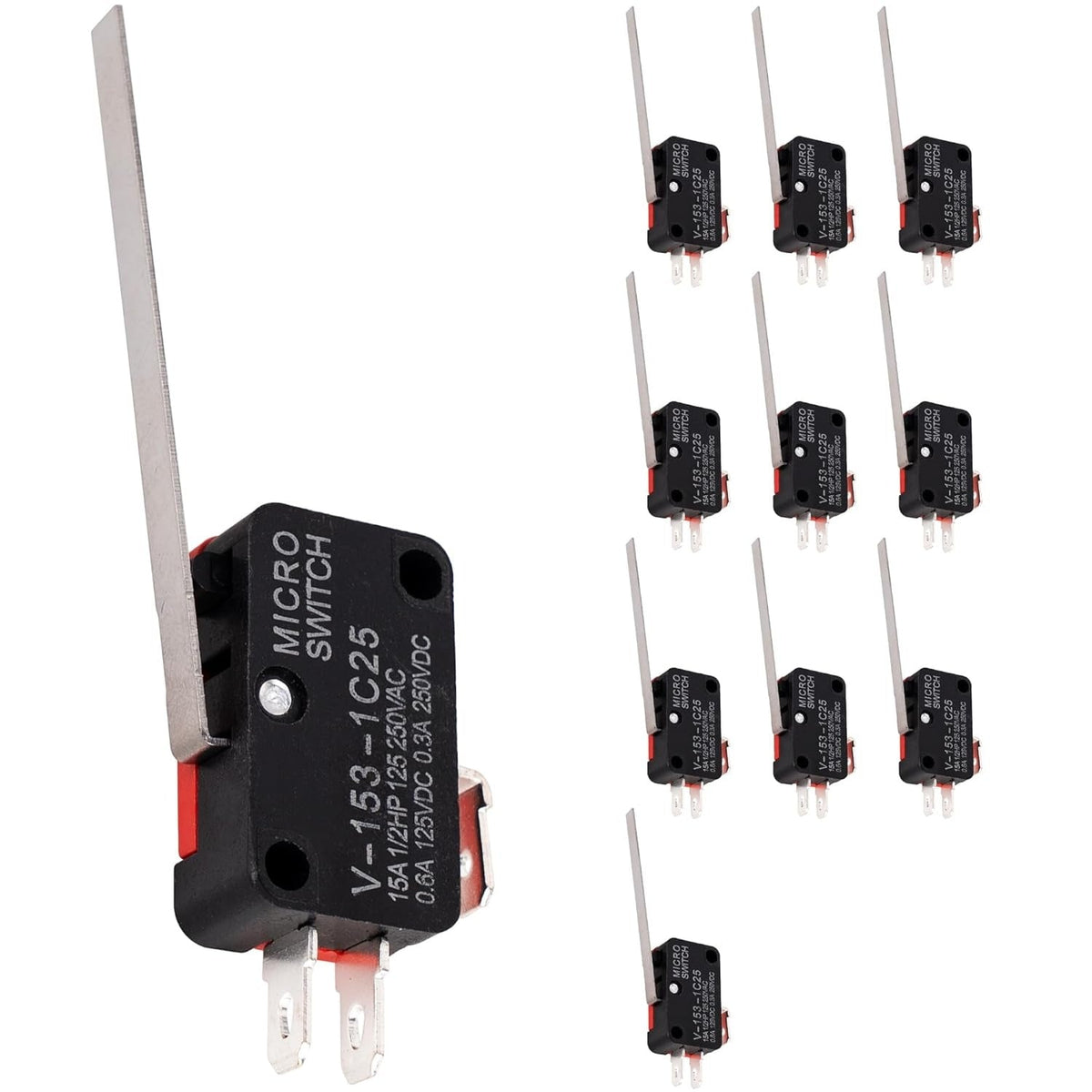

V-153-1C25 Micro Limit Switch Blade Momentary - 250VAC/125VDC 15A - 10 Pack
0.00
Regular price
$12.96
Regular price
Save 11%
$14.52
Sale price
$12.96
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
V-153-1C25 Micro Limit Switch Blade Momentary
Key Features

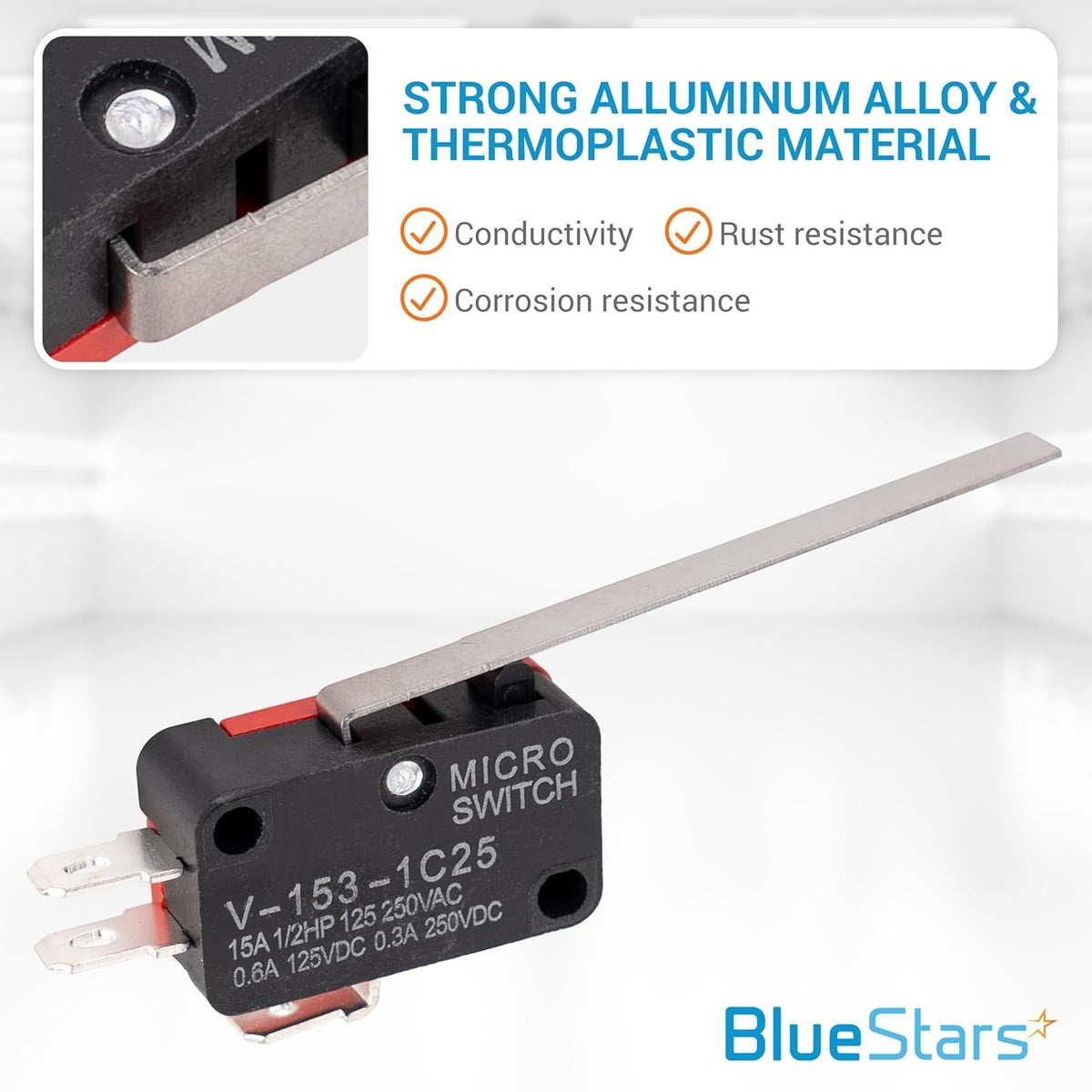

- Model: V-153-1C25
- Action Type: Momentary
- Actuator Type: Long Straight Hinge Lever
- Circuit: SPDT (Single Pole, Double Throw)
- Contact Configuration: 1NO 1NC (1 Normally Open, 1 Normally Closed)
- Terminals: 3-Pin Solder/Quick Connect
- Current Rating: 15A at 250VAC
- Voltage Rating: 250VAC / 125VDC
Replaces / Cross-Reference Part Numbers
- V-153-1C25
- V-15-1C25
Compatibility & Fitment
- General purpose snap-action switch for industrial controls, automation equipment, and appliances.
- Used as a limit switch in various mechanical and electronic systems.
- Fitment is determined by physical dimensions and electrical ratings. Verify specifications of the original component before ordering.
When to Replace
- Switch fails to actuate or release reliably.
- Intermittent or complete loss of electrical continuity in either the normally open or normally closed position.
- Physical damage to the switch body, lever arm, or terminals, such as cracking, melting, or corrosion.
- The connected device operates erratically or does not respond to the switch's state change.
Installation Tips
- Disconnect all power to the equipment before beginning installation.
- Confirm the voltage and amperage ratings of this switch meet or exceed the requirements of your application.

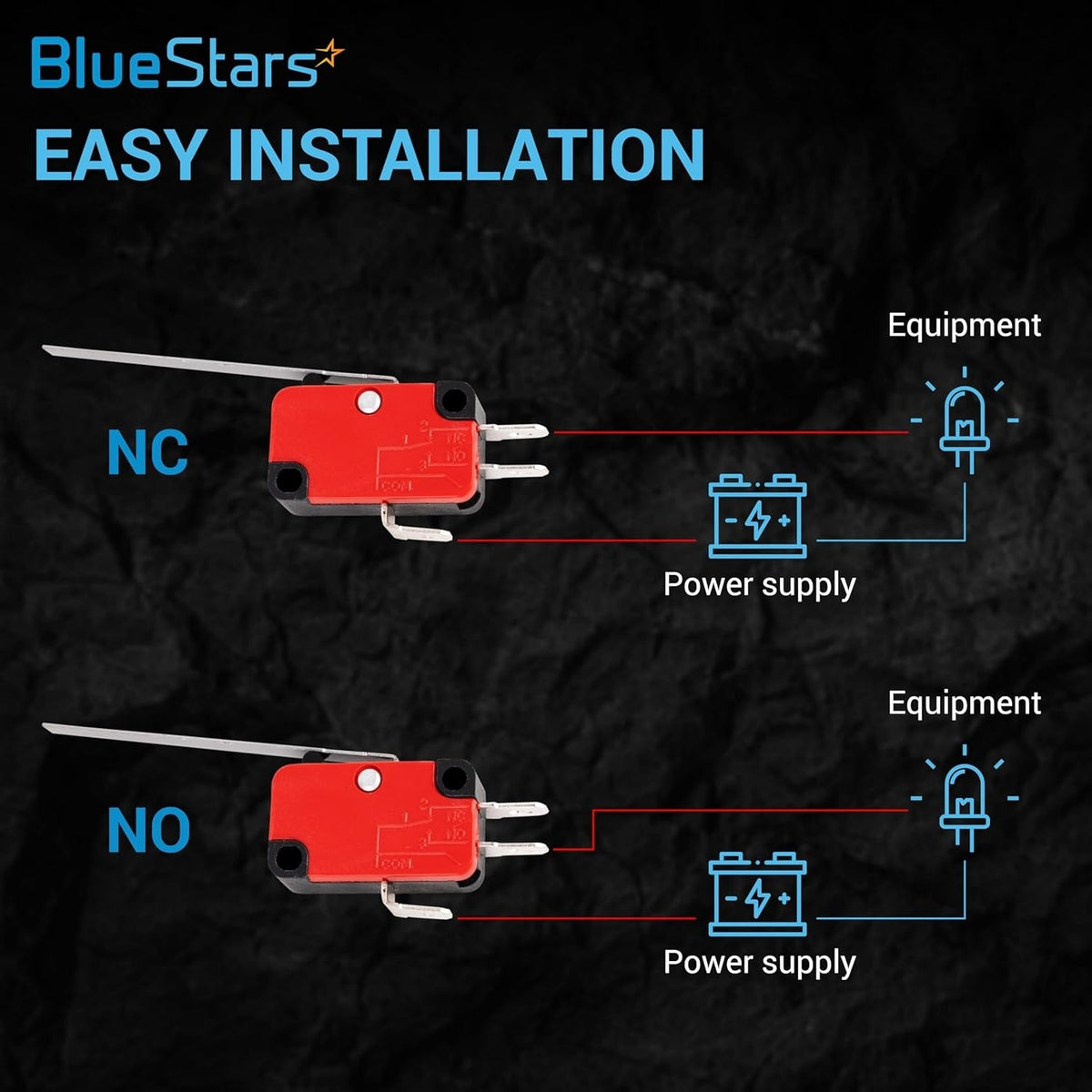

- Connect wiring to the appropriate C (Common), NO (Normally Open), and NC (Normally Closed) terminals based on your circuit diagram.
- Ensure the switch is mounted securely and the actuator arm has the correct range of motion without over-travel.
