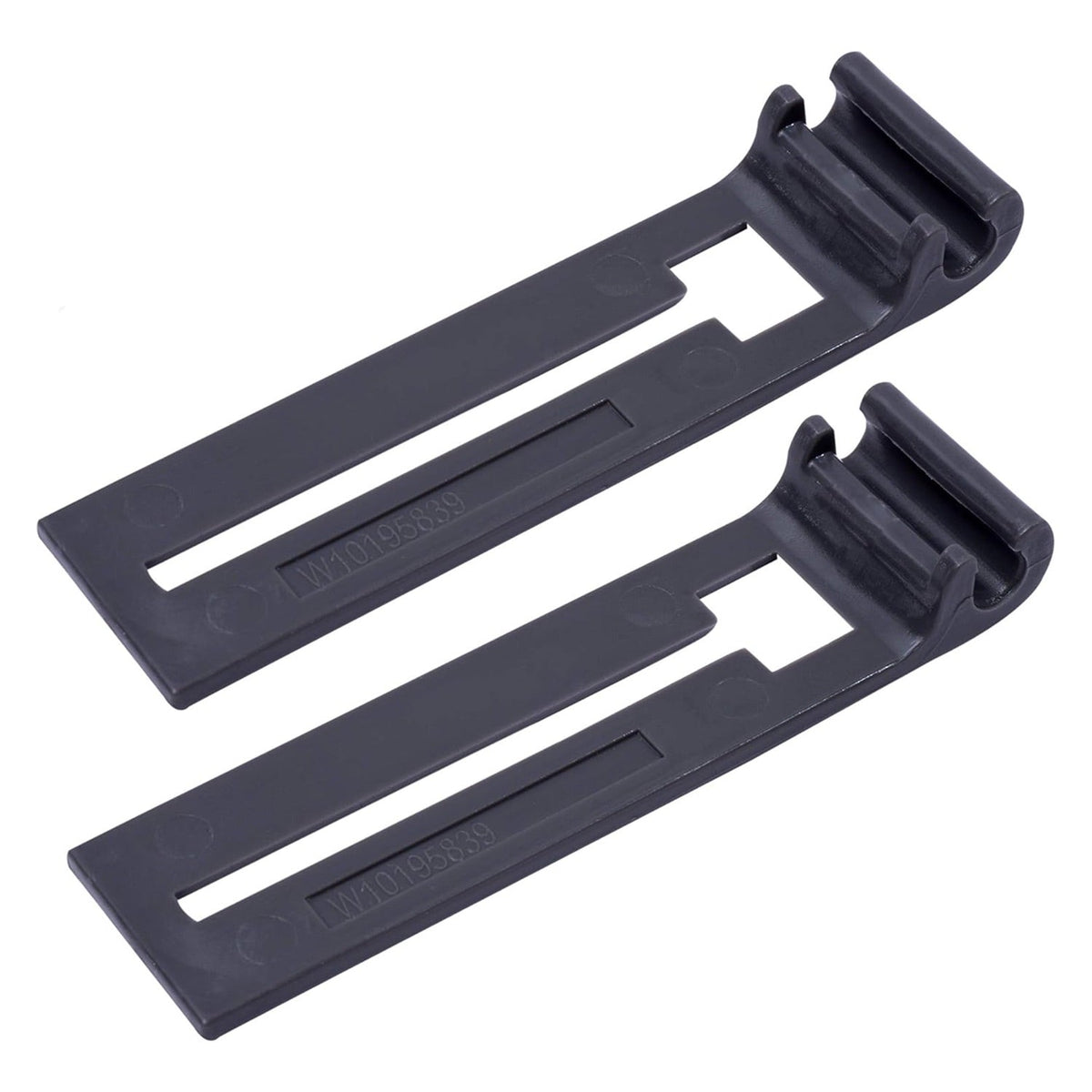

Two black W10195839 dishwasher rack adjuster replacement clips for Whirlpool and Kenmore appliances.

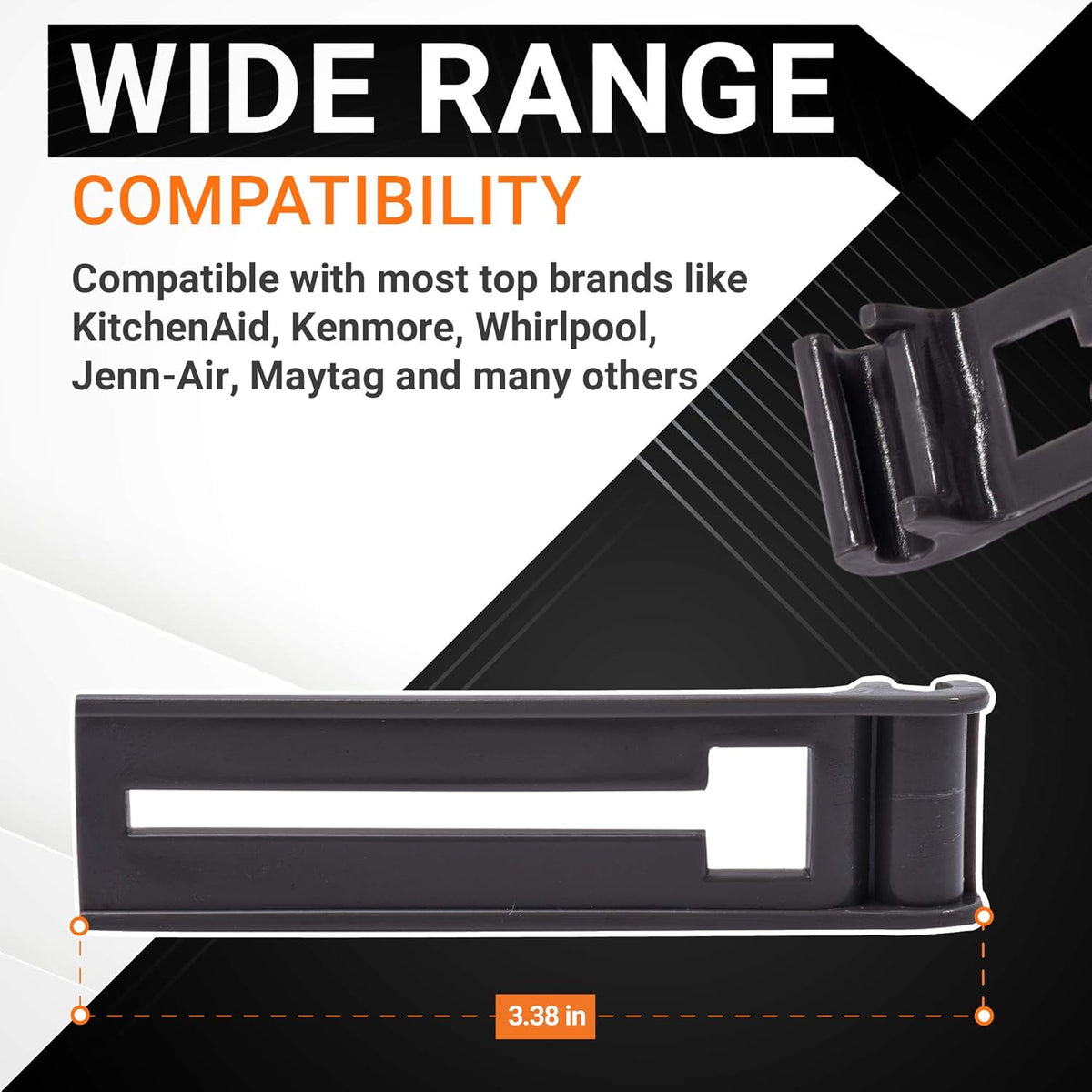

W10195839 dishwasher rack adjuster showing 3.38 inch length measurement and brand compatibility information.
White dishwasher showing common repair symptoms like leaking and door latch failure for W10195839 rack adjuster.

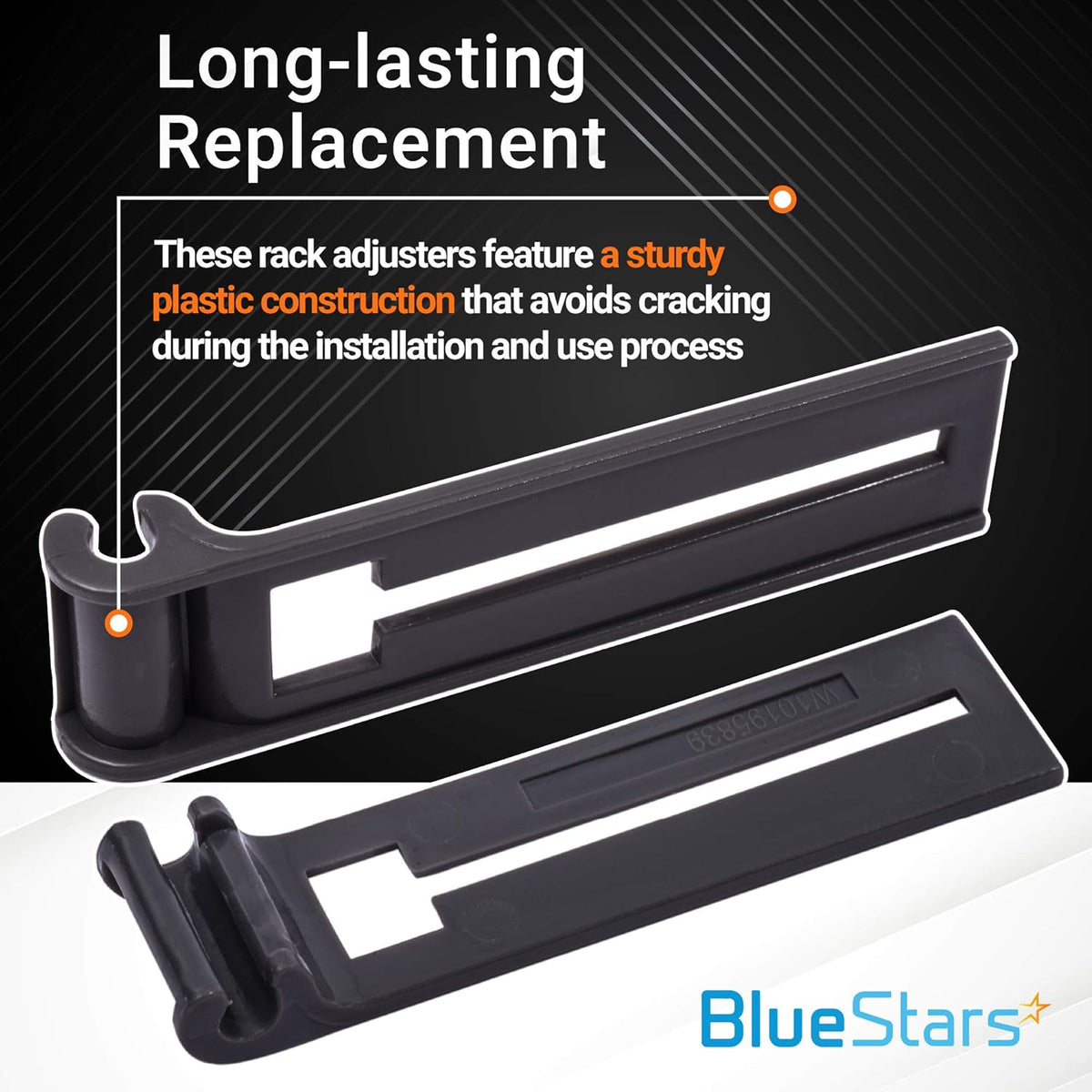

Two black plastic W10195839 dishwasher rack adjusters shown with informational text overlay.

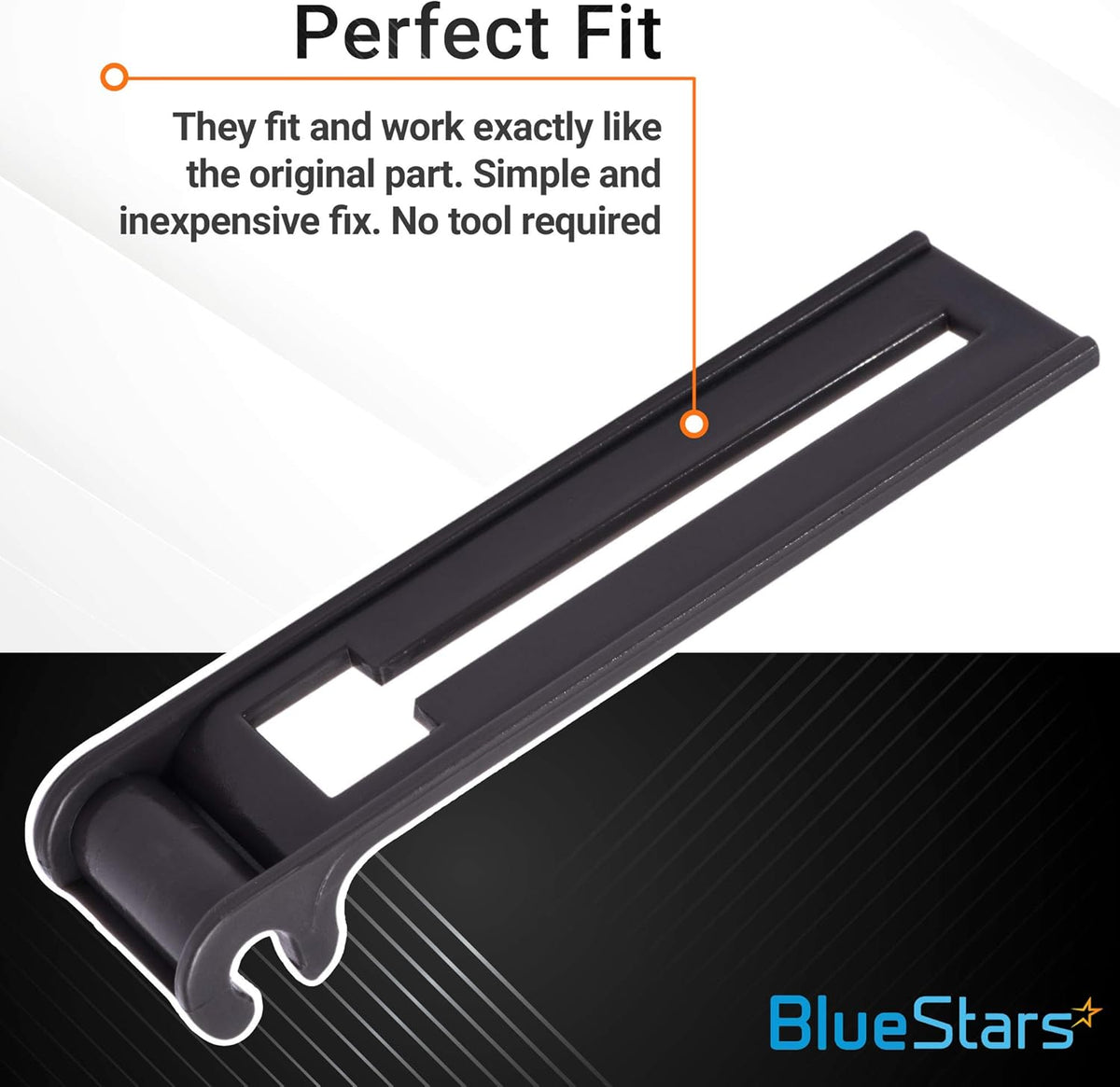

Single W10195839 dishwasher rack adjuster replacement part with informational text overlay.
Woman loading colorful plates into a dishwasher, representing DIY repair for W10195839 dishwasher rack adjusters.

W10195839 Dishwasher Rack Adjuster for Whirlpool Kenmore - 2 Pack

0.00
$11.69
Save 16% $13.91
$11.69
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

WPW10195839 Dishwasher Rack Adjuster

Key Features

  • Height Versatility: Allows for easy raising or lowering of the upper rack to accommodate oversized platters in the bottom rack or tall stemware in the top.
  • Reinforced Design: Constructed from high-impact, heat-stabilized plastic designed to handle the weight of a fully loaded rack during high-temperature cycles.
  • Smooth Operation: Features a simplified lever mechanism for rapid height adjustments without the need for tools.
  • Value Bundle: Includes two adjuster assemblies, allowing for a complete refresh of both the left and right sides of the upper rack.

Replaces / Cross-Reference Part Numbers

  • WPW10195839
  • AP6016799
  • PS11750092
  • W10418322
  • W11214484
  • 1872227
  • AP4566229
  • PS3407015
  • EAP3407015
  • W10195839

Compatibility & Fitment

This rack adjuster kit is a standard replacement for various Whirlpool-manufactured dishwashers equipped with adjustable upper racks. Key compatible brands include:

  • Whirlpool: Fits many Gold series and standard models (e.g., WDT720PADM, WDT970SAHZ, WDF series).
  • KitchenAid: Compatible with many KDT, KDF, and KUDE series high-capacity models.
  • Kenmore / Sears: Fits various 665-series models (e.g., 665.13263K, 665.13473K).
  • Maytag & Jenn-Air: Compatible with select units utilizing the WPW10195839 adjuster style.

When to Replace

  • Rack Sagging: One side of the upper rack sits lower than the other, often causing the middle spray arm to strike dishes below.
  • Broken Housing: Visible cracks in the plastic frame or snapped mounting clips that hold the adjuster to the wire rack.
  • Lever Failure: The adjustment trigger no longer clicks into place or has snapped off, making it impossible to secure the rack height.
  • Rack Falling: The rack unexpectedly drops to its lowest position during a cycle due to worn internal locking teeth.
  • Brittle Plastic: The components have become chalky or brittle from repeated exposure to high heat and harsh detergents.

Installation Tips

  • Safety First: Ensure the dishwasher is off and the upper rack is completely empty. Pull the rack out to its furthest extent.
  • Removal: You may need to remove the rack from the tub rails by releasing the end caps on the drawer slides. Use a flat-head screwdriver to gently release the plastic clips securing the old adjuster to the wire.
  • Orientation: Note that there is often a distinct "Left" and "Right" side; ensure the adjustment levers face toward the front of the dishwasher for easy access.
  • Snap-Fit: Align the new adjuster with the horizontal wires of the rack and press firmly until all clips snap securely into place.
  • Verification: Reinsert the rack into the slide rails and test the height adjustment on both sides to ensure it locks smoothly at each level.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This rack adjuster is compatible with dishwashers manufactured by Whirlpool, Kenmore, KitchenAid, Jenn-Air, Maytag, and Ikea.
This part replaces OEM numbers WPW10195839, W10195839, AP6016799, PS11750092, W11214484, W10418322, 1872227, AH3407015, AP4566229, EA3407015, EAP3407015, PD00002725, and PS3407015.
Common symptoms include the upper rack failing to stay at the desired height, the rack dropping unexpectedly, or the adjuster mechanism appearing cracked, snapped, or physically loose. If the rack is difficult to slide or won't lock into position, the adjuster strap has likely failed.
Replacing the rack adjuster is a straightforward task that typically takes 15 to 30 minutes. You will generally need a flat-head screwdriver or a small pry tool to remove the end caps and release the old strap. It is recommended to pull the upper rack completely out of the dishwasher rails for easier access to the mounting points.
While this pack includes two adjusters, it is highly recommended to replace both the left and right sides simultaneously. If one side has failed due to wear and tear, the other side is likely close to failing as well. Replacing both ensures the rack remains level and operates smoothly.
