W10195839 W10195840 W10250160 Dishwasher Rack Adjuster & Clip Kit

W10195839 & W10195840 & W10250160 Adjuster Positioner, Rack Adjuster & Adjuster Arm Clip-lock Kit

Key Features

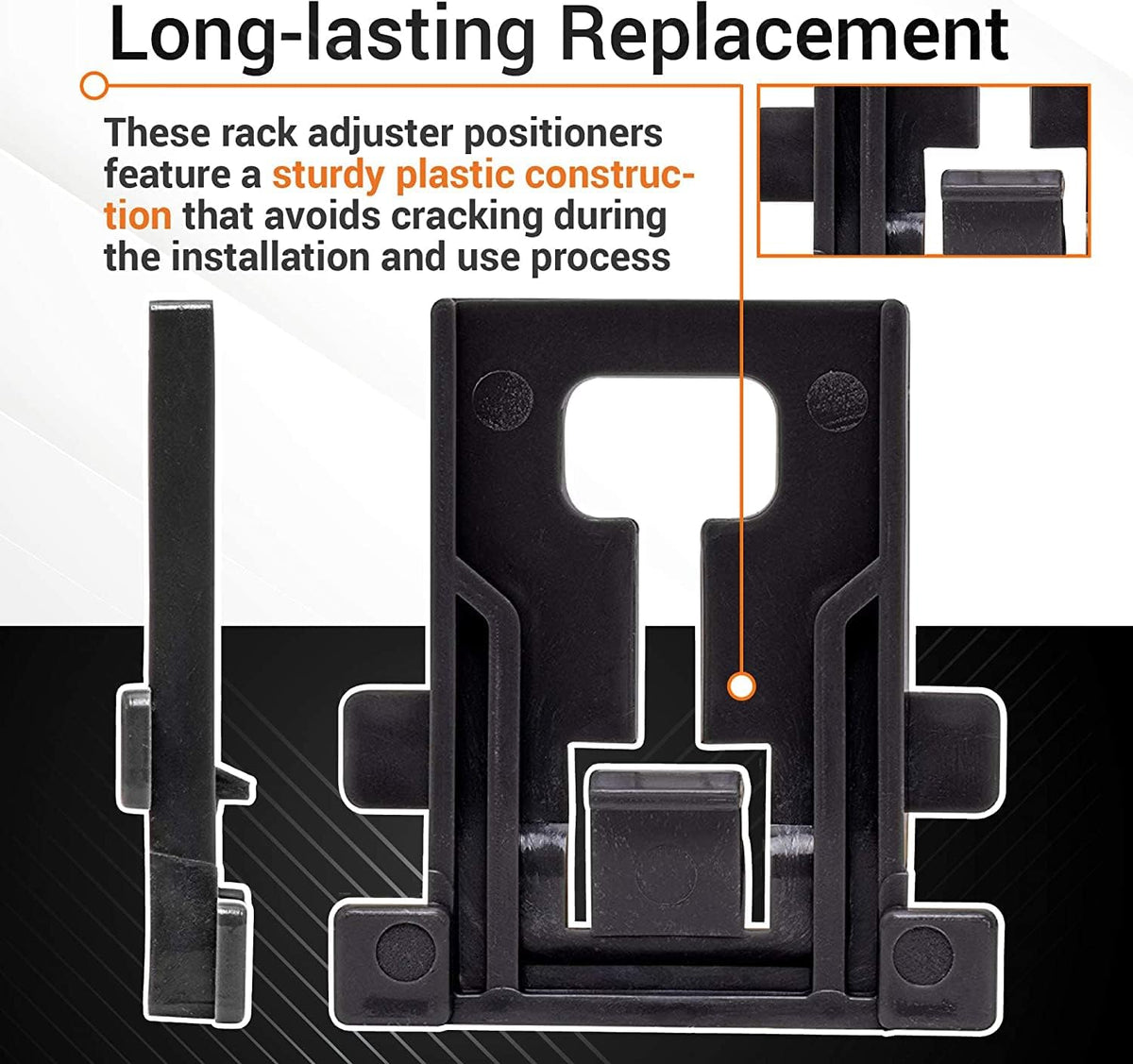

• Reinforced Structural Polymer: All components are manufactured from a high-density, heat-stabilized plastic designed to withstand the intense thermal cycling of "Sani-Rinse" and "High-Temp Wash" without warping or cracking.

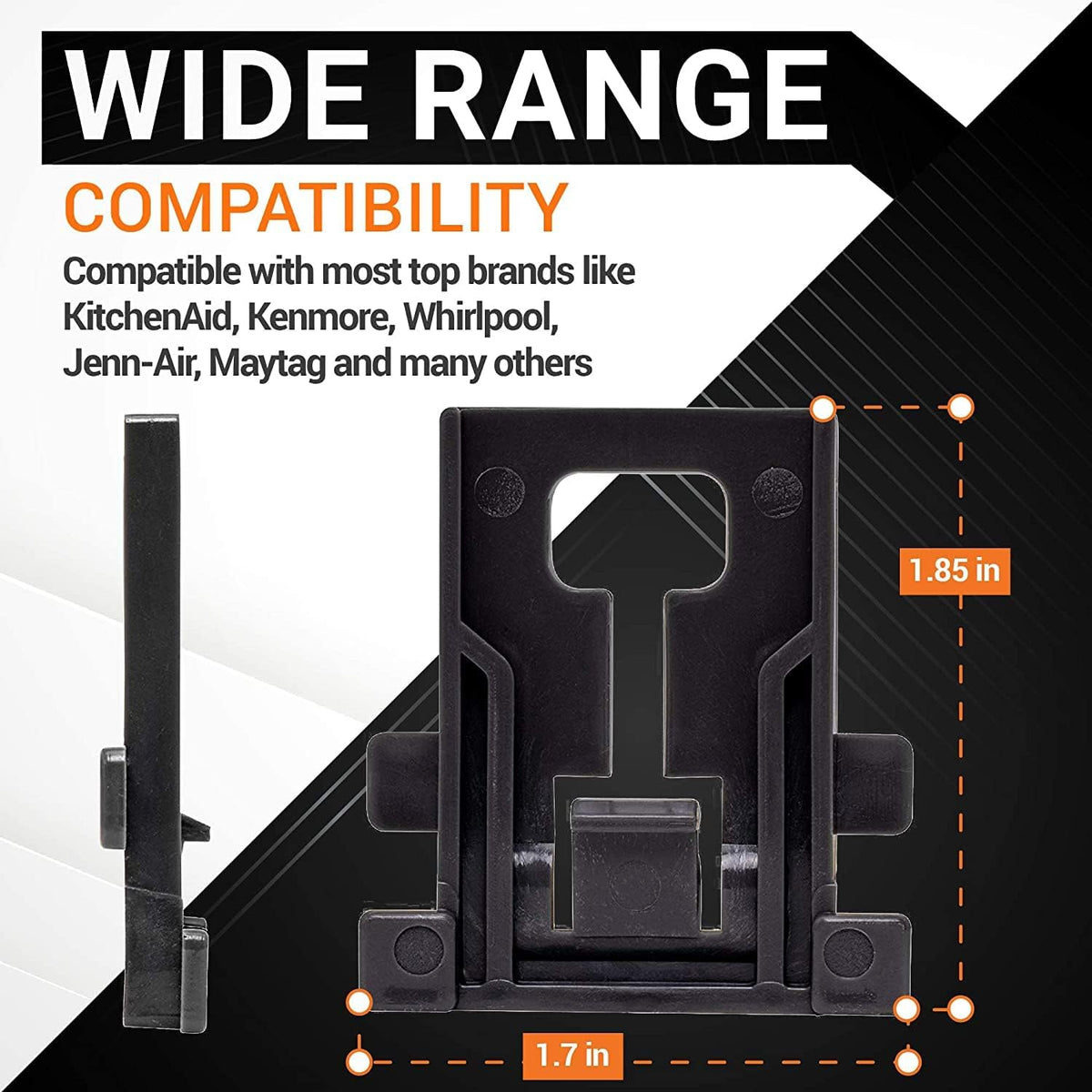

• Precision Height Adjustment: The W10195840 adjuster housing and W10195839 positioner work in tandem to allow for a smooth, multi-level height transition of the upper rack, accommodating tall glassware or large bottom-rack cookware.
• Upgraded Snap-Lock Security: Includes the W10250160 clip-locks, featuring a dual-tab locking interface that prevents the upper rack from accidentally dropping or becoming unseated during heavy loading.

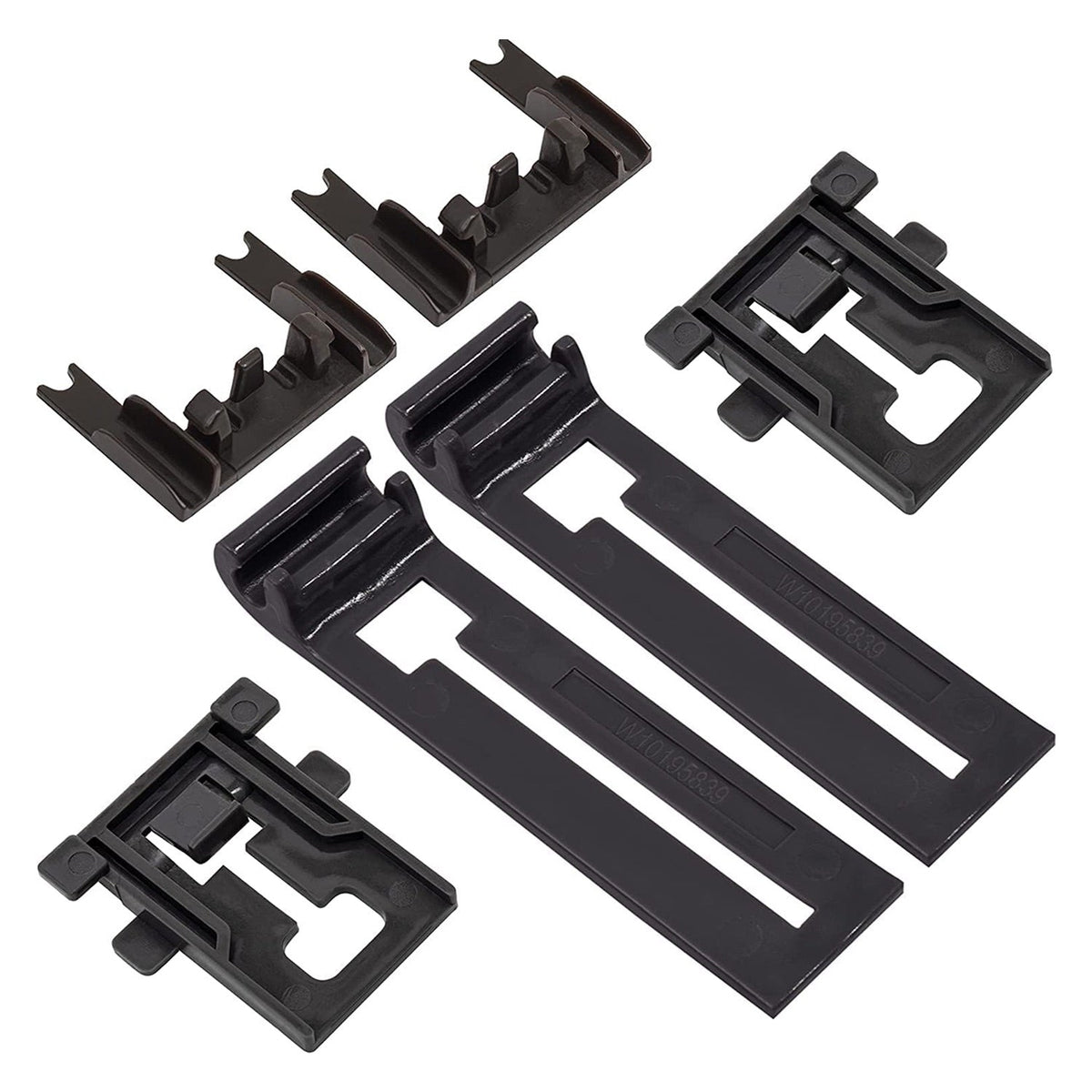

• Complete Left & Right Restoration: This comprehensive kit includes all necessary components to rebuild both the left and right side adjuster assemblies, restoring the level balance and structural integrity of your upper dish rack.

Replaces / Cross-Reference Part Numbers

• Upper Rack Adjuster Kit: W10546503, WPW10546503, AP6022813, PS11756150, W10418314, W10306646, WPW10546503VP, W10350376, W10712394
• W10195839 - Rack Adjuster: WPW10195839, AP6016799, PS11750092, W10418322, 1872227, AP4566229, PS3407015, EAP3407015, W11214484
• W10195840 - Adjuster Positioner: WPW10195840, AP6016800, PS11750093, W10418323, 1872228, PS3407016, AP4566230, EAP3407016, LP16233
• W10250160 - Clip-Lock Arm: WPW10250160, AP6017800, PS11751100, EAP11751100, WPW10250160VP, W11163959

Compatibility & Fitment

This adjuster kit is the standard replacement for the upper rack of most modern Whirlpool-manufactured dishwashers. Key compatible brands include:

• Whirlpool & Maytag: Fits many WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ, WDF520PADM).
• KitchenAid & Jenn-Air: Compatible with various KDTM, KDTE, and JDT series units (e.g., KDTE104ESS, KUDC10FXSS).
• Kenmore (665 Series): Fits hundreds of 665-prefix "Elite" and standard dishwashers (e.g., 665.13263K311, 665.13282K113).
• Amana & Estate: Direct fit for dozens of ADB and DU series models utilizing this specific adjuster hardware.
• Note: This is a mechanical kit for the height adjustment mechanism. It does not include the rack wheels (rollers) or the metal sliding tracks.

When to Replace

• Upper Rack Dropping: One side of the upper rack suddenly falls or "slumps" because the W10250160 clip-lock or W10195839 positioner has snapped.
• Rack Won't Adjust: The height adjustment mechanism feels loose, jammed, or wobbly, making it impossible to raise or lower the rack securely.
• Unbalanced Loading: The upper rack sits at an angle, causing the middle spray arm to hit the dishes below or preventing the door from closing properly.
• Visible Heat Damage: The grey plastic looks "whitened," brittle, or has visible stress fractures from long-term exposure to the dishwasher's heating element.
• Missing Hardware: Clips or positioners have popped off during a cycle and were lost or damaged at the bottom of the tub.

Installation Tips

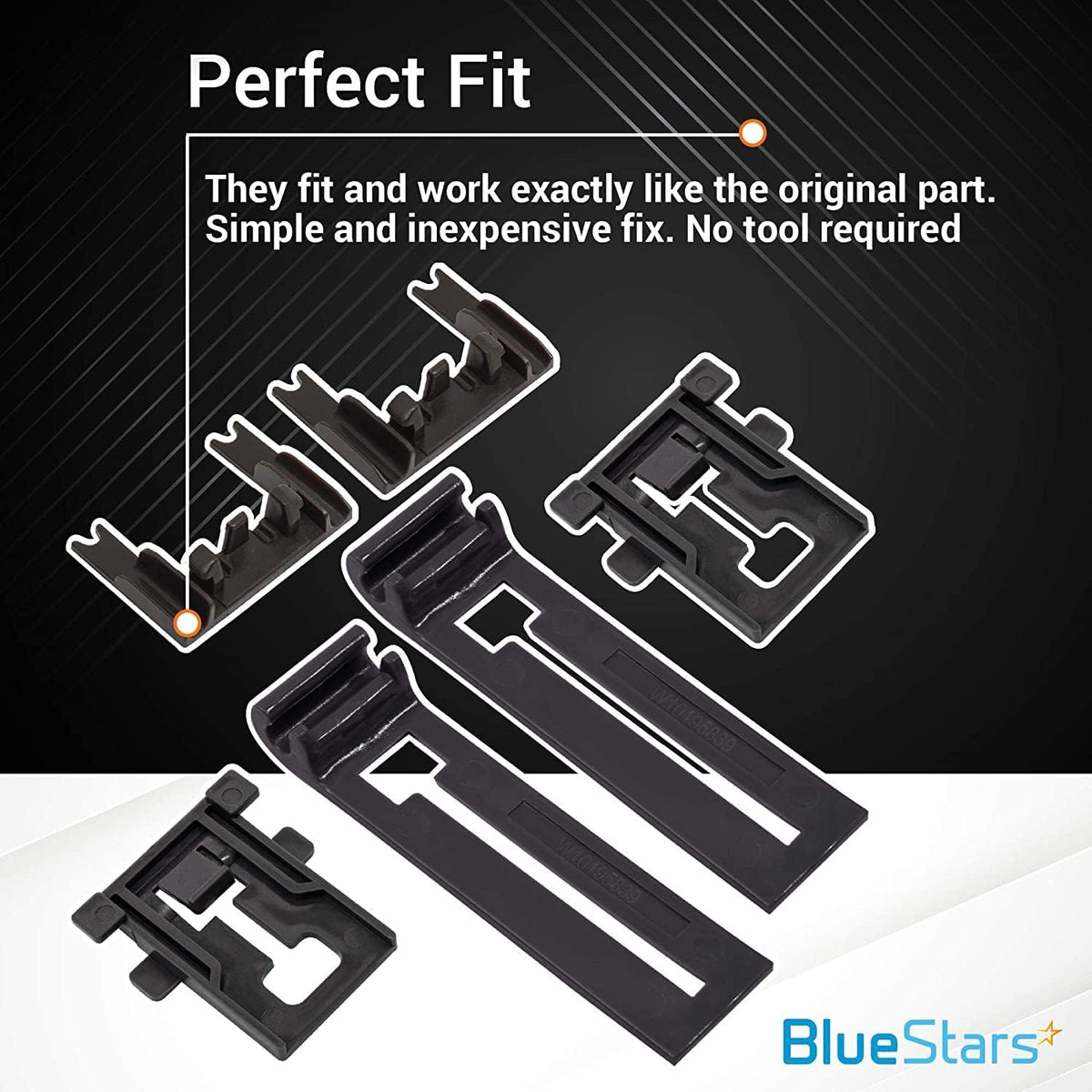

• No Specialized Tools Required: This is a "snap-fit" repair. Pull the upper dish rack out completely or remove it from the tracks for the best visibility and access.
• Removing Old Hardware: Use a small flat-head screwdriver to gently pry the old W10250160 clips away from the adjuster body. Be careful not to bend the metal rack wires.
• Clean the Rack: Before installing the new kit, wipe away any old food particles or mineral scale from the rack's side wires to ensure a secure, permanent lock.
• The "Click" Test: Align the positioner and adjuster housing, then press the clip-lock firmly until you hear a distinct "click." This ensures the rack is anchored safely to the rail system.
• Replace Both Sides: Since the plastic components on both sides are exposed to the same heat and chemicals, it is highly recommended to replace the left and right assemblies simultaneously to prevent a repeat failure.
