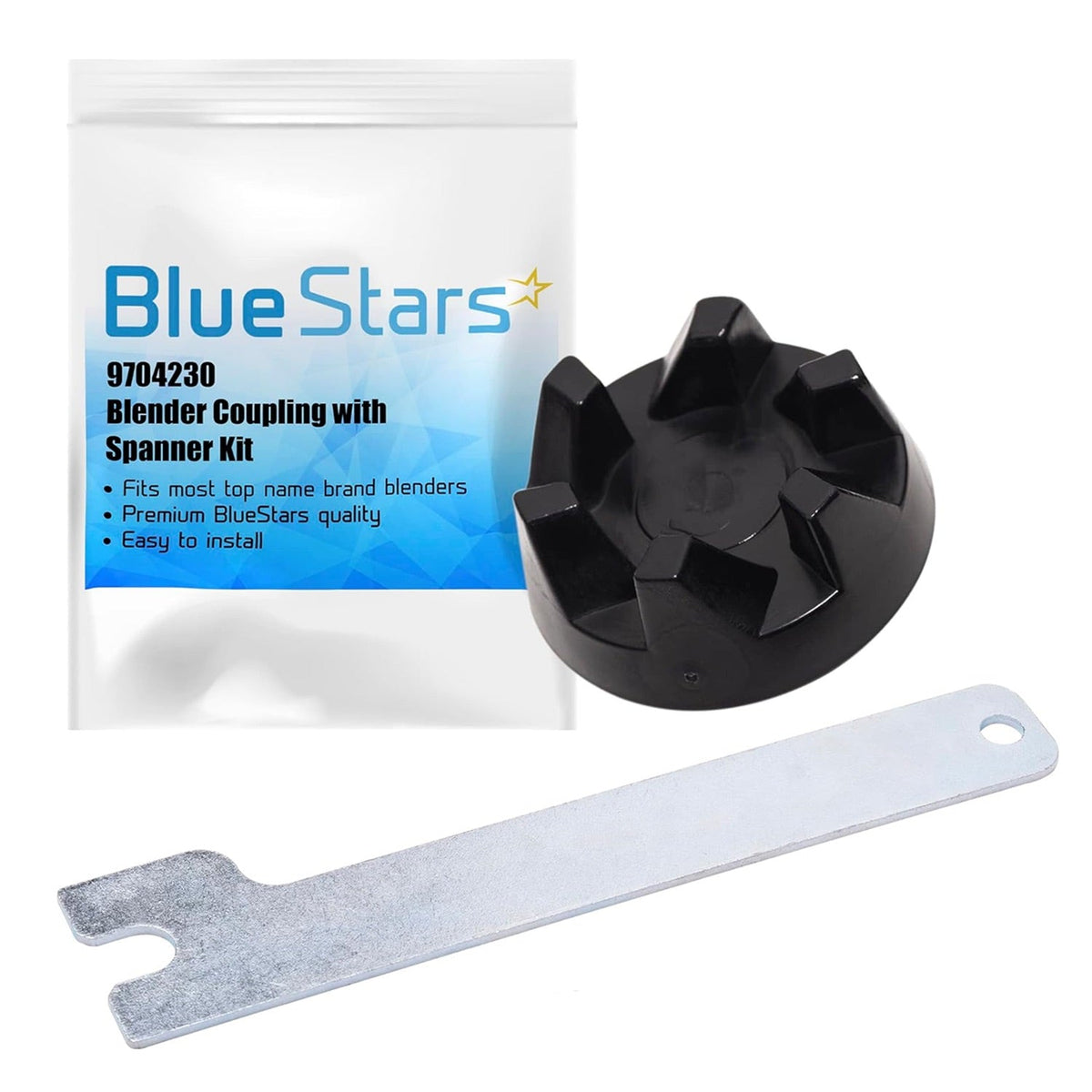

9704230 blender drive coupler and spanner wrench kit for KitchenAid blenders in Blue Stars packaging.

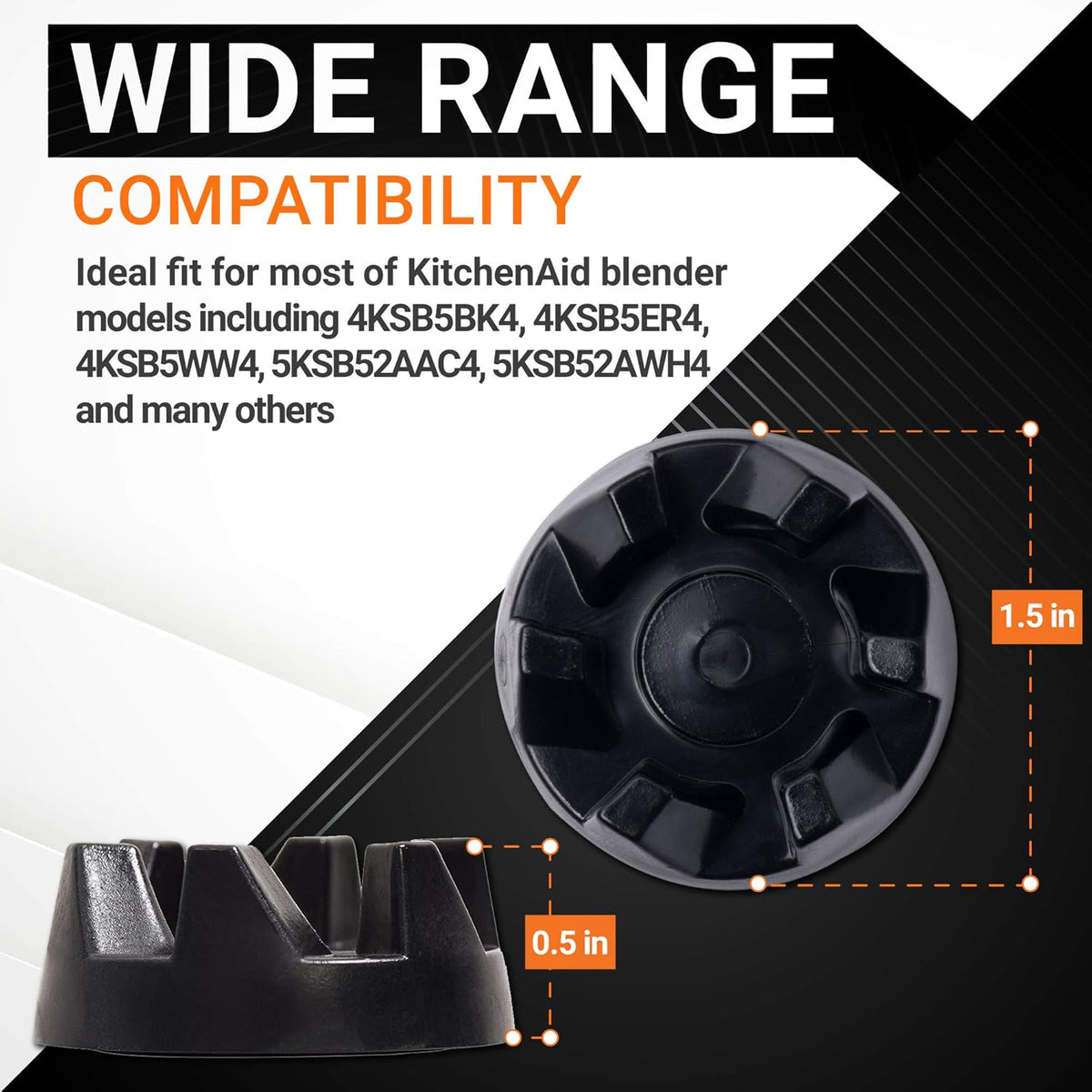

9704230 blender drive coupler showing 1.5-inch diameter and 0.5-inch height dimensions for KitchenAid compatibility.
Black KitchenAid blender filled with fresh fruit, promotional graphic for 9704230 blender drive coupler replacement.

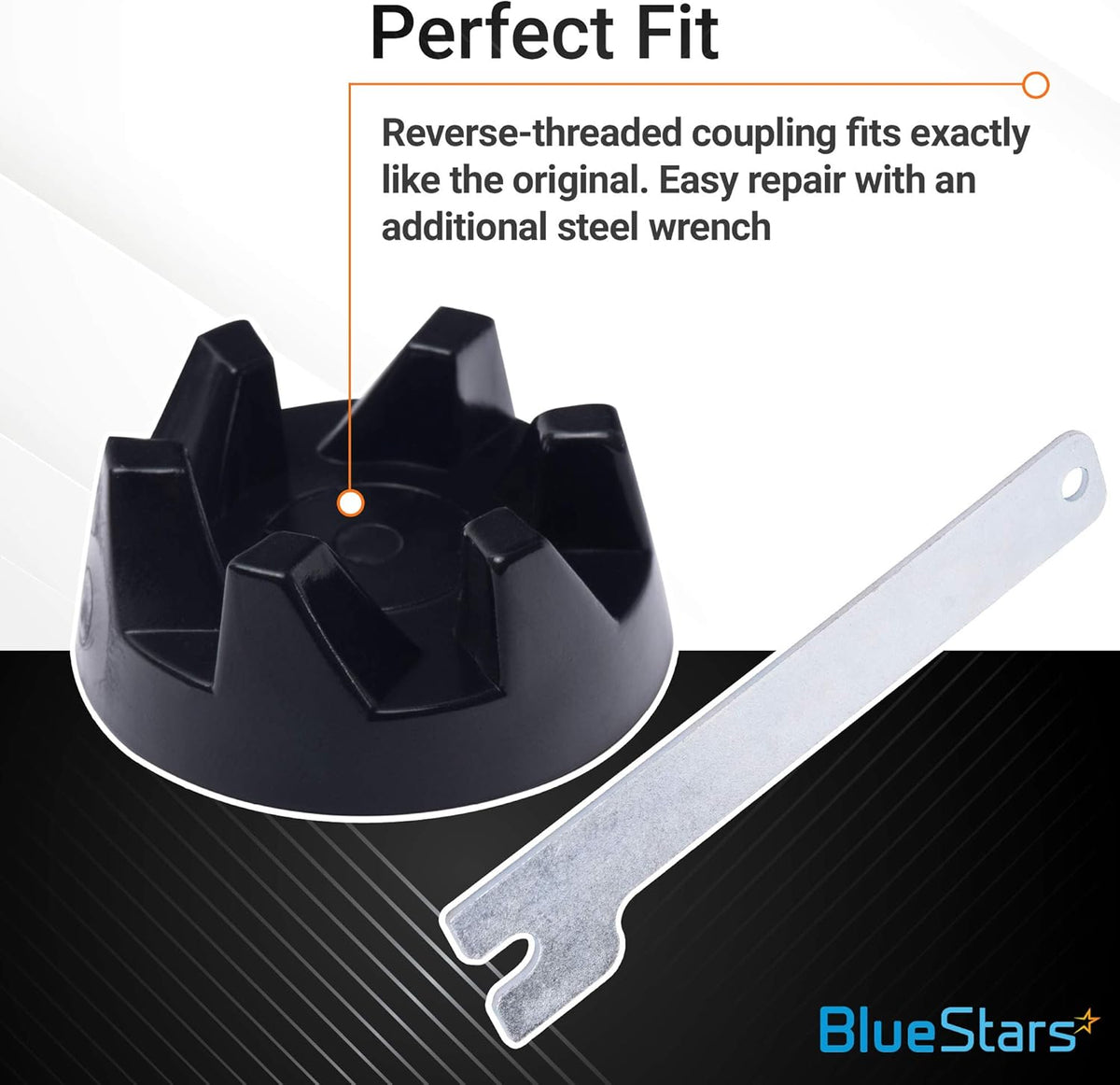

9704230 blender drive coupler and steel spanner wrench kit for KitchenAid blenders.

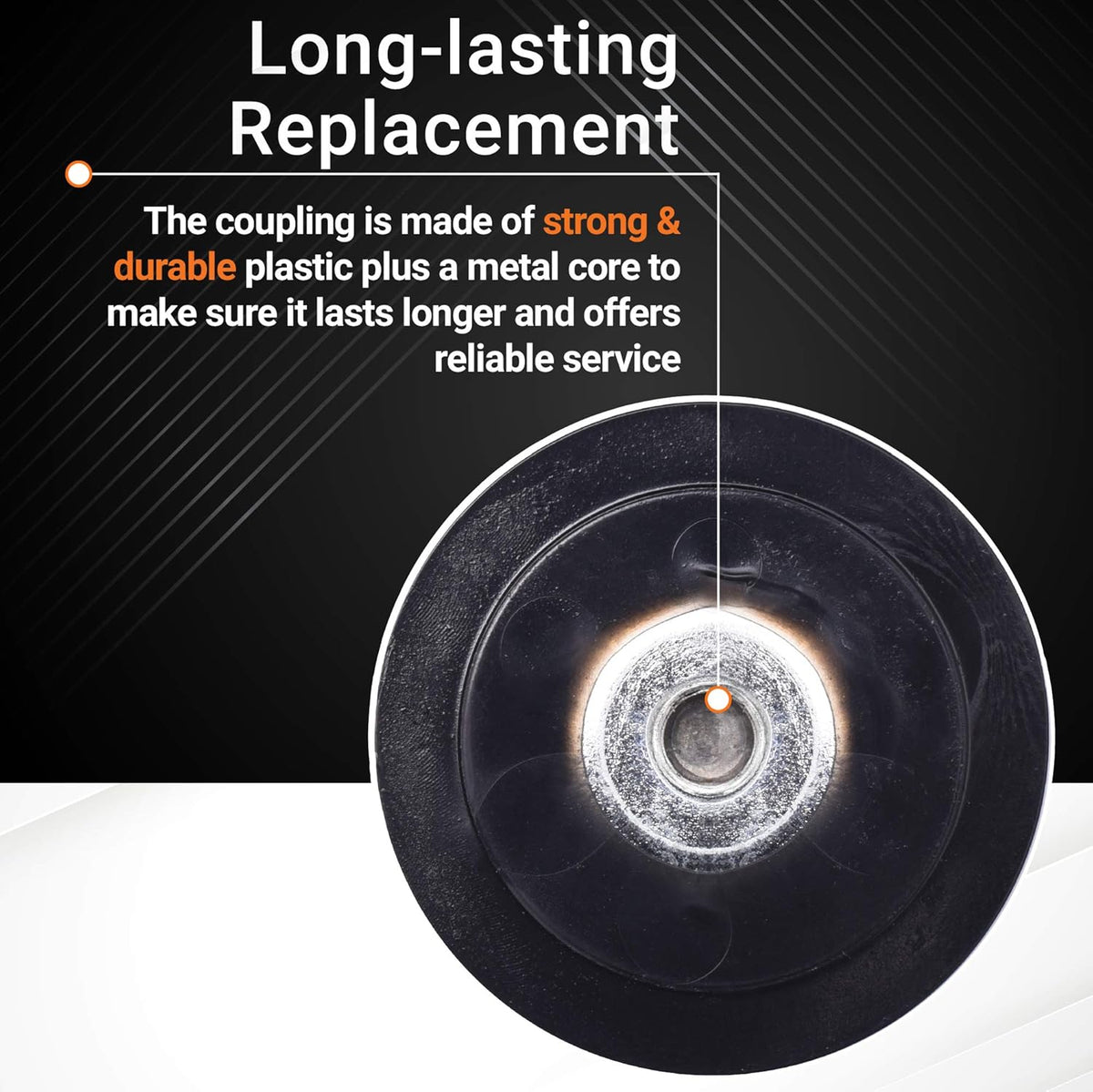

Close-up of 9704230 blender drive coupler showing durable plastic construction and metal core for KitchenAid blenders.
Woman preparing fruit in a KitchenAid blender for a DIY repair demonstration.
9704230 blender drive coupler and spanner wrench kit for KitchenAid blenders in Blue Stars packaging.
9704230 blender drive coupler showing 1.5-inch diameter and 0.5-inch height dimensions for KitchenAid compatibility.
Black KitchenAid blender filled with fresh fruit, promotional graphic for 9704230 blender drive coupler replacement.
9704230 blender drive coupler and steel spanner wrench kit for KitchenAid blenders.
Close-up of 9704230 blender drive coupler showing durable plastic construction and metal core for KitchenAid blenders.
Woman preparing fruit in a KitchenAid blender for a DIY repair demonstration.
Lifetime Warranty

9704230 Blender Drive Coupler with Spanner Kit Replacement - For KitchenAid Blenders

Save 13%
0.00
$14.20
$16.33
$14.20
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

9704230 Blender Drive Coupler with Spanner Kit

Key Features

  • Connects the blender motor base to the blade assembly in the jar.
  • Coupler constructed with a rubber body and a reverse-threaded metal core.
  • Includes a spanner wrench for removal of the old part.
  • Coupler Outer Diameter: 1.42 in (36mm)
  • Coupler Center Hole Diameter: 6mm
  • Spanner Length: 115mm

Replaces / Cross-Reference Part Numbers

  • 9704230
  • WP9704230
  • WP9704230VP
  • AP6013694
  • AP2930430
  • 831718
  • PS11746921
  • PS401661

Compatibility & Fitment

  • Fits specific KitchenAid and Whirlpool blender models.
  • Compatible with KSB3 and KSB5 series blenders, including but not limited to: 4KSB5, 5KSB5-4, 5KSB52-4, KSB3-4, KSB5-4, KSB5BU4, KSB5CR4, KSB5OB4, KSB5SS-4, KSB5WH4.

When to Replace

  • Blender motor is running but the blades do not spin.
  • Visible stripping, cracking, or damage to the existing coupler teeth.
  • Loud grinding noises coming from the base of the blender during operation.

Installation Tips

  • Disconnect the blender from the power source before beginning repair.
  • Use a flat-blade screwdriver to pry the old coupler off the motor shaft.
  • The coupler has a reverse (left-hand) thread. Turn it clockwise to loosen and remove.
  • Turn the new coupler counter-clockwise to tighten it onto the motor shaft.
Brand Model Number
Replaces 831718, AP6013694, EAP11746921, PD00008092, PS11746921, WP9704230, WP9704230VP
KitchenAid 4KSB5, 4KSB5BK4, 4KSB5BU4, 4KSB5CR4, 4KSB5ER4, 4KSB5GN4, 4KSB5MC4, 4KSB5MY4, 4KSB5OB4, 4KSB5PK4, 4KSB5SSOB, 4KSB5TG4, 4KSB5WH4, 4KSB5WW4, 5KSB5-4, 5KSB52-4, 5KSB52AAC4, 5KSB52ABU4, 5KSB52ACR4, 5KSB52AER4, 5KSB52AGR4, 5KSB52AMC4, 5KSB52AMY4, 5KSB52ANK4, 5KSB52AOB4, 5KSB52APK4, 5KSB52ATG4, 5KSB52AWH4, 5KSB52BAC4, 5KSB52BAC5

FAQ

This coupler is designed for KitchenAid blenders, including models KSB3, KSB5, and KSB5WH.
This part replaces OEM numbers 9704230, WP9704230, WP9704230VP, and ER9704230.
The most common symptom is the motor running while the blender blades fail to spin or spin very slowly. You may also notice a burning rubber smell or visible damage, such as stripped teeth or cracks on the coupler itself.
Installation is straightforward and typically takes about 10 to 15 minutes. The included spanner wrench is required to remove the old coupler. Note that the coupler has a reverse thread, meaning you must turn it clockwise to loosen and remove it from the motor shaft.
The drive coupler serves as the essential mechanical link between the blender's motor base and the blade assembly. It transfers the rotational force from the motor to the blades; it is also designed to act as a fail-safe component that wears down or breaks to protect the motor from damage if the blades become jammed.
Ensure the blender is unplugged before starting. When installing the new coupler, hold the motor shaft steady while tightening it counter-clockwise. Do not overtighten, as this can cause the plastic threads to strip.
