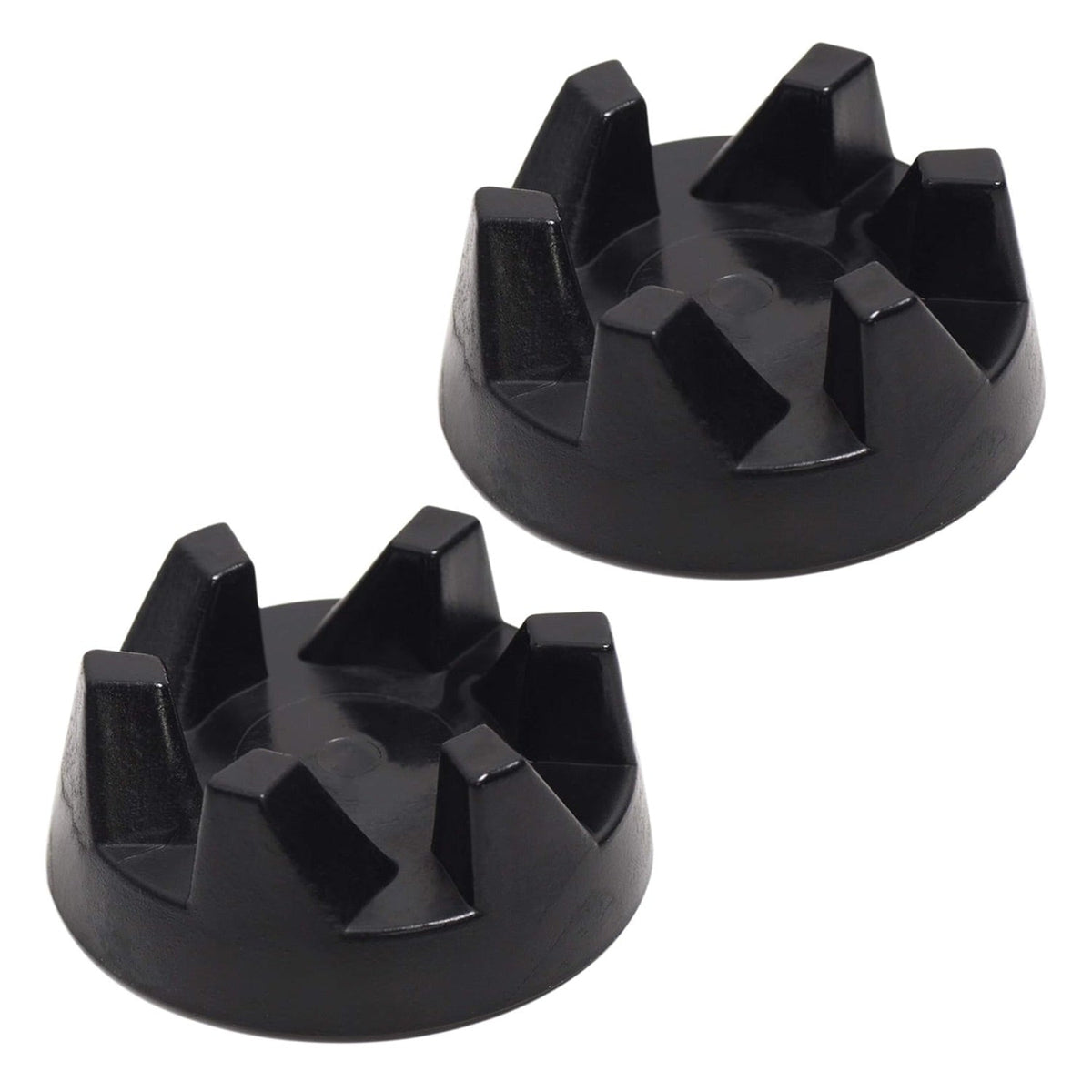

Two black 9704230 blender drive coupling replacements for KitchenAid blenders.

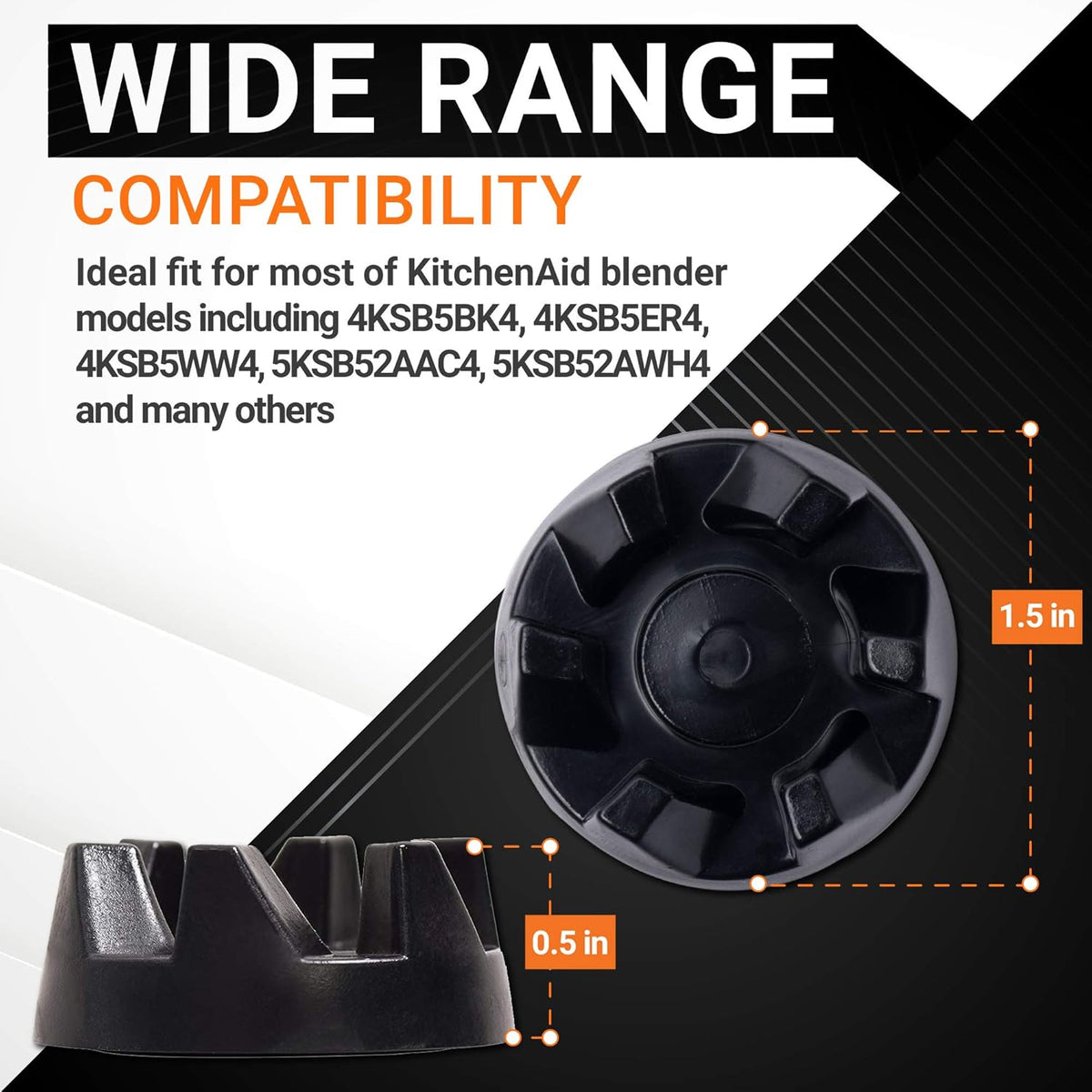

9704230 blender drive coupling replacement showing dimensions and KitchenAid blender compatibility chart.
KitchenAid blender with fresh fruit, illustrating the benefits of replacing the 9704230 blender drive coupling.

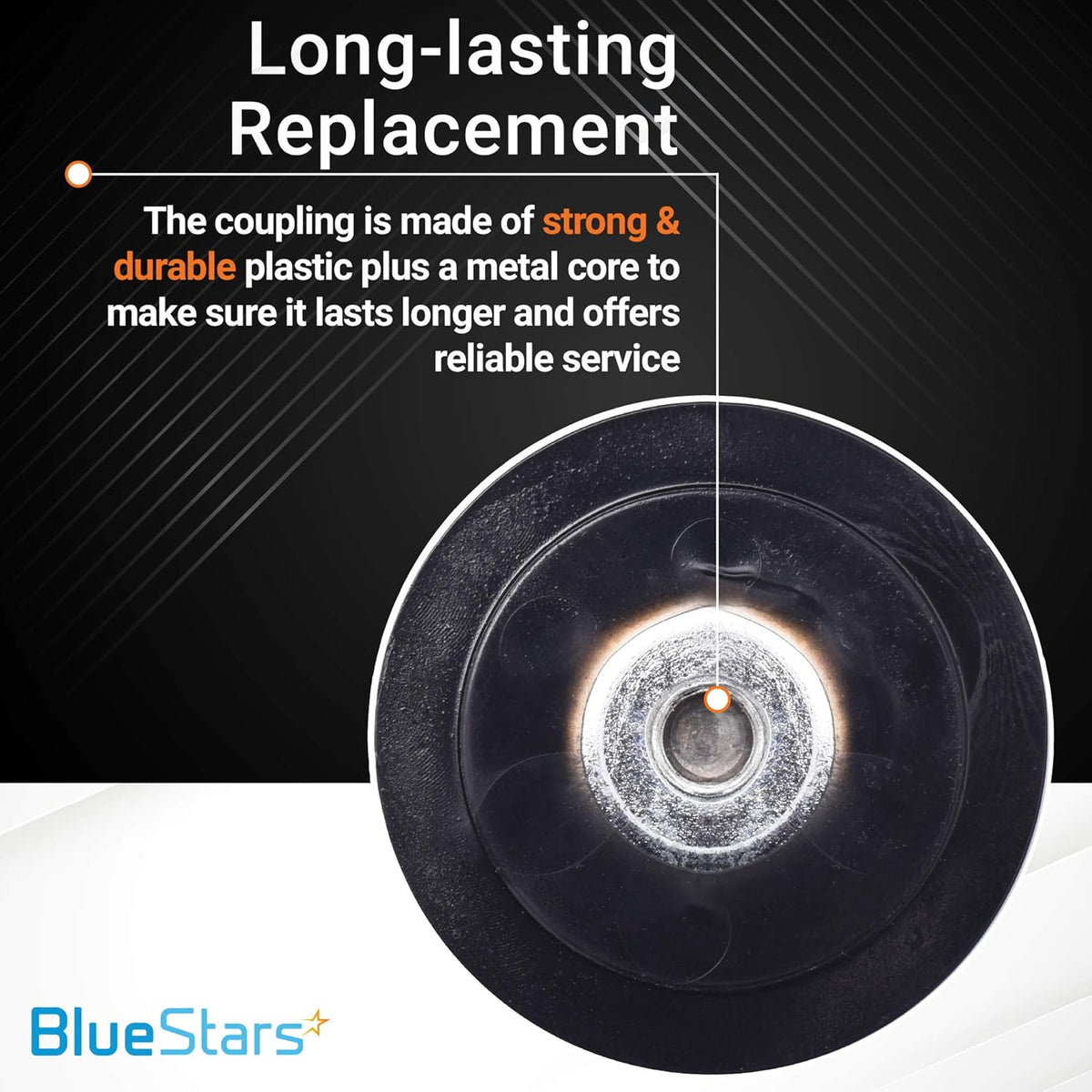

Close-up of 9704230 blender drive coupling showing durable plastic construction and metal core.

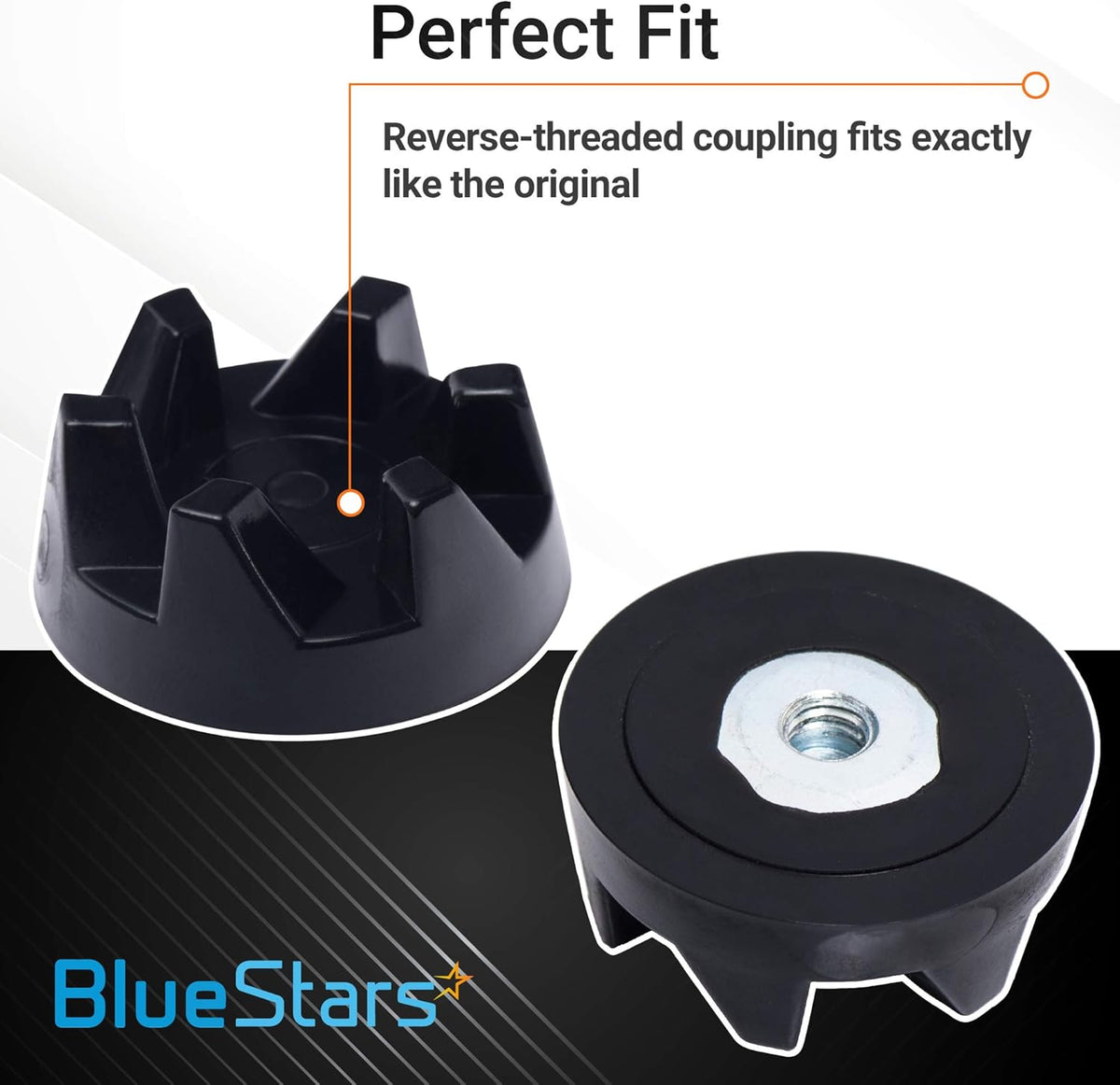

Two 9704230 blender drive couplings showing top and reverse-threaded bottom view for KitchenAid blenders.
Woman preparing fruit in a blender for DIY repair advertisement for 9704230 blender drive coupling replacement.
Two black 9704230 blender drive coupling replacements for KitchenAid blenders.
9704230 blender drive coupling replacement showing dimensions and KitchenAid blender compatibility chart.
KitchenAid blender with fresh fruit, illustrating the benefits of replacing the 9704230 blender drive coupling.
Close-up of 9704230 blender drive coupling showing durable plastic construction and metal core.
Two 9704230 blender drive couplings showing top and reverse-threaded bottom view for KitchenAid blenders.
Woman preparing fruit in a blender for DIY repair advertisement for 9704230 blender drive coupling replacement.
Lifetime Warranty

9704230 Blender Drive Coupling Replacement - For KitchenAid Blenders - 2 Pack

Save 13%
0.00
$12.17
$14.00
$12.17
Only 1 left
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

9704230 Blender Drive Coupling

Key Features

  • Connects the blender motor base to the blender jar assembly.
  • Constructed with a metal-reinforced core and six rubber teeth.
  • Outer Diameter: 1.42 in (36 mm)
  • Center Hole Diameter: 6 mm
  • Reverse-threaded design for secure attachment to the motor shaft.

Replaces / Cross-Reference Part Numbers

  • 9704230
  • WP9704230
  • WP9704230VP
  • AP6013694
  • AP2930430
  • 831718
  • PS11746921
  • PS401661

Compatibility & Fitment

  • Fits specific KitchenAid blender models, including KSB3 and KSB5 series.
  • Compatible with select Whirlpool blender models.

When to Replace

  • Blender motor is running but the blades do not spin.
  • Visible signs of damage, such as stripped, cracked, or worn teeth on the coupling.
  • Grinding noises originating from the connection point between the base and jar.

Installation Tips

  • Unplug the blender from the electrical outlet before starting the repair.
  • The coupling has a reverse thread; turn it clockwise to unscrew and remove it from the motor shaft.
  • A flat-blade screwdriver can be used to pry off the old coupling.
  • Clean the motor shaft before installing the new part.
  • Thread the new coupling onto the motor shaft by turning it counter-clockwise until it is secure.
Brand Model Number
Replaces 831718, AP6013694, EAP11746921, PD00008092, PS11746921, WP9704230, WP9704230VP
KitchenAid 4KSB5, 4KSB5BK4, 4KSB5BU4, 4KSB5CR4, 4KSB5ER4, 4KSB5GN4, 4KSB5MC4, 4KSB5MY4, 4KSB5OB4, 4KSB5PK4, 4KSB5SSOB, 4KSB5TG4, 4KSB5WH4, 4KSB5WW4, 5KSB5-4, 5KSB52-4, 5KSB52AAC4, 5KSB52ABU4, 5KSB52ACR4, 5KSB52AER4, 5KSB52AGR4, 5KSB52AMC4, 5KSB52AMY4, 5KSB52ANK4, 5KSB52AOB4, 5KSB52APK4, 5KSB52ATG4, 5KSB52AWH4, 5KSB52BAC4, 5KSB52BAC5

FAQ

This coupling is compatible with KitchenAid and Whirlpool blender models in the KSB3, KSB5, 4KSB5, and 5KSB5 series. Specific compatible models include KSB5WH, KSB5OB, KSB5CR, KSB5BU, KSB5ER, KSB5GN, KSB5MY, KSB5PK, KSB5TG, KSB5SS-4, KSB3-4, and KSB5-4.
This part replaces OEM numbers 9704230, WP9704230, WP9704230VP, 831718, and AP6013694. It also cross-references with EAP11746921, PD00008092, PS11746921, 011BVZIPS, B011BVZB3W, B00DZU927Y, and B00BJE4TCQ.
The most common symptom is that the blender motor runs, but the blades inside the jar do not spin or turn very slowly. You may also notice a burning rubber smell or see visible damage, such as stripped teeth or cracks, on the black rubber coupling located on the blender base.
Yes. This coupling features reverse threads, which means it is designed to tighten during normal operation. To remove the old, damaged coupling, you must turn it clockwise—the opposite of a standard screw. You can hold the motor shaft steady with a flat-blade screwdriver in the slot at the top of the shaft while turning the coupling clockwise to unscrew it.
You will typically need a flat-blade screwdriver to hold the motor shaft in place and a pair of pliers or a spanner wrench to grip and turn the coupling. The process is straightforward and usually takes less than 10 minutes.
The coupling is designed as a sacrificial part. It is made of rubber to protect the more expensive blender motor from damage if the blades become jammed by frozen fruit, ice, or thick ingredients. Over time, the rubber teeth can wear down or strip, requiring a replacement to restore the connection between the motor and the blade assembly.
