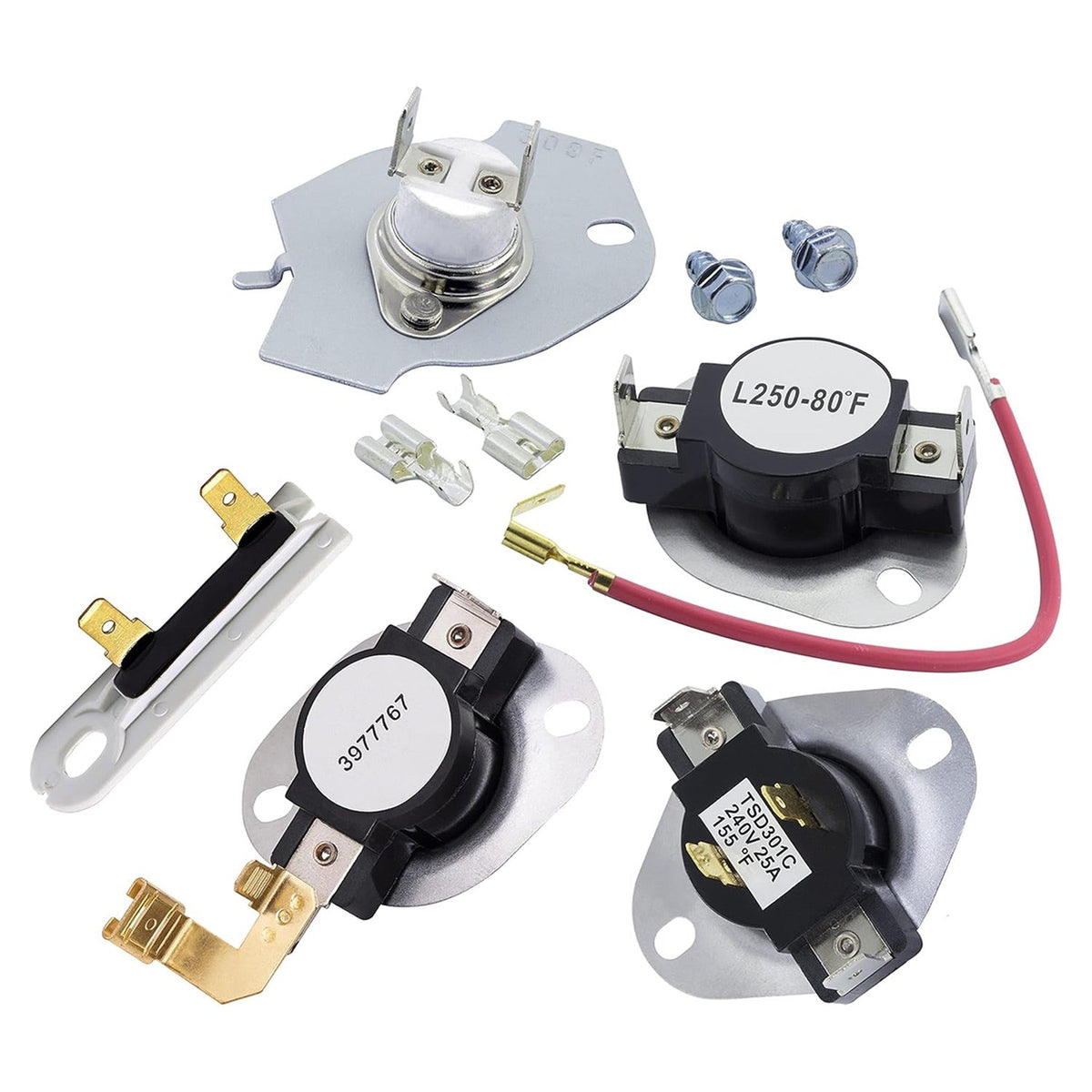

Dryer repair kit components including thermal fuses, thermostats, and mounting hardware for Whirlpool dryers.

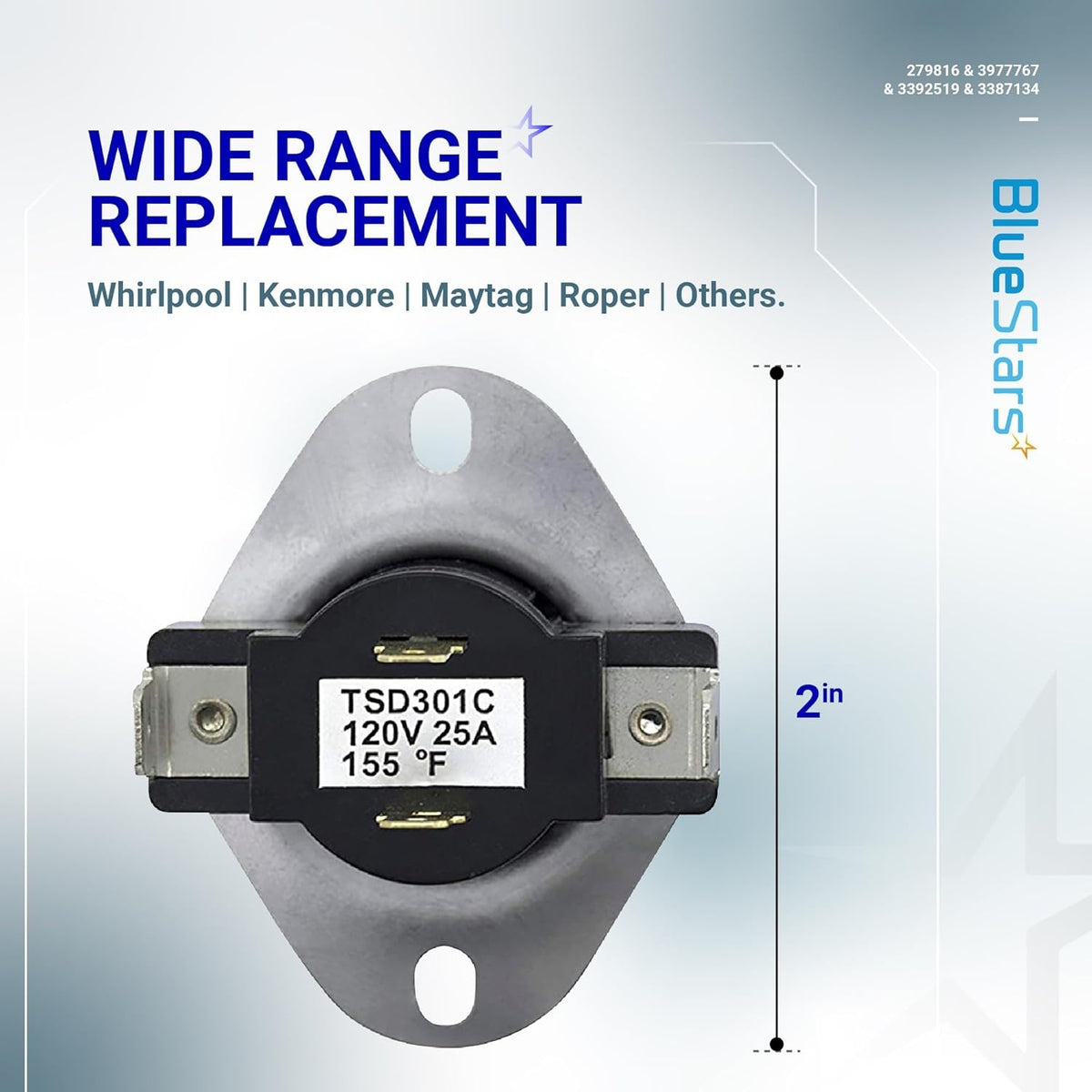

Dryer thermal fuse replacement part for Whirlpool dryers with 2-inch mounting bracket dimensions.

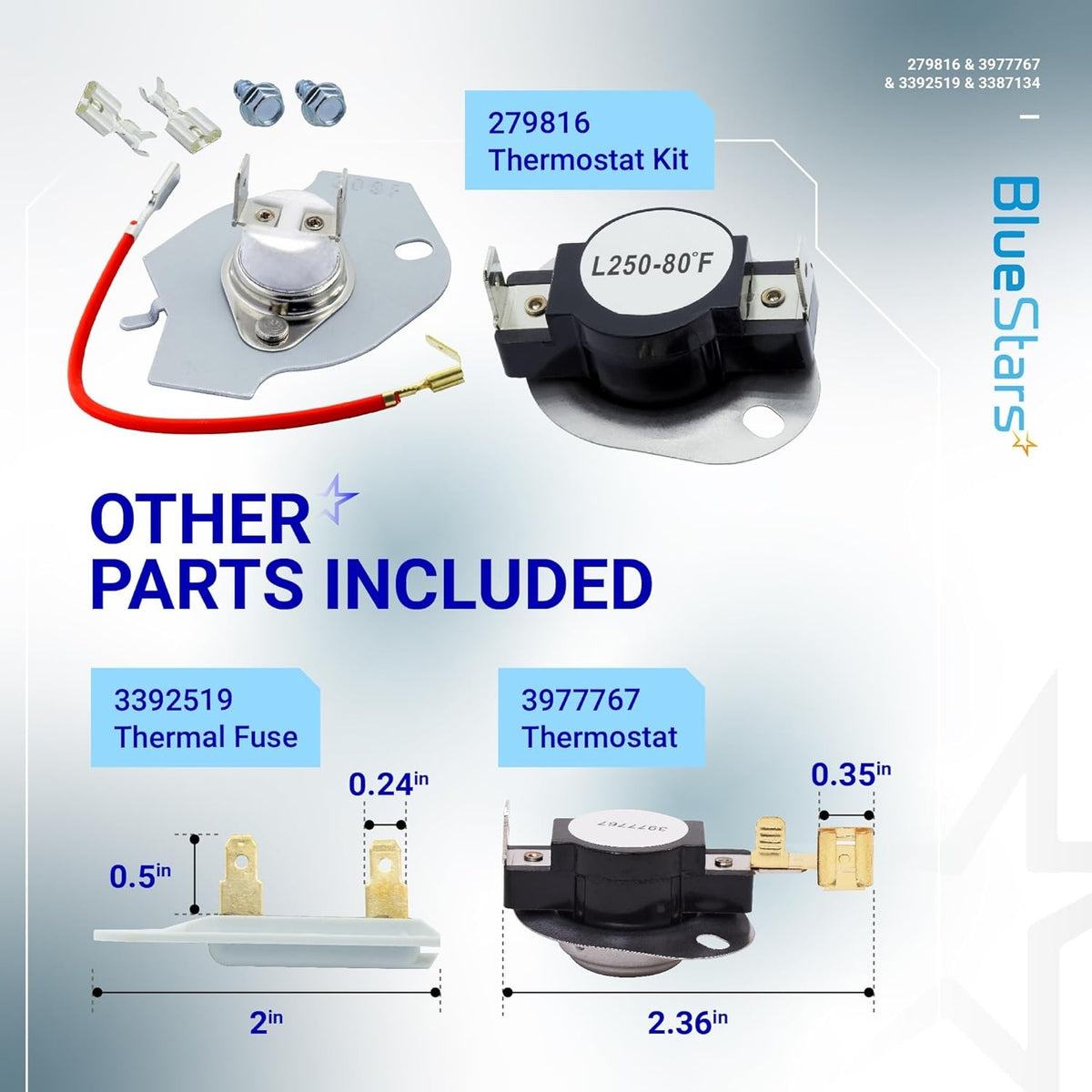

Whirlpool dryer repair kit components including thermostats and thermal fuse with dimensions and part numbers.

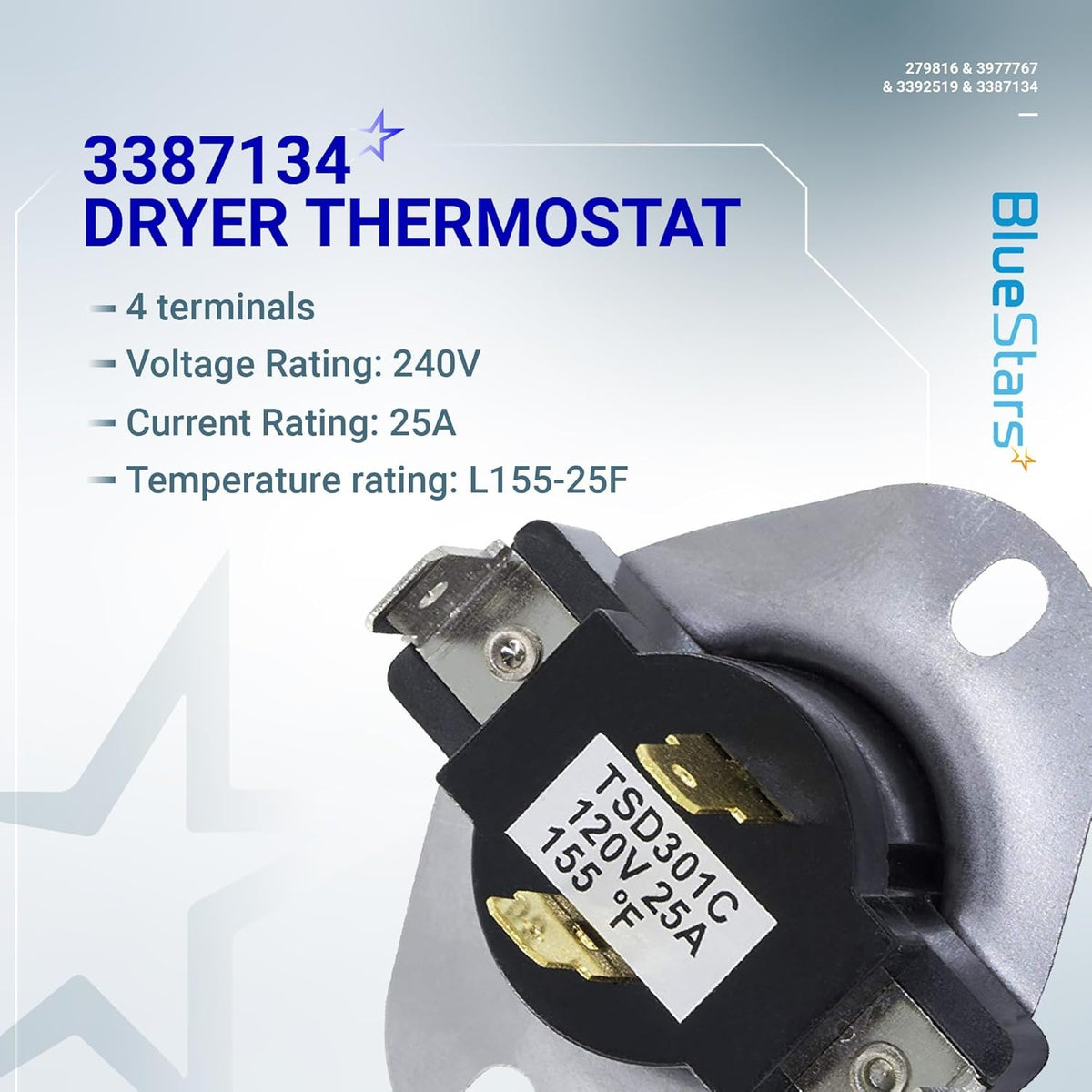

3387134 dryer thermostat replacement part with 4 terminals for Whirlpool dryers.

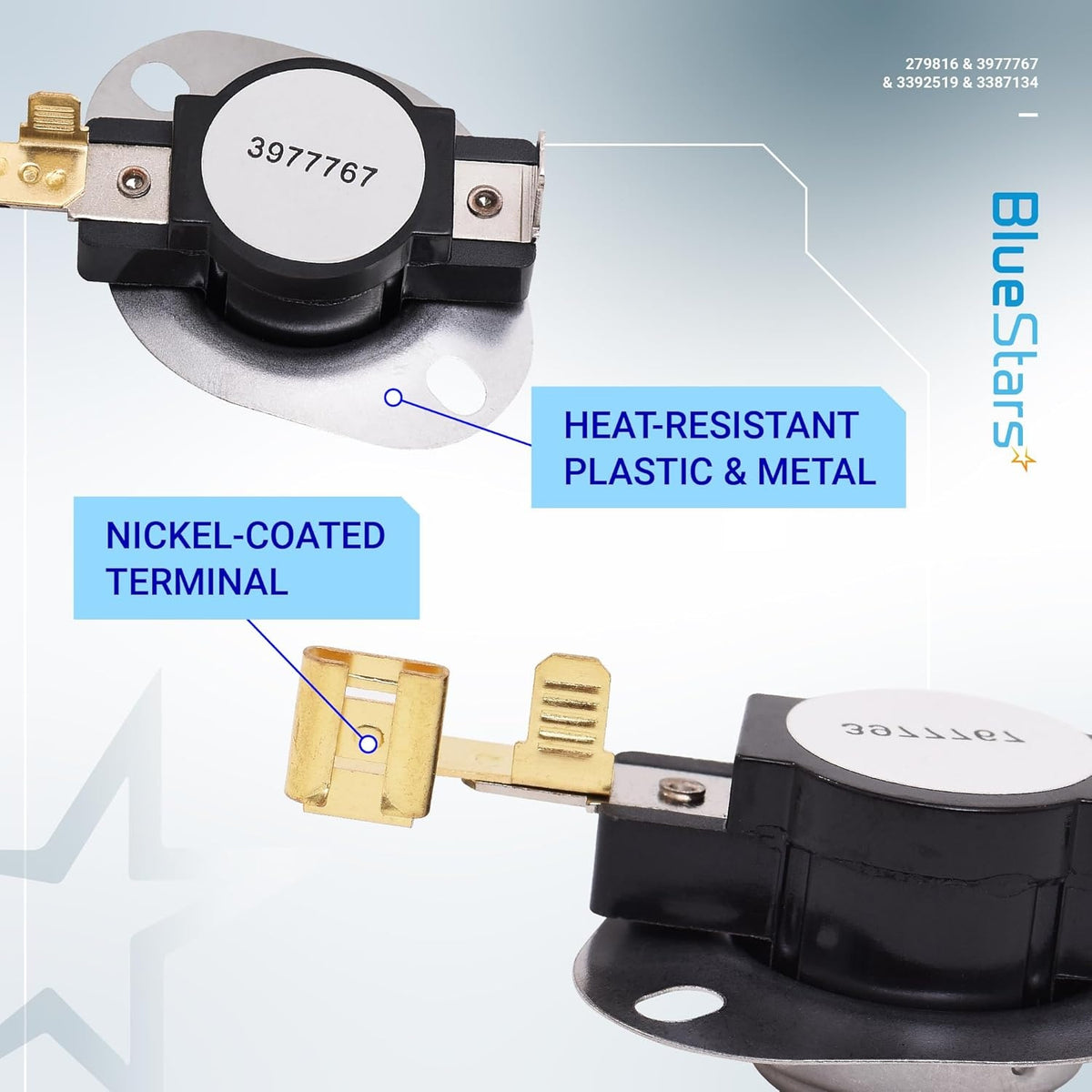

Whirlpool dryer thermal fuse 3977767 with heat-resistant housing and nickel-coated terminal.
Dryer repair kit components including thermostats and thermal fuses for Whirlpool dryers.
Close-up of a dryer thermal fuse component for Whirlpool dryers, labeled TSD301C 120V 25A 155F.
Dryer repair kit components including thermal fuses, thermostats, and mounting hardware for Whirlpool dryers.
Dryer thermal fuse replacement part for Whirlpool dryers with 2-inch mounting bracket dimensions.
Whirlpool dryer repair kit components including thermostats and thermal fuse with dimensions and part numbers.
3387134 dryer thermostat replacement part with 4 terminals for Whirlpool dryers.
Whirlpool dryer thermal fuse 3977767 with heat-resistant housing and nickel-coated terminal.
Dryer repair kit components including thermostats and thermal fuses for Whirlpool dryers.
Close-up of a dryer thermal fuse component for Whirlpool dryers, labeled TSD301C 120V 25A 155F.
Lifetime Warranty

279816 3977767 3392519 3387134 Dryer Repair Kit - For Whirlpool Dryers

Save 23%
0.00
$24.50
$31.65
$24.50
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

279816 & 3977767 & 3392519 & 3387134 Dryer Kit

Key Features

  • Complete kit for common dryer heating and starting issues.
  • Includes one cycling thermostat, one high-limit thermostat, and one thermal fuse.
  • Components manufactured to meet or exceed original equipment specifications.

Replaces / Cross-Reference Part Numbers

  • 279816 (Dryer Thermal Cut-Off Kit) (Hi-Limit + Thermal Fuse): WP279816, AP3094244, PS334299, 279816VP, 3977393, 3977767, 3399848, AH334299, EAP334299, 279816CM
  • 3977767 (Dryer High Limit Thermostat): WP3977767, AP6009043, PS11742185, 3399693, WP3977767VP, 898078, AP3131941, PS351925, EAP351925, PD00003007
  • 3392519 (Dryer Thermal Fuse): WP3392519, AP6008325, PS11741460, 80005, 694511, 3388651, WP3392519VP, ET401, PD00002311, EAP11741460
  • 3387134 (Dryer Cycling Thermostat): WP3387134, AP6008270, PS11741405, 306910, 3387135, 3387139, WP3387134VP, 2011, PD00002313, ET187

Compatibility & Fitment

  • Fits most top-name dryer brands including Whirlpool, Kenmore, Maytag, Roper, KitchenAid, Crosley, Estate, and Amana.
  • Confirm fitment by cross-referencing your appliance's model number with the part numbers listed.
  • Compatible with models such as: WED4815EW1, WED5000DW2, WED6200SW1, WED6600VW0, WED4800BQ1, WED4800XQ0, and more.

When to Replace

  • Dryer does not start.
  • Dryer does not produce heat or has insufficient heat.
  • Dryer overheats and shuts off prematurely.
  • Drying cycles are excessively long.

Installation Tips

  • Disconnect the dryer from its power source before starting the repair.
  • Use a multimeter to test for continuity on existing components to verify failure.
  • If the thermal fuse (3392519) has failed, inspect and clean the dryer's venting system for obstructions to prevent recurrence.
  • Take a photo of the wire connections before removing the old parts to ensure correct installation.
Product image
Product image
  • 3392519 Dryer Thermal Fuse

    3392519 Dryer Thermal Fuse

    Functions: The thermal fuse stops the flow of electricity to the motor circuit when a dryer overheats. Replaces part numbers: 3388651, 694511, 80005, WP3392519VP
  • 3387134 Dryer Cycling Thermostat

    3387134 Dryer Cycling Thermostat

    Function: This thermostat (Dryer Operating Thermostat, Dryer Cycling Thermostat, Cycling Thermostat, Dryer Thermostat) is used to maintain a temperature of 155 degrees in the dryer drum. Replaces part numbers: AP6008270, 2011, 306910, 3387134, 3387135, 3387139, WP3387134VP
  • 3977767 Dryer High Limit Thermostat

    3977767 Dryer High Limit Thermostat

    Functions: A dryer high-limit thermostat (High Limit Thermostat, Hi-Limit Thermostat, Dryer High-Limit Thermostat) is a switch that is actuated by temperature change. Replaces part numbers: AP6009043, 3399693, 3977767, WP3977767VP
  • 279816 Thermal Cut-Off Kit

    279816 Thermal Cut-Off Kit

    Functions: The thermal cut-off (Dryer Thermal Cut-Off Fuse Kit, Dryer Thermal Cut-Off Kit) prevents the dryer from overheating when the dryer high limit thermostat fails in a closed circuit condition. Replaces part number: AP3094244, 2651, 279816, 279816, 279816VP, 3399848, 3977393
Kit Contents
1× 279816 Thermal Cut-Off Kit + 1× 3977767 High-Limit Thermostat + 1× 3392519 Thermal Fuse + 1× 3387134 Cycling Thermostat
279816 – Thermal Cut-Off Kit
High-Limit Thermostat (250°F) + Thermal Cut-Off Fuse (309°F) + Female Spade Terminals + Jumper Wires
3977767 – High-Limit Thermostat
L250-80 | Opens 250°F / Closes 170°F | Black / Gray / Brass | Metal / Plastic | 2-3/8 x 1-1/2 x 1 inches
3392519 – Thermal Fuse
Non-Resettable | Trip: 196°F / 91°C | White | Metal / Plastic | 3/4 x 9/16 x 2 inches
3387134 – Cycling Thermostat
L155-25 SPST | Opens 155°F / Closes 130°F | 120V, 2W | Black | Plastic / Metal | 2 x 1-3/8 x 1-5/8 inches

FAQ

This kit is compatible with a wide range of dryers manufactured by Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, and Admiral. Because these components are used across many different configurations, always verify your specific dryer model number against the part numbers listed to ensure a proper fit.
This kit replaces a variety of OEM part numbers, including 279816, 3977767, 3392519, 3387134, 3399693, WP3977767VP, PS345113, AP6008325, WP3977393, 3399848, and 306910.
The most common signs that these components have failed include the dryer failing to start, the dryer running but not heating, or the dryer shutting off prematurely. If your dryer has stopped heating entirely, it is often due to a blown thermal fuse or a tripped thermal cut-off switch.
The most frequent cause of failure for these components is restricted airflow, typically caused by a clogged dryer vent, a dirty lint screen, or a blocked exhaust duct. When air cannot escape, the dryer overheats, causing the thermal fuse or high-limit thermostat to trip as a safety measure to prevent a fire.
Before installing the new components, it is critical to clean your dryer's vent system and exhaust ducting. If the airflow remains restricted, the new thermal fuse or thermostat will likely blow again shortly after installation. Additionally, ensure the dryer is unplugged from the power source before beginning any repairs.
This is a standard repair that most homeowners can complete in 30 to 60 minutes. You will generally need a 1/4-inch nut driver, a flat-head screwdriver, and a Phillips-head screwdriver to access the internal components. Depending on your specific dryer model, you may need to remove the back or front panel to reach the thermostat and fuse assembly.
