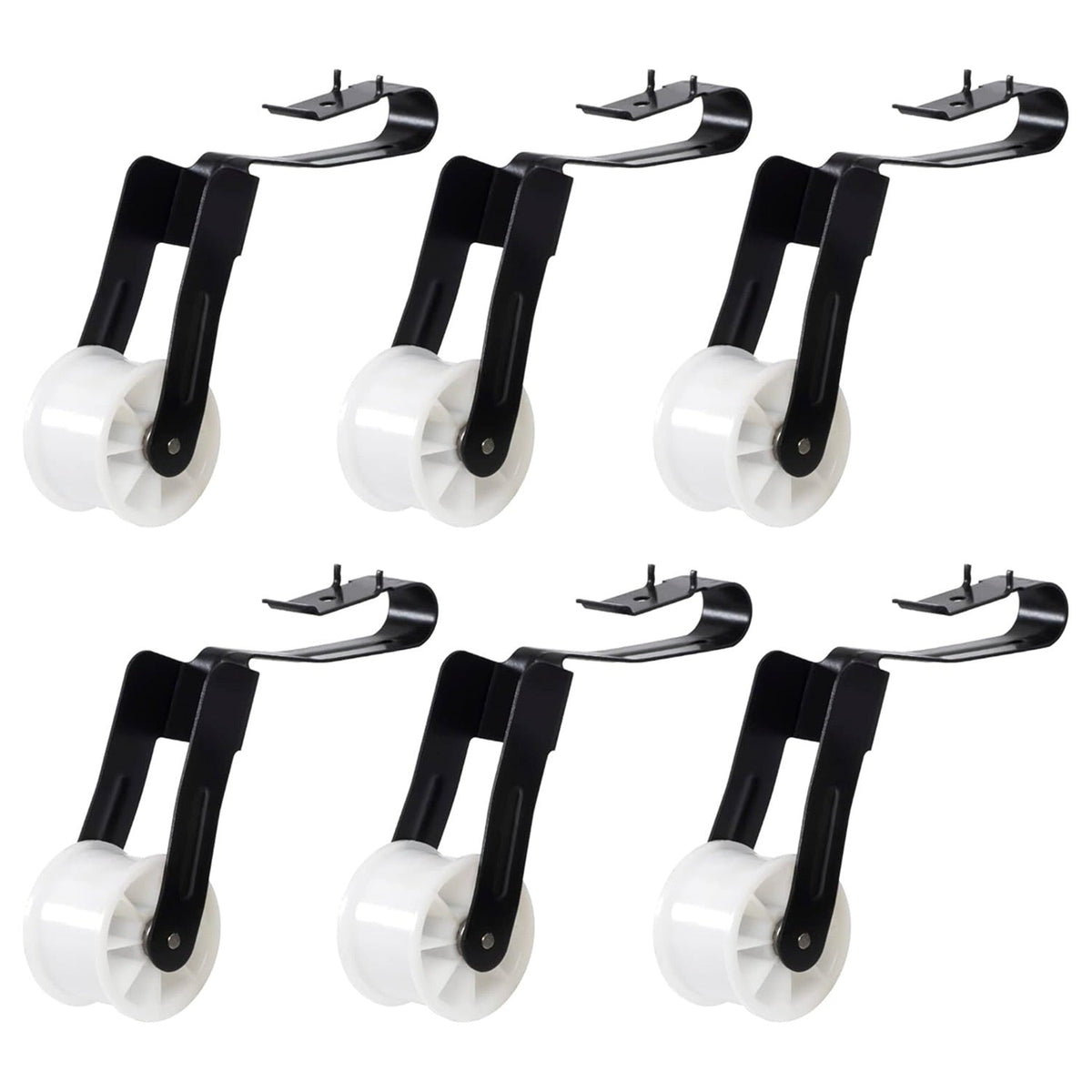

Pack of six 691366 dryer idler pulley assemblies for Whirlpool, Kenmore, and Maytag dryers.

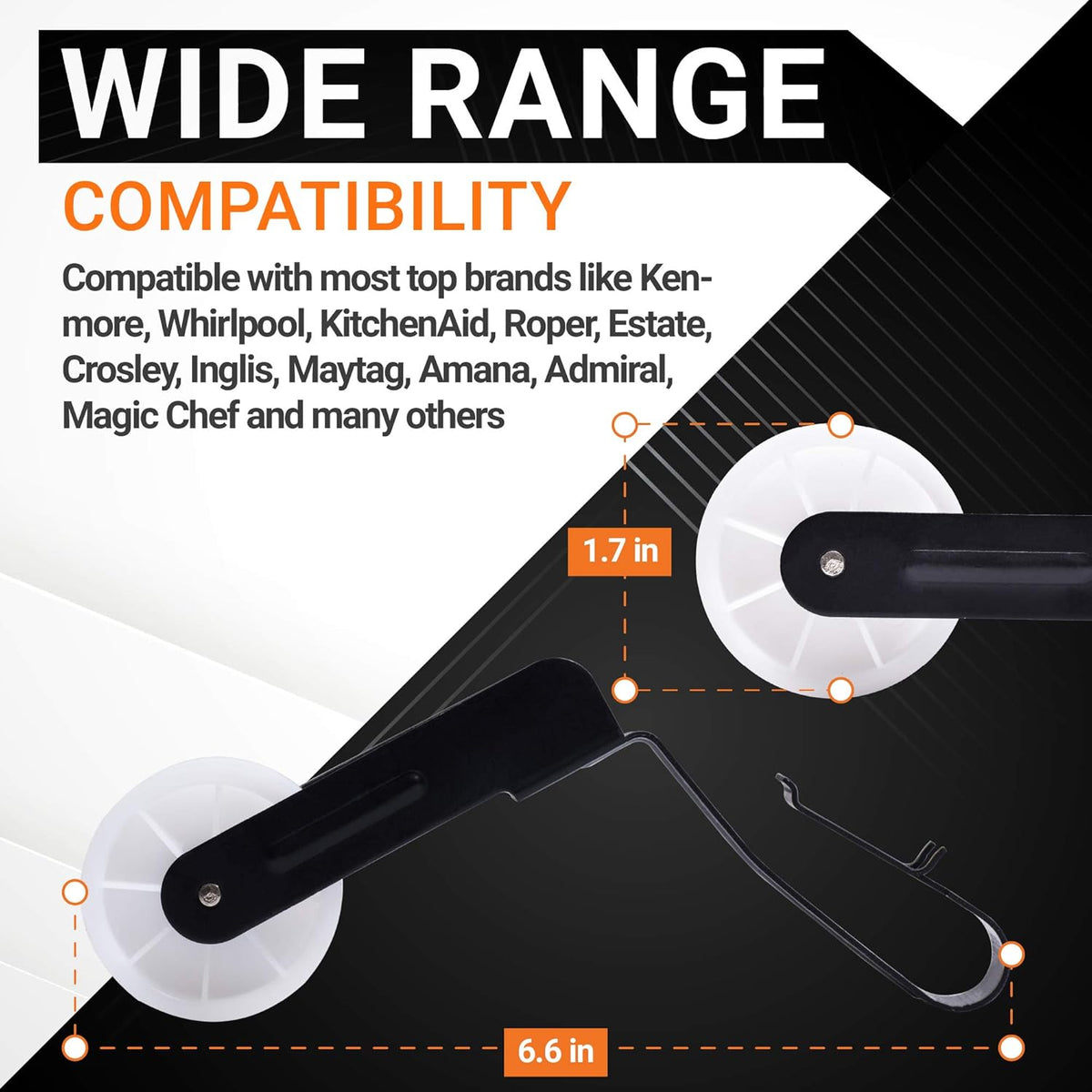

Infographic showing 691366 dryer idler pulley dimensions and compatibility with Whirlpool, Kenmore, and Maytag dryers.
White clothes dryer illustrating symptoms fixed by the 691366 idler pulley replacement.

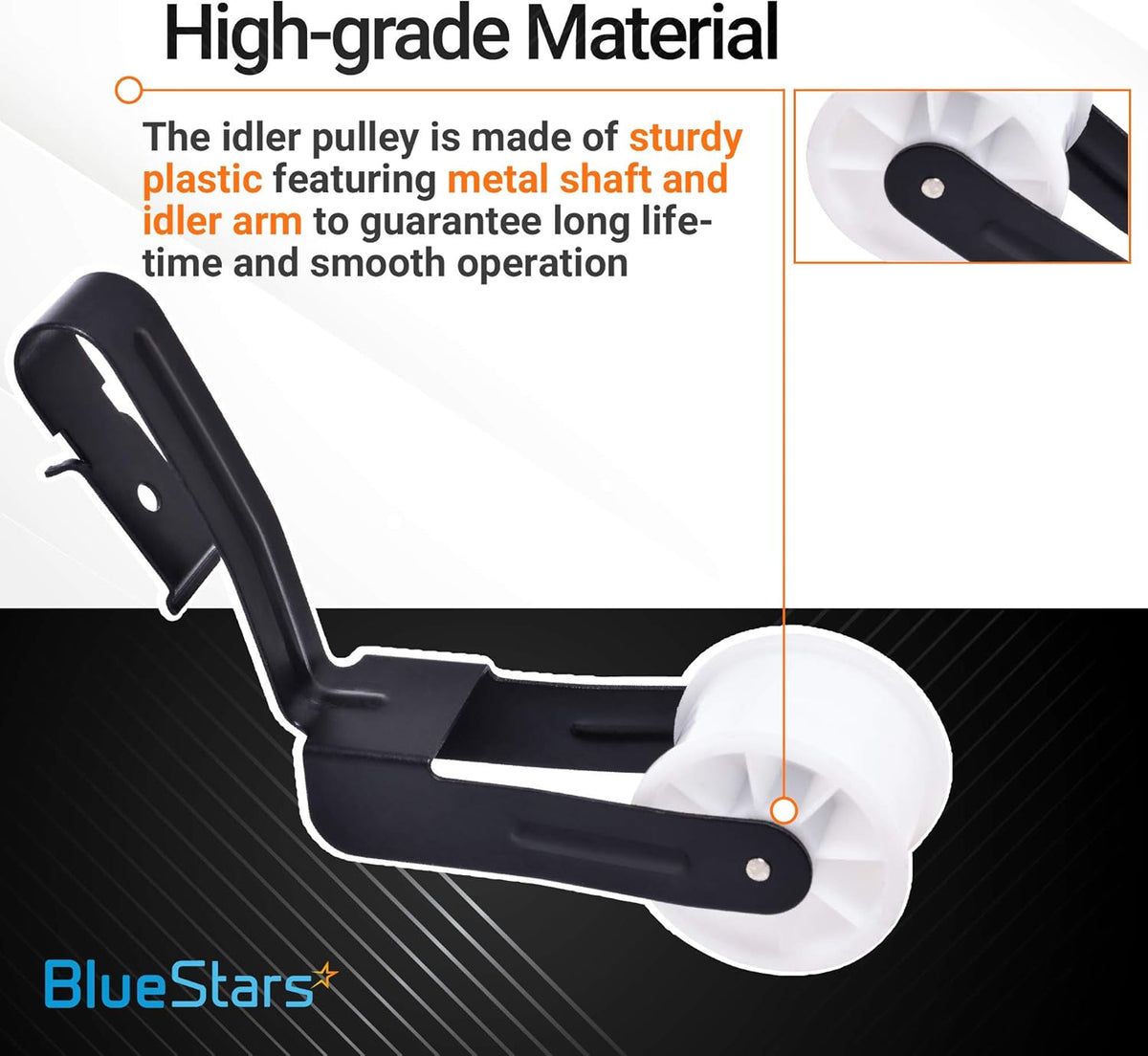

691366 dryer idler pulley with metal arm and plastic wheel showing high-grade material construction.
Woman holding a green towel in front of a dryer, promoting BlueStars DIY dryer repair solutions.
Pack of six 691366 dryer idler pulley assemblies for Whirlpool, Kenmore, and Maytag dryers.
Infographic showing 691366 dryer idler pulley dimensions and compatibility with Whirlpool, Kenmore, and Maytag dryers.
White clothes dryer illustrating symptoms fixed by the 691366 idler pulley replacement.
691366 dryer idler pulley with metal arm and plastic wheel showing high-grade material construction.
Woman holding a green towel in front of a dryer, promoting BlueStars DIY dryer repair solutions.
Lifetime Warranty

691366 Dryer Idler Pulley - For Whirlpool Kenmore Maytag Dryers - Replaces W10612905 239477 3394332 - 6 Pack

Save 13%
0.00
$39.96
$45.95
$39.96
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

691366 Dryer Idler Pulley - Pack of 6

Key Features

  • Function: Maintains correct tension on the dryer drive belt for drum rotation.
  • Quantity: 6 idler pulley assemblies per package.
  • Materials: Constructed with a plastic wheel and a metal arm.

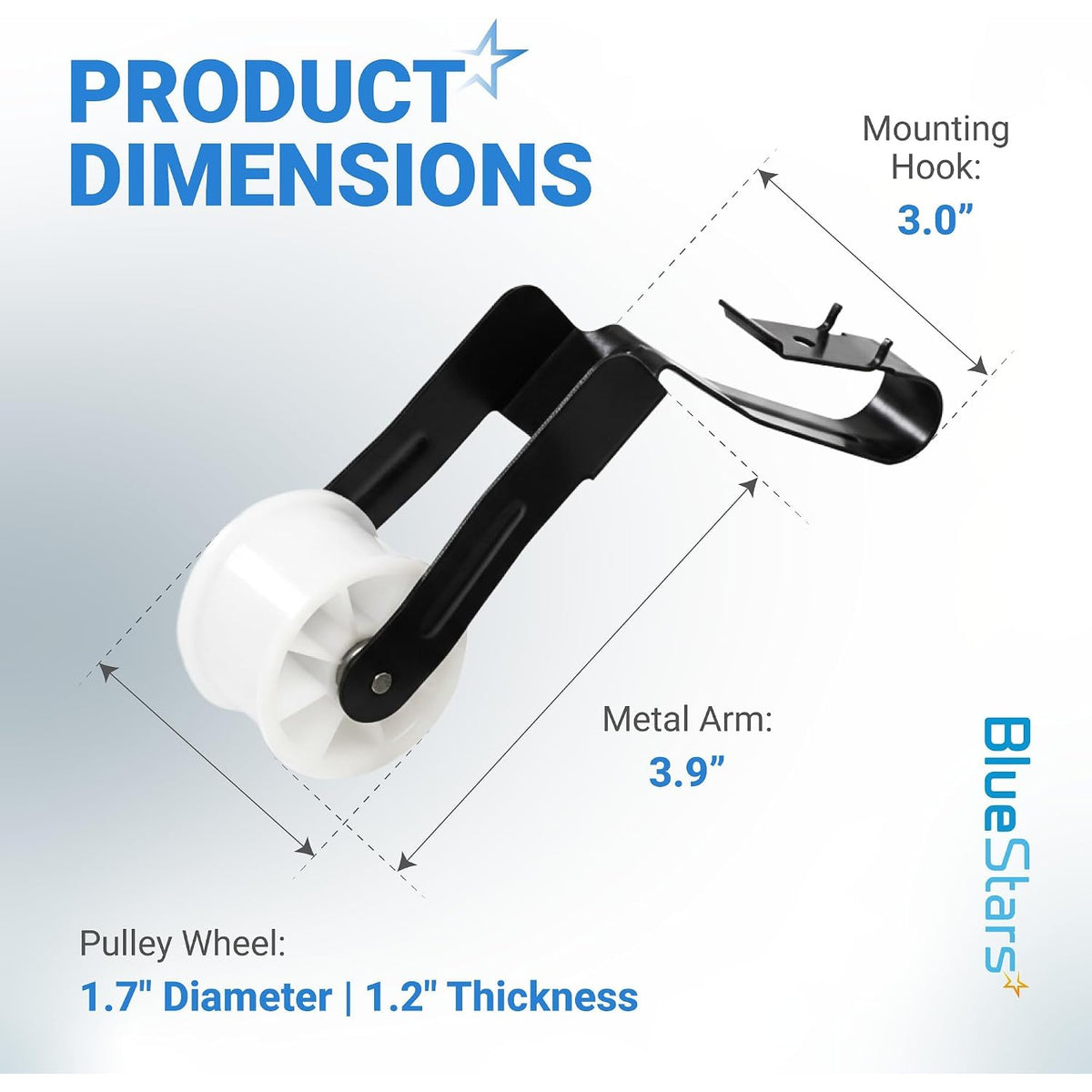

  • Dimensions: Approximately 6 in. L x 1-5/8 in. W x 3-7/8 in. H.

Replaces / Cross-Reference Part Numbers

  • WP691366
  • AP6010582
  • PS11743765
  • W10612905
  • WP691366VP
  • 337116
  • 3394332
  • 347034
  • 239477
  • PD00002256

Compatibility & Fitment

  • Designed for use with dryers from brands including:
  • Whirlpool
  • Kenmore
  • Maytag
  • Roper
  • Admiral
  • Crosley
  • Hardwick
  • Jenn-Air

When to Replace

  • Dryer is making squeaking, squealing, or grinding noises.
  • Drum is not tumbling or turning.
  • Dryer will not start.
  • Visible wear, damage, or seizure of the pulley wheel.

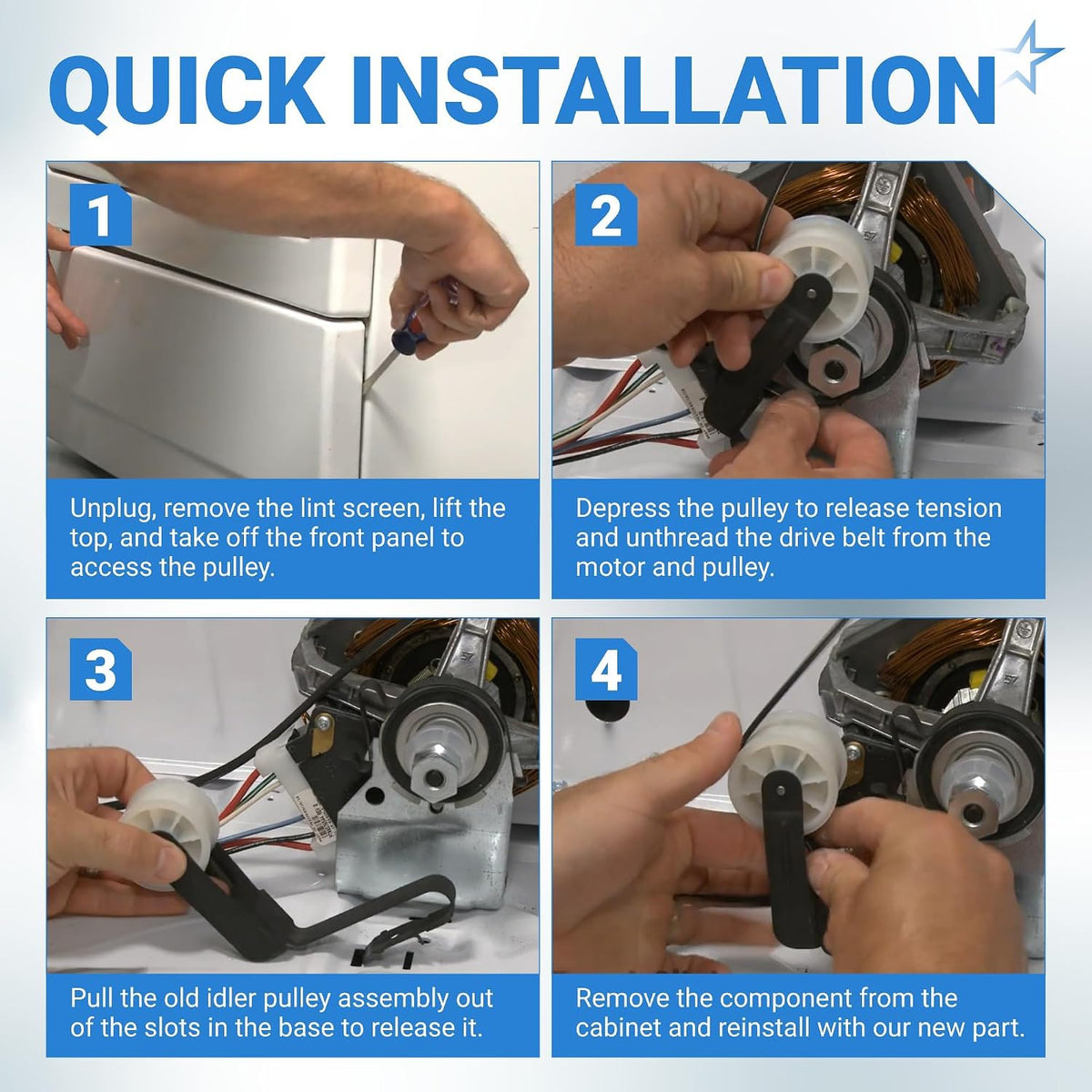

Installation Tips

  • Disconnect the dryer from its power source before beginning repair.
  • Access is typically gained through the front or lower access panel.
  • Take a photo or note the drive belt's routing configuration before removal.
  • Ensure the spring-loaded tensioner arm moves freely with the new pulley installed.
Product image 1
Product image 2
  • PERFECT FIT

    PERFECT FIT

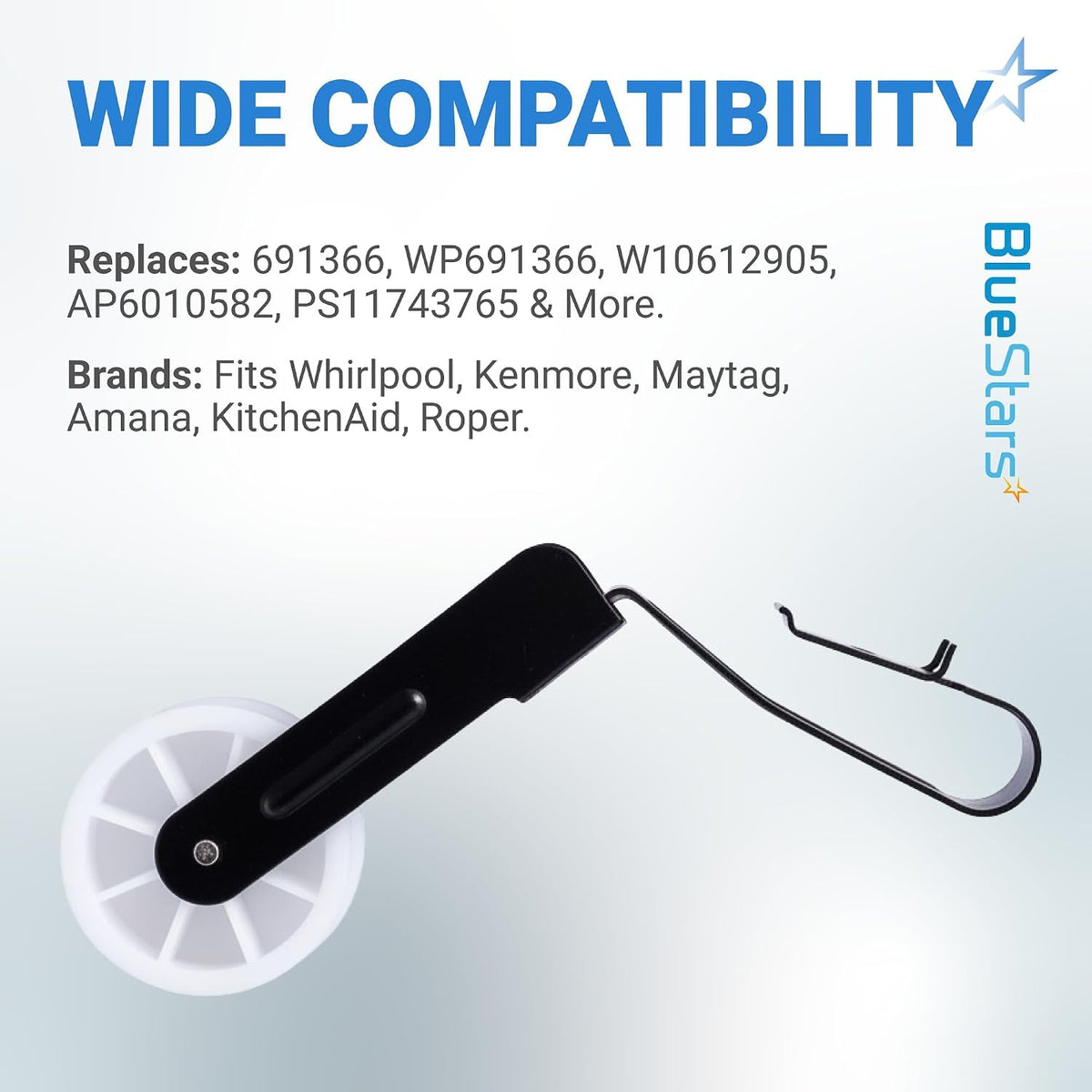

    691366 Dryer Idler Pulley replaces part numbers: 239477, 337116, 337407, 337510, 3388347, 4319391, 688166, W10612905, WP691366VP, PS11743765, etc.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    691366 Dryer Idler Pulley is made of strong and durable materials and well-tested by the manufacturer. Ensure long-lasting and effective performance.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The 691366 Dryer Idler Pulley is straightforward to attach, load, and use. Anyone with basic hand tools can install it.
SIMPLE INSTALLATION

SIMPLE INSTALLATION

Inexpensive way to fix or repair a dryer. Only a putty knife, a Phillips screwdriver, and a 5/16 nut driver required
PREMIUM QUALITY

PREMIUM QUALITY

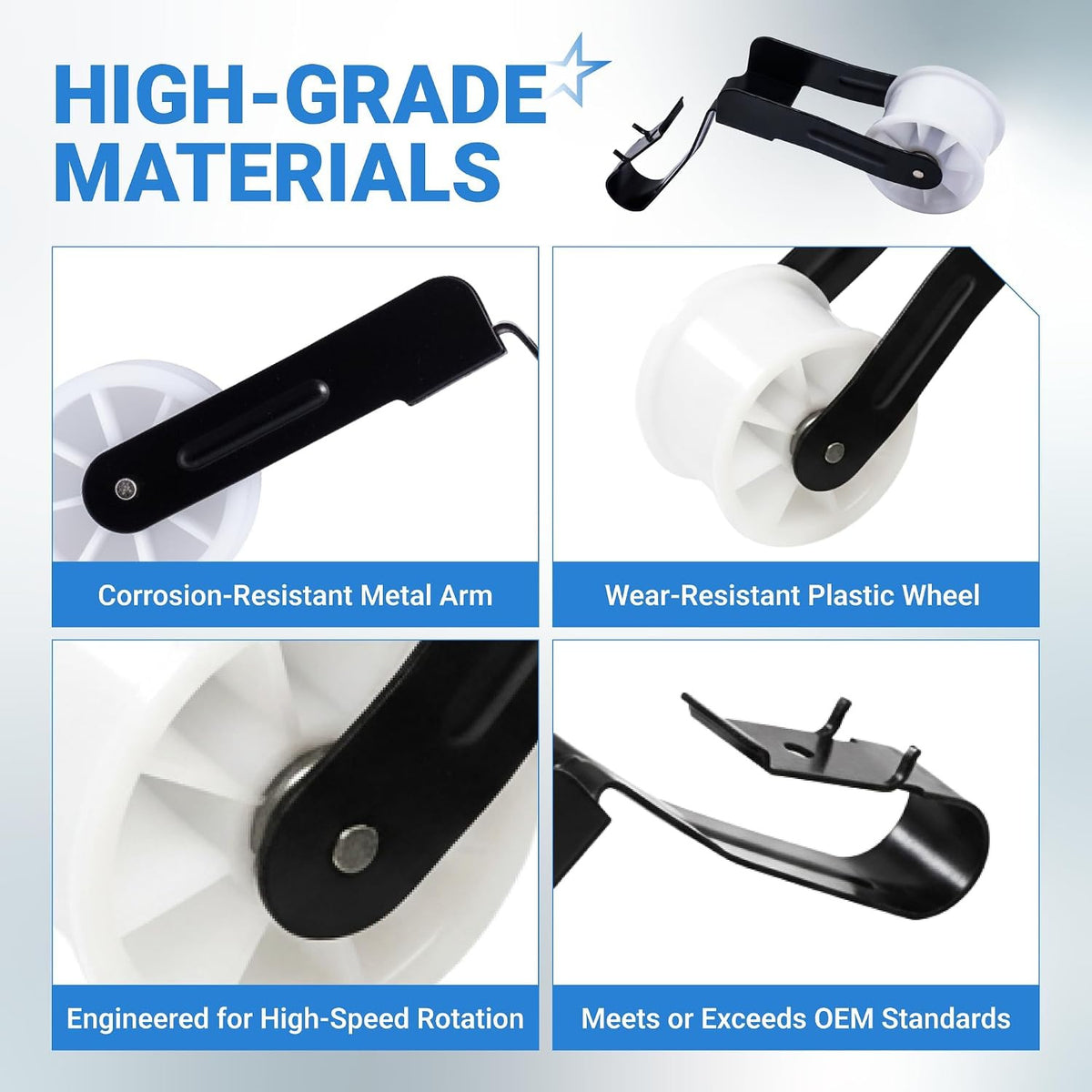

The idler pulley is made of sturdy plastic featuring metal shaft and idler arm to ensure long lifetime and smooth operation

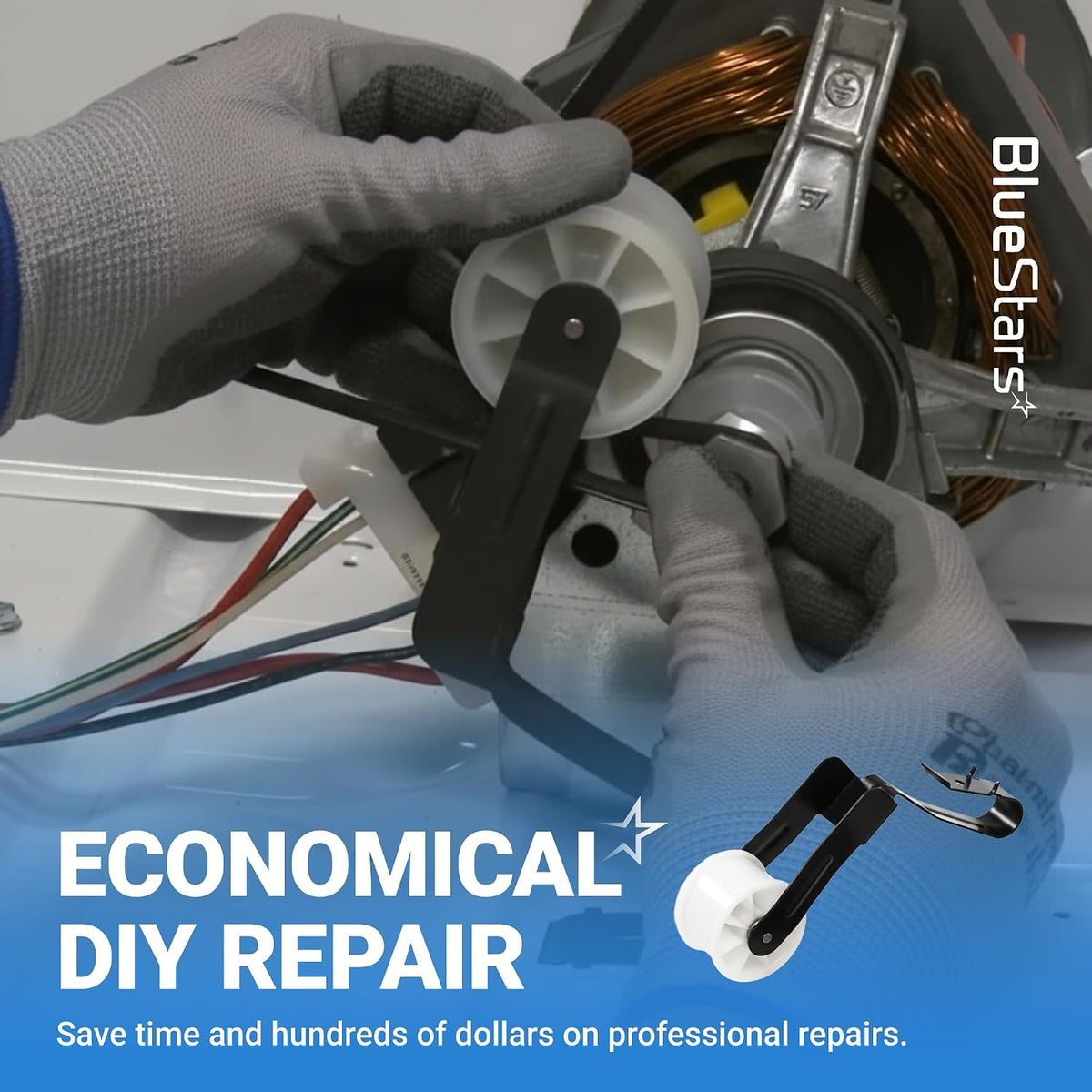

ECONOMICAL DIY REPAIR

ECONOMICAL DIY REPAIR

Enjoy the comfort that our dryer idler pulley brings into your dryer - BlueStars provides DIY solutions to help you deal with any troubles

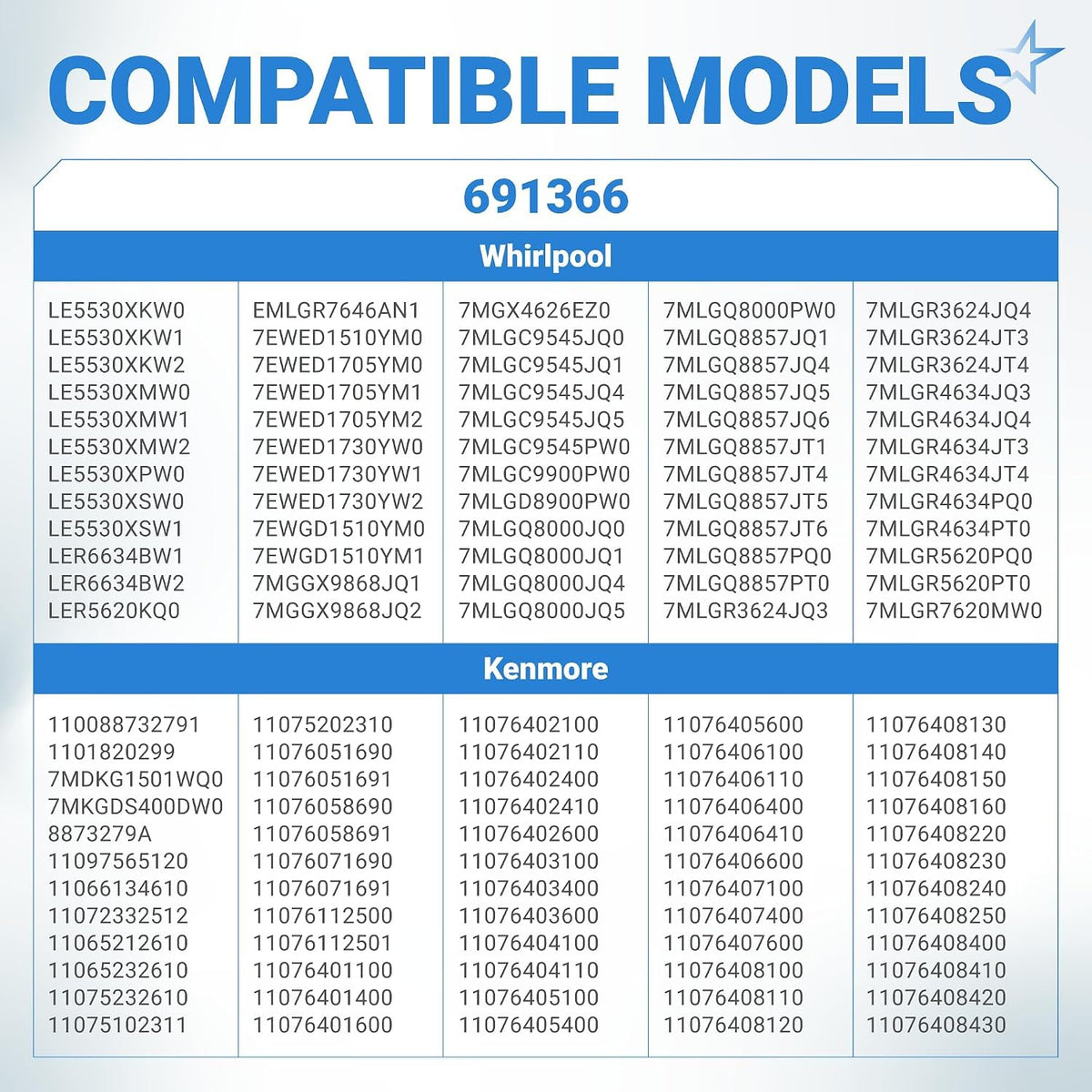

Brand Model Number
Whirlpool 1CWD5100VQ0, 1CWED4800DQ0, 1CWED4900DW0, 1CWED5100VQ0, 1CWED5100VQ1, 1CWED5200VQ0, 1CWED5200VQ1, 1CWED5300VW0, 1CWED5700VW0, 1CWGD4800DQ0, 1CWGD5100VQ1, 1CWGD5200VQ0, 1CWGD5200VQ1, 1CWGD5300SQ0, 1CWGD5300VW0, 1CWGD5700VW0, 1CWGD5700VW2, 1CWGD5790SQ0, 1CWGD5790VQ0, 1CWGD5790VQ1, 1CWGD5850SW0, 1LE4900XKW0, 1LE4930XKW0, 1LE5700XKW0, 1LE5920XKW0, 1LE7800XKW0, 1LG5701XKW0, 1LG5921XKW0, 1LG9801XKW1, 1LHE5700C1, 1LHE5700D1
Admiral 3ZAED4475TQ0, AED4370TQ0, AED4470TQ0, AGD4370TQ0, AGD4470TQ0, YAED4370TQ0, YAED4470TQ0
Amana NED5200TQ0, NED5240TQ0, NED5400TQ0, NED5500TQ0, NED5800TQ0, NGD5200TQ0, NGD5240TQ0, NGD5400TQ0, NGD5500TQ0, NGD5800TQ0, YNED5200TQ0, YNED5500TQ0, YNED5800TQ0
Crosley CEDC392JQ0, CEDC392PQ0, CEDC392PQ1, CEDS1043VQ0, CEDS1043VQ1, CEDS563MQ0, CEDS563MQ1, CEDS563RB1, CEDS563RQ1, CEDS563SQ0, CEDS563ST0, CEDS663SB0, CEDS663SQ0, CEDS774JQ0, CEDS774JQ1, CEDS774MQ0, CEDS774MQ1, CEDS832VQ0, CEDS832VQ1, CEDS984RQ0, CEDS984RQ1, CEDX463JQ0, CEDX463JQ1, CEDX463MQ0, CEDX463MQ1, CEDX463RQ1, CEDX463RT1, CEDX463SQ0
Crosley CEDX563JQ0, CEDX563JQ1, CEDX563JQ2, CEDX631VQ1, CGDS1043VQ0, CGDS1043VQ1, CGDS563MQ0, CGDS563MQ1, CGDS563RB1, CGDS563RQ0, CGDS563RQ1, CGDS563SQ0, CGDS563ST0, CGDS663SB0, CGDS663SQ0, CGDS774JQ0, CGDS774JQ1, CGDS774MQ0, CGDS774MQ1, CGDS832VQ0
Estate EED4100SQ0, EED4100WQ0, EED4300SQ0, EED4300TQ0, EED4300VQ0, EED4300VQ1, EED4400SQ0, EED4400TQ0, EED4400VQ0, EED4400WQ0, EED4400WQ1, EGD4100SQ0, EGD4100WQ0, EGD4300SQ0, EGD4300TQ0, EGD4300VQ0, EGD4300VQ1, EGD4400SQ0, EGD4400TQ0, EGD4400VQ0, EGD4400WQ0, EGD4400WQ1, TEDS680BN0, TEDS680BN1, TEDS680BN2, TEDS680BQ1, TEDS680BQ2, TEDS680BW0, TEDS680BW1
Estate TEDS680BW2, TEDS680DQ0, TEDS680DQ1, TEDS680EQ0, TEDS680EQ1, TEDS680EQ2, TEDS740JQ0, TEDS740JQ1, TEDS740JQ2, TEDS740PQ0, TEDS740PQ1, TEDS780JQ0, TEDS840JQ0, TEDS840JQ1, TEDS840JQ2, TEDS840JQ3, TEDS840PQ0, TEDS840PQ1, TEDX340RW0, TEDX340RW1, TEDX340RW2, TEDX540RQ0, TEDX540RQ1, TEDX640EQ0, TEDX640EQ1, TEDX640EQ2, TEDX640JQ0, TEDX640JQ1, TEDX640JQ2
Inglis IED4100SQ0, IED4300SQ0, IED4300TQ0, IED4400SQ0, IED4400TQ0, IED4400VQ0, IED4400VQ1, IES5000RQ0, IES5000RQ1, IEX3000RQ0, IEX3000RQ1, IGD4100SQ0, IGD4300SQ0, IGD4300TQ0, IGD4400SQ0, IGD4400TQ0, IGD4400VQ1, IGD4400VQ2, IGS5000RQ0, IGS5000RQ1, IGX3000RQ0, IGX3000RQ1, IJ70001, IJ70002, IJ70003, IJ72000, IJ72001, IJ72003, IJ80001, IJ80002, IJ82001, IJ82002, IJ84001, IJ84002, IM70000
Inglis IM80000, IP70000, IP72000, IP72001, IP80000, IP80001, IP82000, IP82001, IP84000, IP84001, IS72000, IS80000, IS82000, IS84000, IV85000, IV85001, IV86000, IV86001, IV87000, IV87001, YIED4400VQ1, YIED4400VQ2, YIED4600YQ0, YIED4671DQ0, YIED4671EW0, YIED4671EW1, YIED4700YQ0, YIED4700YQ1, YIED4771DQ0, YIED4771EW0
Kenmore 110.1820299, 110.6062110, 110.6085299, 106.86294140, 106.86294340, 106.86294540, 106.86294740, 106.86294840, 106.88419100, 106.88419300, 110.60012000, 110.60012001, 110.60012002, 110.60022010, 110.60172000, 110.60172001, 110.60172002, 110.60202990, 110.60212990, 110.60232000, 110.60232001, 110.60232002, 110.60522900, 110.60602990, 110.60612990, 110.60622990
Kenmore 110.60702990, 110.60712990, 110.60722990, 110.60724990, 110.60727990, 110.60802990, 110.60812990, 110.60814990, 110.60817990, 110.60832990, 110.60842990, 110.60852990, 110.60854990, 110.60857990, 110.60882990, 110.60884990, 110.60887990, 110.61202010, 110.61202011, 110.61252010, 110.61402311, 110.088732791
KitchenAid JG4ST700GQ0, JG4ST700GZ0, KELC500SWH1, KELC500TAL0, KELC500TAL1, KELC500THT0, KELC500THT1, KELC500TPL0, KELC500TPL1, KELC500TTO0, KELC500TTO1, KELC500TWH0, KELC500TWH1, KEYE550VAL0, KEYE550VHT0, KEYE550VPL0, KEYE550VTO0, KEYE550VWH0, KEYE560WAL0, KEYE560WHT0, KEYE560WPL0, KEYE560WTO0, KEYE560WWH0, KEYE650VAL0, KEYE650VHT0, KEYE650VPL0
KitchenAid KEYE650VTO0, KEYE650VWH0, KEYE660WAL0, KEYE660WAL1, KEYE660WHT0, KEYE660WPL0, KEYE660WTO0, KEYE660WWH0, KEYE660WWH1, KEYE664WAL0, KEYE664WAL1, KEYE664WHT0, KEYE664WPL0, KEYE664WTO0, KEYE664WWH0, KEYE664WWH1, KEYE665BAL0
Maytag 4KMEDC410JW0, 4KMEDC420JW0, 4KMEDC430JW0, 4KMEDC440JW0, 4KNED3100JW0, 4KNED3200JW0, AED4516HW0, MED5600TQ0, MED5620TQ0, MED5630TQ0, MED5640TQ0, MED5700TQ0, MED5800TW0, MED5805TW0, MED5830TW0, MED5870TW0, MED5900TW0, MED5920TW0, MEDC465HW0, MGD5600TQ0, MGD5620TQ0, MGD5630TQ0, MGD5640TQ0, MGD5720TQ0, MGD5730TQ0, MGD5740TQ0, MGD5800TW0
Maytag MGD5805TW0, MGD5820TW0, MGD5830TW0, MGD5840TW0, MGD5870TW0, MGD6200KW0, MGDC465HW0, NGD4655EW3, YMED5620TQ0, YMED5640TQ0, YMED5700TQ0, YMED5720TQ0, YMED5740TQ0, YMED5800TW0, YMED5840TW0, YMED5900TW0, YMED6200KW0, YMEDC465HW0

FAQ

This pulley is compatible with a wide range of dryers manufactured under the Whirlpool, Kenmore, Maytag, and Roper brands. Because these brands share many common design platforms, this part fits a vast number of dryer models. We recommend verifying your specific dryer model number against the list of compatible parts to ensure a proper fit.
This part replaces OEM numbers W10612905, WP691366, AP6010582, 239477, 3394332, 347034, 347226, 347277, 4319391, 688166, 337116, 337407, 337510, 3388345, 338946, 8207, and 99989677.
A failing idler pulley often manifests as a loud squealing, thumping, or grinding noise while the dryer is running. Other signs include the dryer failing to tumble, the drum not turning despite the motor running, or clothes taking significantly longer than usual to dry due to belt slippage.
Replacing the idler pulley is a standard repair that typically takes about 30 to 60 minutes. You will generally need a screwdriver, a putty knife to release the cabinet clips, and a socket set. Because you must open the dryer cabinet to access the pulley, always disconnect the power supply before beginning work.
Yes, it is highly recommended to inspect your dryer belt and drum rollers whenever you replace the idler pulley. Since you have already performed the labor to open the cabinet, replacing the belt and rollers at the same time is a proactive way to prevent future downtime and ensure the entire drive system operates smoothly.
The idler pulley is a high-wear component that maintains tension on the dryer belt. Over time, the internal bearings can wear out due to constant friction and heat, leading to noise or seizure. Regular use, heavy loads, and the natural accumulation of lint inside the cabinet can accelerate this wear.
