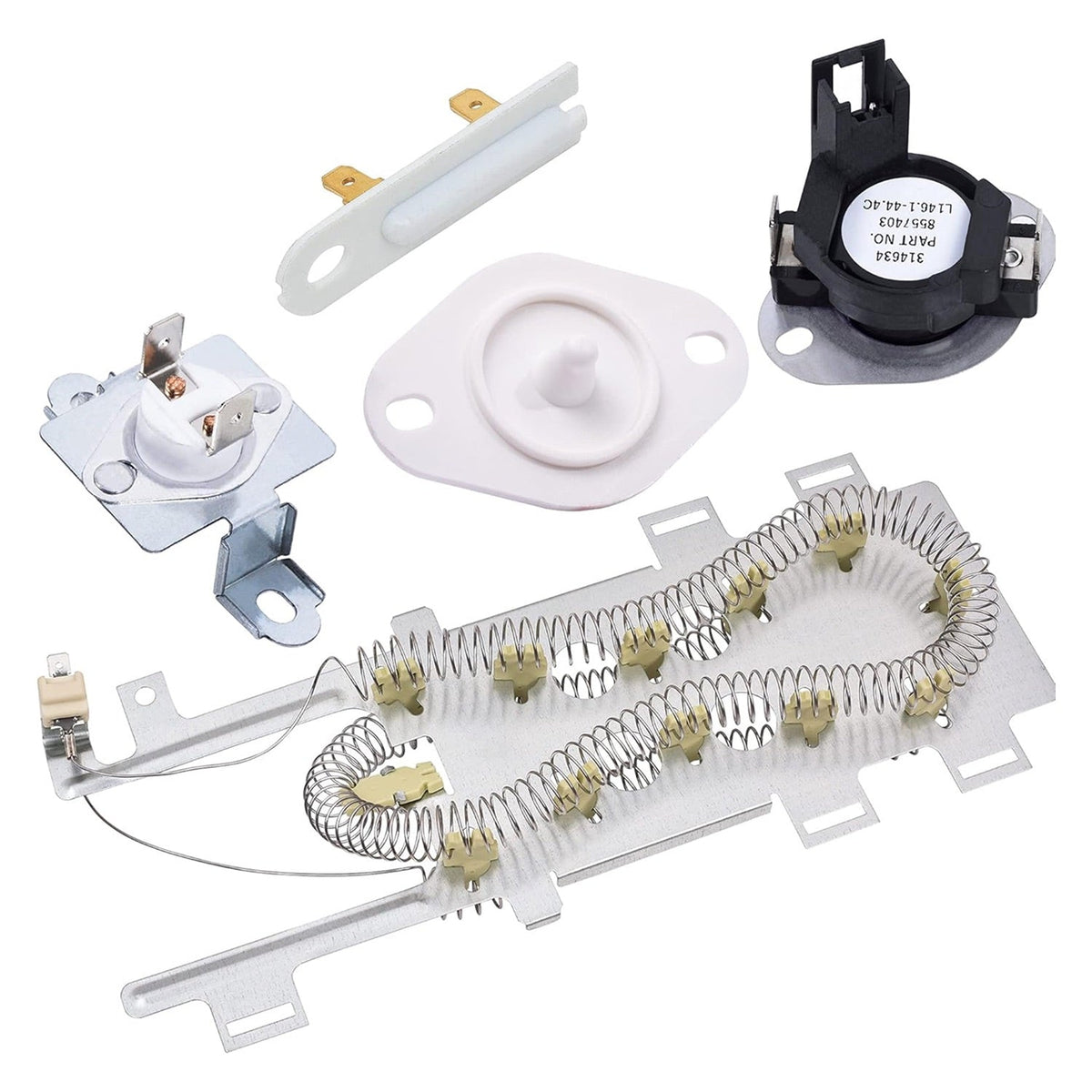

Replacement dryer heating element, thermal cut-off kit, and fuse set for Whirlpool and Kenmore dryers.
Dryer heating element and thermal fuse repair kit for Whirlpool and Kenmore dryers.

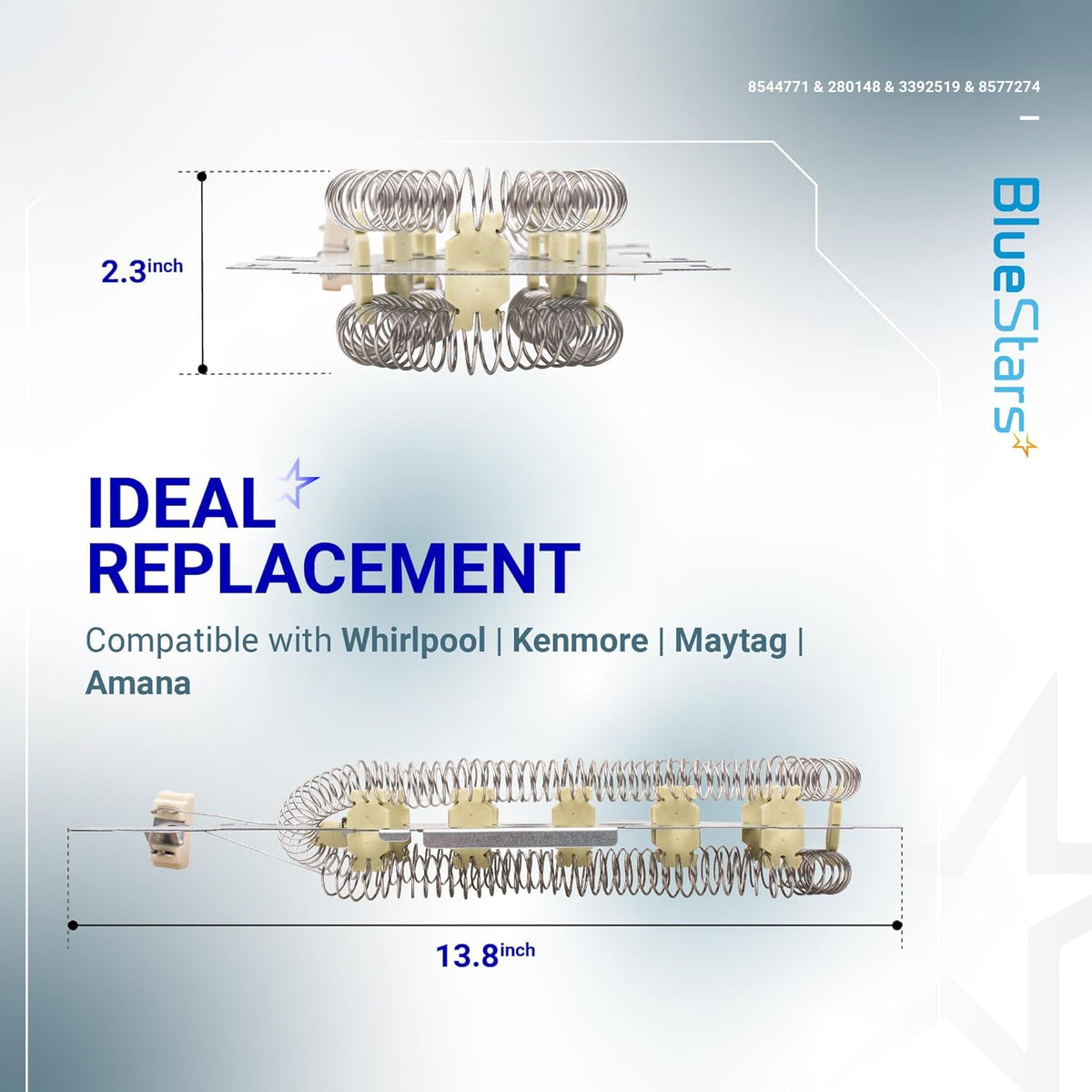

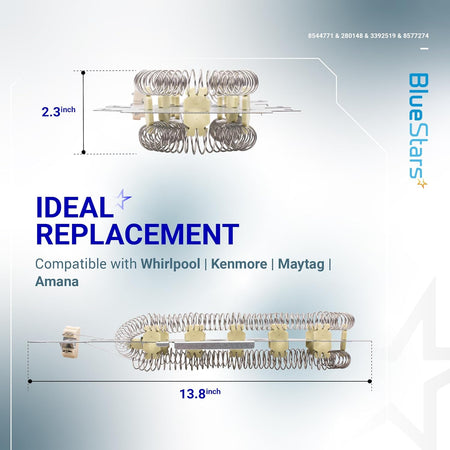

Replacement dryer heating element 8544771 with dimensions showing 13.8-inch length and 2.3-inch height.

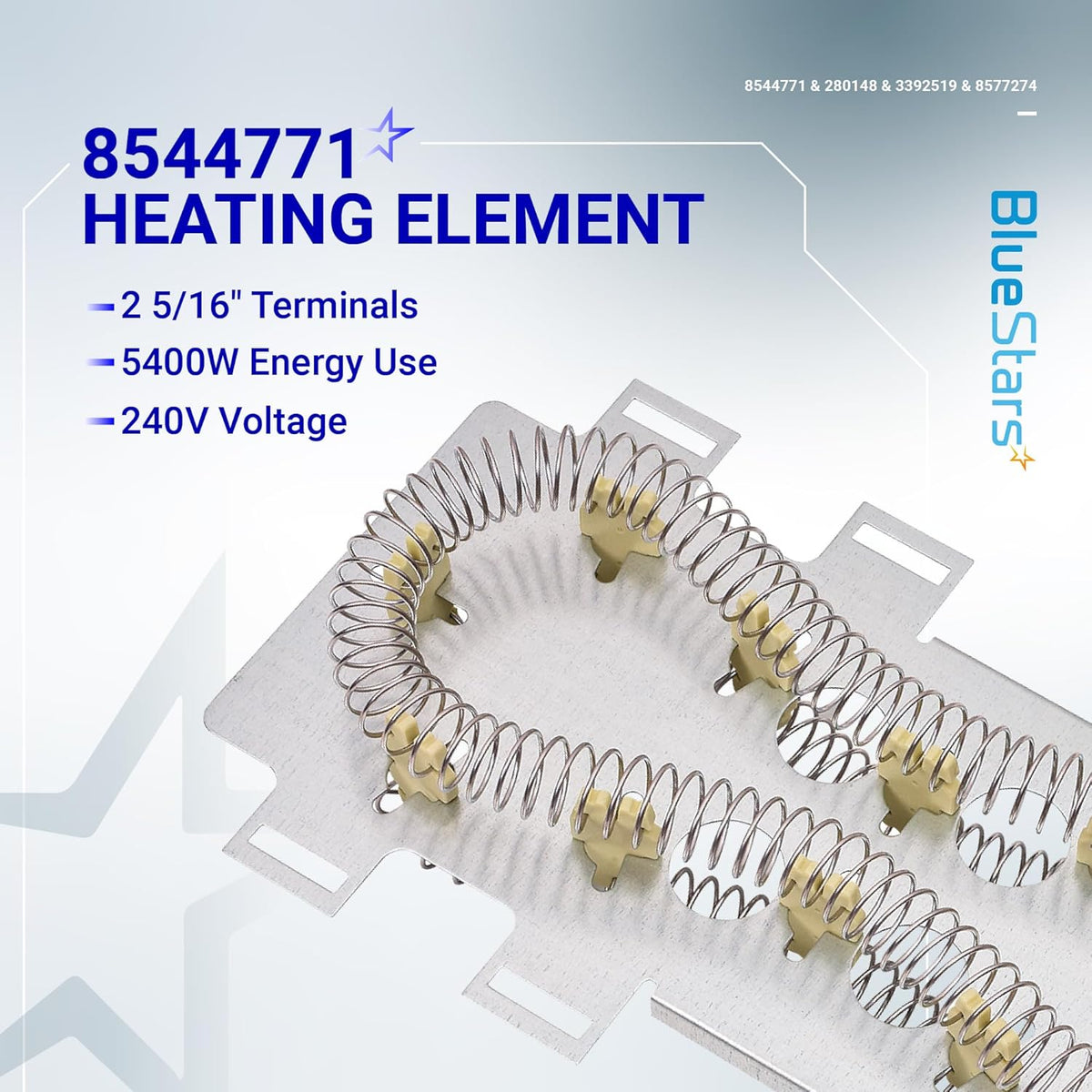

8544771 dryer heating element with 5400W 240V coil assembly for Whirlpool and Kenmore dryers.

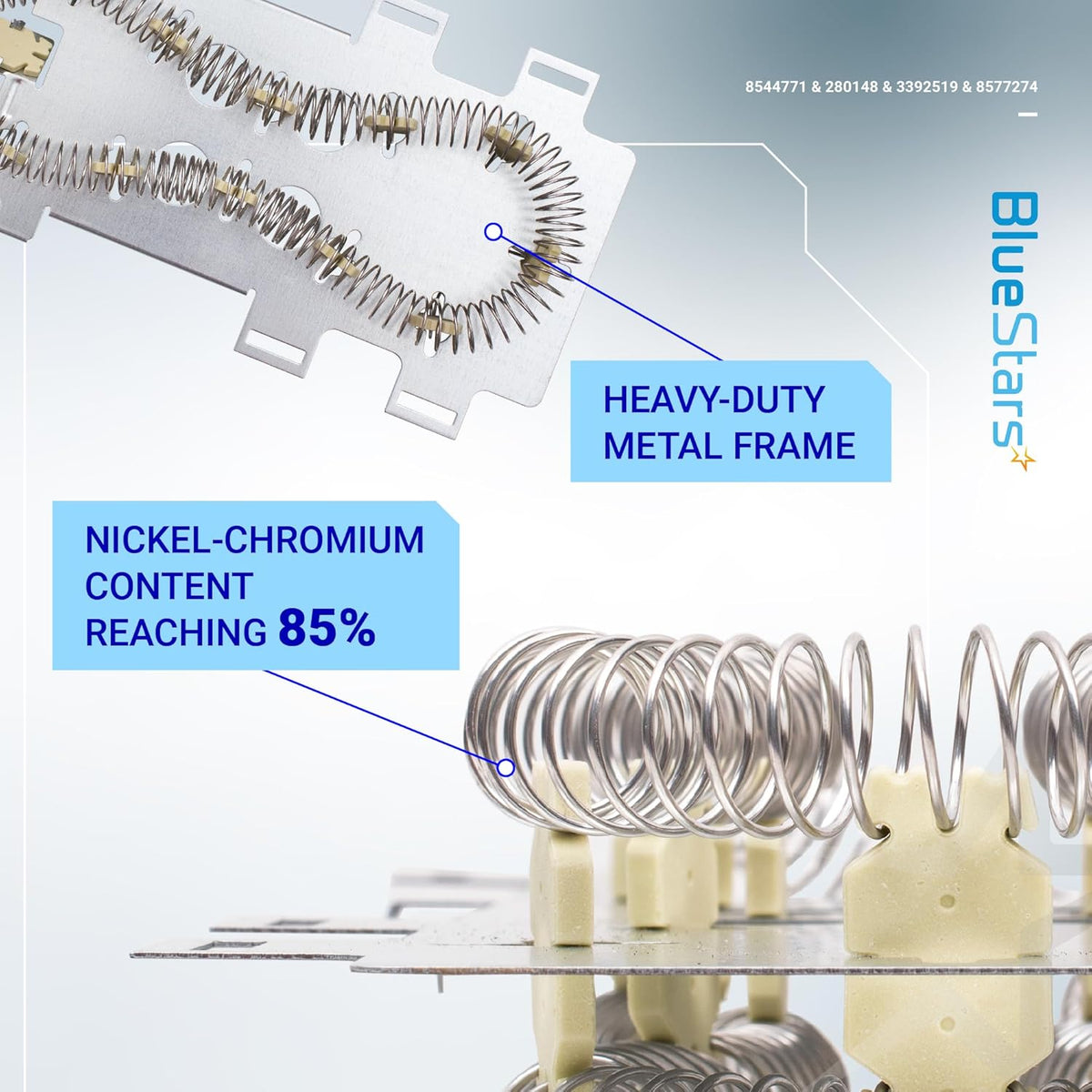

Close-up of Whirlpool dryer heating element showing heavy-duty metal frame and nickel-chromium heating coil construction.

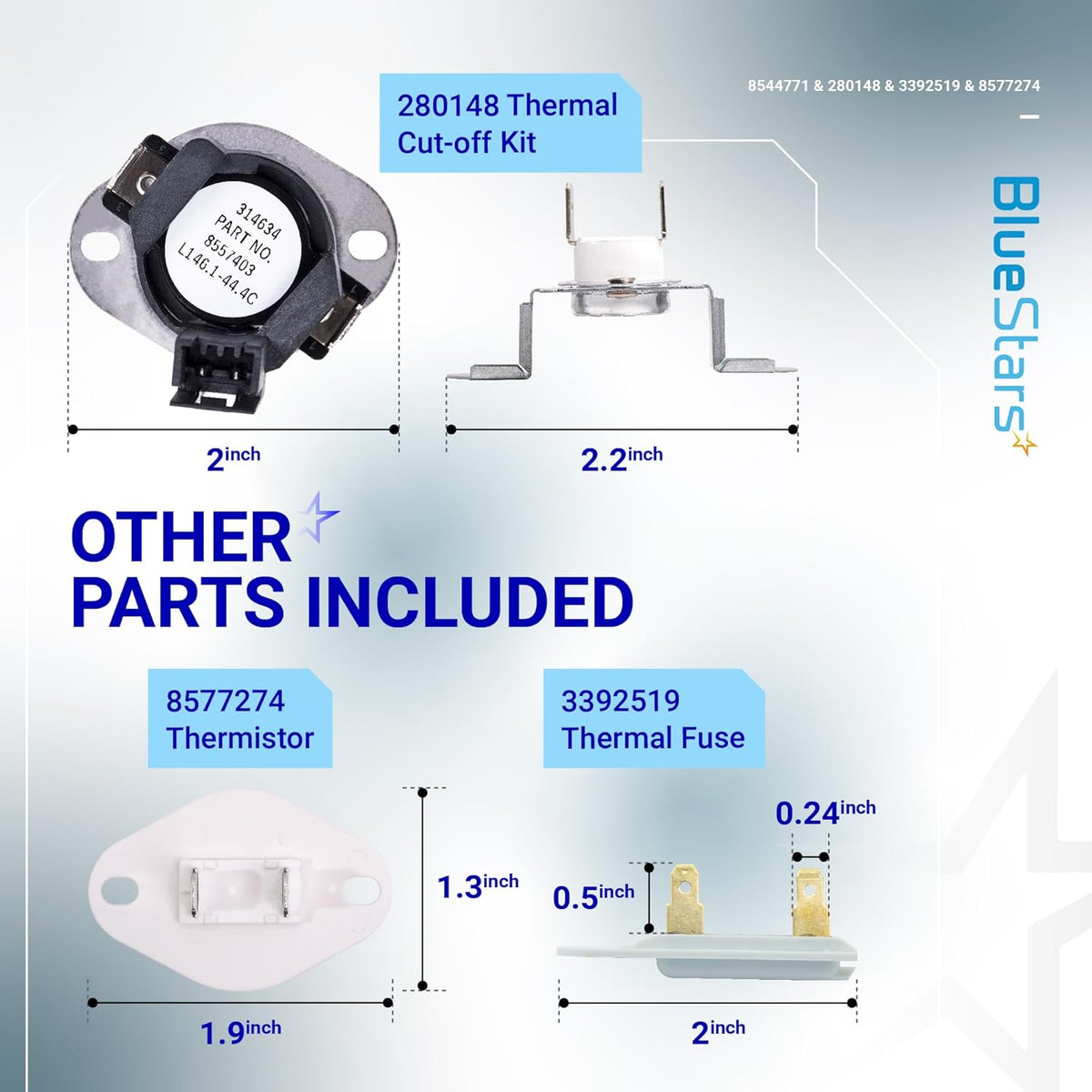

Dryer repair kit including 280148 thermal cut-off, 8577274 thermistor, and 3392519 thermal fuse with dimensions.
Replacement dryer heating element 8544771 for Whirlpool and Kenmore dryers.
Replacement dryer heating element, thermal cut-off kit, and fuse set for Whirlpool and Kenmore dryers.
Dryer heating element and thermal fuse repair kit for Whirlpool and Kenmore dryers.
Replacement dryer heating element 8544771 with dimensions showing 13.8-inch length and 2.3-inch height.
8544771 dryer heating element with 5400W 240V coil assembly for Whirlpool and Kenmore dryers.
Close-up of Whirlpool dryer heating element showing heavy-duty metal frame and nickel-chromium heating coil construction.
Dryer repair kit including 280148 thermal cut-off, 8577274 thermistor, and 3392519 thermal fuse with dimensions.
Replacement dryer heating element 8544771 for Whirlpool and Kenmore dryers.
Lifetime Warranty

8544771 Heating Element & 280148 Thermal Cut Off Kit & 3392519 Thermal Fuse & 8577274 Thermistor for Dryers

Save 13%
0.00
$56.50
$64.98
$56.50
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

Heating Element Thermal Cut Off Kit Thermal Fuse Thermistor Dryer Repair Kit Compatible with Whirlpool Kenmore Dryers

Key Features

  • Complete kit designed to resolve common dryer heating issues.
  • Includes one thermal cut-off kit, one thermal fuse, and one thermistor.
  • Components are direct replacements for original equipment manufacturer (OEM) parts.
  • Kit Contents:
    • 1 x 8544771 Dryer Heating Element
    • 1 x 280148 Thermal Cut-Off Kit
    • 1 x 3392519 Thermal Fuse
    • 1 x 8577274 Dryer Thermistor

Replaces / Cross-Reference Part Numbers

  • 8544771 Dryer Heating Element: WP8544771, AP6013115, PS11746337, W10836011, WP8544771VP, 8544771R, AP3866035, 7154072, 1180054, PS990361
  • 280148 Thermal Cut-Off Kit: AP3874047, PS991443, 280148VP, 1175772, EAP991443
  • 3392519 Thermal Fuse: WP3392519, AP6008325, PS11741460, 80005, 694511, 3388651, WP3392519VP, ET401, PD00002311, EAP11741460
  • 8577274 Thermistor: WP8577274, AP6013514, PS11746740, 3976615, 3390292, 3406294, WP8577274VP, TH7274, PD00002401, 772546

Compatibility & Fitment

  • Designed for use with most major electric dryer brands.
  • Compatible Brands Include: Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Amana, Crosley, Estate, Inglis, and Admiral.
  • Note: This kit is not intended for gas dryers.

When to Replace

  • Dryer will not start.
  • Dryer produces no heat or insufficient heat.
  • Dryer overheats or gets too hot.
  • Drying cycles take longer than usual.

Installation Tips

  • Disconnect the dryer from its power source before beginning any repairs.
  • Use a multimeter to test for continuity to confirm a faulty component before replacement.
  • Before installing new parts, inspect and clean the dryer's venting system of any lint or obstructions to prevent recurring failures.
Product image 1
Product image 2
  • PERFECT FIT

    PERFECT FIT

    8544771 & 280148 & 3392519 & 8577274 Dryer Repair Kit replaces part numbers: WP8544771, AP6013115; AP387404; 3388651; 3390292, 3406294, 3976615, etc.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    8544771 & 280148 & 3392519 & 8577274 Dryer Repair Kit is made of strong & durable materials that prevent cracking and failure during installation.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The 8544771 & 280148 & 3392519 & 8577274 Dryer Repair Kit is straightforward to attach, load, and use. Anyone with basic hand tools can install it.
TOP-GRADE MATERIAL

TOP-GRADE MATERIAL

The heating coils are made of an alloy of nickel and chromium with 85% content that avoids breaking and burning out. Boosts the performance up to 50%.
COMPLETE KIT

COMPLETE KIT

280148 Thermal Cut-Off with High Limit Thermostat includes 1 x 8557403 Dryer High Limit Thermostat and 1 x 8318314 Dryer Thermal Fuse
PERFECT FIT

PERFECT FIT

These parts are manufactured from sturdy & strong materials and they fits exactly like the origianl parts
ECONOMICAL DIY REPAIR

ECONOMICAL DIY REPAIR

Enjoy the comfort that our dryer repair kit brings into your dryer - BlueStars provides DIY solutions to help you deal with any troubles
Brand Model Number
Amana NED5700BW0, NED5800DW0, NED7300WW1, NED7500VM0, NED7500VM1, NED7500VW0, NED7500VW1, YNED5700BW0, YNED5800DW0, YNED5800DW1, YNED7300WW1, YNED7300WW2, YNED7500XW0
Crosley CED7464GW0
Inglis YIED7300WW1, YIED7300WW2
Kenmore 11067032600, 11067032601, 11067042600, 11067042601, 11067052600, 11068062800, 11068062801, 11068072800, 11068072801, 11068082701, 11068087701, 11068092700, 11068092701, 11068097701, 11068102310, 11068103310, 11086562500, 11086562501, 11086572500, 11086572501, 11086742700, 11086742701, 11086742702, 11086747700, 11086747701, 11086747702, 11086757701, 11086762700, 11086762701
Kenmore 11087081601, 11087081602, 11087086601, 11087086602, 11087087601, 11087087602, 11087088601, 11087088602, 11087089601, 11087089602, 11087091601, 11087511701, 11087531701, 11087561601, 11087561602, 11087562601, 11087562602, 11087566601, 11087567700, 11087571601, 11087571602, 11087572601, 11087572602, 11087576601, 11087576602, 11087577700, 11087581601, 11087582601, 11087701700, 11087701701, 11087709700, 11087709701, 11087721700, 11087721701, 11087721702, 11087727701, 11087727702, 11087728701, 11087728702, 11087729700, 11087729701, 11087729702, 11087731700, 11087731701, 11087731702, 11087737701, 11087737702, 11087738701, 11087738702, 11087739701, 11087739702, 11087751800, 11087751801, 11087761800, 11087761801, 11087872601, 11087872602, 11087872603, 11087892601, 11087892602, 110C67032601
Maytag MED4200BG0, MED4200BW0, MED5100DC1, MED5100DW1, MED5500FC0, MED5500FW0, MED6000AG0, MED6000AW0, MED6000XG0, MED6000XG1, MED6000XG2, MED6000XR0, MED6000XR1, MED6000XR2, MED6000XW0, MED6000XW1, MED6000XW2, MED7000AG0, MED7000AW0, MED7000XG0, MED7000XG1, MED7000XG2, MED7000XR0, MED7000XR1, MED7000XW0, MED7000XW1, MED7000XW2, MED7100DC1, MED7100DW1, MED8000AG0, MED8000AW0, MED8100DC1, MED8100DW1, MED8150EW0, MED8200FC0, MED8200FW0, MED9000YG0, MED9000YG1, MED9000YG2, MED9000YR0, MED9000YR1, MED9000YW0, MED9000YW1, MED9000YW2
Maytag MEDB200VQ0, MEDB200VQ1, MEDB400VQ0, MEDB400VQ1, MEDB700BW0, MEDB700VQ0, MEDB725BW0, MEDB750YW0, MEDB750YW1, MEDB750YW2, MEDB800VB0, MEDB800VQ0, MEDB800VU0, MEDB850WB0, MEDB850WB1, MEDB850WL0, MEDB850WL1, MEDB850WQ0, MEDB850WQ1, MEDB850WR0, MEDB850WR1, MEDB850YG0, MEDB850YG1, MEDB850YG2, MEDB850YW0, MEDB850YW1, MEDB850YW2, MEDB880BW0, MEDB950YG0, MEDB950YG1, MEDB950YG2, MEDB950YW0, MEDB950YW1, MEDB950YW2, MEDB980BG0, MEDB980BW0
Maytag MEDE200XW1, MEDE201YW0, MEDE201YW1, MEDE251YG0, MEDE251YG1, MEDE251YL0, MEDE251YL1, MEDE300VF0, MEDE300VF1, MEDE300VF2, MEDE300VW0, MEDE300VW1, MEDE301YG0, MEDE301YW0, MEDE400XR0, MEDE400XW0, MEDE500VF0, MEDE500VF1, MEDE500VP0, MEDE500VP1, MEDE500VW0, MEDE500VW1, MEDE500VW2, MEDE500WJ0, MEDE500WR0, MEDE900VJ0, MEDE900VJ1, MEDE900VW0, MEDE900VW1, MEDZ400TQ1, MEDZ600TB1, MEDZ600TK1, MEDZ600TW1
Maytag YMED3000BG0, YMED3000BW0, YMED4200BG0, YMED4200BW0, YMED5100DC1, YMED5100DW1, YMED5500FC0, YMED5500FW0, YMED6000AG0, YMED6000AW0, YMED6000XG1, YMED6000XG2, YMED6000XG3, YMED6000XR1, YMED6000XR2, YMED6000XR3, YMED6000XW1, YMED6000XW2, YMED6000XW3, YMED7000AG0, YMED7000AW0, YMED7000XG1, YMED7000XG2, YMED7000XG3, YMED7000XR1, YMED7000XR2, YMED7000XW1, YMED7000XW2, YMED7000XW3, YMED7100DC1, YMED7100DW1, YMED8000AG0, YMED8000AW0, YMED8100DC1, YMED8100DW1, YMED8200FC0, YMED8200FW0, YMED9000YG0, YMED9000YG1, YMED9000YG2, YMED9000YG3, YMED9000YR0, YMED9000YR1, YMED9000YW0, YMED9000YW1, YMED9000YW2, YMED9000YW3, YMED9600TK0
Maytag YMEDE200XW1, YMEDE201YW0, YMEDE201YW1, YMEDE251YL0, YMEDE251YL1, YMEDE300VF0, YMEDE300VF1, YMEDE300VF2, YMEDE300VW0, YMEDE300VW1, YMEDE301YG0, YMEDE301YG1, YMEDE301YW0, YMEDE301YW1, YMEDE400XR0, YMEDE400XW0, YMEDE500VF1, YMEDE500VP0, YMEDE500VP1, YMEDE500VW0, YMEDE500VW1, YMEDE500VW2, YMEDE500WJ0, YMEDE500WR0, YMEDE900VJ0, YMEDE900VJ1, YMEDE900VW0, YMEDE900VW1, YMEDZ400TQ0, YMEDZ600TB0, YMEDZ600TW0
Whirlpool 7MWED81HEDW0, 7MWED90HEFW0, WED70HEBW0, WED71HEBW0, WED71HEDW1, WED72HEDW1, WED7300XW0, WED7400XW0, WED7505FW0, WED7540FW0, WED7590FW0, WED75HEFW0, WED7600XW0, WED7800XB0, WED7800XL0, WED7800XW0, WED7990XG0, WED80HEBC0, WED80HEBW0, WED81HEDW1, WED8300SB0, WED8300SB1, WED8300SW0, WED8300SW1, WED8410SW0, WED8410SW1, WED8500SR0, WED8540FW0, WED85HEFC0, WED85HEFW0, WED86HEBC0, WED86HEBW0, WED8740DC1, WED8740DW1, WED87HEDC1, WED87HEDW1
Whirlpool WED9050XW1, WED9150WW1, WED9151YW0, WED9151YW1, WED9200SQ0, WED9200SQ1, WED9200SQ2, WED9250WL1, WED9250WR1, WED9250WW1, WED9270XL1, WED9270XL2, WED9270XR1, WED9270XR2, WED9270XW1, WED9270XW2, WED9300VU0, WED9300VU1, WED9371YL0, WED9371YW0, WED9371YW1, WED9400SB0, WED9400SB1, WED9400ST0, WED9400ST1, WED9400SU0, WED9400SU1, WED9400SU2, WED9400SW0, WED9400SW1, WED9400SW2, WED9400SZ0, WED9400SZ1, WED9400SZ2, WED9400VE0, WED9400VE1, WED9450WL0, WED9450WL1, WED9450WR0, WED9450WR1, WED9450WW0, WED9450WW1, WED9470WL1, WED9470WR1, WED9470WW1, WED9470WW2
Whirlpool WED9500TC0, WED9500TC1, WED9500TC2, WED9500TU0, WED9500TU1, WED9500TW0, WED9500TW1, WED9500TW2, WED9500TW3, WED9550WL0, WED9550WL1, WED9550WL2, WED9550WR0, WED9550WR1, WED9550WW0, WED9550WW1, WED9550WW2, WED9600SU0, WED9600TA0, WED9600TA1, WED9600TA2, WED9600TB0, WED9600TB1, WED9600TU0, WED9600TU1, WED9600TW0, WED9600TW1, WED9600TW2, WED9600TZ0, WED9610XW0, WED9610XW1, WED9750WL0, WED9750WL1, WED9750WR0, WED9750WW0, WED9750WW1, WED90HEFC0, WED90HEFW0, WED92HEFBD0, WED92HEFC0, WED92HEFU0, WED92HEFW0, WED95HEDC1, WED95HEDU1, WED95HEDW1, WED97HEDBD1, WED97HEDC1, WED97HEDU1, WED97HEDW1
Whirlpool YWED70HEBW0, YWED72HEDW1, YWED75HEFW0, YWED7990XG0, YWED80HEBC0, YWED80HEBW0, YWED81HEDW1, YWED85HEFC0, YWED85HEFW0, YWED85HEFW2, YWED86HEBC0, YWED86HEBW0, YWED87HEDC1, YWED87HEDW1, YWED8300SB0, YWED8300SB1, YWED8300SW0, YWED8300SW1, YWED8500SR0, YWED8500SR1, YWED9050XW1, YWED9050XW2, YWED9150WW1, YWED9151YW0, YWED9151YW1, YWED9200SQ0, YWED9200SQ1, YWED9200SQ2, YWED9250WL1, YWED9250WL2, YWED9250WR1, YWED9250WR2, YWED9250WW1, YWED9250WW2, YWED9270XL1, YWED9270XL2, YWED9270XR1, YWED9270XR2, YWED9270XW1, YWED9270XW2, YWED9300VU0, YWED9300VU1, YWED9371YL0, YWED9371YL1, YWED9371YW0, YWED9371YW1
Whirlpool YWED9400SU0, YWED9400SU1, YWED9400SU2, YWED9400SW0, YWED9400SW1, YWED9400SW2, YWED9400SZ0, YWED9400SZ1, YWED9400VE0, YWED9400VE1, YWED9450WL0, YWED9450WL1, YWED9450WR0, YWED9450WR1, YWED9450WW0, YWED9450WW1, YWED9470WL1, YWED9470WR1, YWED9470WW1, YWED9500TC1, YWED9500TU0, YWED9500TU1, YWED9550WL0, YWED9550WL1, YWED9550WL2, YWED9550WR0, YWED9550WR1, YWED9550WW0, YWED9550WW1, YWED9550WW2, YWED9600TA0, YWED9600TA1, YWED9600TA2, YWED9600TB0, YWED9600TB1, YWED9600TU0, YWED9600TU1, YWED9600TW0, YWED9600TW1, YWED9600TW2, YWED9600TZ0, YWED9750WL0, YWED9750WR0, YWED9750WW0, YWED90HEFC0, YWED90HEFW0, YWED92HEFBD0, YWED92HEFC0, YWED92HEFU0, YWED92HEFW0, YWED95HEDC1, YWED95HEDU1, YWED95HEDW1, YWED97HEDBD1, YWED97HEDC1, YWED97HEDU1, YWED97HEDW1

FAQ

The most common signs are that the dryer runs but fails to produce heat, or the dryer does not start at all. If your clothes remain damp after a full cycle, the heating element (8544771) may be burnt out. If the dryer has no power or won't turn on, the thermal fuse (3392519) is often the culprit, as it is designed to blow if the dryer overheats.
This kit is compatible with a wide range of electric dryers manufactured by Whirlpool, Kenmore, Maytag, and KitchenAid. It is designed to fit models such as WED9200SQ0, WED9550WW1, WED9400SW2, WED7300XW0, WED7400XW0, WED7505FW0, WED7540FW0, WED7540FW1, WED7590FW0, WED7590FW1, and WED9500TW2.
The primary cause of thermal fuse and cut-off failure is restricted airflow. Over time, lint buildup in the dryer vent, exhaust hose, or the internal blower housing prevents heat from escaping. This causes the temperature to rise rapidly, triggering the safety fuses to blow to prevent a fire hazard. Always clean your dryer vent system thoroughly when replacing these parts to prevent the new ones from failing prematurely.
This kit includes the 8544771 heating element, the 280148 thermal cut-off kit (which includes the high-limit thermostat), the 3392519 thermal fuse, and the 8577274 thermistor.
The installation is a moderate-level repair that typically takes 45 to 90 minutes. You will need a 1/4-inch nut driver, a flat-head screwdriver, and a Phillips-head screwdriver to access the internal components. Ensure the dryer is unplugged and the gas supply (if applicable) is turned off before beginning any work.
Before installing the new element, inspect the entire exhaust path for lint blockages. Additionally, use a multimeter to check the continuity of the old heating element and thermal components. If the thermal fuse has blown, it is almost always a sign of an underlying airflow issue that must be resolved, or the new fuse will blow immediately upon the first use.
