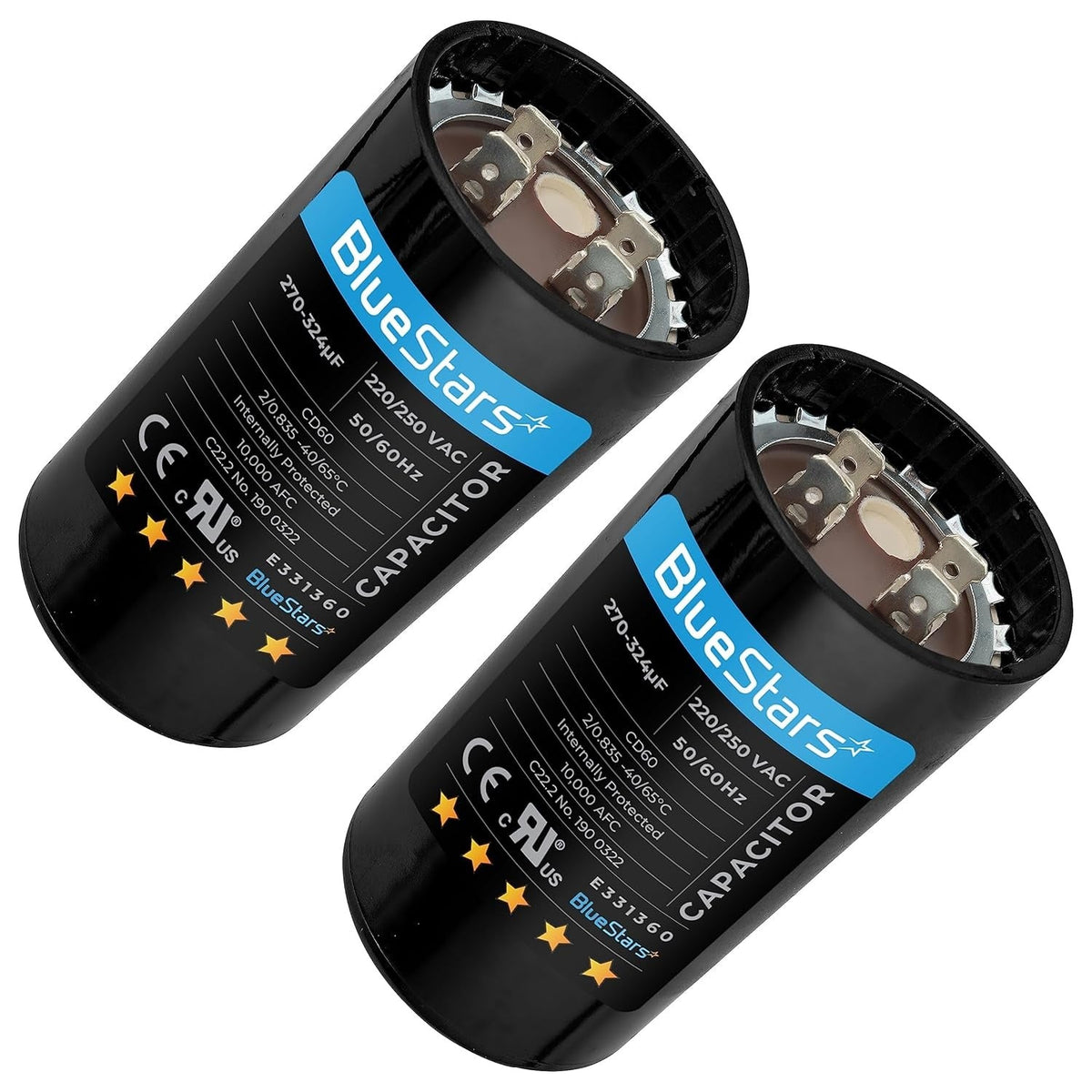

270-324 uF MFD 250 VAC CD60 Round Motor Start Capacitor 50/60 Hz AC Electric Replacement - 2 Pack

270-324 uF MFD 250VAC Round Motor Start Capacitor 50/60 Hz AC Electric - Pack of 2

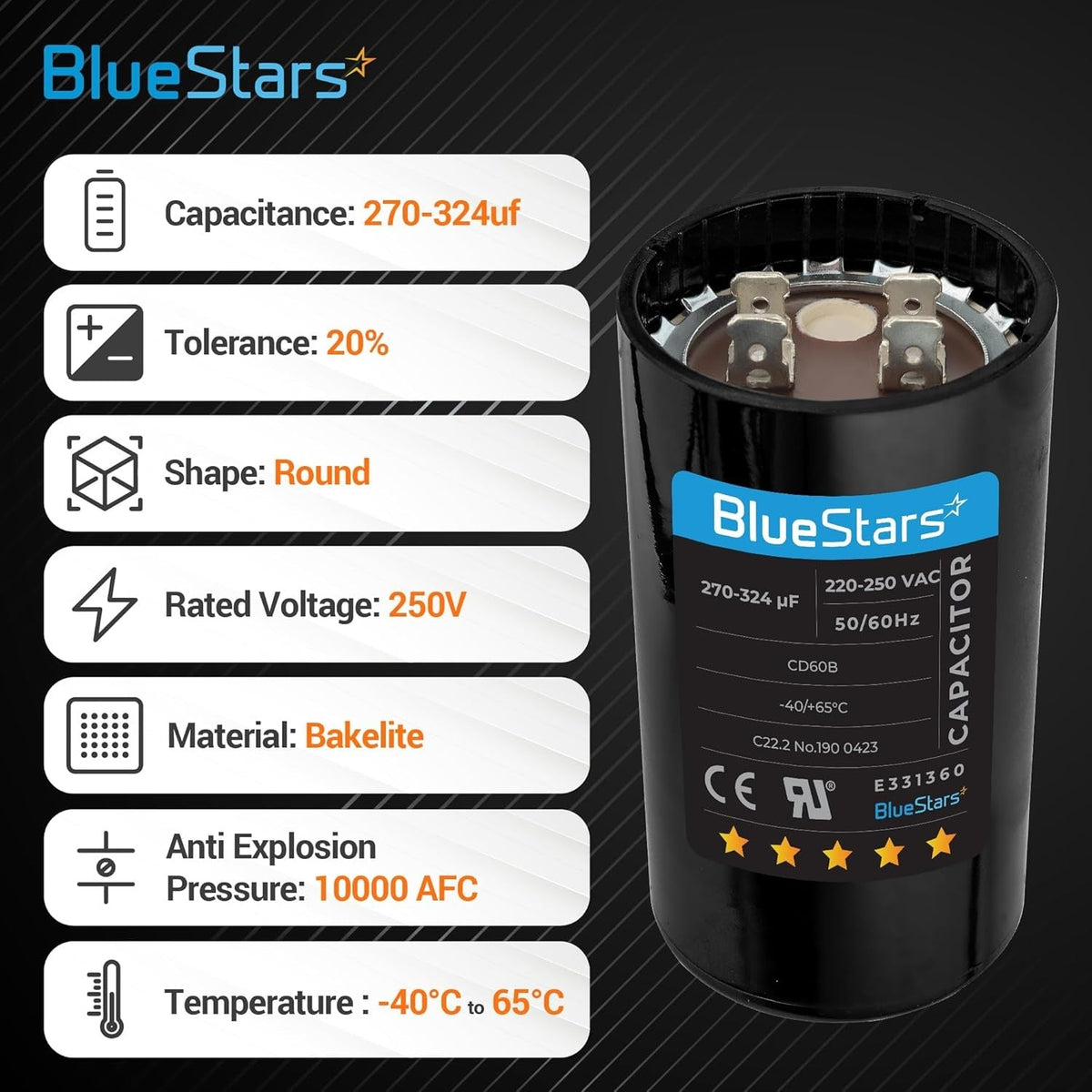

Key Features

• Capacitance: 270-324 Mfd (uF)
• Voltage Rating: 250VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Shape: Round

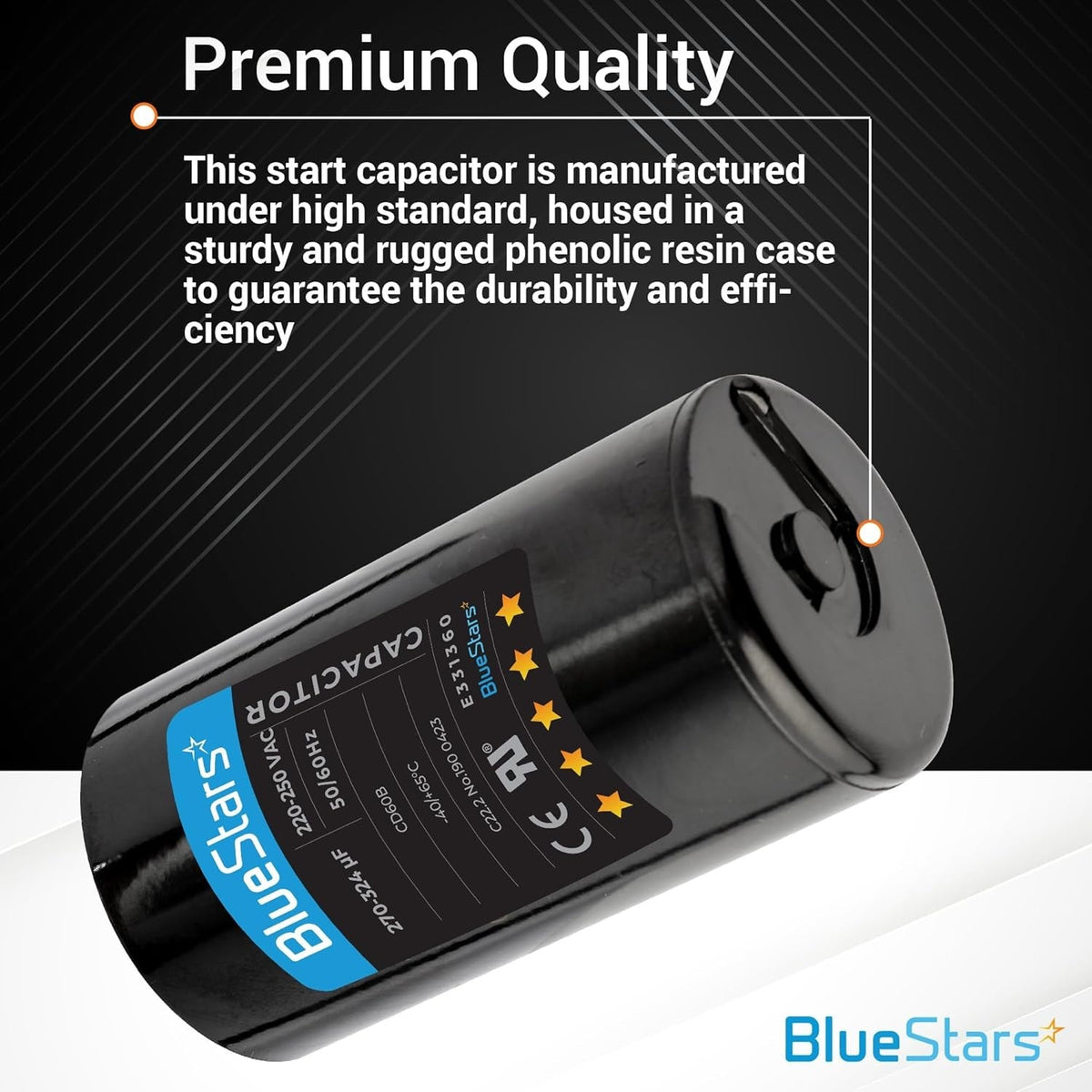

• Case Material: Plastic

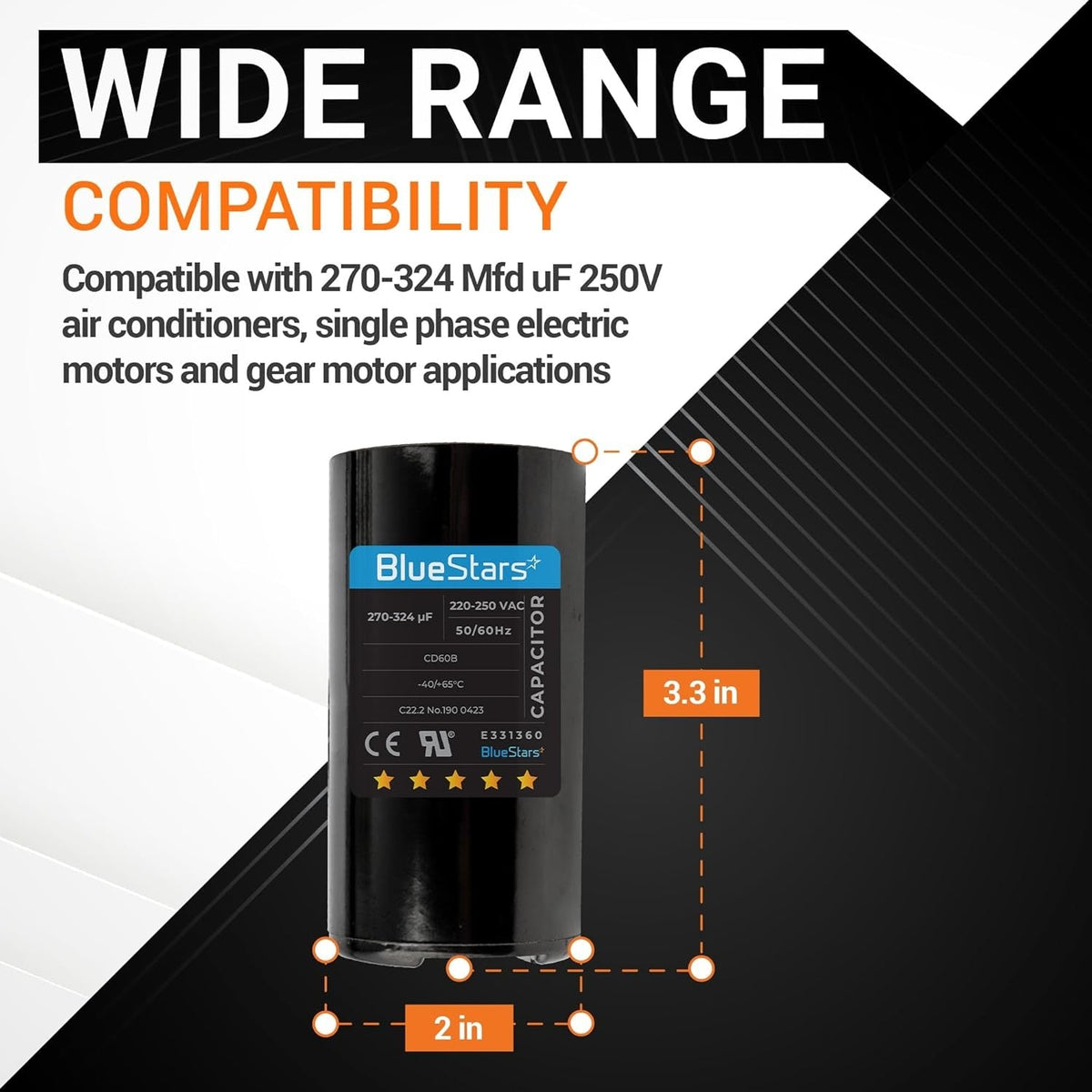

• Dimensions: 46mm Diameter x 85mm Height

Replaces / Cross-Reference Part Numbers

• Universal replacement for start capacitors with matching electrical specifications.
• Common model series include CD60 and CD60B.
• Can replace parts such as C1551648.

Compatibility & Fitment

• For use with single-phase AC electric motors requiring a start capacitor.
• Suitable for applications including HVAC units, air compressors, well pumps, and other motorized equipment.
• Verify fitment by matching the Mfd/uF, VAC, and Hz ratings of the original capacitor. Physical dimensions should also be checked for proper mounting.

When to Replace

• The motor hums but will not start or turn over.
• The motor starts slowly or requires manual assistance to begin rotating.
• The circuit breaker trips repeatedly during motor startup.
• The existing capacitor shows physical signs of failure, such as bulging, leaking fluid, or cracks in the casing.

Installation Tips

• Disconnect all electrical power to the equipment before beginning service.

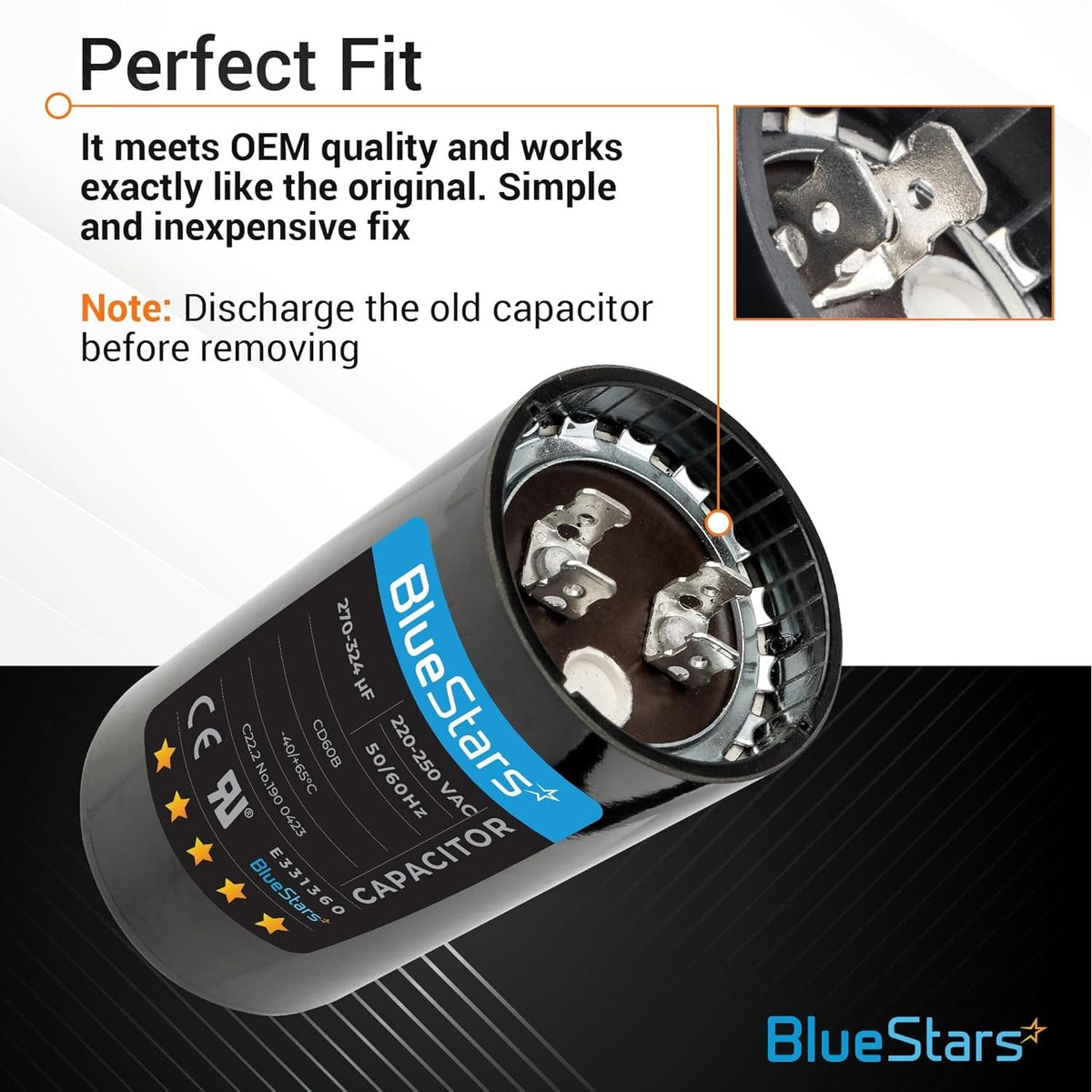

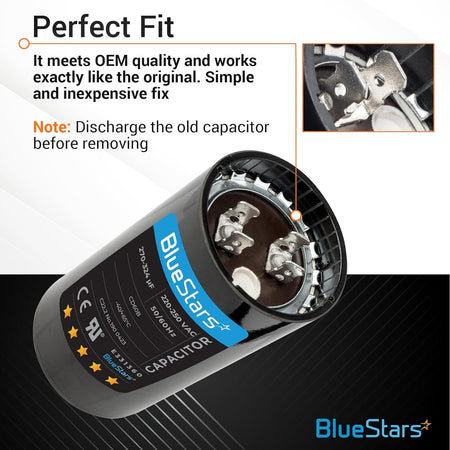

• Carefully discharge the existing capacitor by shorting the terminals with a properly insulated screwdriver or a suitable resistor.
• Note or photograph the original wire connections before removal.
• The replacement capacitor's VAC rating must be equal to or greater than the original. Do not use a lower voltage rating.
• The Mfd/uF rating must fall within the range specified by the motor manufacturer.
