Lifetime Warranty

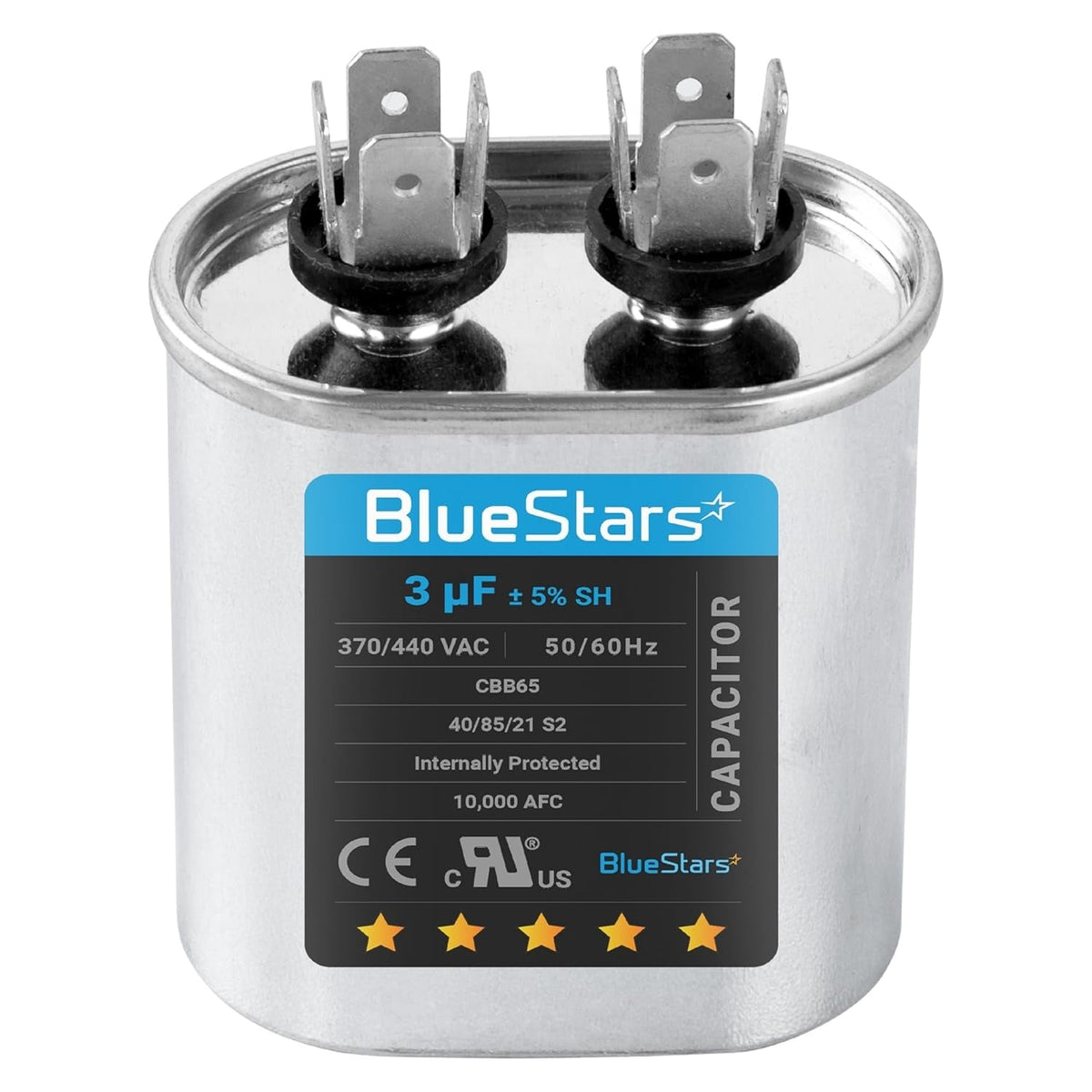

3 uF MFD ±5% 370/440 VAC CBB65 Oval Run Start Capacitor 50/60 Hz - Fits Air Conditioners, Heat Pumps, Condenser Fan Motors
Save 13%
0.00
Regular price
$18.83
Regular price
$21.65
Sale price
$18.83
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
3 uF/MFD ±5% 370-440 VAC Oval Run Start Capacitor

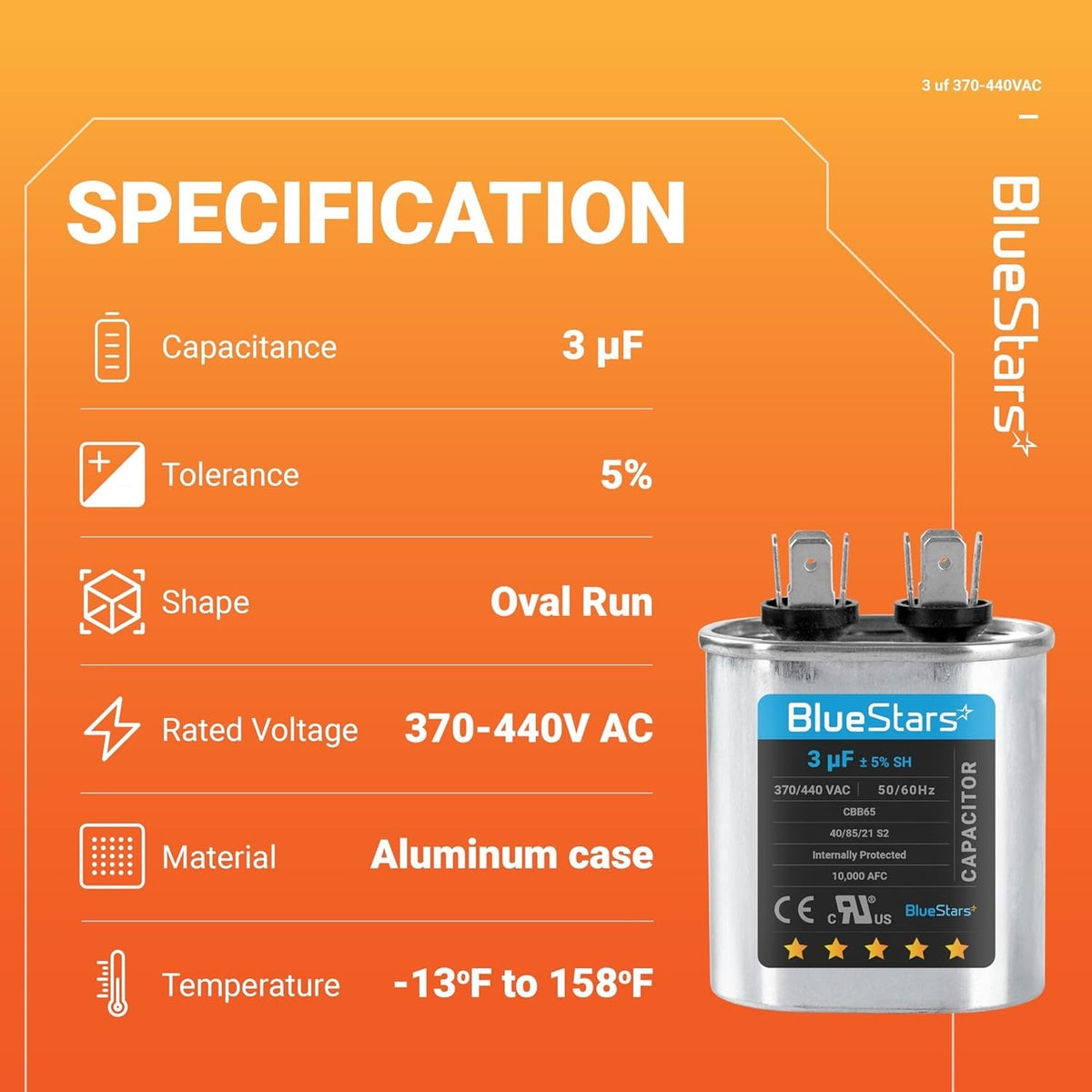

Key Features
- Capacitance: 3 Microfarad (uF/MFD)
- Tolerance: ±5%
- Voltage Rating: 370-440 VAC (replaces both 370V and 440V capacitors)
- Frequency: 50/60 Hz
- Shape: Oval
- Operating Temperature: -25°C to +70°C (-13°F to 158°F)

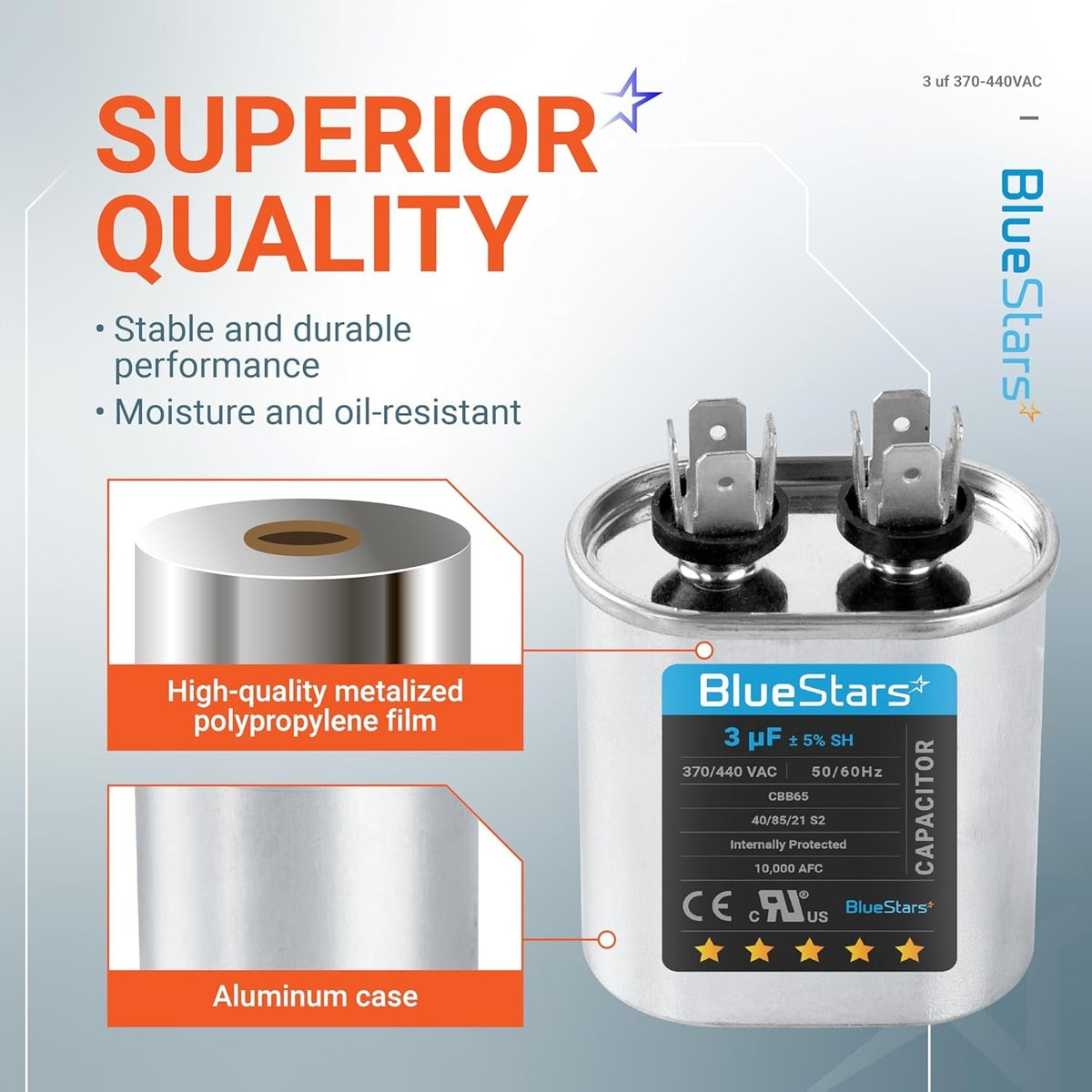

- Construction: Non-PCB, oil-filled case

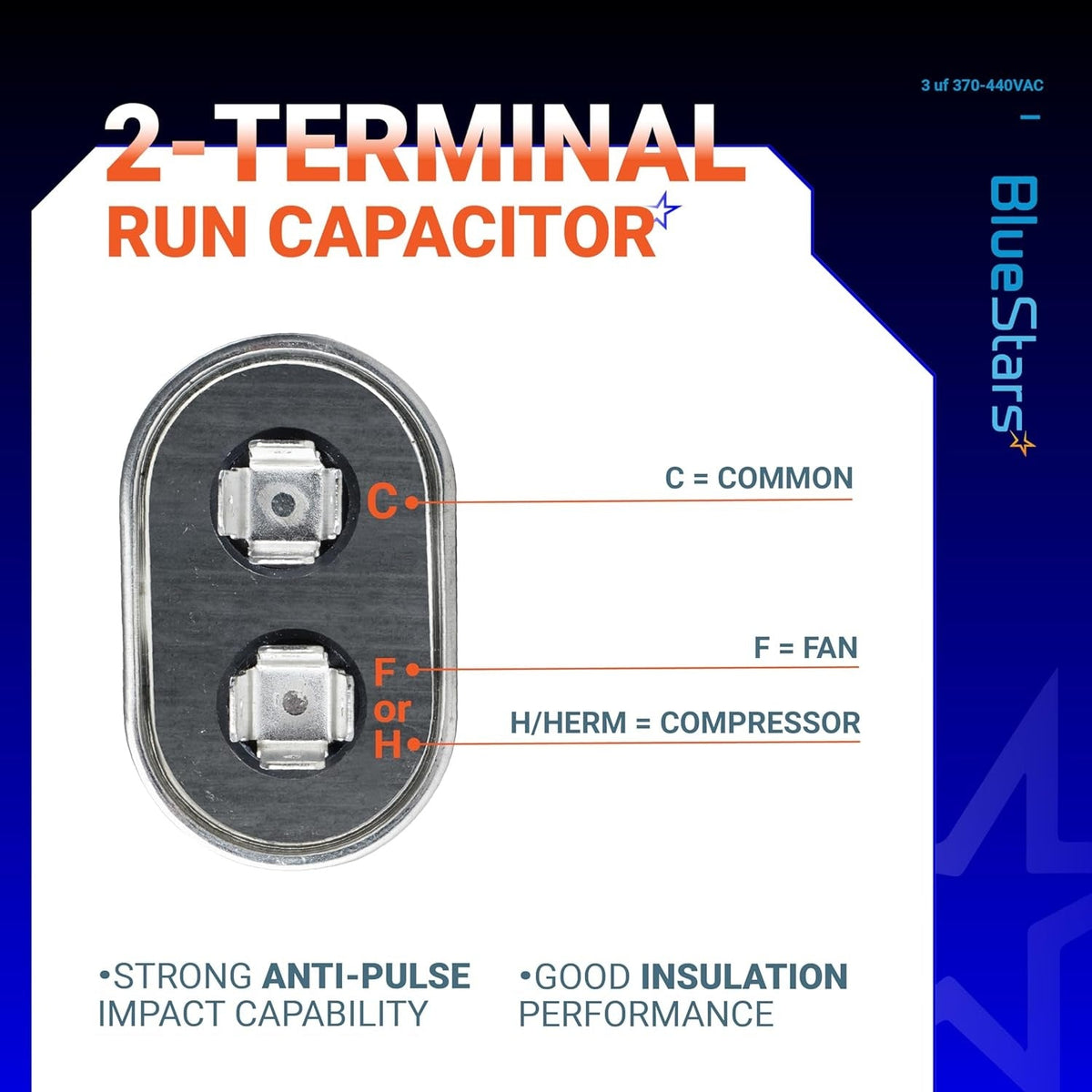

- Terminals: Standard 1/4 in. male spade terminals
Replaces / Cross-Reference Part Numbers
- Replaces any single oval capacitor with matching 3 uF/MFD and 370V or 440V specifications.

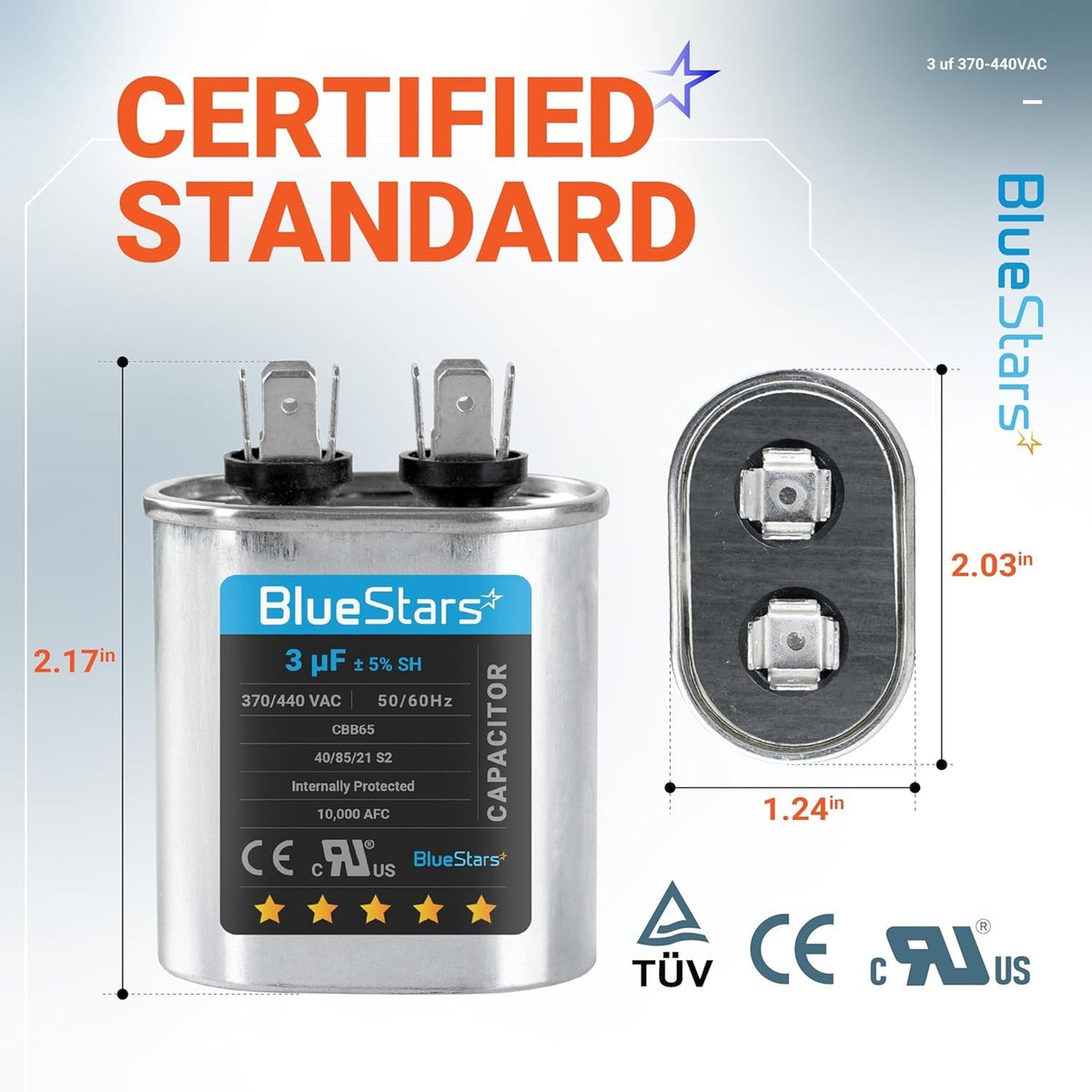

- Verify physical dimensions for proper fit.
Compatibility & Fitment
- Used for motor run applications in single-phase motors.
- Commonly found in HVAC units, air conditioners, compressors, furnace blower motors, and pool pumps.
- The dual 370/440V rating makes it compatible with systems specifying either voltage.
When to Replace
- Motor hums but fails to start or struggles to start.
- Fan blades or blower wheel turns slower than usual.
- Compressor or fan motor does not turn on.
- Visible bulging, swelling, or leaking from the capacitor case.

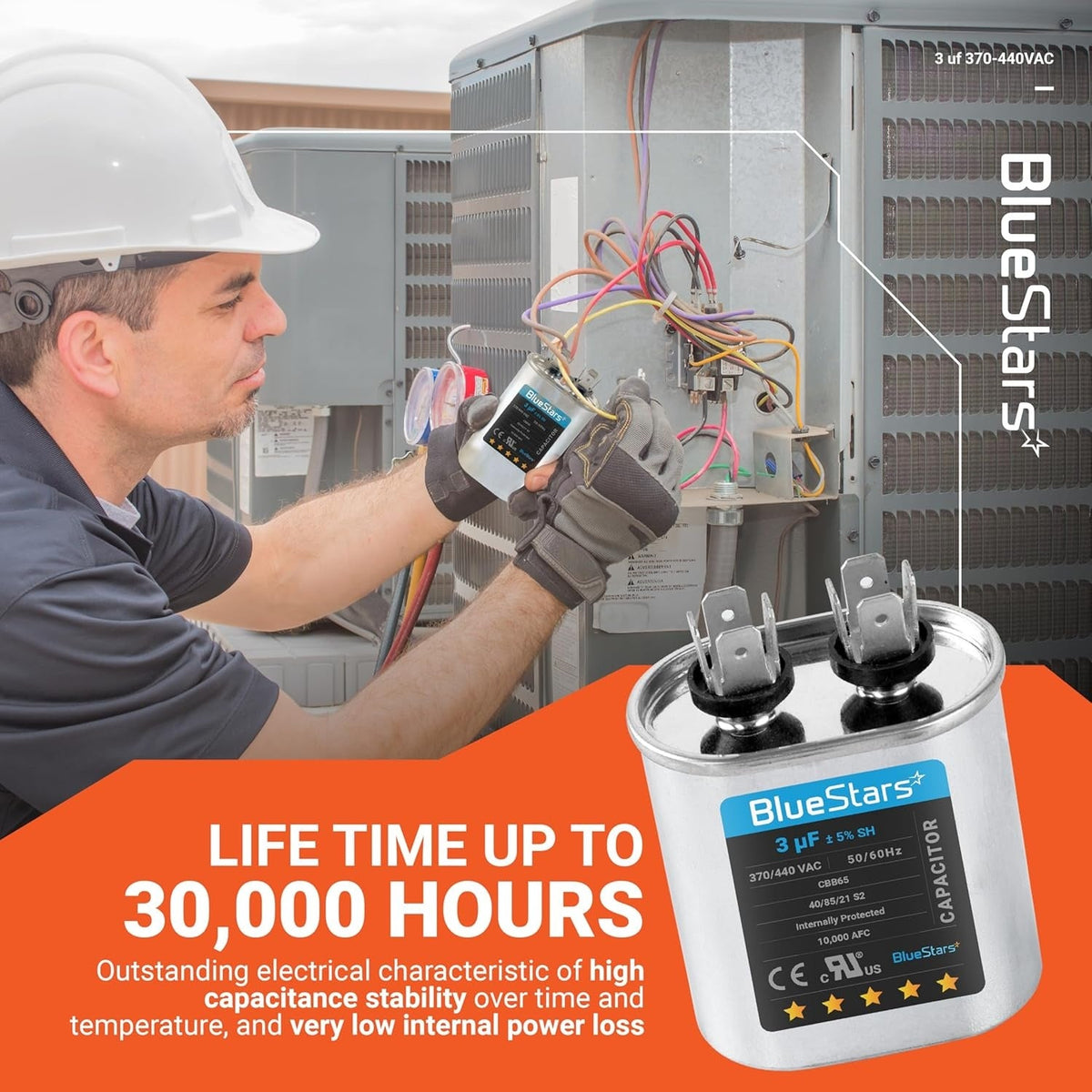

Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.
- Note the wire placement on the old capacitor's terminals before removal.
- Ensure the replacement capacitor's microfarad (uF/MFD) rating matches the original exactly.
- The voltage rating of the replacement capacitor must be equal to or higher than the original.
-
Step 1
Turn off the power and locate the capacitor -
Step 2
Discharge any stored electricity by shorting the terminals -
Step 3
Take a photo or note how the wires connect. Disconnect wires & install the new capacitor. -
Step 4
Reassemble and test
