House Parts 1/2" Gas Pressure Regulator, Adjustable Natural Gas & Liquefied Interchange Pressure Regulator with 2 Brass 1/2" NPT Conversion Adapters

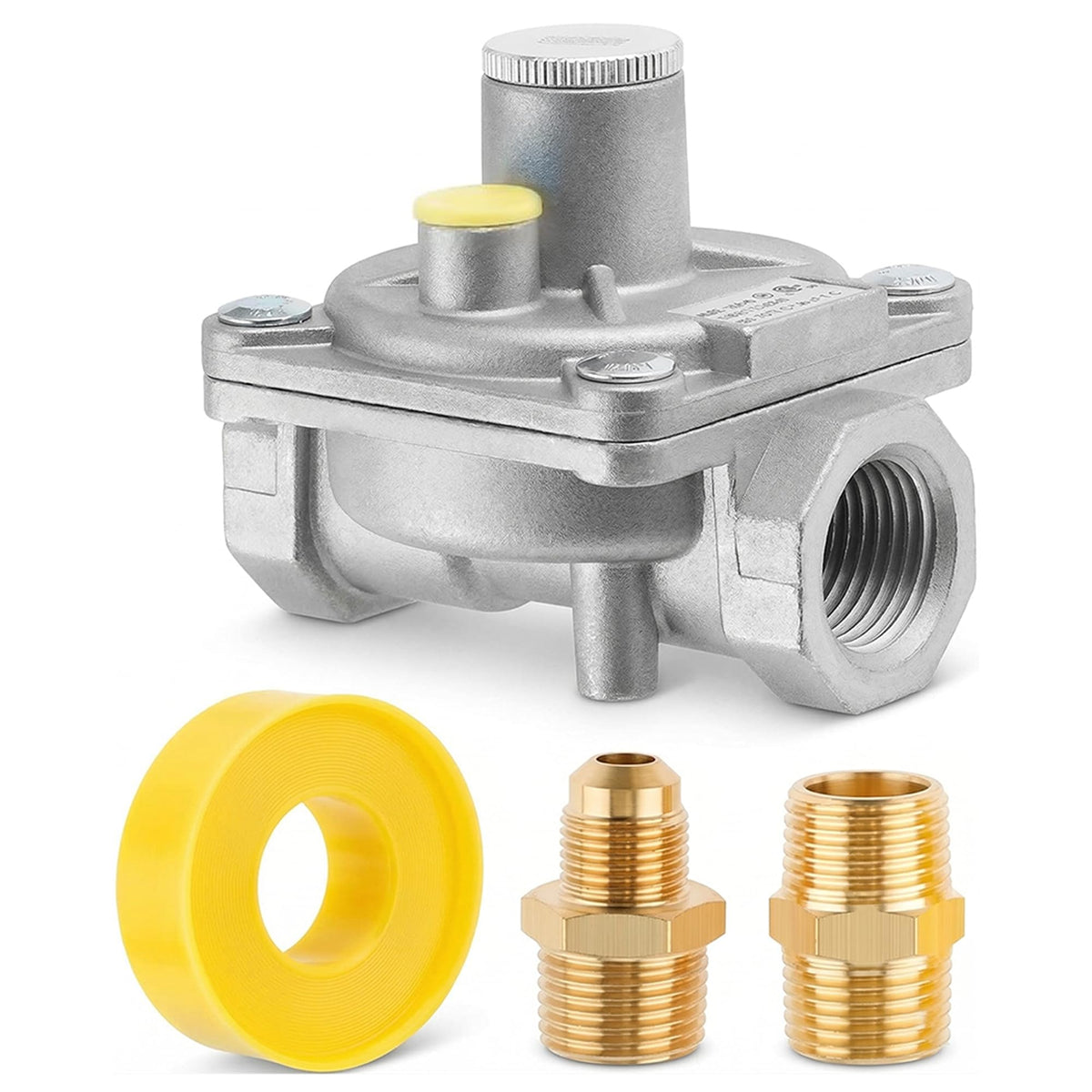

1/2" gas pressure regulator with two brass NPT conversion adapters and yellow thread seal tape.
BlueStars gas regulator specification diagram showing 1/2 inch NPT inlet and outlet thread dimensions.
Product specification diagram showing a metal valve body with 1/2 inch NPT inlet and outlet threads and brass fittings.
Infographic showing adjustable gas regulator settings for natural gas and LPG modes with pressure and flow rate specs.
Three-step instructional diagram showing the installation process for an LPG pressure regulator conversion shaft.
Three-step instructional diagram showing the installation process for a natural gas conversion shaft into a regulator.
Natural and propane gas pressure regulator shown with installation examples for grills, heaters, fire pits, and torches.
Gas pressure regulator with brass connectors and aluminum housing showing high-grade material construction features.
Propane gas regulator for outdoor grills with brass fittings for optimal gas flow control.

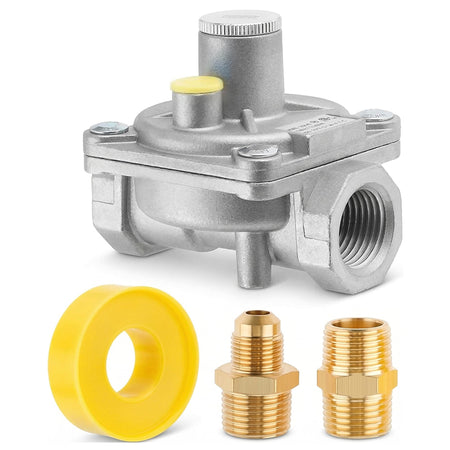

1/2" gas pressure regulator with two brass NPT conversion adapters and yellow thread seal tape.

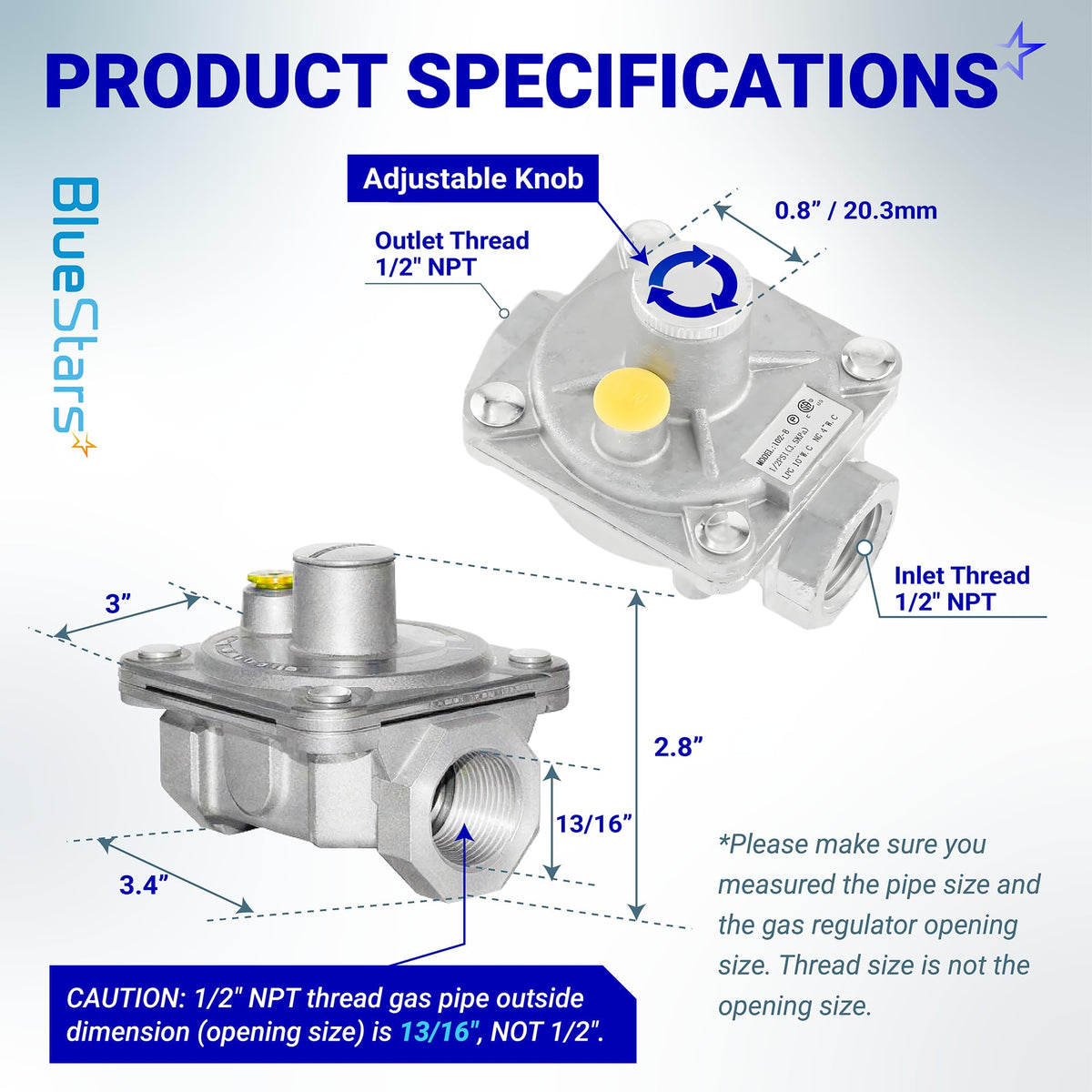

BlueStars gas regulator specification diagram showing 1/2 inch NPT inlet and outlet thread dimensions.

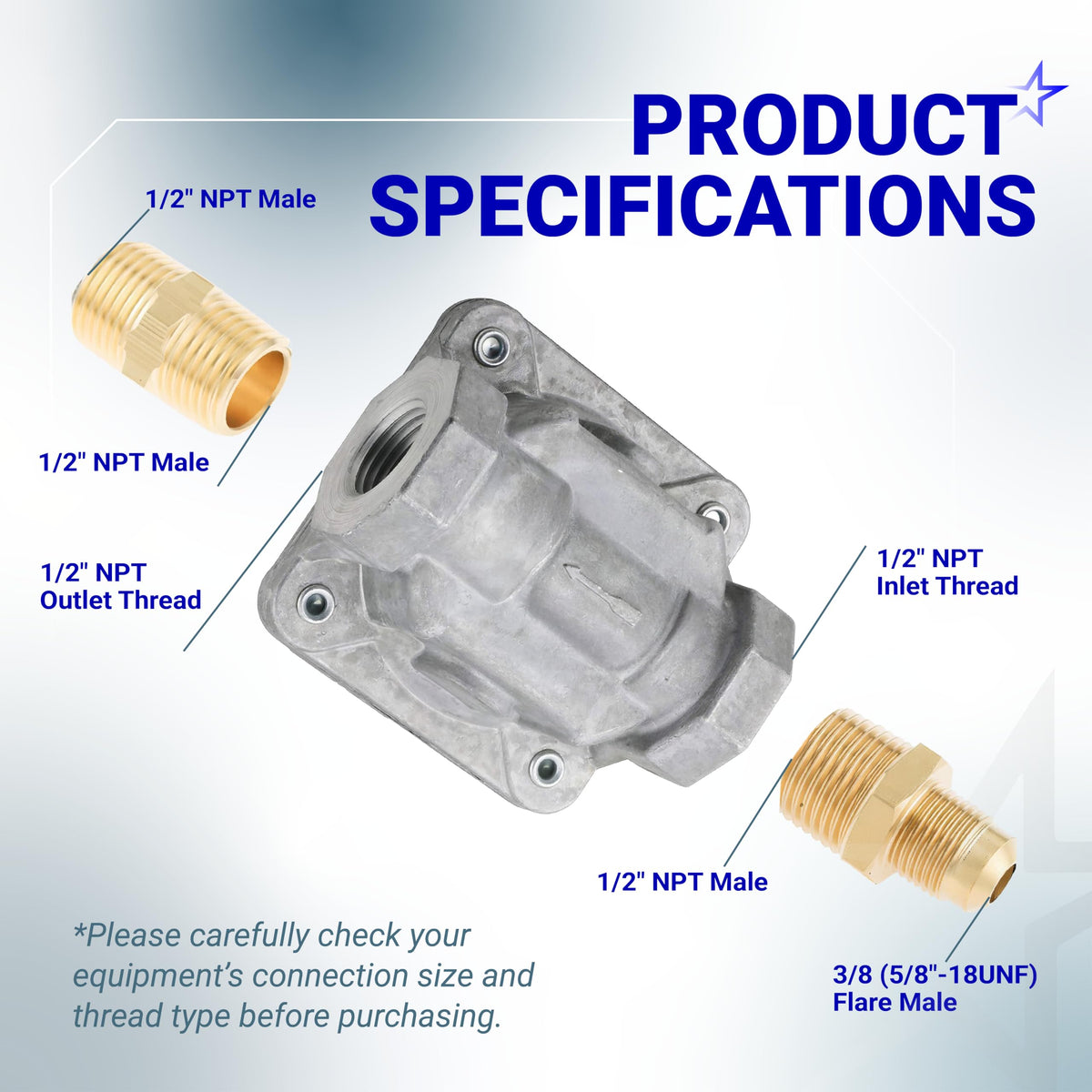

Product specification diagram showing a metal valve body with 1/2 inch NPT inlet and outlet threads and brass fittings.

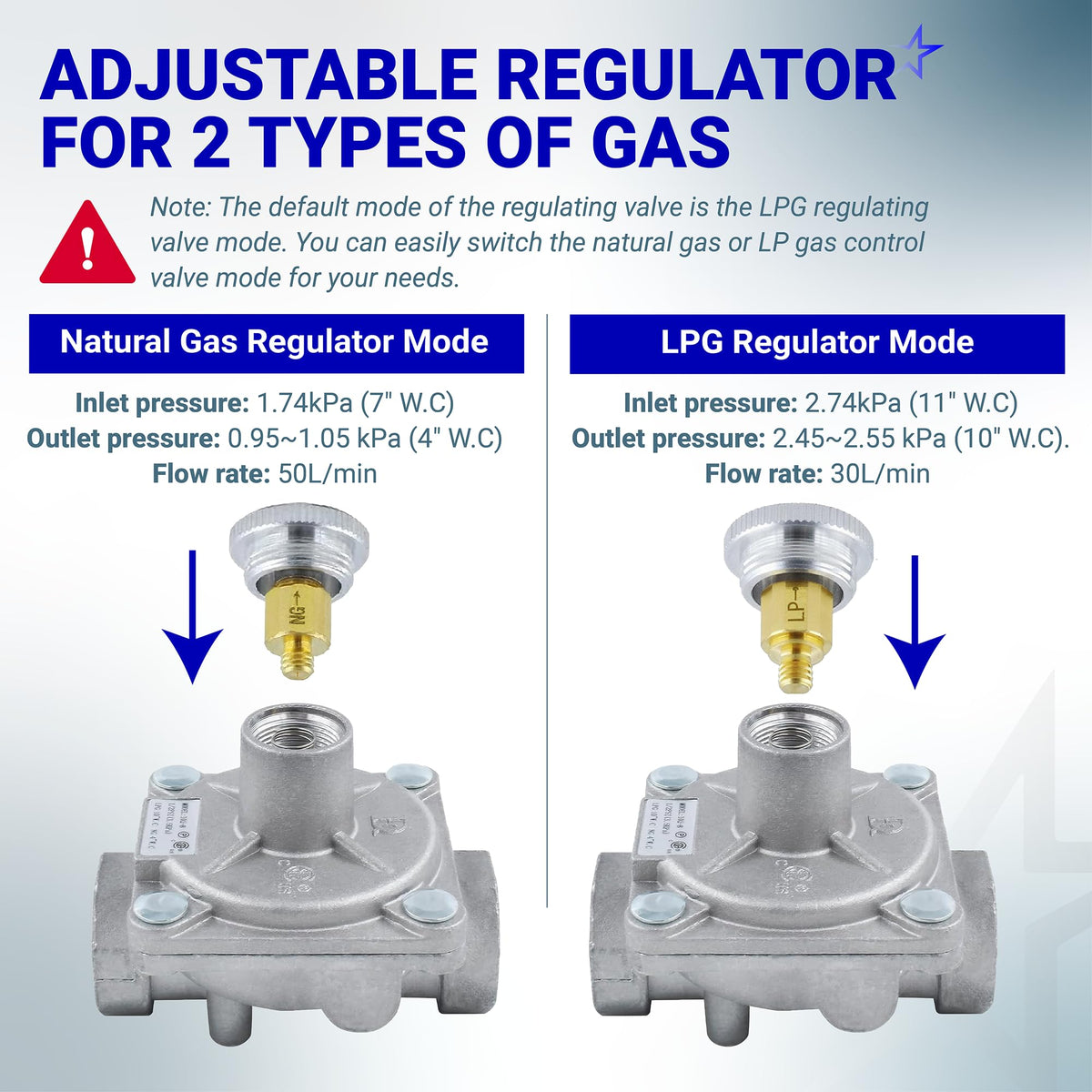

Infographic showing adjustable gas regulator settings for natural gas and LPG modes with pressure and flow rate specs.

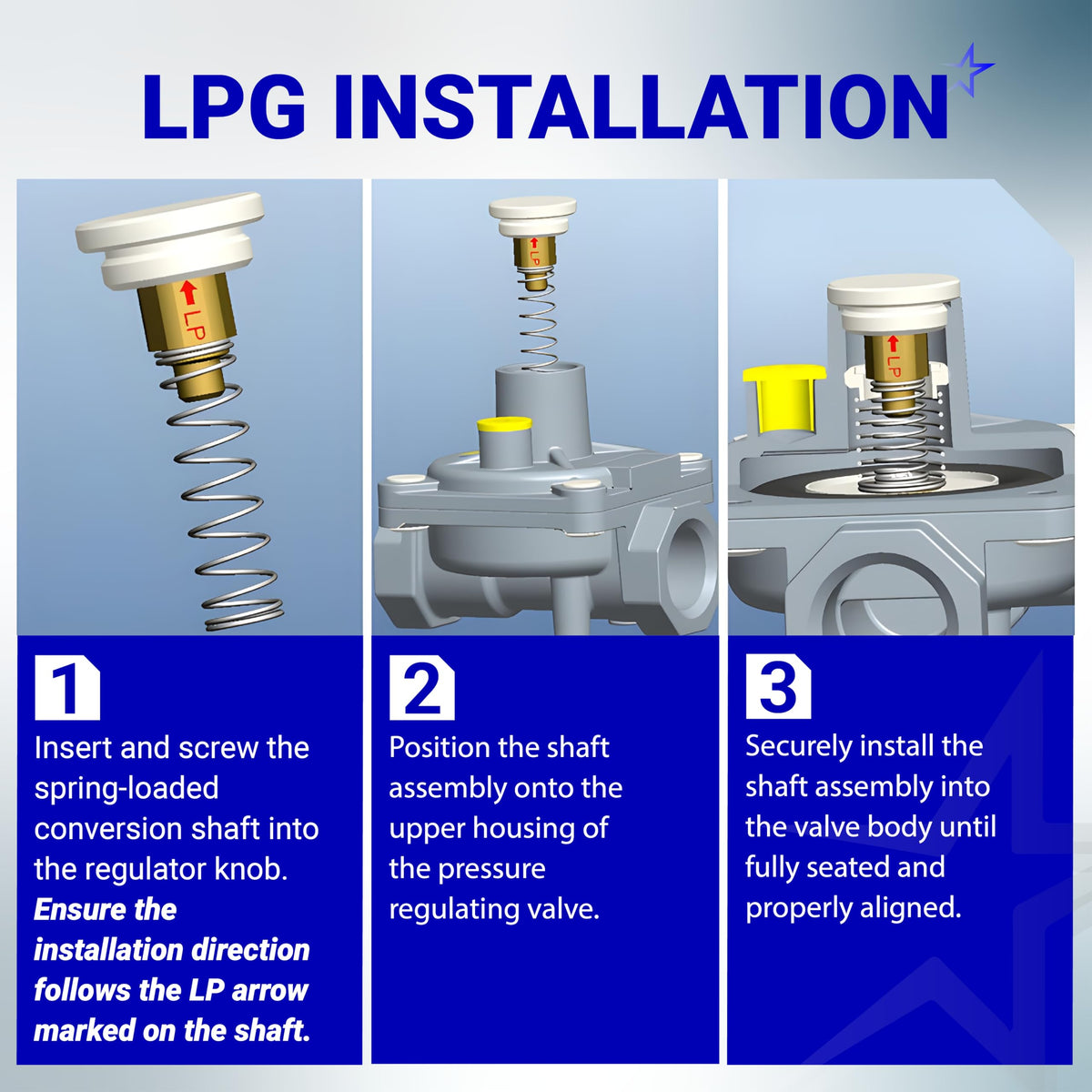

Three-step instructional diagram showing the installation process for an LPG pressure regulator conversion shaft.

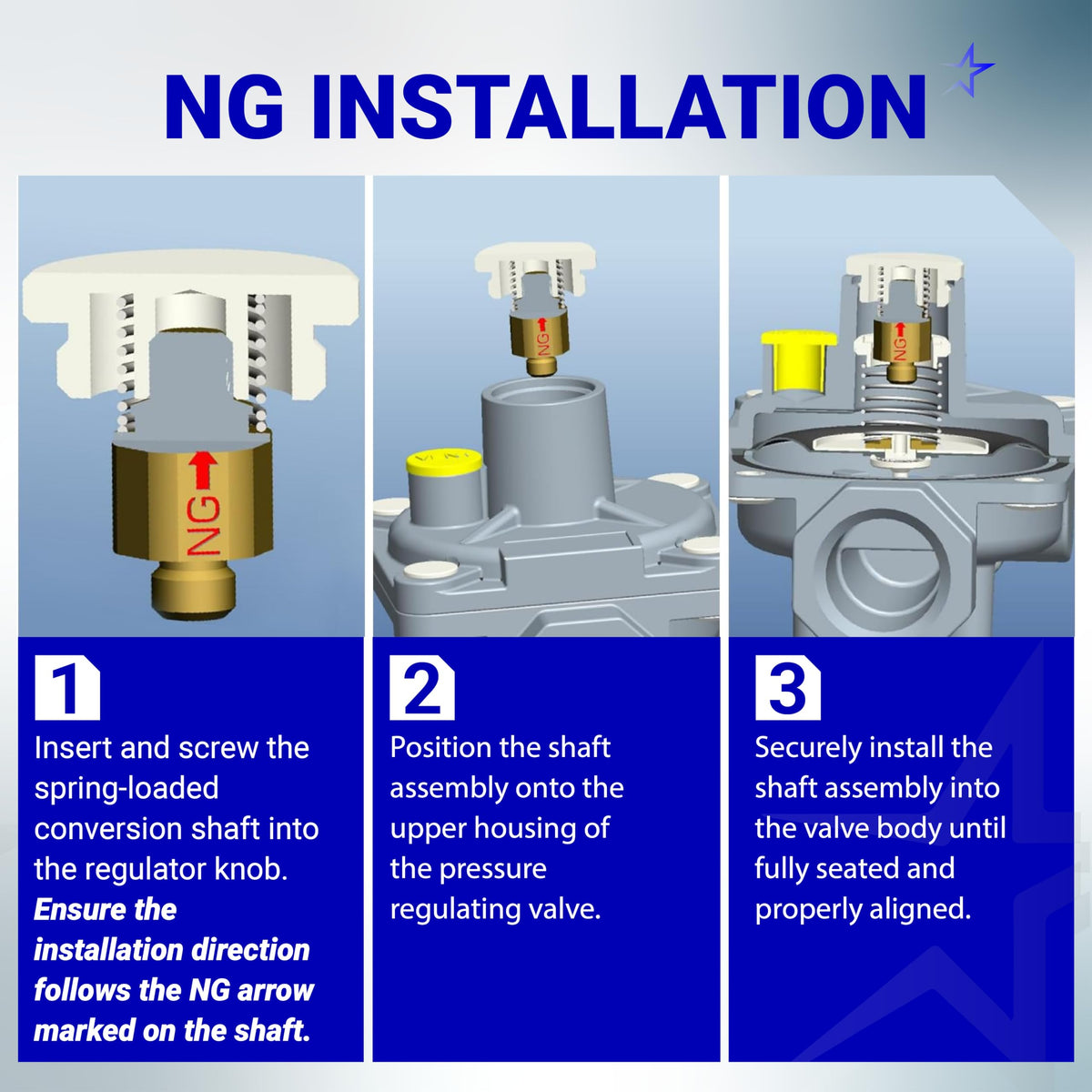

Three-step instructional diagram showing the installation process for a natural gas conversion shaft into a regulator.

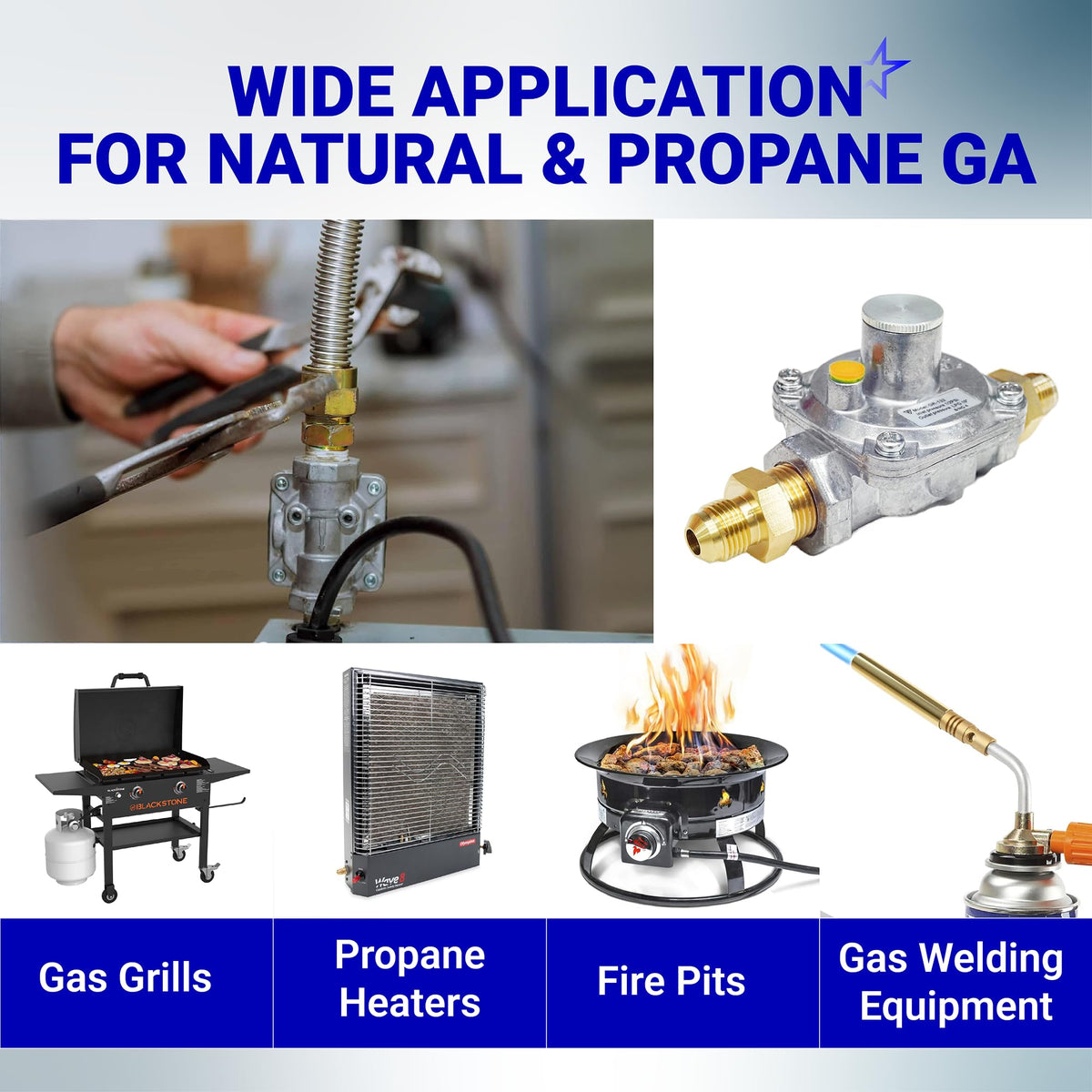

Natural and propane gas pressure regulator shown with installation examples for grills, heaters, fire pits, and torches.

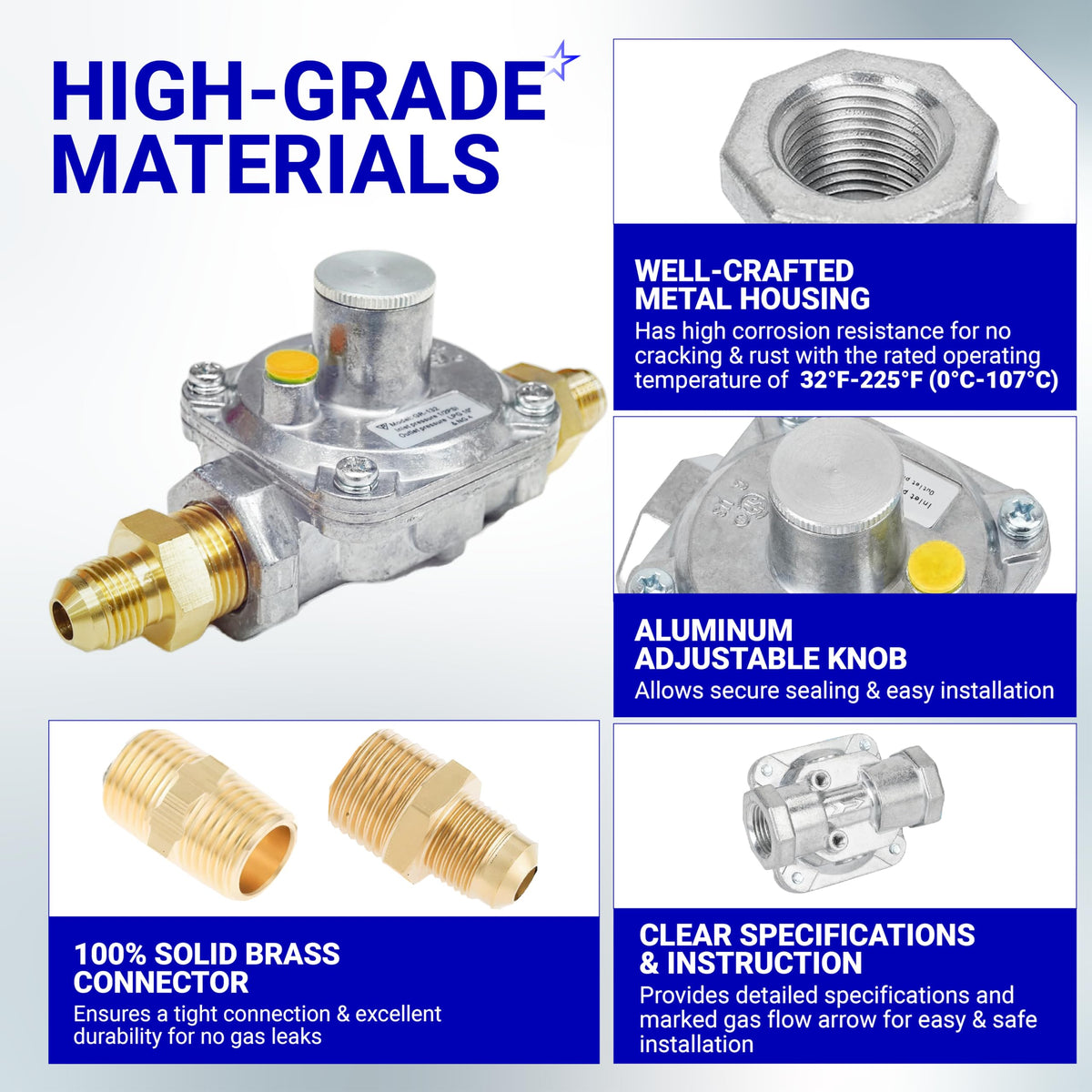

Gas pressure regulator with brass connectors and aluminum housing showing high-grade material construction features.
Propane gas regulator for outdoor grills with brass fittings for optimal gas flow control.
Lifetime Warranty

1/2" Gas Pressure Regulator, Adjustable Natural Gas & Liquefied Interchange Pressure Regulator with 2 Brass 1/2" NPT Conversion Adapters

Save 30%
0.00
$18.15
$25.93
$18.15
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
πŸ› οΈ
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

1/2" Gas Pressure Regulator, Adjustable Natural Gas and Liquefied Interchange Pressure Regulator with 2 Brass 1/2" NPT Conversion Adapters

Key Features

  • Dual-fuel compatibility for both natural gas and liquefied petroleum gas systems.
  • Adjustable outlet pressure settings to ensure stable flow for various appliances.
  • Durable metal body construction designed for long-term gas line pressure management.
  • Includes two 1/2" NPT brass conversion adapters for secure, leak-resistant pipe connections.
  • Standard 1/2-inch pipe thread sizing for compatibility with residential gas supply lines.

Replaces / Cross-Reference Part Numbers

  • Compatible with universal 1/2" NPT gas regulation systems.
  • Replaces standard adjustable regulators used in residential outdoor grills, patio heaters, and indoor stoves.
  • Check original equipment manufacturer (OEM) manual for specific flow capacity requirements.

Compatibility & Fitment

  • Compatible with Natural Gas (NG) and Liquefied Petroleum Gas (LPG/Propane).
  • Suitable for gas appliances including grills, fire pits, heaters, ovens, and stoves.
  • Fits standard 1/2" NPT (National Pipe Taper) plumbing connections.

When to Replace

  • Replace if the regulator fails to maintain consistent flame height or pressure.
  • If there are signs of physical corrosion, cracks in the housing, or external gas leaks.
  • If the appliance exhibits irregular performance, such as flickering flames or improper ignition.
  • If the internal diaphragm has degraded or fails to respond to adjustment.

Installation Tips

  • Ensure the gas supply is completely shut off before starting the installation.
  • Observe the directional arrow on the regulator body to confirm proper gas flow orientation.
  • Use high-quality gas-rated pipe sealant or thread tape on all NPT connections.
  • Perform a leak test using a soapy water solution on all joints after installation and before firing appliances.
  • Install the regulator in a position protected from direct environmental exposure when used outdoors.

FAQ

This regulator is designed to reduce and stabilize the inlet pressure of your gas supply to a safe, consistent level for your appliances. It is fully adjustable, allowing you to fine-tune the output pressure to meet the specific requirements of your natural gas or liquid propane equipment.
Yes, this unit is compatible with both Natural Gas and Liquefied Petroleum (LP) gas. It includes two 1/2" NPT brass conversion adapters to ensure a secure, leak-proof connection for your specific gas line setup.
You likely need a new regulator if you notice yellow or flickering flames on your burners, soot buildup on your appliance, or if the appliance fails to maintain a steady temperature. A strong smell of gas near the regulator or a complete loss of gas flow to the unit are also clear indicators that the internal diaphragm has failed and the part requires replacement.
Installation is straightforward for those comfortable with plumbing, typically taking 20 to 30 minutes. You will need a pair of pipe wrenches, pipe thread sealant (rated for gas), and a leak detection solution. Ensure the gas supply is completely shut off at the main valve before beginning, and always perform a soap-bubble leak test on all connections once installation is complete.
Yes, the regulator must be installed in the correct orientation. Look for the arrow stamped on the body of the regulator, which indicates the direction of gas flowβ€”this must point toward the appliance. Additionally, ensure the vent is positioned to prevent water or debris from entering the unit, as this can cause premature failure.
