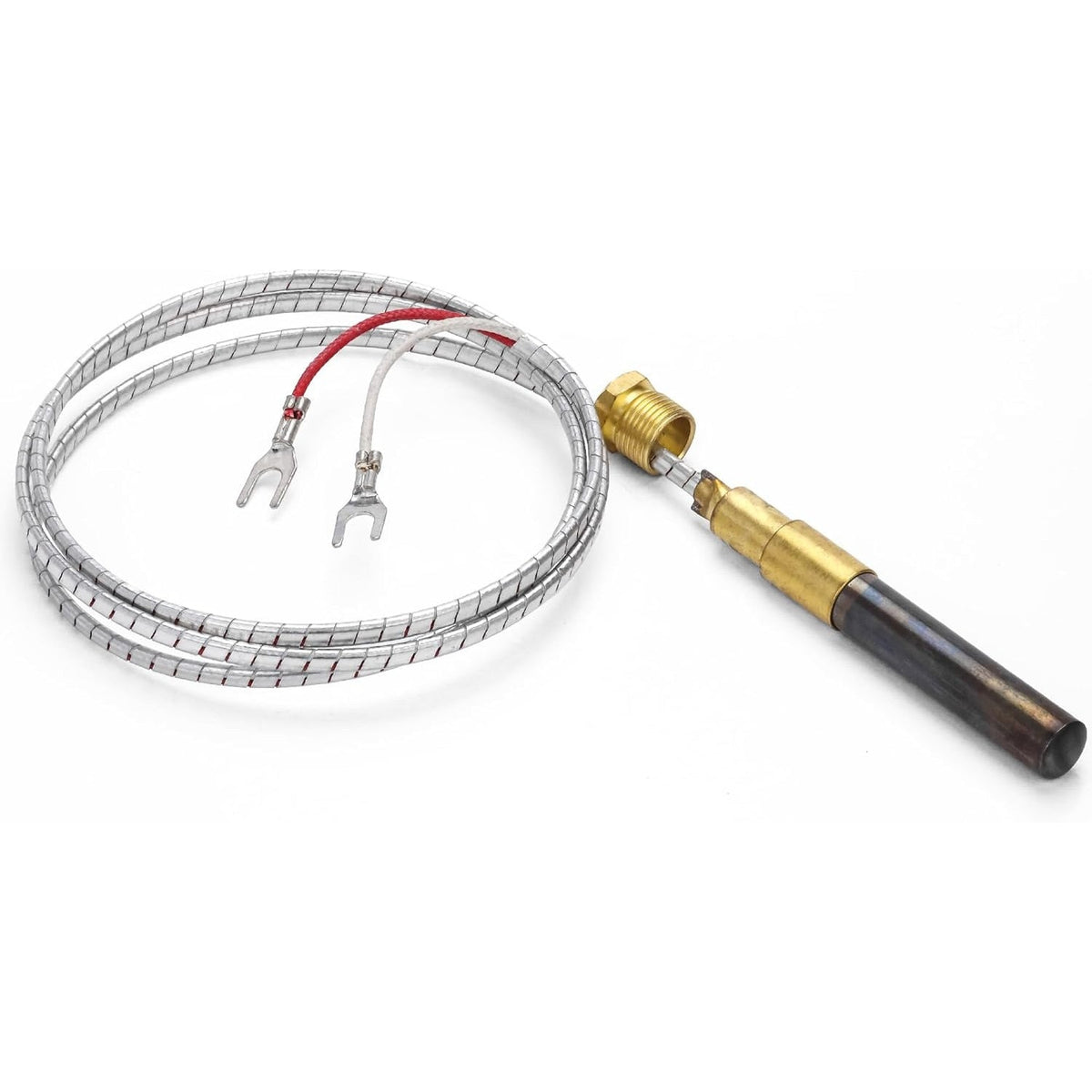

House Parts 1950-001 Robertshaw Thermopile 36" 250-750 Millivolts MV 2 Lead with PG9 Adapter
Robertshaw 36-inch thermopile with 2-lead wire and PG9 adapter for millivolt gas valve systems.

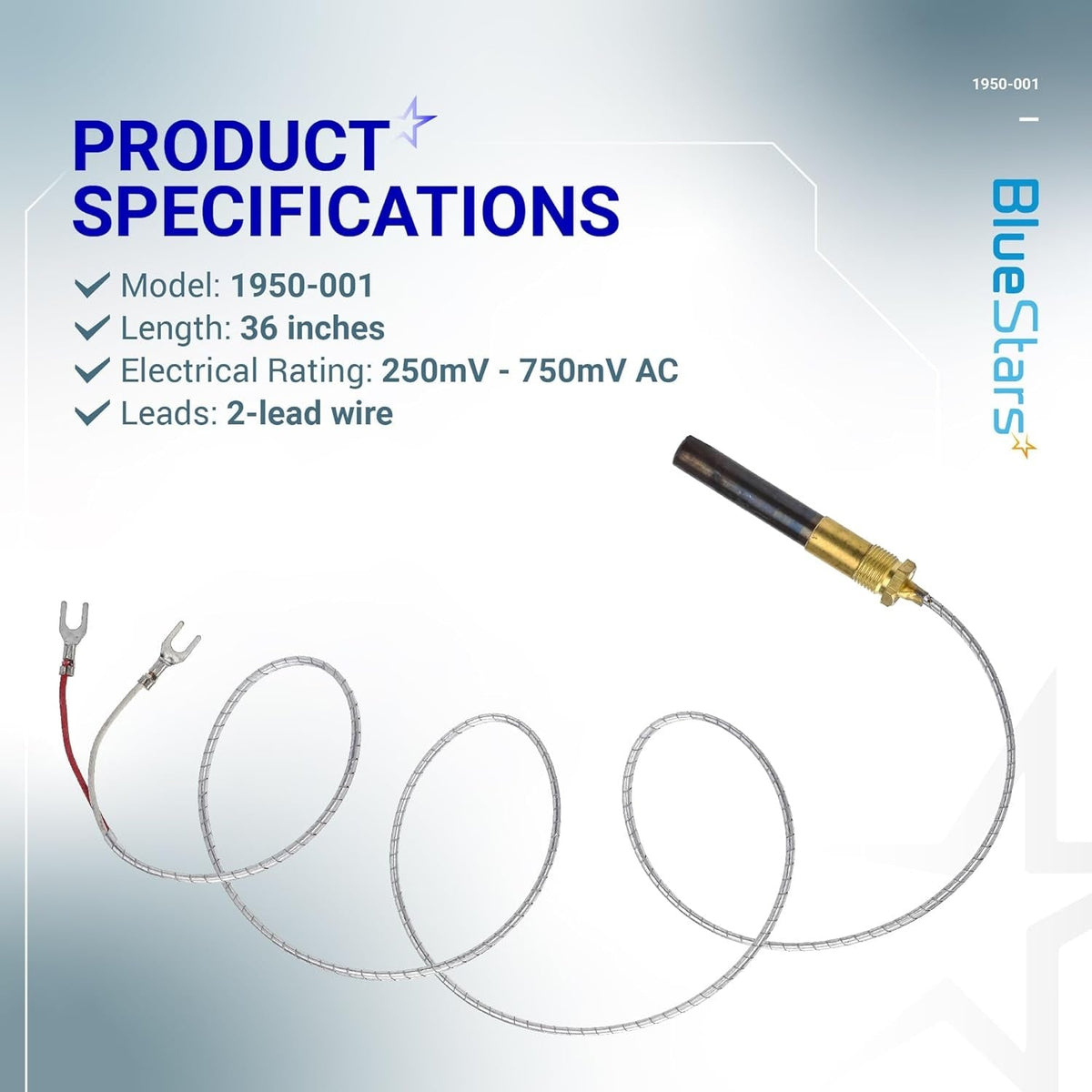

Robertshaw 1950-001 36-inch thermopile with 2-lead wire and product specifications chart.

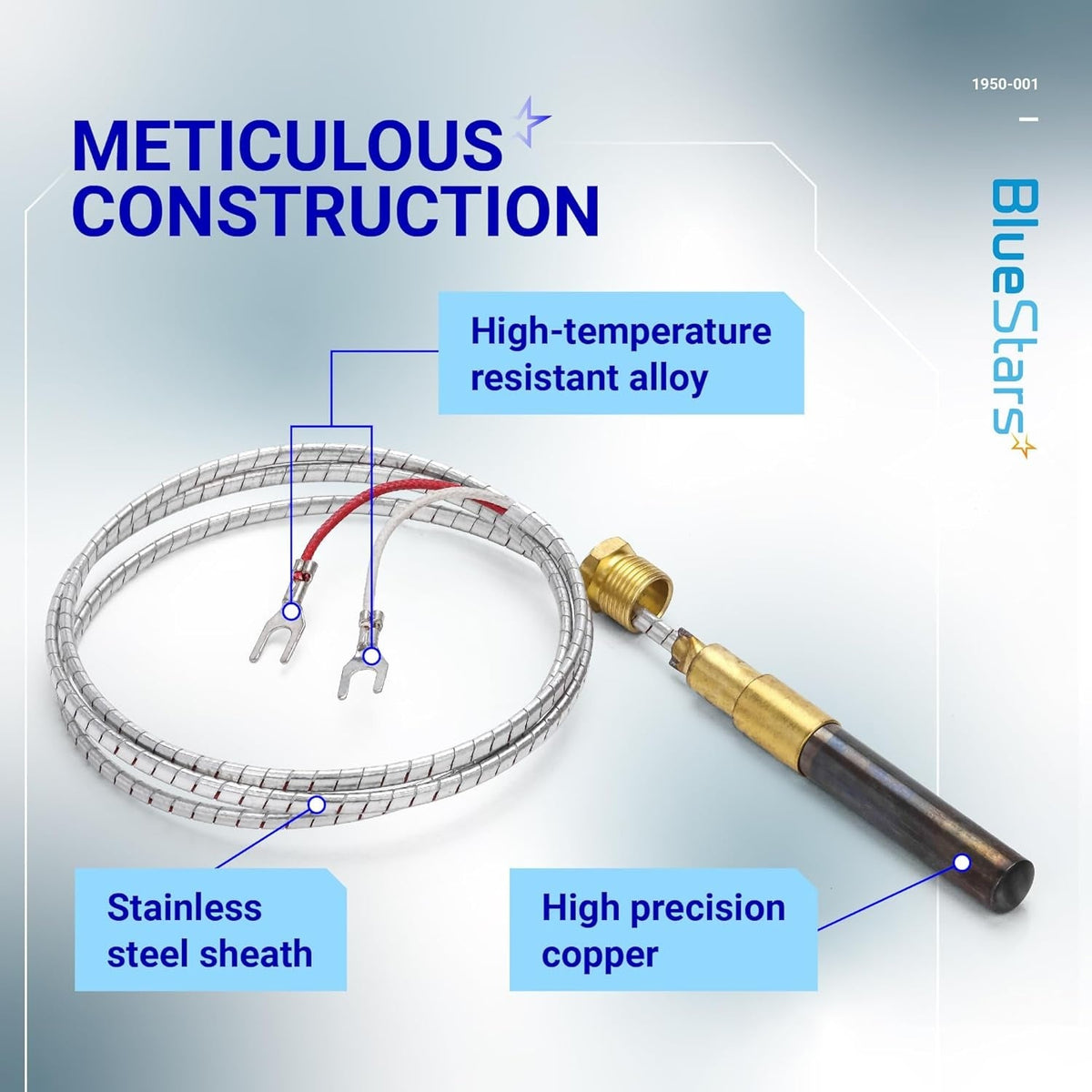

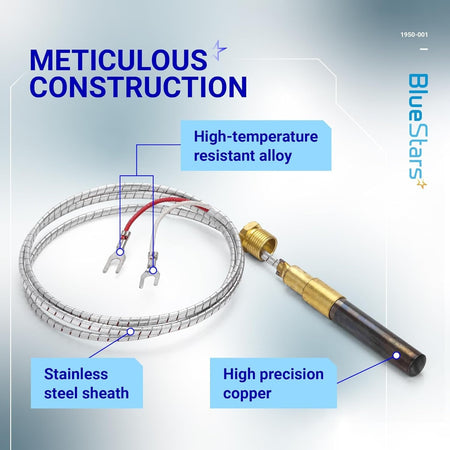

Robertshaw 1950-001 thermopile showing stainless steel sheath, high-temperature alloy leads, and copper sensor tip.

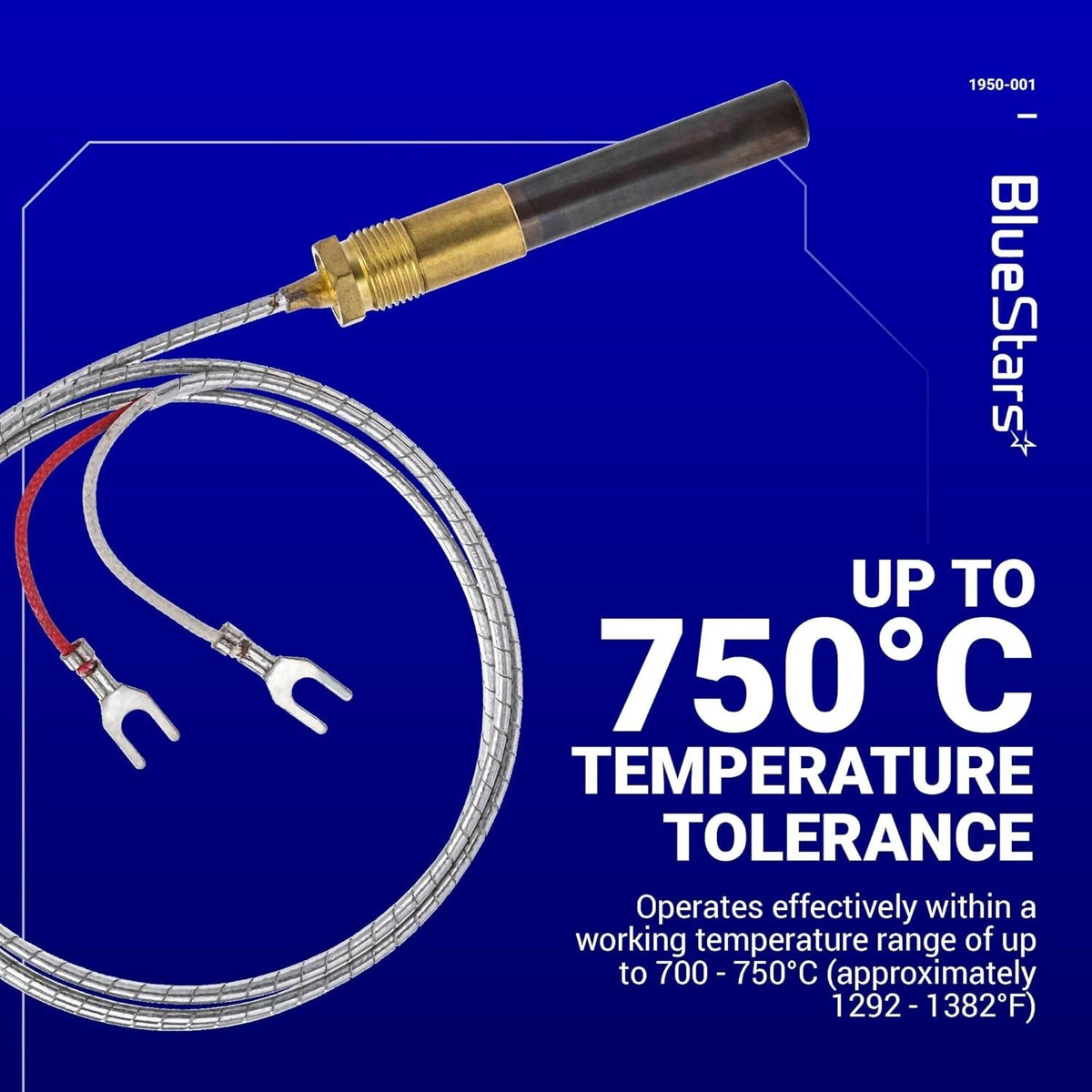

Robertshaw 1950-001 thermopile with 2-lead wire and spade connectors on a blue background with temperature specs.
Robertshaw 1950-001 thermopile compatibility chart showing gas furnace, water heater, oven, and grill applications.
Robertshaw 1950-001 36-inch thermopile with 2-lead wire and PG9 adapter for millivolt gas systems.
Lifestyle image for 1950-001 Robertshaw Thermopile showing a couple by a fireplace with safety and efficiency icons.
Robertshaw 36-inch thermopile with 2-lead wire and PG9 adapter for millivolt gas valve systems.
Robertshaw 1950-001 36-inch thermopile with 2-lead wire and product specifications chart.
Robertshaw 1950-001 thermopile showing stainless steel sheath, high-temperature alloy leads, and copper sensor tip.

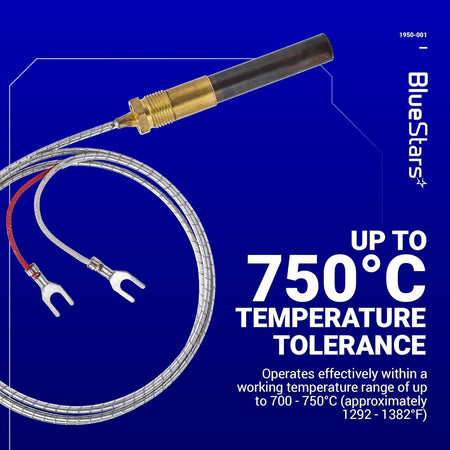

Robertshaw 1950-001 thermopile with 2-lead wire and spade connectors on a blue background with temperature specs.
Robertshaw 1950-001 thermopile compatibility chart showing gas furnace, water heater, oven, and grill applications.
Robertshaw 1950-001 36-inch thermopile with 2-lead wire and PG9 adapter for millivolt gas systems.
Lifestyle image for 1950-001 Robertshaw Thermopile showing a couple by a fireplace with safety and efficiency icons.
Lifetime Warranty

1950-001 Robertshaw Thermopile 36" 250-750 Millivolts MV 2 Lead with PG9 Adapter

Save 13%
0.00
$22.82
$26.24
$22.82
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

1950-001 Robertshaw Thermopile 36" 250-750 Millivolts MV 2 Lead with PG9 Adapter

Key Features

  • Length: 36 inches
  • Voltage Output: 250-750 Millivolts (MV)
  • Connection: 2-wire spade connectors
  • Function: Pilot generator for self-powered gas control systems
  • Includes: PG9 adapter for pilot burner connection

Replaces / Cross-Reference Part Numbers

  • Robertshaw: 1950-001
  • Series: TP-75

Compatibility & Fitment

  • Designed for gas appliances with standing pilot ignition systems
  • Compatible with gas control valves requiring a 2-wire thermopile with a 250-750 MV output
  • The PG9 adapter facilitates connection to various pilot burner assemblies

When to Replace

  • Pilot light fails to remain lit after the control knob is released
  • Measured millivolt output is low or non-existent
  • Main burner does not ignite or operates intermittently
  • Visible signs of damage, corrosion, or burning on the thermopile tip or leads

Installation Tips

  • Ensure the gas supply to the appliance is shut off before beginning installation
  • Position the thermopile tip so it is fully engulfed in the pilot flame for maximum voltage generation
  • Connect the two spade leads securely to the designated "TH" and "TP" terminals on the gas valve
  • Use the PG9 adapter to mount the thermopile to the pilot burner assembly
  • After installation, turn the gas supply back on and check all connections for leaks with a soap solution
Product image
Product image
Product image
Brand Model Number

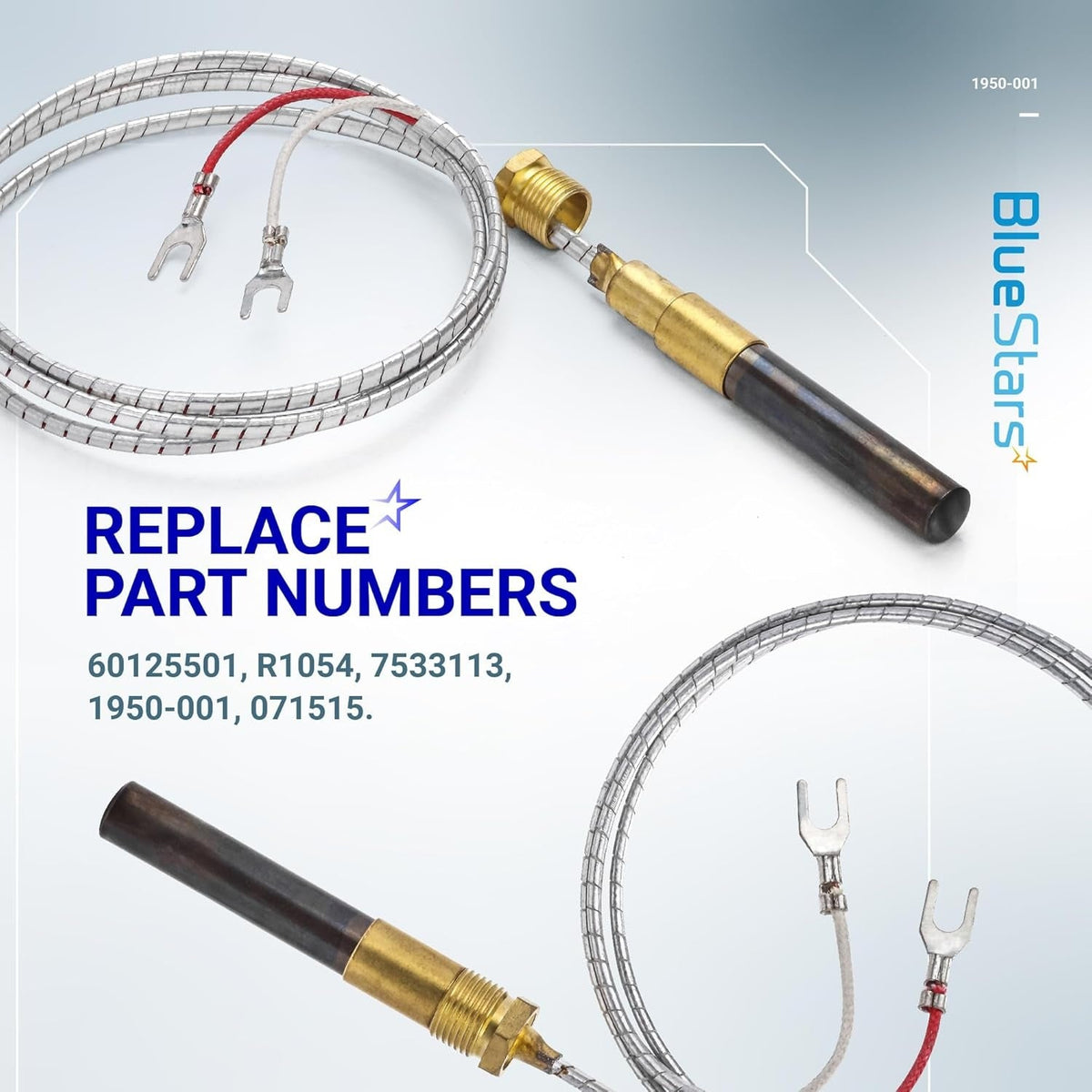

Replace part numbers: 60125501, 60J79, 60J7901, H5882, R942, R1054, 2103-512, 1950-001, 071515, 53374, 7533113.
Fit models: QV32 QV32-A QV32B QV32B-A (Pre Serial # 0021080519); QV36 QV36-A QV36B-A (Pre Serial # 0021076968)
Fit models: AT-Insert AT-Supreme (Also fits the B, C and D models)
Fit models: QV36D QV36D-A QV36DB QV36DB-A QVI25 QVI30 QVI35 QVI-25FB QVI-30FB QV
Fit models: Pier Heat N Glo Gas Stoves: AT-Grand (Also fits the B, C and D models)
Fit models: AT-ZC and AT-ZC-B Bay Insert and Bay Insert NS CFX Grand-B CFX-IN-B FB-Grand FB-IN FB-ZC Grand-I35-SP Grand-XT Supreme-I30-SP Supreme-XT ZC-XT Bay-38HV Bayfyre-TRS Bay-GDV-95 - After May 1996 L-COR-TR L-COR-TRC L-COR-IPI Pier-38HV Pier-TR Pier-TRC Pier-TVFL R-COR-TR R-COR-TRC R-COR-TRC-IPI ST-38HV ST-42TVFL ST-TR ST-TRC 6000BE 6000Camp 6000DVTFL
Fit models: After serial # 12614 6000FLS 6000G 6000GBV 6000GDVFL
Fit models: After date code 2/96 (Only for 30 sec pilot assembly) 6000SEB 6000TRB 6000TRI 6000TRI-SP 6000TR-NF 6000TR-OAK 6000TRXI 6000TVB 6000TV-OAK 6000XL 6000XLS 6000XLS-NF 6000XLSB 6000XLT 6000XLT-NF 6000XLTB 7000TR-NF 7000TV-NF 7000XLS-NF 7000XLT-NF 8000C & 8000C-LP 8000DVTFL
Fit models: After date code 2/96 8000GDVFL
Fit models: After date code 2/96 8000TR 8000TRC 8000TRD 8000TR-Oak - Pre serial # 0021116425 8000TVC 8000TVD 8000TV-Oak
Fit models: Pre serial # 0021116948 BE-41 BE-41B BE-41B-IPI ...
Package Dimensions
6.5 x 4 x 1 inches
Item Weight
4.8 ounces
Manufacturer
BlueStars
Batteries required
No

FAQ

The 1950-001 is a pilot generator designed for use on self-powered gas control systems. It is compatible with a wide range of heating equipment, including systems from Robertshaw, Honeywell, White-Rodgers, SIT, Hearth & Home Technologies, and Empire Comfort Systems.
This unit is a versatile replacement for many industry-standard thermopiles. It cross-references with Honeywell Q313A1170, Q313A1170/U, Q313U3000, Q313A1188, Lennox 57P45, Montague 02056-7, Robertshaw 21432, and Uni-Line 1950-C001, among others.
The 1950-001 is rated for 250 to 750 millivolts (mV). It is designed to provide the necessary voltage to operate self-powered gas valves in both natural gas (NG) and liquid propane (LP) applications.
If your pilot light stays lit but the main burner fails to ignite, or if the pilot flame drops out shortly after the gas valve attempts to open, the thermopile may no longer be generating sufficient millivoltage to hold the gas valve open. You can test this using a multimeter set to the millivolt scale while the pilot is burning.
This kit features a 36-inch lead with a two-lead connection and includes the PG9 pilot adapter, which facilitates installation into various pilot burner assemblies.
Before installation, ensure the pilot flame is clean, steady, and properly engulfing the tip of the thermopile. If the pilot orifice is clogged or the flame is yellow and lazy, the thermopile will not heat up correctly, regardless of whether the part is new. Always ensure the gas supply is turned off before beginning any work on the pilot assembly.
