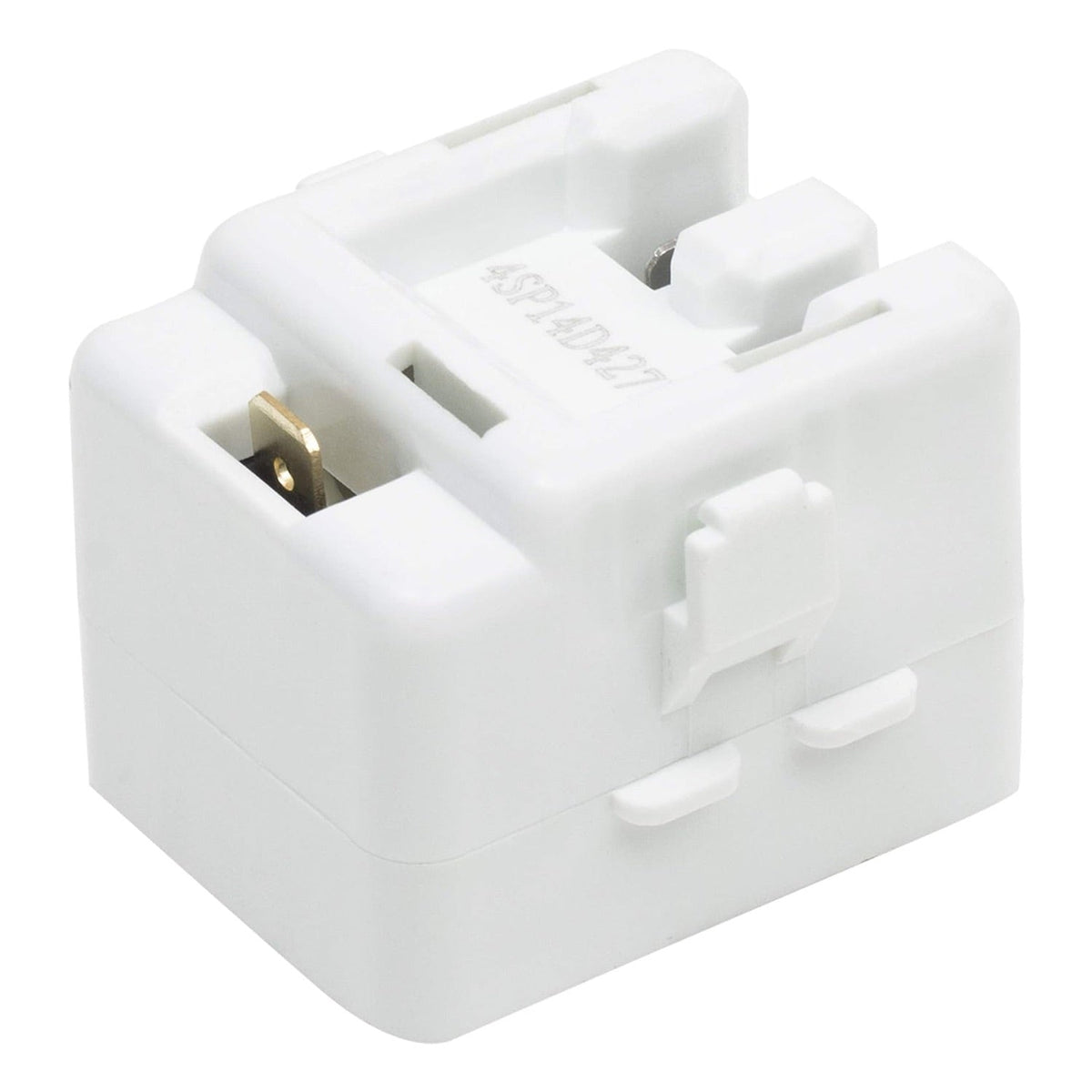

White refrigerator relay and overload replacement part for Whirlpool and Maytag refrigerators.

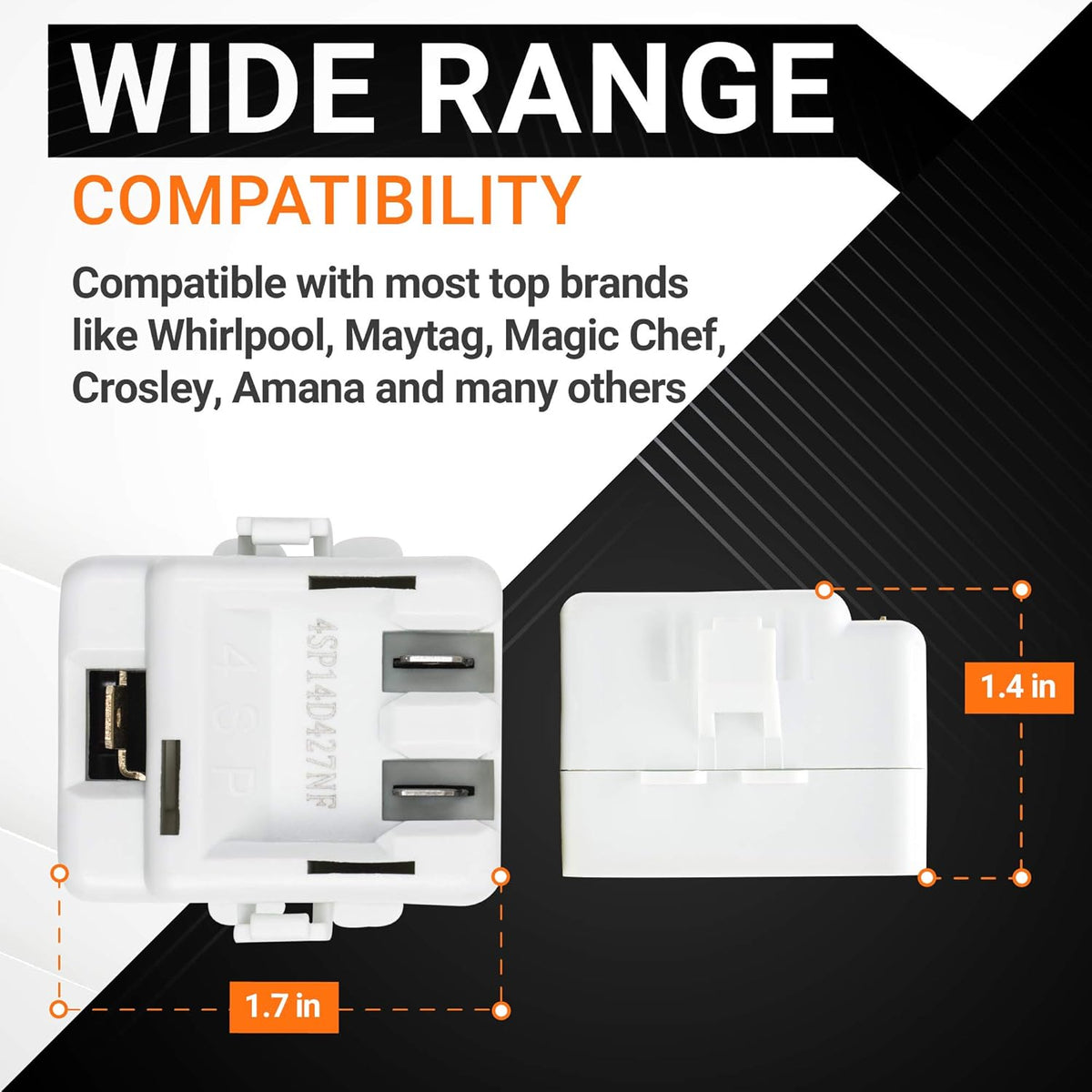

61005518 refrigerator relay and overload replacement showing dimensions of 1.7 inches by 1.4 inches.
Infographic showing benefits of replacing 61005518 refrigerator relay and overload for Whirlpool and Maytag fridges.

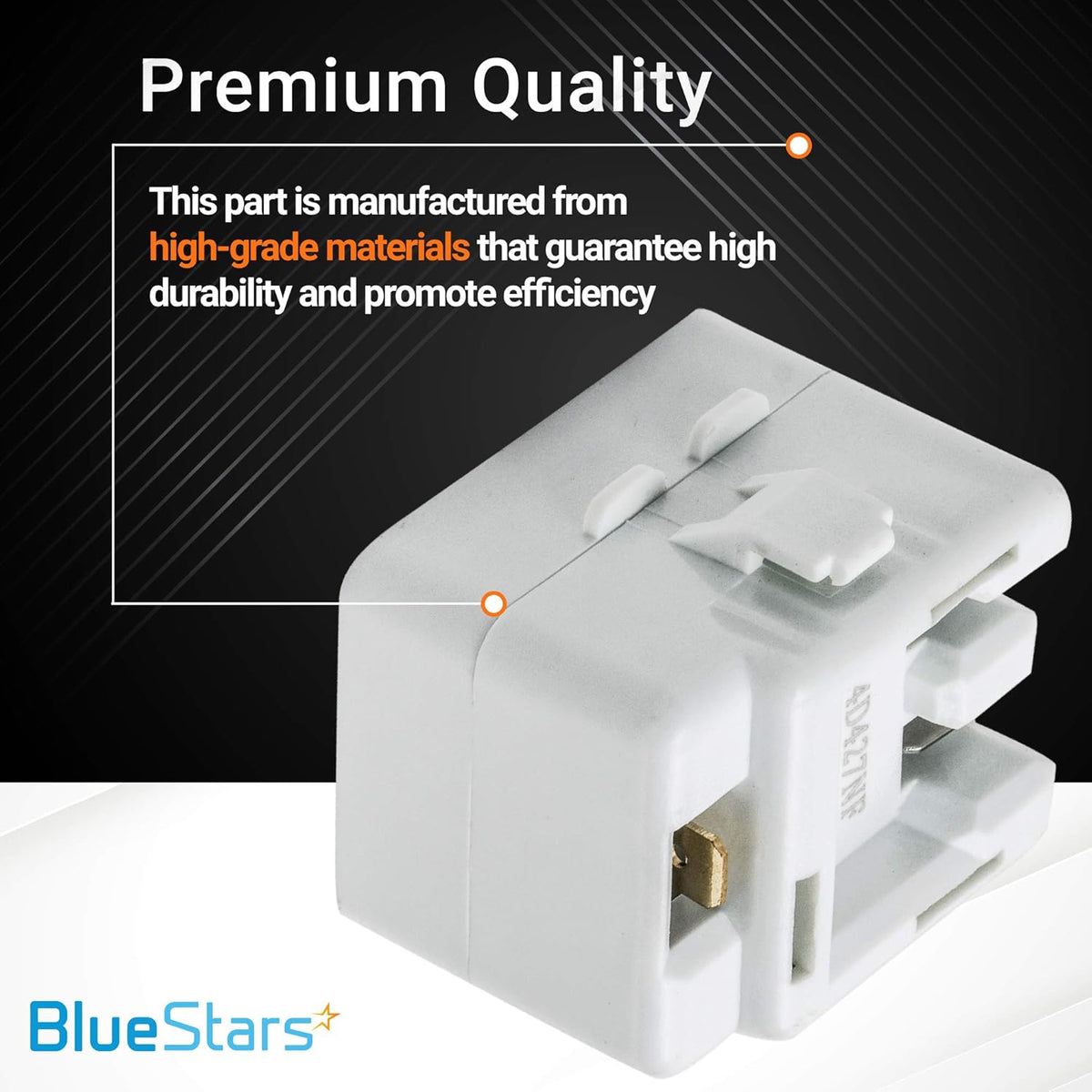

Close-up of 61005518 refrigerator relay and overload replacement part with premium quality text overlay.

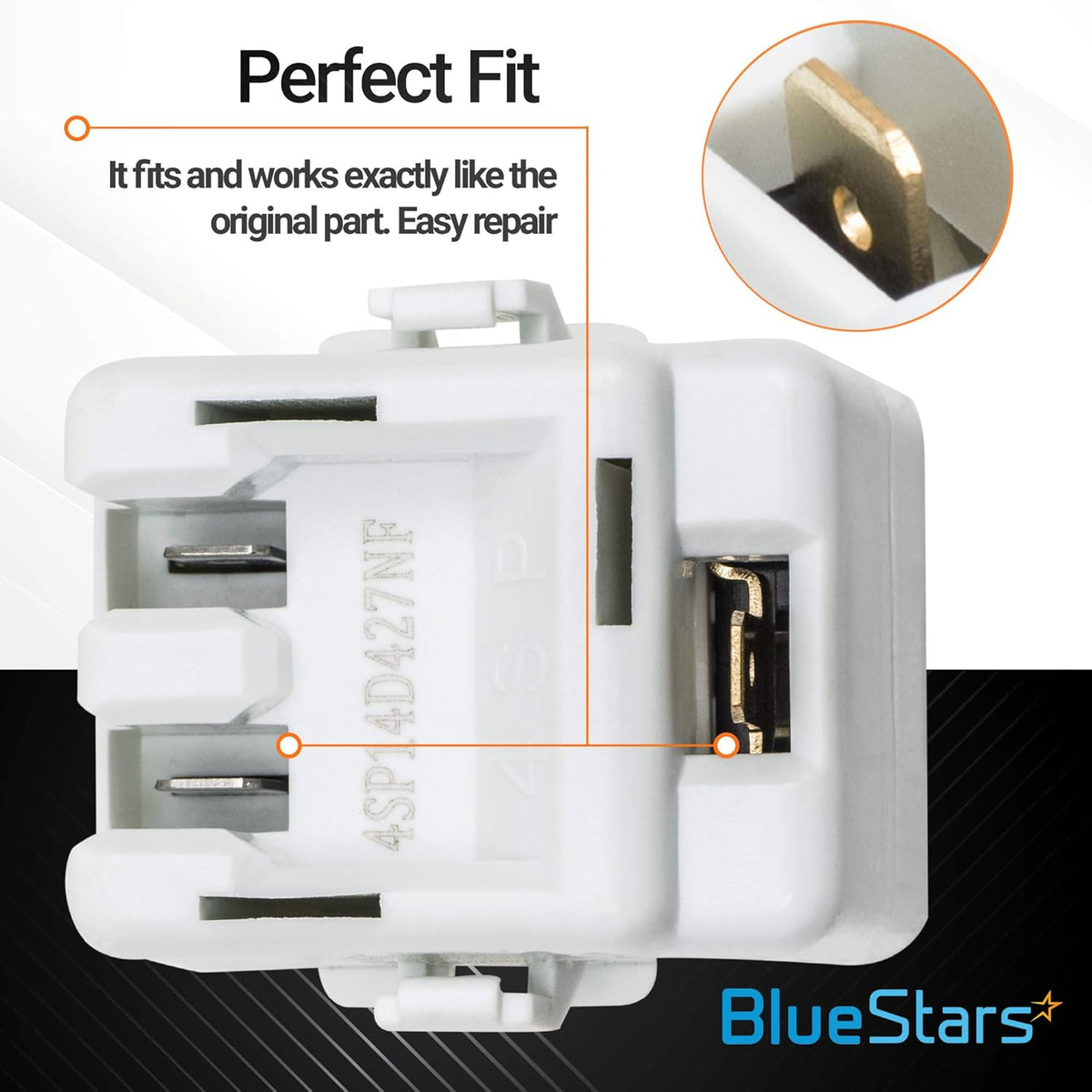

Close-up of 61005518 refrigerator relay and overload replacement showing terminal pins and connector detail.
Happy family using a functional refrigerator, promoting BlueStars DIY refrigerator repair solutions.
White refrigerator relay and overload replacement part for Whirlpool and Maytag refrigerators.
61005518 refrigerator relay and overload replacement showing dimensions of 1.7 inches by 1.4 inches.
Infographic showing benefits of replacing 61005518 refrigerator relay and overload for Whirlpool and Maytag fridges.
Close-up of 61005518 refrigerator relay and overload replacement part with premium quality text overlay.
Close-up of 61005518 refrigerator relay and overload replacement showing terminal pins and connector detail.
Happy family using a functional refrigerator, promoting BlueStars DIY refrigerator repair solutions.
Lifetime Warranty

61005518 Refrigerator Relay and Overload Replacement - For Whirlpool Maytag Refrigerator

Save 13%
0.00
$20.40
$23.46
$20.40
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

61005518 Refrigerator Relay and Overload

Key Features

  • Combined relay and overload assembly
  • Starts the compressor motor and provides thermal protection
  • Direct replacement for specified part numbers

Replaces / Cross-Reference Part Numbers

  • 12002782
  • AP4009659
  • PS2004057
  • AH2004057
  • EA2004057
  • 1194680
  • ER61005518
  • 4SP1088

Compatibility & Fitment

  • Designed for specific refrigerator models from brands including Maytag, Whirlpool, Amana, Crosley, and Kenmore.
  • Verify fitment with your appliance's model number before ordering.

When to Replace

  • Refrigerator is not cooling or is too warm
  • Compressor fails to start
  • Audible clicking sound from the compressor area every few minutes
  • Refrigerator clicks on and then immediately off

Installation Tips

  • Disconnect the refrigerator from the power source before beginning repair.
  • Photograph the original wiring configuration for reference.
  • Ensure the component is firmly seated on the compressor terminals.
Brand Model Number
Replaces 1194680, 12002782, AH2004057, AP4009659, EA2004057, PS2004057
Amana ATB1935HRQ, ATB1935HRW, ATB2135HRQ, ATB2135HRW
Crosley CT15G4Q, CT15G4W, CT17G4Q, CT17G4W, CT19G4Q, CT19G4W, CT19G6B, CT19G6FQ, CT19G6FW, CT19G6Q, CT19G6W, CT21G6Q, CT21G6W, CT21G7B, CT21G7Q, CT21G7W
Magic Chef CTB1521GRQ, CTB1521GRW, CTB1722GRQ, CTB1722GRW, CTB1922GRQ, CTB1922GRW, CTB1925GRB, CTB1925GRQ, CTB1925GRW, CTB2125GRB, CTB2125GRQ, CTB2125GRW, CTF1722GRQ, CTF1722GRW, CTF1922GRQ, CTF1922GRW, CTF1925GRQ, CTF1925GRW, CTF2125GRQ, CTF2125GRW, CTL1511GEW, CTL1911GEW, CTM1521GRW, CTM1722GRW, CTN1511GEW, CTN1911GEW
Maytag MTB1950GRQ, MTB1950GRW, MTB1955GRQ, MTB1955GRW, MTB1956GEB, MTB1956GEQ, MTB1956GEW, MTB2150GRQ, MTB2150GRW, MTB2155GRQ, MTB2155GRW, MTB2156GEB, MTB2156GEQ, MTB2156GES, MTB2156GEW, MTB2456GEB, MTB2456GEQ, MTB2456GEW, MTB2656GEB, MTB2656GEQ, MTB2656GEW
Maytag MTF1955GRQ, MTF1955GRW, MTF1956GEB, MTF1956GEQ, MTF1956GEW, MTF2155GRQ, MTF2155GRW, MTF2156GEB, MTF2156GEQ, MTF2156GES, MTF2156GEW
Maytag PTB1551GRQ, PTB1551GRW, PTB1553GRQ, PTB1553GRW, PTB1753GRQ, PTB1753GRW, PTB1949GRQ, PTB1949GRW, PTB1952GRQ, PTB1952GRW, PTB1953GEQ, PTB1953GEW, PTB1953GRQ, PTB1953GRW, PTB1954GRB, PTB1954GRQ, PTB1954GRW, PTB19AAGRB, PTB19AAGRQ, PTB19AAGRW, PTB19BBGRB, PTB19BBGRQ, PTB19BBGRW
Maytag PTB2153GEQ, PTB2153GEW, PTB2153GRQ, PTB2153GRW, PTB2154GRB, PTB2154GRQ, PTB2154GRW, PTB21AAGRB, PTB21AAGRQ, PTB21AAGRW, PTB21BBGRB, PTB21BBGRQ, PTB21BBGRW, PTB2454GRB, PTB2454GRQ, PTB2454GRW
Maytag PTF1952GRQ, PTF1952GRW, PTF1953GRB, PTF1953GRQ, PTF1953GRW

FAQ

This part is compatible with a wide range of refrigerators manufactured by Whirlpool, Maytag, Magic Chef, Crosley, and Amana.
This unit replaces OEM part numbers 61005518, 12002782, 1194680, AP4009659, PS2004057, AH2004057, EA2004057, and ER61005518.
If your refrigerator is not starting, the compressor is clicking, or the fridge is running too warm, it is often a sign that the start relay or overload has failed. The relay is responsible for giving the compressor the initial boost it needs to start, while the overload protects the motor from overheating.
Installation is straightforward and typically takes about 15 to 30 minutes. You will generally need a flathead screwdriver to remove the old relay from the compressor pins. Ensure the refrigerator is unplugged before beginning any work. Simply pull the old unit off the compressor pins, disconnect the wire harness, and snap the new relay and overload into place.
If your specific model uses a run capacitor, it is a good idea to inspect it for signs of bulging or leaking. If the capacitor is damaged, it may cause the new relay to fail prematurely. Always ensure all wire connections are tight and free of corrosion when installing the new part.
