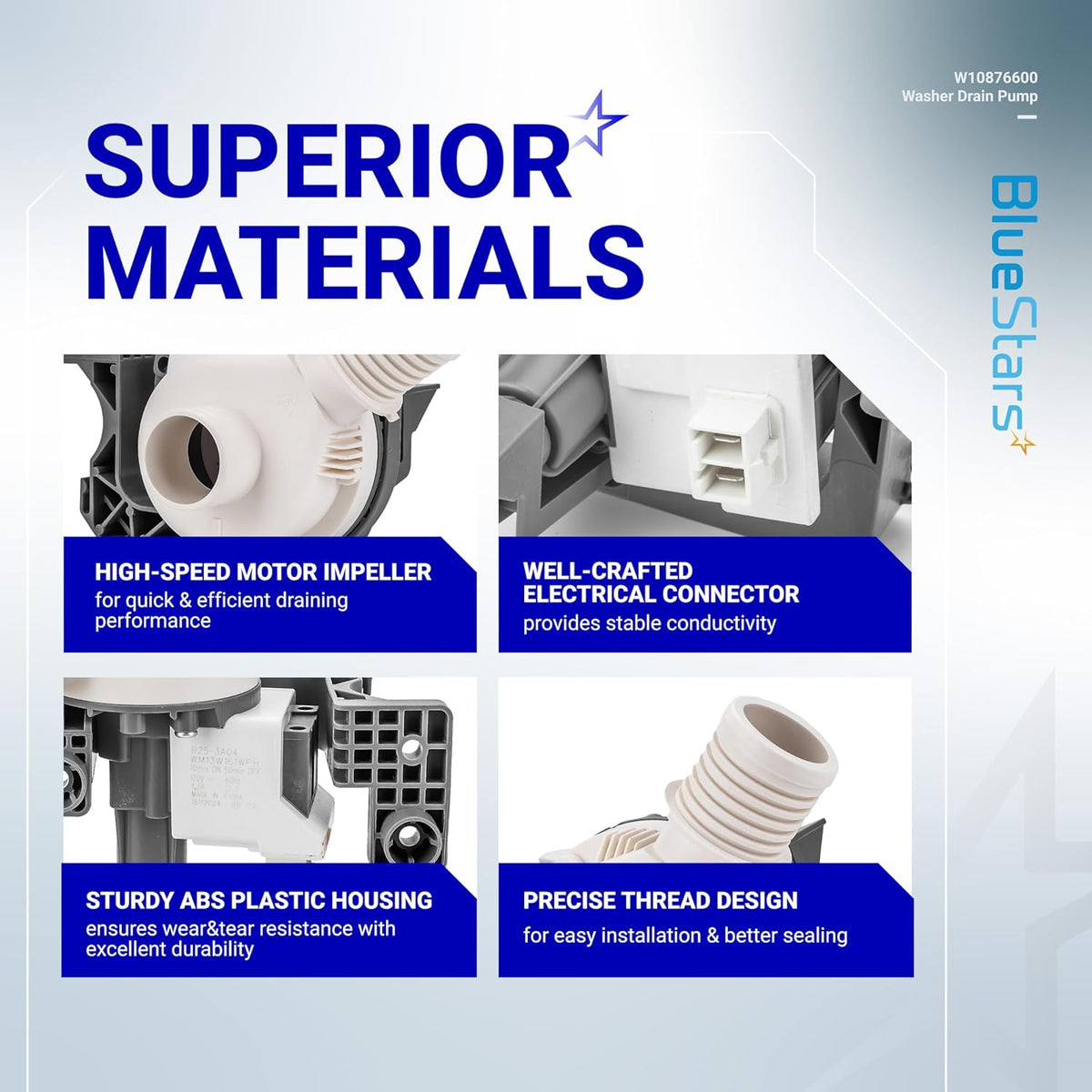

Infographic showing W10876600 washer drain pump features including motor impeller, electrical connector, and housing.
Compatibility chart for W10876600 washer drain pump listing Whirlpool, Maytag, Kenmore, and Crosley model numbers.
W10876600 washer drain pump replacement part shown with a washing machine to illustrate common repair symptoms.
Four-step installation guide for W10876600 washer drain pump showing removal and replacement process.
W10876600 washer drain pump replacement part for Whirlpool and Maytag washing machines.
W10876600 washer drain pump replacement for Whirlpool and Maytag washing machines.
W10876600 washer drain pump replacement parts for Whirlpool, Maytag, Kenmore, and Crosley washing machines.
W10876600 washer drain pump electrical specification diagram with dimensions and technical data.
W10876600 washer drain pump replacement part shown with a top load washing machine and instructional text.
Infographic showing W10876600 washer drain pump features including motor impeller, electrical connector, and housing.
Compatibility chart for W10876600 washer drain pump listing Whirlpool, Maytag, Kenmore, and Crosley model numbers.
W10876600 washer drain pump replacement part shown with a washing machine to illustrate common repair symptoms.
Four-step installation guide for W10876600 washer drain pump showing removal and replacement process.
W10876600 washer drain pump replacement part for Whirlpool and Maytag washing machines.
Lifetime Warranty

W10876600 W10727777 Washer Drain Pump for Whirlpool Maytag Bravos Kenmore Crosley Washing Machines

Save 13%
0.00
$40.80
$46.92
$40.80
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

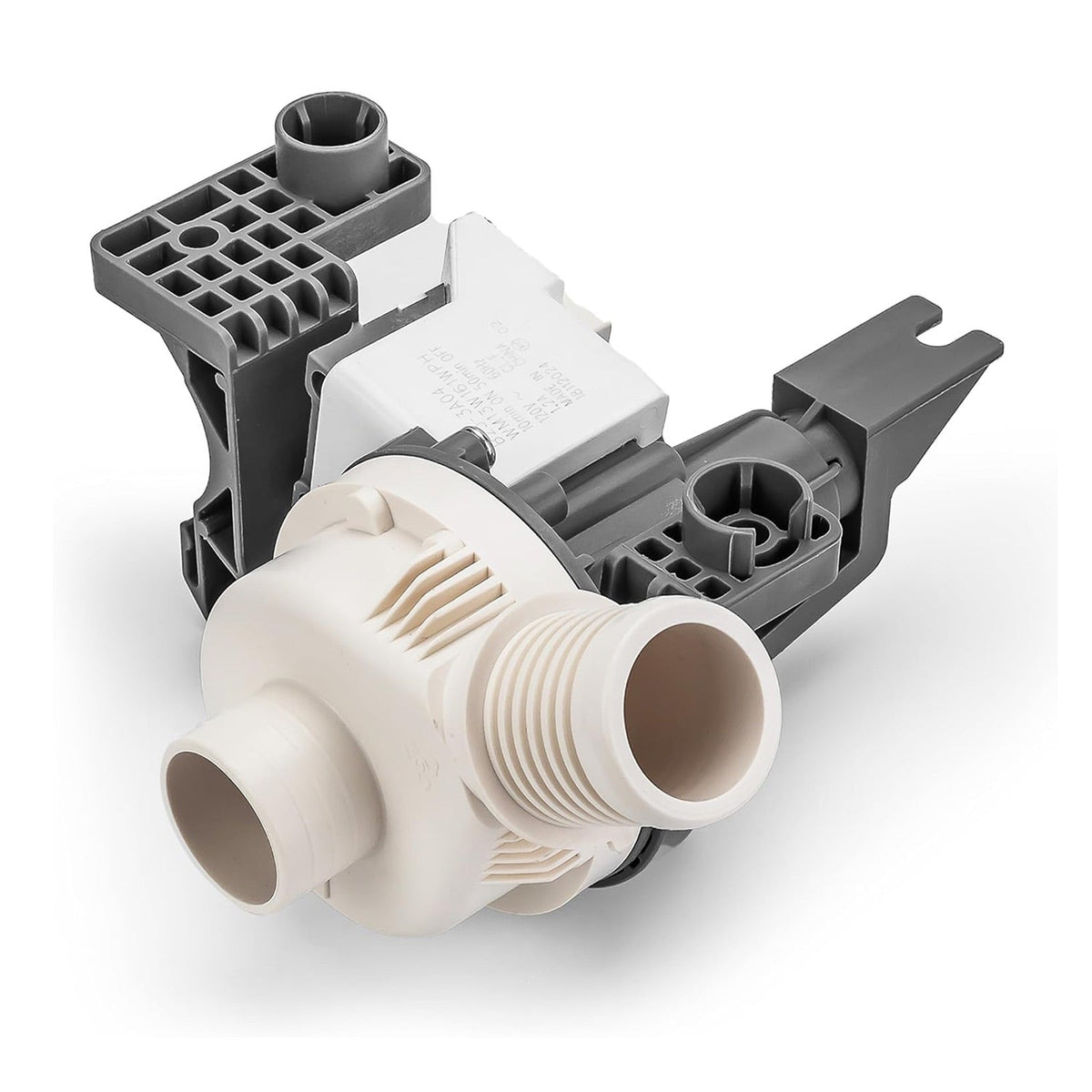

W10876600 Washer Drain Pump

Key Features

  • Removes water from the washer tub during the drain cycle.
  • Direct replacement part for common top-load washing machines.
  • Addresses issues such as failure to drain, slow draining, or unusual noises.

Replaces / Cross-Reference Part Numbers

  • W10876600
  • W10876600VP
  • W10727777
  • 4455877
  • AP6004933
  • PS11738156
  • EAP11738156
  • B25-3A04

Compatibility & Fitment

  • Fits select washer models from brands including Whirlpool, Maytag, Kenmore, and Crosley.
  • Verify your appliance model number to ensure proper fitment before ordering.

When to Replace

  • The washer fails to drain or drains very slowly.
  • Water is left in the drum after the spin cycle is complete.
  • Loud humming or grinding noises occur during the drain cycle.
  • The pump housing is cracked or leaking water.

Installation Tips

  • Disconnect the washer from power and water supplies before beginning the repair.
  • Place towels under the unit to absorb residual water from hoses.
  • Check the drain pump filter and hoses for obstructions before installing the new part.
  • Ensure all hose clamps are tight and secure upon reassembly to prevent leaks.
Product image 1
Product image 2
Product image 3
Product image 4
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Compatible with top-load washing machines of many top-named brands Whirlpool, Maytag, Kenmore, Crosley (detailed list below)
  • PRODUCT SPECIFICATIONS

    PRODUCT SPECIFICATIONS

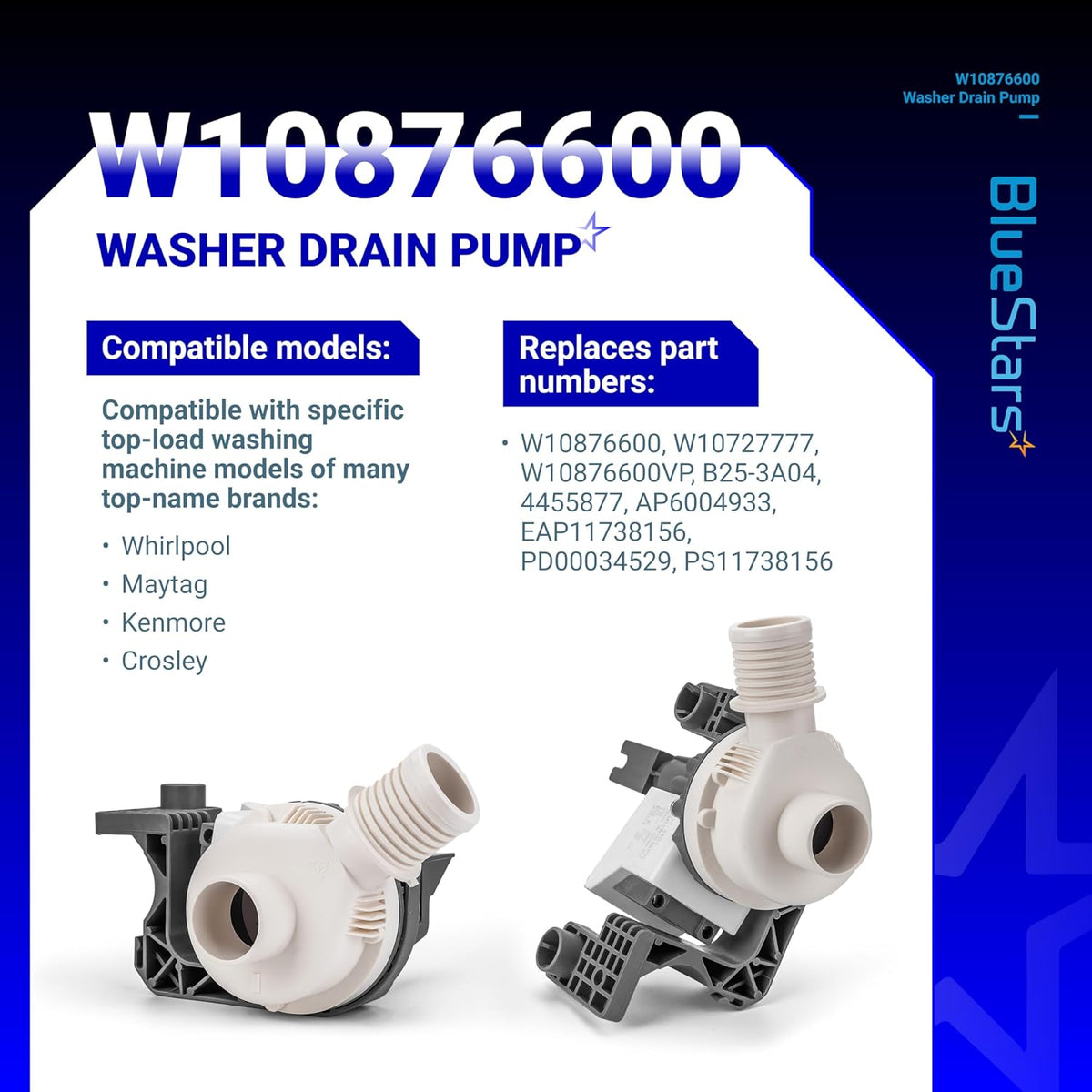

    This Washer Drain Pump replaces parts: W10876600, W10727777, W10876600VP, B25-3A04, 4455877, AP6004933, EAP11738156, PD00034529, PS11738156
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
4 SIMPLE STEPS

4 SIMPLE STEPS

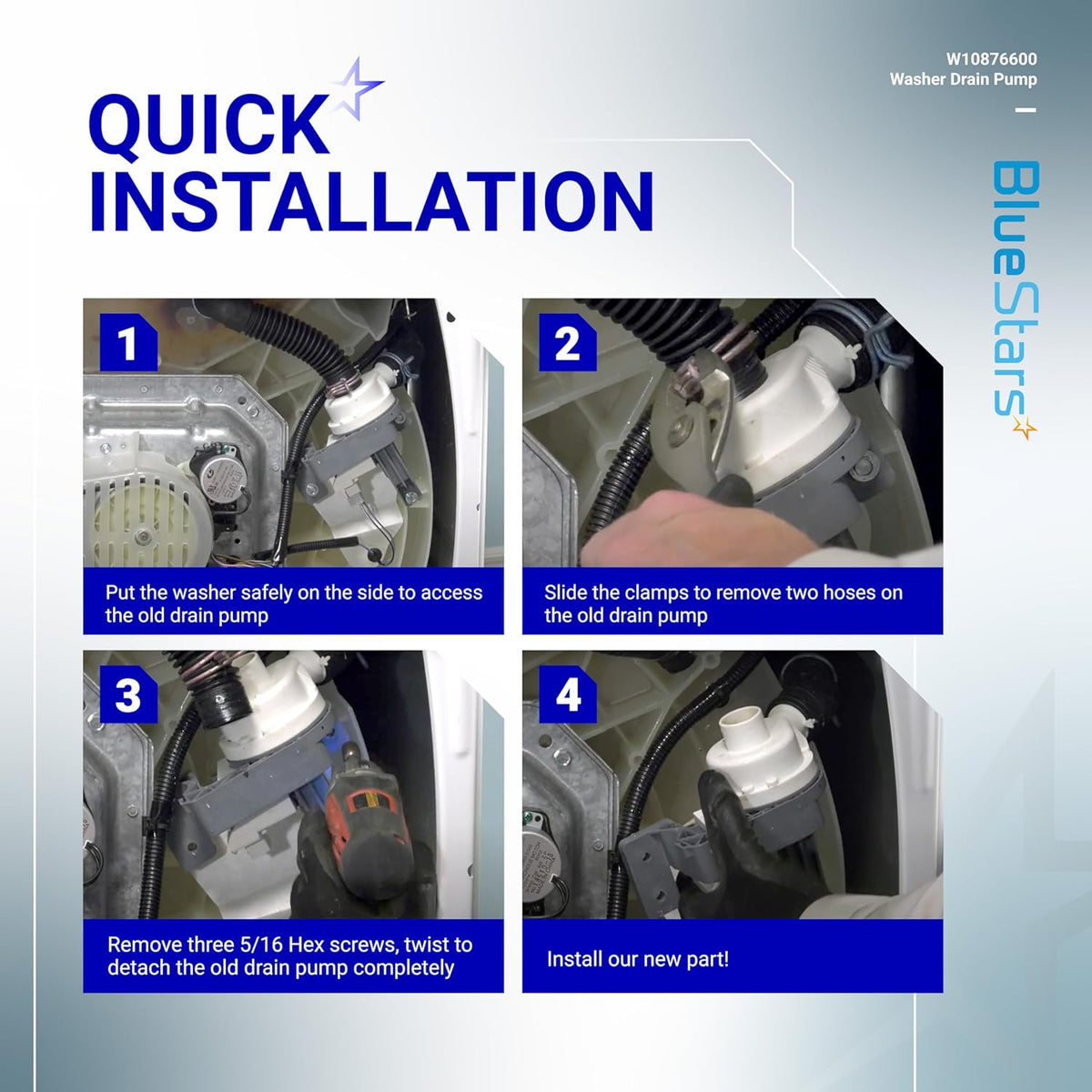

Please Unplug the washing machine and turn off the water supply & Wear work gloves before installing: 1. Put the washer safely on the side to access the old drain pump; 2. Slide the clamps to remove two hoses on the old drain pump; 3. Remove three 5/16 Hex head screws, twist to detach the old drain pump completely; 4. Install our new part!

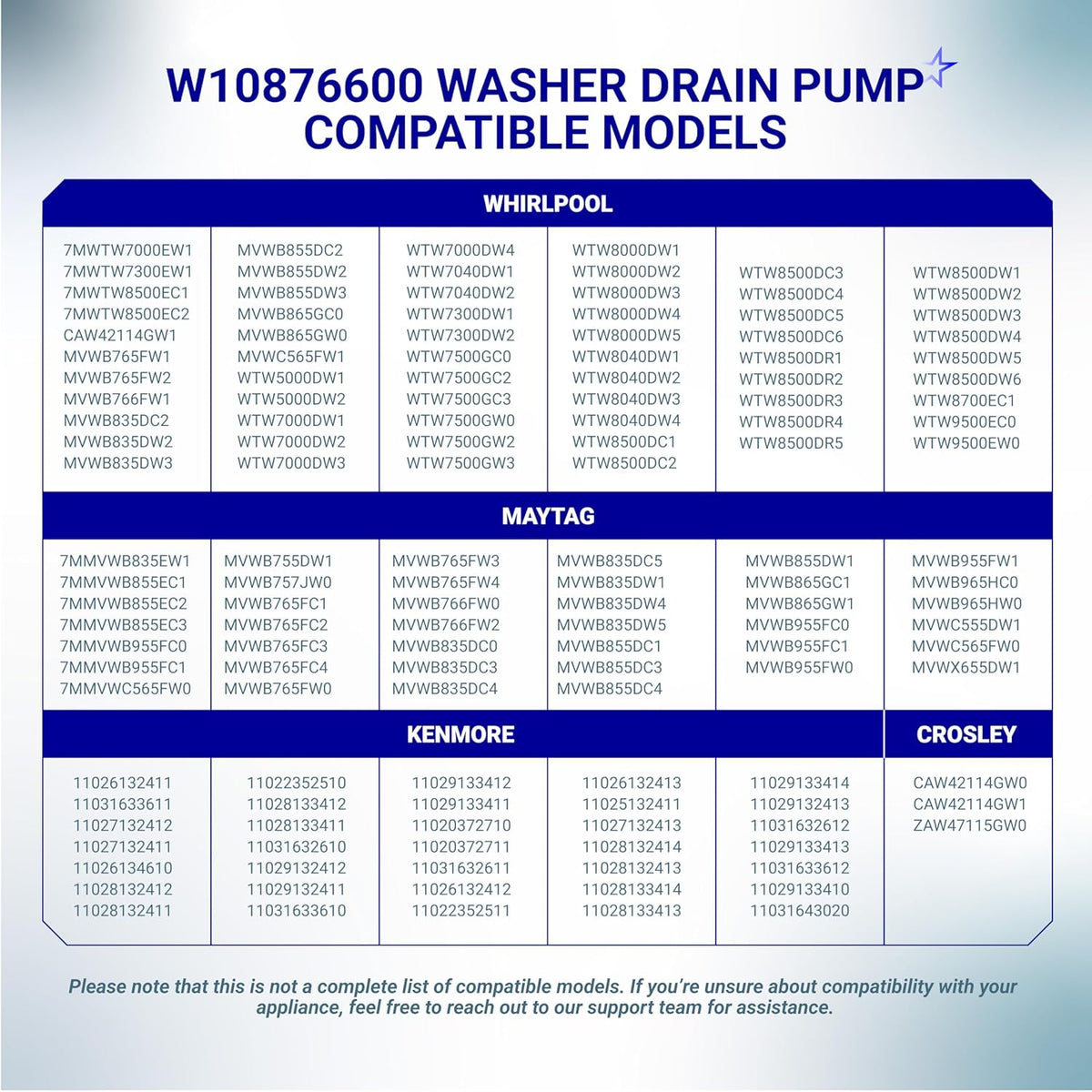

Brand Model Number
Replaces 4455877, AP6004933, B25-3A04, EAP11738156, PD00034529, PS11738156, W10727777, W10876600VP
Crosley CAW42114GW0, CAW42114GW1, ZAW47115GW0
Kenmore 11020372710, 11020372711, 11022352510, 11022352511, 11022352512, 11025132411, 11026132411, 11026132412, 11026132413, 11026134610, 11027132411, 11027132412, 11027132413, 11028132411, 11028132412, 11028132413, 11028132414, 11028133411, 11028133412, 11028133413, 11028133414, 11029132410, 11029132411, 11029132412, 11029132413, 11029133410, 11029133411, 11029133412, 11029133413, 11031632610, 11031632611, 11031632612, 11031633610, 11031633611, 11031633612
Maytag 7MMVWB835EW1, 7MMVWB855EC1, 7MMVWB855EC2, 7MMVWB855EC3, 7MMVWB955FC0, 7MMVWB955FC1, 7MMVWC565FW0
Maytag MVWB755DW1, MVWB757JW0, MVWB765FC1, MVWB765FC2, MVWB765FC3, MVWB765FC4, MVWB765FW0, MVWB765FW1, MVWB765FW2, MVWB765FW3, MVWB765FW4, MVWB766FW0, MVWB766FW1, MVWB766FW2, MVWB835DC0, MVWB835DC2, MVWB835DC3, MVWB835DC4, MVWB835DC5, MVWB835DW1, MVWB835DW2, MVWB835DW3, MVWB835DW4, MVWB835DW5
Maytag MVWB855DC1, MVWB855DC2, MVWB855DC3, MVWB855DC4, MVWB855DW1, MVWB855DW2, MVWB855DW3, MVWB865GC0, MVWB865GC1, MVWB865GW0, MVWB865GW1, MVWB955FC0, MVWB955FC1, MVWB955FW0, MVWB955FW1, MVWB965HC0, MVWB965HW0, MVWC555DW1, MVWC565FW0, MVWC565FW1, MVWX655DW1
Whirlpool 7MWTW7000EW1, 7MWTW7300EW1, 7MWTW8500EC1, 7MWTW8500EC2
Whirlpool WTW500CMW0, WTW5000DW1, WTW5000DW2, WTW6150PB0, WTW6150PW0, WTW6157PB0, WTW6157PW0
Whirlpool WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4, WTW7040DW1, WTW7040DW2, WTW7300DW1, WTW7300DW2, WTW7500GC0, WTW7500GC2, WTW7500GC3, WTW7500GW0, WTW7500GW2, WTW7500GW3
Whirlpool WTW8000DW1, WTW8000DW2, WTW8000DW3, WTW8000DW4, WTW8000DW5, WTW8040DW1, WTW8040DW2, WTW8040DW3, WTW8040DW4, WTW8500DC1, WTW8500DC2, WTW8500DC3, WTW8500DC4, WTW8500DC5, WTW8500DC6, WTW8500DR1, WTW8500DR2, WTW8500DR3, WTW8500DR4, WTW8500DR5, WTW8500DW1, WTW8500DW2, WTW8500DW3, WTW8500DW4, WTW8500DW5, WTW8500DW6, WTW8700EC1, WTW9500EC0, WTW9500EW0

FAQ

This pump is designed for a wide range of top-loading washers from Whirlpool, Maytag, Kenmore, and Crosley. Compatible models include, but are not limited to, the Maytag Bravos XL MVWB835DW1, as well as Whirlpool WTW5000DW, MVWC565FW, MVWX655DW, MVWB835DW, and MVWB765FW.
This unit is a direct replacement for OEM part number W10876600. It also cross-references with W10727777, W10876600VP, B25-3A04, AP6004933, PS11738156, 4455877, EAP11738156, AWP42290, and PD00034529.
The most common signs of a failing pump include the washer failing to drain water at the end of a cycle, leaving clothes soaking wet, or making loud, unusual grinding or rattling noises during the drain phase. If your machine stops mid-cycle and displays a drain-related error code, the pump is often the culprit.
Replacing the pump is a manageable DIY task for most homeowners. It typically involves unplugging the machine, removing the front or bottom access panel, disconnecting the hoses, and swapping the old pump for the new one. Most repairs can be completed in under an hour with basic hand tools like a screwdriver and pliers.
Before starting, ensure the power is disconnected and the water supply is turned off. Since the pump holds water, it is helpful to have a shallow pan and towels ready to catch any residual water that may spill when you disconnect the drain hoses. Inspect the hoses for any debris or blockages while the pump is removed to ensure the new pump operates efficiently.
