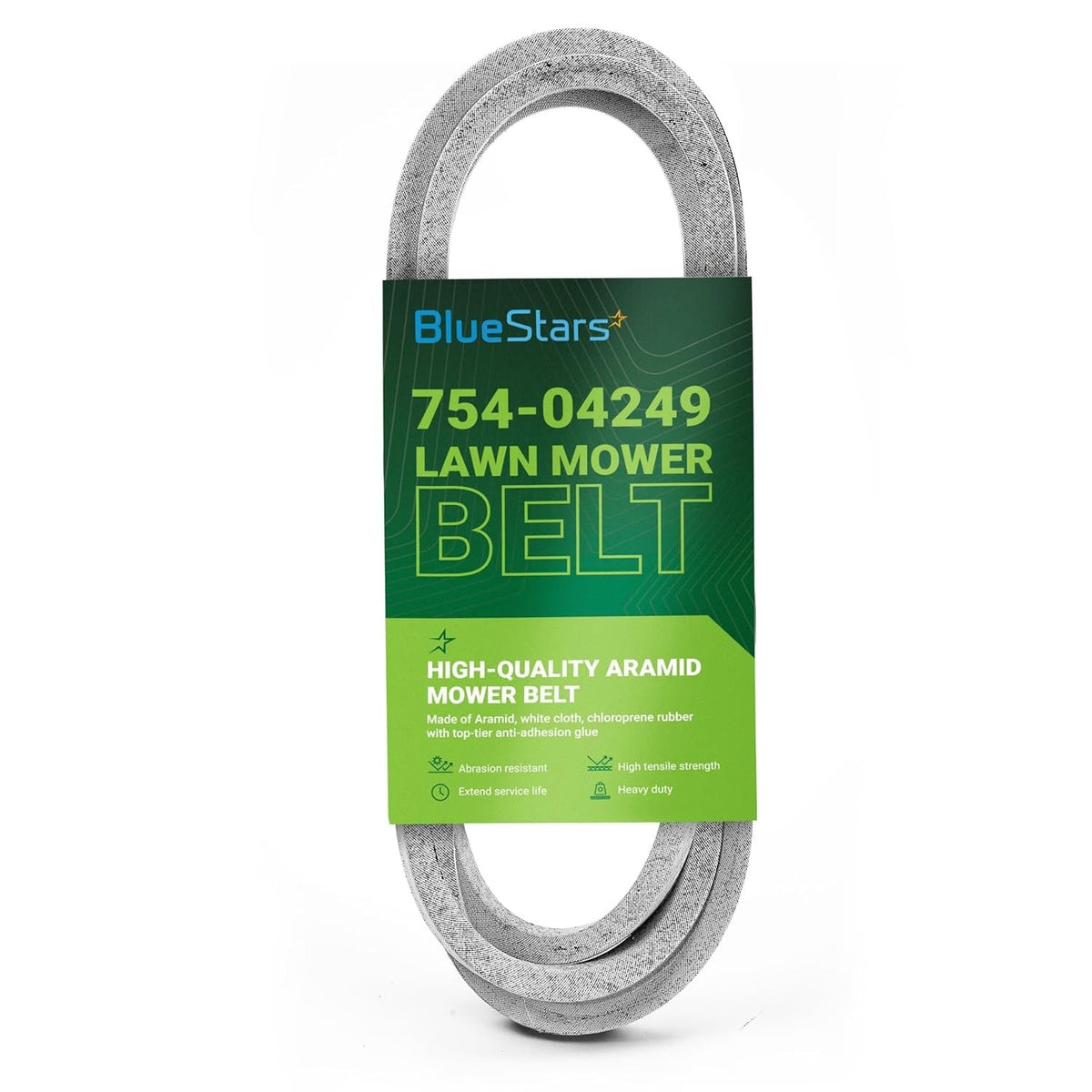

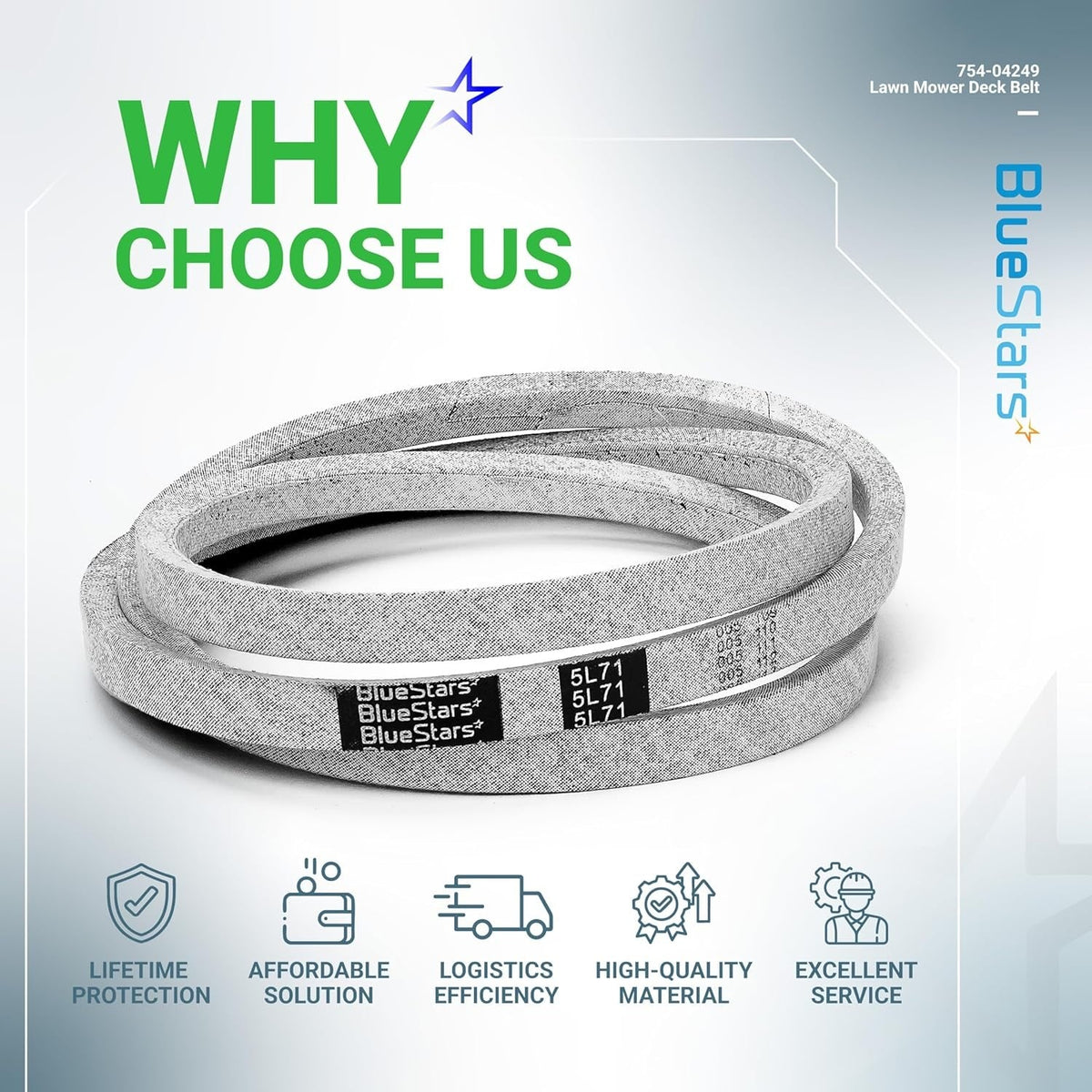

954-04249A 754-04249 Drive Belt for MTD Troy-Bilt White Outdoor, Aramid Cord, 71"
0.00
Regular price
$19.19
Regular price
Save 11%
$21.49
Sale price
$19.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
954-04249A, 754-04249 Mower Drive Belt | 71"
Key Features
- Type: Lower Transmission Drive V-Belt
- Function: Connects engine pulley to the transmission pulley to power the wheels.

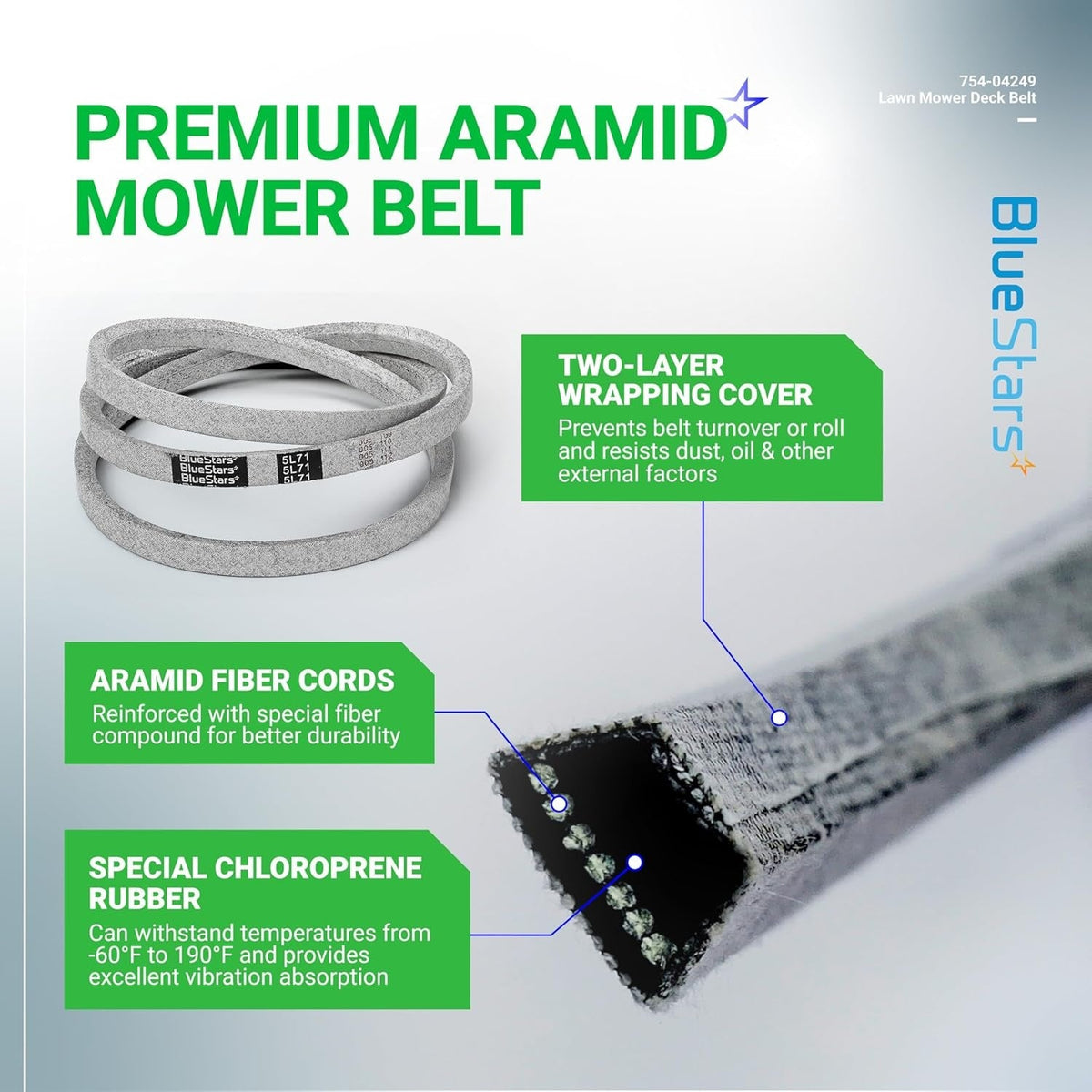

- Material: Constructed from a synthetic rubber compound for resistance to heat, oil, and abrasion.

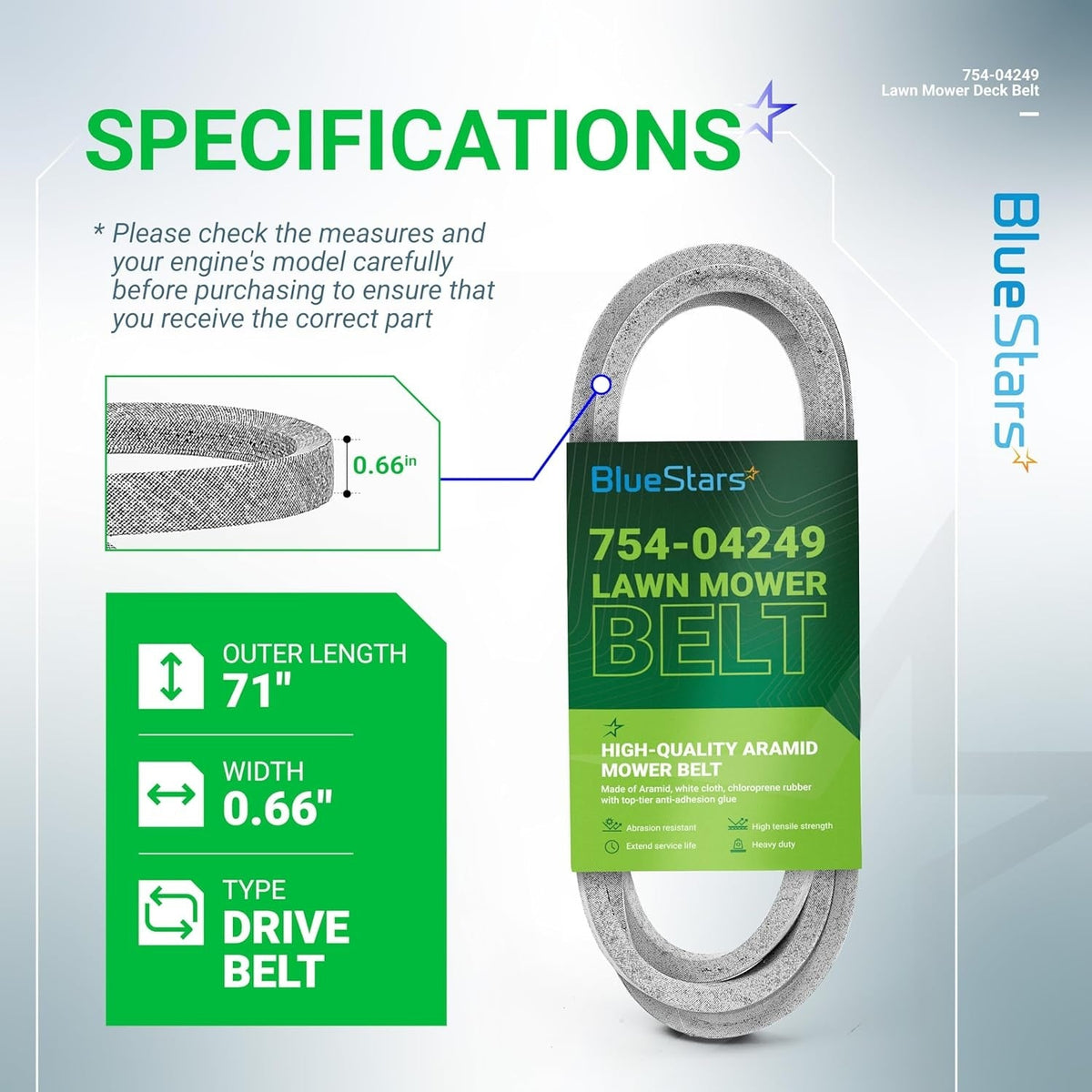

- Dimensions:
- Width: 5/8 in
- Length: 70.9 in (approximately)

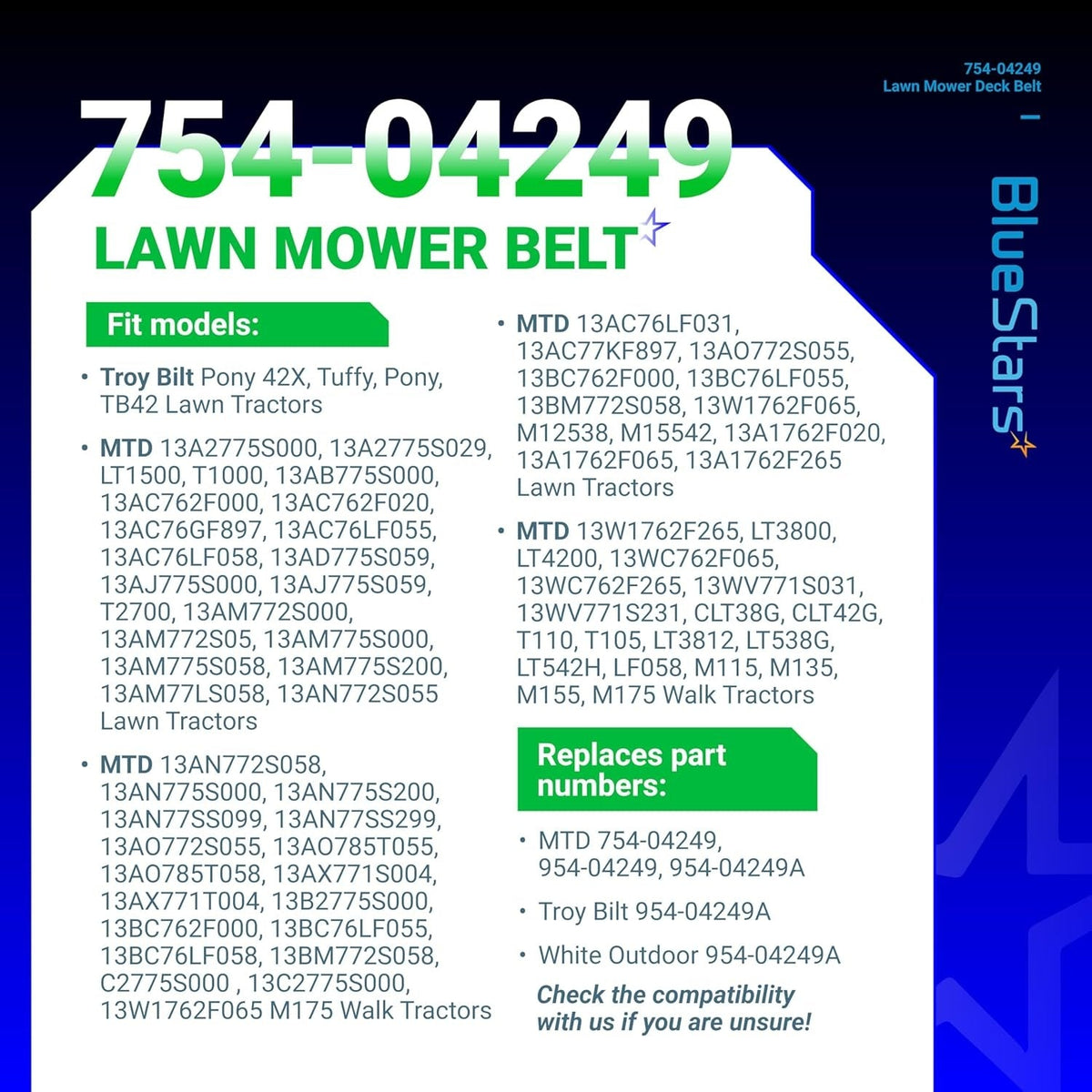

Replaces / Cross-Reference Part Numbers
- 954-04249A
- 754-04249
- 954-04249
- CMXGZAM501006
- 490-501-M006
- 265-661
- 336363
Compatibility & Fitment
- Fits select riding mowers from MTD, Troy-Bilt, Cub Cadet, and Craftsman.
- Commonly used on models with 38-inch, 42-inch, and 46-inch single-speed transmissions.
- Example Models: MTD 13AN77KS011, 13AN77KS066
- Note: Always verify the part number in your owner's manual for correct fitment.
When to Replace
- Visible signs of wear such as cracking, fraying, or glazing on the belt surface.
- Belt is slipping, causing a loss of drive power or inconsistent speed.
- The belt has stretched and can no longer maintain proper tension.
Installation Tips
- Disconnect the spark plug wire for safety before starting any repairs.
- Consult your mower's owner's manual for the correct belt routing diagram.
- Inspect all pulleys for wear, damage, or debris before installing the new belt.
- Ensure the belt is correctly seated in all pulley grooves and properly tensioned after installation.
-
PART NUMBERS
This Belt replaces parts: MTD 754-04249, 954-04249, 954-04249A; Troy Bilt 954-04249A; White Outdoor 954-04249A -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble -
CHECK BEFORE INSTALLING
Check the Pulley Bearings, Edges, Grooves, and Tensioner Spring to ensure your belt maintains optimal performance -
IMPORTANT NOTE
- Turn off lawnmower power & Wear work gloves before installing
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS
Enjoy the comfort that our small yet mighty parts simplify your mowing experience
