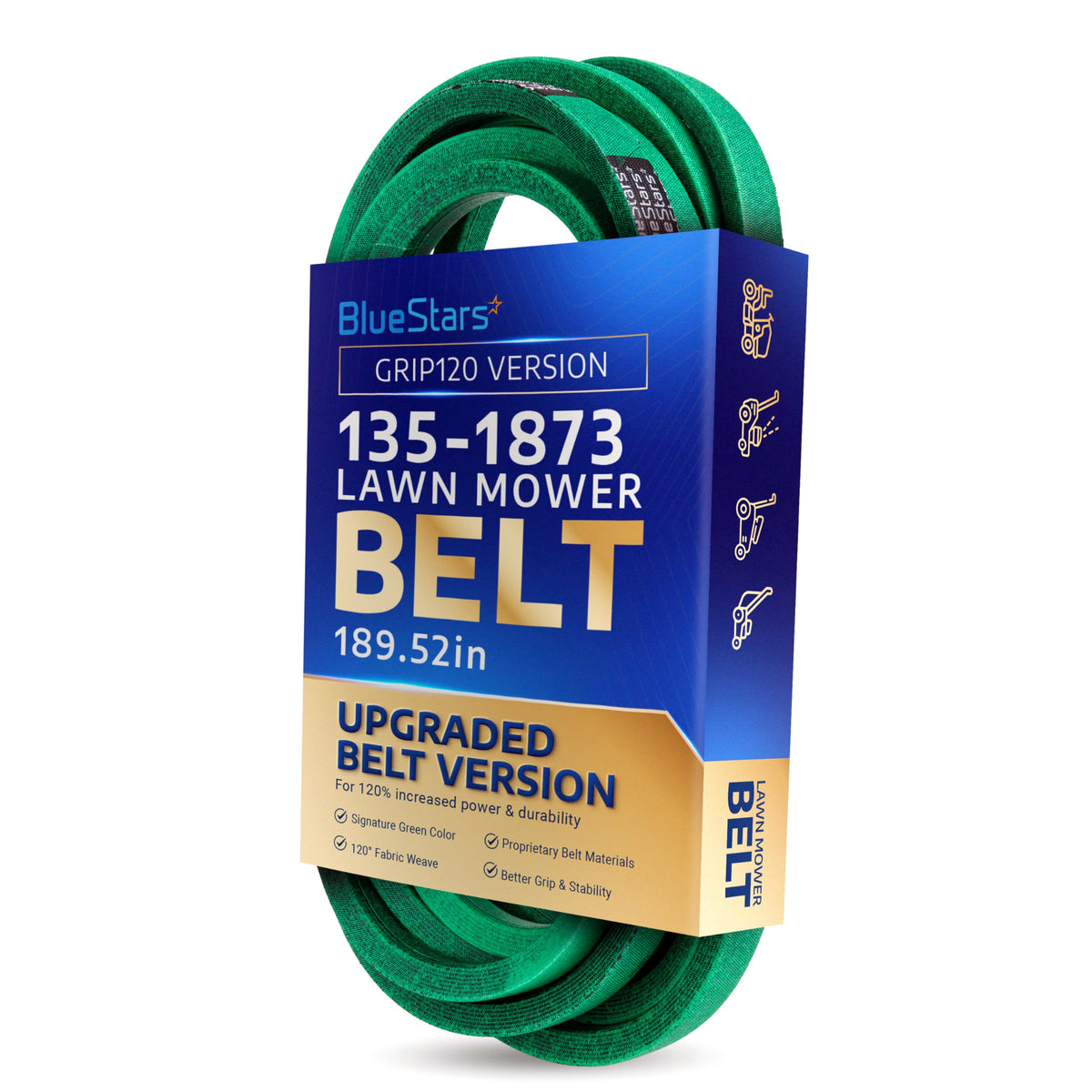

135-1873 green lawn mower deck belt in BlueStars branded packaging for Toro Titan and Z Master mowers.

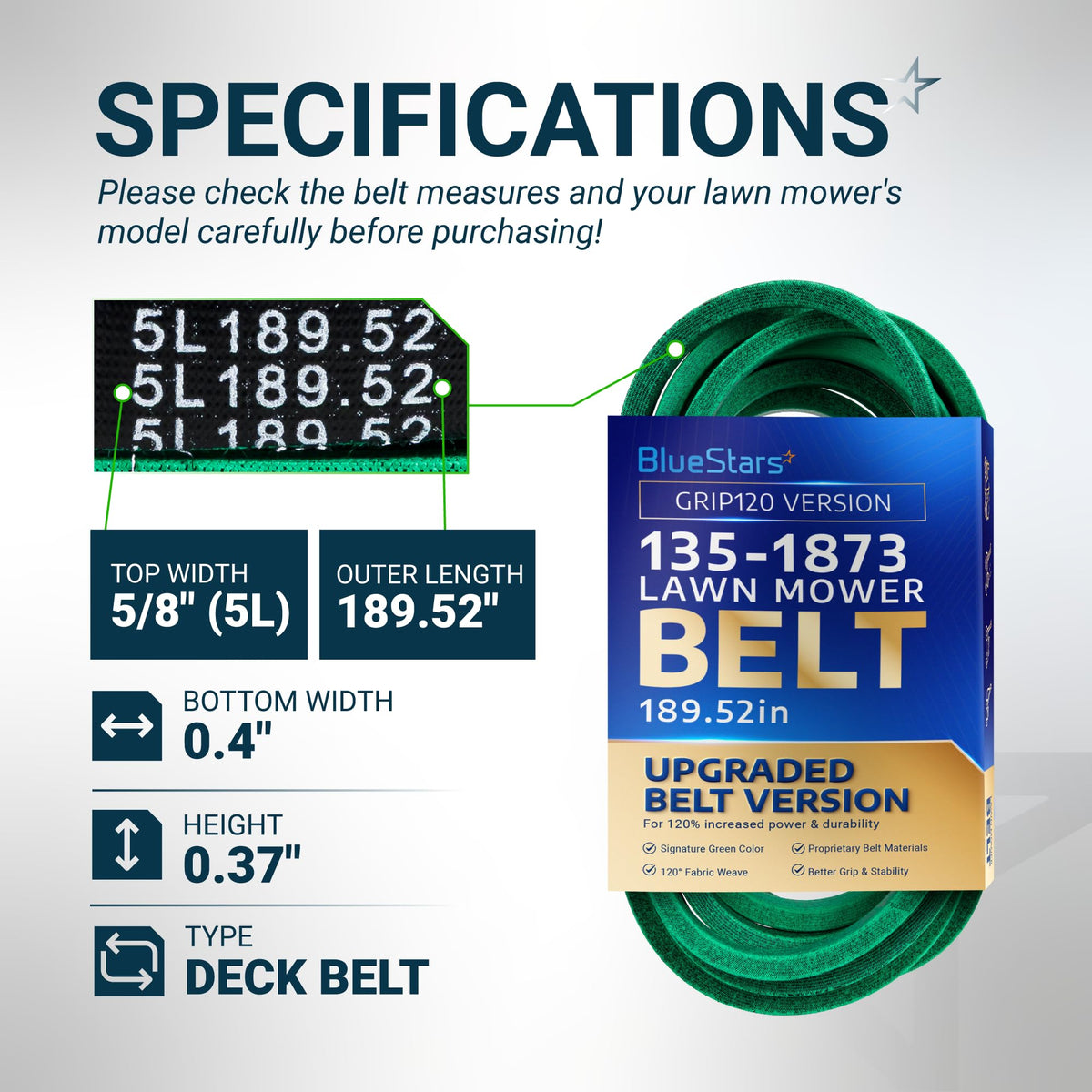

Infographic showing specifications and dimensions for 135-1873 lawn mower deck belt with 189.52-inch outer length.

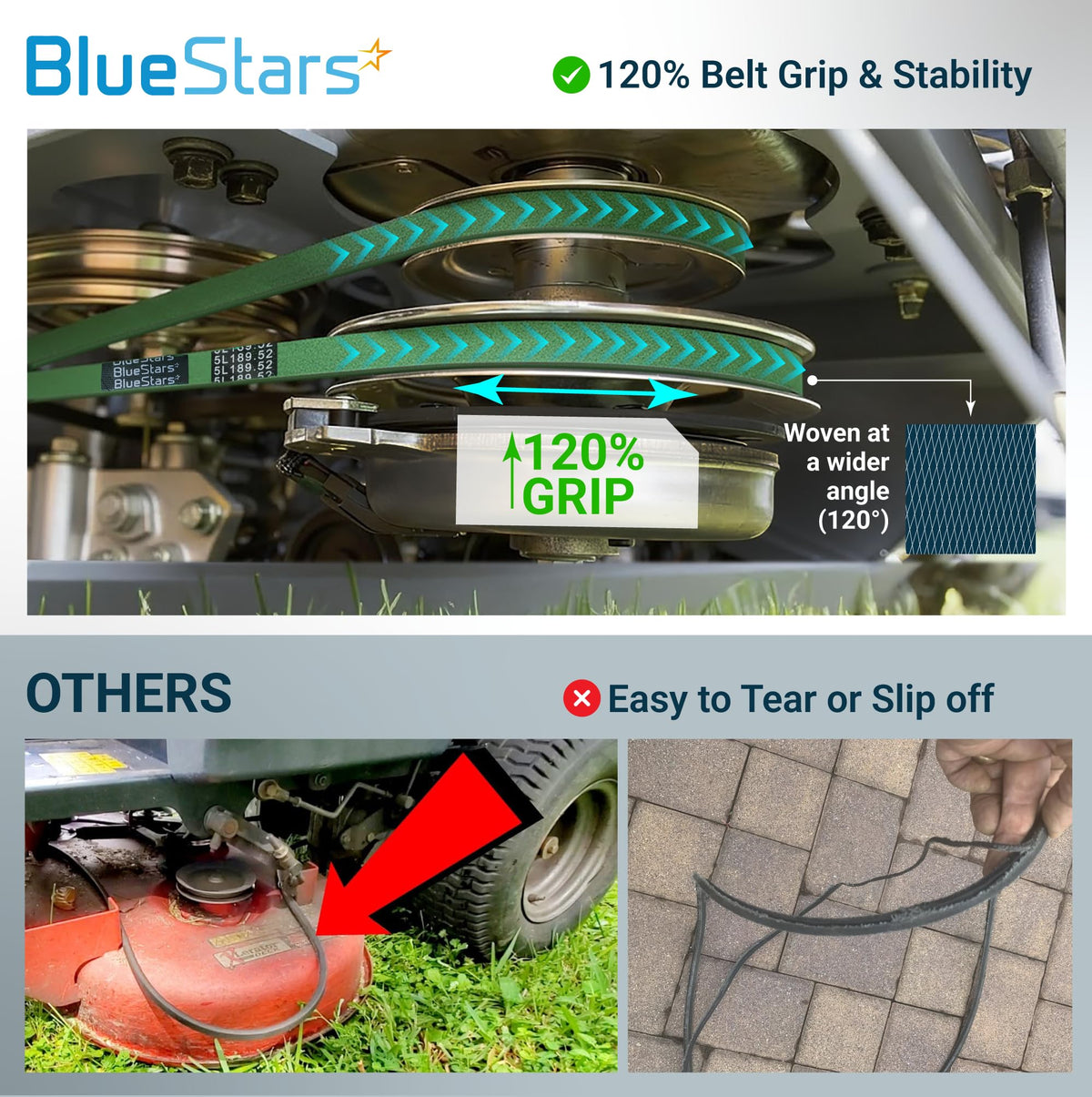

Comparison graphic showing BlueStars mower belt with 120-degree weave for superior grip versus standard worn-out belts.
BlueStars 135-1873 lawn mower belt performance comparison chart showing fatigue life and bonding strength.

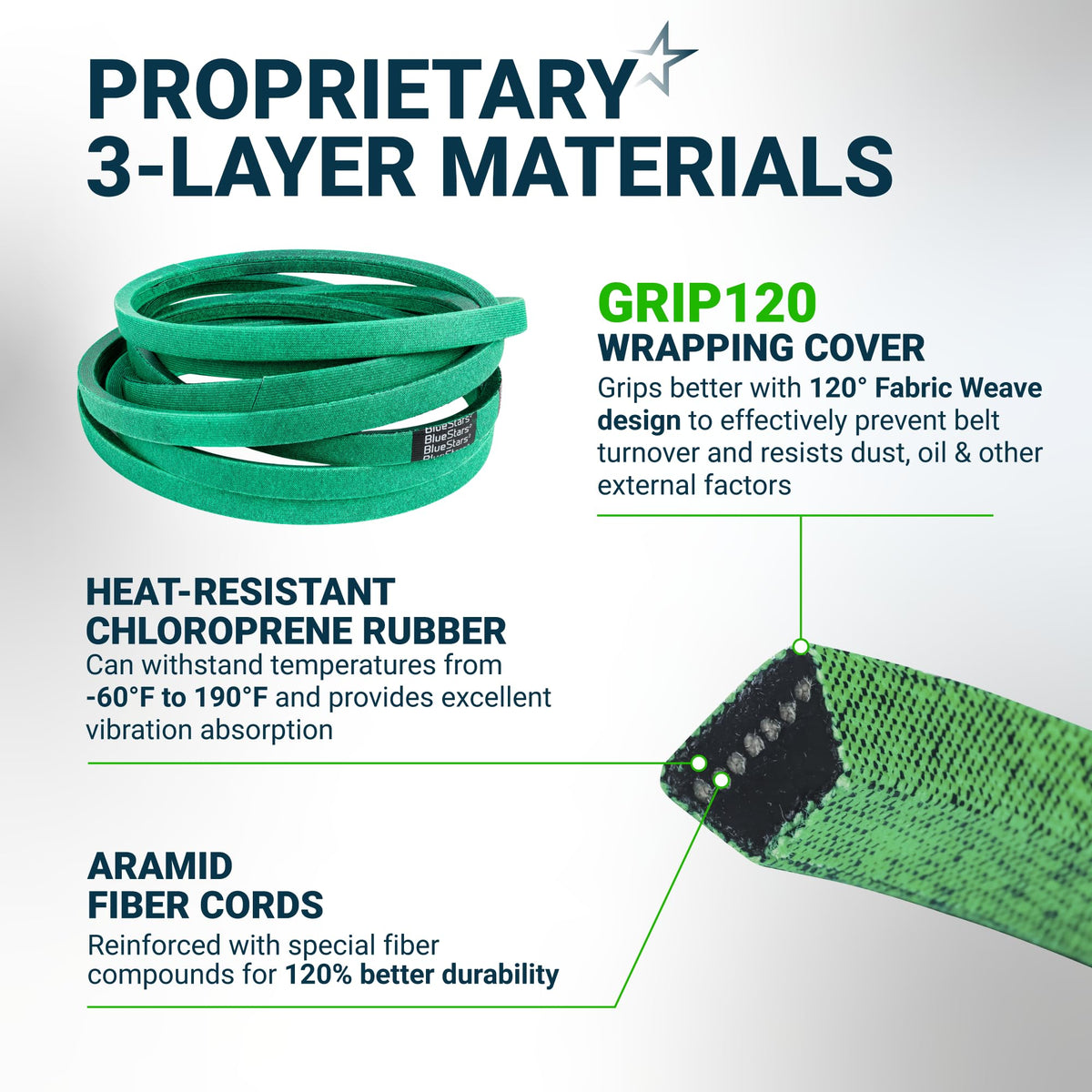

Infographic showing 3-layer material construction of a green replacement drive belt with heat-resistant rubber.
Green replacement drive belt for Toro Titan and Z Master mowers, compatible with part number 135-1873.

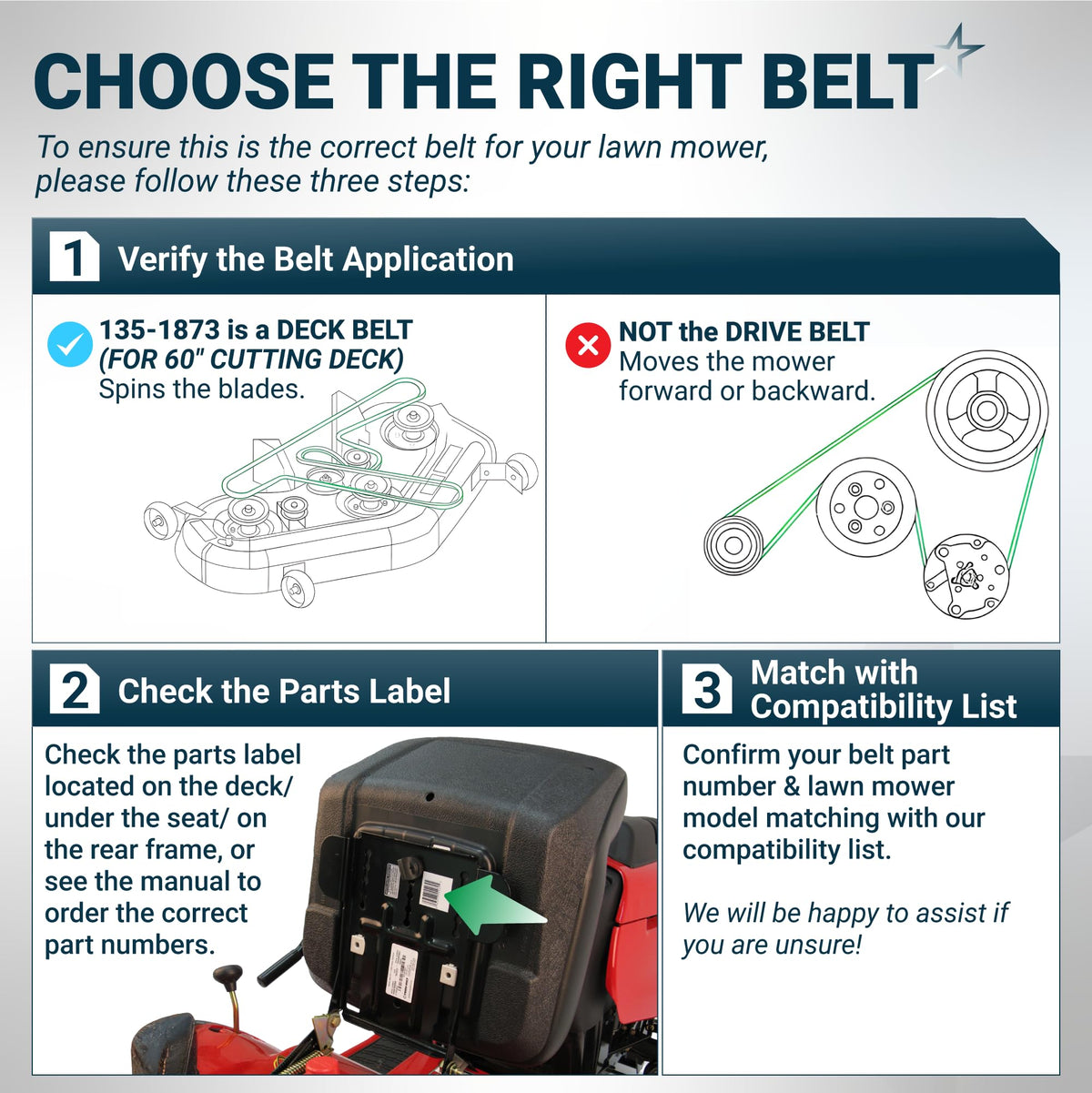

Instructional guide for identifying the correct 135-1873 lawn mower deck belt and checking compatibility.

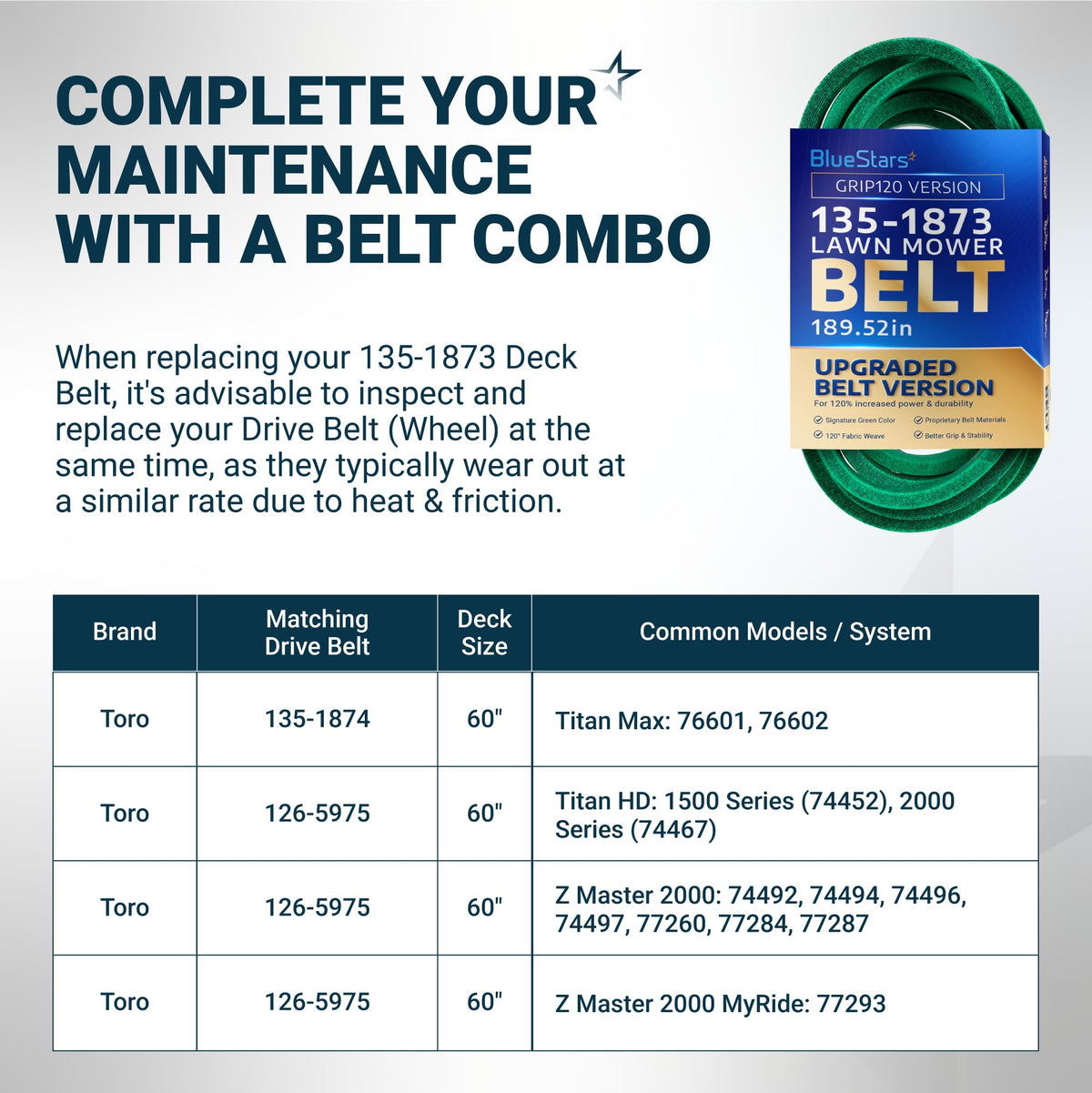

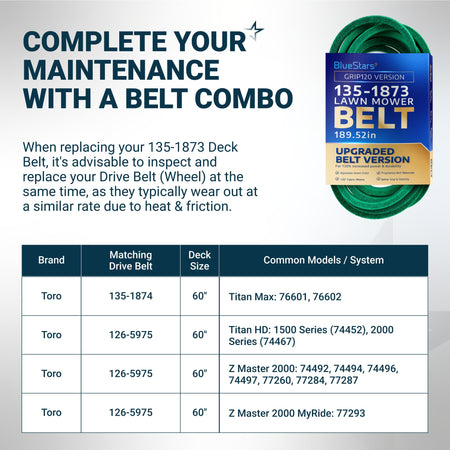

Infographic showing 135-1873 lawn mower deck belt compatibility chart for Toro Titan and Z Master models.
Green mower deck belt shown with a zero-turn lawn mower to illustrate power transfer to blades and common repair signs.
Green replacement mower deck belt with installation instructions for a Toro zero-turn lawn mower.
135-1873 green lawn mower deck belt in BlueStars branded packaging for Toro Titan and Z Master mowers.
Infographic showing specifications and dimensions for 135-1873 lawn mower deck belt with 189.52-inch outer length.
Comparison graphic showing BlueStars mower belt with 120-degree weave for superior grip versus standard worn-out belts.
BlueStars 135-1873 lawn mower belt performance comparison chart showing fatigue life and bonding strength.
Infographic showing 3-layer material construction of a green replacement drive belt with heat-resistant rubber.
Green replacement drive belt for Toro Titan and Z Master mowers, compatible with part number 135-1873.
Instructional guide for identifying the correct 135-1873 lawn mower deck belt and checking compatibility.
Infographic showing 135-1873 lawn mower deck belt compatibility chart for Toro Titan and Z Master models.
Green mower deck belt shown with a zero-turn lawn mower to illustrate power transfer to blades and common repair signs.
Green replacement mower deck belt with installation instructions for a Toro zero-turn lawn mower.
Lifetime Warranty

[Grip120] 135-1873 Deck Belt for 60" Deck Toro Titan Max - 5/8" X 189.52"

Save 35%
0.00
$32.10
$49.39
$32.10
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

135-1873 Deck Belt (5/8" X 189.52")

Key Features

  • Belt type: Deck drive belt
  • Dimensions: 5/8" width x 189.52" effective length
  • High-strength aramid cord construction for durability and resistance to stretching
  • Oil and heat-resistant outer cover
  • Designed for high-torque applications on commercial-grade cutting decks

Replaces / Cross-Reference Part Numbers

  • Toro: 135-1873

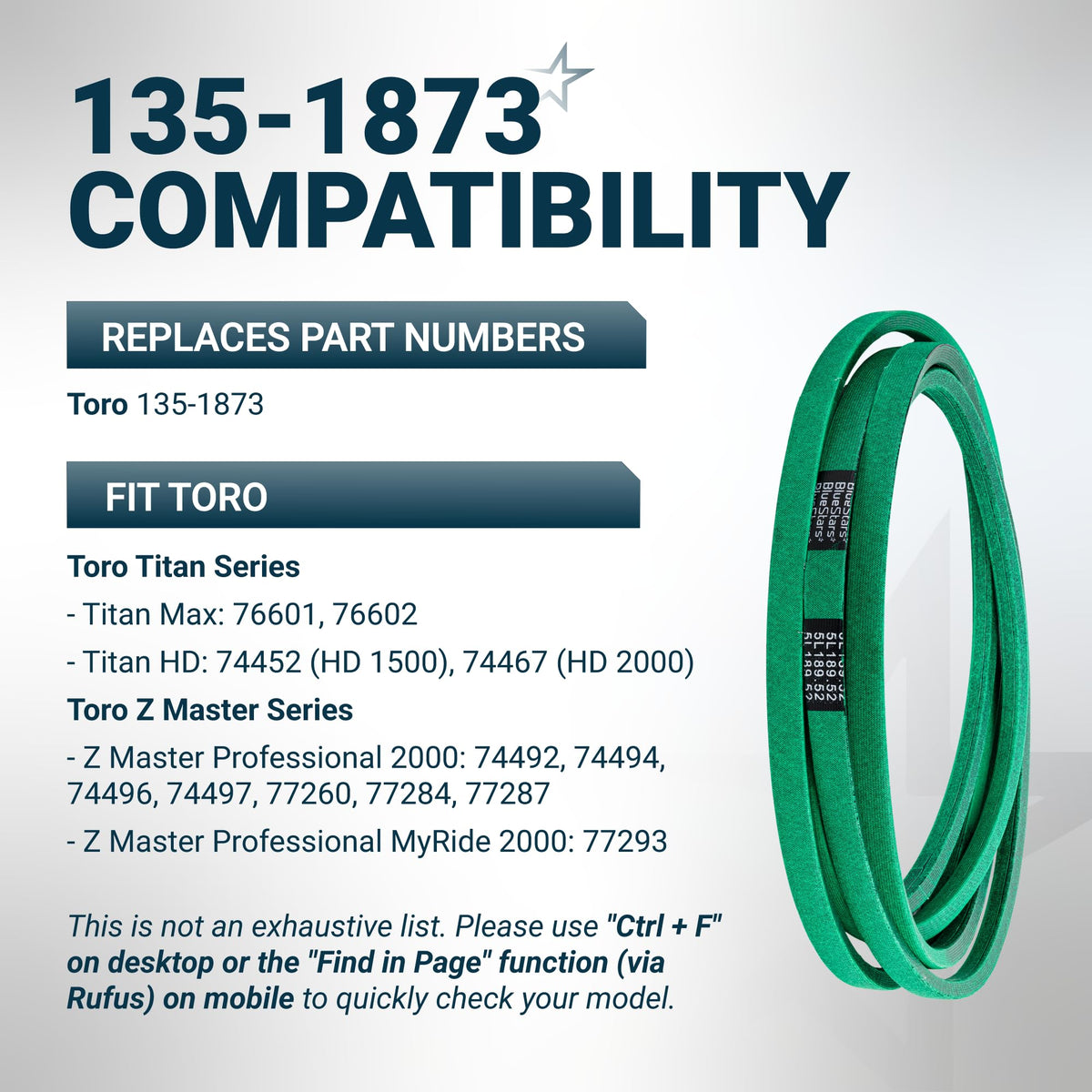

Compatibility & Fitment

  • Toro Titan Max: 76601, 76602
  • Toro Z Master HD 1500: 74452, 74467
  • Toro Z Master HD 2000: 74492, 74494, 74496, 74497
  • Fits Toro models equipped with a 60-inch cutting deck

When to Replace

  • Visible signs of fraying, cracking, or dry rot on the belt surface
  • Significant stretching causing frequent slippage or loss of blade speed
  • Glazing on the sides of the belt resulting in burning odors during operation
  • Missing chunks or separated belt segments

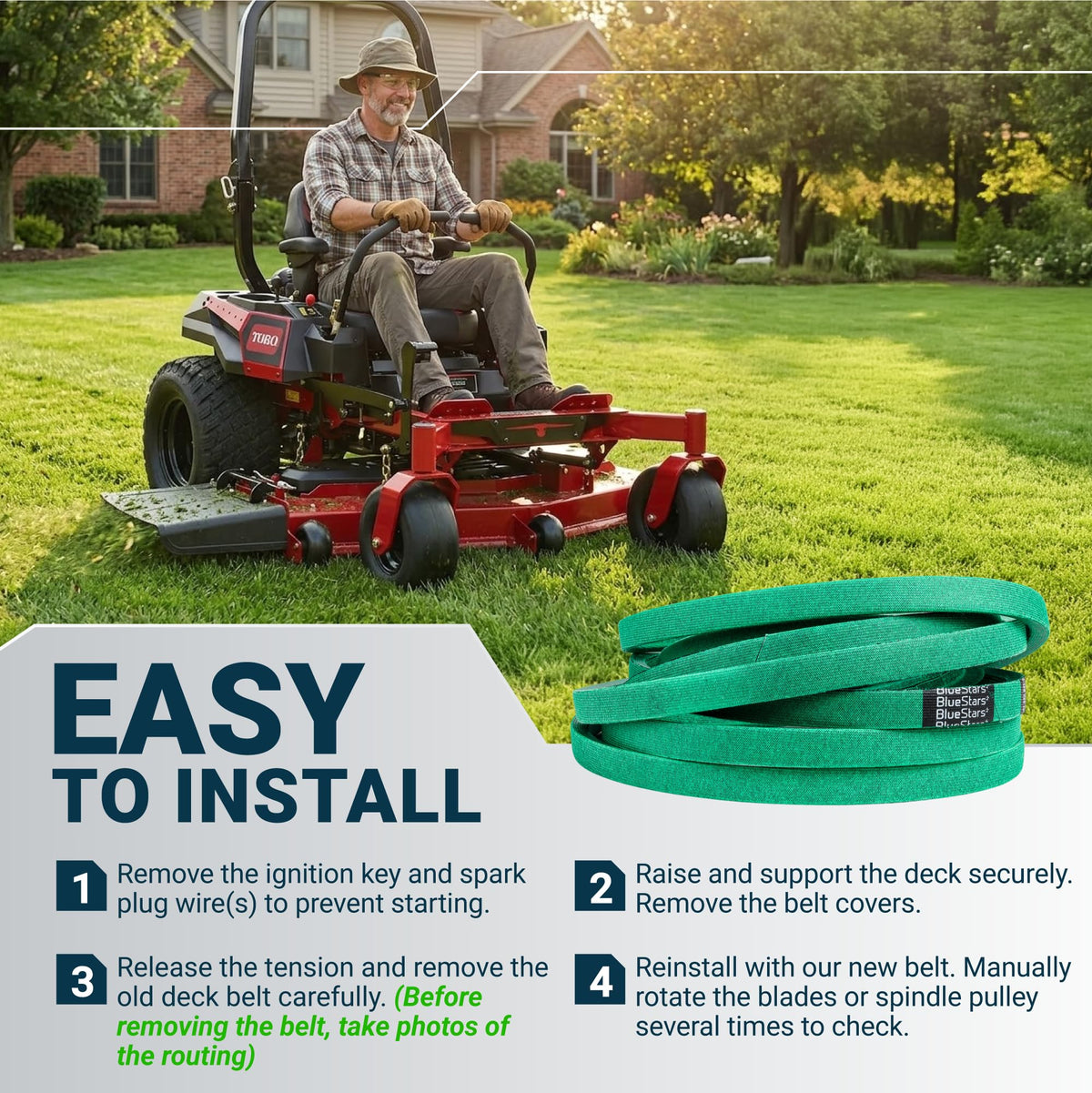

Installation Tips

  • Consult your owner's manual for the specific deck belt routing diagram.
  • Ensure the engine is off, the spark plug wire is disconnected, and the parking brake is engaged before servicing.
  • Release tension on the idler pulley assembly to remove the old belt.
  • Verify that the new belt is properly seated in the grooves of all pulleys before reapplying tension.
  • Run the mower at low throttle for several minutes after installation to allow the belt to seat correctly in the pulleys.

FAQ

This belt is designed for 60-inch deck Toro models, including the Titan Max, Titan HD 1500 series, Titan HD 2000 series, and the Z Master Professional 2000 series.
This is a wrapped, Aramid-cord reinforced V-belt measuring 5/8 inch in width and approximately 189.52 inches in length.

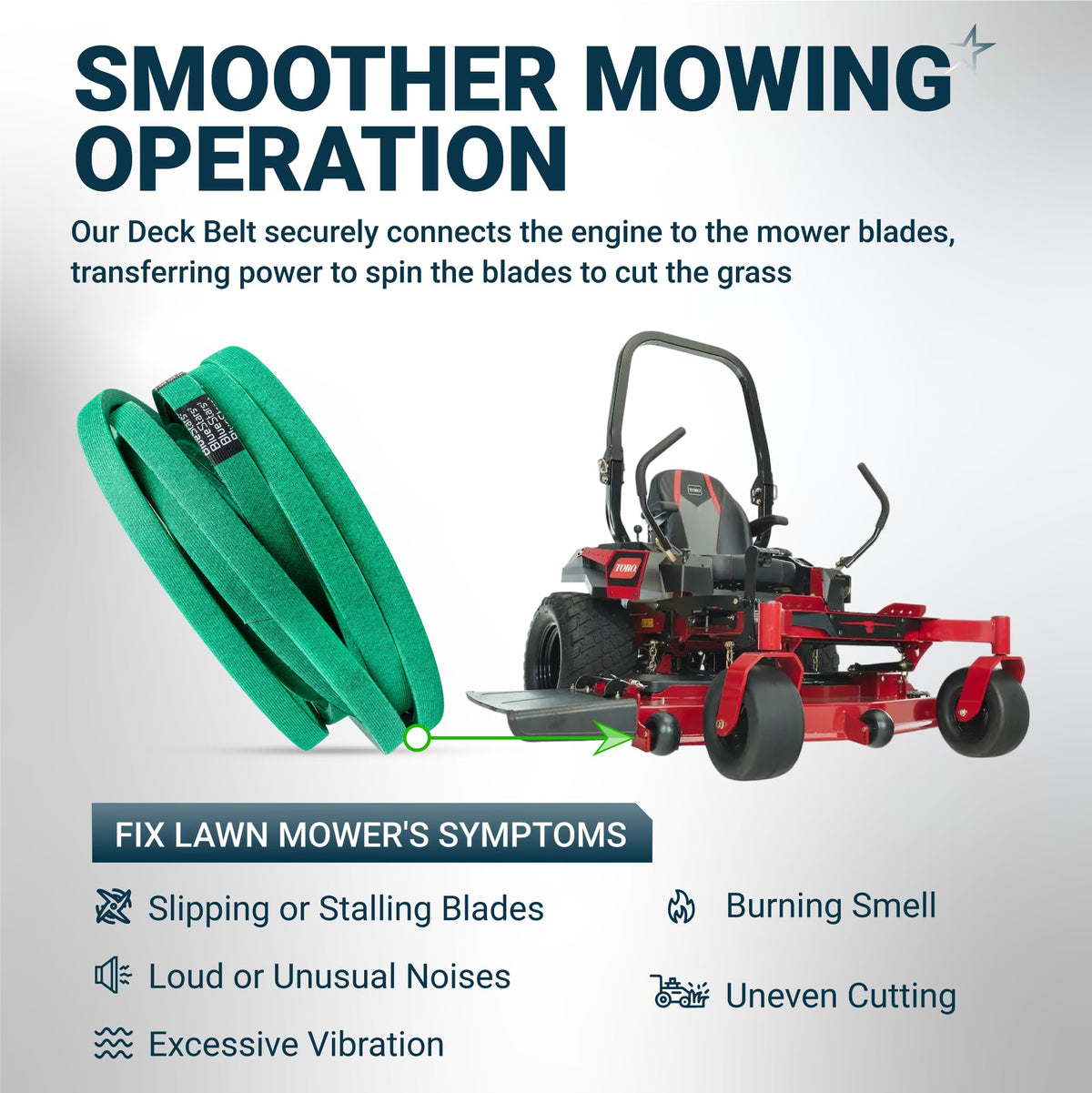

You should inspect your belt if you notice uneven cutting, excessive vibration, a squealing noise when the PTO is engaged, or if the blades fail to reach full speed. Visually, look for signs of fraying, cracking, glazing on the sides of the belt, or stretching that prevents the tensioner from keeping the belt tight.
Keep the deck underside clear of grass buildup, as debris can cause the belt to slip and overheat. Additionally, ensure your spindle pulleys are spinning freely and are not seized, as a stuck pulley will cause rapid belt failure.
Installation typically requires a socket set or wrench to remove the deck covers and a long-handled ratchet or a dedicated belt tensioner tool to release the spring tension on the idler pulley. Expect the process to take 30 to 60 minutes depending on your experience level and how much debris needs to be cleared from the deck.
