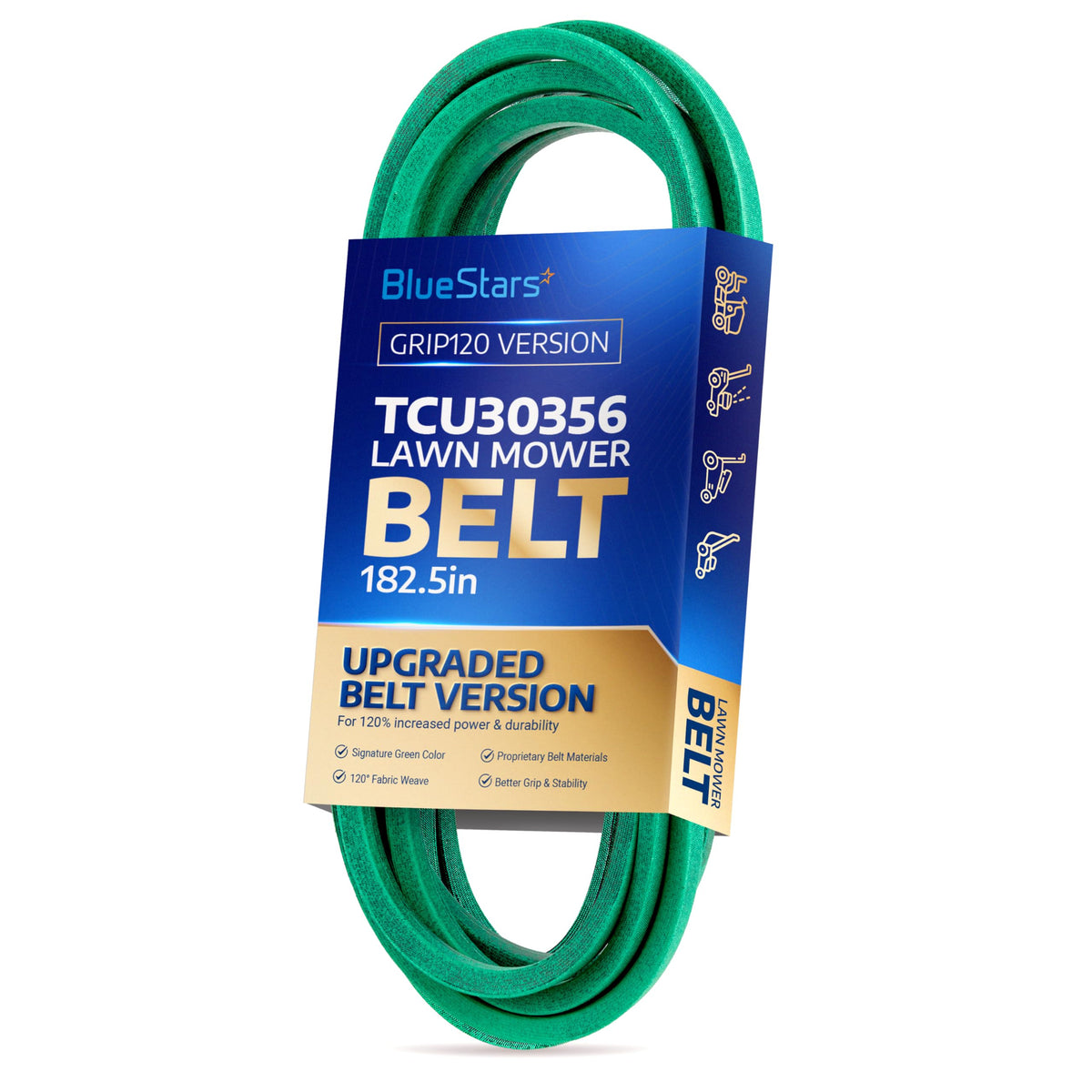

[Grip120] TCU30356, TCU35604 Deck Belt | Fits John Deere Z915B Z915E Z920M Z930M ZTrak Mowers & More | 182.5"

TCU30356, TCU35604 Deck Belt | 182.5"

Key Features

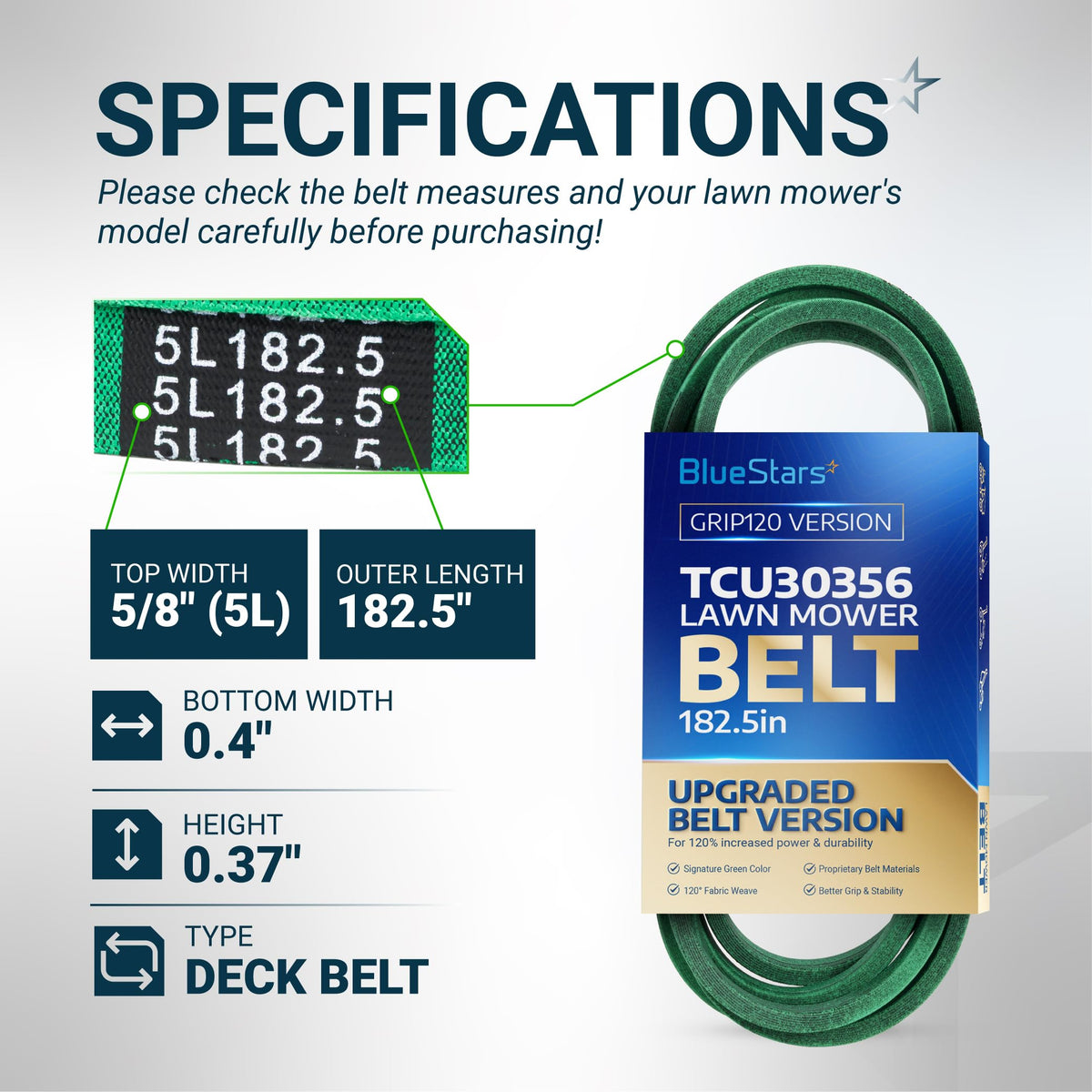

• Dimensions: 5/8" width x 182.5" effective length.
• Construction: Reinforced with aramid cord for enhanced durability and heat resistance under heavy loads.
• Material: High-strength rubber compound designed to minimize stretching and prevent slippage.
• Design: Wrapped belt profile engineered for consistent power transfer to the mower deck spindles.

Replaces / Cross-Reference Part Numbers

• TCU30356
• TCU35604
• 265-559
• 810-CBL2477T

Compatibility & Fitment

• Compatible with John Deere ZTrak Zero-Turn Mowers: Z915B, Z915E, Z920M, Z930M, Z950M, Z960M, and Z970R.

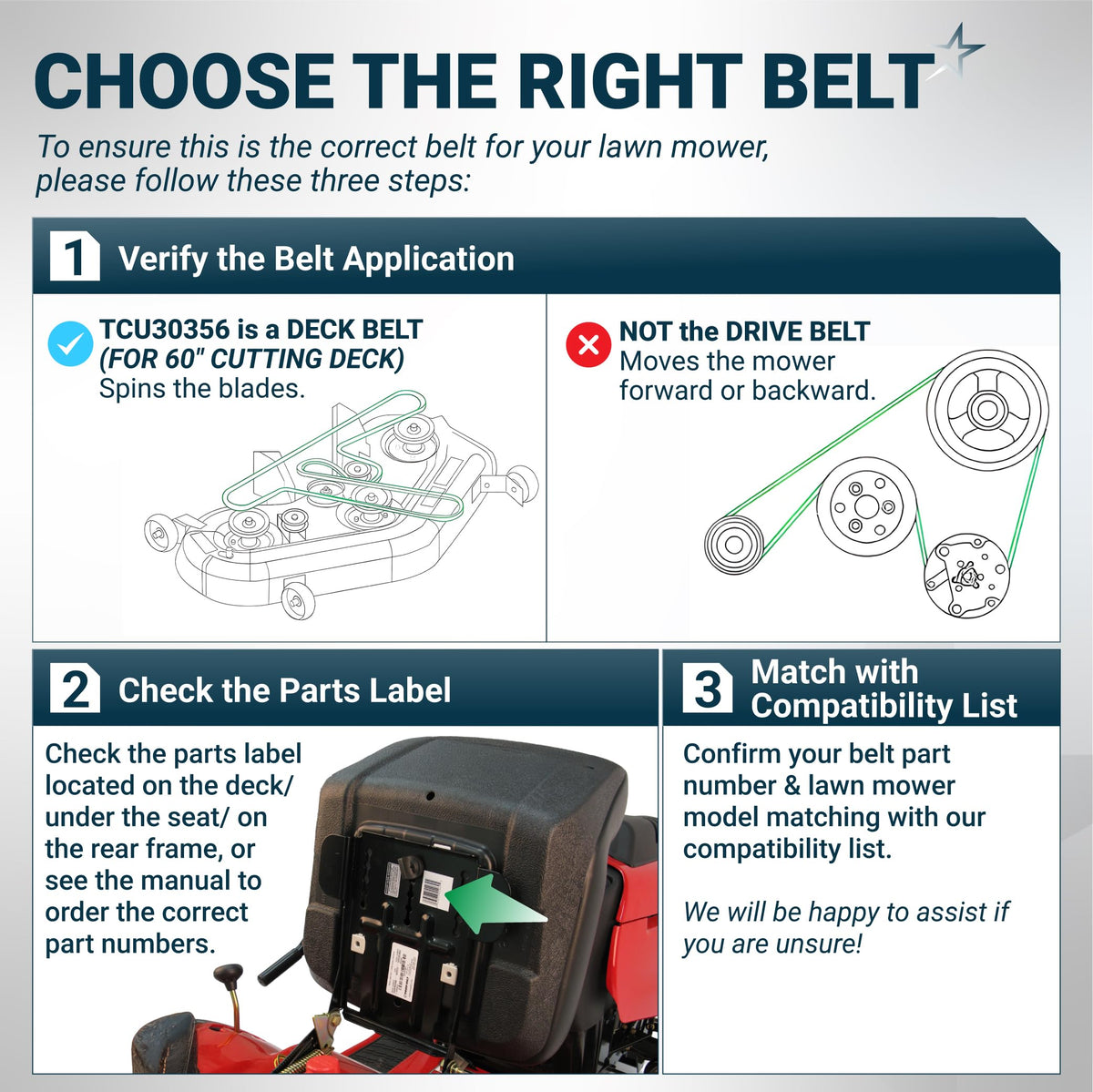

• Designed for use with specific deck configurations associated with these mower models. Please verify your machine's operator manual or deck sticker for belt compatibility prior to purchase.

When to Replace

• Inspect the belt if you notice fraying, cracks, or chunks missing from the outer fabric or rubber.
• Replace if the belt shows signs of glazing (shiny appearance) or hardening due to heat exposure.
• Replace if the mower deck experiences reduced blade speed, inconsistent cut quality, or frequent slipping during heavy cutting conditions.
• If the belt has stretched beyond the adjustment range of the tensioner, it must be replaced to maintain proper drive performance.

Installation Tips

• Lower the mower deck to the lowest position or remove the deck from the unit for easier access to the pulleys.
• Release tension on the belt tensioner pulley using the appropriate tool before attempting to remove the old belt.
• Ensure the new belt is properly seated in the grooves of all pulleys, including idlers and spindle pulleys.
• After installation, manually rotate the blades or pulleys to confirm the belt is tracking correctly before engaging the power take-off (PTO).
• Run the mower at low throttle for several minutes to allow the belt to seat fully before resuming normal operation.
