DD94-01002A Dishwasher Mounting Bracket Assembly Kit for Samsung Dishwashers - Includes 2 Brackets, 6 Screws
Save 13%
0.00
Regular price
$11.43
Regular price
$13.14
Sale price
$11.43
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
DD94-01002A Dishwasher Mounting Bracket Assembly Kit
Key Features

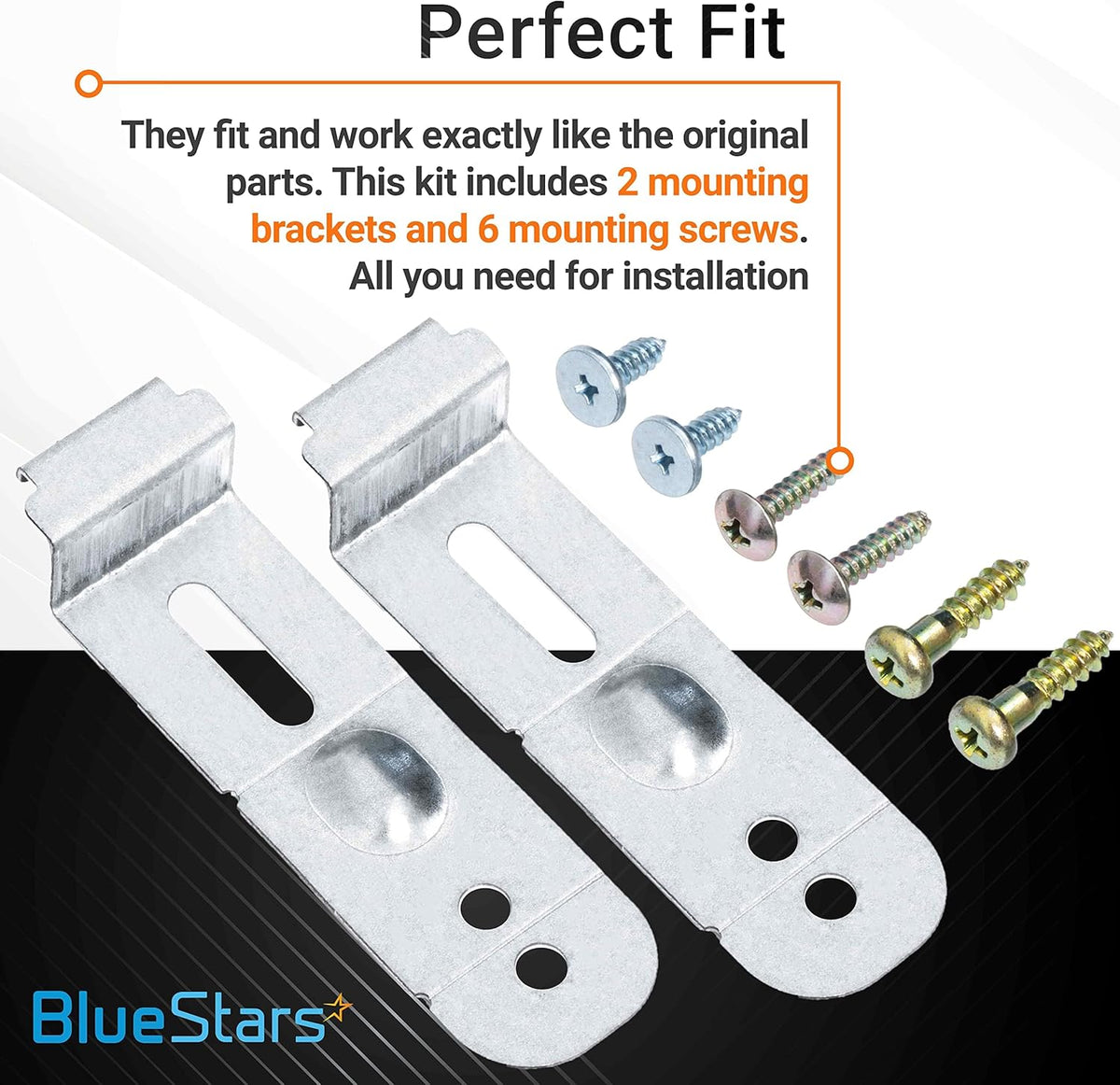

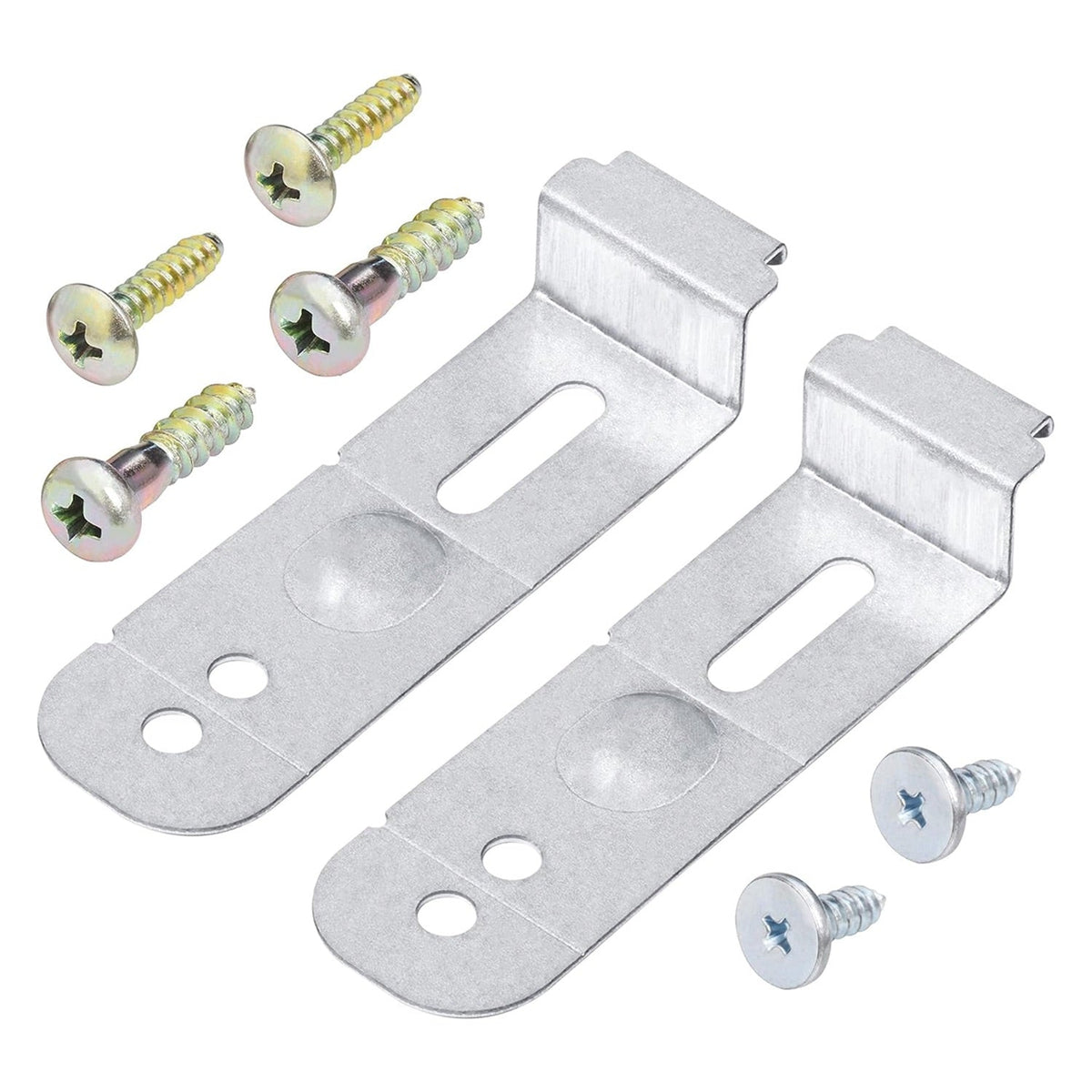

- Complete Installation Kit: Includes two heavy-duty metal mounting brackets and six specialized screws, providing everything needed to secure the unit to the cabinetry or countertop.
- Countertop & Cabinet Versatility: Designed for standard top-mounting to the underside of wooden countertops or side-mounting to cabinets when stone or granite surfaces are present.
- Reinforced Structural Support: Prevents the dishwasher from shifting, vibrating, or tipping forward when the door is opened and the racks are fully extended.

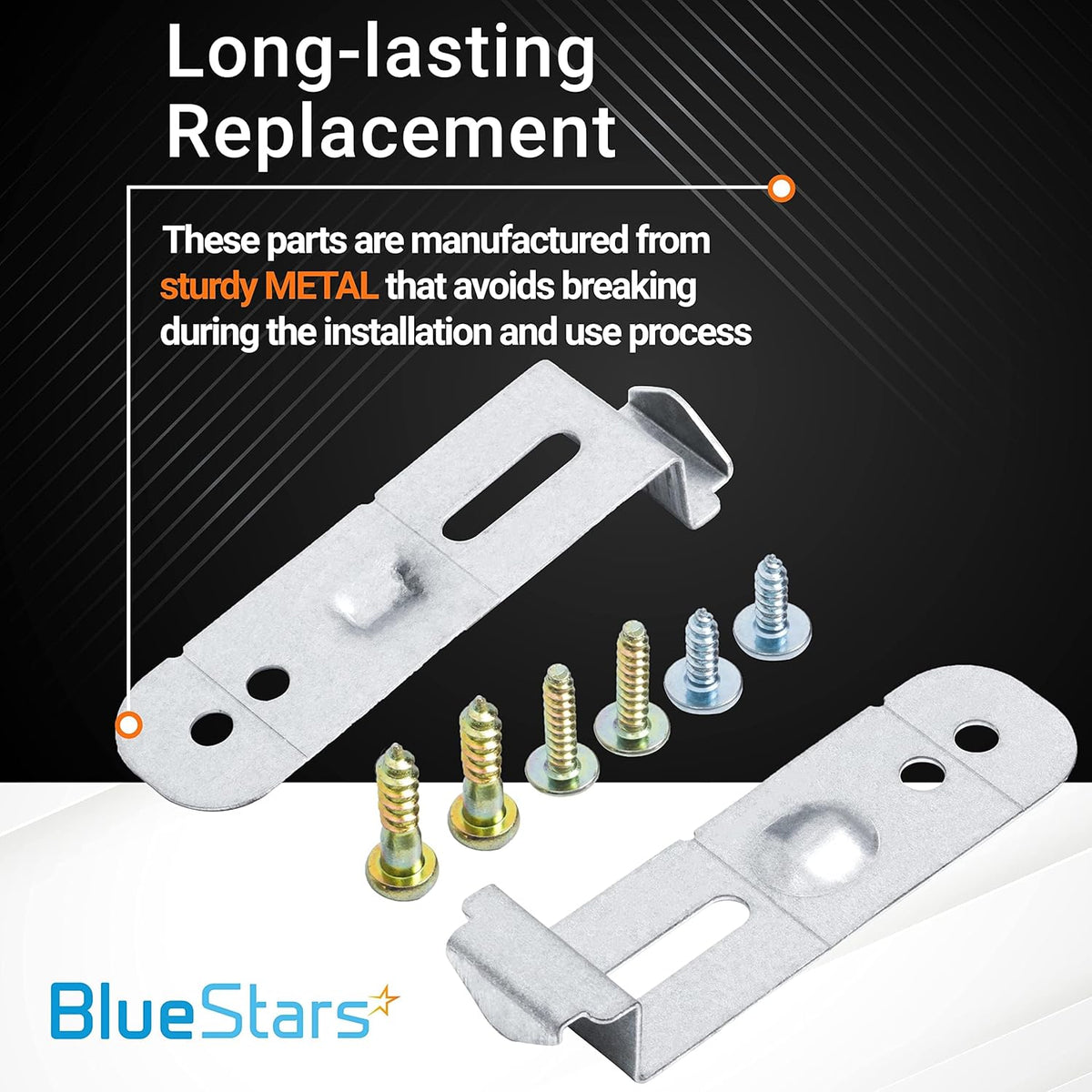

- Corrosion-Resistant Finish: The brackets are treated with a protective coating to withstand the high-humidity environment typically found around kitchen appliances.
Replaces / Cross-Reference Part Numbers
- DD94-01002A
- 2077601
- AP4450818
- PS4222710
- PD00007402
- EAP4222710
Compatibility & Fitment
This mounting kit is a standard replacement part for a wide range of Samsung built-in dishwashers. Key compatible series include:
- DW80 Series: DW80K5050US, DW80K7050US, DW80J3020US, DW80M9960US, DW80F600UTW.
- DW79 Series: DW7933LRASR, DW7933LRAWW.
- DMT Series: DMT400RHS, DMT800RHS, DMT300RFB.
- Other Models: Fits select DW60 and DW50 models utilizing the DD94 series bracket configuration.
When to Use This Kit
- New Installation: Essential for a secure fit during the initial setup of your dishwasher.
- Broken or Bent Brackets: The existing brackets have snapped or become deformed, causing the dishwasher to sit unevenly or wobble.
- Tipping Issues: The dishwasher tilts forward when the bottom rack is loaded with heavy plates and pulled out.
- Cabinet Noise: Excessive vibration and rattling against the surrounding cabinets due to loose or missing mounting hardware.
Installation Tips
- Safety First: Ensure the dishwasher is disconnected from power and water if you need to pull the unit out to access the mounting slots.
- Slot Alignment: Slide the brackets into the designated slots on the top or sides of the dishwasher frame before pushing the unit into the cabinet opening.
- Bending Tabs: Once inserted into the frame, you may need to bend the small metal tabs with pliers to lock the brackets into the dishwasher housing.

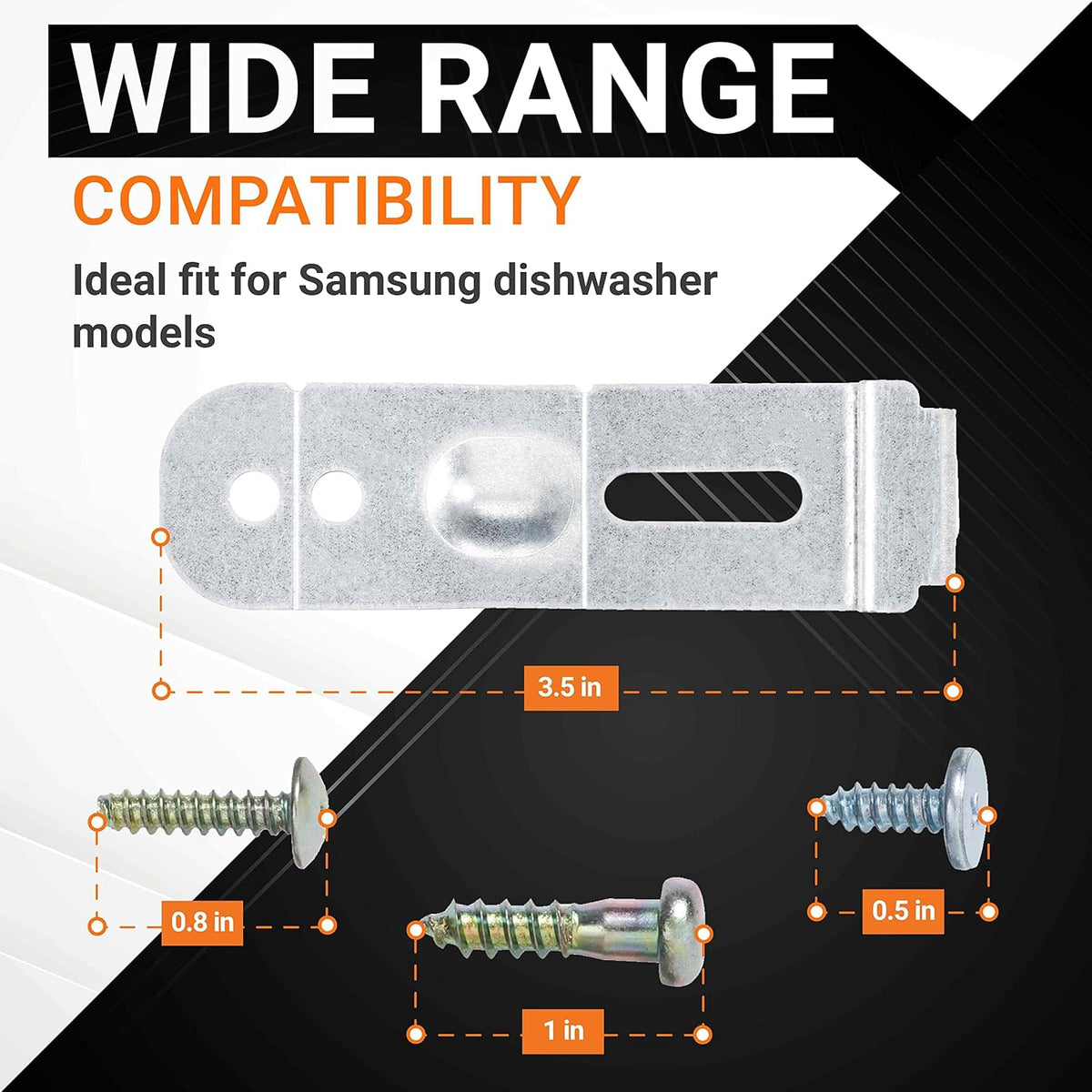

- Screw Selection: Use the shorter screws to attach the brackets to the dishwasher frame and the longer screws to anchor the brackets into the wooden cabinet or countertop.
- Leveling: Always adjust the dishwasher's leveling legs before securing the brackets to ensure the door closes and seals perfectly.
