Whirlpool Brand 338906 Dryer Flame Sensor & 279834 Gas Valve Ignition Solenoid Coil Kit & 3392519 Thermal Fuse

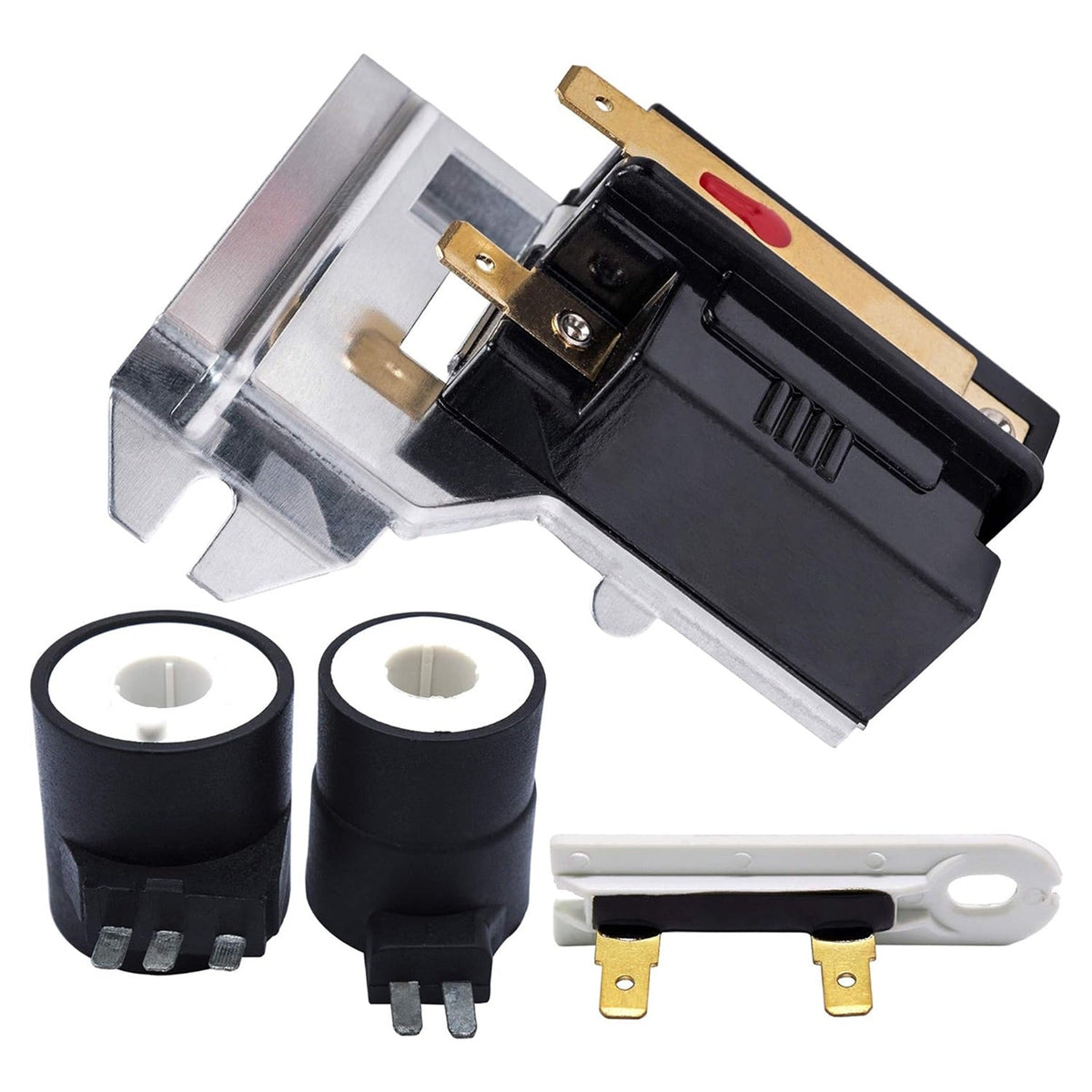

Dryer repair kit with flame sensor, two gas valve ignition solenoid coils, and thermal fuse for Whirlpool and Kenmore.

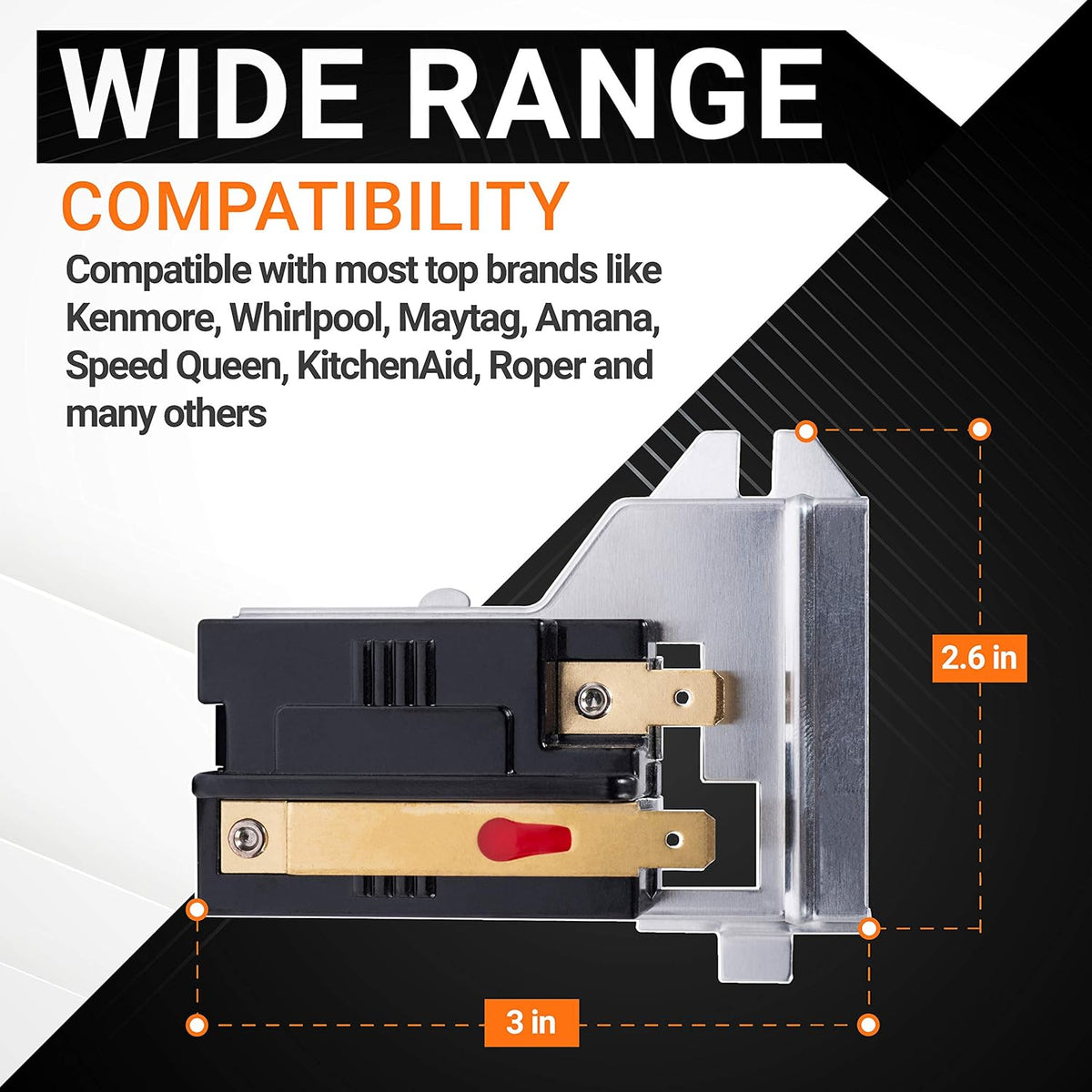

Dryer flame sensor 338906 with 3-inch by 2.6-inch dimensions for Whirlpool, Maytag, and Kenmore dryers.

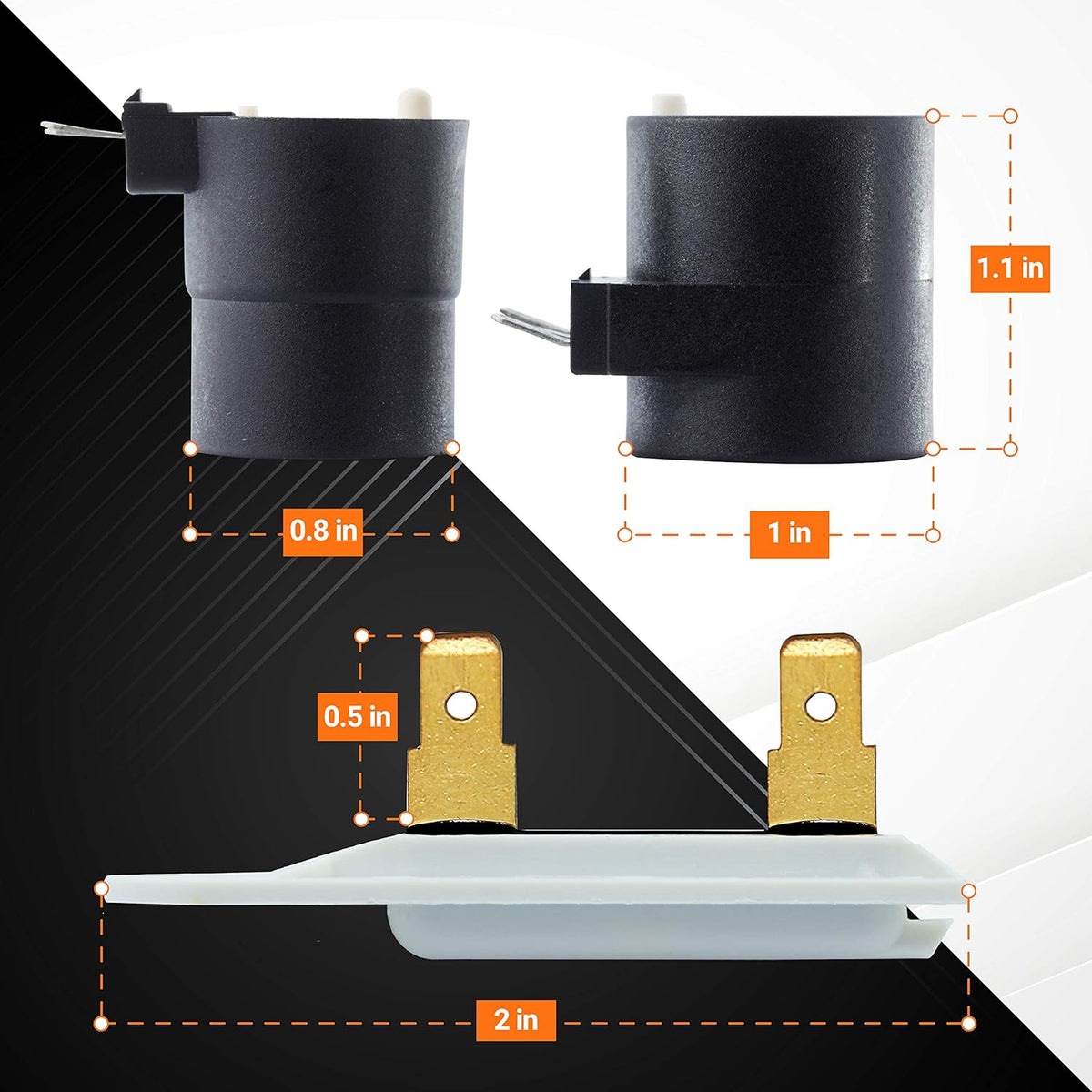

Dimensional diagram of dryer gas valve ignition solenoid coils and thermal fuse with measurements.
White clothes dryer with BlueStars branding showing common repair symptoms for Whirlpool, Maytag, and Kenmore dryers.
Gas valve ignition solenoid coils and dryer flame sensor for Whirlpool, Maytag, and Kenmore dryers.

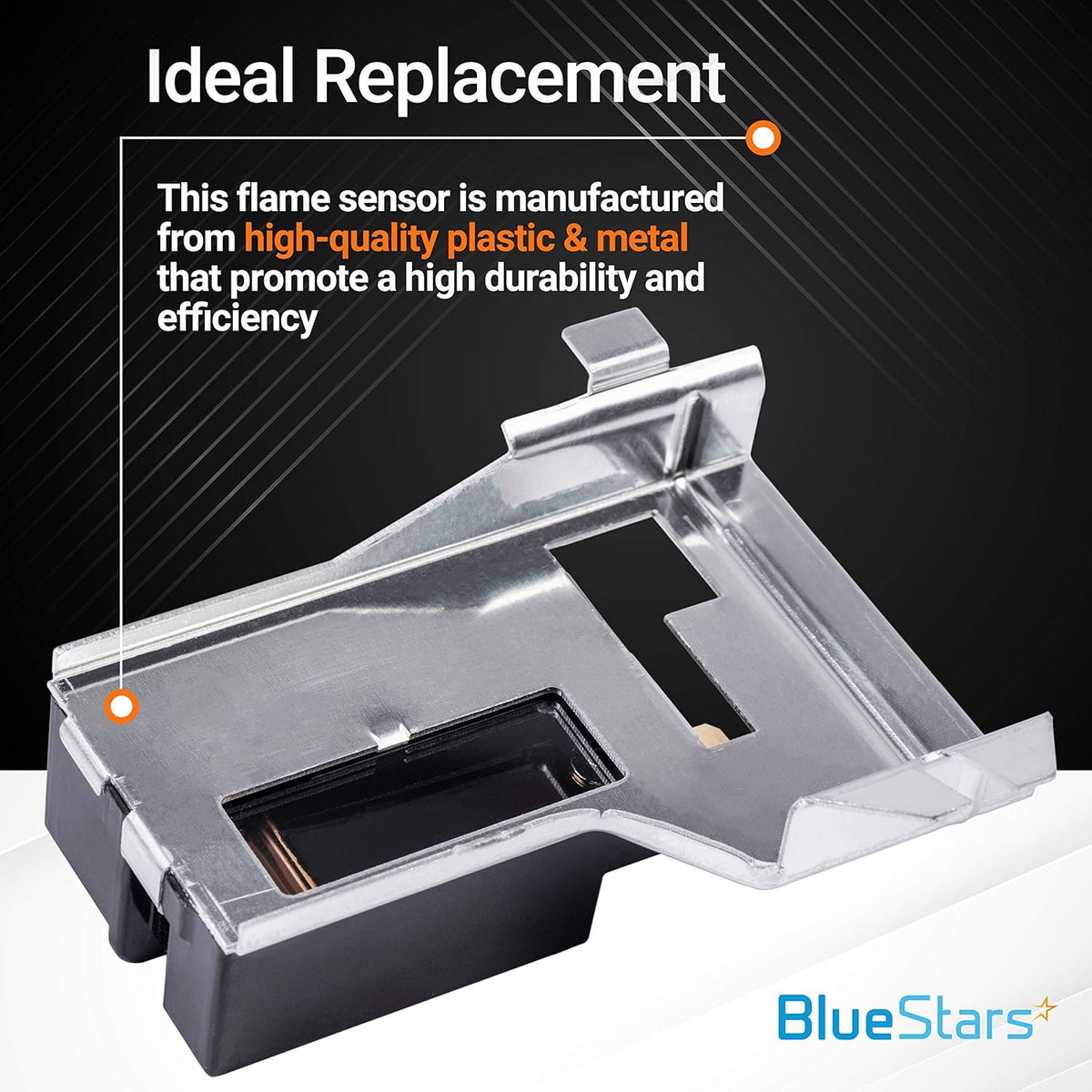

Close-up of 338906 dryer flame sensor replacement part with metal bracket and plastic housing.
Woman holding a green towel in front of a dryer, promoting BlueStars DIY dryer repair solutions.
Dryer repair kit with flame sensor, two gas valve ignition solenoid coils, and thermal fuse for Whirlpool and Kenmore.
Dryer flame sensor 338906 with 3-inch by 2.6-inch dimensions for Whirlpool, Maytag, and Kenmore dryers.
Dimensional diagram of dryer gas valve ignition solenoid coils and thermal fuse with measurements.
White clothes dryer with BlueStars branding showing common repair symptoms for Whirlpool, Maytag, and Kenmore dryers.
Gas valve ignition solenoid coils and dryer flame sensor for Whirlpool, Maytag, and Kenmore dryers.
Close-up of 338906 dryer flame sensor replacement part with metal bracket and plastic housing.
Woman holding a green towel in front of a dryer, promoting BlueStars DIY dryer repair solutions.
Lifetime Warranty

338906 Dryer Flame Sensor & 279834 Gas Valve Ignition Solenoid Coil Kit & 3392519 Thermal Fuse

Save 13%
0.00
$31.38
$36.09
$31.38
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

338906 Dryer Flame Sensor & 279834 Gas Valve Ignition Solenoid Coil Kit & 3392519 Thermal Fuse

Key Features

  • Complete three-piece kit to address common gas dryer heating issues.
  • Kit includes: 1 x 338906 Flame Sensor, 1 x 279834 Gas Valve Solenoid Coil Set, 1 x 3392519 Thermal Fuse.
  • The flame sensor detects heat from the igniter, signaling the gas valve to open.
  • The solenoid coils control the opening and closing of the gas valve.
  • The thermal fuse is a non-resettable safety device that shuts off the dryer in case of overheating.

Replaces / Cross-Reference Part Numbers

  • 338906 Flame Sensor: WP338906
  • 279834 Gas Valve Coils: AH334310, EA334310, PS334310, 12001349, AP3094251
  • 3392519 Thermal Fuse: 3388651, WP3392519VP, AP6008325, PS11741460

Compatibility & Fitment

  • Fits a wide range of gas dryers manufactured by brands including Whirlpool, Maytag, and Kenmore.
  • Designed to meet or exceed original equipment manufacturer specifications for fit and function.

When to Replace

  • Dryer fails to heat or heats intermittently.
  • Dryer starts heating but shuts off before the cycle completes.
  • Clothes take significantly longer than usual to dry.
  • Dryer will not start.

Installation Tips

  • Disconnect the dryer from both power and gas supply before beginning any repairs.
  • Photograph wiring connections before removing the old components for reference.
  • It is recommended to replace all three components in this kit at the same time for a comprehensive repair.
  • After installation, check for gas leaks at the connection points before operating the dryer.
Product image 1
Product image 2
  • 338906 Dryer Flame Sensor

    338906 Dryer Flame Sensor

    Replaces part numbers: 14205529, 14210083, 14218928, 303377, WP338906, 35001096, 56231, 63-5013, AP6008294, DC32-00008A, R0611503, WP338906VP, Y303377, Y56231, PS11741429, EAP11741429, DE353, K35-194.
  • 279834 Dryer Gas Valve Ignition Solenoid Coil Kit

    279834 Dryer Gas Valve Ignition Solenoid Coil Kit

    Replaces part numbers: 12001349, 14201336, 14201452, 14202750, 14205025, 14210032, 14210725, 14210908, 279834, 279834, 279834BULK, 279834VP, 306105, 306106, 3479, 3-6105, 3-6106, 58804A, 58804B, 63-6614, 63-6615, 694539, 694540, AP3094251, F91-3889, F91-3890, K35-288, K35-355, K35-450, R0610003, R0610050, SCA700.
  • 3392519 Dryer Thermal Fuse

    3392519 Dryer Thermal Fuse

    Replaces part numbers: AP6008325, 3388651, WP3392519, 694511, 80005, WP3392519VP, PS11741460.
  • Saving Solution

    Saving Solution

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.
Brand Model Number
Admiral ADG20K2A, ADG20K2H, ADG20K2W, ADG20K3A, ADG20K3H, ADG20K3W, ADG20K4A, ADG20K4H, ADG20K4W, ADG20L1A, ADG20L1H, ADG20L1W, ADG20L2A, ADG20L2H, ADG20L2W, ADG20L4A, ADG20L4H, ADG20L4W, ADG20M3V, ADG20N3V, ADG7000AWW, ADG9000AWW, AGD4370TQ0, AGD4470TQ0, AGD4475TQ0, AGD4475TQ2, AGD4675YQ0, AGD4675YQ2, AGD4675YQ3, AYG1000AWW, AYG1200AWA, AYG1200AWW, AYG2200AGW
Amana 7493-LEM437, 7MNGH8000TQ0, 7MNGH8000TT0, ALG120RAW, ALG230RAW, ALG230RCW, ALG331RAC, ALG443RAW, ALG565SAC, ALG565SAW, ALG643RAC, ALG643RAW, ALG643RBC, ALG643RMC, ALG643RMW, CG8409W, CG8409W2, NDG2335AWW, NDG7800AWW
Crosley CDG20C7, CDG20C7A, CDG20C7H, CDG20M6, CDG20M6A, CDG20M6H, CDG20M8, CDG20M8A, CDG20P6A, CDG20P6AC, CDG20P6HC, CDG20P6W, CDG20P6WC, CDG20P7A, CDG20P7AC, CDG20P7W, CDG20P7WC, CDG20P8A, CDG20P8AC, CDG20P8D, CDG20P8DC, CDG20P8HC, CDG20P8W, CDG20P8WC, CDG20R7A, CDG20R7AC, CDG20R7H, CDG20R7W, CDG20R7WC, CDG20T6A, CDG20T7A, CDG20T7W, CDG20T8A, CDG20T8V, CDG20T8W, CDG22B6M, CDG22B6V, CDG22B7M, CDG22B7V, CDG22B8M, CDG22B8V, CDG4205AWJ, CDG4205AWW, CDG6000A, CDG6000Q, CDG6000W, CDG6500Q, CDG6500W, CDG6505W, CDG7000W, CDG7500Q, CDG7500W, CDG9500W, CDG9505W, CGD126SBW0, CGD126SBW1, CGD126SBW2, CGD126SDW0, CGD126SDW1, CGD126SDW2, CGD126SDW3, CGD126SXQ0, CGD126SXQ1, CGD126SXQ2, CGD137HXW0, CGD137SBW1, CGD137SDW0, CGD137SDW1, CGD137SDW2, CGD137SDW3, CGD137SXQ0, CGD137SXQ1, CGD147HXW0, CGD147SBW1, CGD147SDW0, CGD147SDW1, CGD147SDW2, CGD147SDW3, CGDS1043VQ0, CGDS1043VQ1, CGDS563MQ0, CGDS563MQ1, CGDS563RB1, CGDS563RQ0, CGDS563RQ1, CGDS563SQ0, CGDS563ST0, CGDS663SB0, CGDS663SQ0, CGDS774JQ0, CGDS774JQ1, CGDS774MQ0, CGDS774MQ1, CGDS832VQ0, CGDS832VQ1, CGDS984RQ0, CGDS984RQ1, CGDX463JQ0, CGDX463JQ1, CGDX463JQ2, CGDX463MQ1, CGDX463RQ0, CGDX463RQ1, CGDX463RT0, CGDX463RT1, CGDX463SQ0, CGDX563JQ0, CGDX563JQ1, CGDX563JQ2, CGDX631VQ1
Kenmore 7MDKG1501WQ0, 7MKGDS400DW0, 11072332512, 11097565120, 99937CE, 99937CG, 99937EG, 99965CG, 999L30XG
KitchenAid KGHS01PMT1, KGYE660WWH1, KGYE677BWH2
Maytag 7MMGD0100TQ0, 7MMGD0100TQ1, 7MMGD0600TB0, 7MMGD0600TB1, 7MMGD6630TM0, 7MMGD6630TM1, 7MMGD6630TQ0, 7MMGD6630TQ1, 7MMGDB835EW0, 7MMGDB850WL0, 7MMGDB850WL1, 7MMGDB855EC0, 7MMGDB855EC1, 7MMGDB855EC2, 7MMGDB950AG0, 7MMGDB950AG1, 7MMGDC300BW0, 7MMGDC300DW0, 7MMGDC300DW1, 7MMGDC300DW2, 7MMGDC300DW3, 7MMGDC300YW0, 7MMGDC300YW1, 7MMGDC300YW3, 7MMGDC400DW0, 7MMGDC400DW1, 7MMGDC400DW2, 7MMGDC400DW3, 7MMGDC410AW0, 7MMGDC410AW2, 7MMGDC410BW0, 7MMGDX550XW0, 7MMGDX550XW1, 7MMGDX600BW0, 7MMGDX655EW0, 7MMGDX655EW1, 7MMGDX700BG0, 7MMGDX700YL0, 7MMGDX700YL1, 7MMGE7973TW0, 7MMGE7973TW1, 7MMGE9959TB0, 7MMGE9959TW0, 7MMGL6741TW0, 7MMGL6741TW1, 7MMGM0100VW0, 7MMGM0110WW0, 7MMGP0030VQ0, 7MMGP0035WQ0, 7MMGP0070VM0, 7MMGP0075WW0, 7MWGD1602AW0, AYG2200AGW, DG212, DG7400, DG810, DG9700, GDG210, GDG212, GDG8000, GDG882, HYG3460AWW, HYG3658AWW, LDG5004AAW, LDG612, LDG7800, LDG7800AAL, LDG7800AAW, LDG7800ABL, LDG7800ABW, LDG8410AAW, LDG8904AAE, LDG9206AAE, LDG9804AAE, MDG28PDCGW0, MDG28PDCWW0, MDG28PDCXW0, MDG28PNCGW0, MDG28PRCWW0, MDG7657AWW, MGD3500FW0, MGD5500FC0, MGD5500FW0, MGD5830TW0, MGD6000AG1, MGD6000AW1, MGD6000XG0, MGD6000XG1, MGD6000XR1, MGD6000XR2, MGD6300TQ0, MGD6400TB0, MGD6400TQ0, MGD7000AW0, MGD7000AW1, MGD7000XR1, MGD7100DC0, MGD7100DC1, MGD7100DW0, MGD7100DW1, MGD8000AG0, MGD8000AG1, MGD8000AW0, MGD8000AW1, MGD8100DC0, MGD8100DC1, MGD8100DW0, MGD8100DW1, MGD9000YG0, MGD9000YG1, MGD9000YG2, MGD9000YR0, MGD9000YR1, MGD9000YW0, MGD9000YW2, MGD9700SB0, MGD9800TK0, MGDB200VQ1, MGDB400VQ0, MGDB400VQ1, MGDB700BW0, MGDB700VQ0, MGDB750YW0, MGDB750YW1, MGDB750YW2, MGDB750YW3, MGDB755DW0, MGDB755DW2, MGDB800VB0, MGDB835DW0, MGDB835DW1, MGDB835DW2, MGDB850WB0, MGDB850WB1, MGDB850WL1, MGDB850WQ0, MGDB850WQ1, MGDB850WR0, MGDB850WR1, MGDB850YG0, MGDB850YG1, MGDB850YG2, MGDB850YG3, MGDB850YW0, MGDB850YW1, MGDB850YW2, MGDB850YW3, MGDB855DC0, MGDB855DW0, MGDB880BW0, MGDB950YG0, MGDB950YG1, MGDB950YG2, MGDB950YG3, MGDB950YW0, MGDB950YW1, MGDB950YW2, MGDB950YW3, MGDB980BG0, MGDB980BW0, MGDC200XW0, MGDC200XW1, MGDC200XW4, MGDC215EW0, MGDC215EW1, MGDC300BW0, MGDC300BW1, MGDC400BW0, MGDC400BW1, MGDC400BW2, MGDC415EW0, MGDC415EW1, MGDC500VW0, MGDC500VW1, MGDC555DW1, MGDC555DW2, MGDP475EW0, MGDX500BW0, MGDX500BW1, MGDX500BW2, MGDX500XL0, MGDX500XL1, MGDX500XW0, MGDX500XW1, MGDX500XW2, MGDX550XW0, MGDX550XW1, MGDX5SPAW0, MGDX600XL0, MGDX600XL1, MGDX600XW0, MGDX600XW1, MGDX600XW2, MGDX655DW1, MGDX6STBW0, MGDX6STBW1, MGDX700AG0, MGDX700AG1, MGDX700XL0, MGDX700XL1, MGDX700XL2, MGDX700XW0, MGDX700XW1, MGDX700XW2, MGDZ400TQ1, MGDZ600TB1, MGDZ600TB2, MGDZ600TE2, MGDZ600TK2, MGDZ600WR0, MHG15PDAEW, MLG23PDHWW, MUE2000AYM, MUE2000AYW, MUE2000AZW, MUG2000AWW, SDG305DAWW, SDG4606AWW
Roper 7MRGX4634MQ0, 7MRGX4634MQ1
Speed Queen AG4119, AG4219, AG5119, AG5219, AG7139, AG7239, AG9139, AG9239
Whirlpool 7EWGD1510YM0, 7EWGD1510YM1, 7MGGQ9800ML0, 7MGGQ9800PL0, 7MGGQ9800PL1, 7MGGW9200MW0, 7MGGW9200MW1, 7MGGW9200MW2, 7MGGW9200MW3, 7MGGW9868KL1, 7MGGW9868KQ1, 7MGGX9868JQ1, 7MGGX9868JQ2, 7MGX4626EZ0, 7MLGC9545JQ0, 7MLGC9545JQ1, 7MLGC9545JQ4, 7MLGC9545JQ5, 7MLGC9545PW0, 7MLGC9900PW0, 7MLGD8900PW0, 7MLGQ8000JQ0, 7MLGQ8000JQ1, 7MLGQ8000JQ4, 7MLGQ8000JQ5, 7MLGQ8000PW0, 7MLGQ8857JQ1, 7MLGQ8857JQ4, 7MLGQ8857JQ5, 7MLGQ8857JQ6, 7MLGQ8857JT1, 7MLGQ8857JT4, 7MLGQ8857JT5, 7MLGQ8857JT6, 7MLGQ8857PQ0, 7MLGQ8857PT0, 7MLGR3624JQ3, 7MLGR3624JQ4, 7MLGR3624JT3, 7MLGR3624JT4, 7MLGR4634JQ3, 7MLGR4634JQ4, 7MLGR4634JT3, 7MLGR4634JT4, 7MLGR4634PQ0, 7MLGR4634PT0, 7MLGR5620PQ0, 7MLGR5620PT0, 7MLGR7620MW0, 7MLGR7620MW1, 7MLGR7648MQ0, 7MLGR7648MQ1, 7MLGR7648MT0, 7MLGR7648MT1, 7MLGR7648PG0, 7MLGR7648PQ0, 7MLGR7648PT0, 7MLGR7648PW0, 7MLGR8620PW0, 7MLGR8620PW1, 7MLTG8234PQ1, 7MMGDC300BW0, 7MMGDC410BW0, 7MWG44500ST0, 7MWG445500SQ0, 7MWG45500SQ0, 7MWG45500SQ1, 7MWG45500ST0, 7MWG45500ST1, 7MWG66007XQ0, 7MWG66700SQ0, 7MWG66700SQ1, 7MWG66700ST0, 7MWG66700ST1, 7MWG66705WM0, 7MWG66705WM1, 7MWG66705WT0, 7MWG66705WT1, 7MWG66720SM0, 7MWG66720SN0, 7MWG66725WW0, 7MWG66725WW1, 7MWG66740SG0, 7MWG66740SM0, 7MWG66740SW0, 7MWG66800WQ0, 7MWG77900SB0, 7MWG77900SW0, 7MWG87600SM0, 7MWG87640SW0, 7MWG87660SM0, 7MWG99930VH0, 7MWG99930VW0, 7MWGD1500AQ0, 7MWGD1500AQ2, 7MWGD1501AW0, 7MWGD1600BM0, 7MWGD1600BM1, 7MWGD1600BM2, 7MWGD1600BM3, 7MWGD1600DQ0, 7MWGD1600DQ1, 7MWGD1601AW0, 7MWGD1601AW2, 7MWGD1601AW3, 7MWGD1602AW0, 7MWGD1750EQ1, 7MWGD1800EM1, 7MWGD1850EI1, 7MWGD1860EM0, 7MWGD1950EI1, 7MWGD2150EN1, 7MWGD8000EW2, 7MWGD81HEDW0, 7MWGD8500EC0, 7MWGD8500EC1, 7MWGD8500EC2, 7MWGD8500SR0, 7MWGD8500SR1, 7MWGD87HEDC0, 7MWGD87HEDC1, 7MWGD8800AW0, 7MWGD8800AW1, 7MWGD9014YQ0, 7MWGD9014YQ1, 7MWGD9015YW0, 7MWGD9015YW1, 7MWGD9016YM0, 7MWGD90HEFC0, 7MWGD90HEFW0, 7MWGD9150XW0, 7MWGD9150XW1, 7MWGD9150XW2, 7MWGD9150XW3, 7MWGD9200TQ0, 7MWGD9200TQ1, 7MWGD9270XL0, 7MWGD9270XL1, 7MWGD9270XR0, 7MWGD9270XR1, 7MWGD9400TU0, 7MWGD9400TU1, 7MWGD9400TU2, 7MWGD95HEDU0, 7MWGD97HDBD0, 7MWGD9919EM0, 7MWGD9919EM1, 7MWGT3300EQ0, 8BLGR5636JQ0, 8BLGR5636JQ1, 8LGC7858AN0, 8LGC7858AN2, 8LGR5636FQ0, 8LGR5636FQ1, BSG17B6ANA0, BSG17BVANA0, BSG17CCANA0, BYCD3723W0, BYCD3723W1, BYCD3723W2, BYCD4933W0, CG2501XMW0, CG2501XMW1, CG2951XSW0, CG2951XSW1, CG2951XSW2, CG2951XSW3, CG2951XYG1, CG2951XYG2, CG2951XYG3, CG2951XYN1, CG2951XYN2, CG2951XYN3, CG2951XYW0, CG2951XYW1, CG2951XYW2, CG2951XYW3, CG2951XYW4, CGD8990XW0, CGD8990XW1, CGD8990XW2, CGD9050AW0, CGD9050AW1, CGD9060AW0, CGD9060AW1, CGE2761KQ0, CGE2761KQ1, CGE2761KQ2, CGE2791KQ0, CGE2791KQ1, CGE2791KQ2, CGE2991AG1, CGE2991AG2, CGE2991AG3, CGE2991AN1, CGE2991AN2, CGE2991AN3, CGE2991AW1, CGE2991AW2, CGE2991AW3, CGE2991EW0, CGE2991EW1, CGM2751KQ3, GGQ8858HQ0, GGW9200LW2, GGW9250PL1, GGW9250PW2, GGW9260PL2, GGW9868KQ0, GGW9868KQ2, GGW9868KQ3, GGW9868KQ4, GGW9868KQ5, GGX9868JQ2, LG5701XSW0, LG7801XMW2, LGB6000KQ1, LGC7848DQ0, LGC9000PW0, LGQ8000HQ0, LGQ8611LW1, LGQ8858HQ0, LGQ9508PW0, LGR3624EQ2, LGR5636EQ0, LGR5644JQ0, LGR6611LQ0, LGT7646EQ2, WGD5550SQ0, WGD5800BW0, WGT3300SQ2
Manufacturer
‎BlueStars
Part Number
‎338906 & 279834 & 3392519
Package Dimensions
‎4.76 x 2.99 x 1.85 inches
Color
‎As Pictured
Included Components
‎338906 Dryer Flame Sensor, 279834 Dryer Gas Valve Ignition Solenoid Coil Kit, 3392519 Dryer Thermal Fuse

FAQ

The most common symptom is a dryer that runs but fails to produce heat. If you notice the igniter glows orange but then goes out without the gas burner igniting, the gas valve solenoid coils (279834) are likely failing. If the dryer does not start at all, the thermal fuse (3392519) is often the culprit, as it is designed to blow if the dryer overheats. The flame sensor (338906) is responsible for detecting the heat from the igniter; if it is faulty, the gas valve will not receive the signal to open.
This kit is compatible with a wide range of gas dryers manufactured by Whirlpool, Maytag, Kenmore, Roper, KitchenAid, and Estate. It is designed to fit most standard gas dryer configurations that utilize these specific part numbers.
Installation is generally considered a moderate DIY task. You will typically need a 1/4-inch nut driver, a flat-head screwdriver, and a Phillips-head screwdriver to access the internal components. Depending on your specific dryer model, you may need to remove the front or back panel to reach the gas valve assembly and the thermal fuse. Most repairs can be completed in 30 to 60 minutes.
Yes. Always disconnect the dryer from the power source and turn off the gas supply line before beginning any repairs. Additionally, because the thermal fuse is a safety device, ensure you have cleared any lint buildup from your dryer vent and exhaust ducting, as restricted airflow is the primary cause of thermal fuse failure.
This kit replaces several OEM numbers. The flame sensor (338906) replaces WP338906, 303377, and 14205025. The gas valve solenoid kit (279834) replaces 12001349, 694540, and AP3094251. The thermal fuse (3392519) replaces DC32-00008A, 306105, and various other universal thermal fuse applications.
While you can replace only the part that has failed, many technicians recommend installing the full kit if you are already inside the machine. Because these components work in tandem within the heating circuit, replacing them together can prevent future service calls and ensure the entire ignition system is functioning reliably.
