Whirlpool Brand DC97-07509B DC93-00634A Idler Pulley Wheel for Samsung Amana Maytag Kenmore

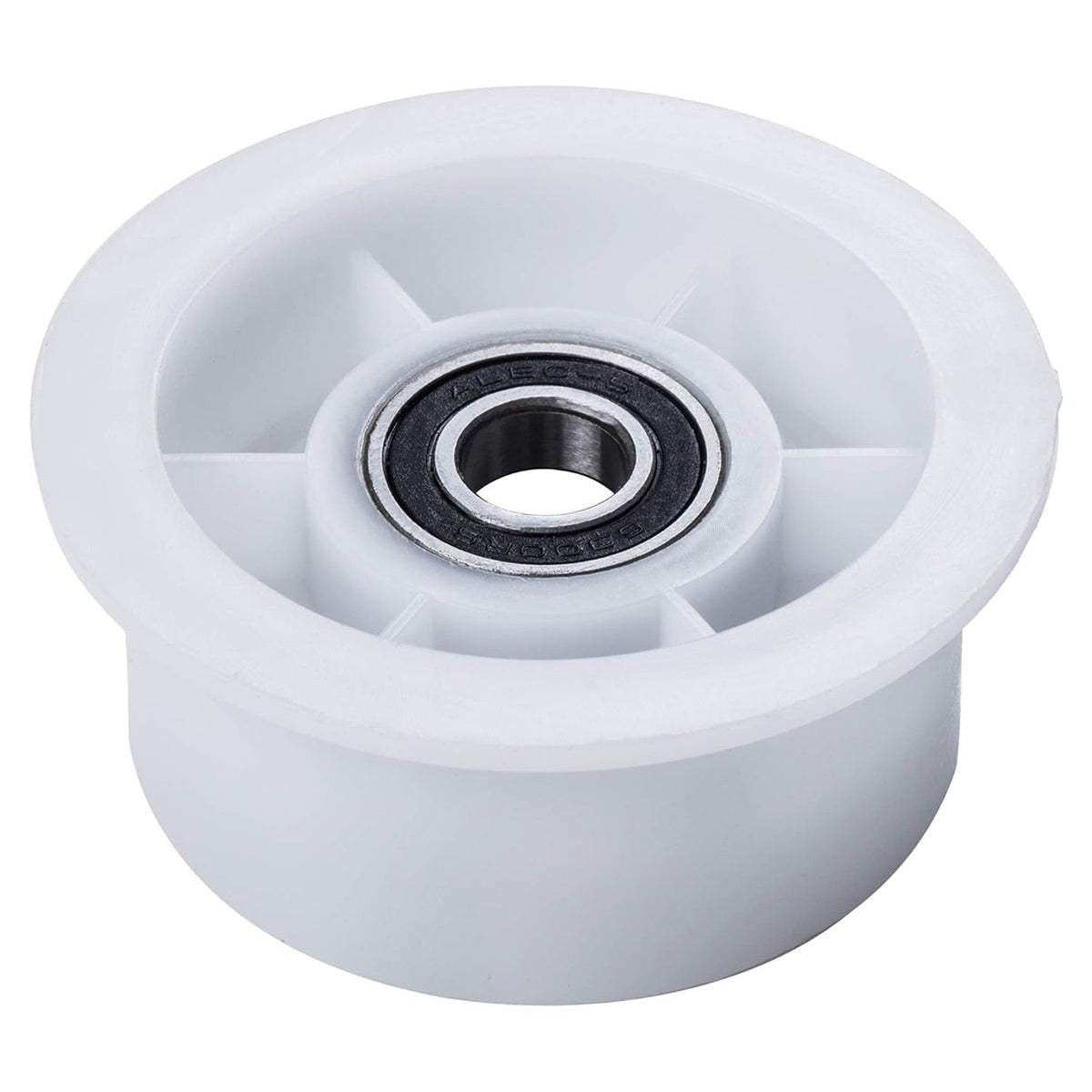

White plastic dryer idler pulley wheel replacement for Samsung, Amana, Maytag, and Kenmore dryers.

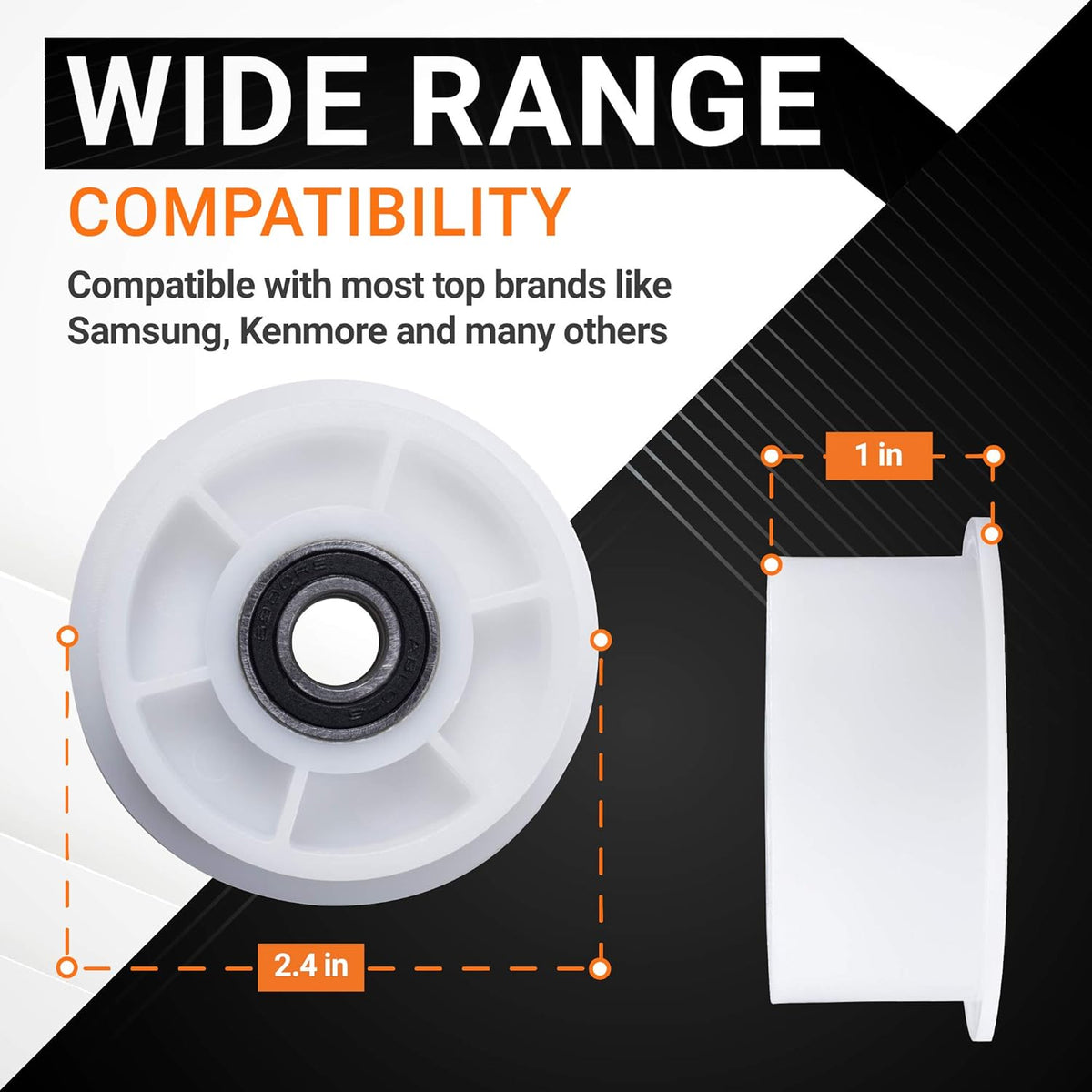

Dimensional diagram of DC97-07509B dryer idler pulley wheel showing 2.4-inch diameter and 1-inch width.
White clothes dryer showing symptoms fixed by the DC97-07509B idler pulley wheel replacement.

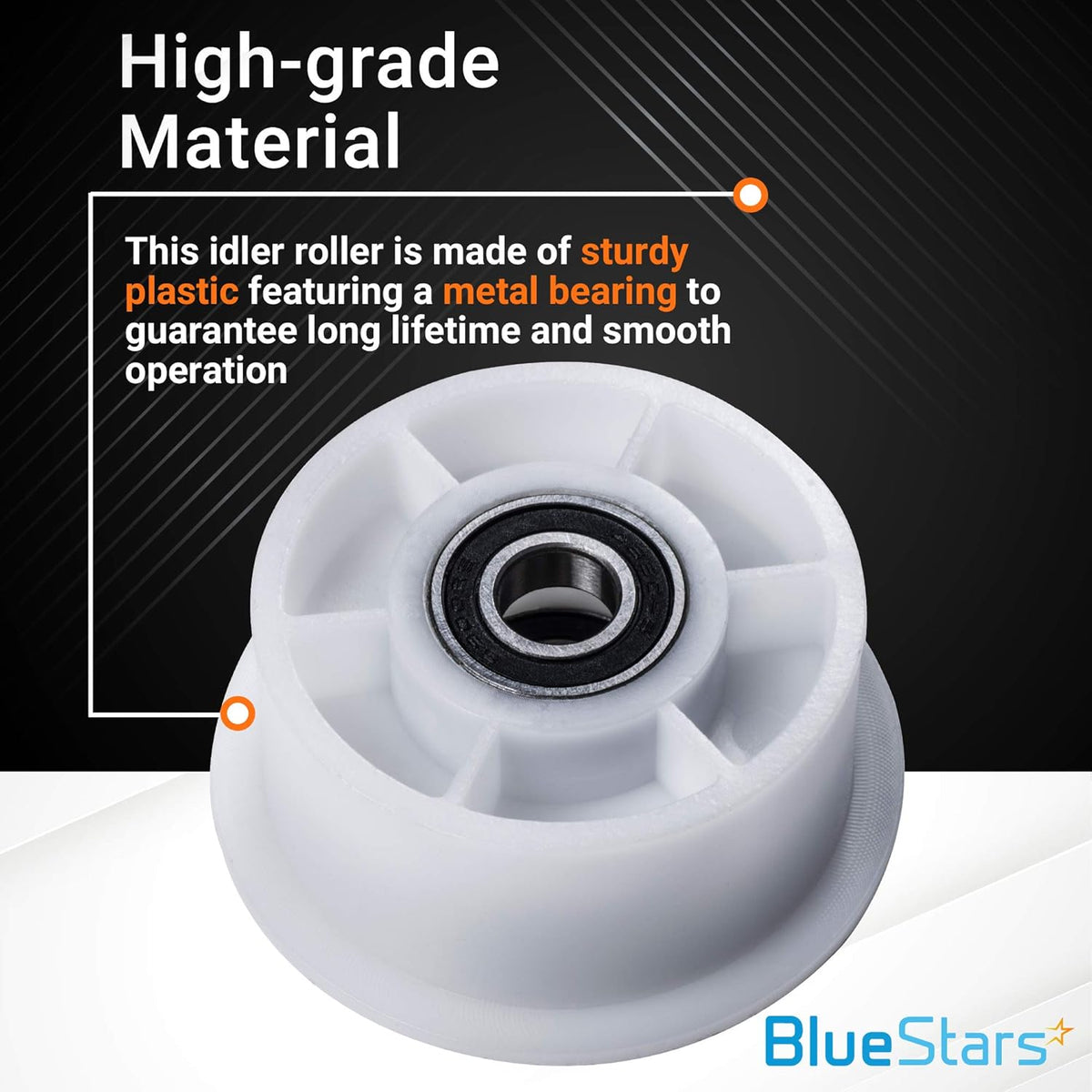

Close-up of white plastic idler pulley wheel with metal bearing for Samsung dryer repair.

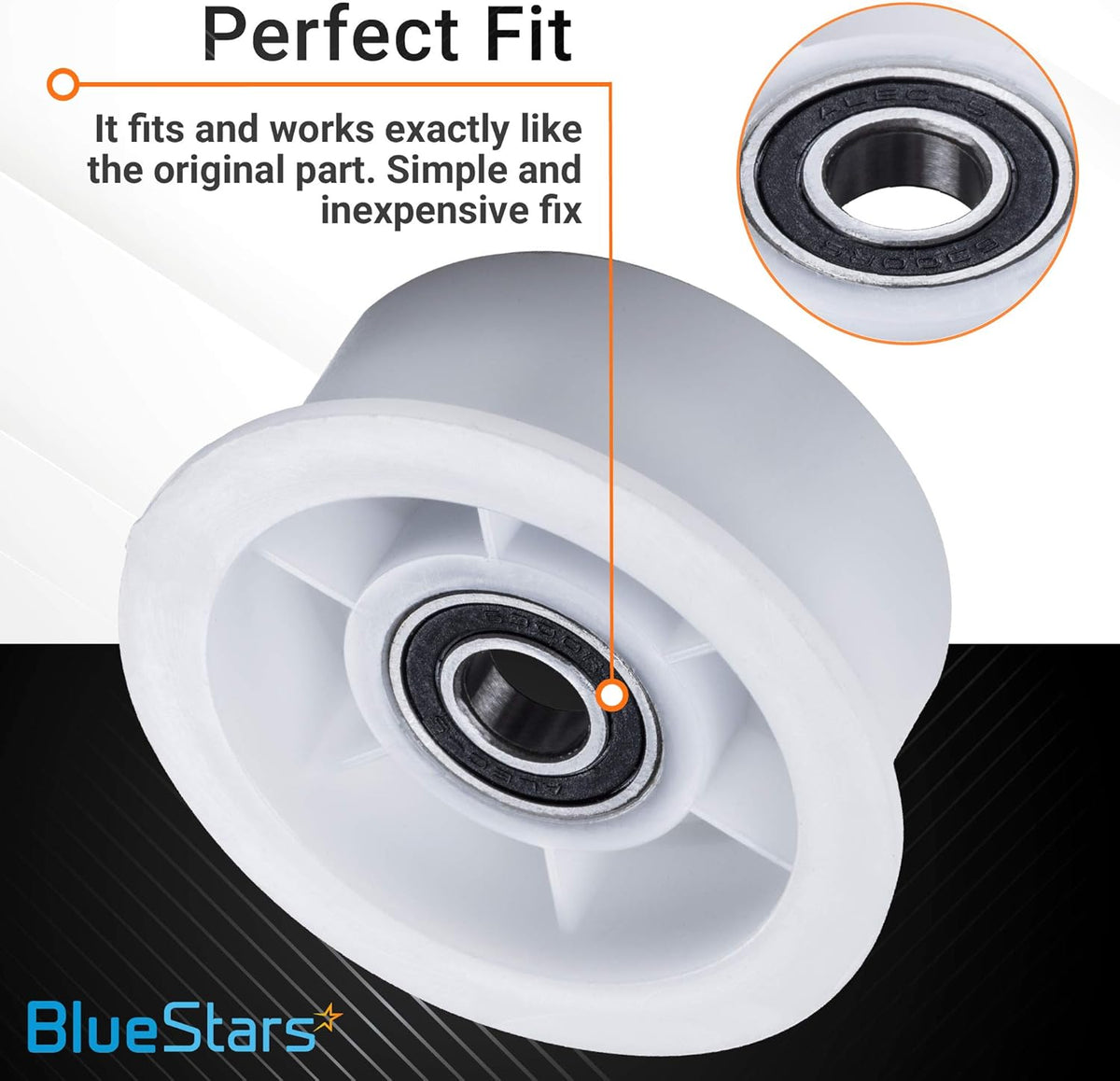

White dryer idler pulley wheel replacement with close-up view of the center bearing for Samsung and Maytag dryers.
Woman holding a green towel in front of a dryer, promoting DIY repair for Samsung, Amana, and Maytag dryer parts.
White plastic dryer idler pulley wheel replacement for Samsung, Amana, Maytag, and Kenmore dryers.
Dimensional diagram of DC97-07509B dryer idler pulley wheel showing 2.4-inch diameter and 1-inch width.
White clothes dryer showing symptoms fixed by the DC97-07509B idler pulley wheel replacement.
Close-up of white plastic idler pulley wheel with metal bearing for Samsung dryer repair.
White dryer idler pulley wheel replacement with close-up view of the center bearing for Samsung and Maytag dryers.
Woman holding a green towel in front of a dryer, promoting DIY repair for Samsung, Amana, and Maytag dryer parts.
Lifetime Warranty

DC97-07509B DC93-00634A Idler Pulley Wheel for Samsung Amana Maytag Kenmore

Save 13%
0.00
$14.01
$16.11
$14.01
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC97-07509B / DC93-00634A Idler Pulley Wheel

Key Features

  • Maintains proper tension on the dryer drum belt for consistent tumbling
  • Durable plastic wheel construction
  • Integrated metal bearing ensures smooth, low-friction rotation
  • Direct replacement for specified original equipment manufacturer (OEM) parts

Replaces / Cross-Reference Part Numbers

  • 4455850
  • AP6038887
  • DC61-01230B
  • DC93-00634A
  • DC96-00882B
  • DC96-00882C
  • EAP11771601
  • PD00032419
  • PS11771601

Compatibility & Fitment

  • Compatible with select dryer models from brands including Samsung, Kenmore, Maytag, and Amana.
  • Fits specific models such as (but not limited to): DV42H5200EP/A3, DV400EWHDWR/AA, DV405ETPASU/AA, and DV48J7770EP/A2-00.
  • Always verify fitment with your dryer's model number before ordering.

When to Replace

  • Dryer produces loud squeaking, grinding, or thumping sounds during operation.
  • The dryer drum struggles to turn or will not turn at all.
  • The drum belt is loose or has repeatedly come off the pulley.
  • Visible signs of damage, wear, or cracking on the existing pulley wheel.

Installation Tips

  • Disconnect the dryer from its power source before beginning the repair.
  • Access the idler pulley by removing the dryer's front or top panel.
  • Release tension on the drum belt to remove it from the old pulley.
  • Secure the new pulley wheel onto the idler arm.
  • Correctly loop the drum belt around the drum, idler pulley, and motor shaft.
  • Manually rotate the drum to ensure the belt is properly aligned and tensioned before reassembly.
Brand Model Number
Replaces 4455850, AP6038887, DC61-01230B, DC93-00634A, DC96-00882B, DC96-00882C, EAP11771601, PD00032419, PS11771601
Kenmore 40289032010, 40289032011, 40289032012, 40299032010, 40299032011, 40299032012, 592-89087, 592-891070, 592-891080
Samsung BED70B/XAC, BED70W/XAC, DV203AES/XAC, DV203AEW/XAA, DV203AEW/XAC, DV203AGS/XAX, DV203AGW/XAA, DV203AGW/XAP, DV203AGW/XAX, DV203AGW/YE, DV206AES/XAA, DV206AGS/XAA, DV206LEW/XAC, DV209AEW/XAA, DV209AEW/XAP, DV209AGW/XAA, DV210AEW/XAA, DV210AEW/XAC, DV210AGW/XAA, DV218AEB/XAA, DV218AEB/XAC, DV218AES/XAC, DV218AEW/XAA, DV218AEW/XAC, DV218AGB/XAA, DV218AGW/XAA, DV219AEB/XAA, DV219AEW/XAA, DV219AGB/XAA, DV219AGW/XAA, DV220AEW/XAA, DV220AEW/XAC, DV220AEW/XAP, DV220AGW/XAA, DV220AGW/XAP, DV221AEG/XAC, DV229AEG/XAC, DV231AEW/XAA, DV231AEW/XAC, DV231AGW/XAA, DV2C6BEW/XAC, DV2C6BGW/XAC
Samsung DV306LEW/XAA, DV306LGW/XAA, DV316BEC/XAA, DV316BEW/XAA, DV316BEW/XAP, DV316BGC/XAA, DV316BGW/XAA, DV316BGW/XAP, DV316BGW/XAX, DV316BGW/YE, DV316HEC/XAA, DV316LEW/XAA, DV316LGS/XAA, DV316LGW/XAA, DV317AEG/XAA, DV317AES/XAA, DV317AEW/XAA, DV317AGG/XAA, DV317AGS/XAA, DV317AGW/XAA
Samsung DV328AEG/XAA, DV328AER/XAA, DV328AEW/XAA, DV328AGG/XAA, DV328AGR/XAA, DV328AGW/XAA, DV330AEB/XAA, DV330AEW/XAA, DV330AGB/XAA, DV330AGW/XAA, DV331AER/XAA, DV331AEW/XAA, DV331AGR/XAA, DV331AGW/XAA, DV337AEG/XAA, DV337AEL/XAA, DV337AER/XAA, DV337AEW/XAA, DV337AGG/XAA, DV337AGL/XAA, DV337AGR/XAA, DV337AGW/XAA, DV338AEB/XAA, DV338AEW/XAA, DV338AGB/XAA, DV338AGW/XAA, DV339AES/XAC, DV339AER/XAC, DV340AEG/XAC, DV340AER/XAC, DV350AEP/XAA, DV350AER/XAA, DV350AEW/XAA, DV350AGP/XAA, DV350AGR/XAA, DV350AGW/XAA
Samsung DV361EWB/EWR, DV363EWB/EUF, DV365ETB/GWR, DV36J4000EW/A2, DV36J4000GW/A2, DV393ETP/ARA, DV393ETP/AWR, DV393GTP/ARA, DV393GTP/AWR, DV395ETP/ARA, DV395ETP/ASU, DV395ETP/AWR, DV3C6BEW/XAC, DV3C6BGW/XAC, DV400EWH/DWR, DV405ETP/ASU, DV405ETP/AWR, DV405GTP/ASU, DV405GTP/AWR, DV407AEW/XAA, DV407AGW/XAA, DV409AER/XAA, DV409AEW/XAA, DV409AGR/XAA, DV409AGW/XAA, DV40J3000EW/A2, DV40J3000GW/A2, DV410AER/XAA, DV410AEW/XAA, DV410AGR/XAA, DV410AGW/XAA
Samsung DV419AEU/XAA, DV419AGU/XAA, DV422EWH/DWR, DV428AEW/XAC, DV431AEW/XAA, DV433ETG/JWR, DV433GTG/JWR, DV435GTG/JRA, DV438AEL/XAA, DV448AEP/XAA, DV448AEW/XAA, DV448AGE/XAA, DV448AGW/XAA, DV455EVG/SGR, DV42H5000EW/A3, DV42H5000GW/A3, DV42H5200EP/A3, DV42H5200EW/A3, DV42H5400EW/A3, DV42H5400GF/A3, DV42H5600EG/A3, DV42H5600EW/A3, DV45H6300EG/A3, DV45H6300EW/A3, DV45H6300GG/A3, DV45H6300GW/A3, DV45H7000EW/A2, DV45K6500EV/A3, DV45K6500GW/A3
Samsung DV48H7400EW/A2, DV50F9A6EV/WA2, DV50F9A7EV/P, DV50F9A7EV/W, DV50K8600EV/A3, DV511AGR/XAA, DV5451AEW/XAA, DV5471AEW/XAA, DV52J8700EP/A2, DV52J8700EW/A2, DV52J8700GP/A2, DV52J8700GW/A2
Color
White / Gray
Material
Plastic / Metal
Pulley Diameter
2-7/16 inches (with lip) / 2-1/16 inches (without lip)
Overall Assembly Dimensions
6 x 1-9/16 x 3-7/8 inches
Item Weight
0.2 lbs

FAQ

This pulley replaces a wide range of OEM part numbers, including DC97-07509B, DC93-00634A, AP6038887, PS11771601, DC61-01230B, DC96-00882B, DC96-00882C, 12002777, 35001083, 35001098, 35001276, 35001221, 35001086, 4455850, AP4210071, AP4373659, AP4213616, PS4216837, and DC61-01215A.
This idler pulley is compatible with dryers manufactured by Samsung, Amana, Maytag, and Kenmore.
You likely need a new idler pulley if your dryer is making a loud squealing, thumping, or grinding noise during operation. Other common signs include the dryer drum failing to spin, the dryer belt slipping or frequently coming off, or the dryer refusing to start because the tension is not being maintained correctly.
Replacing the idler pulley is a moderate repair that typically takes 30 to 60 minutes. You will need basic hand tools, including a screwdriver (usually Phillips head) and potentially a socket set or nut driver to remove the dryer cabinet panels. It is recommended to unplug the dryer and turn off the gas supply (if applicable) before beginning.
Yes, it is highly recommended to inspect the dryer belt and the drum support rollers while you have the unit disassembled. If the belt shows signs of fraying or cracking, replace it at the same time to avoid having to open the machine again in the near future. Checking the rollers for smooth rotation is also a good practice to ensure quiet operation.
The idler pulley is a high-wear component that maintains constant tension on the drive belt. Over time, the internal bearings can wear out due to heat and friction, or the wheel surface can develop flat spots. Once the bearing begins to seize or wobble, it creates significant noise and can eventually cause the belt to snap.
