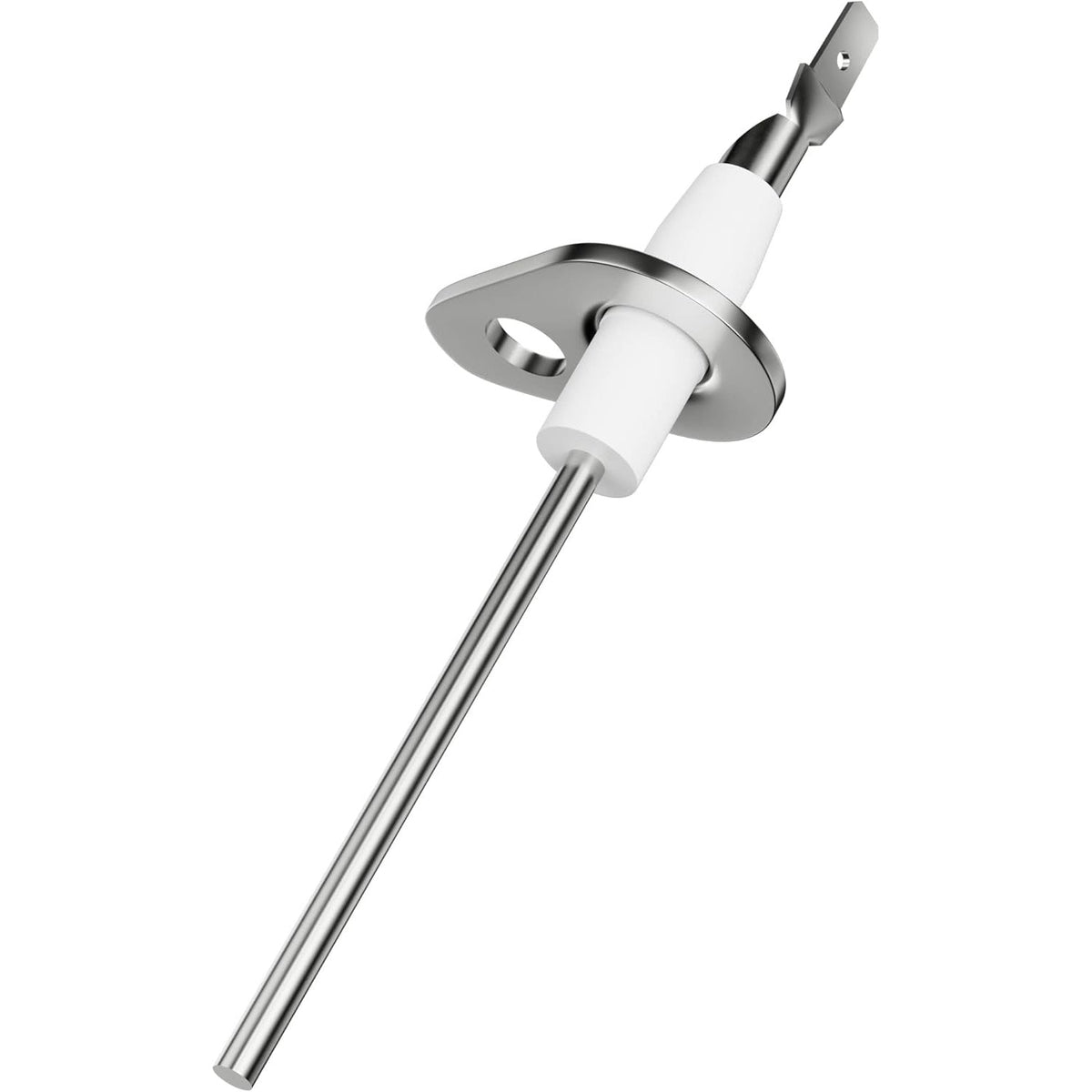

0130F00010 furnace flame sensor with metal rod, white ceramic insulator, and mounting bracket.

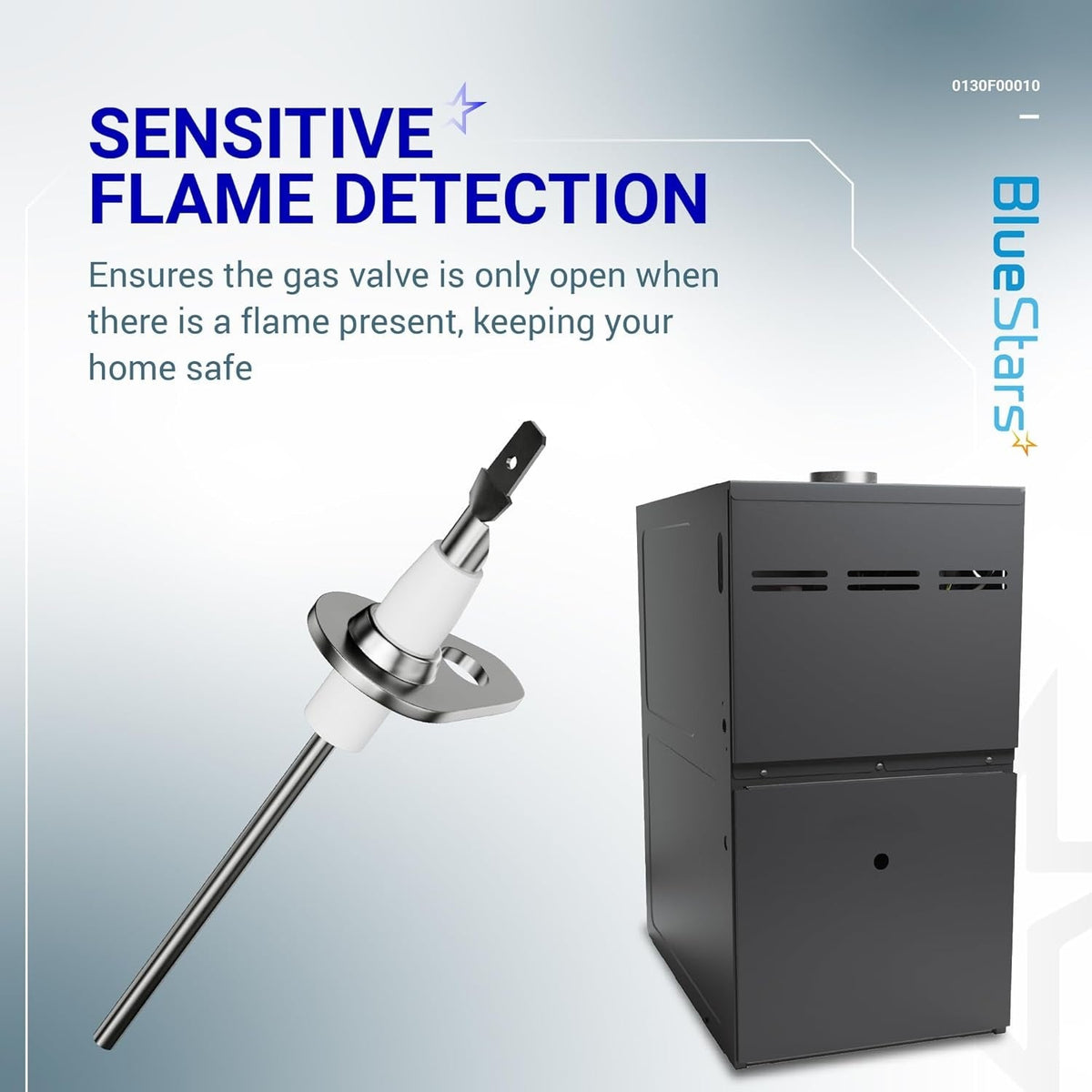

0130F00010 furnace flame sensor with mounting bracket and furnace unit for sensitive flame detection.

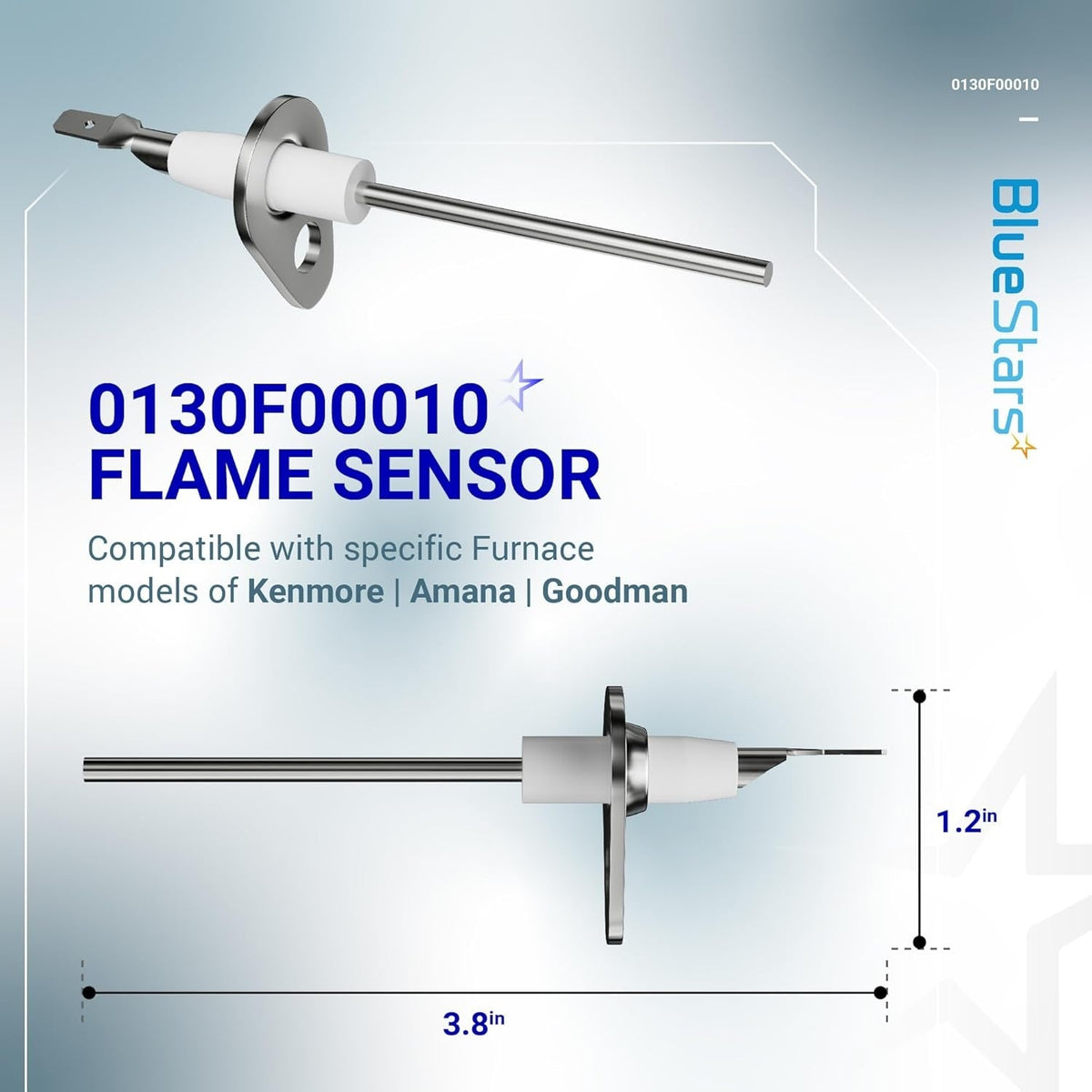

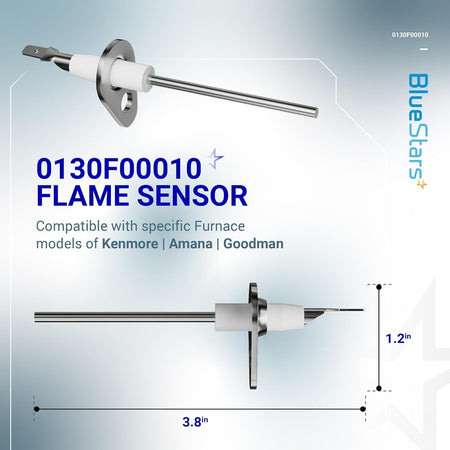

0130F00010 furnace flame sensor showing dimensions and compatible furnace brands.

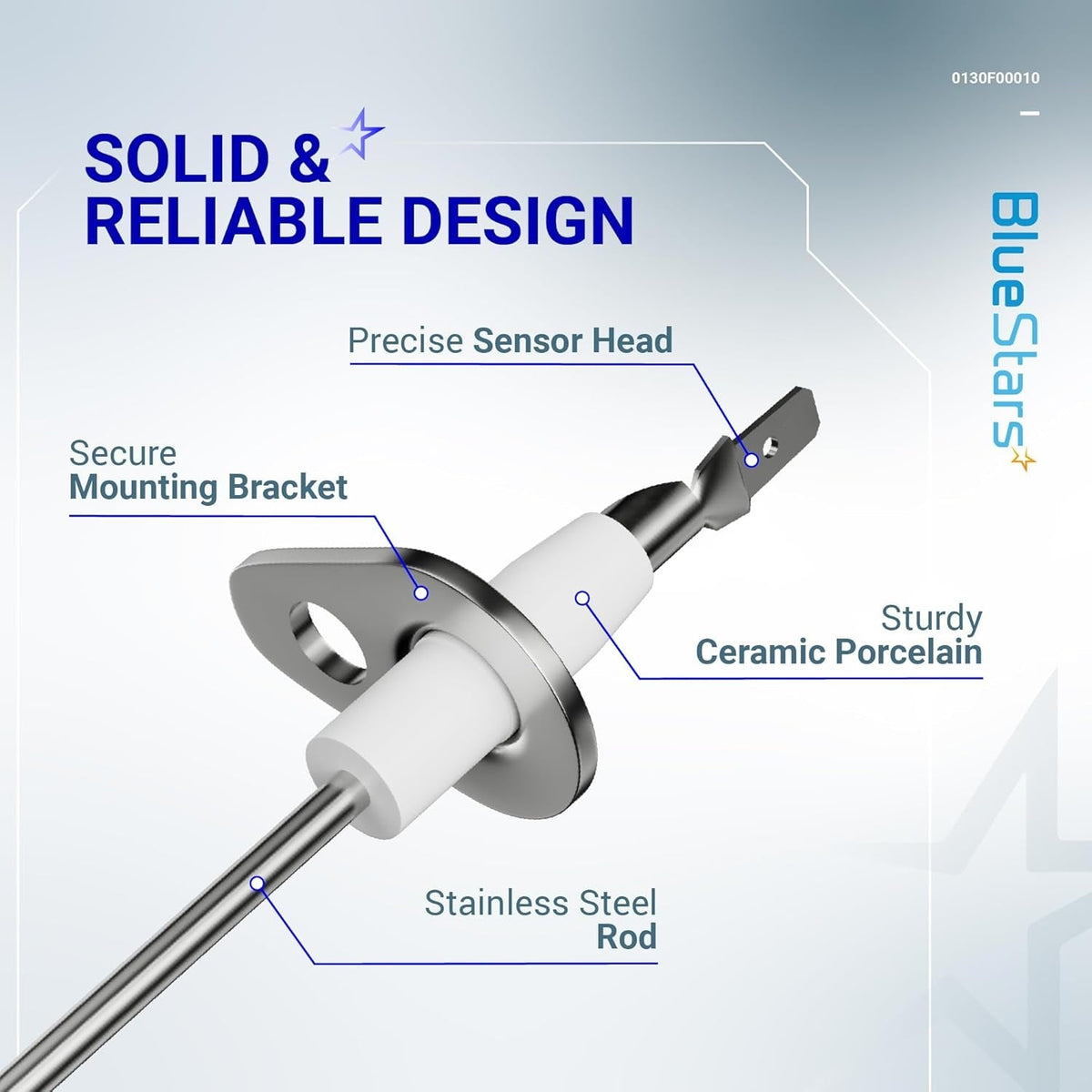

Diagram of 0130F00010 furnace flame sensor showing mounting bracket, ceramic porcelain, sensor head, and stainless steel rod.

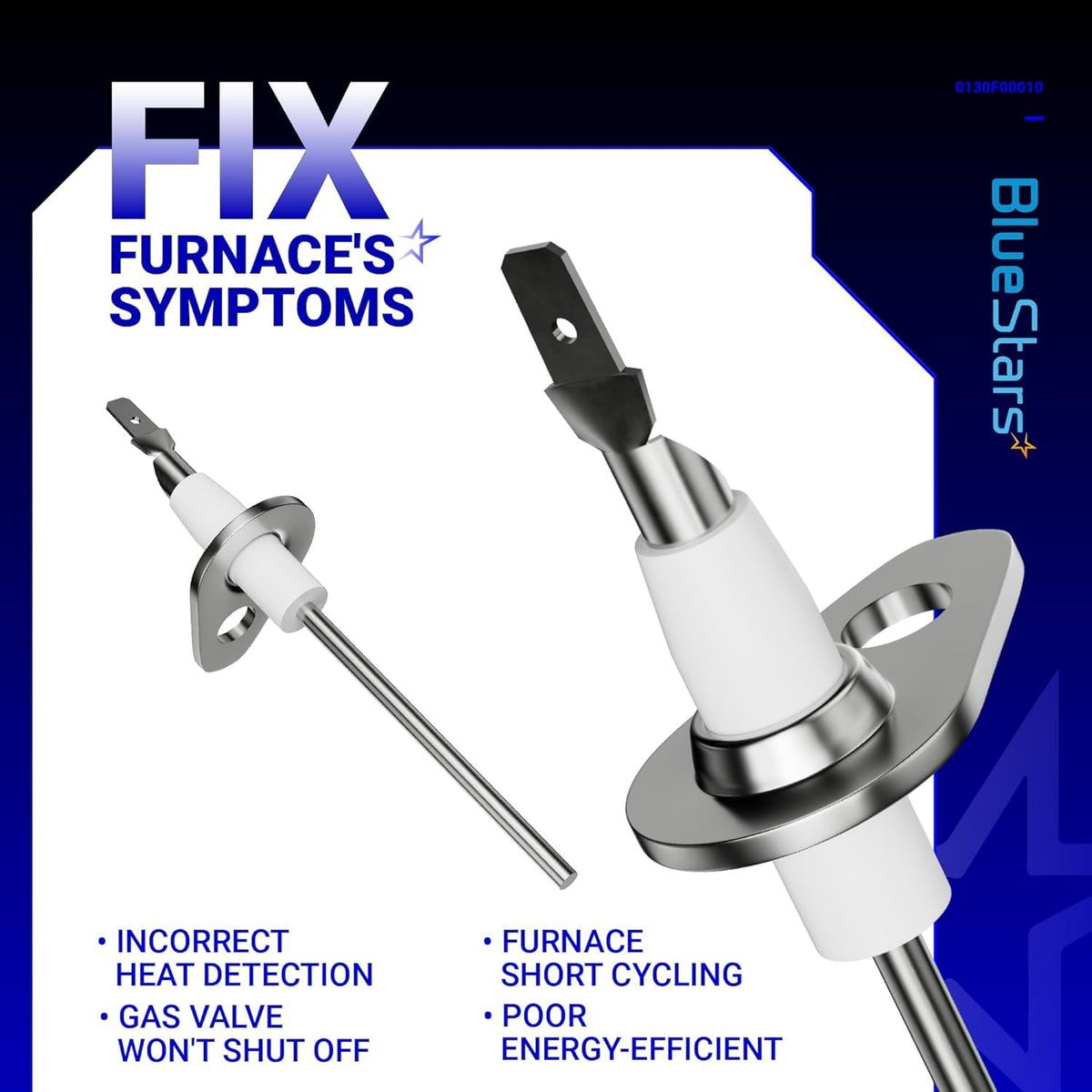

0130F00010 furnace flame sensor showing two views of the metal rod and ceramic insulator assembly.

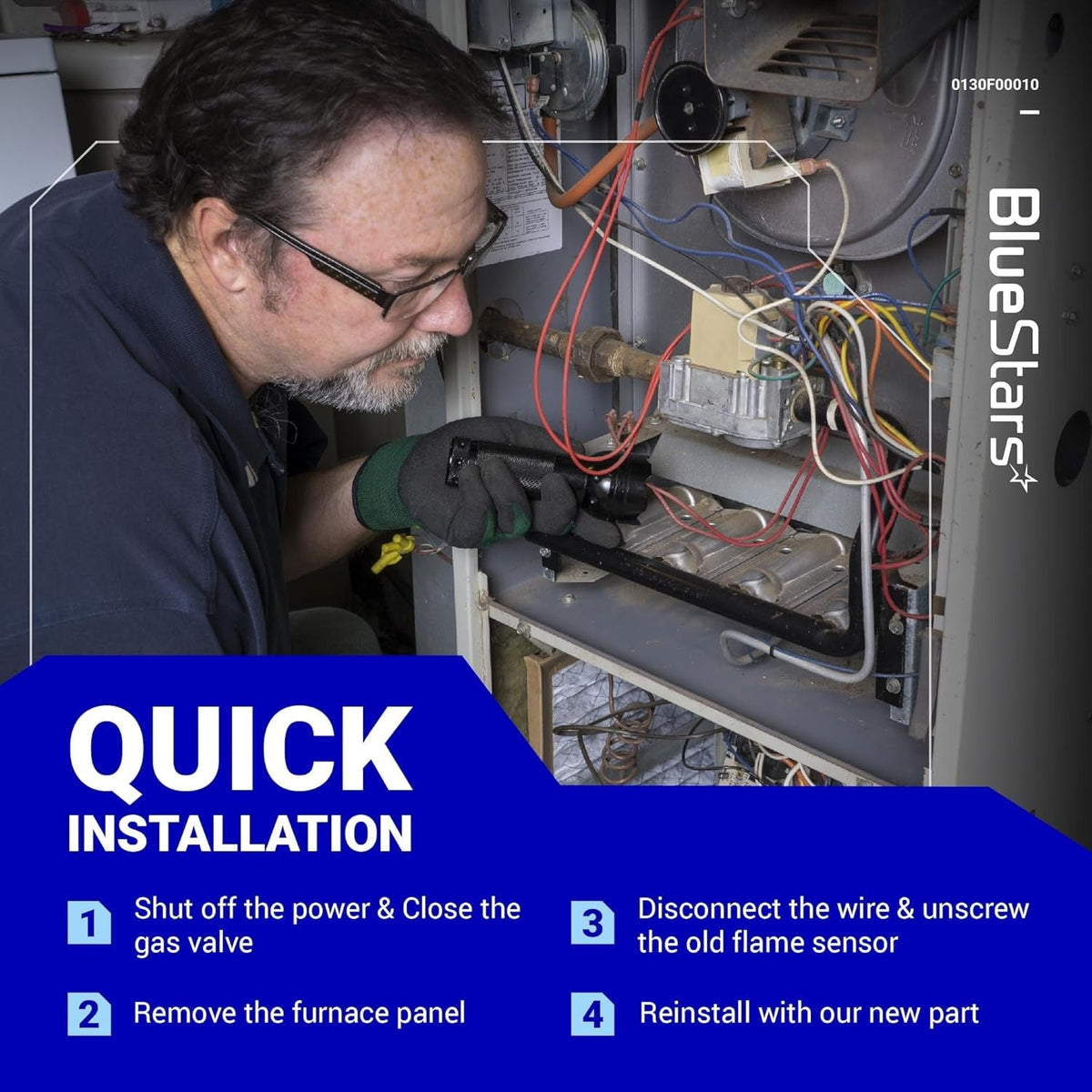

Technician performing quick installation of 0130F00010 furnace flame sensor with step-by-step instructions.
0130F00010 furnace flame sensor replacement part shown against a lifestyle background.
0130F00010 furnace flame sensor with metal rod, white ceramic insulator, and mounting bracket.
0130F00010 furnace flame sensor with mounting bracket and furnace unit for sensitive flame detection.
0130F00010 furnace flame sensor showing dimensions and compatible furnace brands.
Diagram of 0130F00010 furnace flame sensor showing mounting bracket, ceramic porcelain, sensor head, and stainless steel rod.
0130F00010 furnace flame sensor showing two views of the metal rod and ceramic insulator assembly.
Technician performing quick installation of 0130F00010 furnace flame sensor with step-by-step instructions.
0130F00010 furnace flame sensor replacement part shown against a lifestyle background.
Lifetime Warranty

0130F00010 Furnace Flame Sensor Replacement - For Goodman Amana Furnaces

Save 13%
0.00
$11.30
$13.00
$11.30
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

0130F00010 Furnace Flame Sensor

Key Features

  • Detects flame in Hot Surface Ignition (HSI) systems for safe furnace operation.
  • Constructed with a metal sensing rod and an alumina ceramic insulator.
  • Designed as a direct-fit replacement for specified furnace models.
  • Mounts to the burner assembly.

Replaces / Cross-Reference Part Numbers

  • 0130F00010
  • B1172606
  • B11726-06
  • 20488501
  • TJFLS013
  • 2645136
  • AP4513976
  • AP6326767
  • L38035
  • ACS90453BXA

Compatibility & Fitment

  • For use in specific furnace models from Goodman, Amana, Daikin, and Janitrol.
  • Confirm fitment by referencing your equipment's service manual or the original part number.

When to Replace

  • Furnace burners ignite but shut off after a few seconds.
  • Main burners fail to remain lit after the ignition sequence.
  • Visible carbon buildup, corrosion, or cracking on the sensor rod or ceramic insulator.
  • Control board displays a fault code related to flame sense failure.

Installation Tips

  • Disconnect all electrical power and shut off the gas supply to the furnace before installation.
  • The sensor is typically secured by a single screw on the burner bracket.
  • Position the sensor rod so it will be directly in the path of the burner flame.
  • Handle the new sensor carefully and avoid touching the ceramic insulator with bare hands.
Product image
Product image 1
Product image 2
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Compatible with many models of Kenmore, Amana, Goodman furnaces.
  • FIX FURNACE'S SYMPTOMS

    FIX FURNACE'S SYMPTOMS

    Short cycling | No heat or inconsistent heating | Delayed ignition | Error codes | Dirty flame sensor rod | Cracked ceramic insulator
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your furnace is repaired and works properly like before- BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
KEEP YOUR HOME COZY EVERYTIME

KEEP YOUR HOME COZY EVERYTIME

Style
‎Straight rod
Overall Dimensions
‎3-3/4" L x 1-1/4" W x 3/4" H
Element (Rod) Length
‎2-1/8"
Bracket Length
‎1-1/4"
Connection
‎Male spade terminal
Material
‎Metal rod with porcelain (ceramic) insulator
Color
‎Silver / White

FAQ

This sensor is compatible with Goodman, Amana, and Daikin furnace models. It directly replaces OEM part numbers 0130F00010, B11726-06, B1172606, 20488501, P1257001F, P1257007F, P1257002F, ACS90453BXA, ACS90703BXA, TJFLS013, TJ-FLS013, 2645136, AP4513976, and AP6326767.
The most common symptom is the furnace burner igniting for a few seconds and then immediately shutting off. This happens because the sensor is failing to detect the flame, causing the control board to cut the gas supply as a safety precaution. You may also notice the furnace attempting to cycle on and off repeatedly.
Installation is straightforward and typically takes 10 to 15 minutes. You will generally only need a 1/4-inch nut driver or a screwdriver to remove the mounting screw and disconnect the wire terminal. Always ensure the power to the furnace is turned off at the breaker before beginning.
Yes, it is often worth trying to clean the existing sensor first. Over time, carbon buildup and oxidation can insulate the sensor, preventing it from detecting the flame. You can gently clean the metal rod with a fine-grit abrasive pad or steel wool. If the furnace continues to short-cycle after cleaning, the internal components of the sensor have likely failed, and it is time for a replacement.
Flame sensors are exposed to extreme heat and the combustion environment of the furnace. Over time, this causes the buildup of carbon deposits and oxidation on the sensor rod. Once this layer becomes too thick, the sensor cannot complete the electrical circuit through the flame, leading to the safety shut-off sequence.
