16 uF MFD 250 VAC CBB60 50/60 Hz Run Capacitor with Screw - Fits AC Motors, Electric Motors, Water Pumps

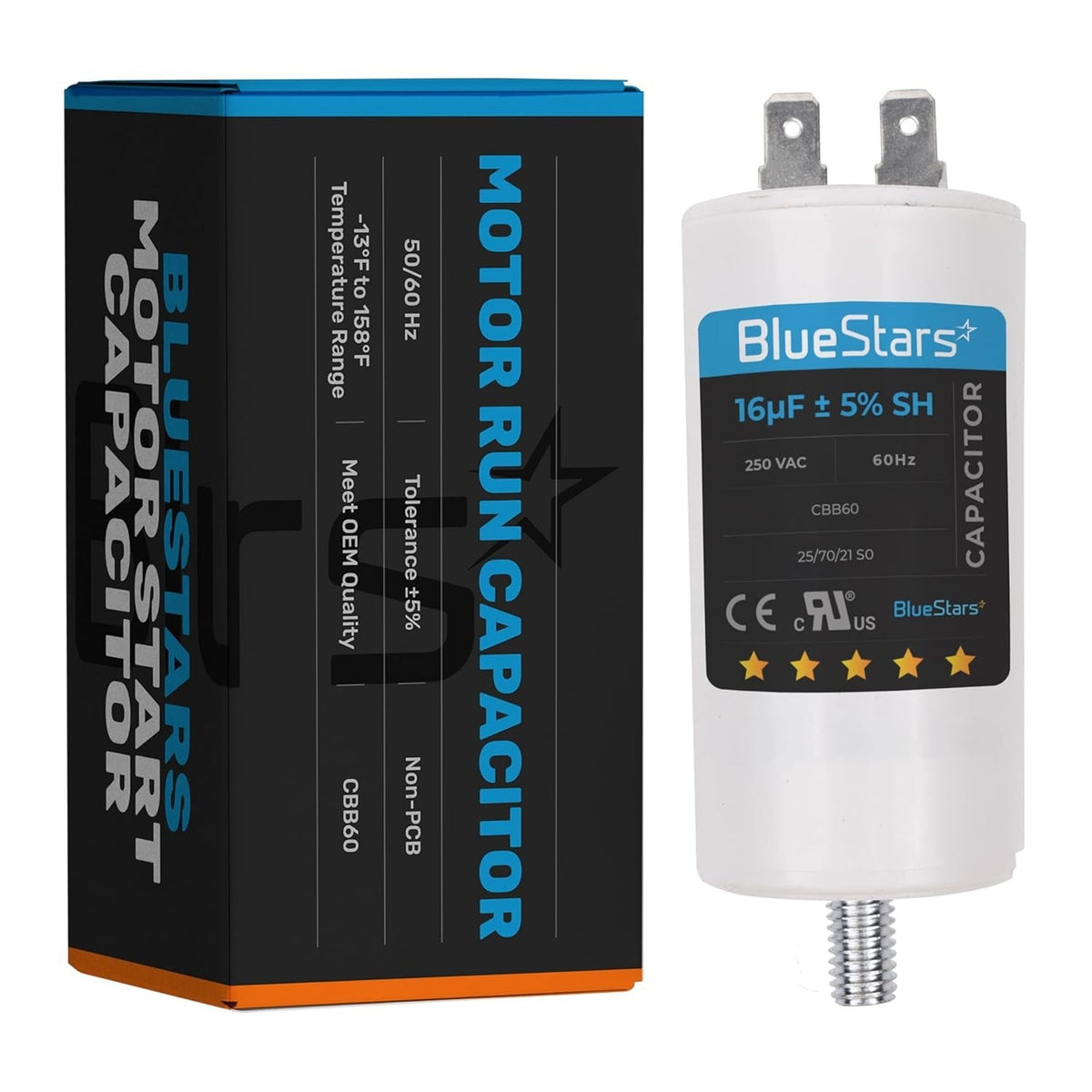

16 uF 250 VAC CBB60 motor run capacitor with screw stud and matching product packaging box.

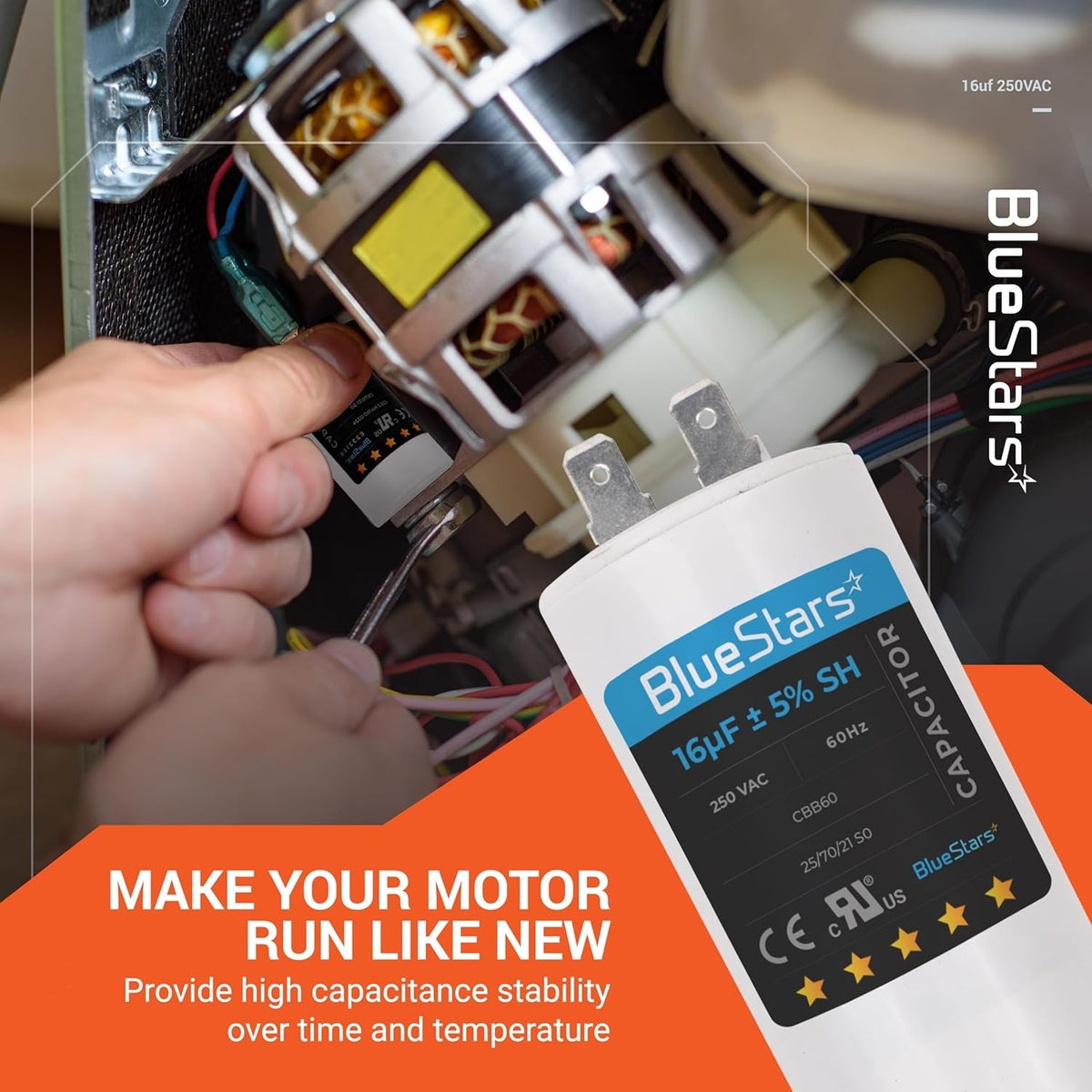

Close-up of a 16uF 250VAC CBB60 run capacitor being installed in an electric motor.

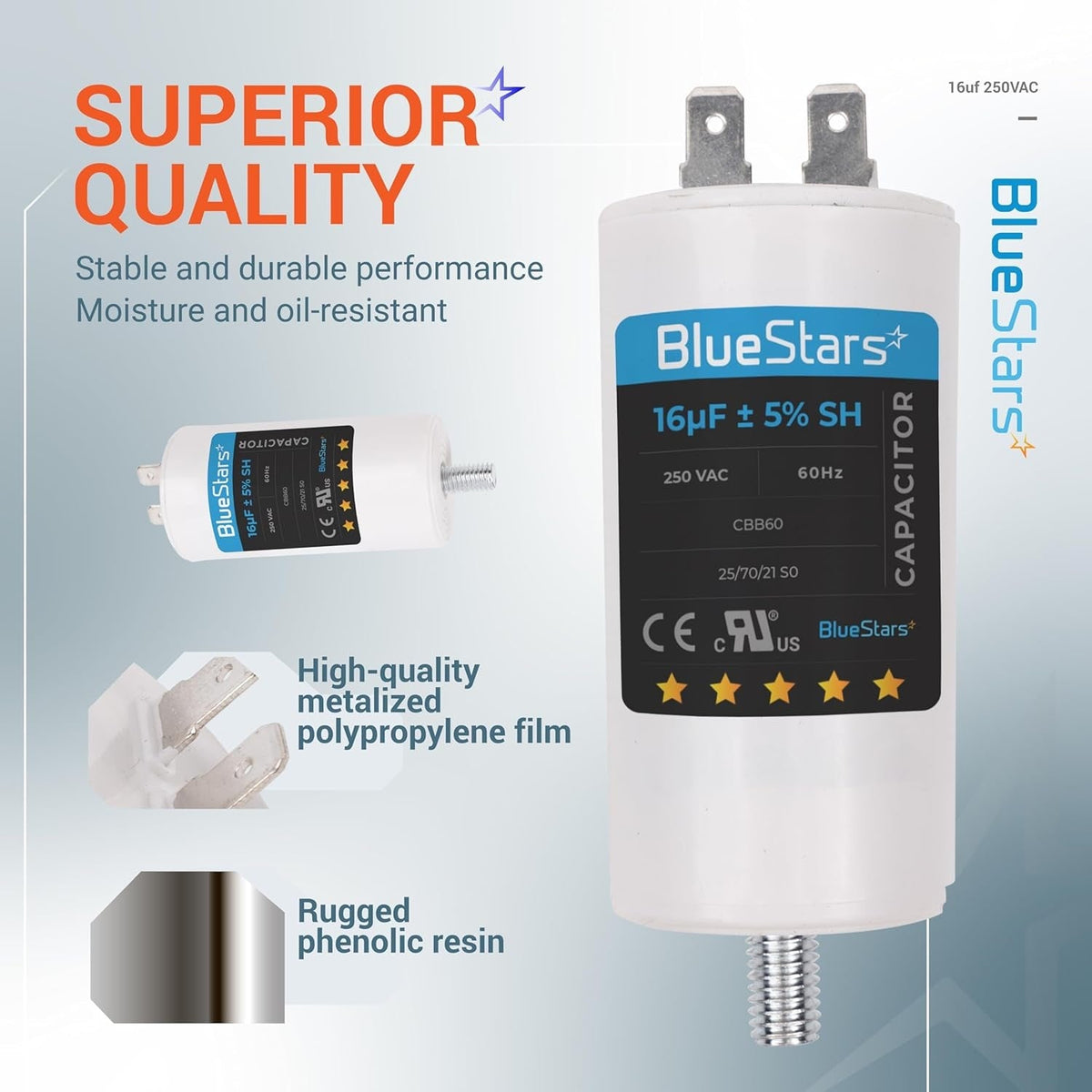

BlueStars 16uF 250VAC CBB60 run capacitor with screw mount, showing product features and technical specifications.

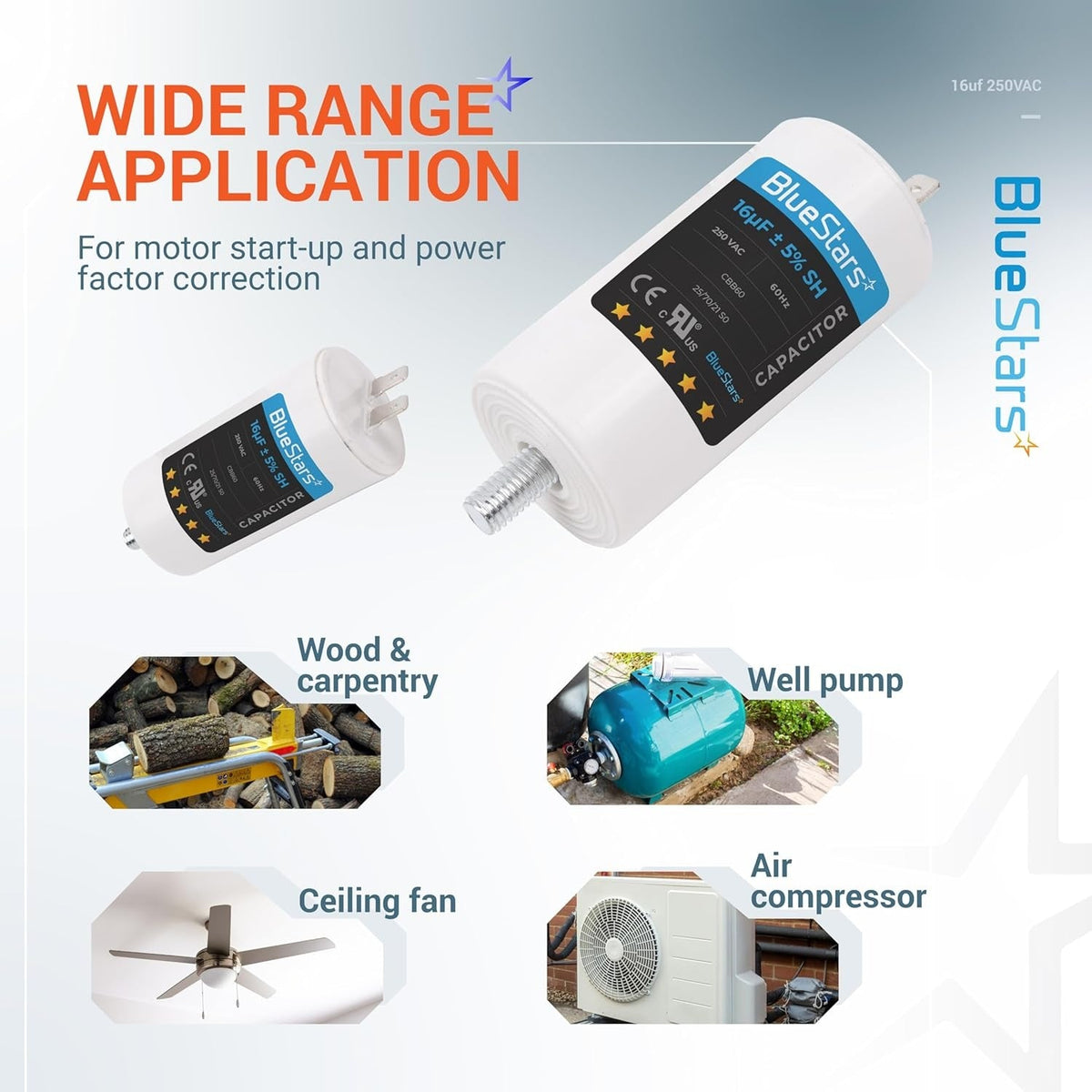

16uF 250VAC CBB60 run capacitor showing application examples for motors, pumps, fans, and air compressors.

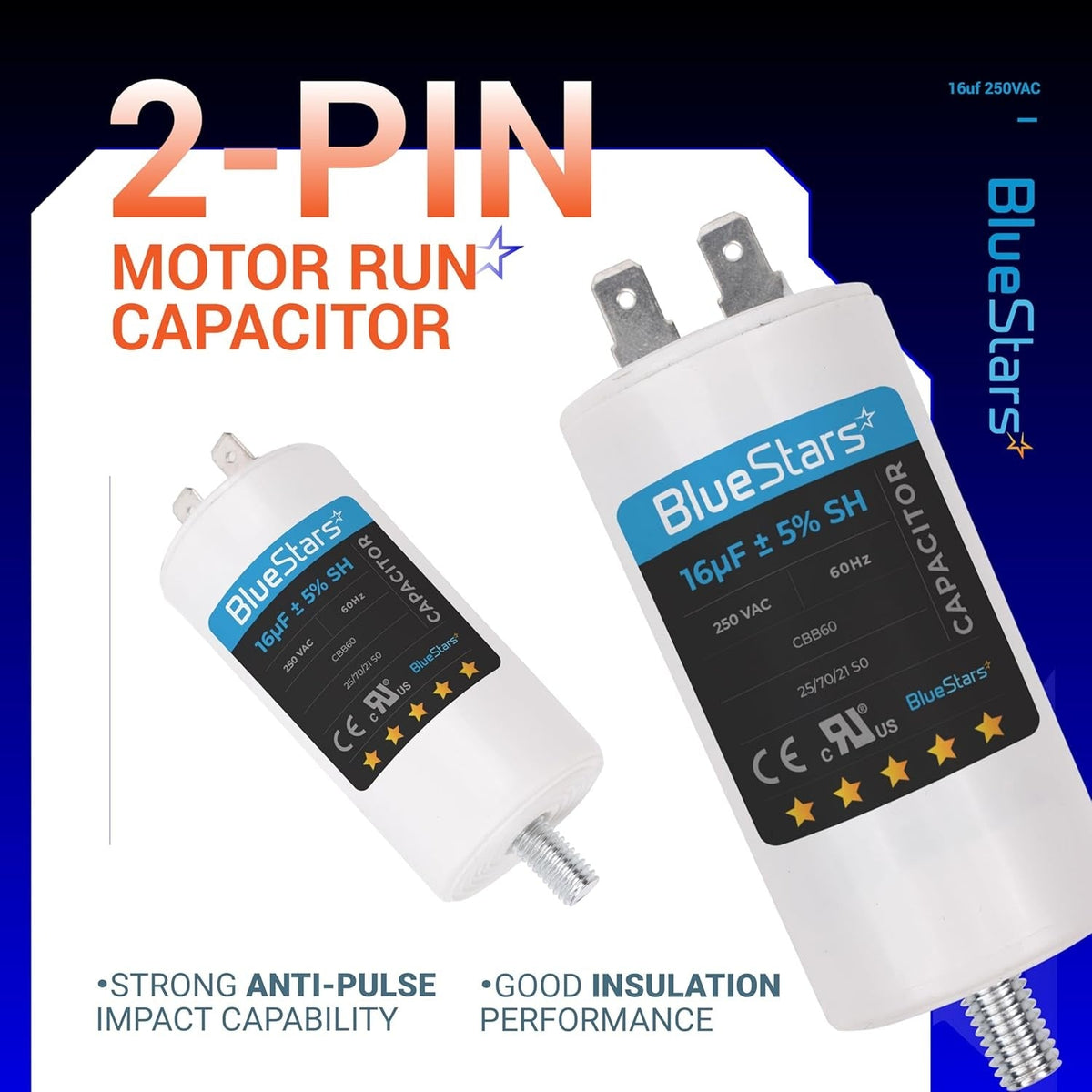

Two 16uF 250VAC CBB60 2-pin motor run capacitors with threaded mounting studs.

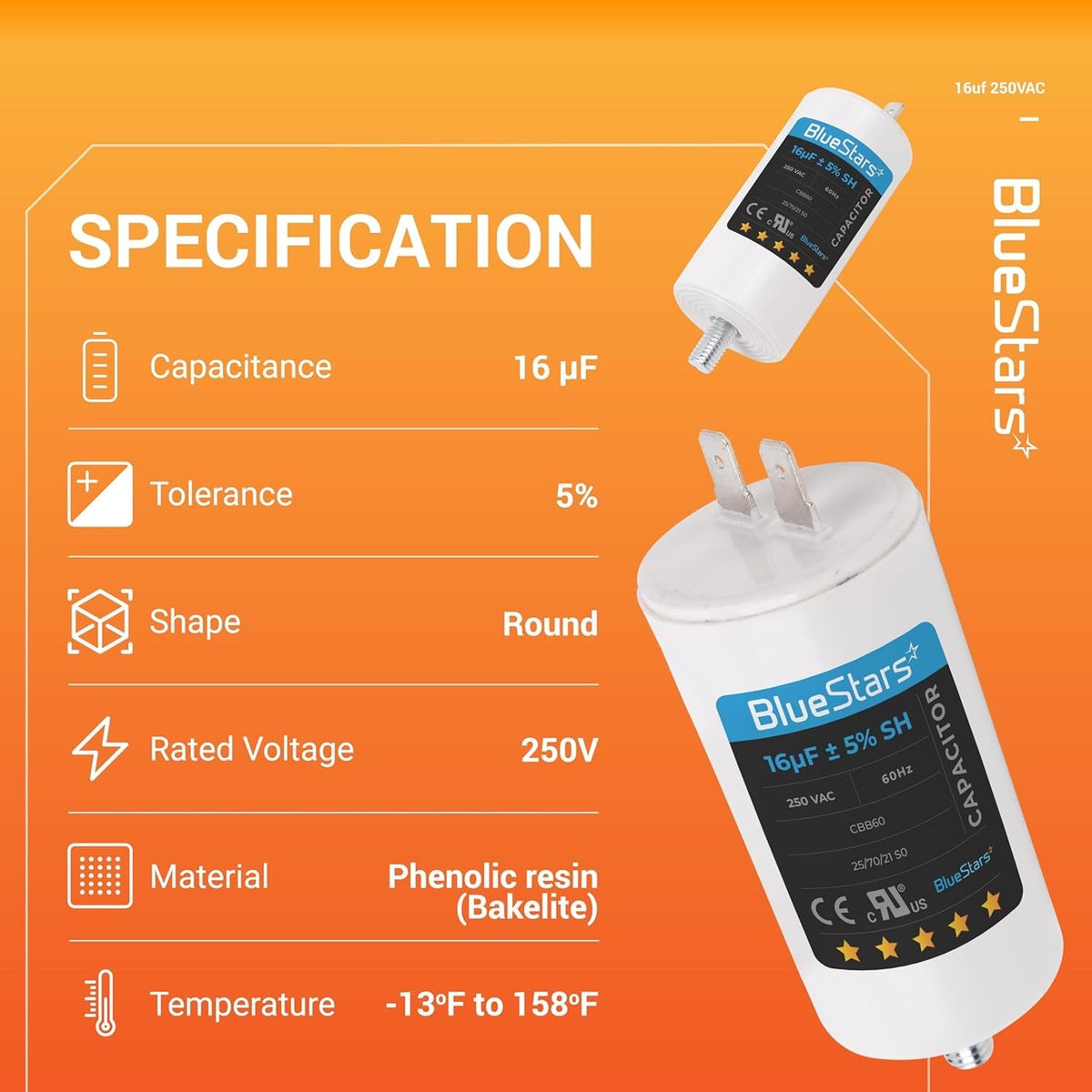

BlueStars 16uF 250VAC CBB60 run capacitor specification chart showing technical details and product dimensions.
BlueStars 16uF 250VAC CBB60 run capacitor for AC motors shown in a lifestyle advertisement graphic.
16 uF 250 VAC CBB60 motor run capacitor with screw stud and matching product packaging box.
Close-up of a 16uF 250VAC CBB60 run capacitor being installed in an electric motor.
BlueStars 16uF 250VAC CBB60 run capacitor with screw mount, showing product features and technical specifications.
16uF 250VAC CBB60 run capacitor showing application examples for motors, pumps, fans, and air compressors.
Two 16uF 250VAC CBB60 2-pin motor run capacitors with threaded mounting studs.
BlueStars 16uF 250VAC CBB60 run capacitor specification chart showing technical details and product dimensions.
BlueStars 16uF 250VAC CBB60 run capacitor for AC motors shown in a lifestyle advertisement graphic.
Lifetime Warranty

16 uF MFD 250 VAC CBB60 50/60 Hz Run Capacitor with Screw - Fits AC Motors, Electric Motors, Water Pumps

Save 13%
0.00
$14.12
$16.24
$14.12
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

16 uF/MFD/Microfarad 250 VAC Volts CBB60 50Hz/60Hz Run Capacitor

Key Features

  • Capacitance: 16 µF (MFD)
  • Voltage Rating: 250 VAC
  • Frequency: 50Hz / 60Hz
  • Model: CBB60
  • Capacitance Tolerance: ±5%
  • Climate Type: 25/70/21
  • Maximum Operating Temperature: 70°C (158°F)
  • Case Material: Plastic
  • Shape: Cylindrical
  • Certification: UL

Replaces / Cross-Reference Part Numbers

  • Direct replacement for any capacitor with matching specifications.
  • Ensure the new capacitor matches the 16 µF capacitance and has a voltage rating of 250V AC or higher.

Compatibility & Fitment

  • Designed for single-phase AC motors and pumps.
  • Commonly used in water pumps, fans, air conditioners, and other electric motor applications.
  • Confirm physical dimensions of the original capacitor for proper fit.

When to Replace

  • Motor hums but fails to start or starts slowly.
  • Motor runs with reduced power or overheats.
  • Visible signs of damage to the capacitor, such as swelling, bulging, or leaking fluid.
  • Capacitance measures outside of the ±5% tolerance range when tested with a multimeter.

Installation Tips

  • Disconnect all electrical power to the equipment before servicing.
  • Safely discharge the old capacitor by shorting the terminals with a resistor rated for the voltage.
  • AC motor run capacitors are non-polarized; wires can be connected to either terminal.
  • Verify the µF (MFD) rating matches the original component exactly.
  • Ensure the voltage rating of the new capacitor is equal to or greater than the original.
Product image
Product image
Product image
Product image
  • PERFECT FIT

    PERFECT FIT

    Universal fit with any brands with the same ratings.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    This product adopts a high-quality metalized polypropylene film that provides stable and durable performance
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    Because the capacitor is a relatively simple part, the installation just takes few minutes and will save you at least a hundred bucks in labor.

FAQ

Yes. If your original capacitor is rated for a lower voltage (such as 250V), you can safely use a replacement with a higher voltage rating (such as 350V or 450V). The voltage rating on a capacitor indicates the maximum voltage it can handle; as long as the capacitance (16 uF) matches and the voltage rating is equal to or higher than the original, it will function correctly.
A failing run capacitor often causes the motor to hum without starting, or it may struggle to reach full operating speed. You might also notice the motor overheating, a burning smell, or the equipment failing to start entirely. If the capacitor casing appears bulged, cracked, or shows signs of leaking fluid, it must be replaced immediately.
This CBB60 run capacitor is designed for use in a wide range of AC motors, including those found in water pumps, washing machines, air conditioners, cleaning machines, and various electric motor-driven appliances that require a 16 uF start/run assist.
The 16 uF (or MFD) refers to the capacitance, which must match your original part exactly. The 250 VAC indicates the maximum voltage capacity. The '25/70/21' refers to the climate rating, meaning the capacitor is designed to operate reliably in temperatures ranging from -25 °C to +70 °C.
Before installation, ensure the power supply to the equipment is completely disconnected. Because capacitors store an electrical charge even when the power is off, you should safely discharge the old capacitor by touching the terminals with an insulated screwdriver before handling it. Always verify that the mounting space can accommodate the 30mm x 65mm dimensions of this unit.
