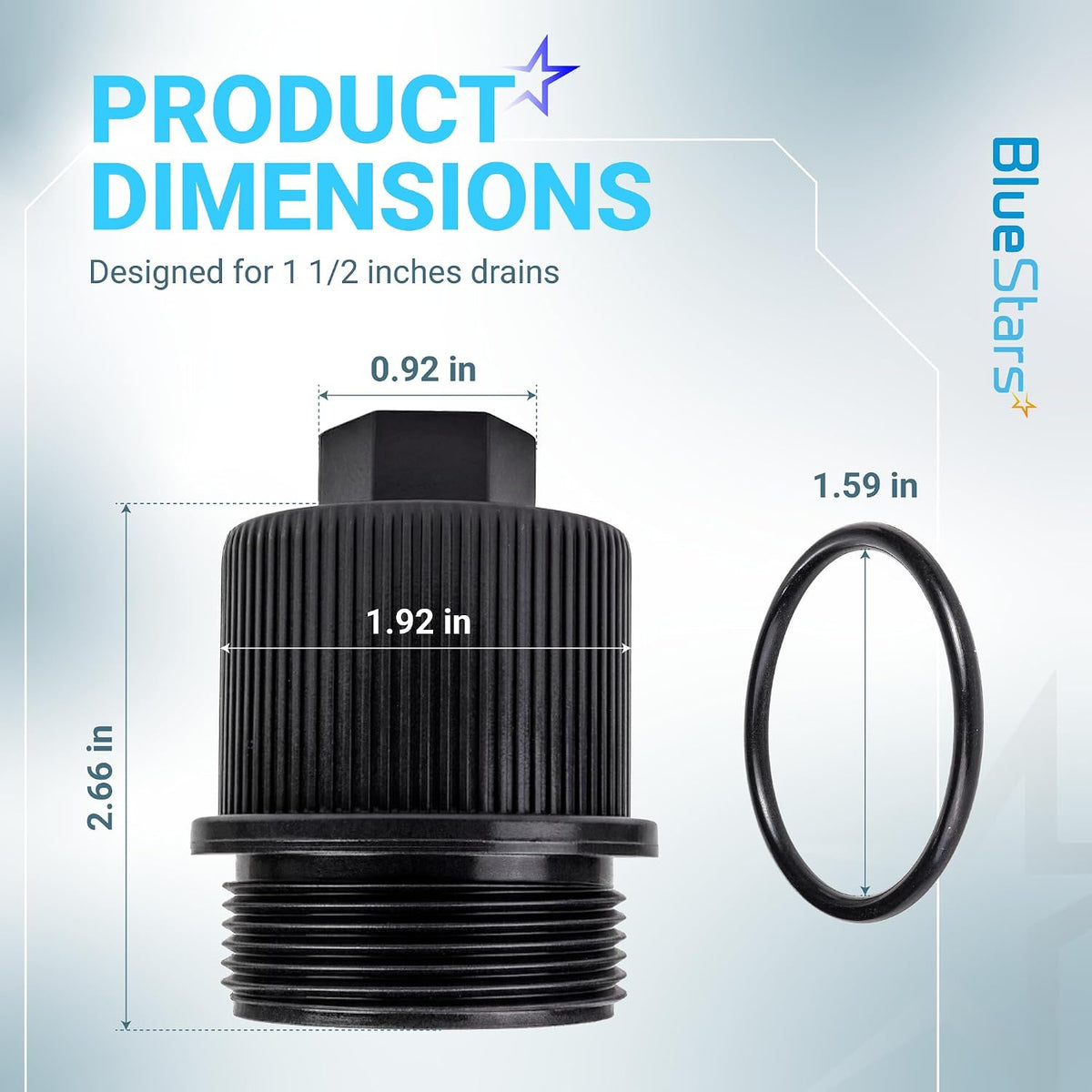

190030 Filter Drain Plug Cap Assembly with O-Ring, dimensions diagram showing cap, O-ring, and measurements
190030 Pool filter drain plug cap assembly, optimized design graphic showing grip grooves, hex nut, seal and threaded base
190030 Filter Drain Plug Cap Assembly compatibility graphic showing three Pentair pool filters and listed models
190030 Pentair filter drain plug cap assembly, four-step installation guide showing removal, tightening, and leak check

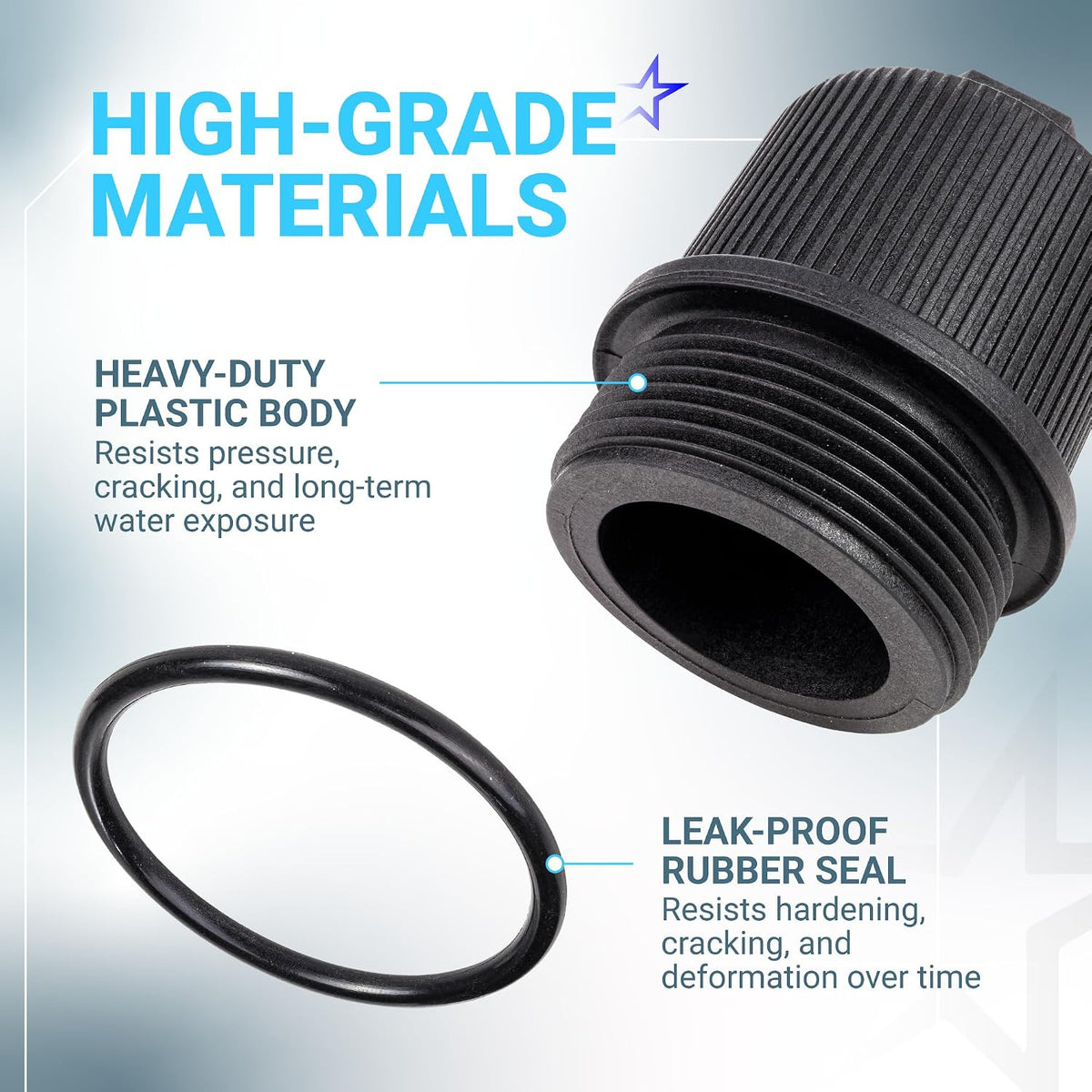

190030 Pool Filter Drain Plug Cap Assembly with O-Ring, showing a threaded black cap and separate rubber seal
190030 Pool Filter Drain Plug Cap Assembly shown beside a filter with 1-1/2-inch drain port connection text
190030 pool filter drain plug cap assembly shown with water splash and filter leak issue icons
190030 pool filter drain plug cap shown beneath a filter drain port with O-ring seal graphic

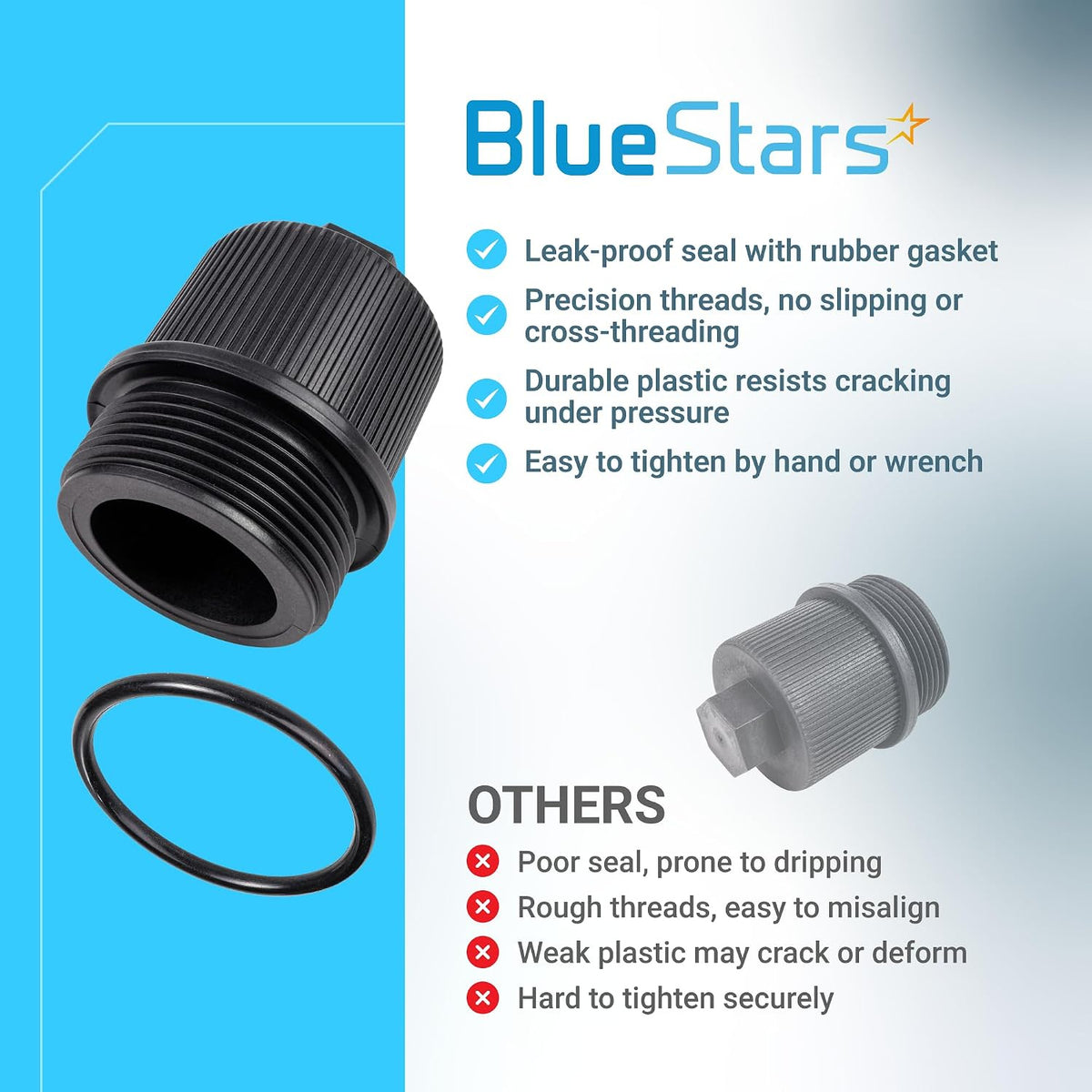

190030 Pentair filter drain plug cap assembly with O-ring, product shown beside a comparison graphic

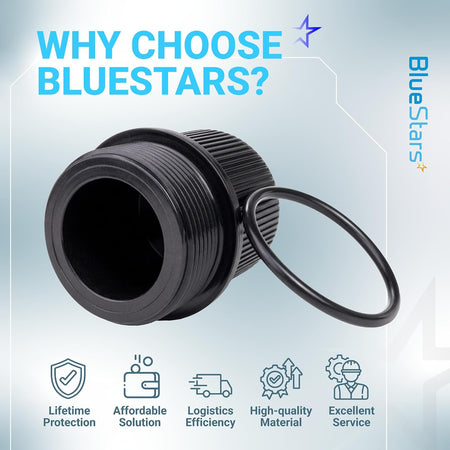

190030 pool filter drain plug cap assembly with O-ring, product render showing the cap and separate O-ring

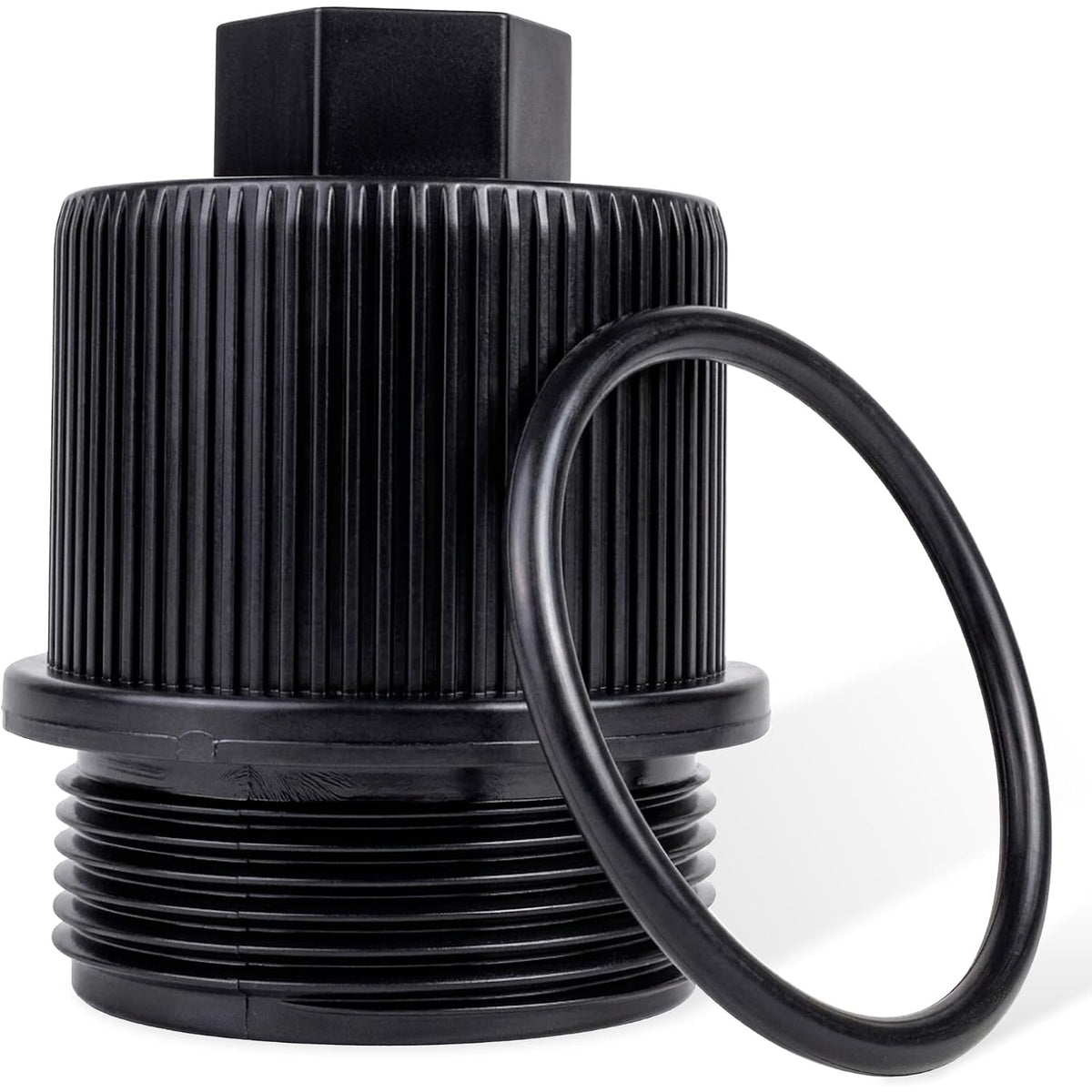

190030 Pool Filter Drain Plug Cap Assembly with O-Ring, front view
190030 Filter Drain Plug Cap Assembly with O-Ring, dimensions diagram showing cap, O-ring, and measurements

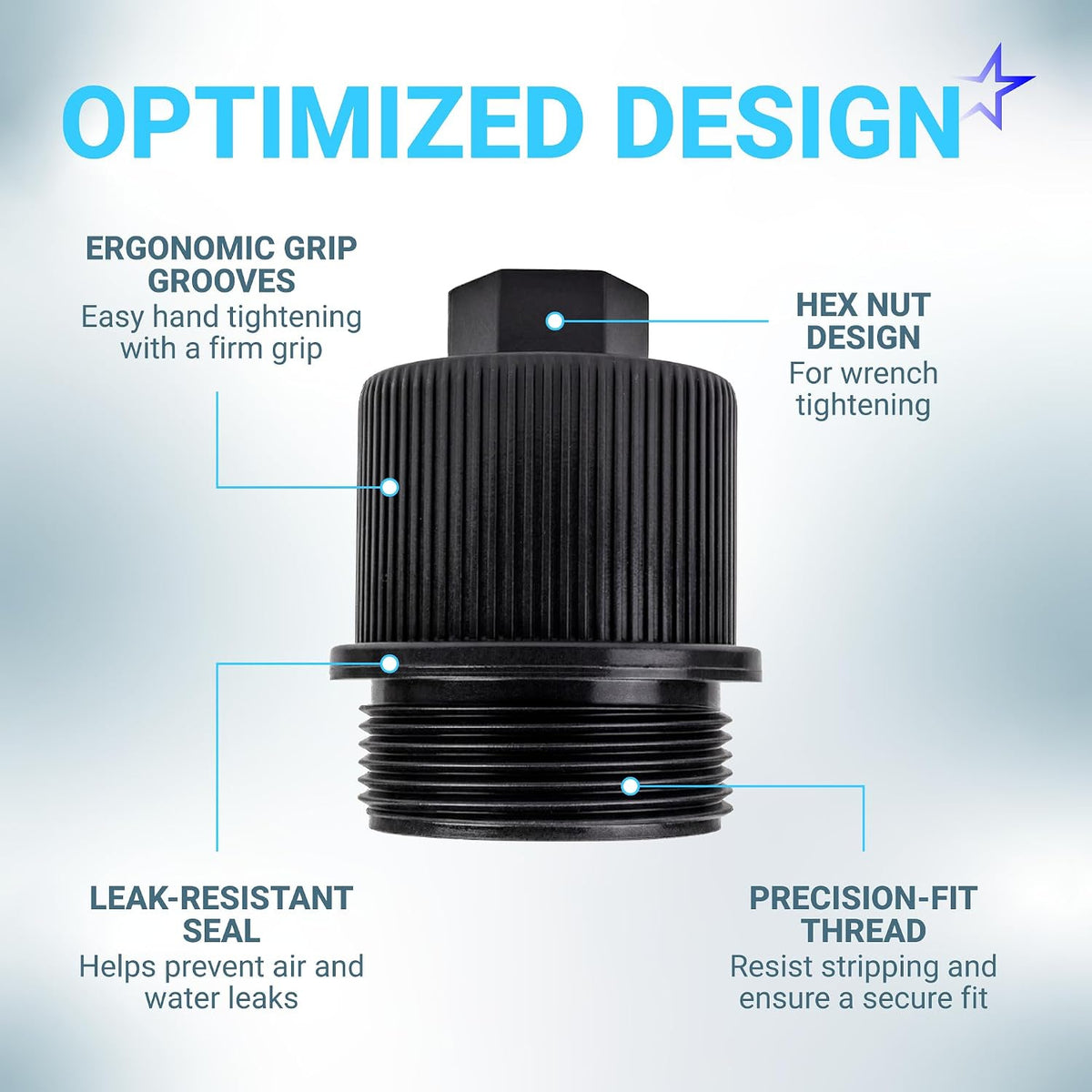

190030 Pool filter drain plug cap assembly, optimized design graphic showing grip grooves, hex nut, seal and threaded base
190030 Filter Drain Plug Cap Assembly compatibility graphic showing three Pentair pool filters and listed models
190030 Pentair filter drain plug cap assembly, four-step installation guide showing removal, tightening, and leak check
190030 Pool Filter Drain Plug Cap Assembly with O-Ring, showing a threaded black cap and separate rubber seal
190030 Pool Filter Drain Plug Cap Assembly shown beside a filter with 1-1/2-inch drain port connection text

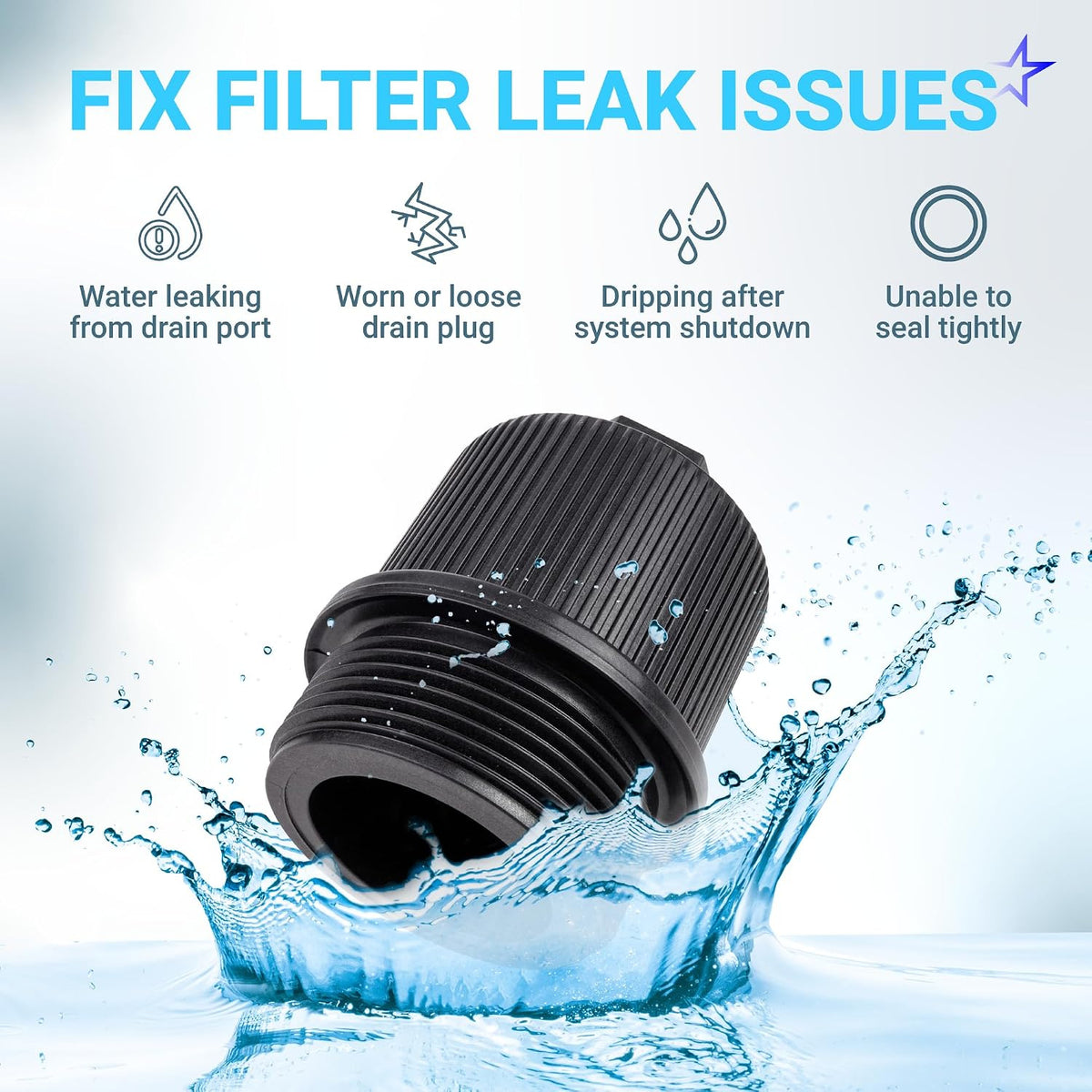

190030 pool filter drain plug cap assembly shown with water splash and filter leak issue icons

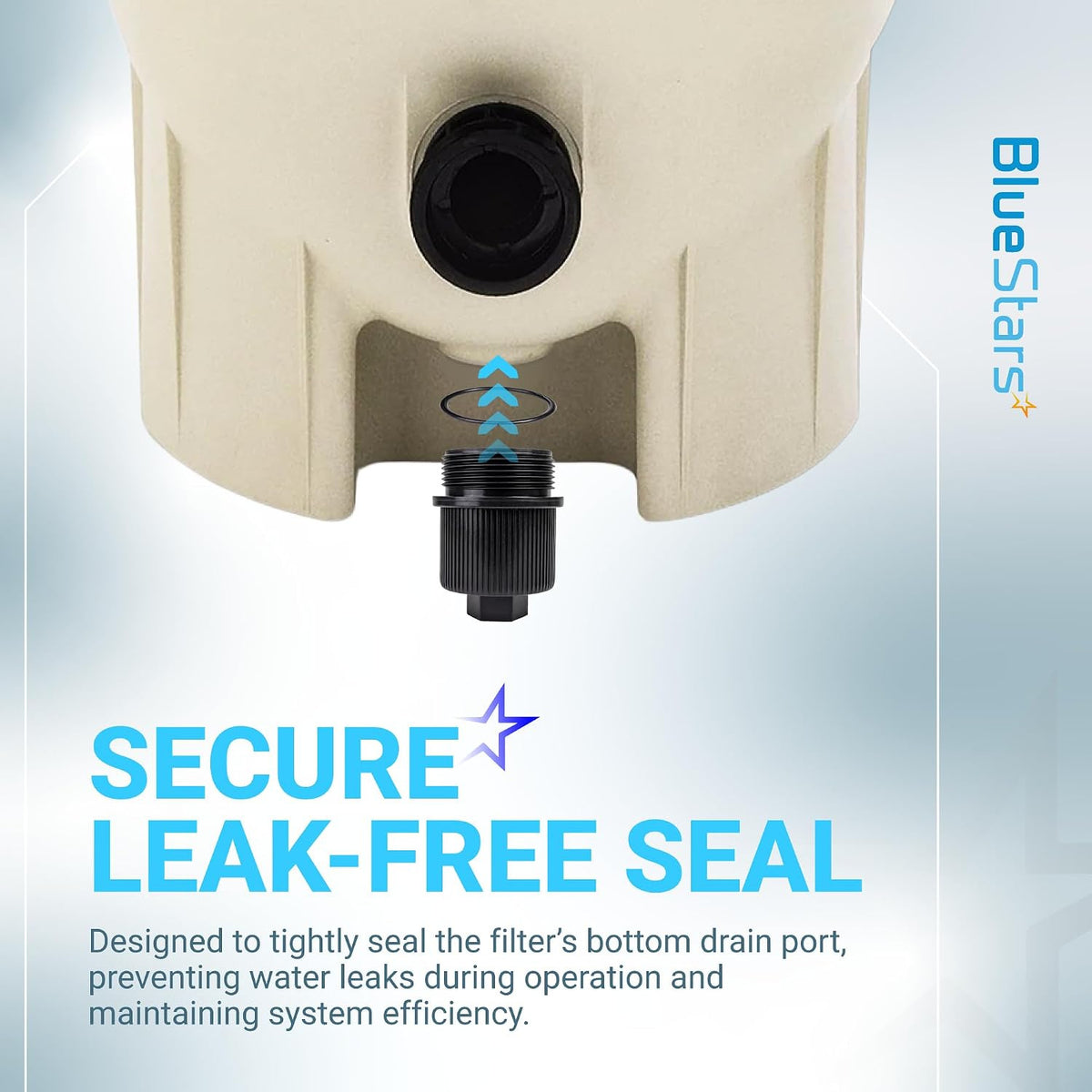

190030 pool filter drain plug cap shown beneath a filter drain port with O-ring seal graphic
190030 Pentair filter drain plug cap assembly with O-ring, product shown beside a comparison graphic

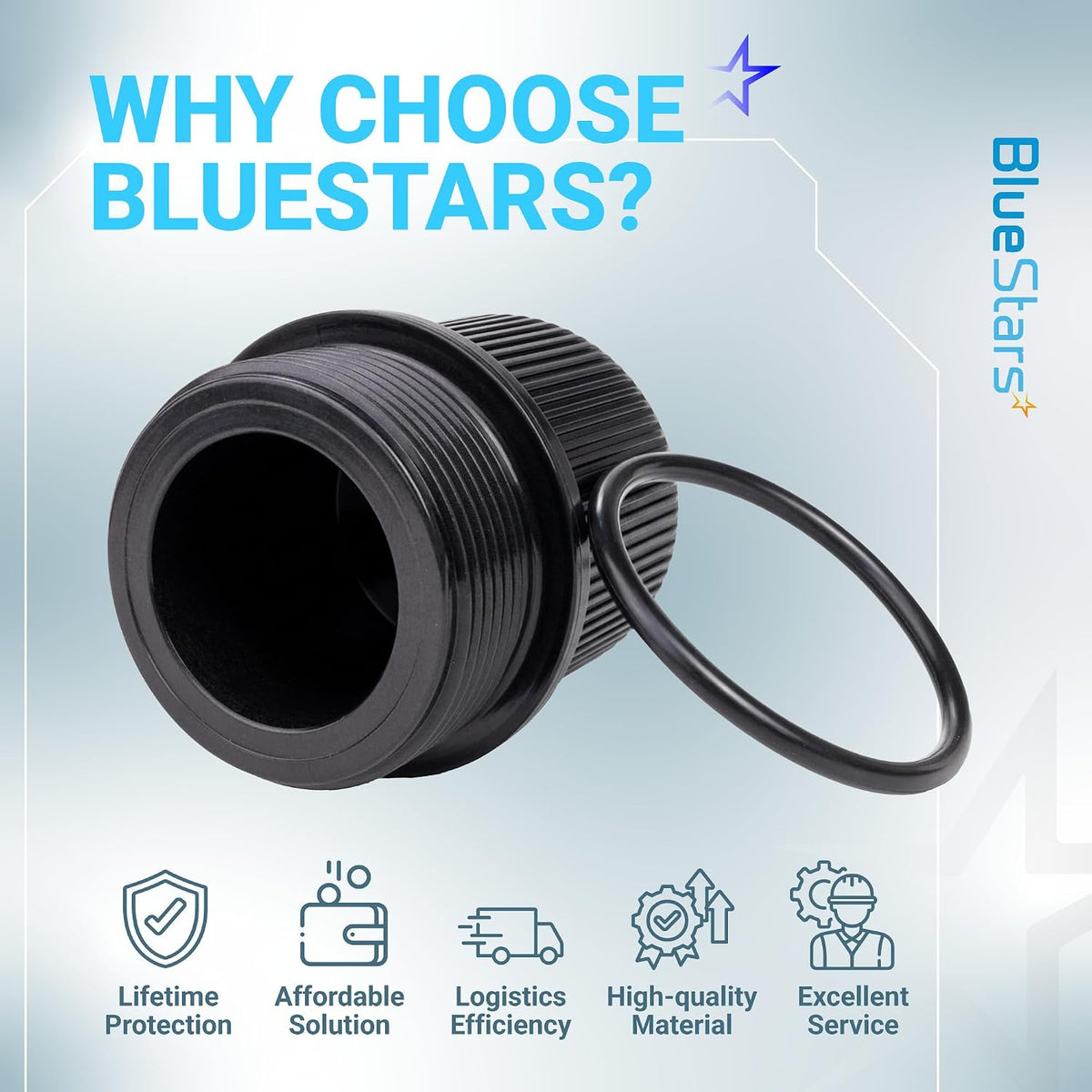

190030 pool filter drain plug cap assembly with O-ring, product render showing the cap and separate O-ring
Lifetime Warranty

190030 Pentair Filter Drain Plug Cap Assembly Replacement with O-Ring - Compatible with Pentair Clean & Clear Plus, FNS Plus, Quad DE - Durable Pool Drain Plug Cap for Pool and Spa Filter

Save 10%
0.00
$11.70
$12.99
$11.70
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
πŸ› οΈ
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

190030 Pentair Filter Drain Plug Cap Assembly with O-Ring

Key Features

  • Includes one 190030 pool filter drain plug cap assembly and one O-ring.
  • Made from heavy-duty plastic for use in pool and spa filtration systems.
  • Designed to seal the filter drain port and control water flow during filter maintenance.
  • The included O-ring helps provide a tight seal against leaks and water loss.
  • Suitable for systems exposed to continuous water pressure and pool chemicals.

Replaces

This assembly replaces a worn, cracked, leaking, or loose 190030 pool filter drain plug cap and its sealing O-ring. Verify the filter model and existing part number before ordering.

Cross-Reference Part Numbers

  • 190030
  • 698183.0

Compatibility & Fitment

Compatible with Pentair Clean & Clear Plus, Quad DE, and FNS Plus filtration systems, including the following models:

  • Clean & Clear Plus: CCP240, CCP320, CCP420, CCP520
  • Quad DE: Quad 60, Quad 80, Quad 100
  • FNS Plus: FNSP24, FNSP36, FNSP48, FNSP60

Designed to work with most Pentair filtration systems using the applicable drain plug. Confirm your filter model and part number for proper fitment.

When to Replace

Replace the drain plug cap assembly when you notice water leaking from the drain port, a cracked or visibly worn plug, a damaged O-ring, a loose fitting, or continuing water loss after tightening the existing plug. A compromised seal can affect maintenance drainage and filtration system operation.

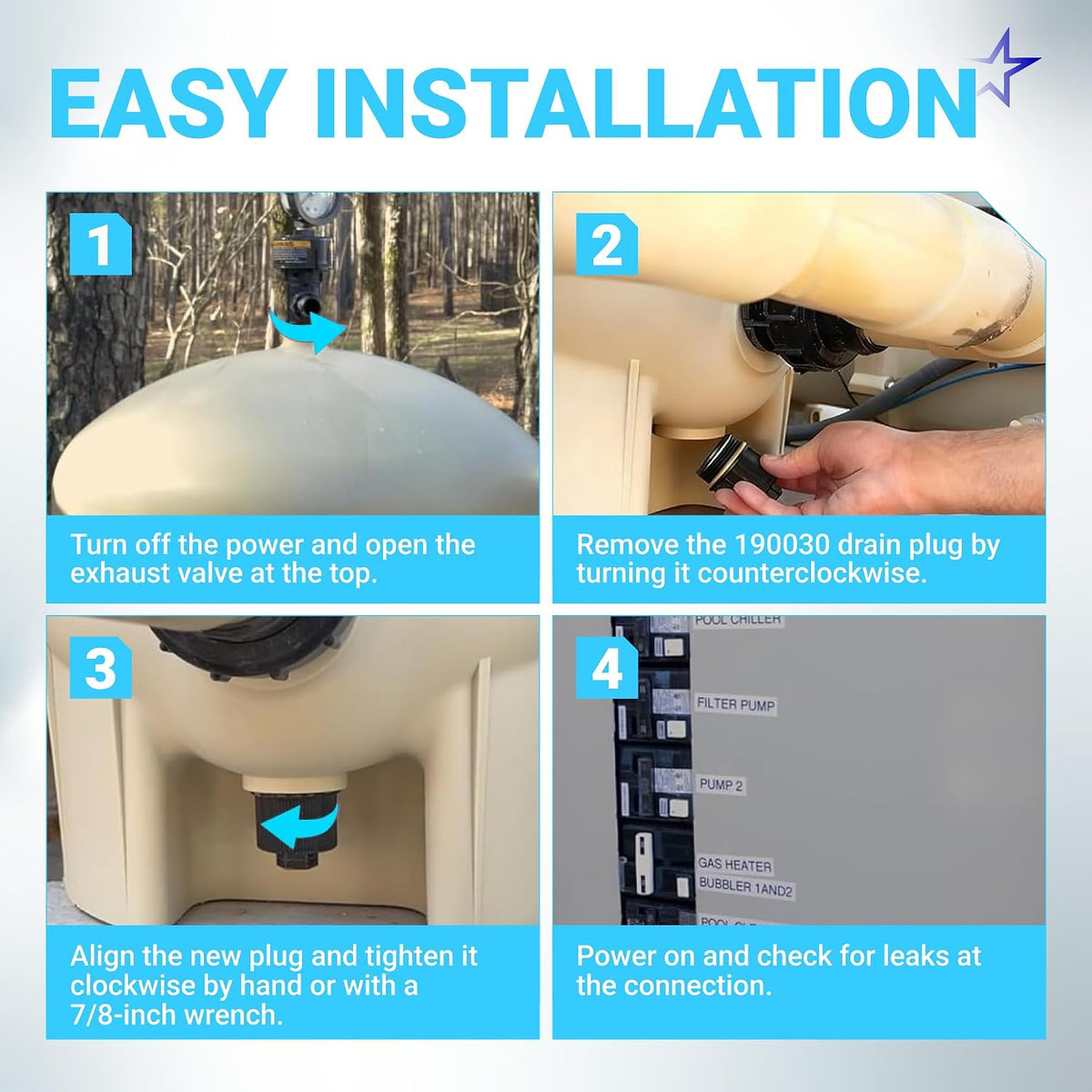

Installation Tips

  1. Turn off the pool filtration system power.
  2. Open the air relief valve at the top of the filter to release pressure.
  3. Remove the old 190030 drain plug by turning it counterclockwise.
  4. Align the replacement plug and tighten it clockwise by hand or with a 7/8-inch wrench.
  5. Restore system operation and inspect the connection for leaks.

No special tools are required for installation. The product includes lifetime protection against defects or issues.

Product image 1
Product image 2
Product image
Product image
Product image

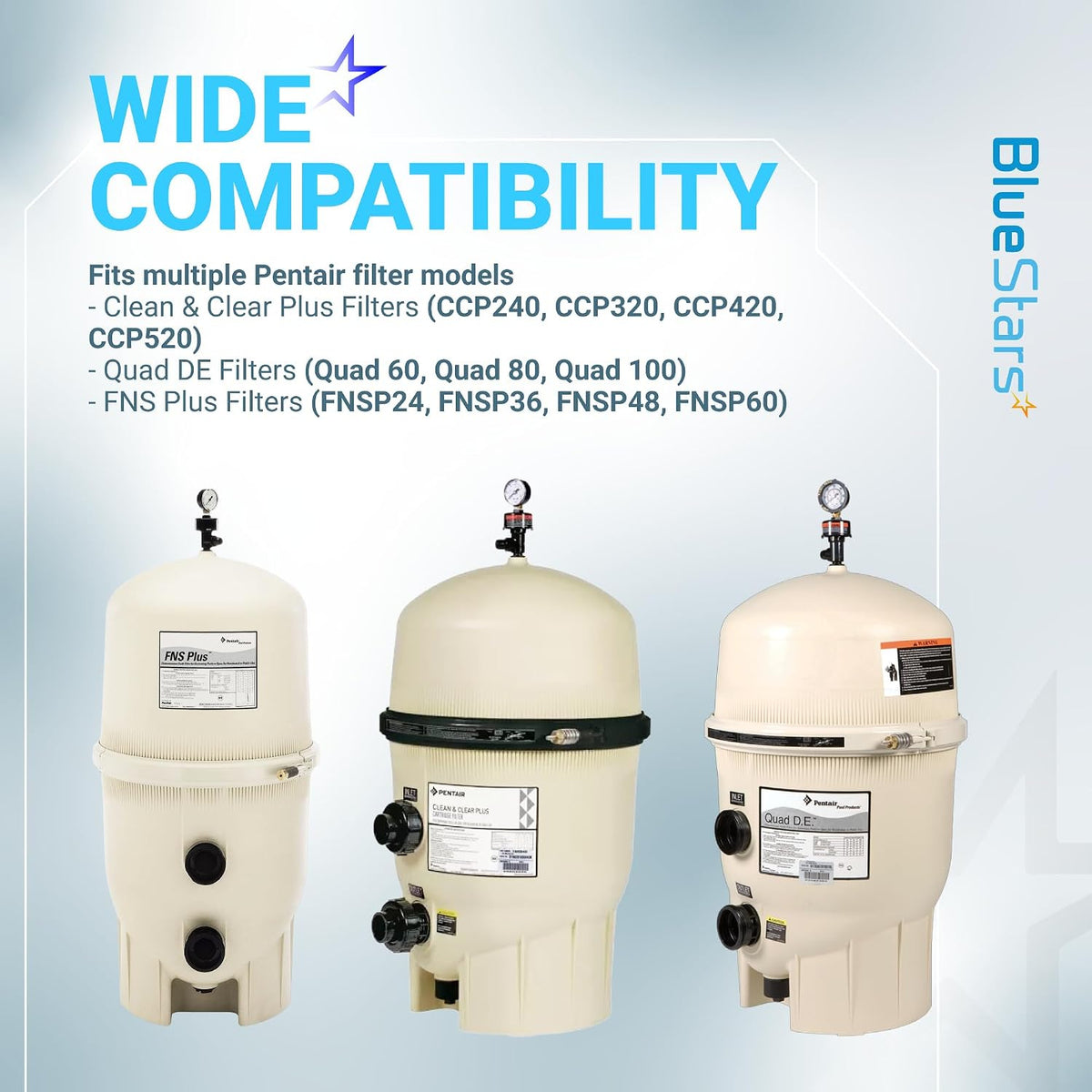

WIDE COMPATIBILITY

WIDE COMPATIBILITY

Fits multiple Pentair filter models:
- Clean & Clear Plus Filters (CCP240, CCP320, CCP420, CCP520)
- Quad DE Filters (Quad 60, Quad 80, Quad 100)
- FNS Plus Filters (FNSP24, FNSP36, FNSP48, FNSP60)

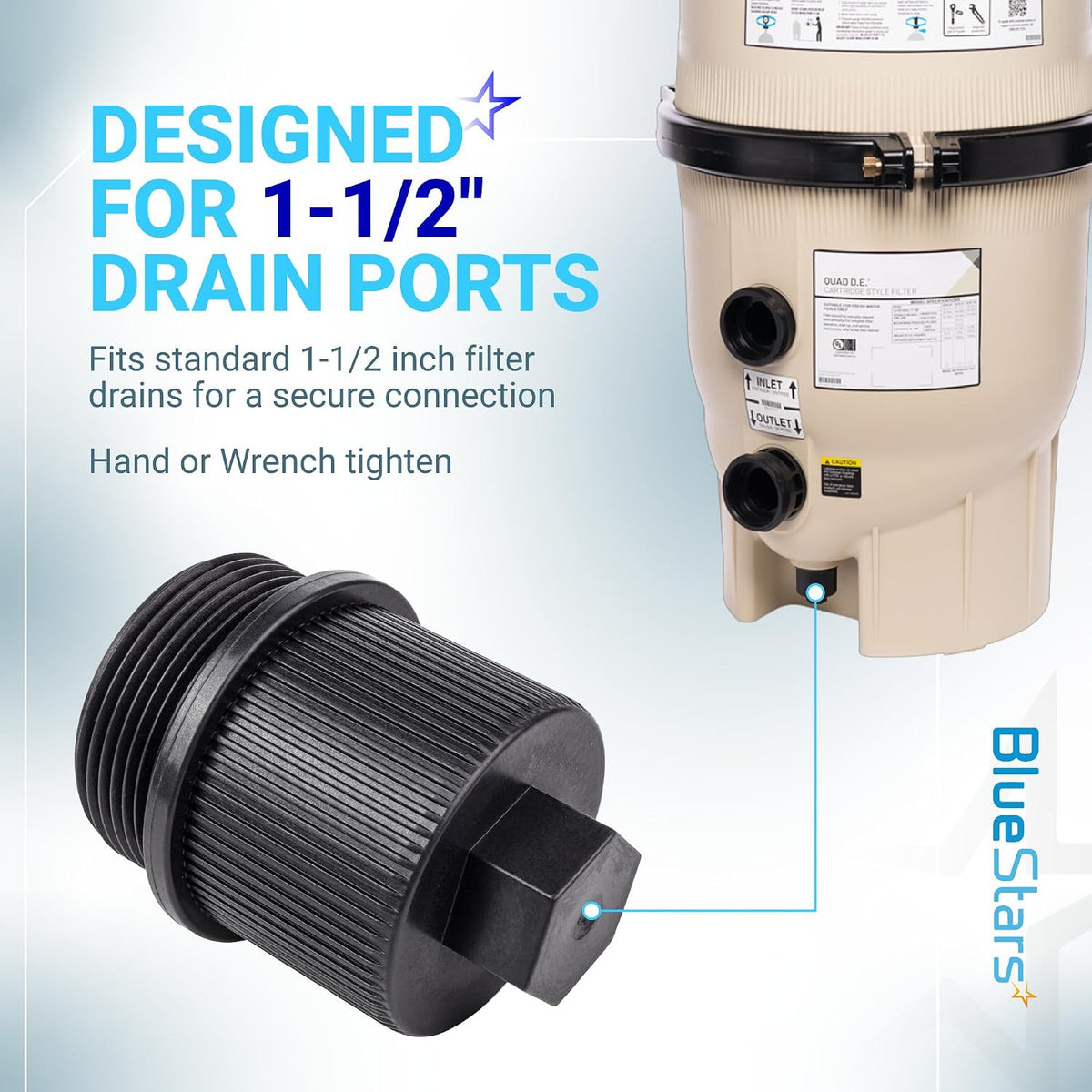

DESIGNED FOR 1-1/2" DRAIN PORTS

DESIGNED FOR 1-1/2" DRAIN PORTS

Fits standard 1-1/2 inch filter drains for a secure connection
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

FAQ

This drain plug cap assembly is compatible with Pentair Clean & Clear Plus, FNS Plus, and Quad DE pool and spa filters. It fits the filter tank drain port and includes the matching O-ring for sealing.
It replaces Pentair part number 190030 and is also identified by item model number 698183.
Common signs include water dripping from the filter drain port, an O-ring that is flattened, cracked, brittle, or swollen, visible damage to the cap threads, or a cap that will not tighten securely. A leak can also occur if the O-ring is missing or improperly seated.
Turn off the pump, relieve all filter pressure, and close the appropriate valves before removing the old cap. Clean the drain port and sealing surface, lightly lubricate the new O-ring with pool-equipment-safe silicone lubricant, seat it correctly, and hand-tighten the cap. Restore the valves and check carefully for leaks while the system is running.
Confirm that the filter is a Clean & Clear Plus, FNS Plus, or Quad DE model and compare the old cap and drain-port threads with the replacement. Inspect the drain-port housing for cracks or damaged threads, since replacing the cap will not correct damage to the filter body. Always relieve pressure before removing any filter fitting.
