Heat Shrink Butt Wire Connector Kit - 200 Pack

Heat Shrink Butt Wire Connector Kit

Key Features

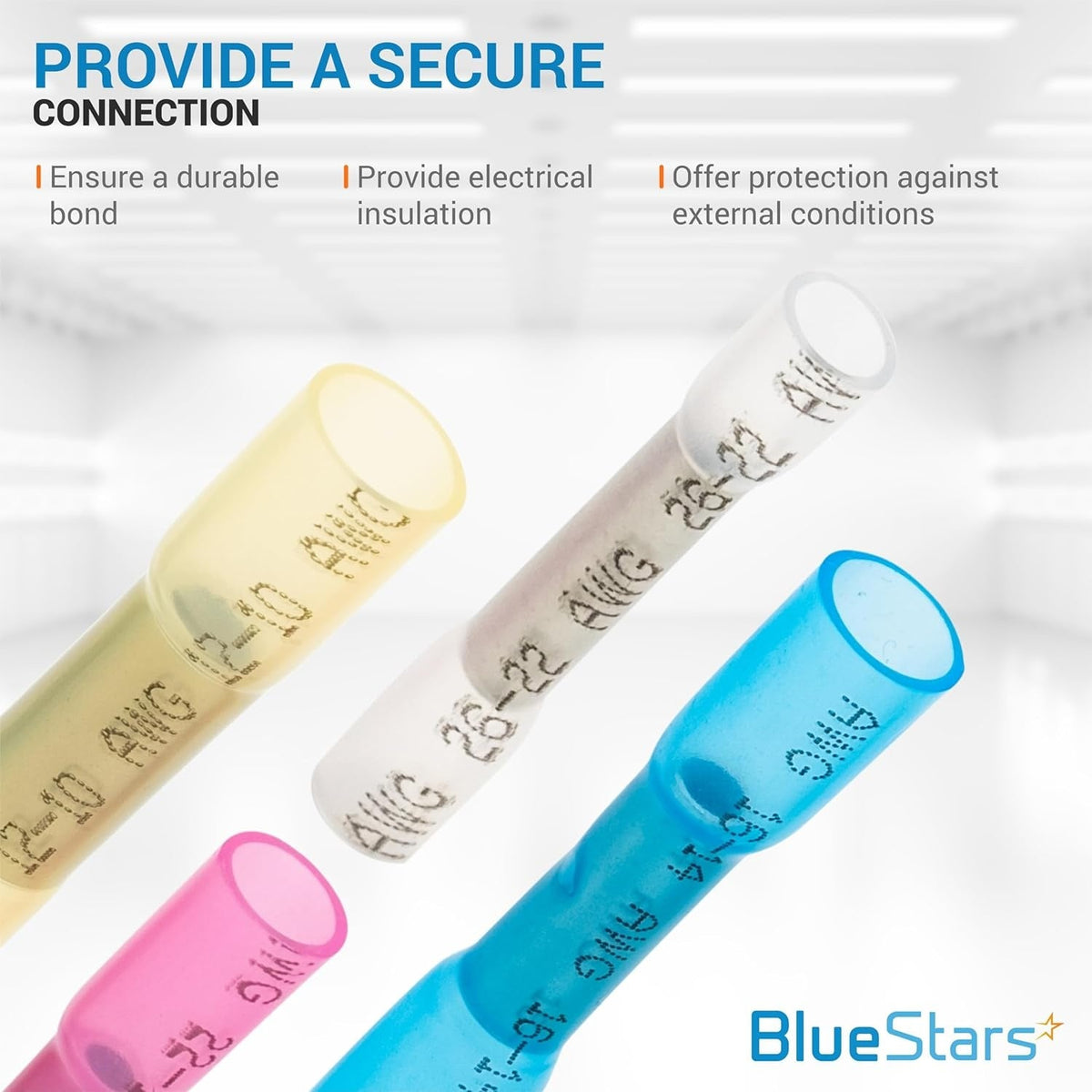

• Dual-Walled Waterproofing: Constructed with a rugged polyolefin outer tubing and a hot-melt adhesive inner lining that flows when heated, creating a 100% watertight, corrosion-resistant seal around the wire splice.

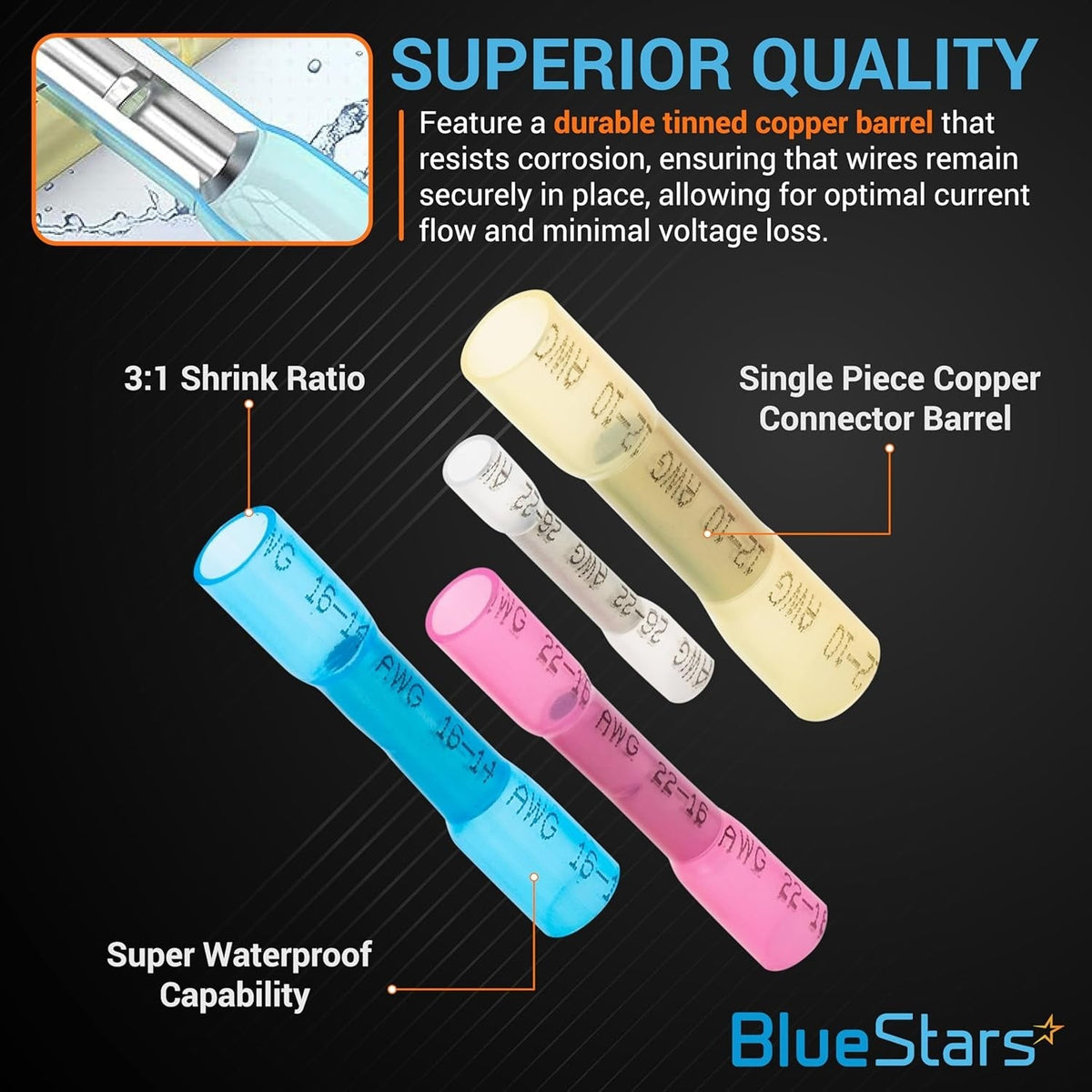

• Seamless Copper Barrel: Features a thick, seamless tinned copper inner barrel that provides maximum current flow, prevents the wire from slipping out, and guarantees a strong, reliable crimp every time.
• High Shrink Ratio: Utilizes an industry-standard 3:1 shrink ratio, allowing the tubing to tightly compress over a wide variety of wire insulation diameters for a secure, vibration-resistant grip.
• Color-Coded Identification: Connectors are universally color-coded (Red, Blue, and Yellow) with standard wire gauge imprint markings directly on the tubing, making it easy to grab the exact size needed for your project.
• Translucent Tubing: The semi-clear outer shell allows for visual inspection of the wire insertion and crimp placement before you apply heat, preventing blind, faulty connections.

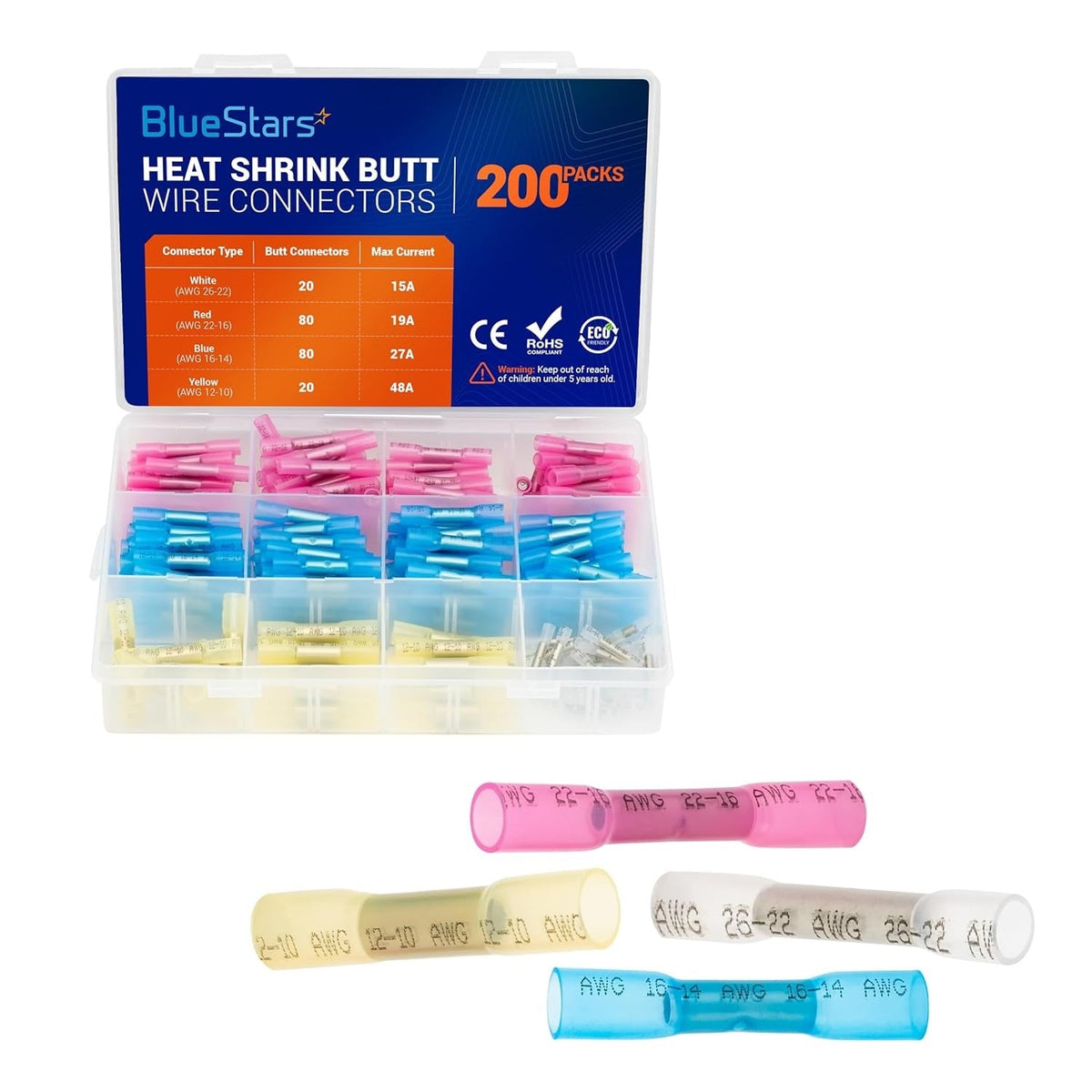

Product Specifications & Included Components

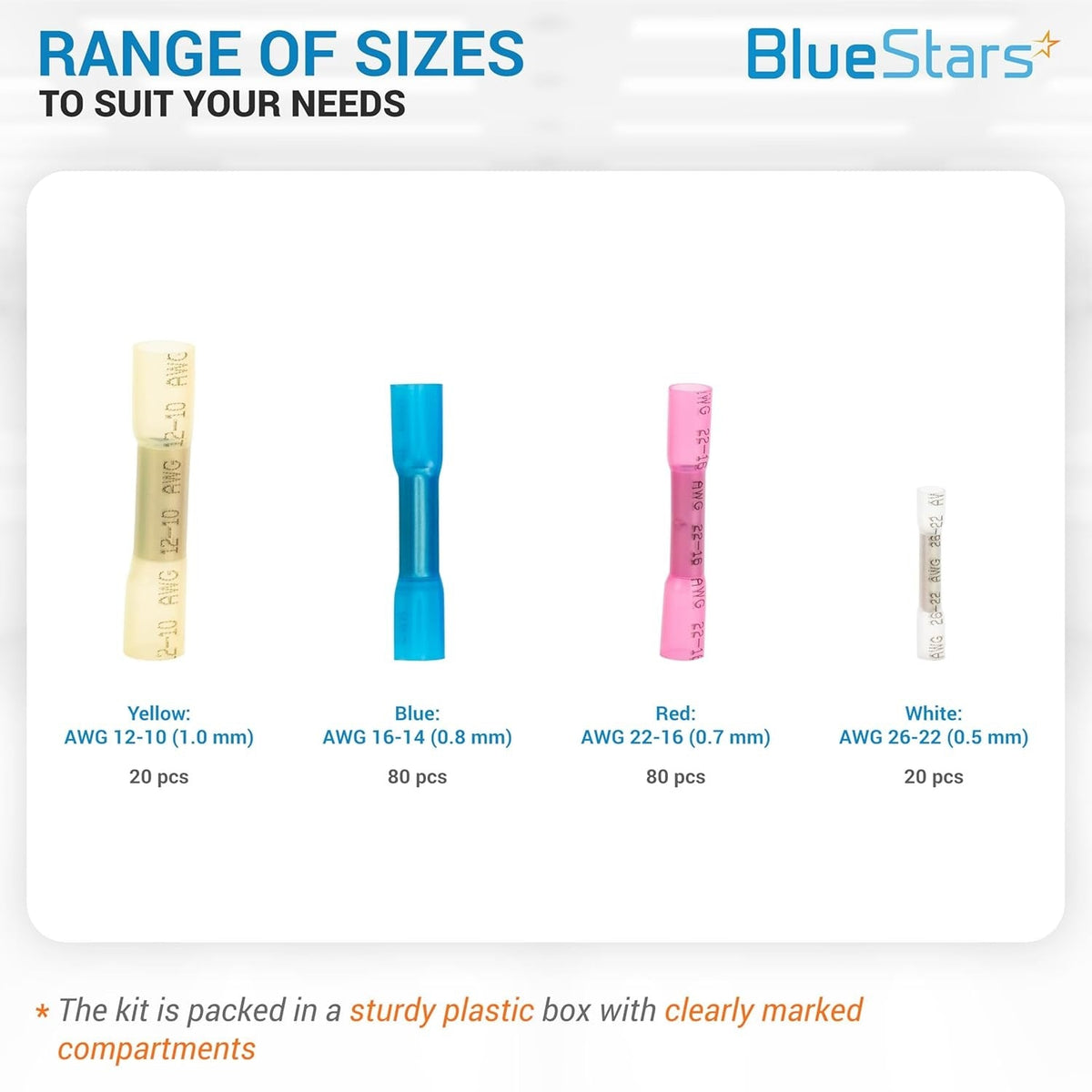

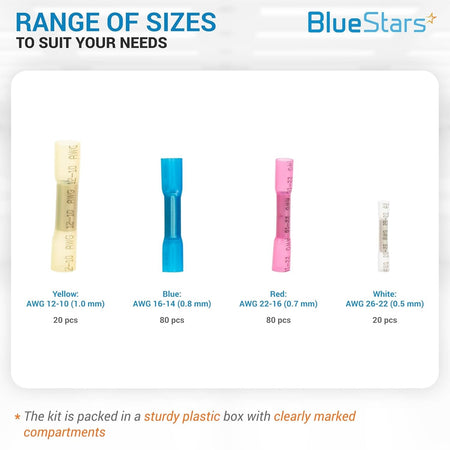

• Total Quantity: 200 Pieces.
• White Connectors (20 Pcs): Fits Wire Sizes 26-22 AWG (Max Current: 15 A).
• Red Connectors (80 Pcs): Fits Wire Sizes 22-16 AWG (Max Current: 19 A).
• Blue Connectors (80 Pcs): Fits Wire Sizes 16-14 AWG (Max Current: 27 A).
• Yellow Connectors (20 Pcs): Fits Wire Sizes 12-10 AWG (Max Current: 48 A).

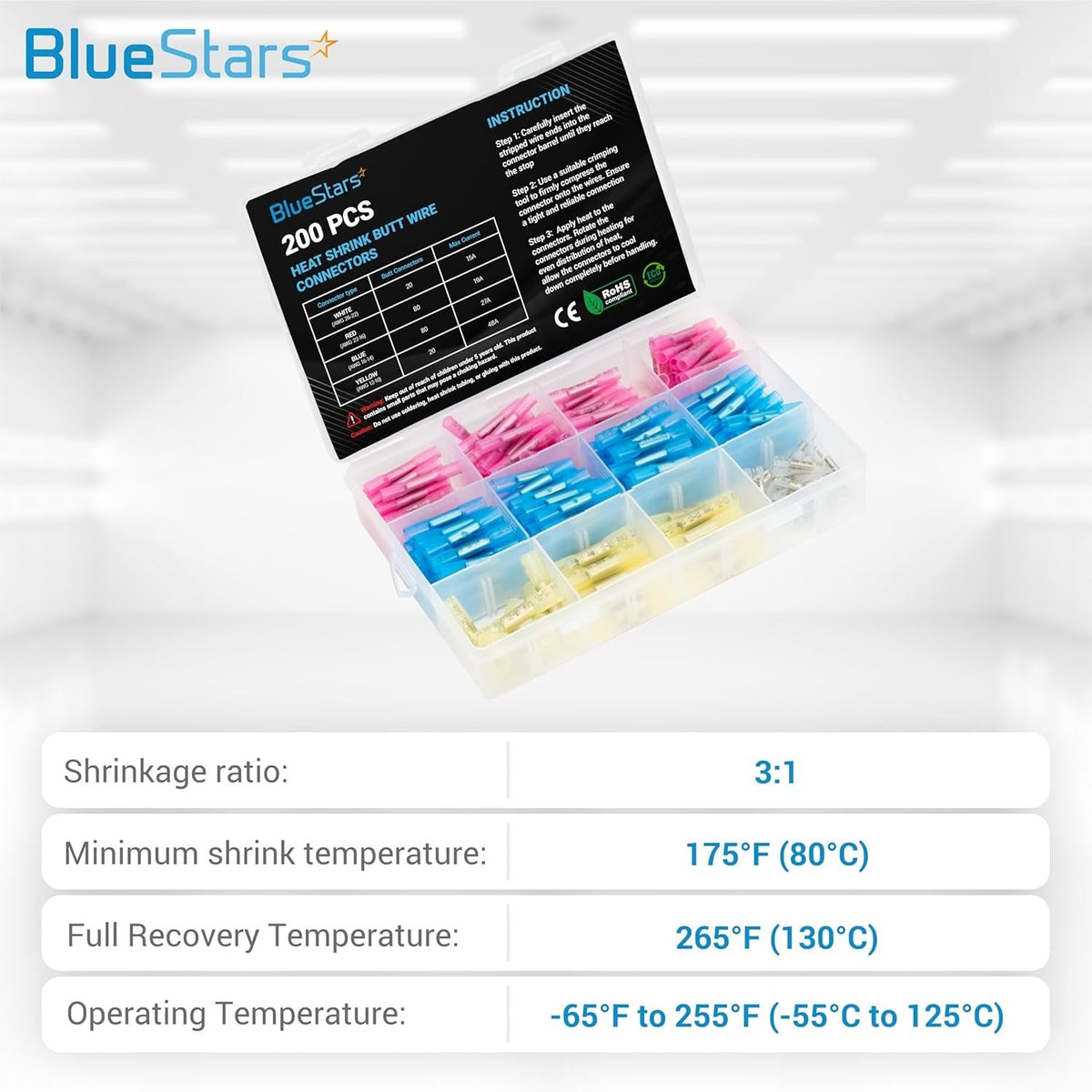

• Material: Tinned Copper Core + Polyolefin (PE) Shrink Tubing.
• Operating Temperature: -65°F to 255°F (-55°C to 125°C).

Universal Compatibility & Applications

These marine-grade butt connectors are the gold standard for creating permanent, weatherproof electrical splices in demanding environments:

• Marine & Boating: Essential for bilge pumps, navigation lights, and trailer wiring exposed to salt spray and submersion.
• Automotive & Off-Road: Perfect for under-hood wiring, LED light bars, and sensor repairs where heat, moisture, and vibration are constant.
• Outdoor & Home: Landscape lighting, RV electrical systems, and outdoor water pump connections.

When to Use or Upgrade

• Replacing Tape and Wire Nuts: Electrical tape leaves sticky residue and unravels over time, while standard twist-on wire nuts trap moisture and vibrate loose. Upgrade to heat shrink connectors for permanent, professional repairs.
• Corrosion Prevention: If you are wiring anything that lives outside or near water, standard nylon crimp connectors will eventually turn green with copper oxidation and fail. The adhesive seal in these prevents moisture intrusion entirely.

Installation & Wiring Tips

• Proper Stripping: Strip roughly 1/3 of an inch of insulation off your wires. Ensure the bare wire ends do not overlap the inner metal barrel to prevent them from poking through the heat shrink tubing when crimped.
• Use the Right Tool (PRO TIP): Do not use pliers to smash the barrel. Use a dedicated ratcheting wire crimper with a die specifically designed for heat shrink connectors (usually marked with a red/blue/yellow dot or "Heat Shrink"). This prevents puncturing the plastic jacket during the crimp.
• Apply Even Heat: Use a dedicated heat gun, starting from the center of the connector and rotating it to distribute the heat evenly outwards. This pushes air bubbles out of the ends and melts the internal adhesive evenly.
• Avoid Open Flames: While a lighter can work in a pinch, it often burns the plastic tubing and leaves a weak, brittle seal covered in black soot. Stick to a heat gun for reliable, factory-looking results.
• Allow to Cool: Let the connector cool for 30 to 60 seconds after heating before tugging on the wires, allowing the internal hot melt glue to fully solidify and lock the connection.
