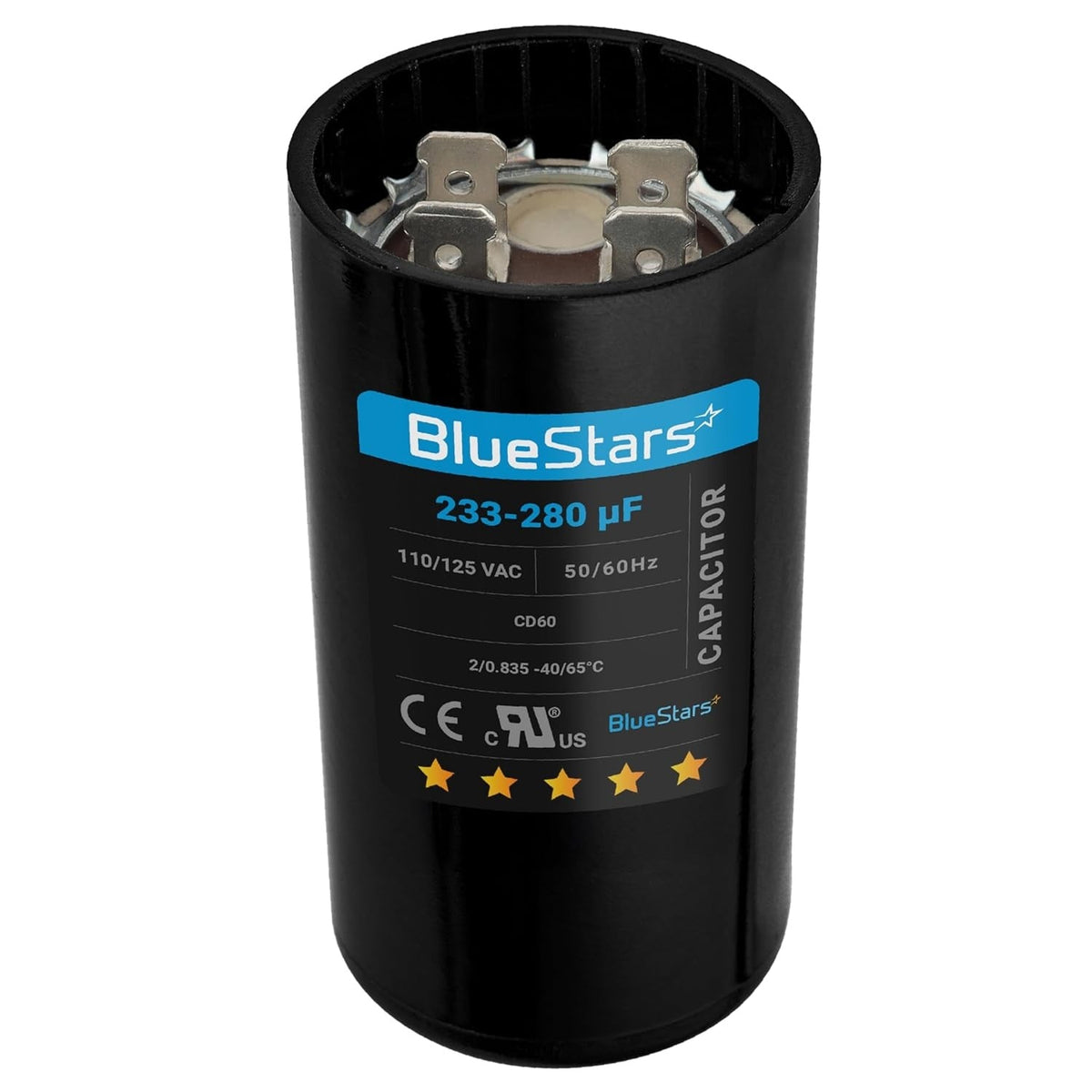

233-280 uF MFD 110-125 VAC ±20% CD60 Round Motor Start Capacitor 50/60 Hz - Fits Pool Pump, Well Pump

233-280 uF MFD 110-125VAC ±20% Volts Round Motor Start Capacitor 50/60 Hz AC Electric

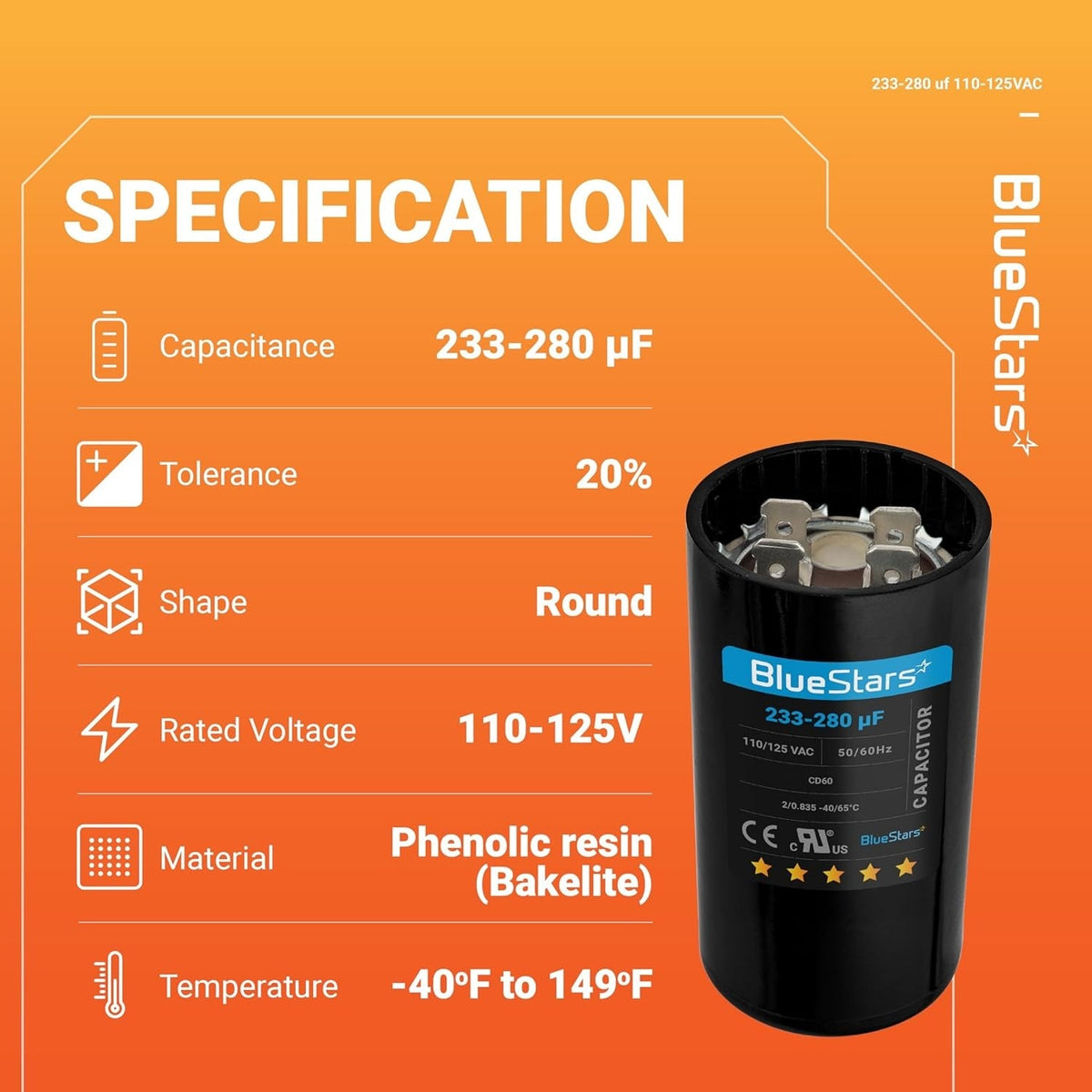

Key Features

• Capacitance: 233-280 µF (MFD)
• Voltage Rating: 110-125 Volts AC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)
• Case Shape: Round
• Construction: Dry, electrolytic, non-polarized

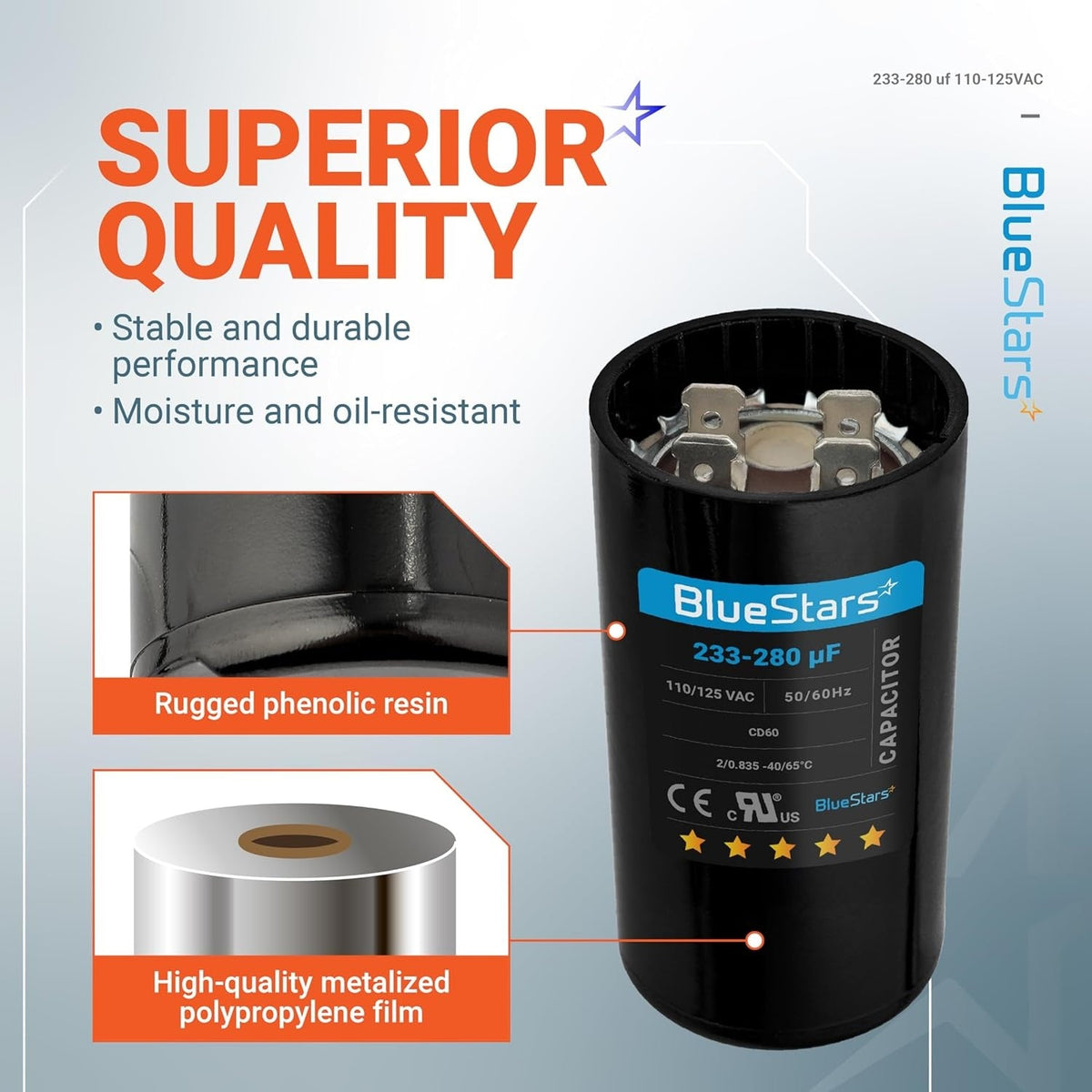

• Case Material: Phenolic Resin

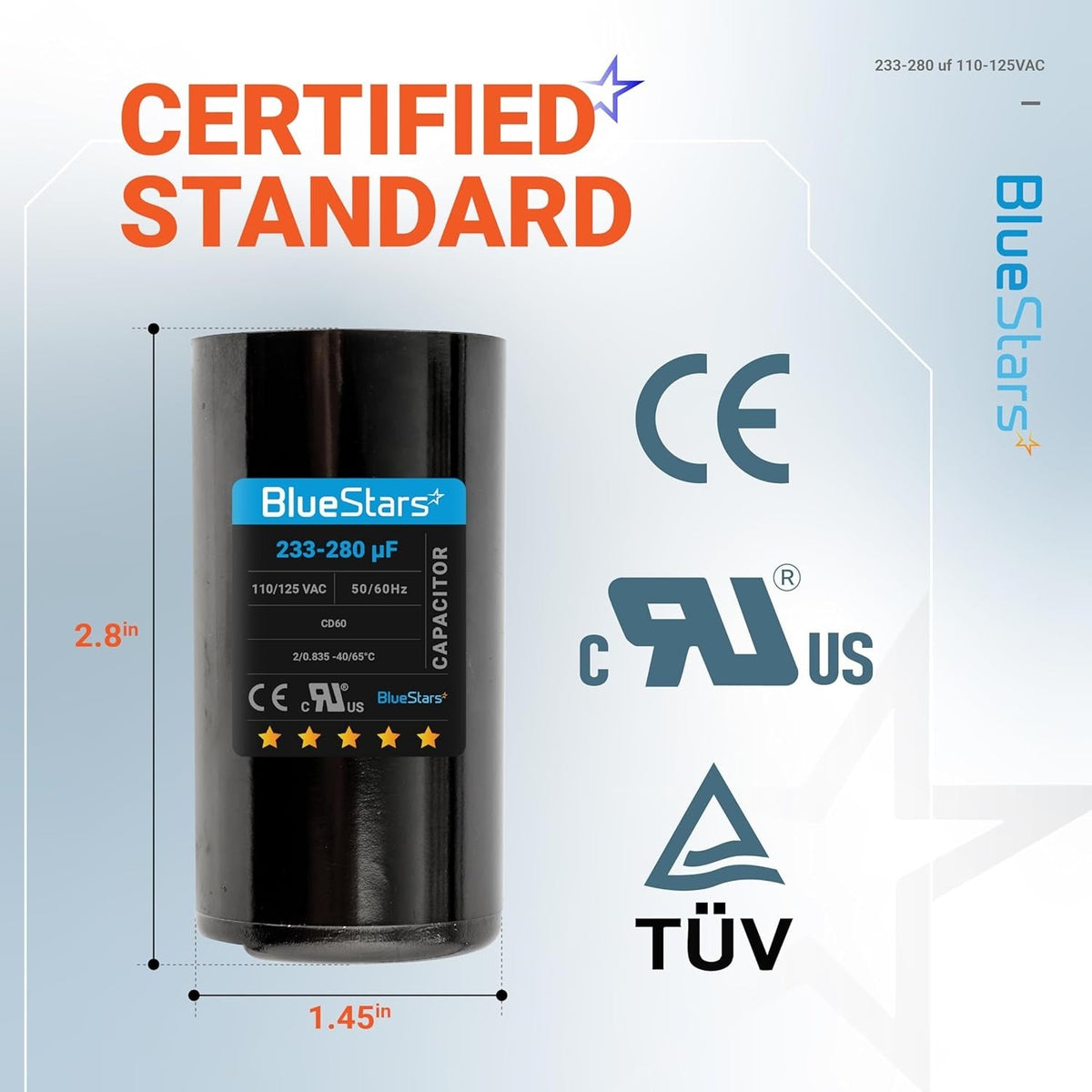

• Dimensions: 1.44 in Diameter x 2.75 in Height

Replaces / Cross-Reference Part Numbers

• Replaces any brand of round start capacitor with matching capacitance and voltage specifications.
• Common type designation: CD60

Compatibility & Fitment

• Designed for single-phase 110-125V AC electric motors.
• Suitable for use in HVAC units, air conditioners, compressors, pumps, and other motor-driven equipment.
• Universal fit for applications requiring a capacitor with the specified 233-280 uF range.

When to Replace

• Motor fails to start or hums without turning.
• Motor starts slowly or struggles to reach full speed.
• Unit short cycles (turns on and off frequently).
• Visible damage to the existing capacitor, such as bulging, leaking, or burn marks.
• Capacitor tests outside of its rated capacitance range with a multimeter.

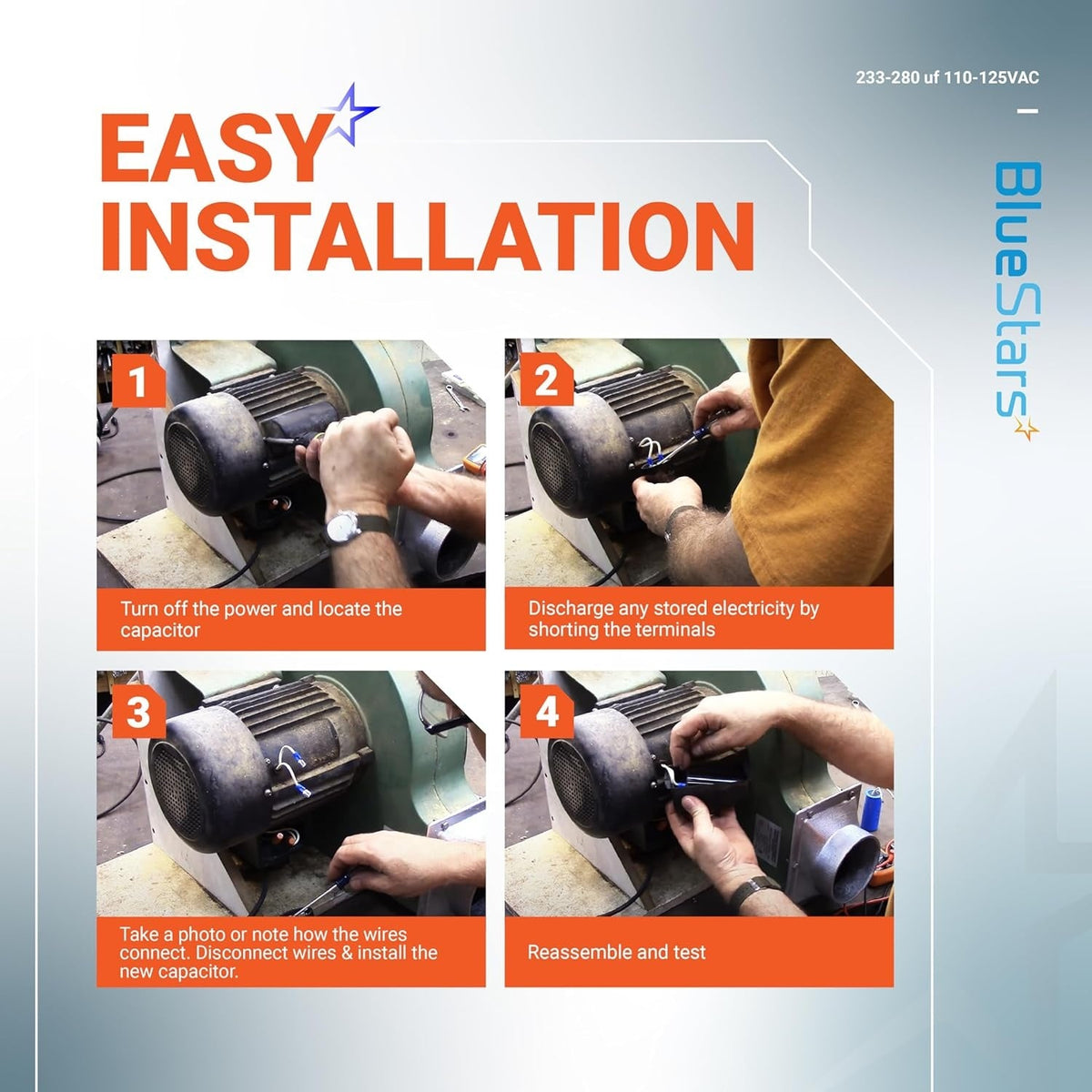

Installation Tips

• Disconnect all electrical power to the unit before performing any service.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.

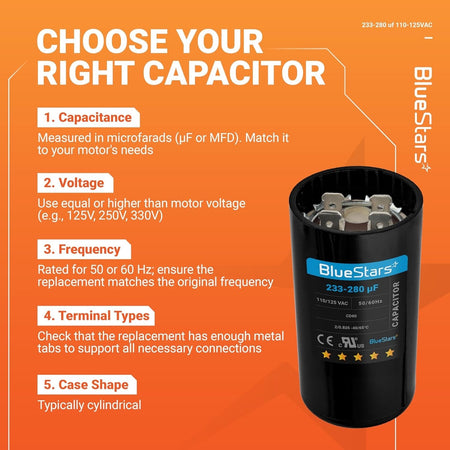

• Verify that the voltage and capacitance ratings of the new capacitor match the original part.

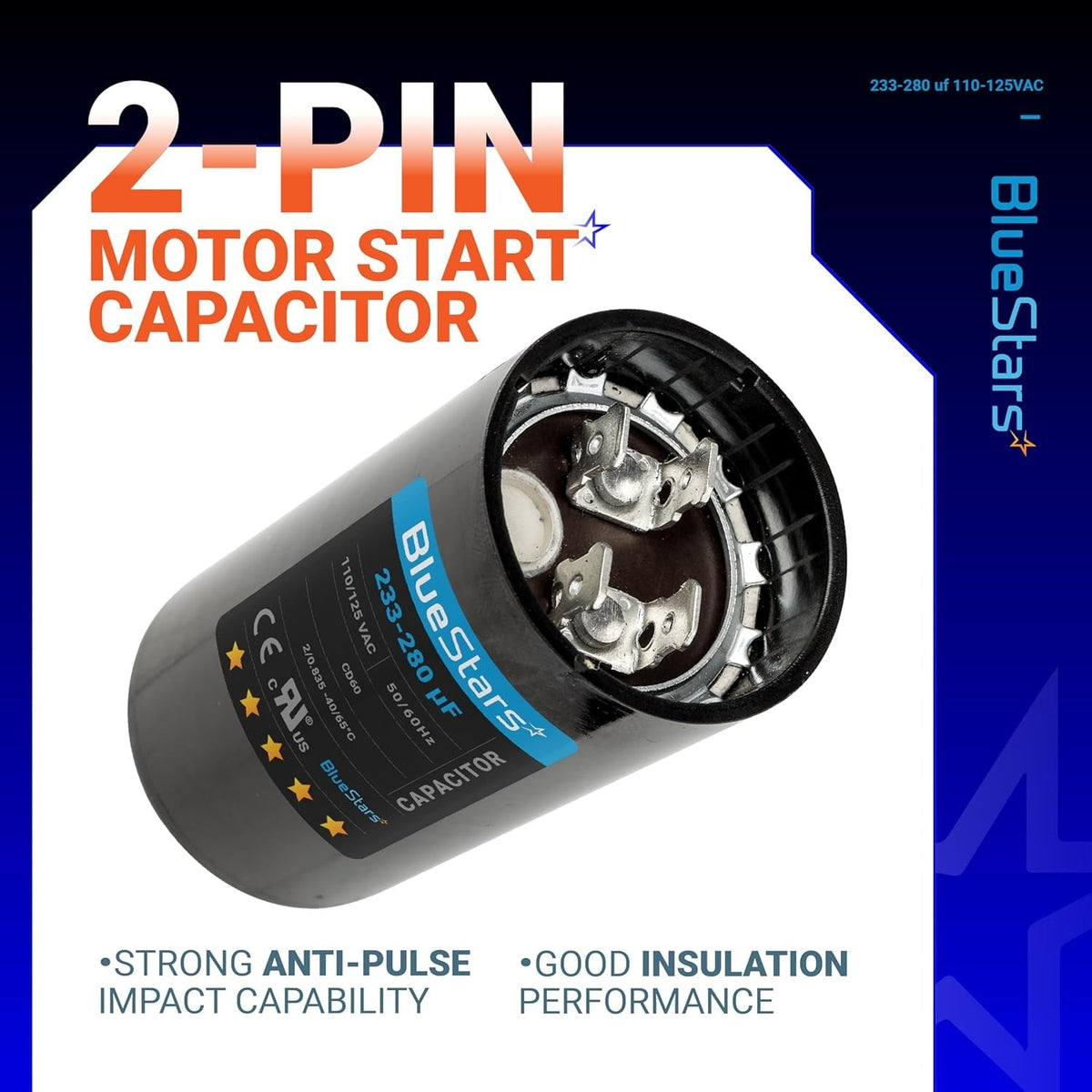

• Note terminal connections before removing the old capacitor. This is a non-polarized capacitor; wire leads can be connected to either terminal.
• Ensure all electrical connections are clean and secure.
• Mount the new capacitor in the original bracket or a secure location.
