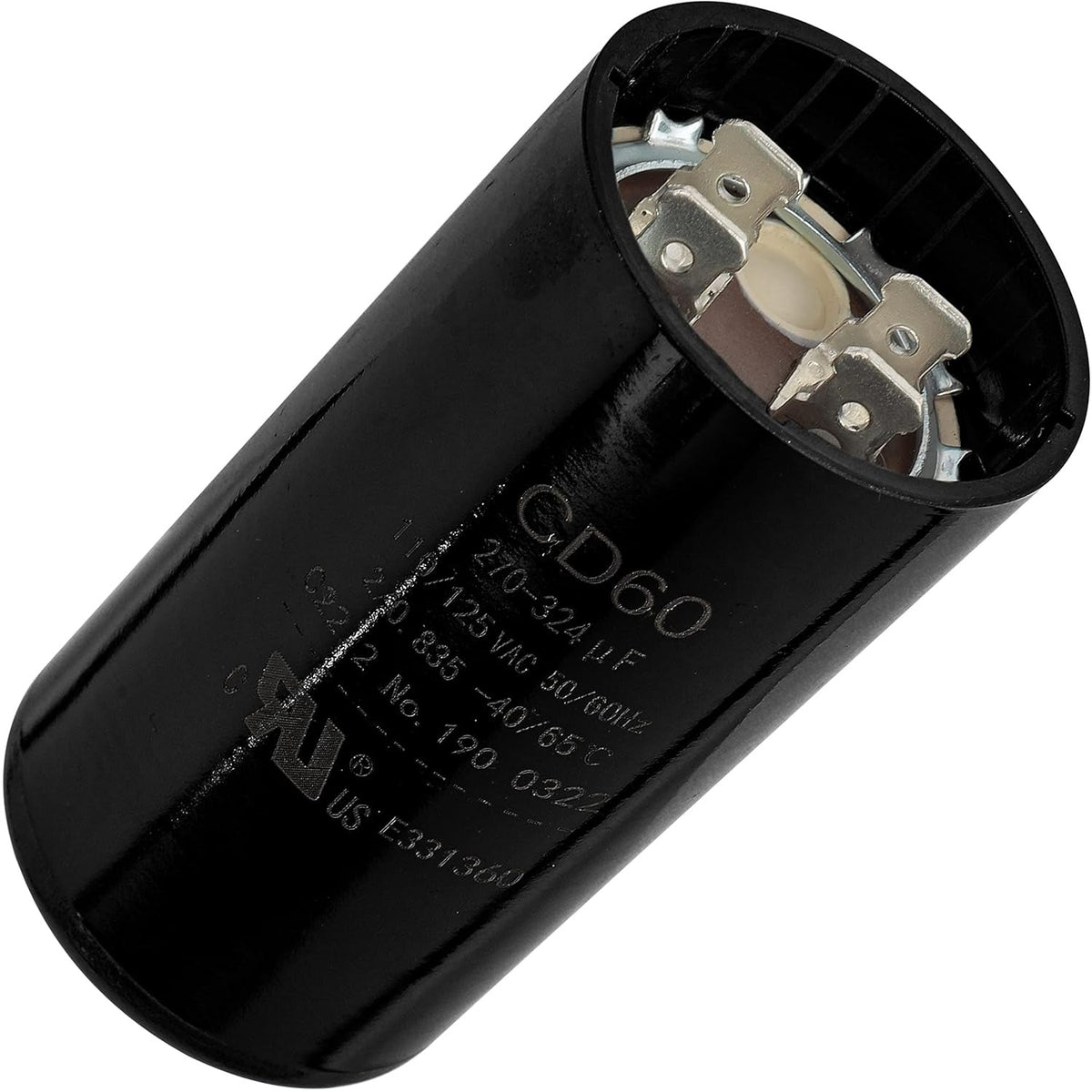

270-324 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz - Fits AC Motors, Pool Pump, Well Pump

270-324 Mfd uF 110-125VAC Round Motor Start Capacitor 50/60 Hz AC Electric

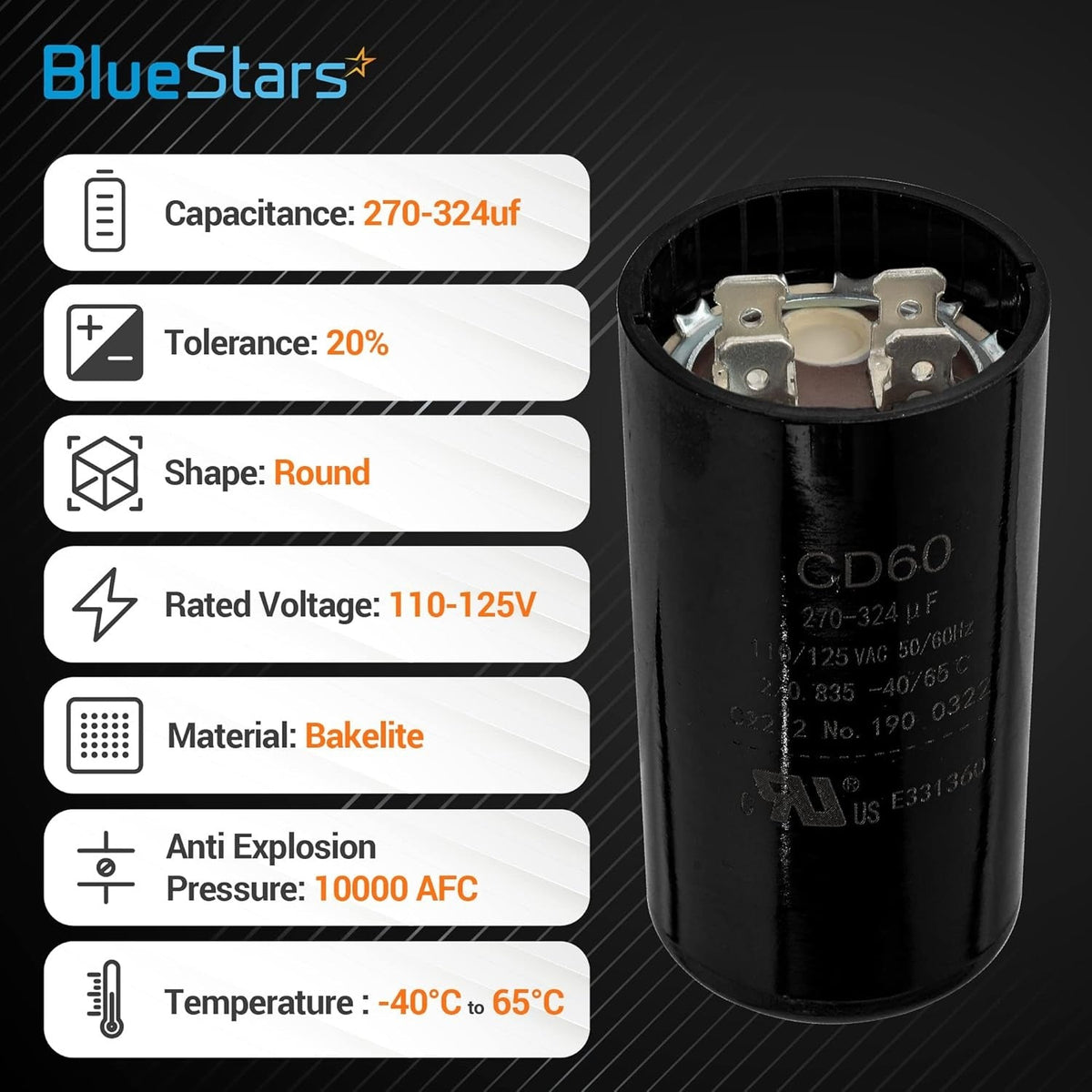

Key Features

• Capacitance: 270-324 MFD / uF
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Tolerance: +/- 20%
• Operating Temperature: -40°C to 65°C (-40°F to 149°F)
• Shape: Round

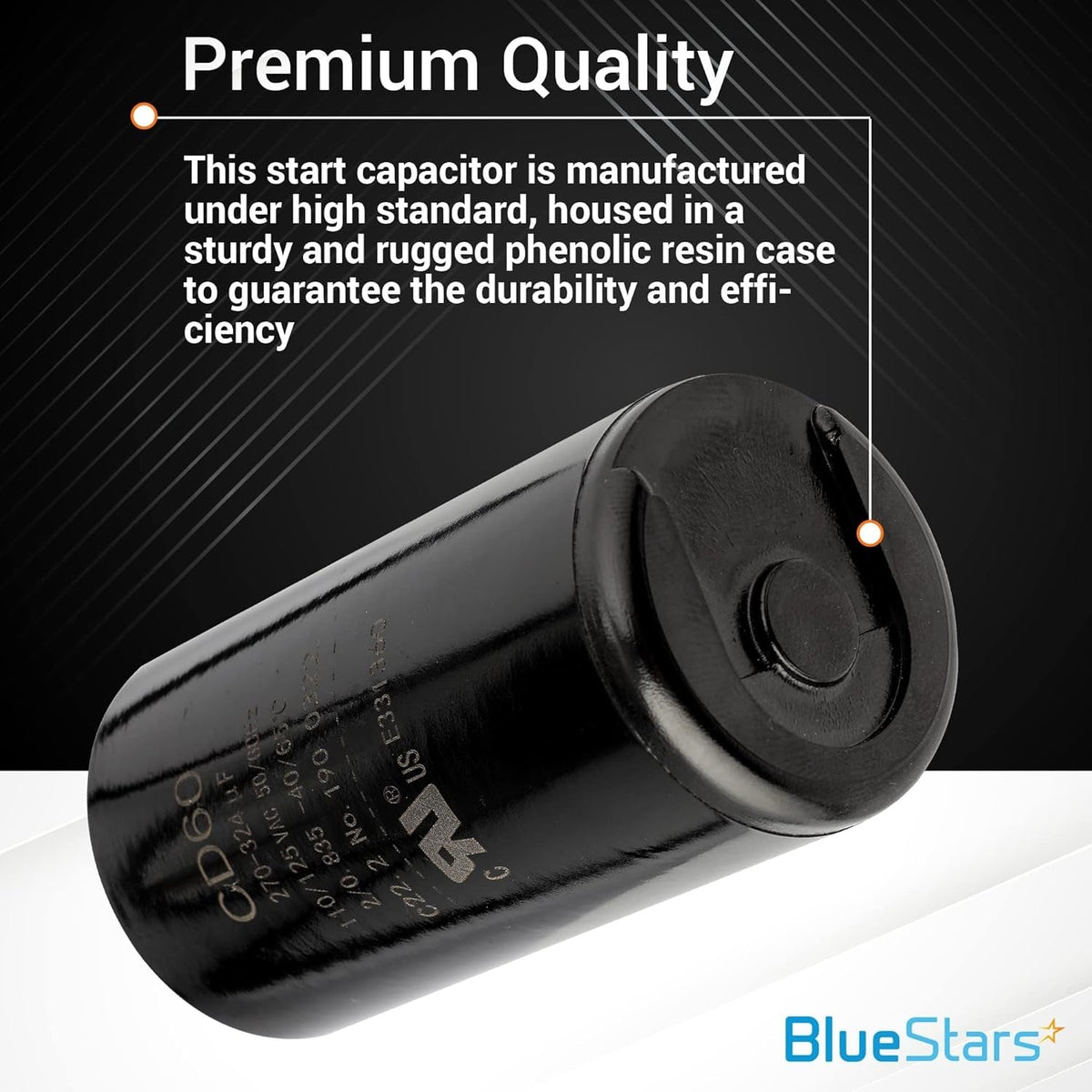

• Case: Moisture and oil-resistant molded plastic
• Duty Cycle: Intermittent, for motor starting applications

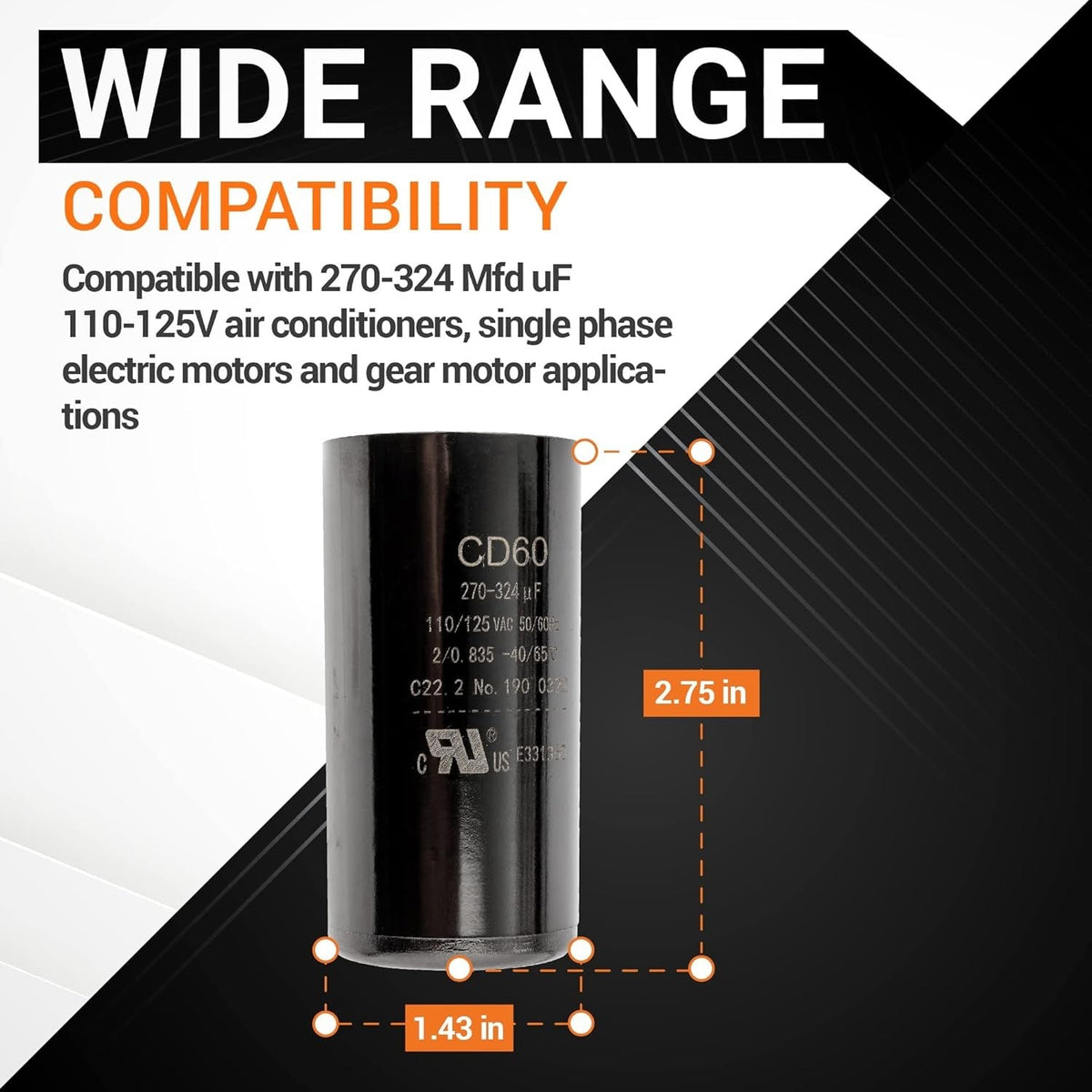

• Dimensions (Diameter x Height): 36mm x 70mm (1.42 in x 2.75 in)

Replaces / Cross-Reference Part Numbers

• CD60
• BC-270
• Replaces any start capacitor with matching capacitance, voltage, and frequency specifications.

Compatibility & Fitment

• Designed for starting fractional horsepower, single-phase AC electric motors.
• Common applications include HVAC units, air compressors, well pumps, refrigeration units, and fans.
• Fit is universal for applications requiring a 270-324 MFD capacitor at 110V to 125V.

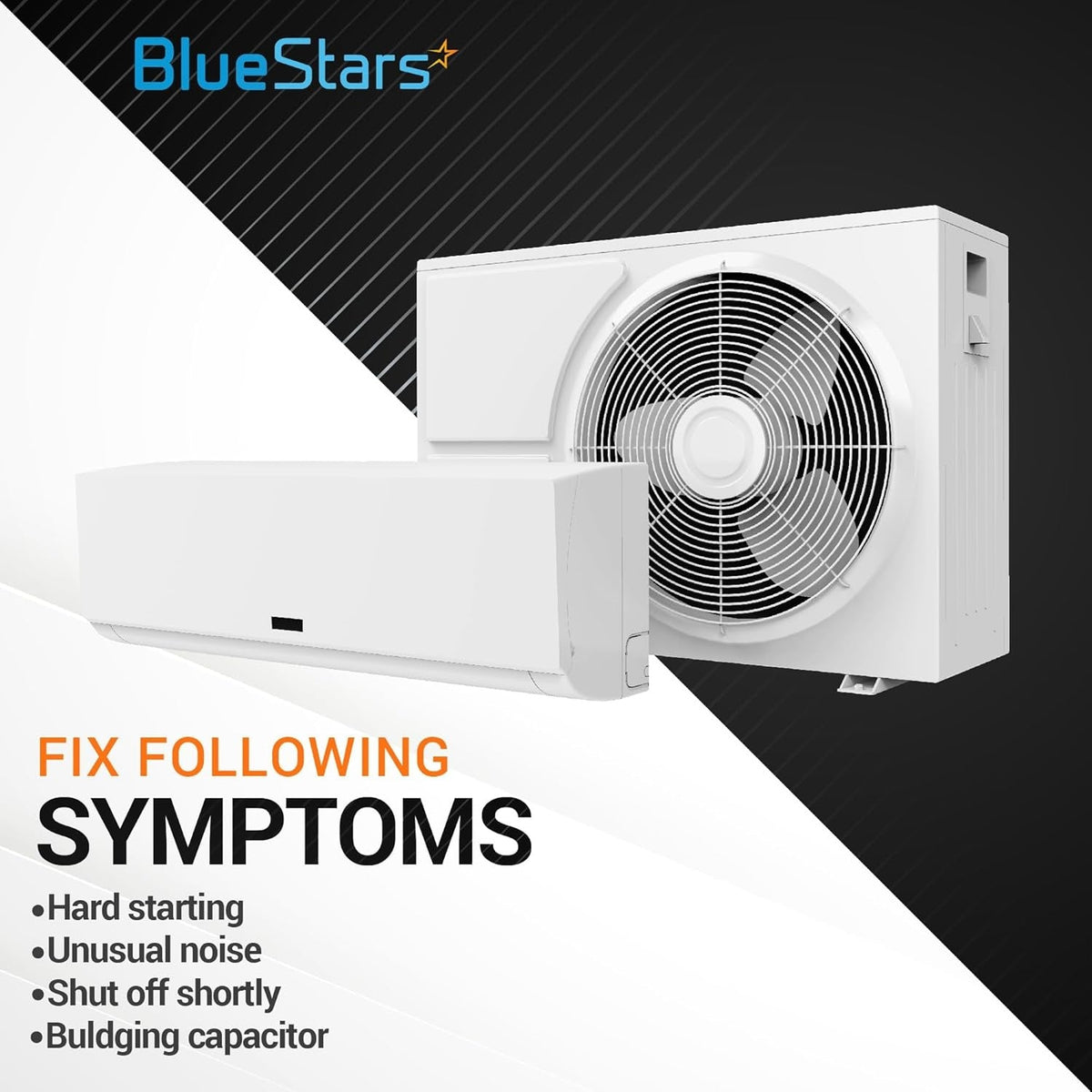

When to Replace

• Motor hums but fails to start or starts slowly.
• Circuit breaker trips repeatedly upon motor startup.
• Visible damage to the existing capacitor, such as bulging, cracking, or leaking fluid.
• Capacitance measures outside the specified tolerance range when tested with a multimeter.

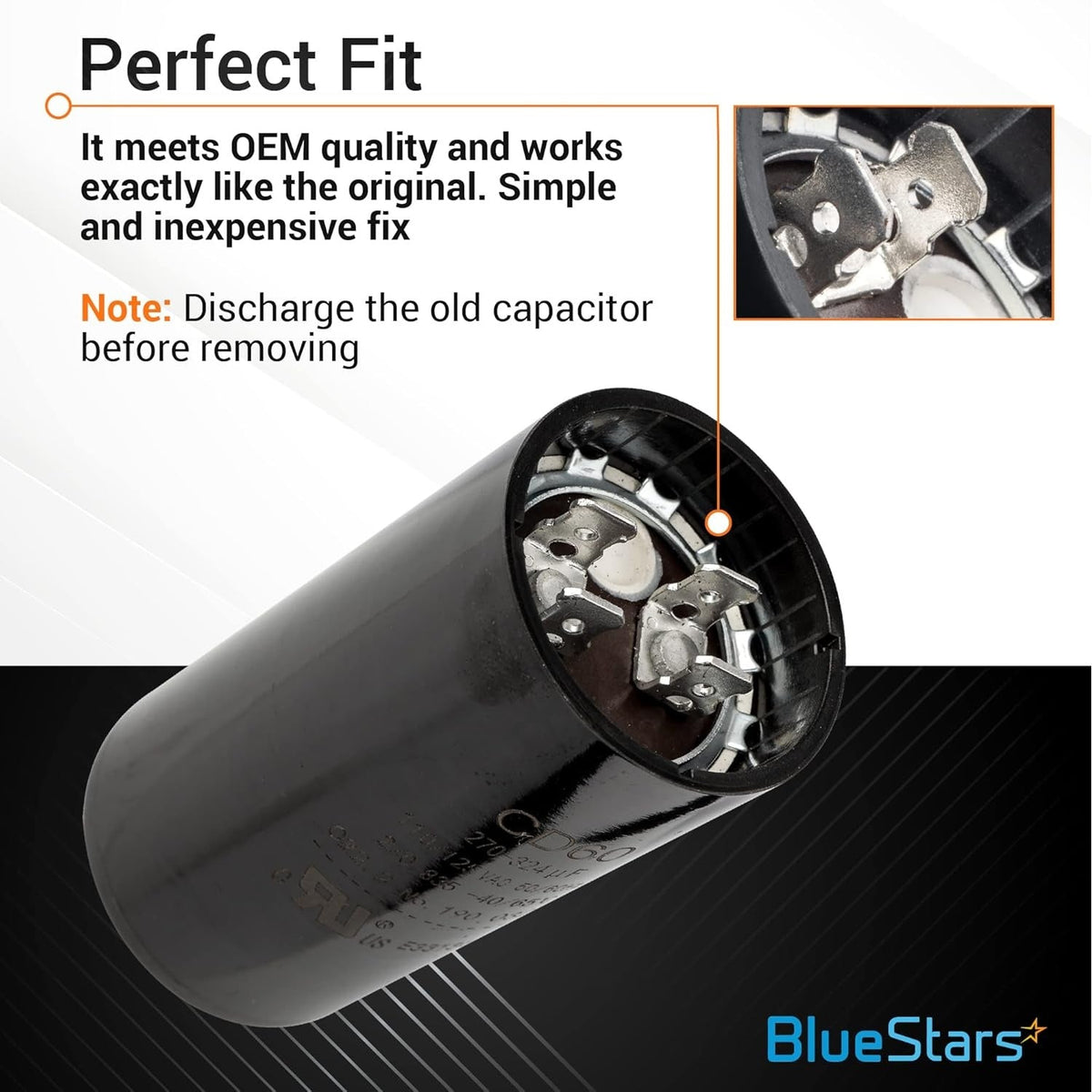

Installation Tips

• Disconnect all electrical power to the equipment before beginning installation.
• Safely discharge the old capacitor by shorting the terminals with an insulated tool.
• Confirm the new capacitor's MFD and VAC ratings match the component being replaced.
• As a non-polarized component, wires can be connected to either terminal.
• Securely mount the capacitor to prevent vibration and ensure firm wire connections.
