Lifetime Warranty

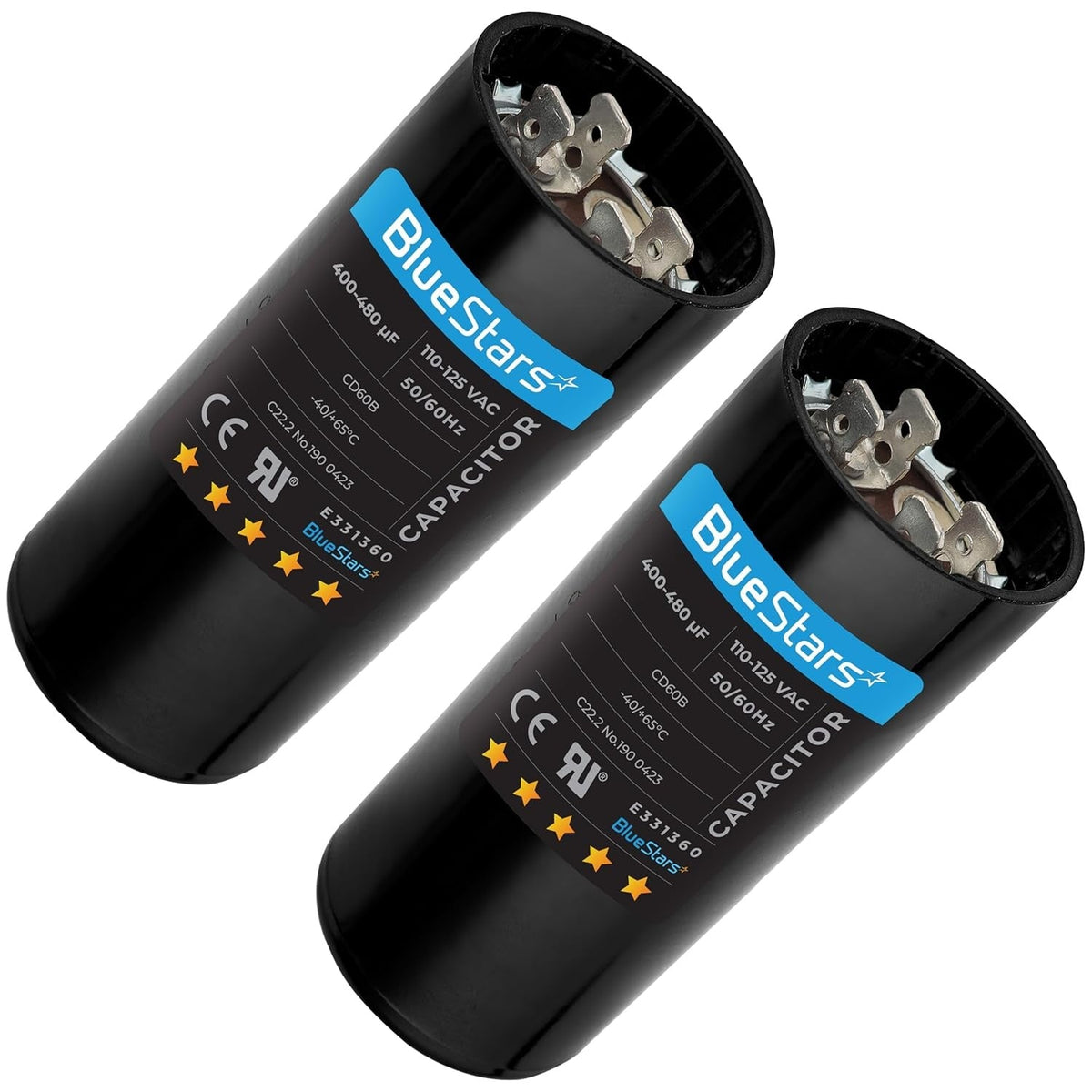

400-480 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz AC Electric Replacement - 2 Pack
Save 13%
0.00
Regular price
$31.38
Regular price
$36.09
Sale price
$31.38
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
400-480 uf/MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz AC Electric - Pack of 2
Key Features
- Package Quantity: Two (2) capacitors
- Capacitance: 400-480 uF/MFD
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Capacitance Tolerance: +/- 20%
- Shape: Round
- Dimensions: 36mm Diameter x 70mm Height
- Operating Temperature Range: -40°C to +70°C (-104°F to +158°F)
Replaces / Cross-Reference Part Numbers
- Replaces any round motor start capacitor with the same capacitance and voltage ratings.
- Commonly replaces capacitors identified as CD60 type.
- Ensure physical dimensions are compatible with your existing mounting bracket.
Compatibility & Fitment
- Designed for single-phase AC electric motors that require a start capacitor.
- Suitable for a wide range of applications, including:
- HVAC systems
- Air conditioner compressors
- Heat pumps
- Refrigeration units
- Well pumps and other water pumps
- General purpose AC motors
When to Replace
- Motor hums or buzzes but does not start.
- Motor starts slowly or requires manual assistance to turn.
- Circuit breaker trips upon motor startup.
- Visible damage to the existing capacitor, such as swelling, bulging, or leaking fluid.
- Capacitance measures outside of the +/- 20% tolerance range when tested with a multimeter.

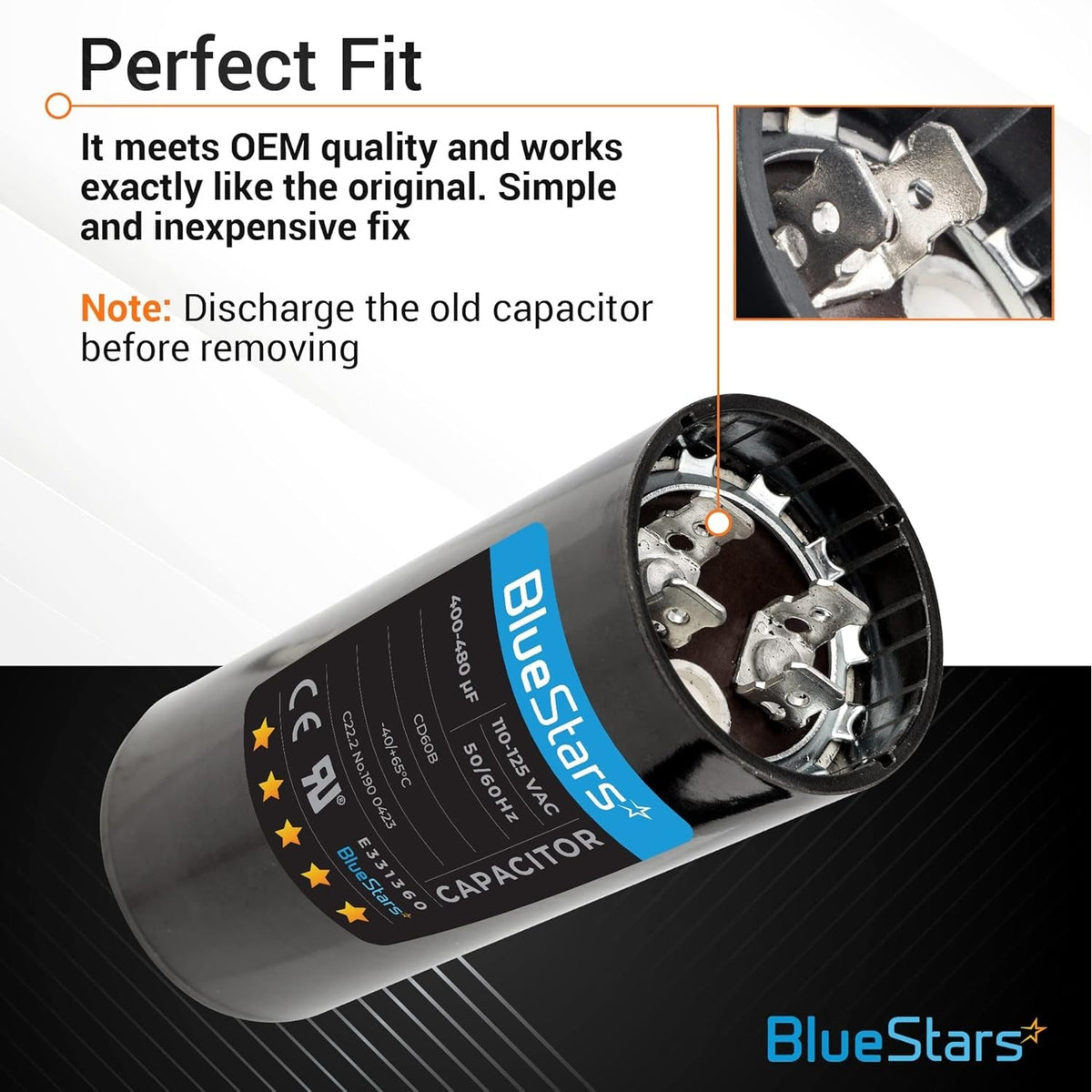

Installation Tips
- Disconnect all electrical power to the equipment before beginning installation.
- Carefully discharge the old capacitor by shorting the terminals with an insulated tool.
- Verify the uF/MFD and VAC ratings of the new capacitor match the specifications of the original part.
- Note the wire placement on the old capacitor before disconnecting.
- As an AC capacitor, it is not polarized; wires can be connected to either terminal.
-
Benefits
Start capacitors are needed at the beginning of each cycle and run capacitors are necessary for keeping HVAC running throughout the cycle. Replacing bad capacitors can help promote efficient operation and lengthen the life of your HVAC units -
Energy Saving
This capacitor will provide your electric motors with an outstanding electrical characteristic of high capacitance stability over time and temperature, and very low internal power loss. -

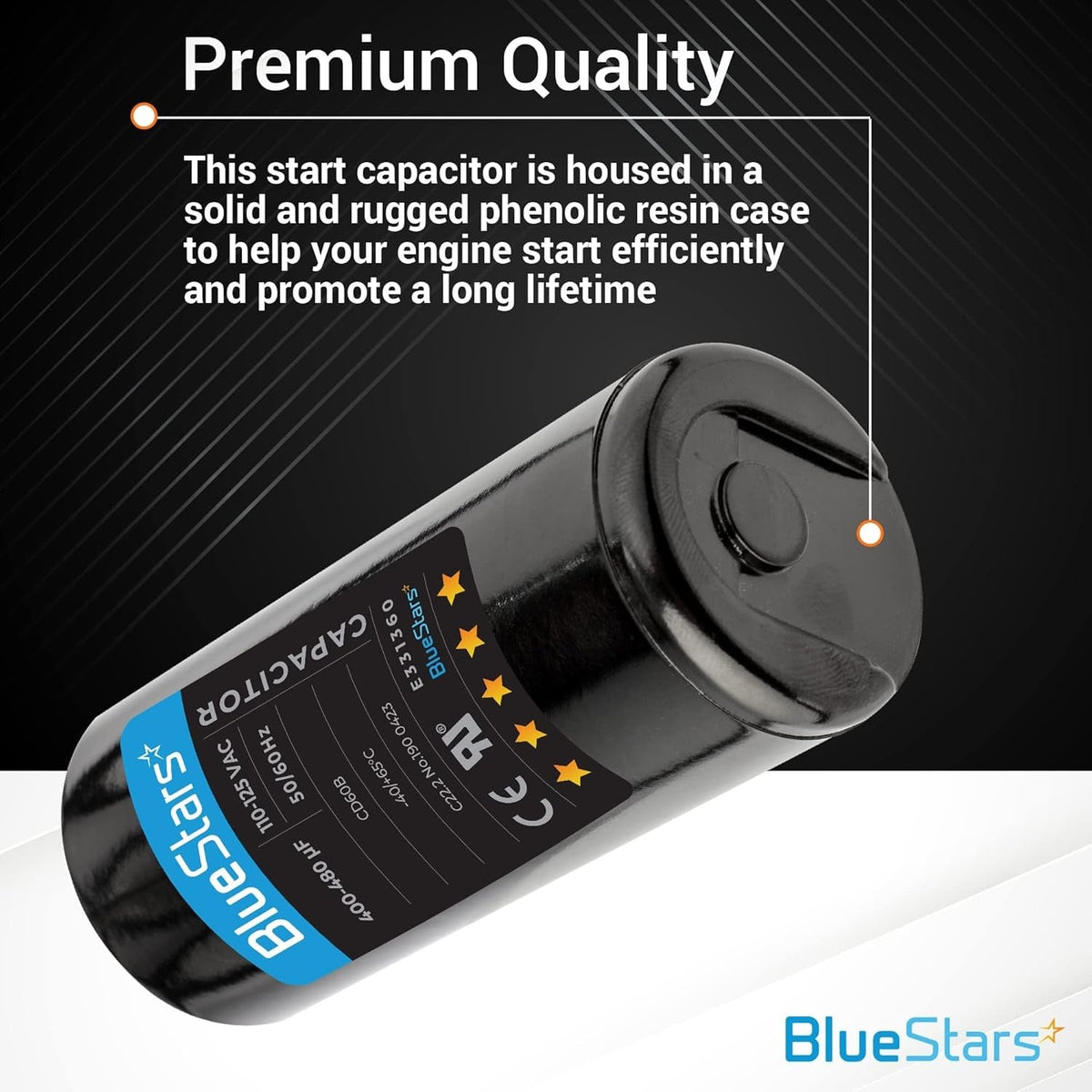

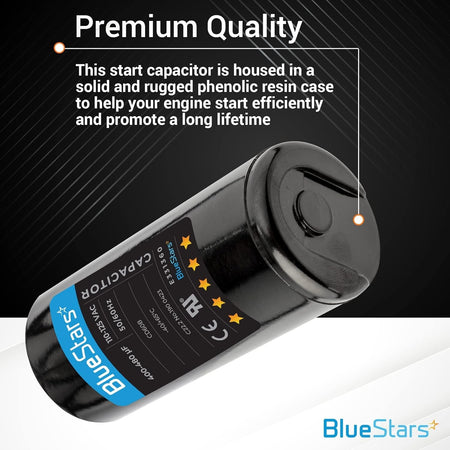

Premium Quality
The product is made of strong & durable materials that prevent cracking and failing during the installation and use process. -
Safe To Install
The capacitor is engineered for safety and ensure security when replacing

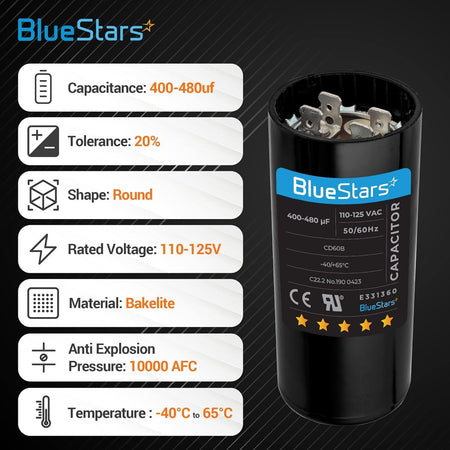

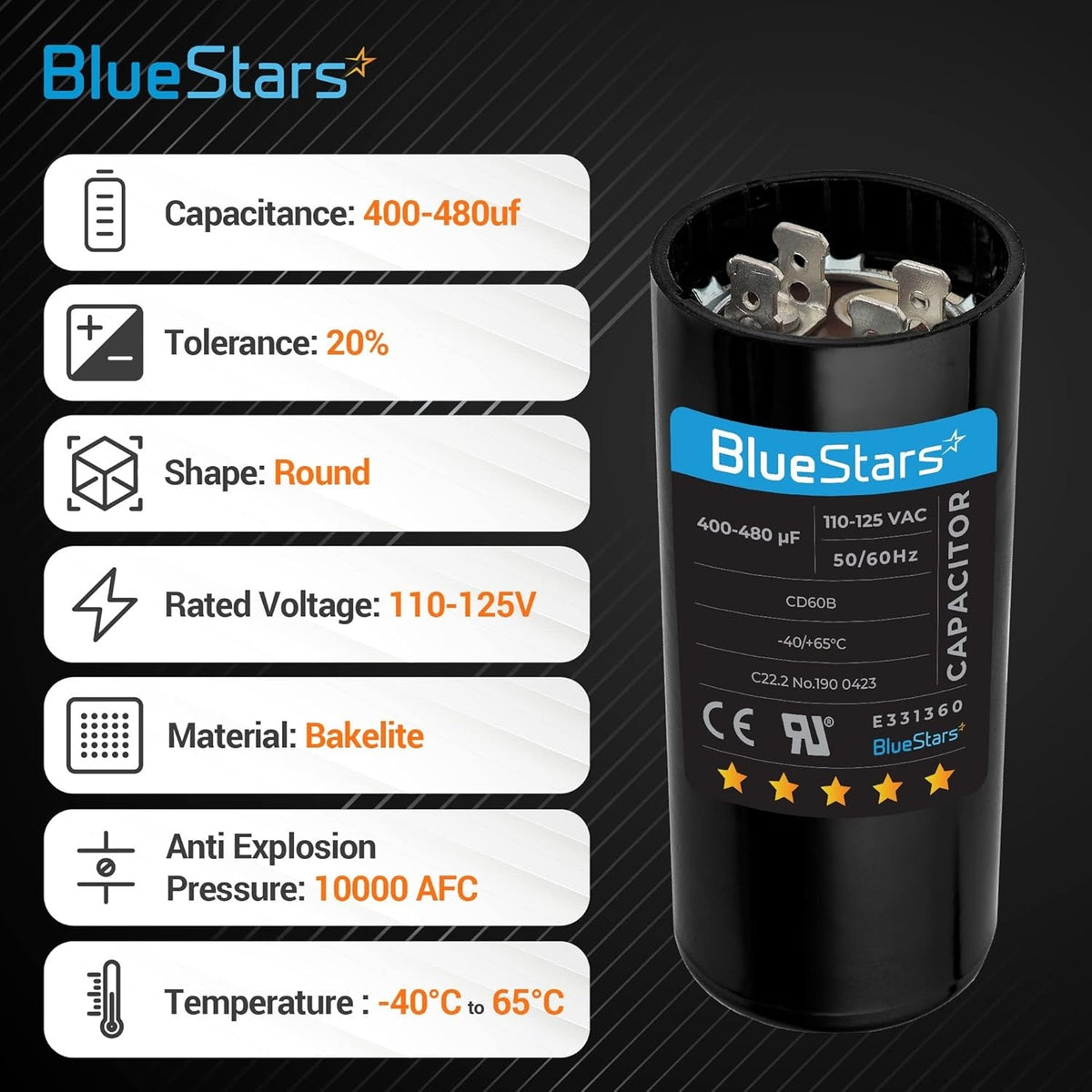

Shape
Round Motor Start
Capacitance tolerance
± 20%
Rated voltage
AC 110-125V
Temperature range
-40℃ to +65℃ / -40℉ to 149℉
Capacitor Dimensions
36mm x 70mm
Engineered For Safety
10000 AFC Anti Explosion Pressure Switch
