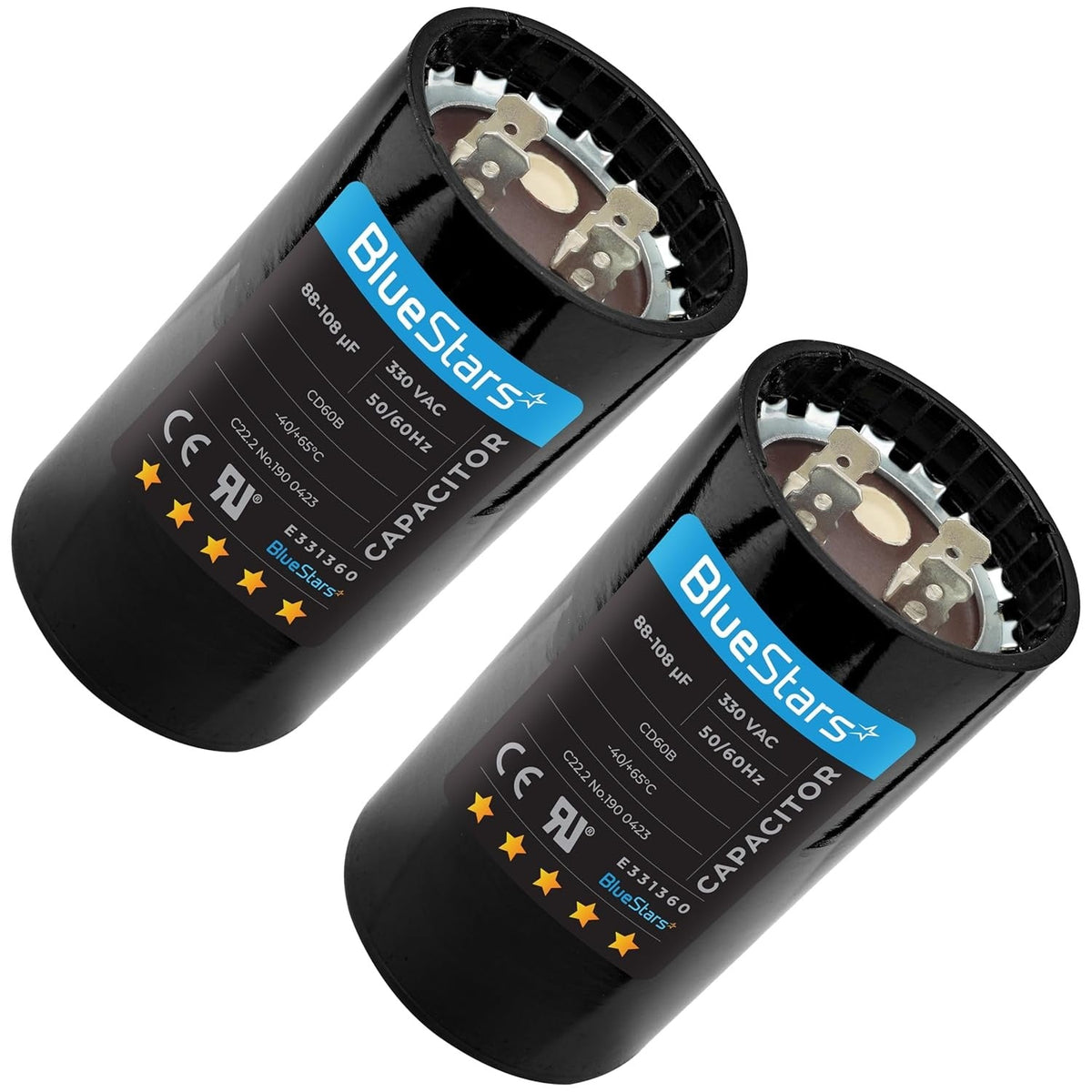

88-108 uF MFD 330 VAC Round Motor Start Capacitor 50/60 Hz - Fits Single-Phase Motors, Gear Motors - 2 Pack

88-108 uF MFD 330VAC Volts Round Motor Start Capacitor 50/60 Hz AC Electric

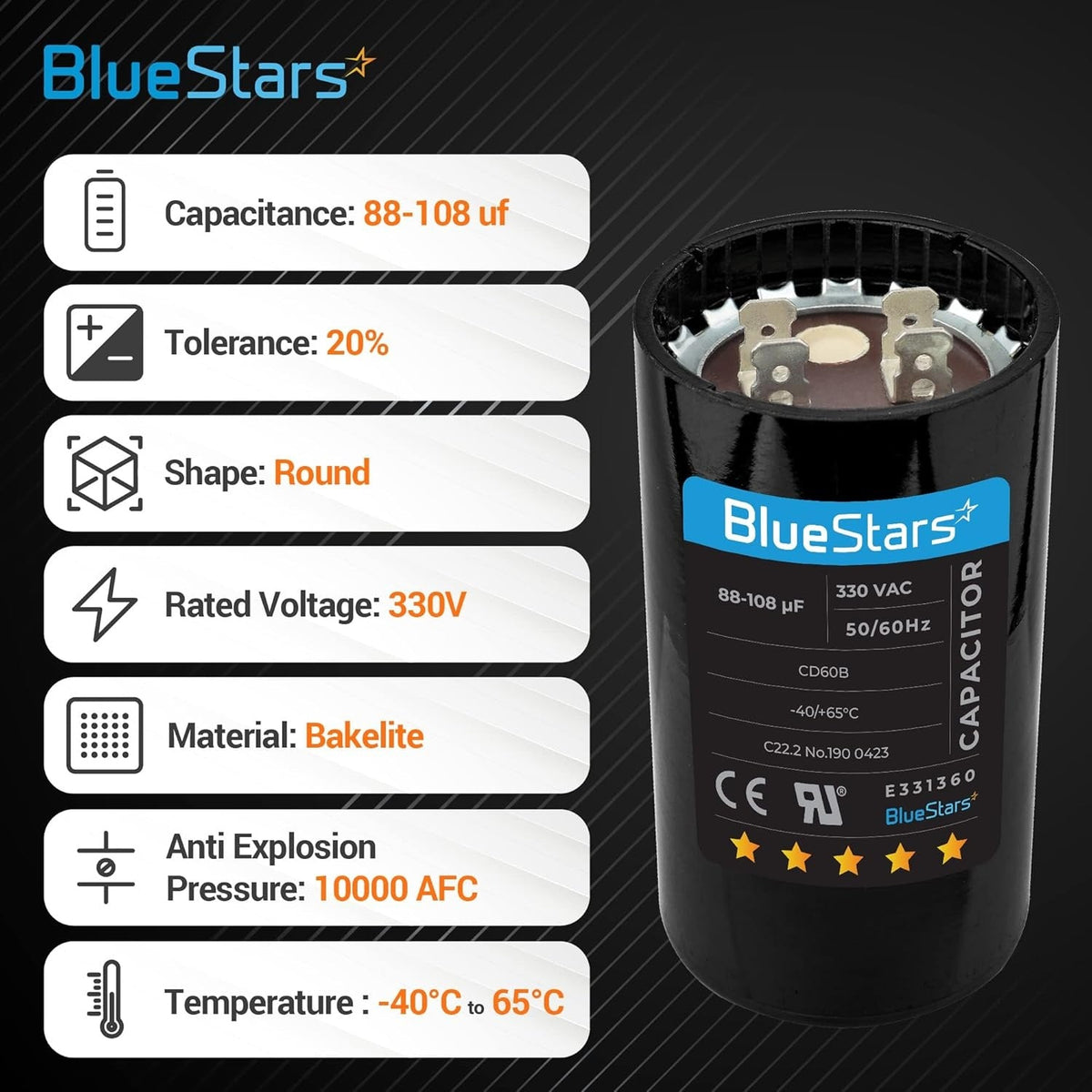

Key Features

• Capacitance: 88-108 Microfarads (µF/MFD)
• Voltage Rating: 330 Volts AC (VAC)
• Frequency: 50/60 Hertz (Hz)
• Operating Temperature: Up to 65°C (149°F)
• Shape: Round

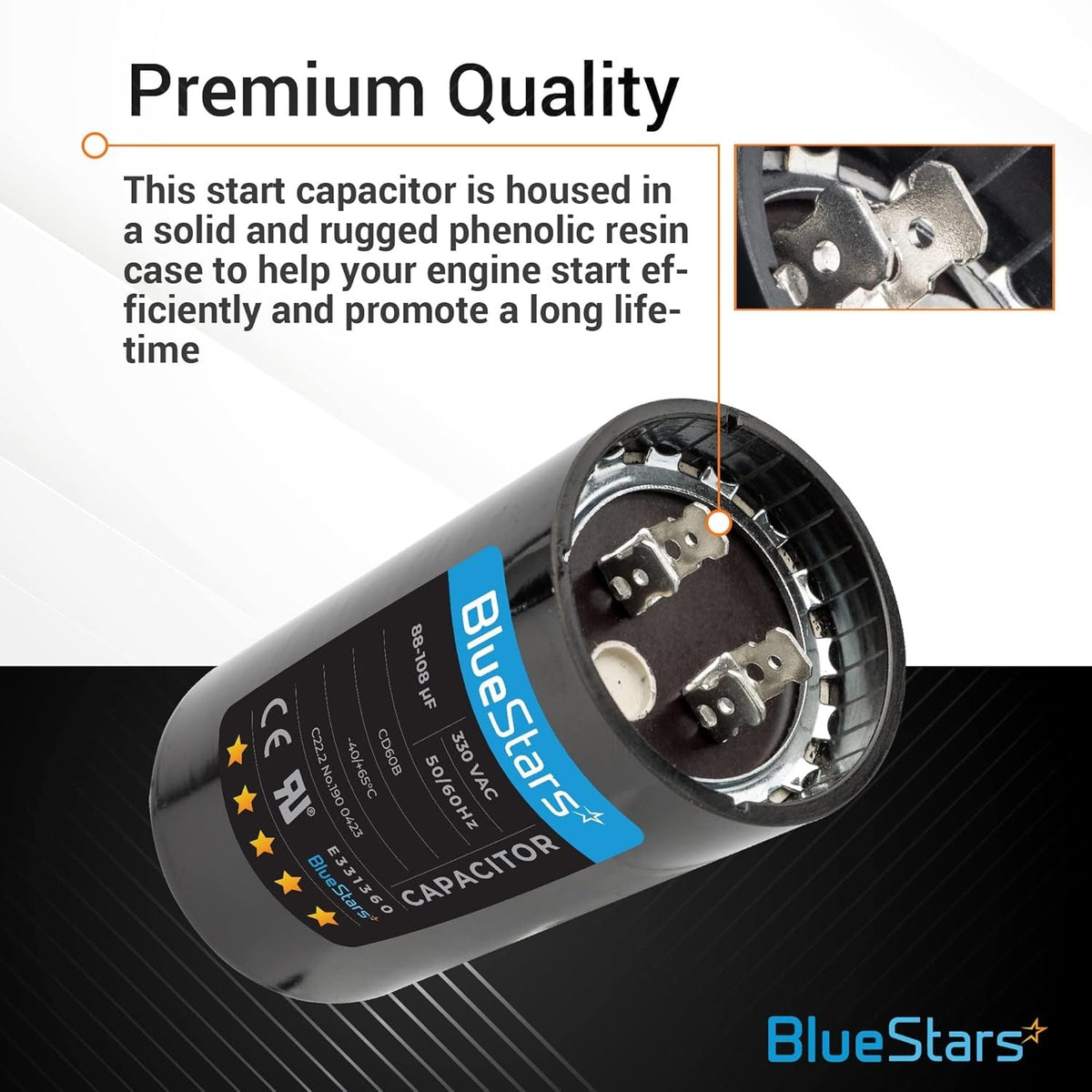

• Case Material: Moisture and oil-resistant molded plastic

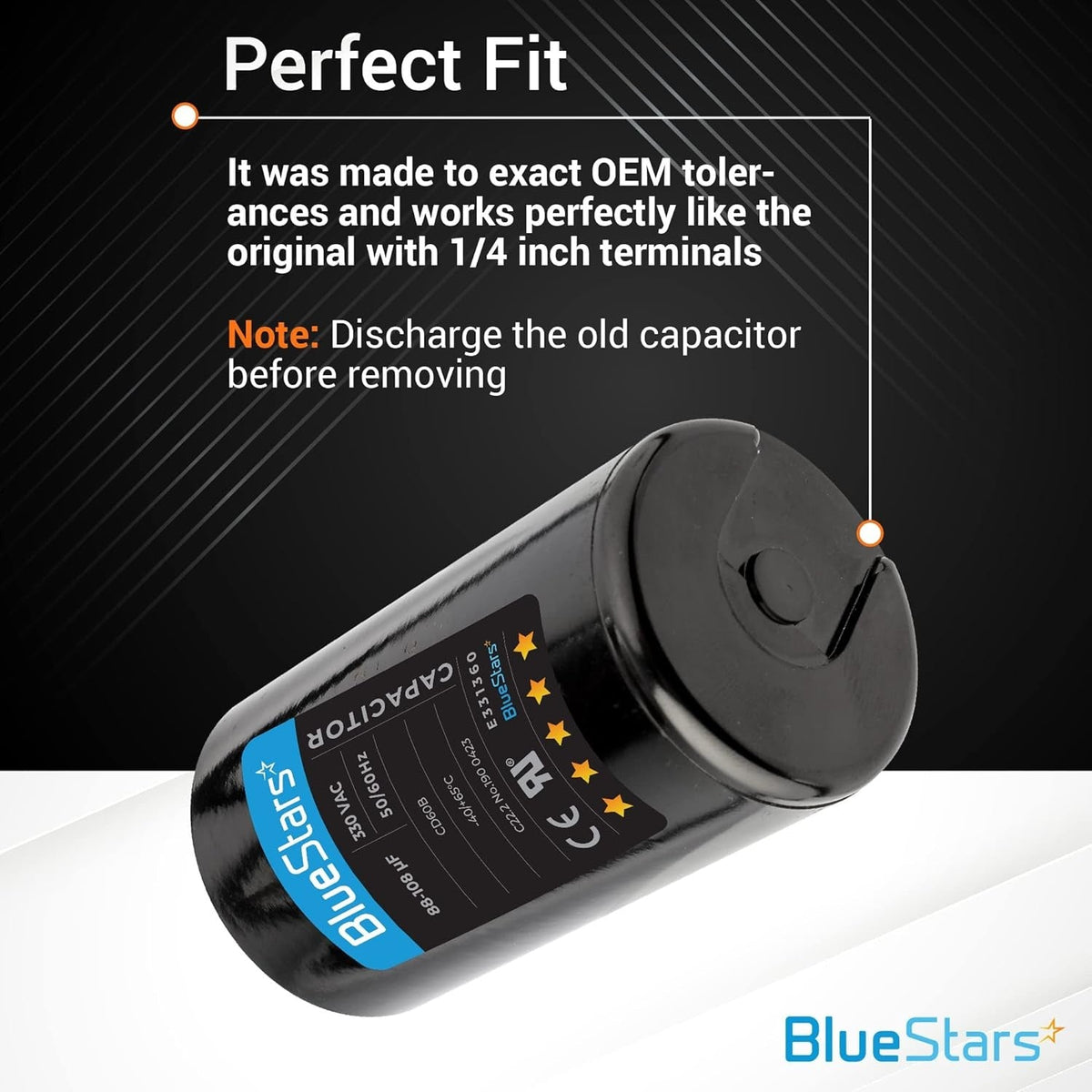

• Terminals: 1/4 inch male quick-connect

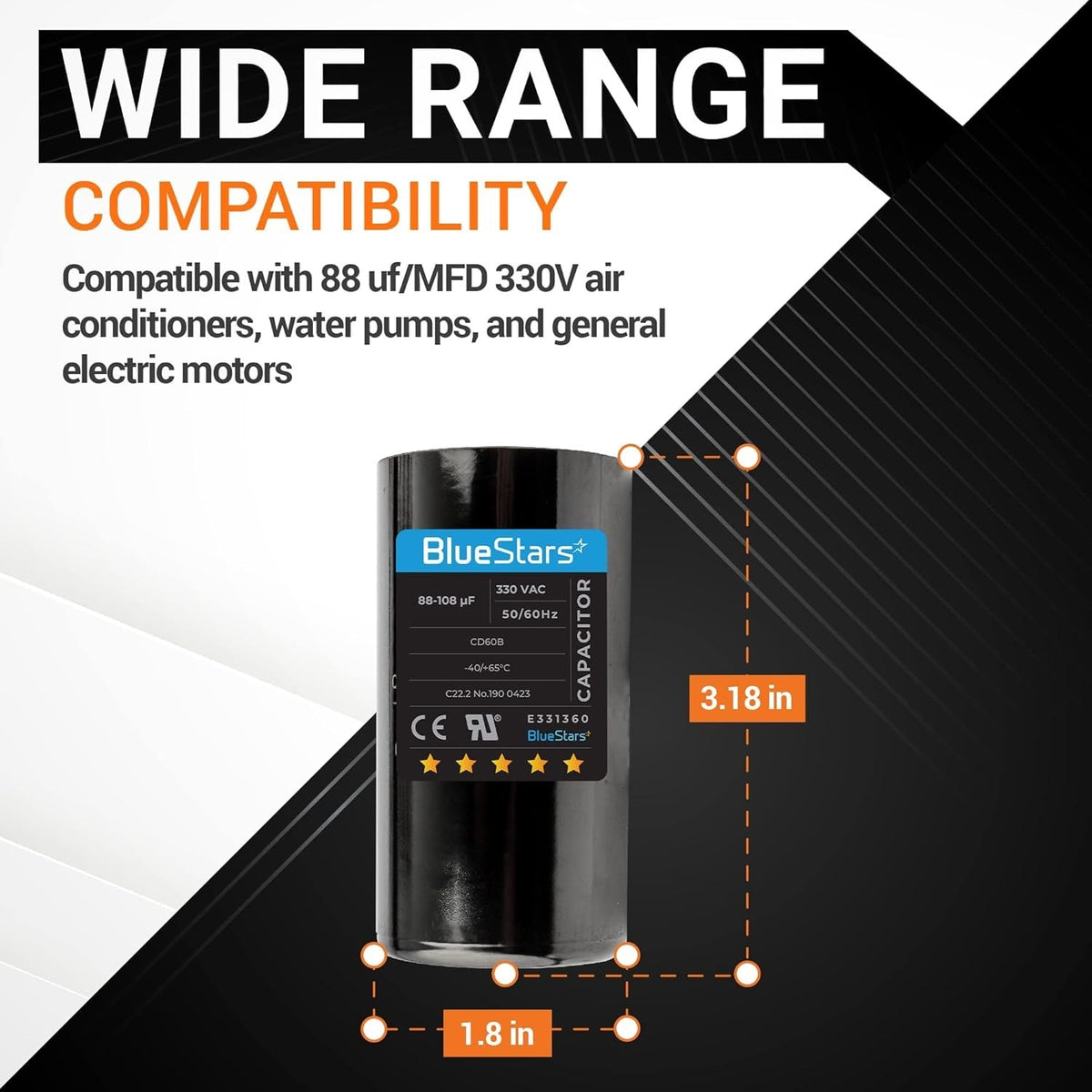

• Dimensions: 2-1/16 in diameter x 3-5/16 in height

Replaces / Cross-Reference Part Numbers

This component is a direct replacement for any start capacitor with matching capacitance, voltage, and frequency specifications. It is a suitable alternative for parts including, but not limited to:

• Titan Pro TRMJ88

Compatibility & Fitment

Designed for use in single-phase AC electric motors. Common applications include:

• Air conditioners
• Heat pumps
• Compressors
• Refrigeration units
• Well pumps and other electric motors

When to Replace

A failing start capacitor can cause motor issues. Consider replacement if you observe the following symptoms:

• Motor hums but does not start or struggles to start
• Motor cycles off on thermal overload protector
• No motor function
• Visible signs of damage to the capacitor, such as bulging, cracking, or leaking fluid

Installation Tips

• Safety First: Disconnect all electrical power to the unit before servicing.
• Discharge Old Capacitor: Safely discharge the existing capacitor using a properly rated resistor to avoid electrical shock.
• Verify Specifications: Ensure the capacitance (µF/MFD) and voltage (VAC) ratings of the new capacitor match the original part. The voltage rating can be equal to or higher than the original, but never lower.
• Note Connections: Take a photo or make a note of the wire connections before removing the old capacitor to ensure correct reassembly.
• Secure Mounting: Mount the new capacitor securely using the existing bracket or strap.
