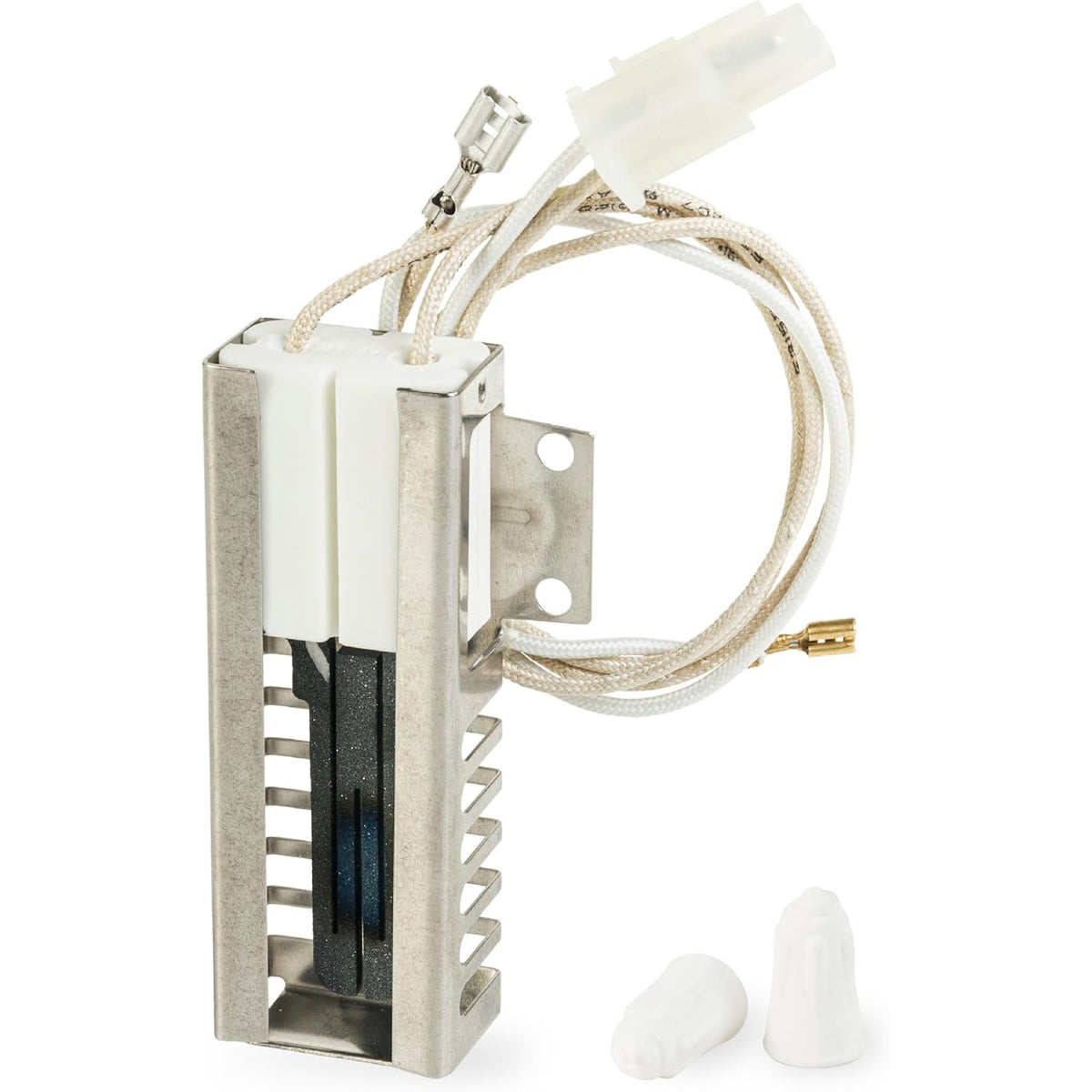

5304509706 gas oven igniter with metal cage, wiring harness, and two wire nuts.

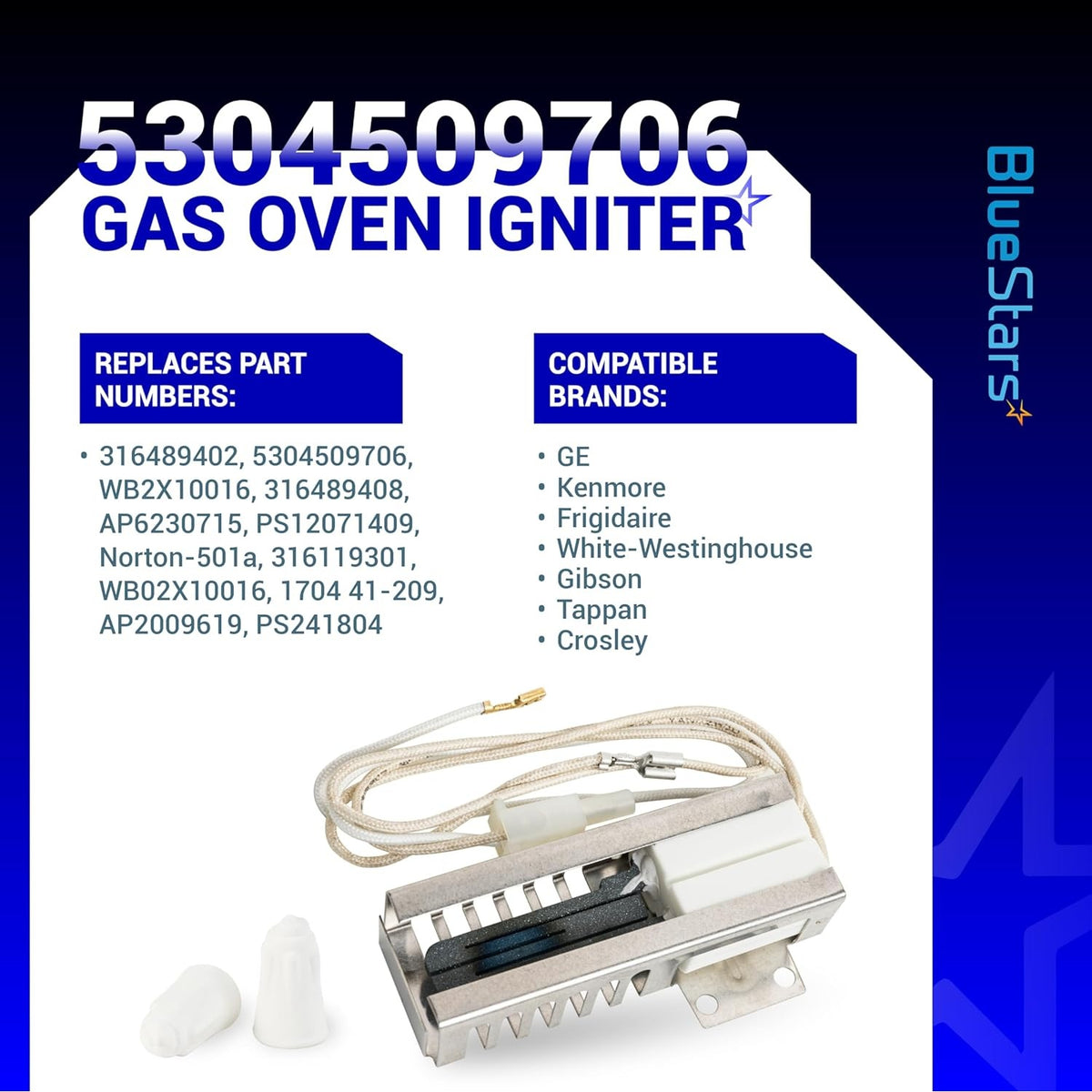

5304509706 gas oven igniter replacement part with wire leads and wire nuts shown on an informational product card.

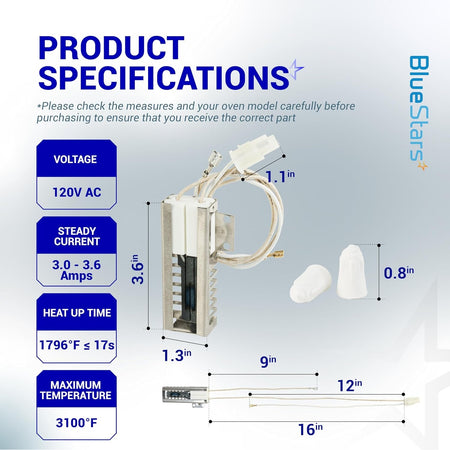

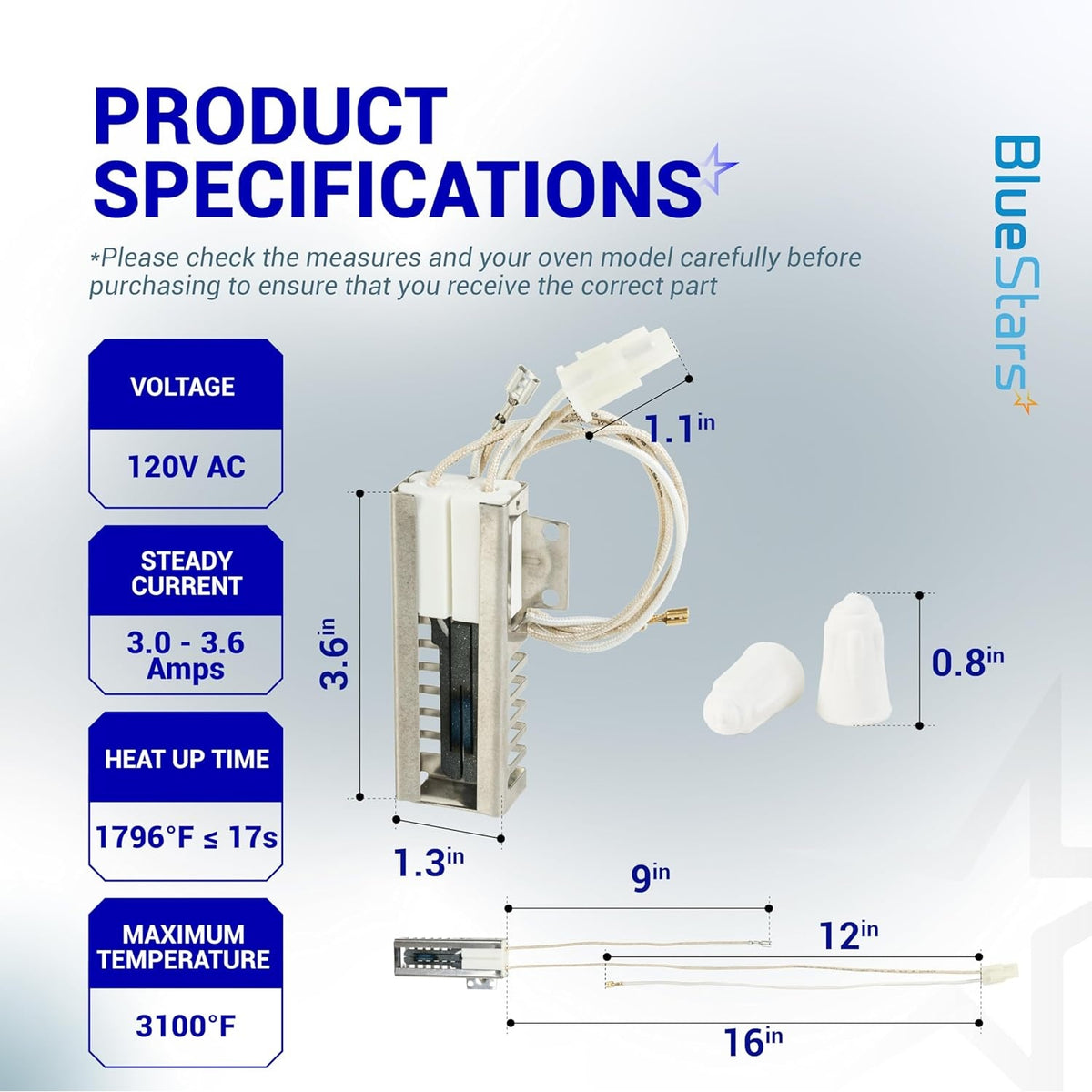

5304509706 gas oven igniter specification chart showing dimensions, voltage, and electrical ratings.
5304509706 gas oven igniter shown with protective sponge cushioning and shipping box for safe delivery.

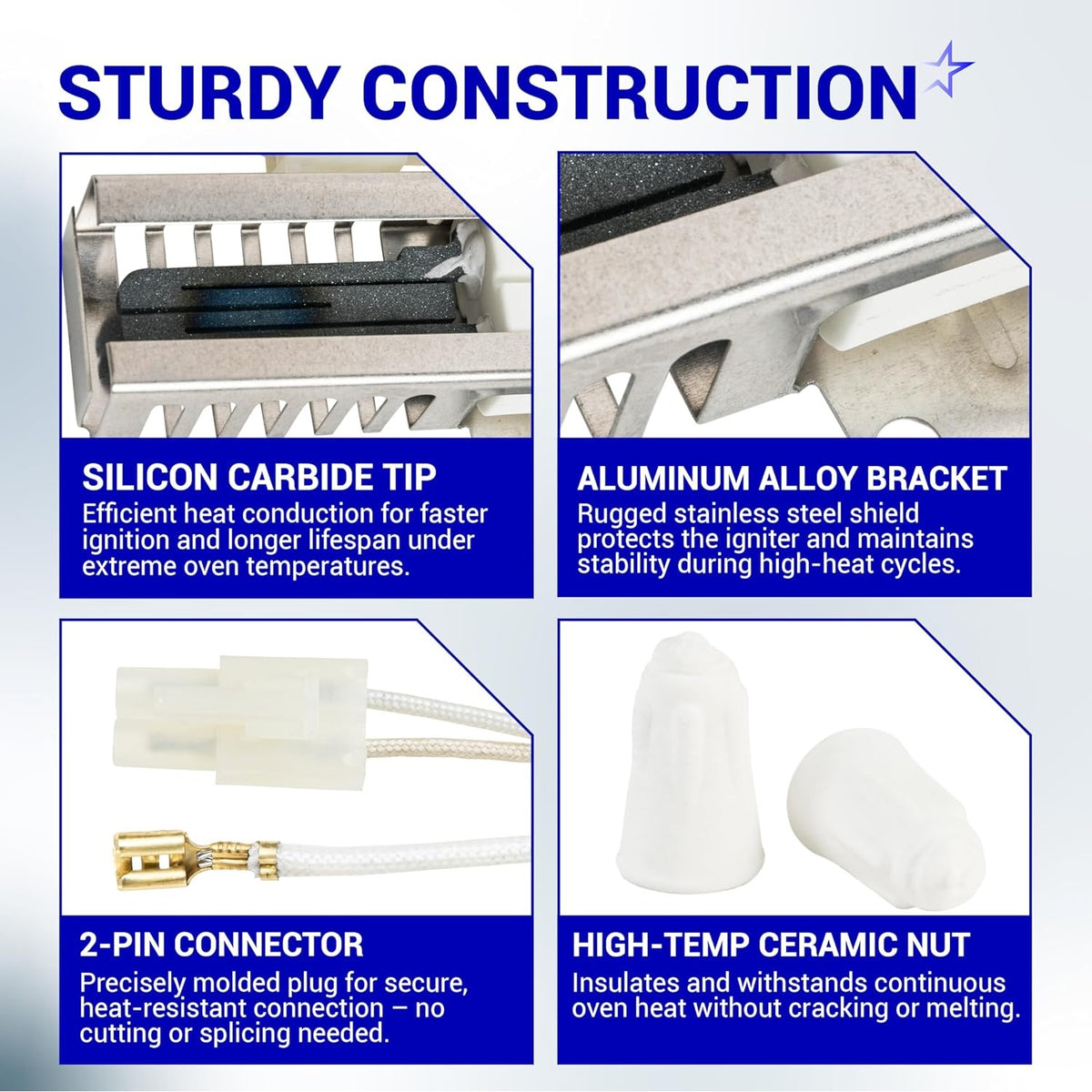

Infographic showing construction details of 5304509706 gas oven igniter including silicon carbide tip and 2-pin connector.
5304509706 gas oven igniter graphic showing high-temperature performance and heat resistance.
5304509706 gas oven igniter replacement part shown with oven troubleshooting symptoms and roasted chicken background.

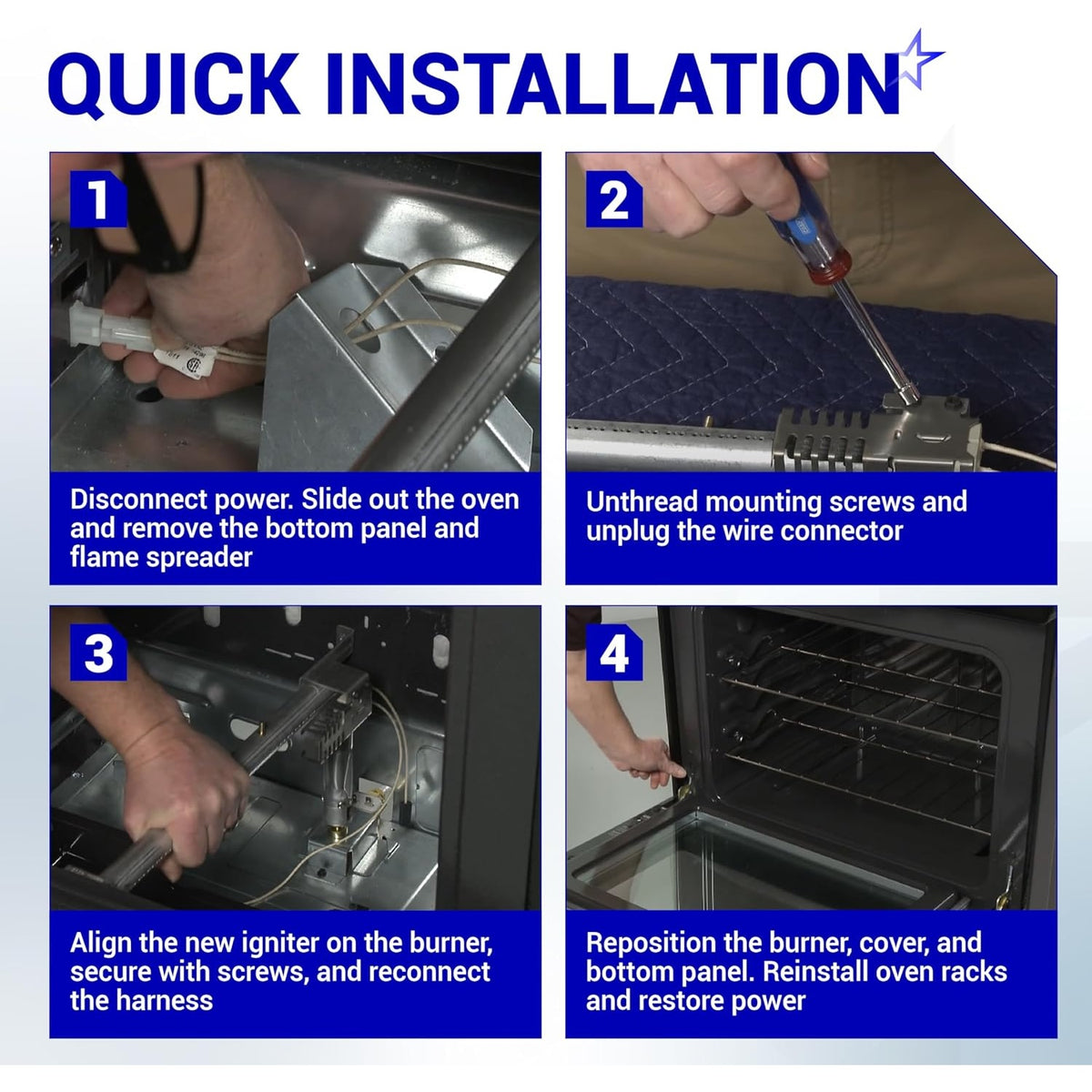

Four-step installation guide for 5304509706 gas oven igniter showing burner and wiring harness assembly.

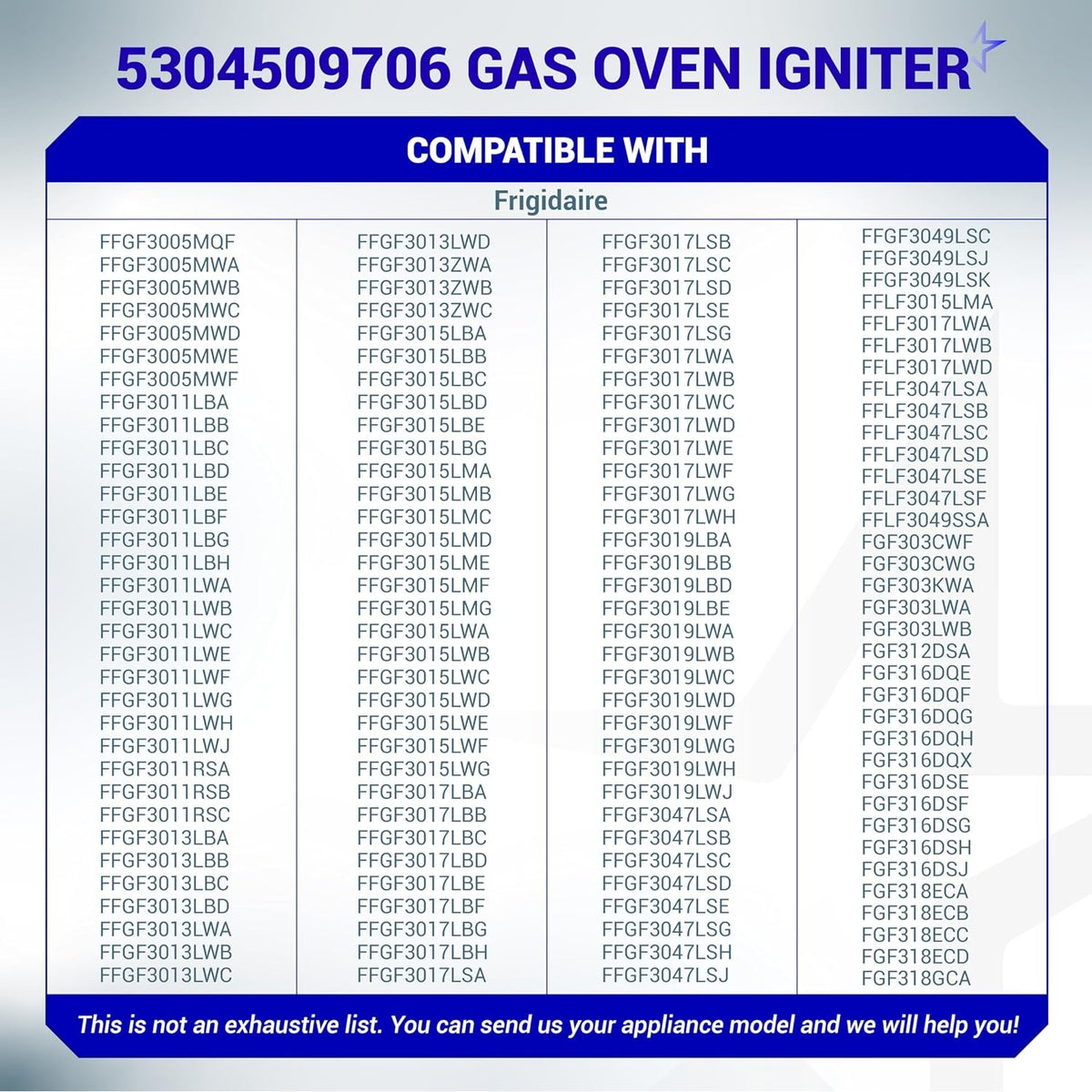

Compatibility chart for 5304509706 gas oven igniter listing Frigidaire appliance model numbers.
5304509706 gas oven igniter with metal cage, wiring harness, and two wire nuts.
5304509706 gas oven igniter replacement part with wire leads and wire nuts shown on an informational product card.
5304509706 gas oven igniter specification chart showing dimensions, voltage, and electrical ratings.
5304509706 gas oven igniter shown with protective sponge cushioning and shipping box for safe delivery.
Infographic showing construction details of 5304509706 gas oven igniter including silicon carbide tip and 2-pin connector.
5304509706 gas oven igniter graphic showing high-temperature performance and heat resistance.
5304509706 gas oven igniter replacement part shown with oven troubleshooting symptoms and roasted chicken background.
Four-step installation guide for 5304509706 gas oven igniter showing burner and wiring harness assembly.
Compatibility chart for 5304509706 gas oven igniter listing Frigidaire appliance model numbers.
Lifetime Warranty

5304509706 Gas Oven Igniter - Replaces WB2X10016 316489408 PS12071409

Save 13%
0.00
$40.20
$46.23
$40.20
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

5304509706 Gas Oven Igniter

Key Features

  • High-temperature silicon carbide igniter element designed for rapid heat-up and consistent ignition of gas burners.
  • Direct-fit replacement featuring pre-installed mounting bracket and insulated lead wires for simplified installation.
  • Advanced ceramic base construction provides high dielectric strength and thermal shock resistance.
  • Engineered to reach the specific amperage required to safely open the oven gas safety valve.
  • Integrated plug-and-play connector compatible with original equipment wiring harnesses.

Replaces / Cross-Reference Part Numbers

  • AP6230715
  • PS12071409
  • 316489402
  • 316489408
  • 316119301
  • 4545981
  • WB2X10016
  • WB02X10016
  • PD00035904
  • Norton-501A

Compatibility & Fitment

  • Frigidaire: FGF series, FFG series, GRLP series, PLGF series
  • Kenmore / Sears: 790 series (e.g., 790.71312, 790.70503)
  • Crosley: FGF and CGF series
  • Tappan: TGF and TGFG series
  • Kelvinator: KGF series

When to Replace

  • The oven fails to heat despite the gas being turned on.
  • The igniter glows orange or red but does not get hot enough to trigger the gas valve (insufficient amperage).
  • Visible cracks, breaks, or white "burn spots" on the black silicon carbide element.
  • The oven takes significantly longer than usual to ignite or preheat.
  • The bake or broil burner does not light, though the range-top burners function correctly.

Installation Tips

  • Safety First: Unplug the oven from the electrical outlet and shut off the gas supply line before beginning.
  • Remove the oven racks and the bottom floor panel to access the bake burner assembly.
  • Handle with Care: Do not touch the black igniter element with bare hands; skin oils can cause the element to overheat and fail prematurely.
  • If the new connector does not match your specific model, you may need to splice the wires using ceramic (high-heat) wire nuts.
  • Ensure the igniter is positioned precisely where the old one was located to ensure the gas ports on the burner are properly aligned with the heat source.
  • Test the unit by observing the igniter glow; the gas should ignite within 30 to 60 seconds of the element reaching peak temperature.
Brand Model Number
Replaces 316119301, 316489402, 316489408, 41-218, 4545981, AP6230715, EAP12071409, PD00035904, PS12071409
Crosley CRGE3455TBA, CRGE3455TSA, CRGE3455TWA
Frigidaire CFGF316DSE, CFGF337ESD, CFGF337ESE, CFGF337GSA, CFGF337GSB, CFGF337GSD, CFGF337GSE, CFGF337GSF, CFGF3017LWA, CFGF3017LWB, CFGF3017LWC, CFGF3017LWD
Frigidaire FFGF3005MQB, FFGF3005MQC, FFGF3005MQD, FFGF3005MWB, FFGF3005MWC, FFGF3005MWD, FFGF3011LBD, FFGF3011LBE, FFGF3011LBF, FFGF3011LWD, FFGF3011LWE, FFGF3011LWF, FFGF3011RSA, FFGF3011RSB, FFGF3011RSC, FFGF3015LBE, FFGF3015LBF, FFGF3012TBA, FFGF3012TBB, FFGF3012TBC, FFGF3012TWA, FFGF3012TWB, FFGF3012TWC, FFGF3016TBA, FFGF3016TBB, FFGF3016TMA, FFGF3016TSA, FFGF3016TWA, FFGF3016TWB, FFGF3019LBC, FFGF3051TBA, FFGF3051TSA, FFGF3051TSB, FFGF3051TWA, FFGF3052TBA, FFGF3052TBC, FFGF3052TDA, FFGF3052TSA, FFGF3052TSB, FFGF3052TSC, FFGF3052TWA, FFGF3052TWB, FFLF3049SSB, FFLF3052USA
Frigidaire FGF312DSA, FGF318ECA, FGF318ECB, FGF318ECC, FGF318MXECA, FGF324WHSB, FGF324WHSC, FGF326FSA, FGF326FWA, FGF326WGSG, FGF326WGSGTH, FGF326WGSH, FGF326WGTG, FGF326WGTH, FGF328FBA, FGF328FMA, FGF328FMB, FGF328FSA, FGF328FSB, FGF328GBA, FGF328GBB, FGF328GMA, FGF328GMB, FGF328GSA, FGF328GSB, FGF337BCG, FGF337BCH, FGF337BCL, FGF337EBA, FGF337EBC, FGF337EBD, FGF337ECA, FGF337ECC, FGF337ECD, FGF337ESA, FGF337ESC, FGF337ESD, FGF337EUA, FGF337EUC, FGF337EUD, FGF337EWA, FGF337EWC, FGF337EWD, FGF354BGDF, FGF354BGWF, FGF375BHBA, FGF375CHSA, FGF375CHSB, FGF375CHSC, FGF376CJBB, FGF376CJSB, FGF376CJTB, FGF379WJCA, FGF379WJCB, FGFB33WHSA, FGFS36FWA, FGFS36FWB, FLF316WHSA, FLF316WHTA
Kenmore 79073771100, 79073772100, 79073777100, 79073778100
Material
Silicon Carbide / Ceramic
Style
Flat Glow Bar
Voltage
120V AC
Amperage
3.0 – 3.6A
Body Length
3-3/4 inches
Lead Length
16 inches

FAQ

This igniter is compatible with a wide range of gas ovens and stoves from brands including Frigidaire, Kenmore, GE, Electrolux, Hotpoint, Crosley, Tappan, Westinghouse, and Gibson. It is commonly used in Frigidaire FGF/FFG series, Kenmore 790 series, and various Tappan TGF and Crosley CGF series models.
This part replaces OEM numbers 5304509706, 316489402, 316489408, 316119301, WB2X10016, WB02X10016, and Norton-501A. It also cross-references with AP6230715 and PS12071409.
The most common sign is that your oven fails to heat up or takes an unusually long time to reach the set temperature. You may notice the igniter glows but never gets hot enough to open the gas safety valve, or it may not glow at all. If your oven burner does not ignite, the igniter is the most frequent point of failure.
Replacing the igniter is a standard repair that typically takes 30 to 45 minutes. You will need a 1/4-inch nut driver, a screwdriver, and needle-nose pliers. Always ensure the range is unplugged or the circuit breaker is turned off before beginning the installation.
Yes. When removing the old igniter, take note of how the wires are routed. If your original unit has rubber protectors on the wires, carefully remove them and slide them onto the new igniter before installation to ensure the wires are properly insulated and protected from the heat of the burner tube.
Oven igniters are fragile components that rely on a heating element to draw current and trigger the gas valve. Over time, the internal material of the igniter degrades due to repeated heating and cooling cycles. They are also sensitive to physical impact; avoid touching the white ceramic element with your bare hands, as oils from your skin can create hot spots that lead to premature failure.
