590-708 uF MFD 110-125 VAC ±20% 50/60 Hz CD60 Round Motor Start Capacitor - Fits Pool Pump, Well Pump
Save 13%
0.00
Regular price
$20.40
Regular price
$23.46
Sale price
$20.40
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

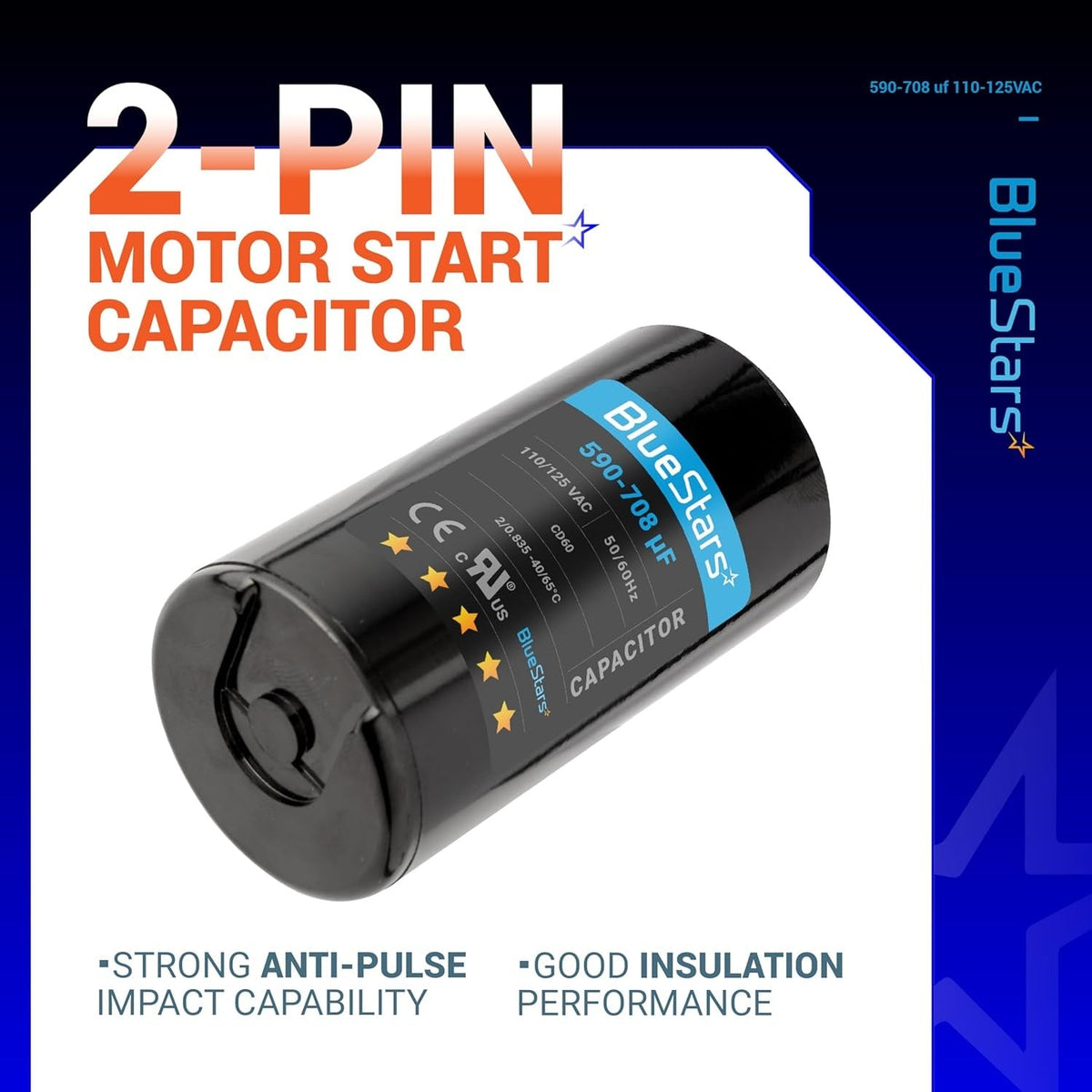

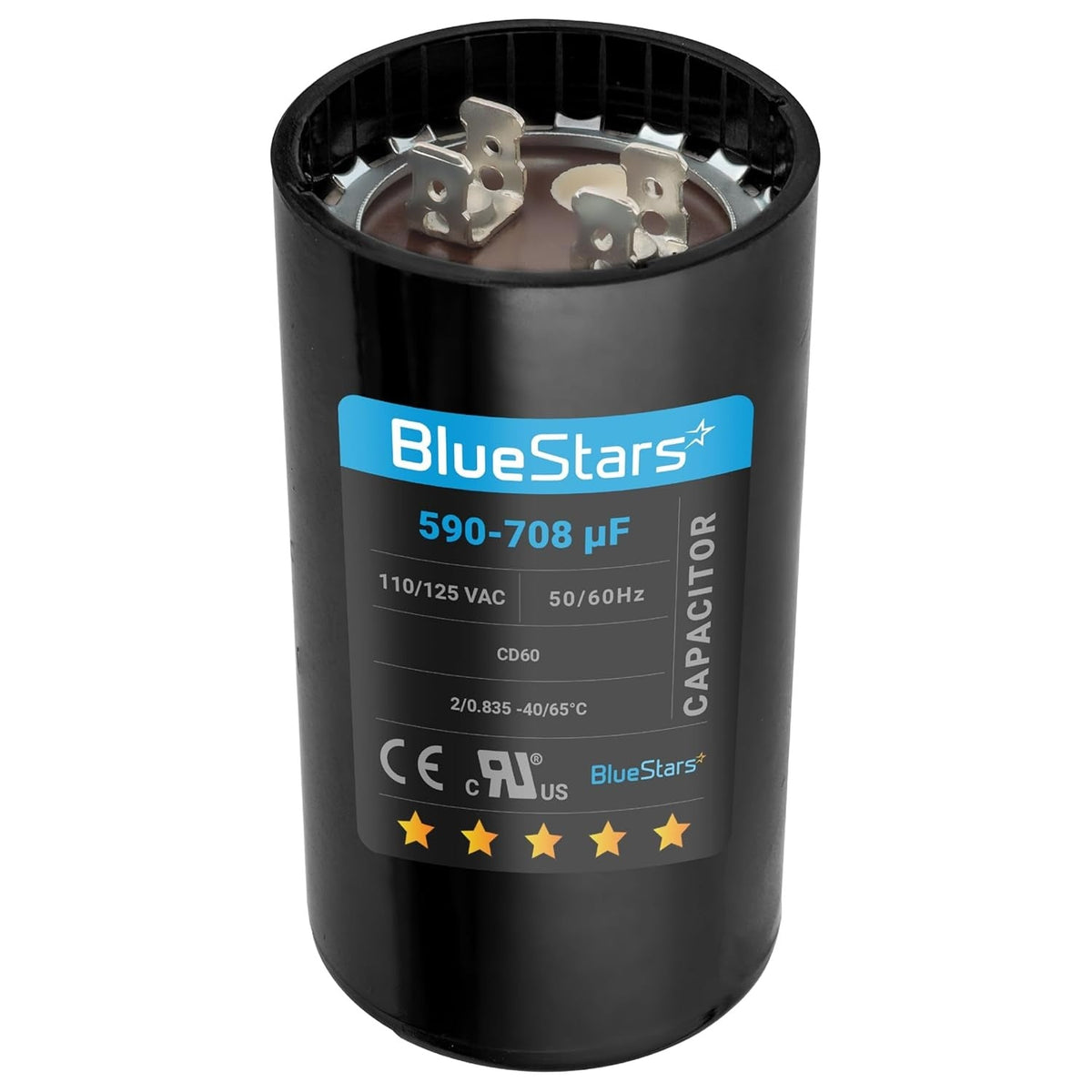

590-708 mfd uF 110-125VAC ±20% Volts Round Motor Start Capacitor 50/60 Hz AC

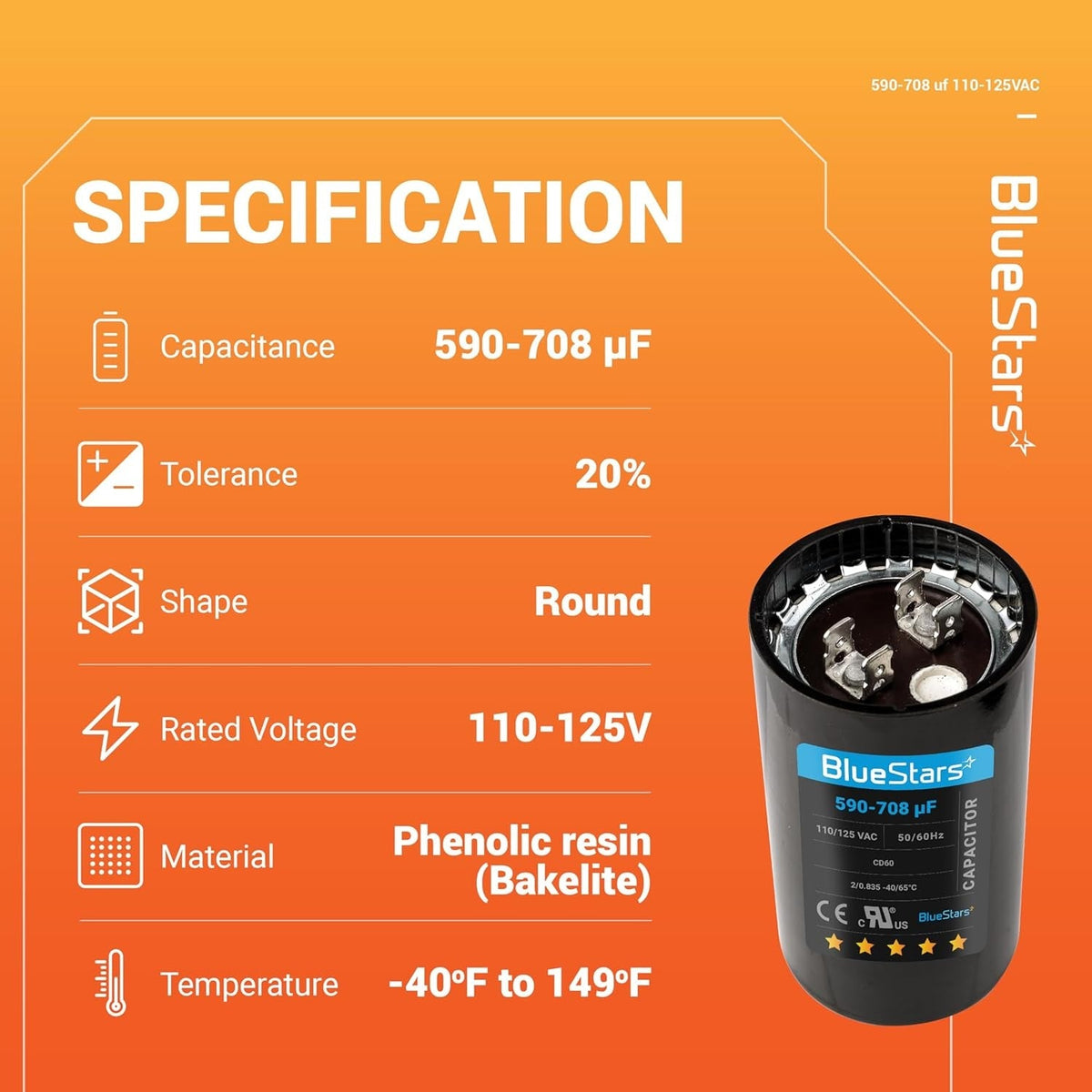

Key Features
- Capacitance: 590-708 uF (Microfarad)
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Tolerance: +/- 20%
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Shape: Round
- Dimensions: 1.81 in x 3.35 in (46mm x 85mm)
- Terminals: Four 1/4 inch spade terminals

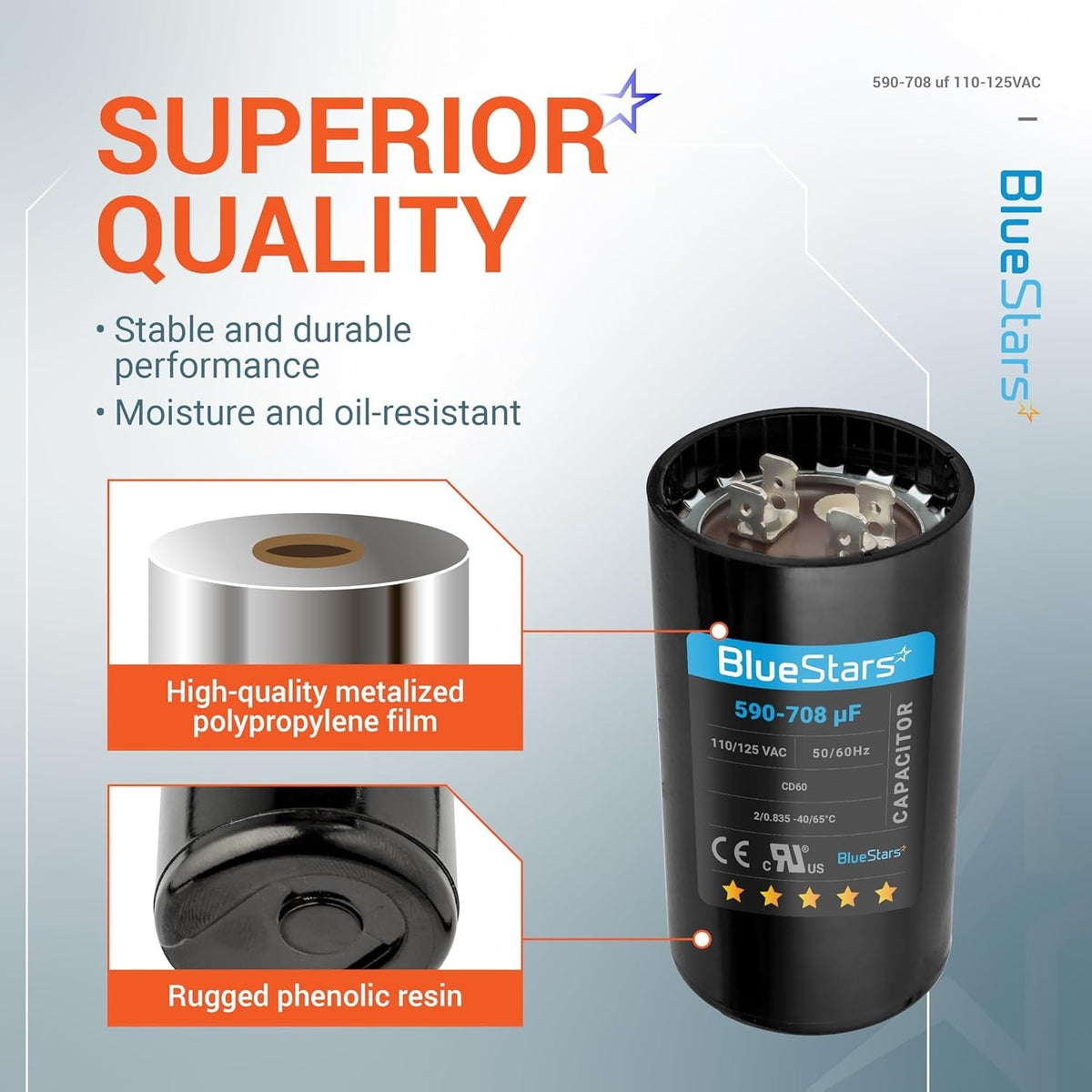

- Case Material: Moisture and oil-resistant housing
- Contains no Polychlorinated Biphenyls (PCBs)
Replaces / Cross-Reference Part Numbers
- Capacitor Model Type: CD60
- Part Number: 590-708
- Vanguard: BC-590-S
Compatibility & Fitment
- Universal replacement for start capacitors with matching electrical specifications and physical dimensions.

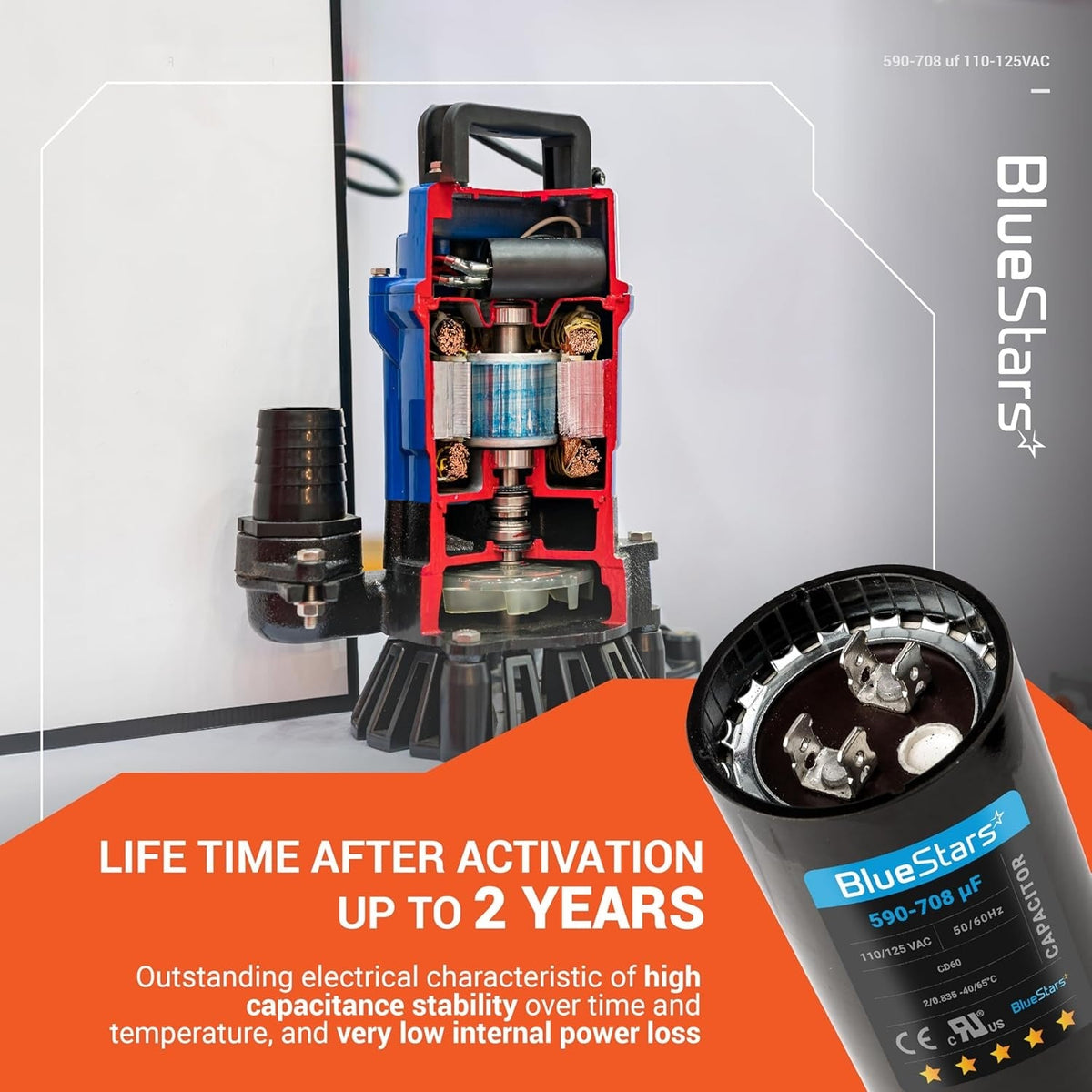

- Suitable for single-phase electric motors in applications such as air conditioners, compressors, pumps, and fans.
- Verify your original capacitor's uF/MFD rating, VAC rating, and physical dimensions for proper fitment.

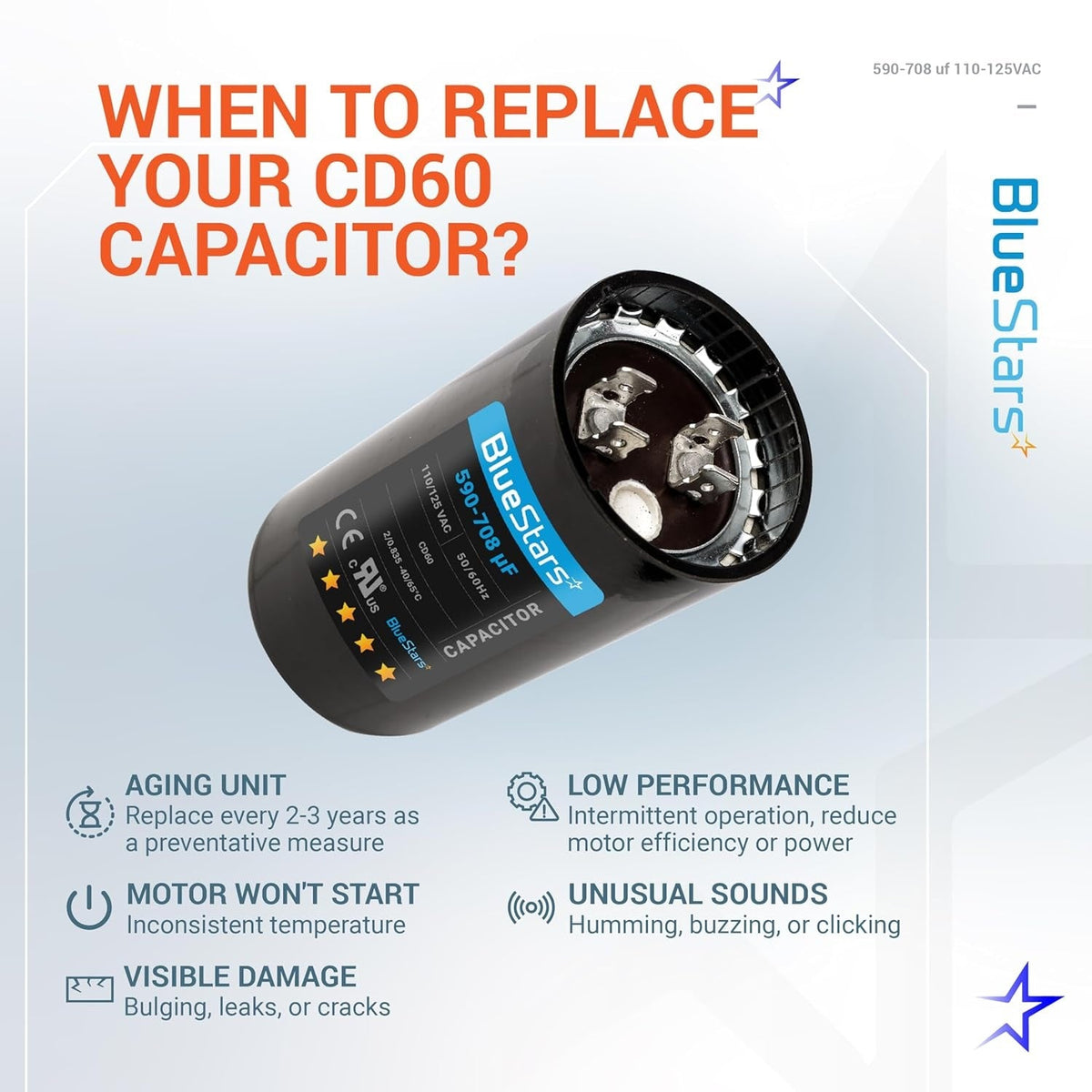

When to Replace
- Motor hums but fails to start or starts slowly.
- Circuit breaker trips or fuse blows upon motor startup.
- Visible signs of damage on the old capacitor, such as bulging, cracking, or leaking fluid.

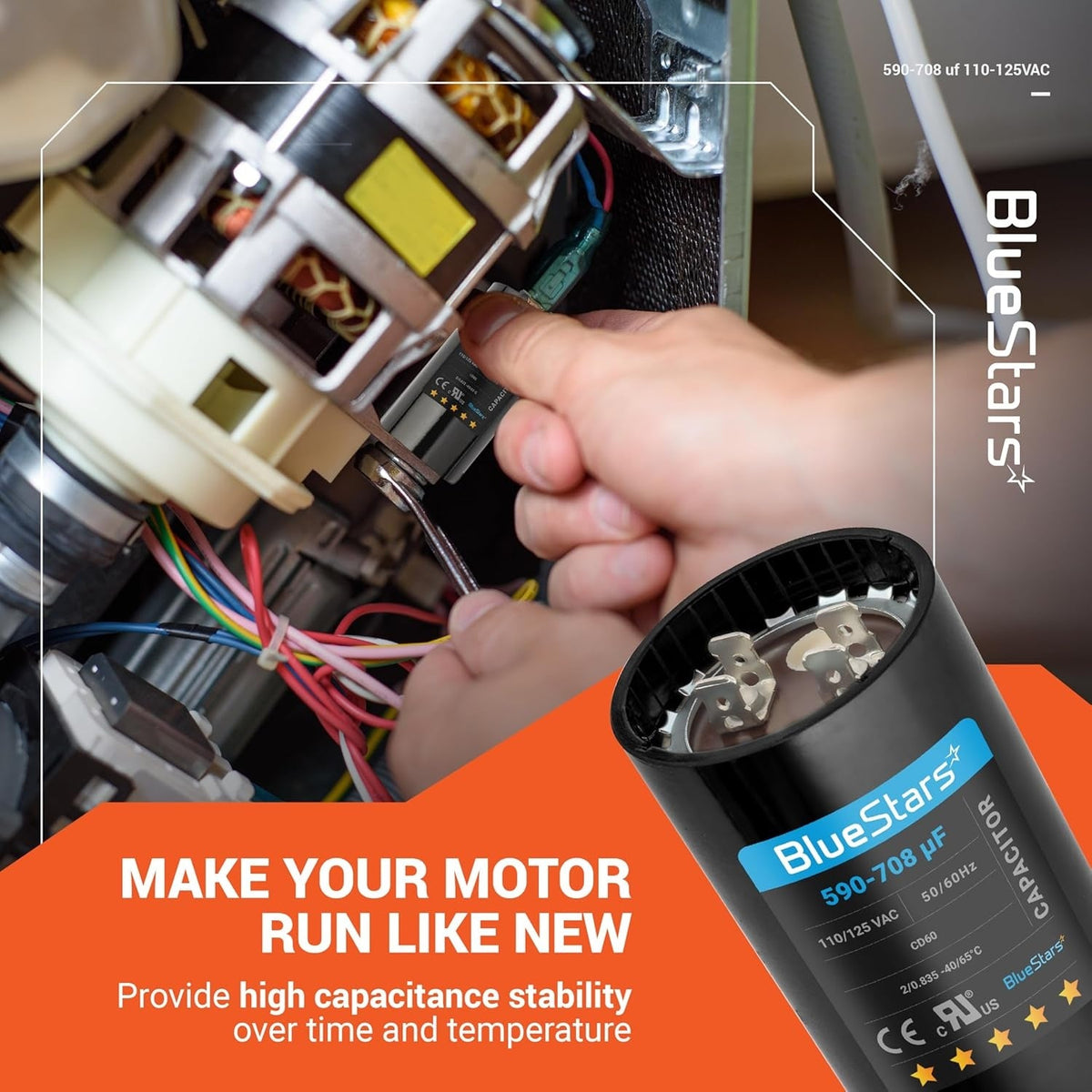

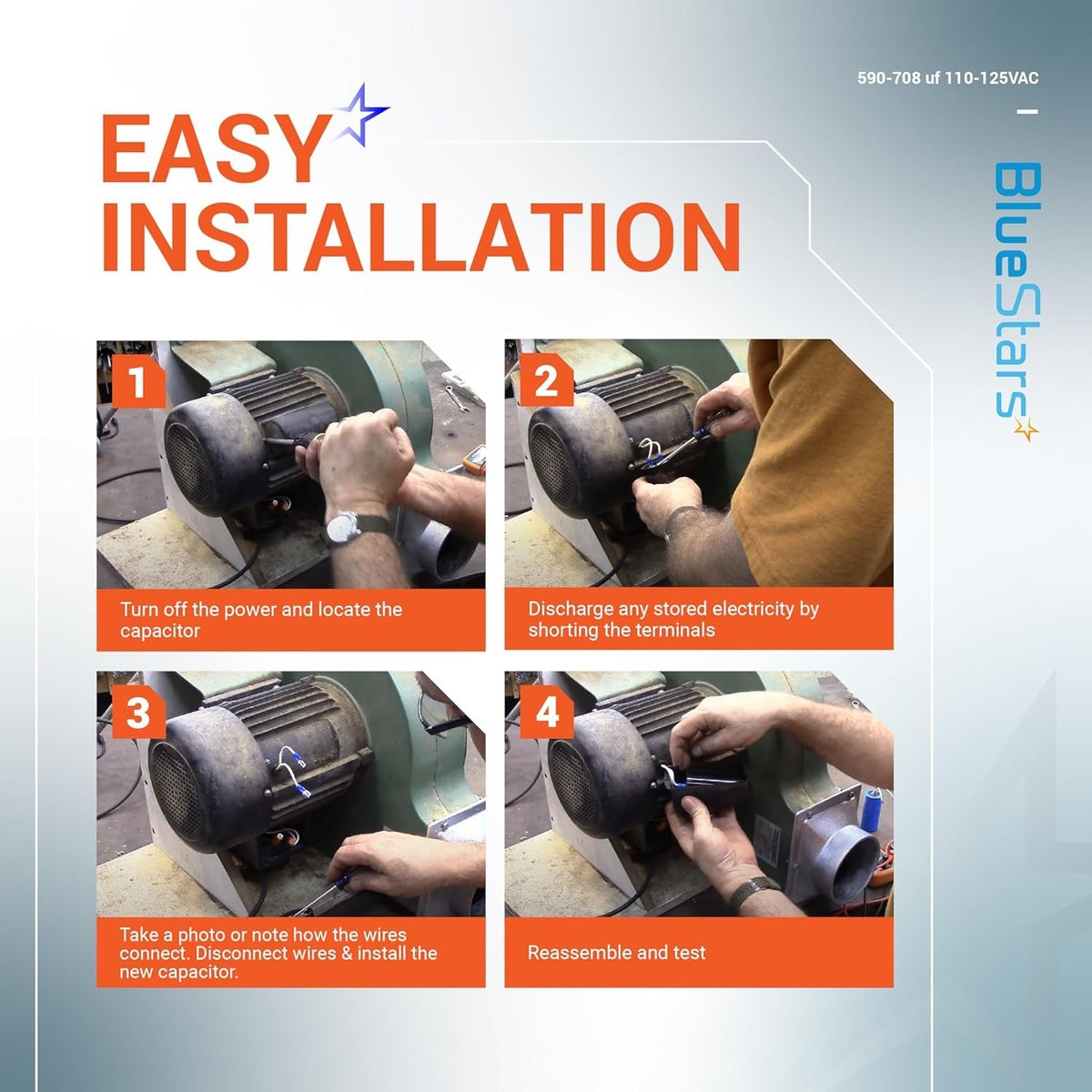

Installation Tips
- Disconnect all electrical power to the unit before performing installation.
- Safely discharge the old capacitor by shorting the terminals with a resistor or an insulated tool.

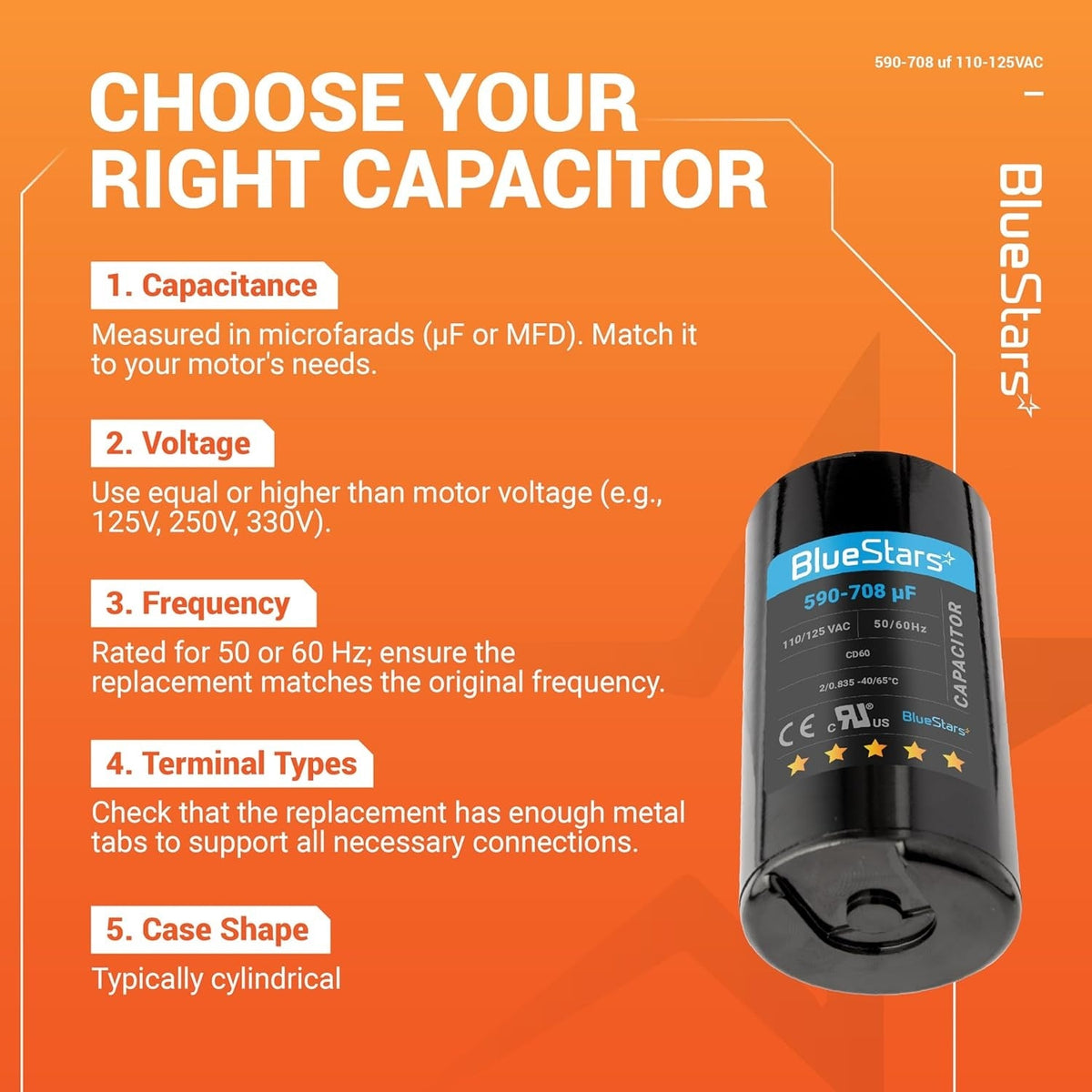

- The voltage rating of the replacement capacitor must be equal to or greater than the original.
- Capacitance (uF/MFD) rating should match the original component's specification.
- This is a non-polarized capacitor; wires can be connected to either terminal.
