6931EL3003D & 6931EL3001B Dryer Thermostat Kit for LG Kenmore - Replaces 1268366

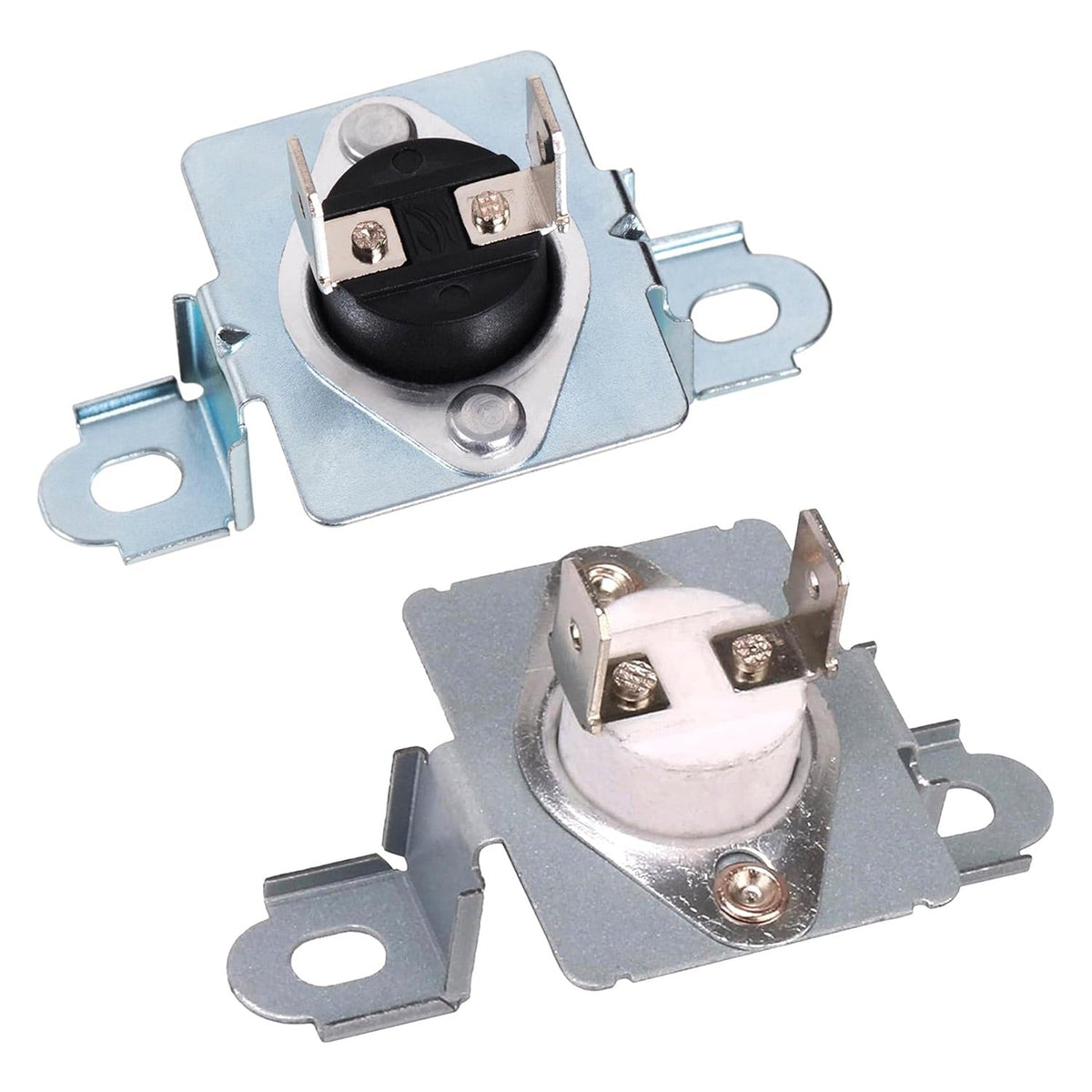

Two dryer thermostats with metal mounting brackets for LG and Kenmore dryers.

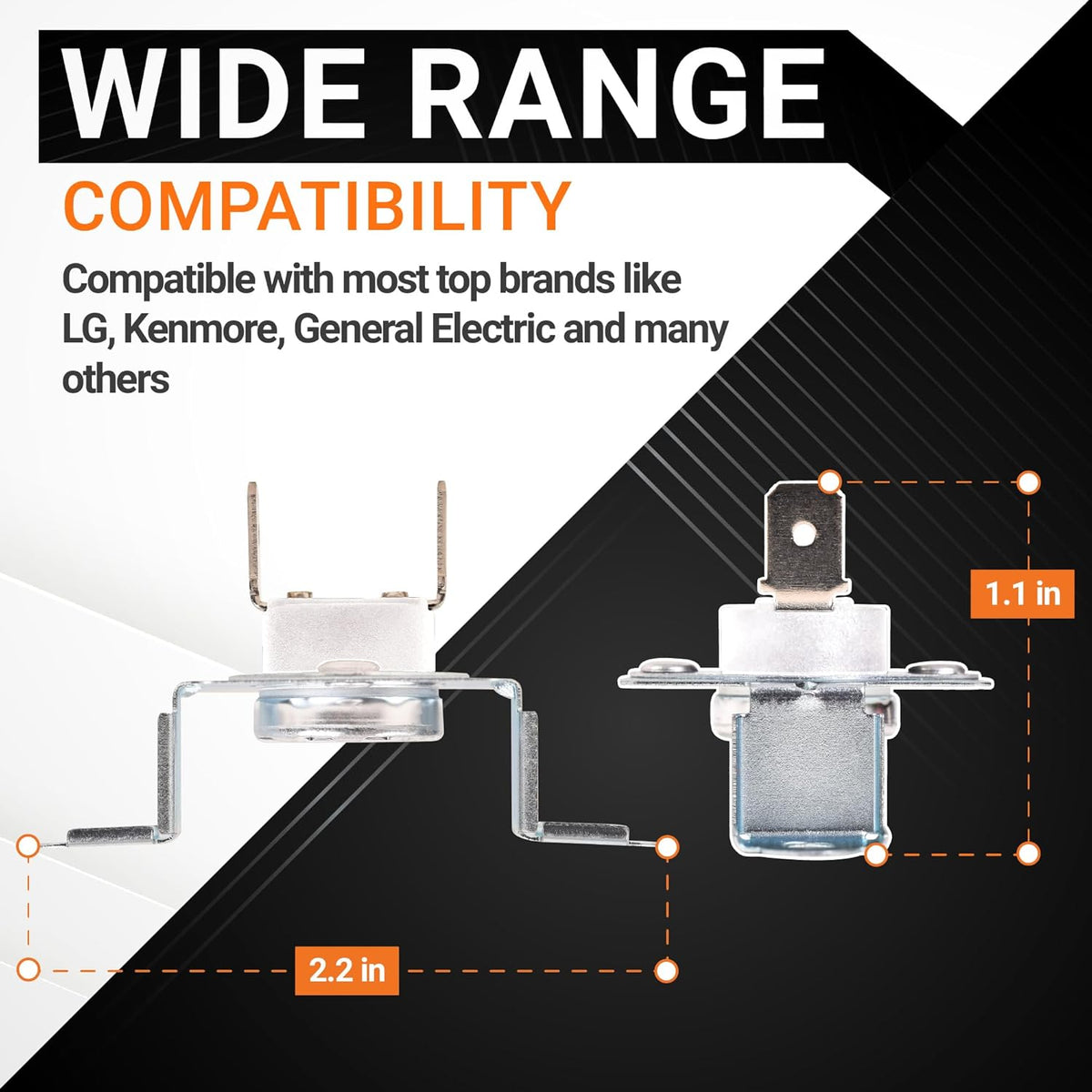

Dimensional diagram of dryer thermostat components for LG and Kenmore dryers showing 2.2 inch and 1.1 inch measurements.

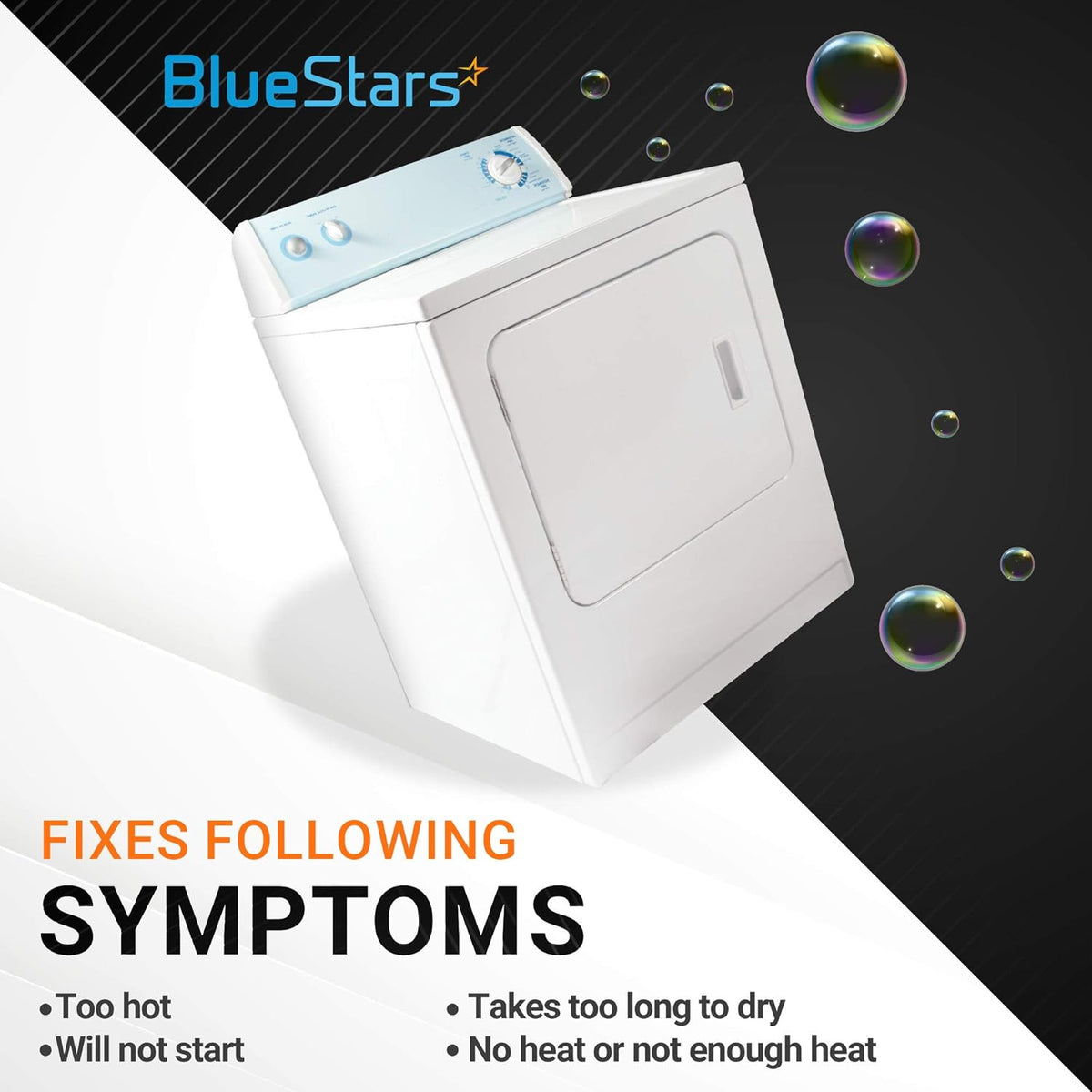

White dryer showing symptoms fixed by the 6931EL3003D and 6931EL3001B thermostat kit for LG and Kenmore dryers.

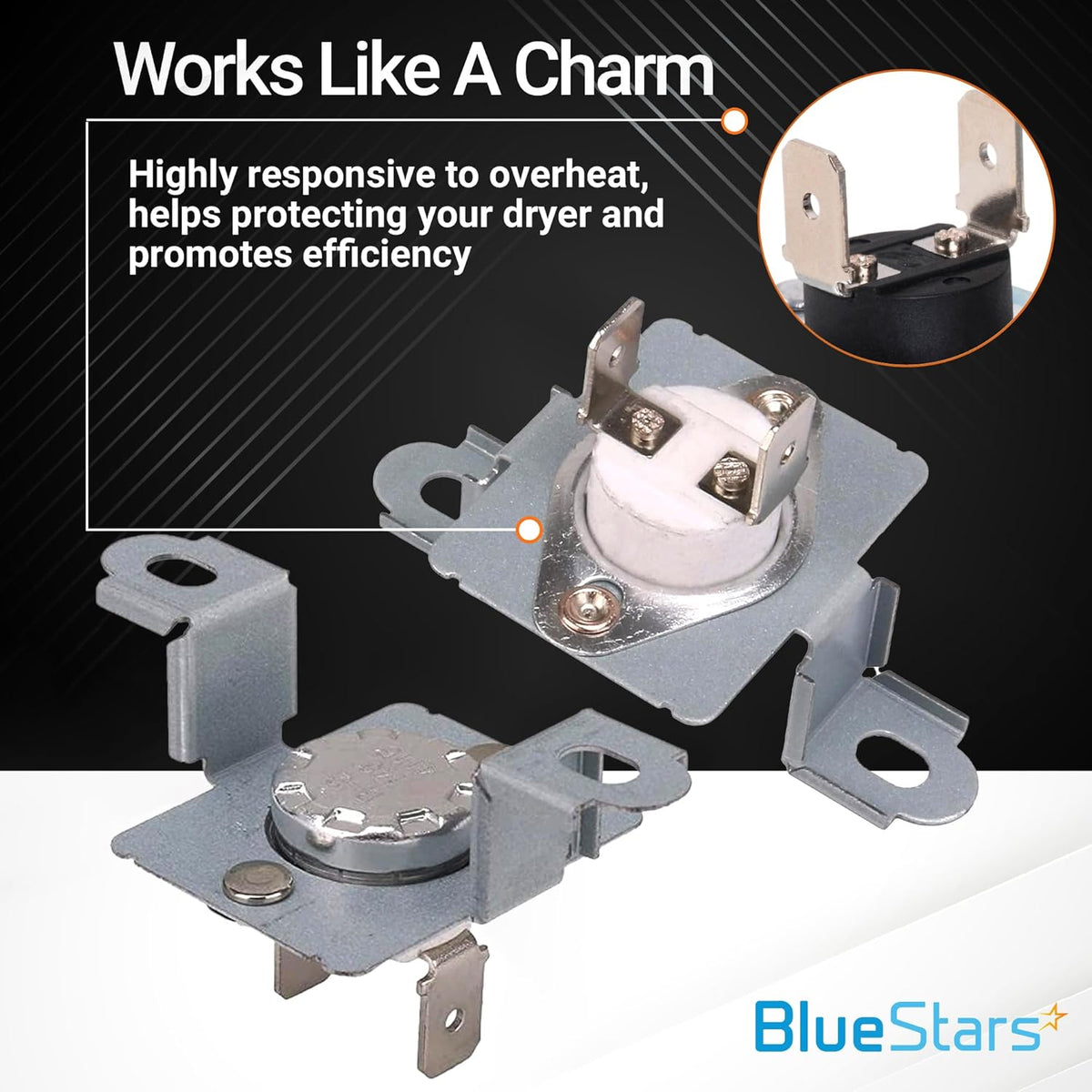

Dryer thermostat kit components for LG and Kenmore dryers, showing two metal thermal fuse assemblies with mounting brackets.

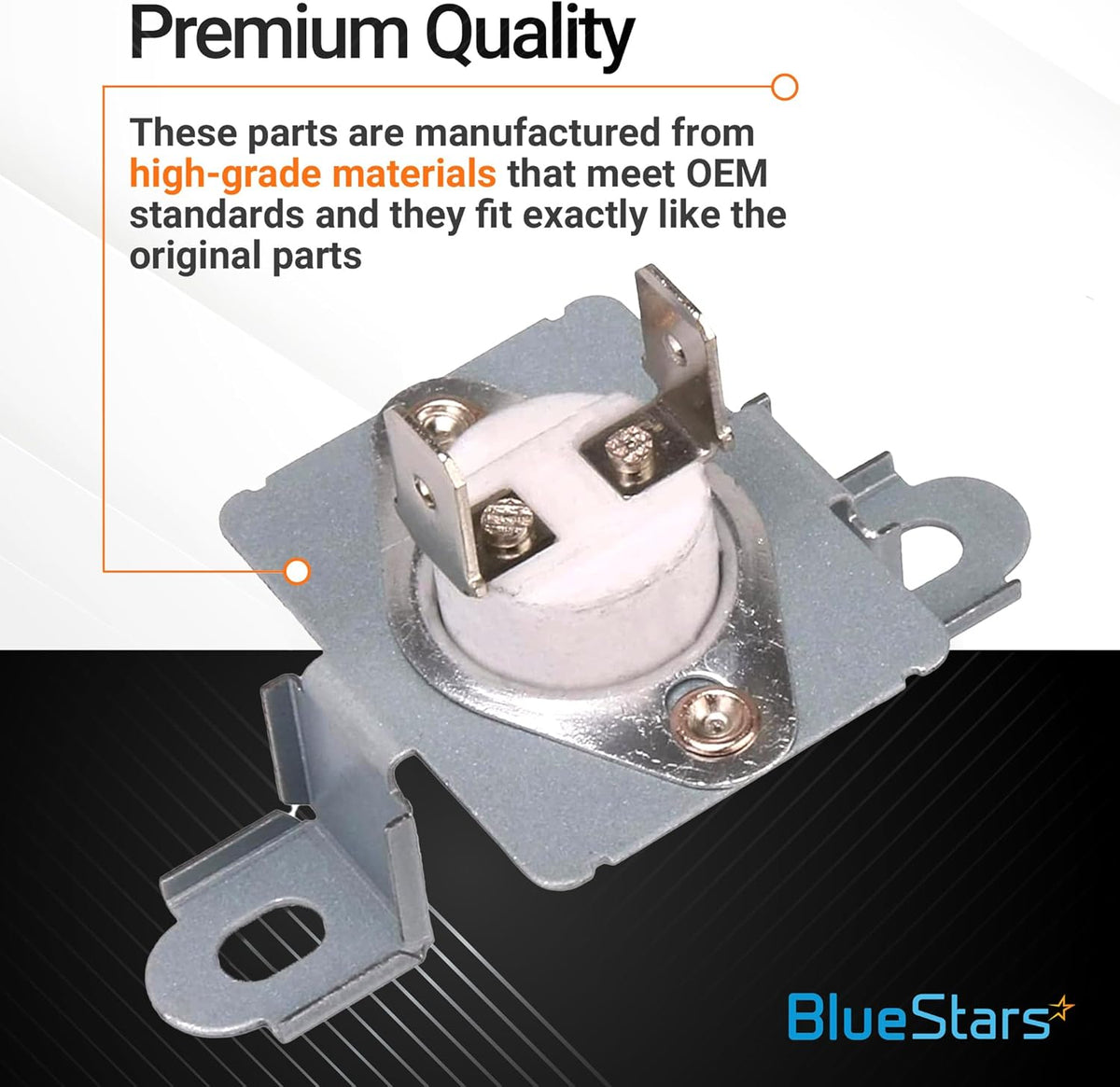

Close-up of dryer thermostat replacement part compatible with LG and Kenmore dryers.
Woman holding a green towel in front of a dryer with text overlay promoting economical DIY dryer repair solutions.
Two dryer thermostats with metal mounting brackets for LG and Kenmore dryers.
Dimensional diagram of dryer thermostat components for LG and Kenmore dryers showing 2.2 inch and 1.1 inch measurements.
White dryer showing symptoms fixed by the 6931EL3003D and 6931EL3001B thermostat kit for LG and Kenmore dryers.
Dryer thermostat kit components for LG and Kenmore dryers, showing two metal thermal fuse assemblies with mounting brackets.
Close-up of dryer thermostat replacement part compatible with LG and Kenmore dryers.
Woman holding a green towel in front of a dryer with text overlay promoting economical DIY dryer repair solutions.
Lifetime Warranty

6931EL3003D & 6931EL3001B Dryer Thermostat Kit for LG Kenmore - Replaces 1268366

Save 13%
0.00
$14.20
$16.33
$14.20
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

6931EL3003D & 6931EL3004B Dryer Thermal Fuse Kit

Key Features

  • Kit includes two components: 1 x 6931EL3003D high-limit thermal fuse and 1 x 6931EL3004B thermostat assembly.
  • The thermal fuse shuts off the heating element or burner when the dryer overheats, acting as a safety device.
  • Fuse 6931EL3003D is rated at 140 degrees Celsius.
  • Features a flush-mounted design with two 1/4-inch male terminals.

Replaces / Cross-Reference Part Numbers

  • 6931EL3003D - Dryer Thermal Fuse: AP4440975, PS3530485, 6931EL3003E, AH3530485, EA3530485, EAP3530485, PD00001818, 1268366, L3003D
  • 6931EL3001B - Dryer Hi-Limit Thermostat: AP5072172, PS3530482, 6931EL3001F, AH3530482, EA3530482, EAP3530482, PD00023316, 1377779, AP4440977

Compatibility & Fitment

  • Designed for direct replacement on select dryer models.
  • Compatible with specific LG and Kenmore brand dryers.
  • Verify compatibility by checking your appliance's original part numbers.

When to Replace

  • Dryer drum tumbles but produces no heat.
  • Dryer takes too long to dry clothes.
  • Dryer overheats and shuts down prematurely.
  • Existing thermal fuse shows no continuity when tested with a multimeter.

Installation Tips

  • Disconnect the dryer from the power supply before beginning any repair.
  • The thermal fuse is a single-use safety component and cannot be reset.
  • Before replacing a blown fuse, inspect and clean the dryer's venting system to resolve the root cause of overheating.
Product image 1
Product image 2
6931EL3003D Dryer Thermal Fuse

6931EL3003D Dryer Thermal Fuse

This thermal fuse functions as a high-limit safety device. It cuts power to the dryer’s heating element if the unit overheats. Once the fuse blows, it cannot be reset and must be replaced. A common cause of fuse failure is a restricted or blocked exhaust vent, which traps hot air and causes the fuse to open, stopping current flow to the gas valve or heating element. Replaces part numbers: PS3530485, AP4440975, 1268366, AH3530485, EA3530485.
6931EL3004B Dryer Thermostat Assembly

6931EL3004B Dryer Thermostat Assembly

This thermostat is manufactured from high-grade materials that meet OEM standards. It fits and works exactly like the original part. Replaces part numbers: 6931EL3003F, PS3530486, 1268367, AH3530486, EA3530486.
Brand Model Number
Replaces 6931EL3003D 1268366, 6931EL3003E, AH3530485, AP4440975, EA3530485, EAP3530485, L3003D, PD00001818, PS3530485
Replaces 6931EL3001B 1268363, 503475, 6931EL3001C, 6931EL3001E, AH3530481, AP4440977, EA3530481, L125-31C, PS3530481
Kenmore 79661412310, 79661412410, 79661422410, 79661423410, 79661512210, 79661513310, 79661522210, 79661523210, 79661622310, 79661623310, 79669002000, 79669002010, 79669272000, 79669272010, 79669272012, 79669272900
LG CDE3379WD, CDE3379WN, DLE0332W, DLE0442G, DLE0442W, DLE1001W, DLE1101W, DLE1310W, DLE1501W, DLE2020W, DLE2050W, DLE2101W, DLE2140W, DLE2150R, DLE2150S, DLE2150U, DLE2150W, DLE2240S, DLE2240W, DLE2250W, DLE2301R, DLE2301S, DLE2301W, DLE2350R, DLE2350S, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2532W, DLE2544W, DLE2601R, DLE2601W, DLE2701V, DLE3050W, DLE3075W, DLE3095W, DLE3170W, DLE3180W, DLE3300W, DLE3400W, DLE3460V, DLE3460W, DLE3470M, DLE3470W, DLE3500W, DLE3600V, DLE3600W, DLE3733D, DLE3733S, DLE3733U, DLE3733W, DLE3777W
LG DLE4801W, DLE4870W, DLE4901W, DLE4970W, DLE4970WE, DLE5001W, DLE5002W, DLE5070W, DLE5270V, DLE5932S, DLE5932W, DLE5955G, DLE5955W, DLE5977B, DLE5977S, DLE5977SM, DLE5977W, DLE6942W, DLE7177WM, DLE8377NM, DLE8377WM, DLE9577SM, DLE9577WM, DLEX0001TM, DLEX3470W, DLEX3875V, DLEX3875W, DLEX5101W, DLEX5170V, DLEX5170W, DLEX5680V, DLEX5680W, DLEX5780VE, DLEX5780WE, DLEX7177RM, DLEX7177WM, DLEX8377WM, DLG2524W
LG RV1304A, RV1304B, RV1306AT, RV1306BT, RV1307B, RV1308AS, RV1308BS, RV1308CS, RV1310A, RV1310B, RV1316A, RV1316AS, RV1316B, RV1316VS, RV1317AS, RV1319E, RV1319VS, RV1321AS, RV1321VS, RV1327AY
LG TDV10030E, TDV10031E, TDV10032E, TDV10035E, TDV10051E, TDV10052E, TDV10053E, TDV10055E, TDV10090E, TDV10092E, TDV10092EK, TDV10135E, TDV10177EM, TDV10240E, TDV10241E, TDV10244E, TDV10245E, TDV10246E, TDV10248E, TDV10249E
Kit Includes
1× 6931EL3003D Thermal Fuse + 1× 6931EL3001B Hi-Limit Thermostat
6931EL3003D (Thermal Fuse)
Material
Porcelain / Metal
Product Dimensions
1-1/4 x 1-1/8 x 2-1/4 inches
Trip Temperature
Opens at 257°F / Closes at 221°F (±9°F)
6931EL3001B (Hi-Limit Thermostat)
Material
Metal / Plastic
Voltage
250V, 25A
Product Dimensions
2 x 1-3/4 x 1-1/4 inches

FAQ

If your dryer is running but not heating, or if the dryer fails to start entirely, it is often due to a tripped thermal fuse or a faulty thermostat. If your clothes remain damp after a full cycle or the dryer shuts off prematurely, these components are the most likely culprits.
This kit replaces OEM part numbers 6931EL3003D and 6931EL3001B. It also cross-references with 1268366, 6931EL3003F, 6931EL3003E, 6931EL3001F, AP4440975, AP5072172, PS3530485, PS3530486, AH3530485, and EA3530485.
This kit is designed for a wide range of LG and Kenmore dryers. Compatible models include, but are not limited to, DLE5955W, DLE2050W, DLE2301R, DLE2516W, DLE7177WM, DLE5977SM, and Kenmore series 796.80272900.
Before replacing the thermostat and fuse, always inspect your dryer's vent hose and external exhaust duct. A restricted or clogged vent is the most common root cause for these parts failing, as it prevents proper airflow and causes the dryer to overheat. If you do not clear the blockage, the new parts will likely fail again quickly.
The installation is a moderate repair that typically takes 30 to 60 minutes. You will generally need a screwdriver (Phillips head) and a putty knife to remove the top and front panels of the dryer. Always ensure the dryer is unplugged from the power source before beginning any work.
