708-850 uF 110-125VAC Round Start Capacitor for AC Motors
0.00
Regular price
$16.19
Regular price
Save 11%
$18.13
Sale price
$16.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

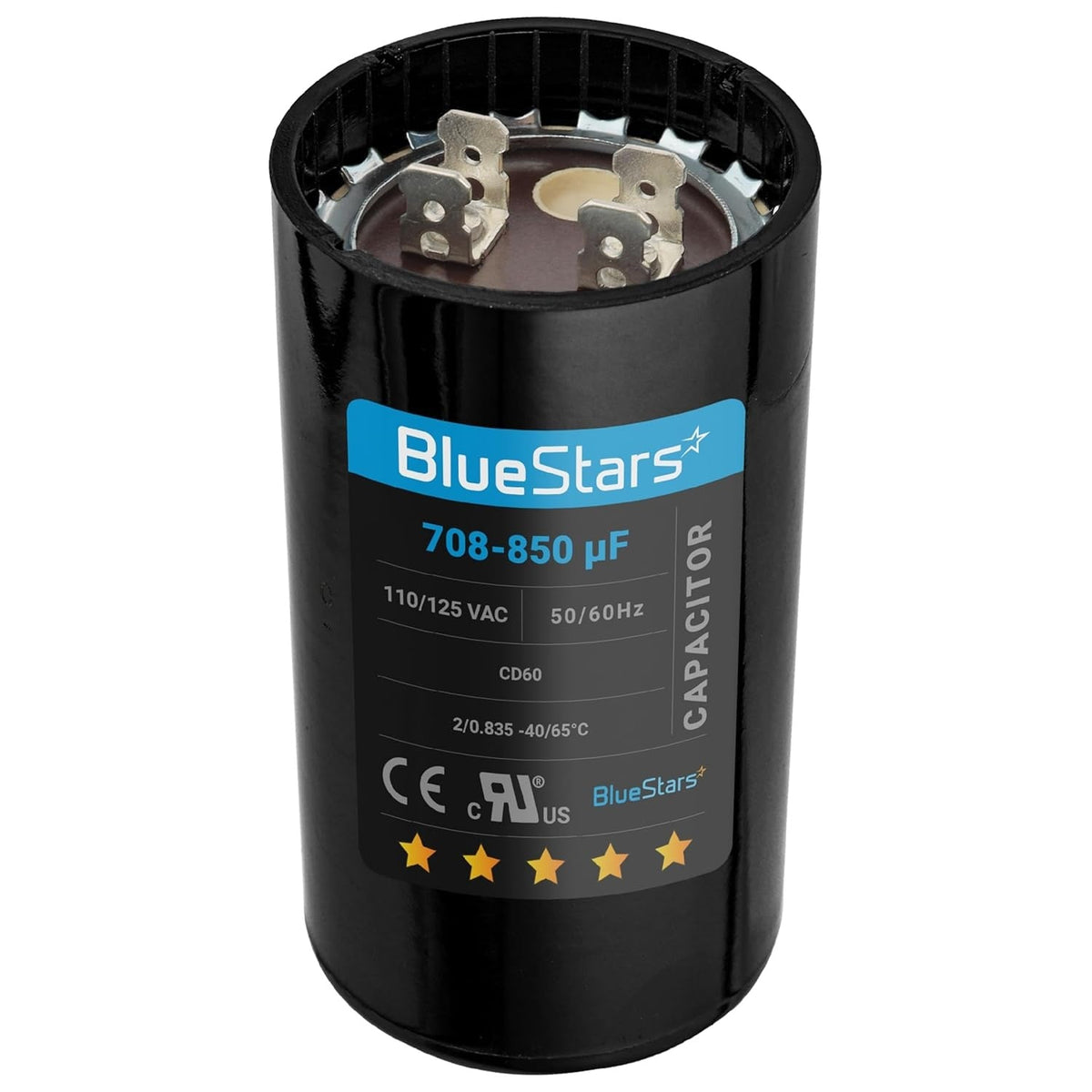

708-850 uF/MFD 110-125 VAC Round Start Capacitor

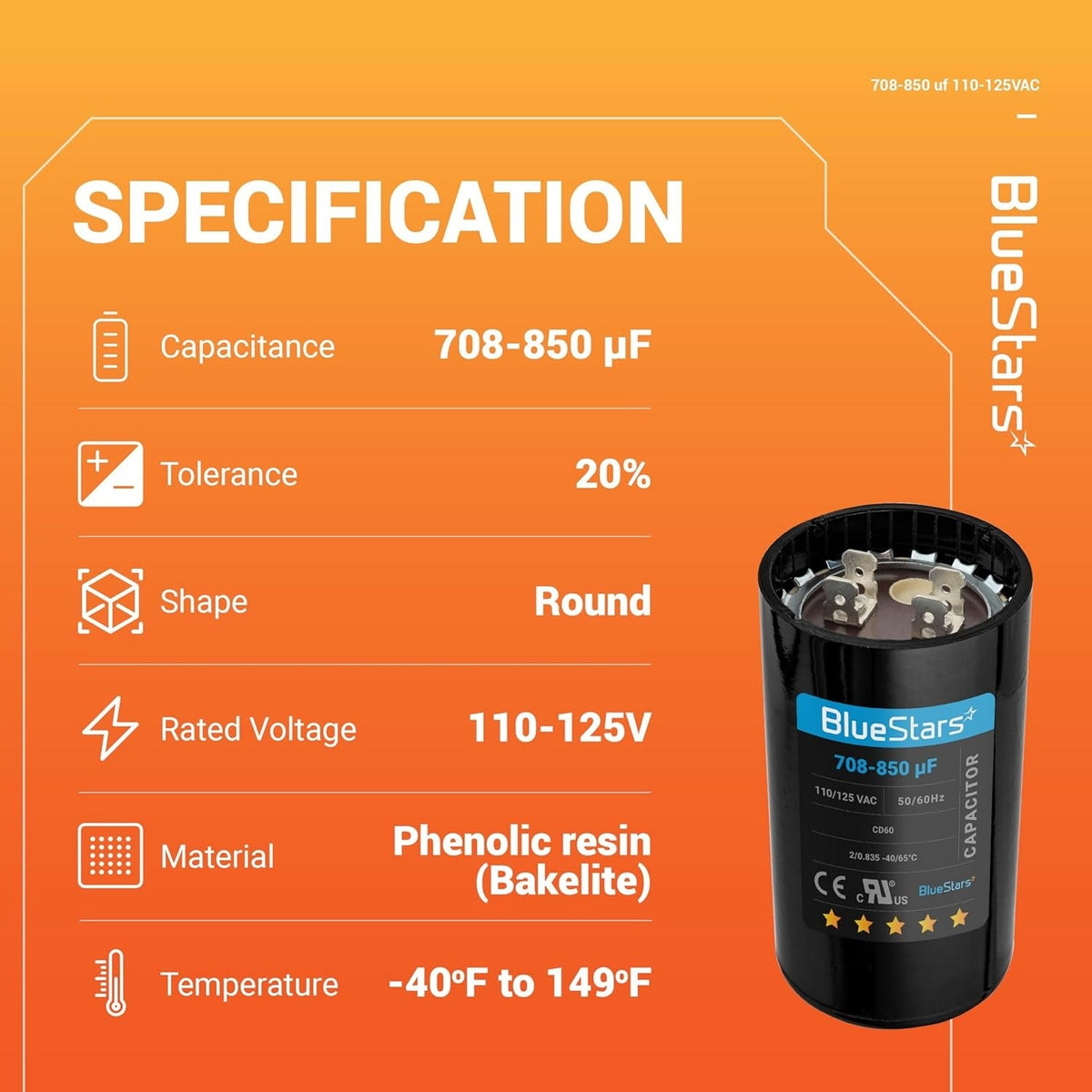

Key Features
- Capacitance: 708-850 microfarads (uF/MFD)
- Voltage Rating: 110-125 Volts AC (VAC)
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Terminals: 1/4 inch male quick-disconnect
- Case Material: Plastic, moisture and oil resistant
- Shape: Round

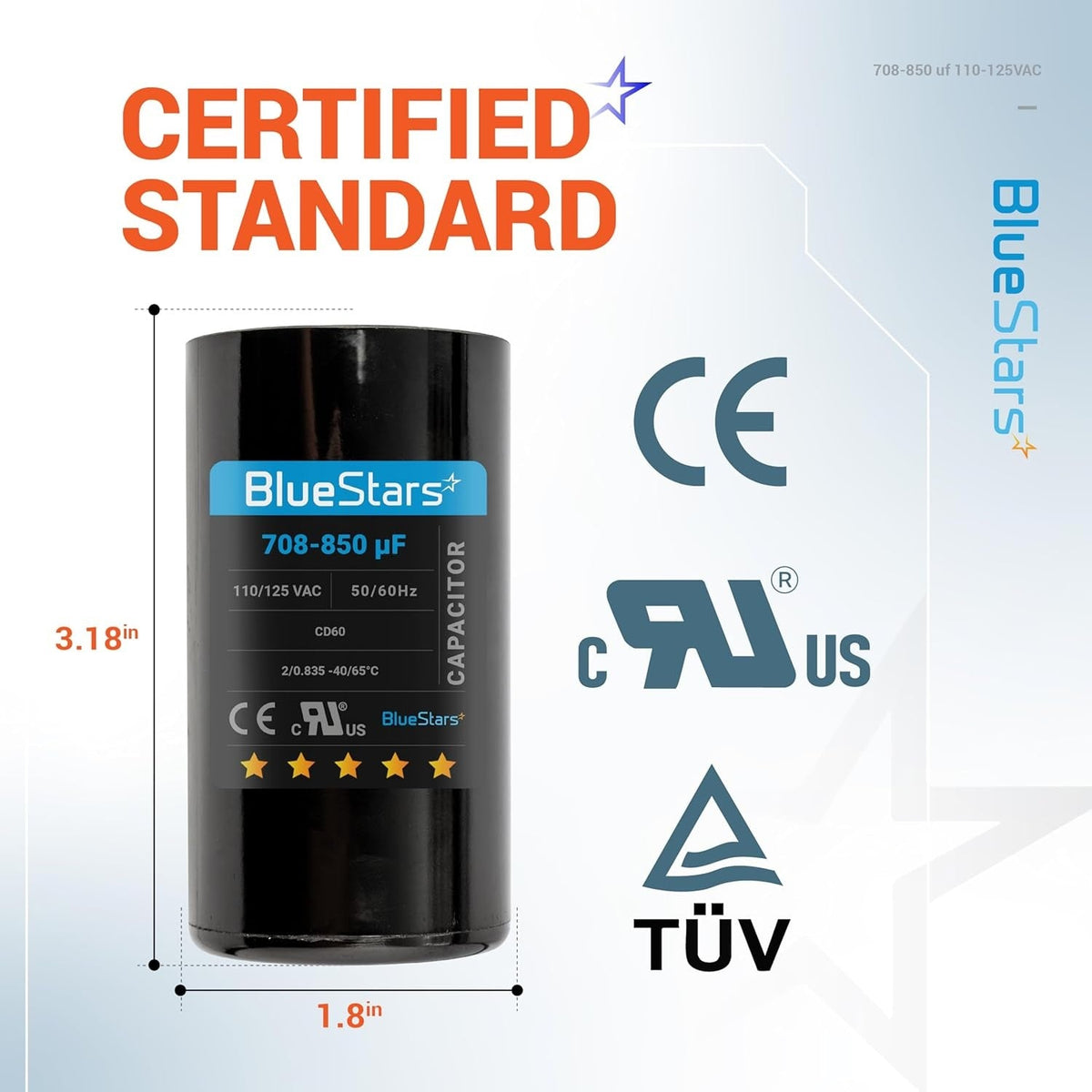

- Dimensions: 1-13/16 inch Diameter x 4-3/8 inch Height
- Safety Standard: UL 810 Recognized
Replaces / Cross-Reference Part Numbers
- Direct replacement for any start capacitor with the same capacitance and voltage ratings.
- Replaces parts in the 708-850 uF/MFD range rated for 110 VAC, 115 VAC, or 125 VAC.
Compatibility & Fitment
- Designed for intermittent duty in single-phase AC motor starting circuits.
- Provides temporary starting torque for electric motors found in appliances and equipment such as air conditioners, heat pumps, refrigeration units, well pumps, and pool pumps.
- Fitment is determined by matching the original capacitor's uF/MFD rating, VAC rating, and physical dimensions. The voltage rating of the replacement capacitor must be equal to or greater than the original.

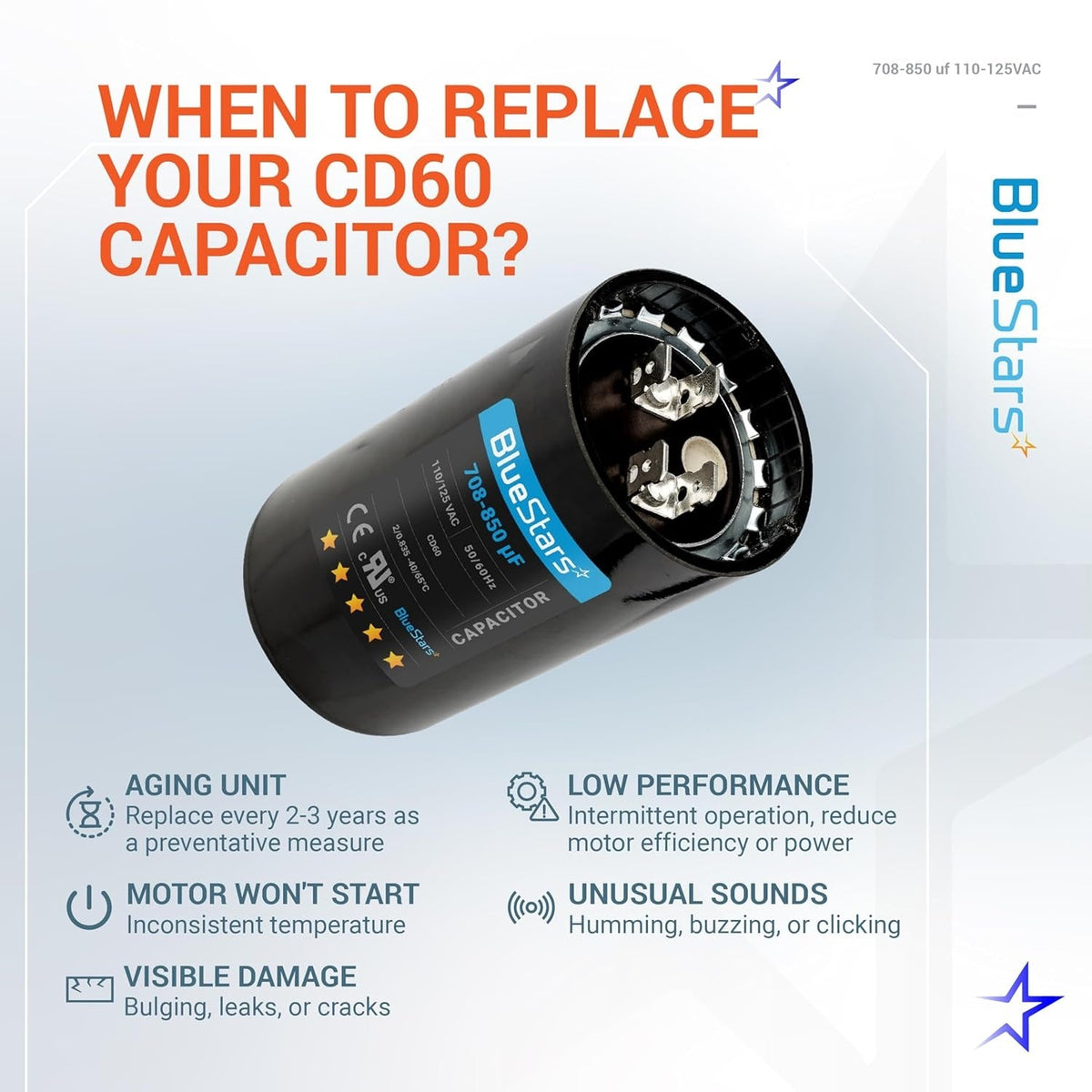

When to Replace
- Motor hums but fails to start.
- Motor starts slowly or requires manual assistance to start.
- Circuit breaker trips when the motor attempts to start.
- Visible damage to the existing capacitor, such as bulging, cracking, or leaking fluid.

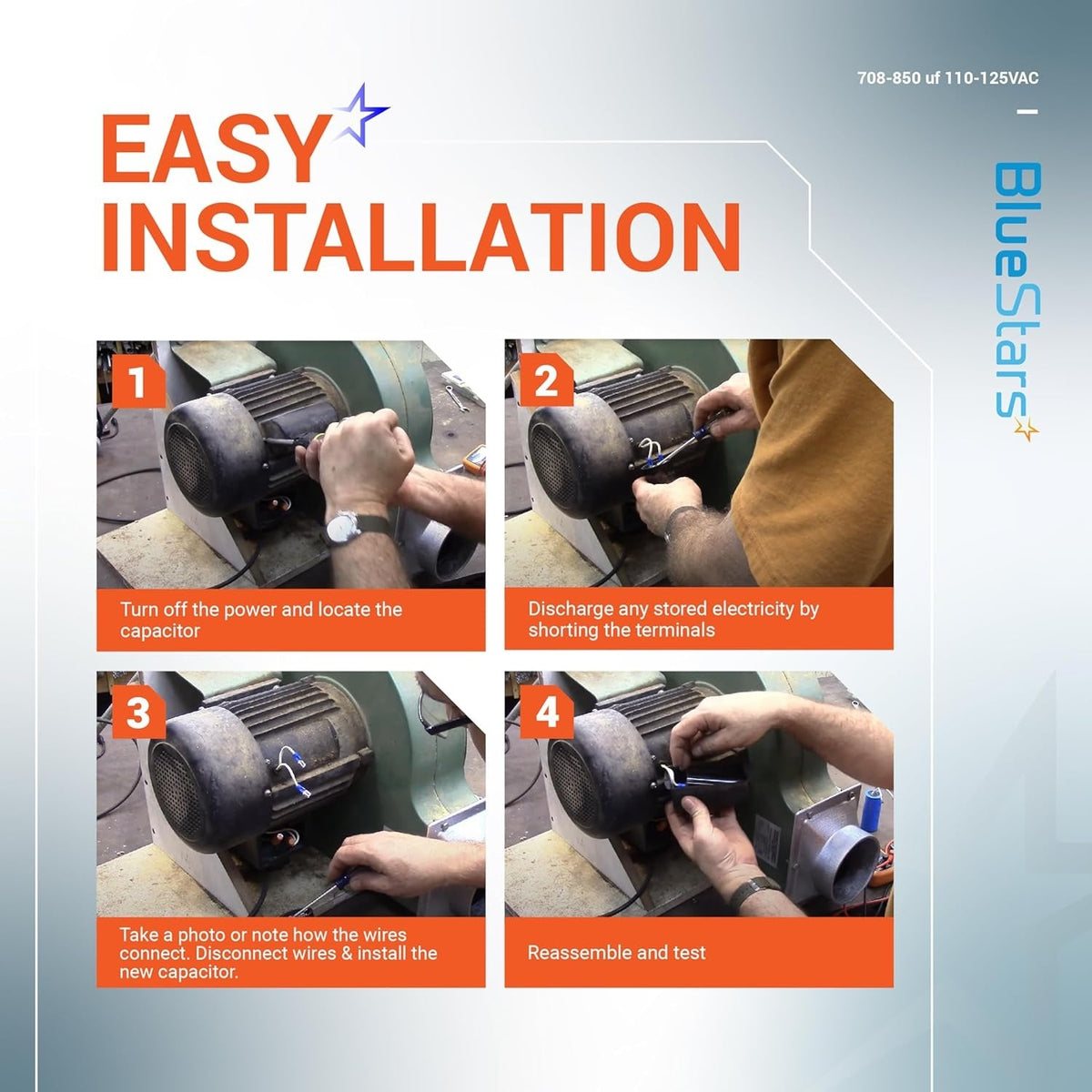

Installation Tips
- Disconnect all electrical power to the equipment before beginning service.
- Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated screwdriver.

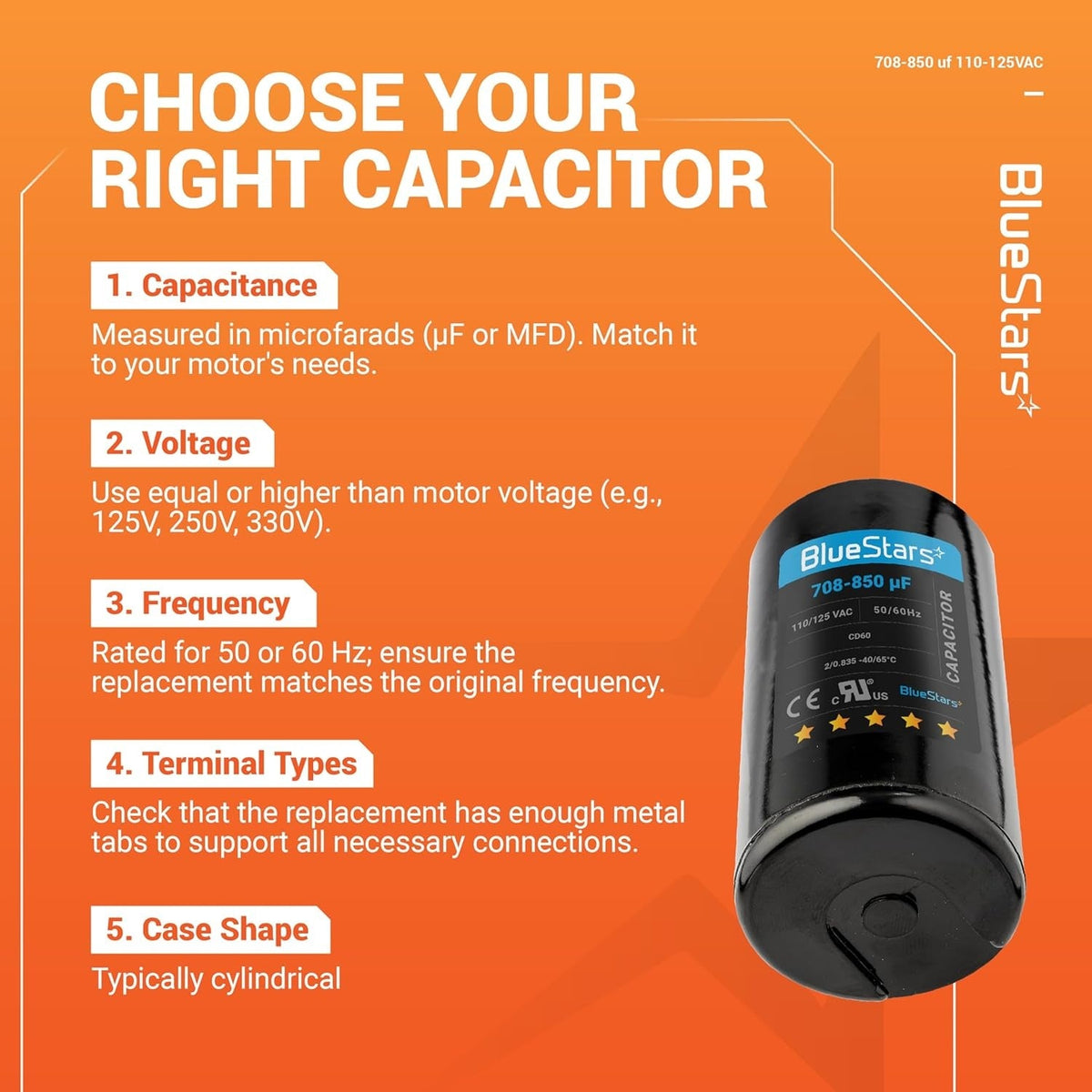

- Verify the capacitance (uF/MFD) and voltage (VAC) of the new capacitor match the specifications of the part being replaced.
- Note the wire placement on the old capacitor terminals before disconnecting.
- Ensure a secure mechanical and electrical connection.
-
Perfect fit
Universal fit with any brands with the same ratings -

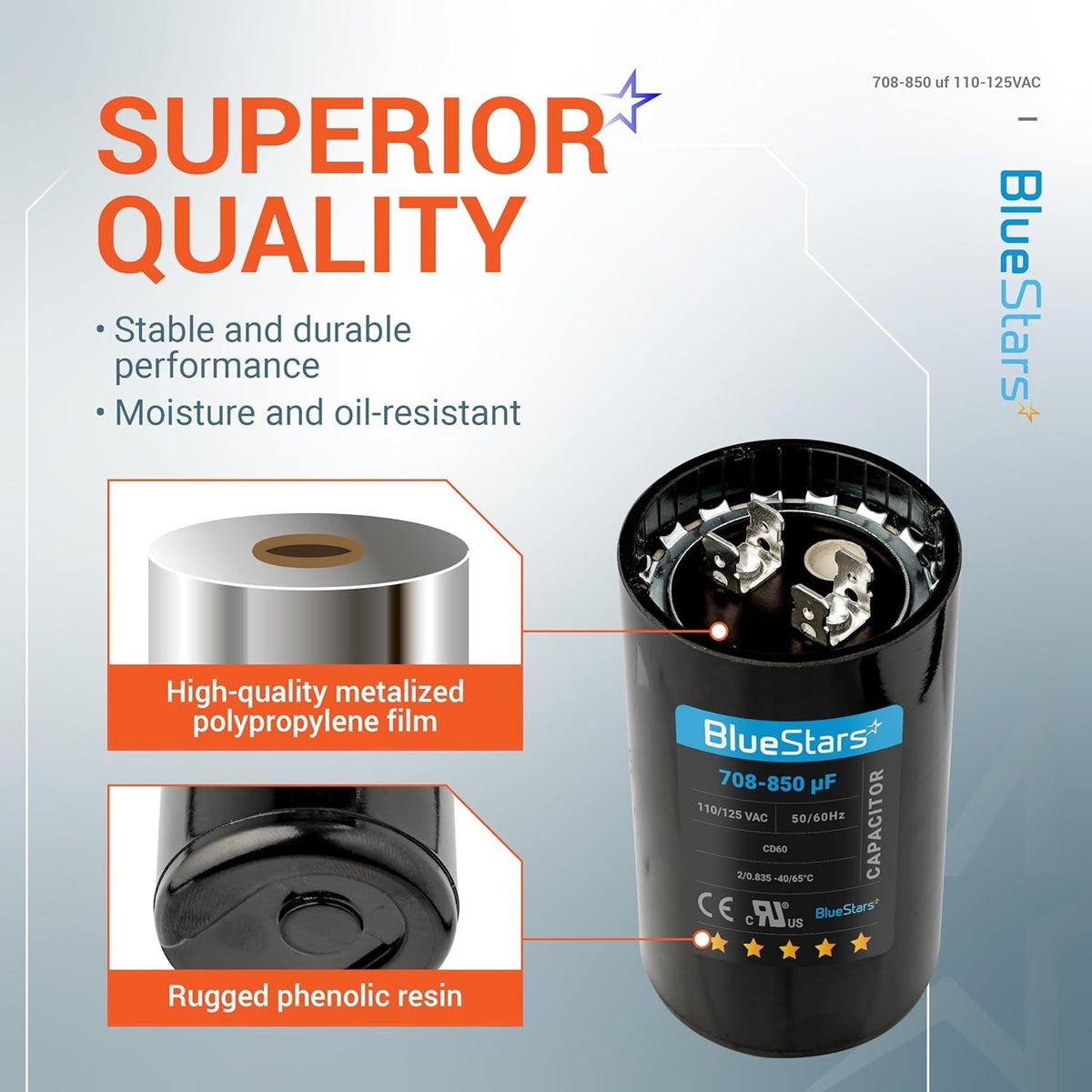

Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
