8212560 Dishwasher Side Mounting Bracket Replacement - For Whirlpool Kenmore Dishwashers - 2 Pack

8212560 / WP8212560 Dishwasher Side Mounting Bracket Kit

Key Features

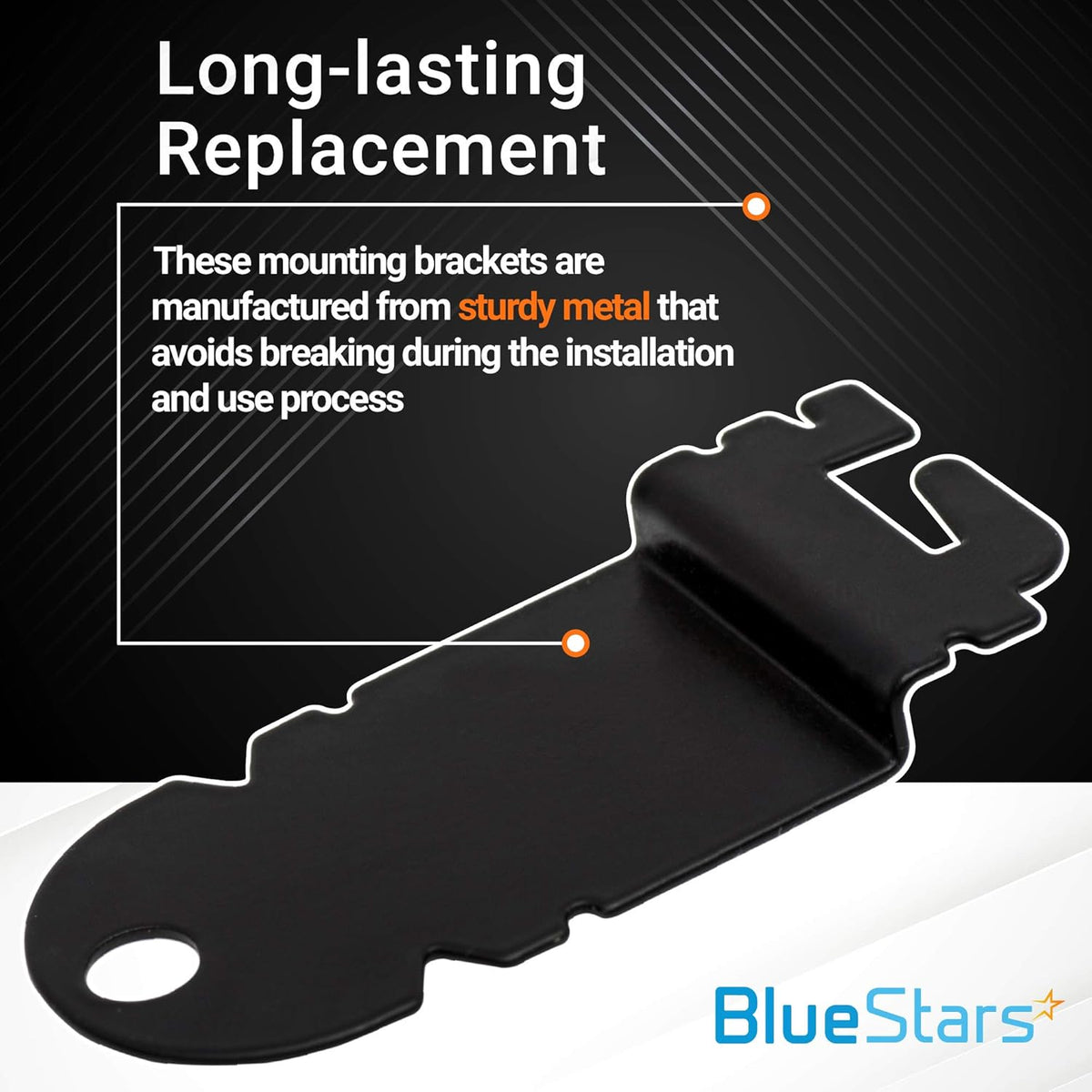

• Heavy-Duty Galvanized Steel: Manufactured from premium, corrosion-resistant galvanized steel designed to provide structural stability in the high-humidity environment between the dishwasher and your kitchen cabinetry.
• Precision Side-Mount Solution: Specifically engineered for installations where top-mounting is impossible (such as under granite, quartz, or marble countertops), allowing the dishwasher to be secured safely to the side cabinets.
• Anti-Vibration Stabilization: Eliminates "tipping" or "rocking" when the heavy lower rack is pulled forward, ensuring the unit remains flush and perfectly aligned with the surrounding kitchen furniture.
• Multi-Point Adjustment: Features multiple pre-drilled mounting holes and adjustment slots, providing a custom, level fit for a wide variety of cabinet gaps and dishwasher frame styles.

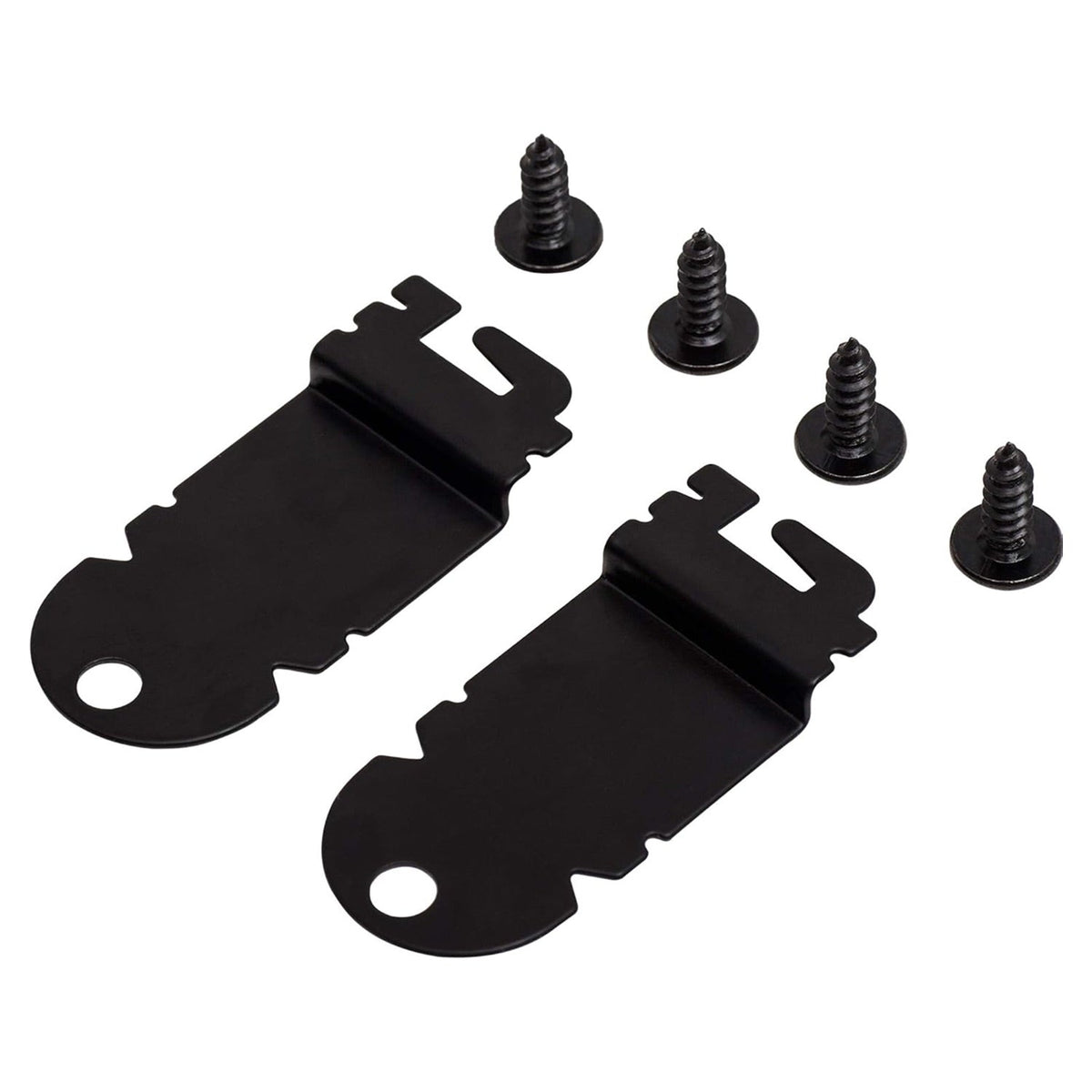

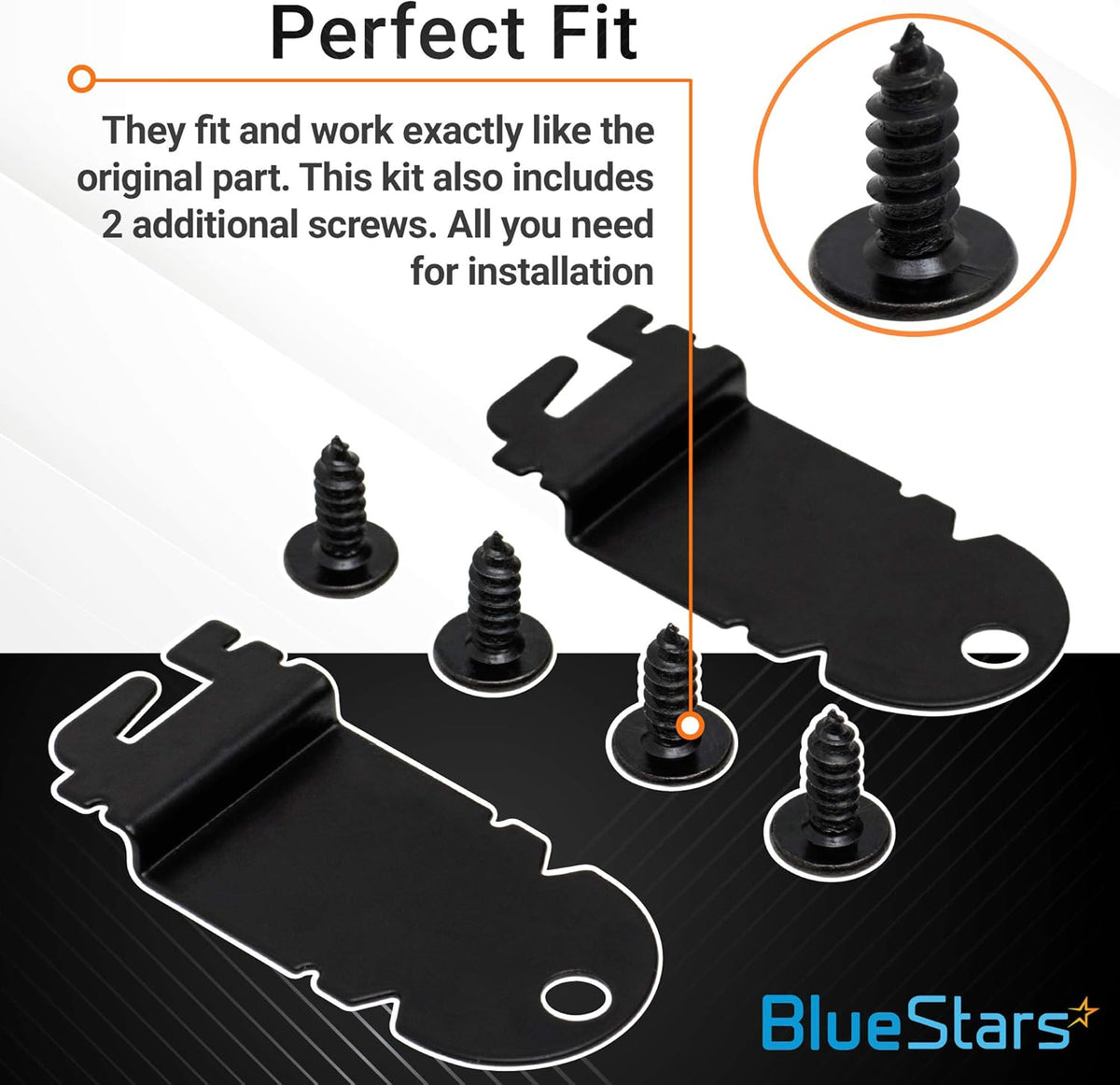

• Complete 2-Piece Installation Set: This value pack includes both brackets and the necessary mounting hardware, providing a complete solution for a secure, professional-grade side-mount installation.

Replaces / Cross-Reference Part Numbers

• 8212560
• 1201084

• AP3953705
• AH1487167
• EA1487167
• PS1487167

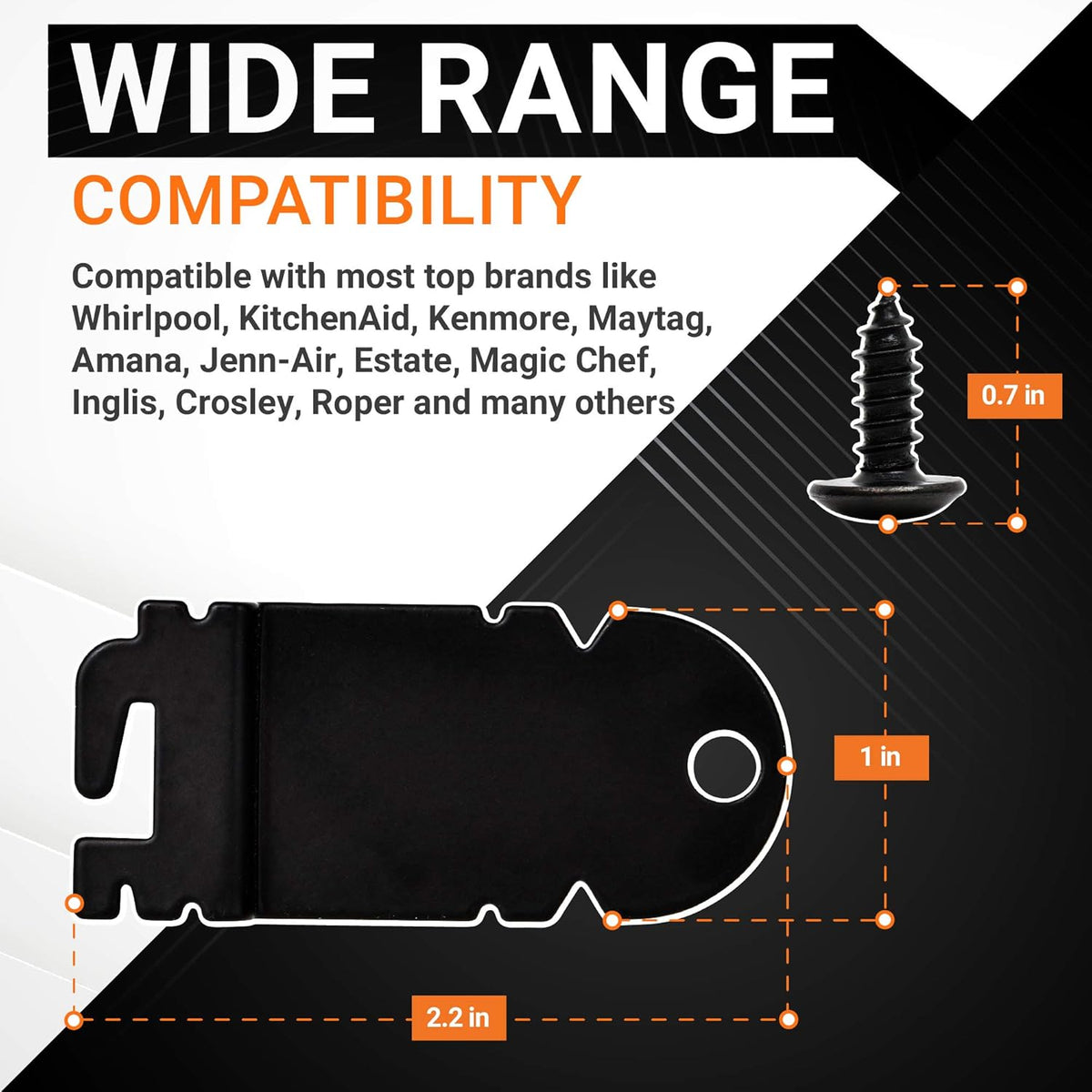

Compatibility & Fitment

This side-mounting bracket is the standard installation hardware for most Whirlpool-manufactured 24-inch tall-tub dishwashers. Key compatible brands include:

• Whirlpool & Maytag: Fits hundreds of WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ, WDF520PADM).
• Kenmore (665 Series): Compatible with many 665-prefix "Elite" and standard dishwashers produced for Sears (e.g., 665.13263K311, 665.13282K113).
• KitchenAid & Jenn-Air: Fits various KDTM, KDTE, and JDT series high-end units utilizing the 8212560 bracket style.
• Amana, Roper, & Estate: Direct fit for dozens of ADB and DU series models produced by Whirlpool.
• Note: Specifically for Side-Cabinet Mounting. If you have standard wood or laminate countertops, you can typically use the original top-mount brackets that came with the unit.

When to Replace

• Dishwasher Tipping Forward: The unit pulls away from the cabinet when you open the door or pull out a loaded lower rack, often because the original brackets have bent or the screws have pulled out.
• New Countertop Upgrade: If you are switching from laminate to Granite, Quartz, or Stone, you must switch to these side-mount brackets as you can no longer drill into the underside of the counter.
• Visible Metal Fatigue: The brackets look rusted, snapped at the stress points, or have been damaged during a previous uninstallation/reinstallation.
• Improper Alignment: The dishwasher door is hitting the cabinets or looks "crooked," indicating the brackets are loose and the unit has shifted.
• Excessive Vibrating: If the brackets are loose, the dishwasher tub will rattle against the cabinetry during the high-speed wash or drain phases.

Installation Tips

• Safety First: Ensure the dishwasher is off. You will need to slide the dishwasher out from the cabinet 3-4 inches to access the mounting slots on the side of the tub frame.
• Snap and Lock: Insert the bracket's "hook" into the pre-cut slot on the side of the dishwasher tub. You may need to use a pair of pliers to bend the locking tab slightly to ensure a permanent, rattle-free fit.
• Level the Unit: Before screwing the brackets into the side cabinets, use a spirit level to ensure the dishwasher is perfectly vertical. This prevents drainage issues and potential door leaks.
• Drill Pilot Holes: Drill small pilot holes into your side cabinetry before driving the screws. This prevents the cabinet wood from splitting and ensures a tight, professional grip.
• Check Clearance: Ensure the screws do not protrude through to the other side of your cabinet (where they might hit a drawer or another appliance). If your cabinet walls are thin, use shorter screws.
