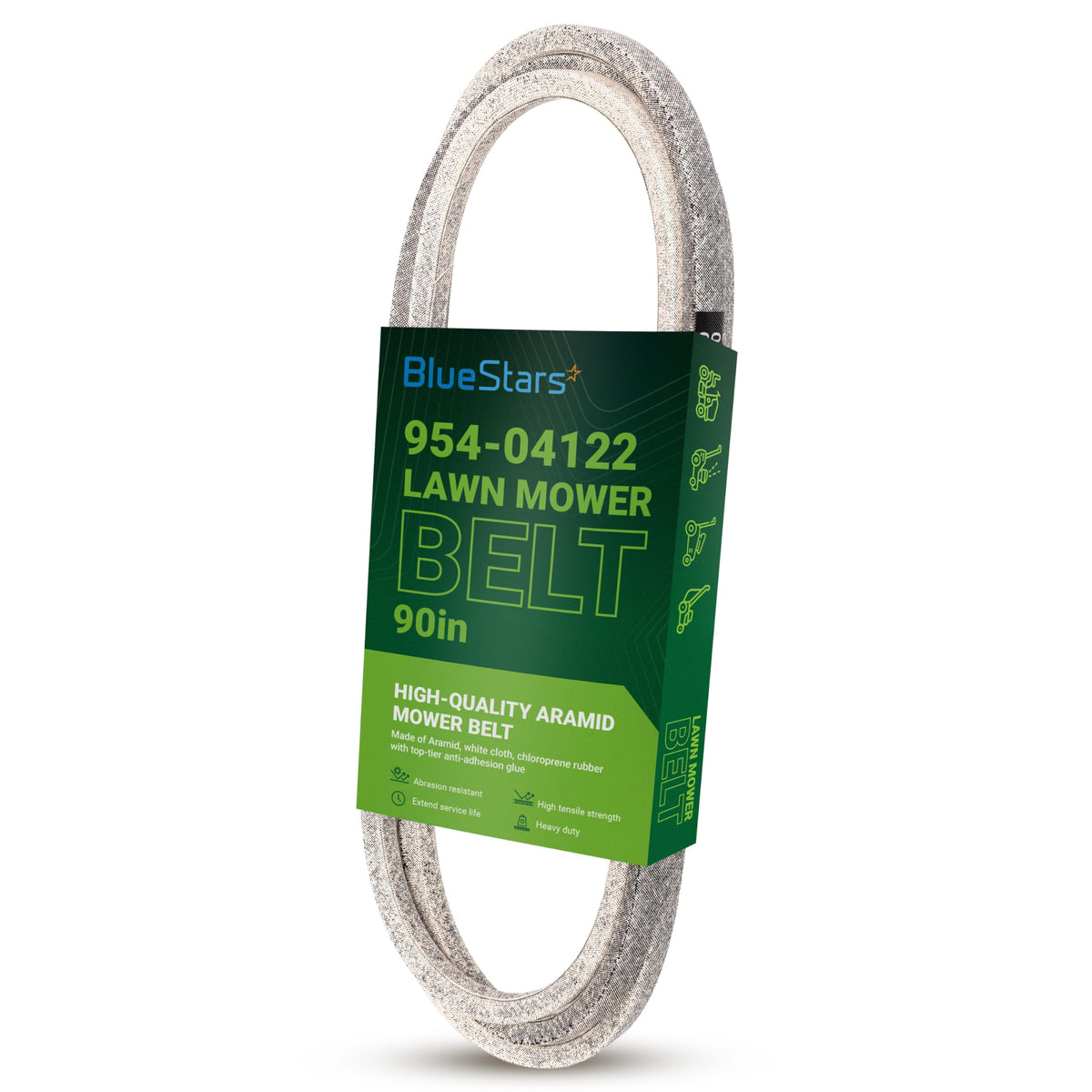

954-04122 754-04122 Mower Belt - 46" Troy-Bilt/MTD/Toro LX460/LX465 - 90"
0.00
Regular price
$15.39
Regular price
Save 11%
$17.24
Sale price
$15.39
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
954-04122, 754-04122 Mower Belt | 90"
Key Features

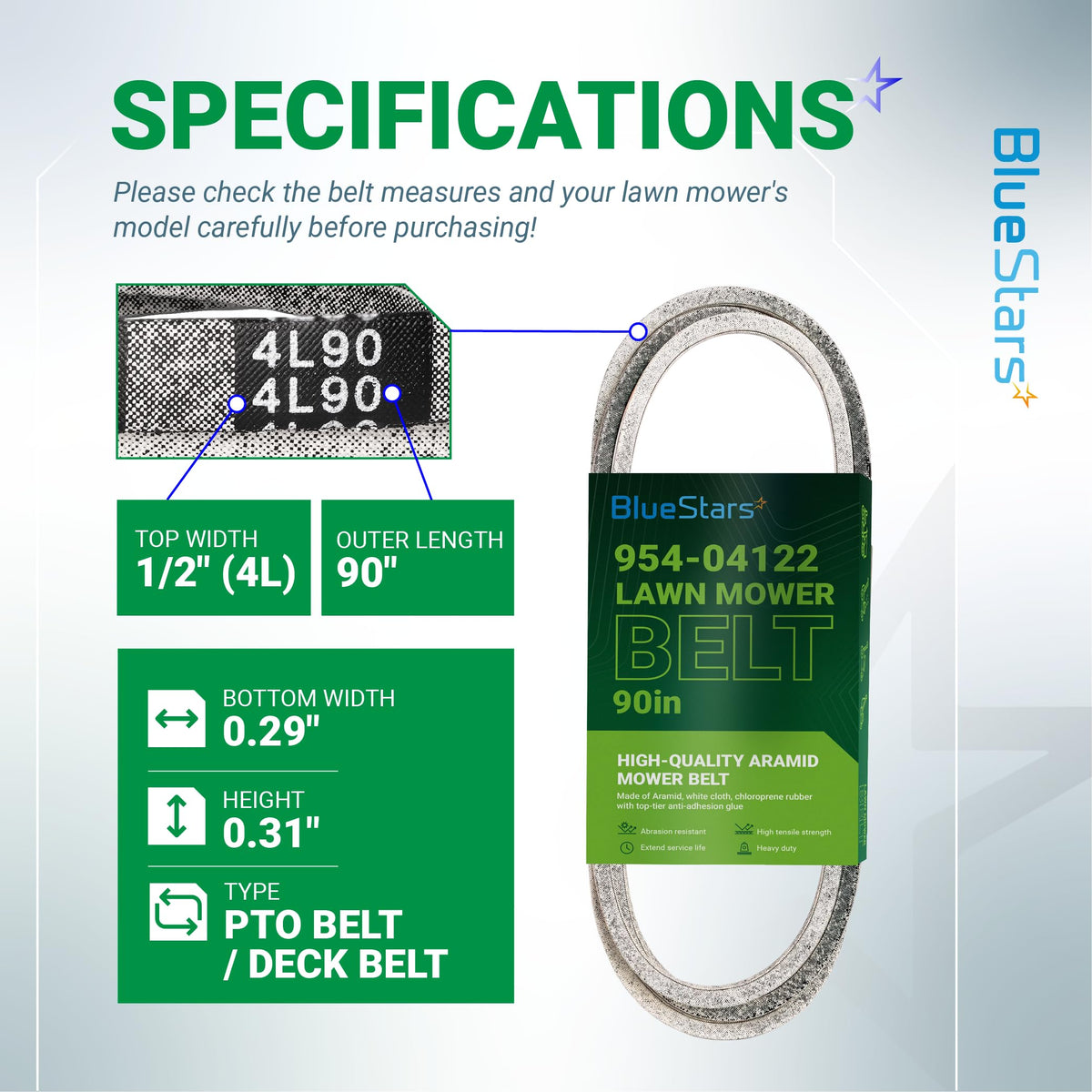

- Dimensions: 1/2" width x 90" outer circumference.
- Engineered for high-torque outdoor power equipment applications.

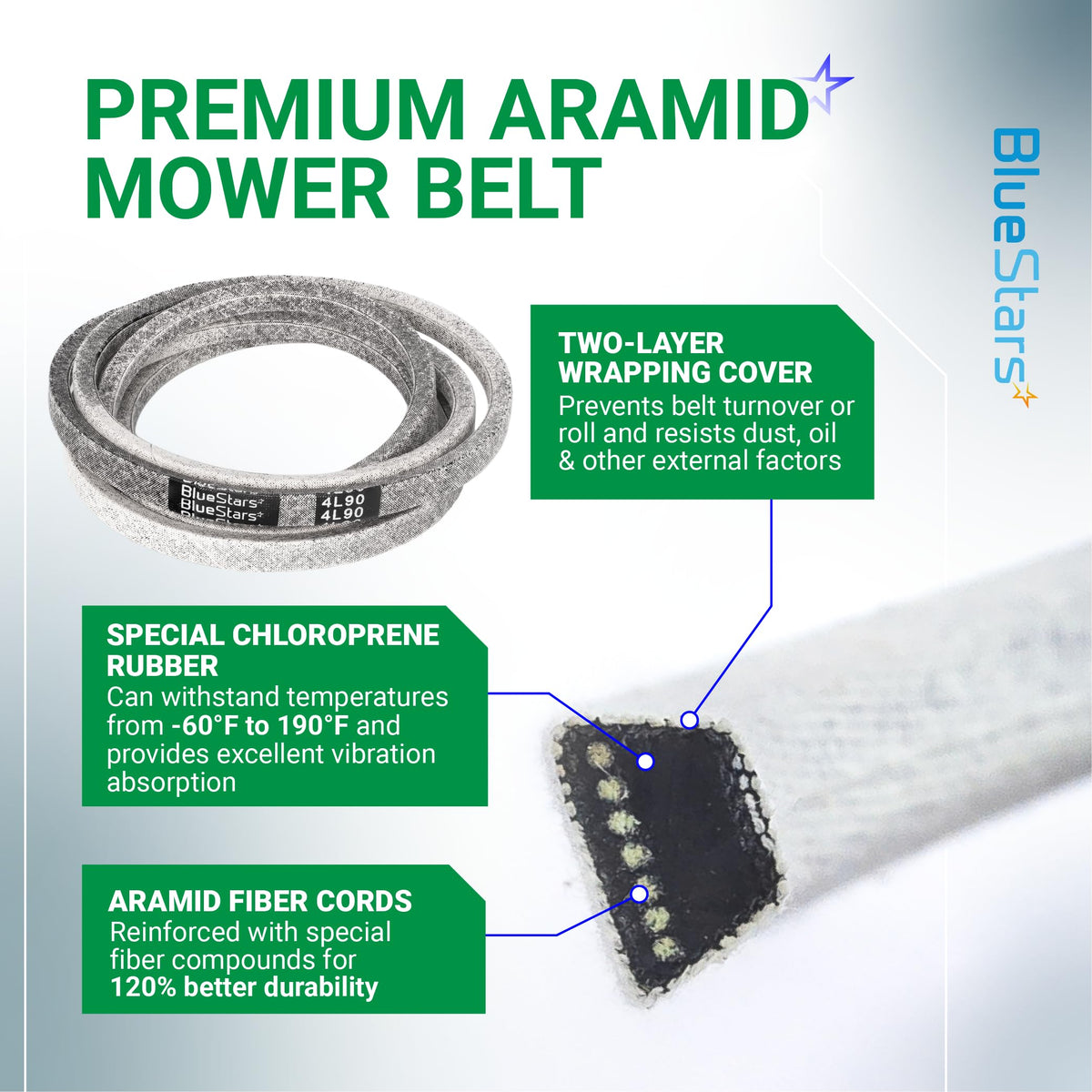

- Oil and heat-resistant construction for increased durability.
- Designed for consistent power transmission to 46-inch mower decks.
Replaces / Cross-Reference Part Numbers
- 954-04122
- 754-04122
- 954-04123
- L95404122
- 75-491

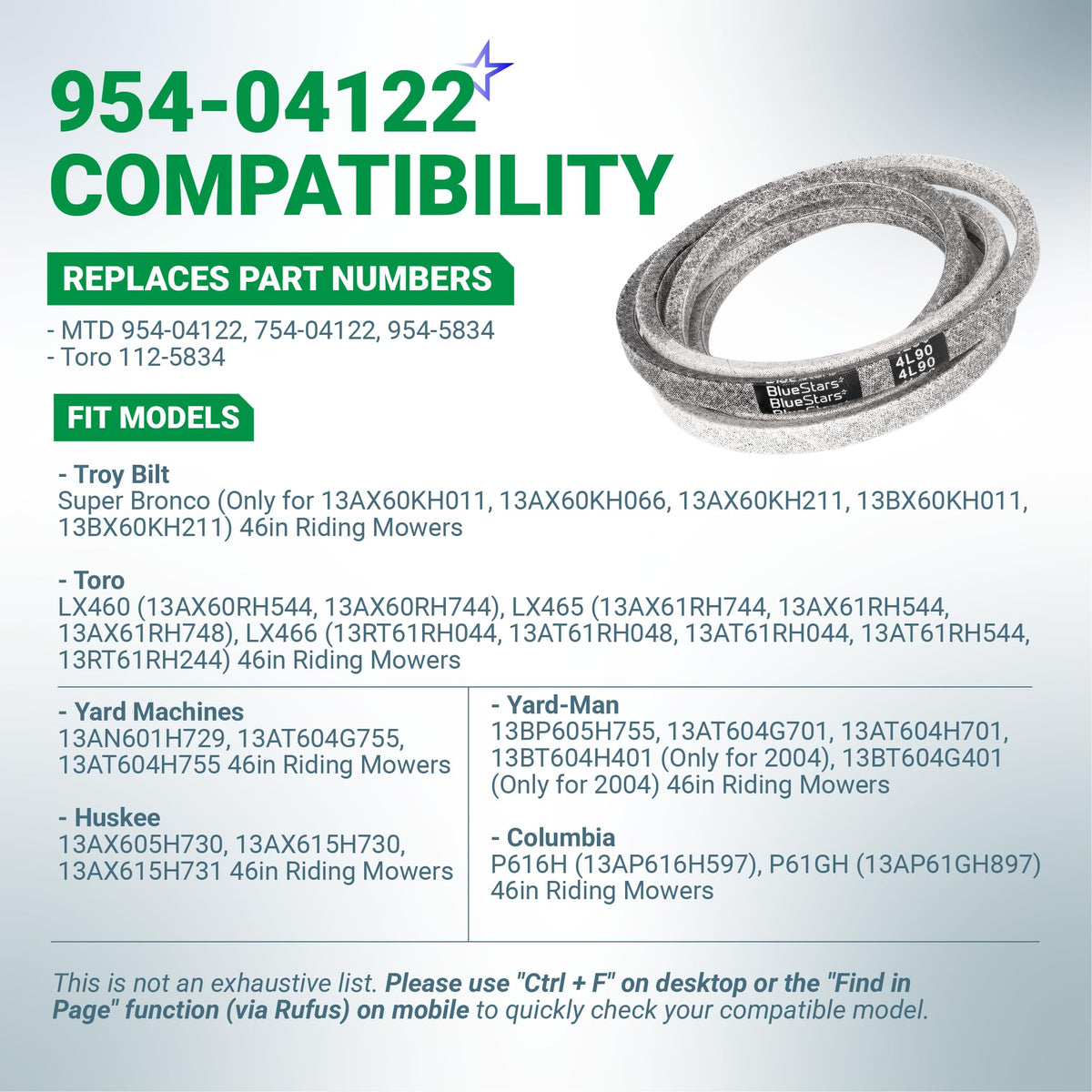

Compatibility & Fitment
- Fits Troy-Bilt, MTD, and Toro riding mowers with 46-inch decks.
- Compatible models include, but are not limited to: LX460, LX465.
- Fits specific production units including 13AX60KH011, 13AX60KH066, and 13AX60KH211.
- Verify part number against your owner's manual before purchase.
When to Replace
- Visible fraying, cracks, or split rubber along the belt edges.
- Significant stretching causing frequent slippage or loss of blade speed.
- Hardened or glazed sidewalls due to heat exposure.
- Missing chunks or localized wear patterns indicating pulley misalignment.
Installation Tips
- Engage the parking brake and remove the ignition key before service.
- Ensure the mower deck is in the lowest position to reduce spring tension.
- Clean debris from all pulleys before installing the new belt.
- Ensure the belt is properly seated in the V-groove of every pulley to prevent immediate wear.
- Test the blade engagement at low RPMs before full operation.
-
PART NUMBER
This Deck Belt replaces part number: MTD 954-04122, 754-04122, 954-5834; Toro 112-5834. -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble. -
FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades. -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

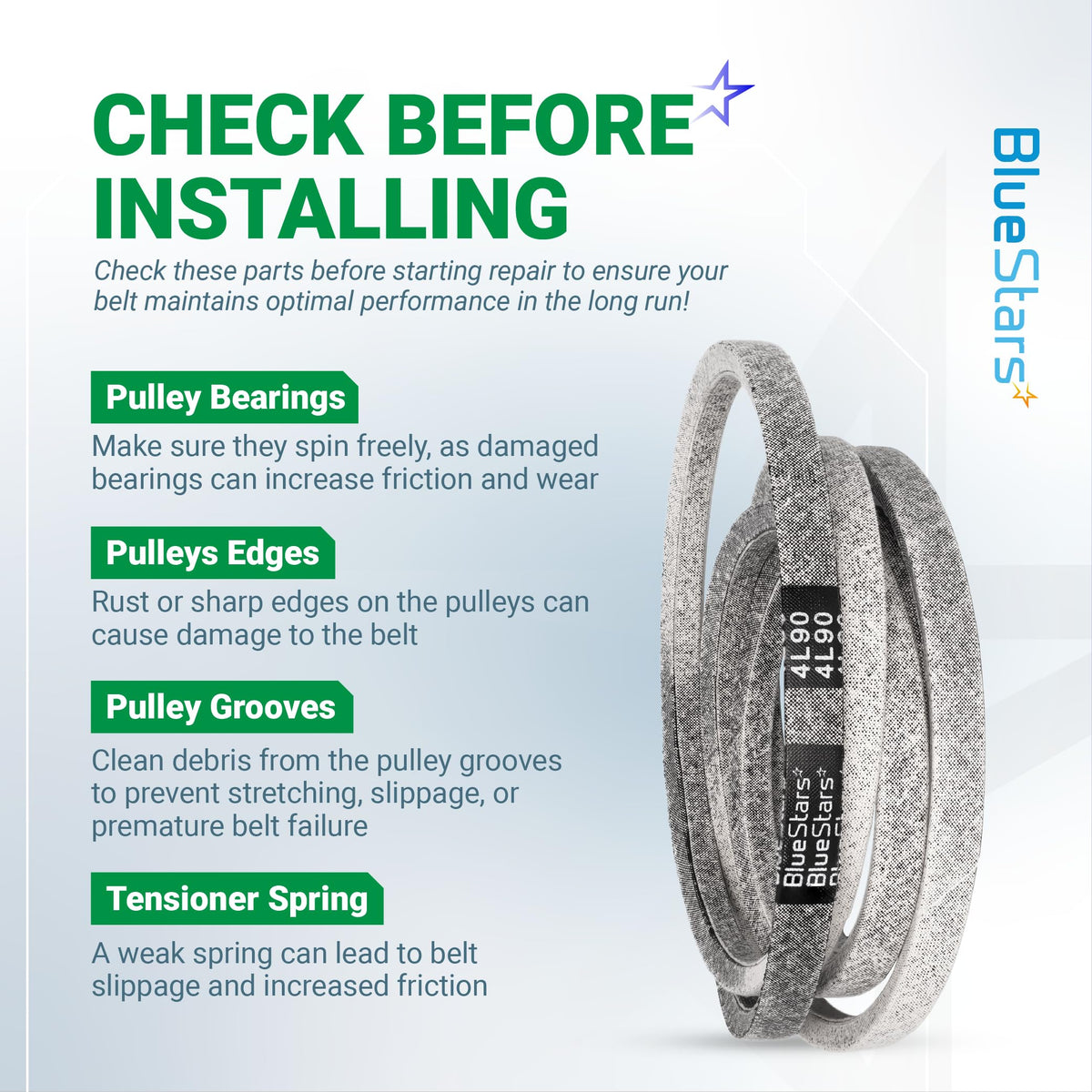

CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool.
2. Raise & secure deck, remove belt covers.
3. Release tension, remove old belt (note/take photos of routing).
4. Install new belt, rotate blades/spindle to check alignment & operation.
