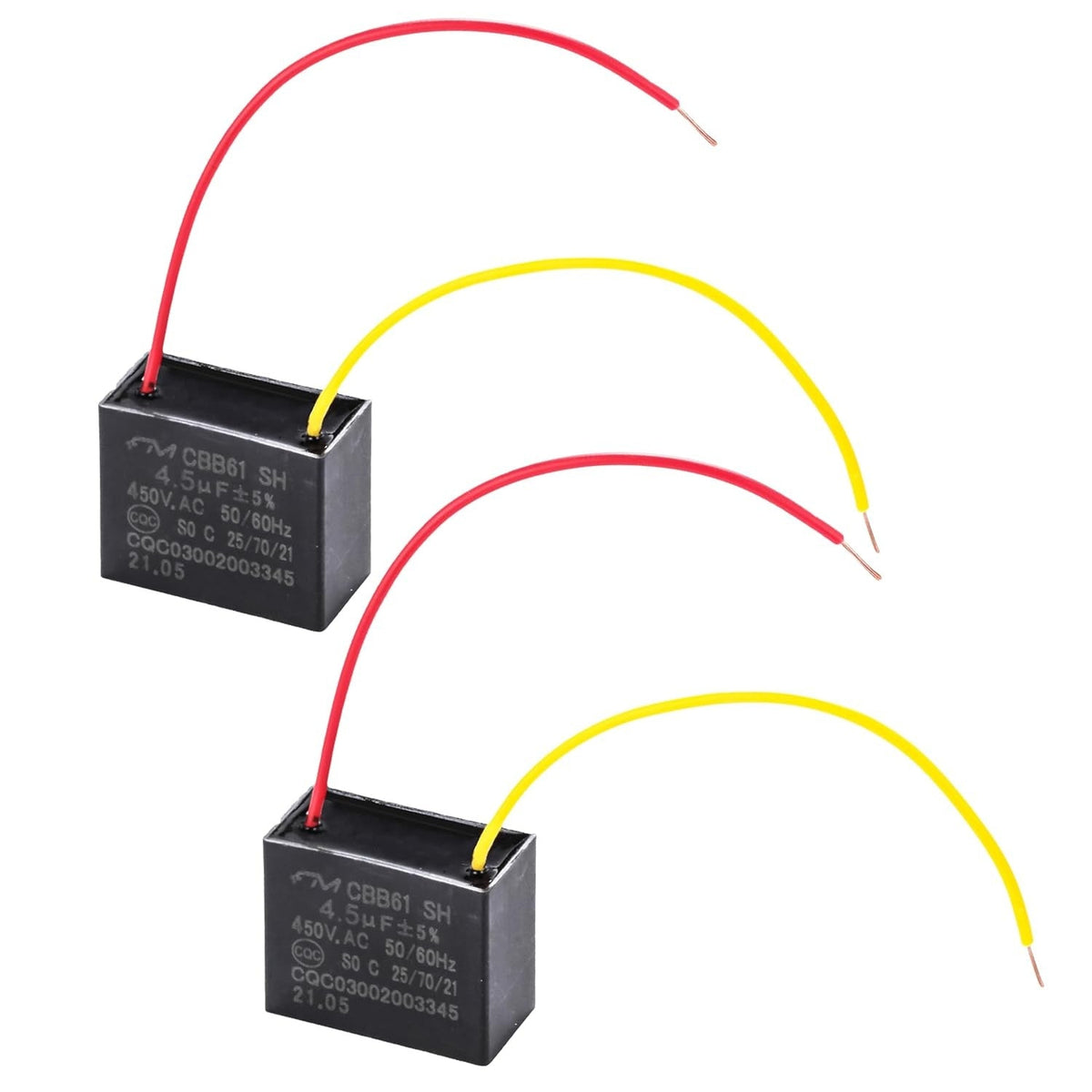

CBB61 4.5uF 450V 2-Wire Ceiling Fan Capacitor - 2 Pack
0.00
Regular price
$11.98
Regular price
Save 11%
$13.41
Sale price
$11.98
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
CBB61 4.5uF 450V 2-Wire Ceiling Fan Capacitor

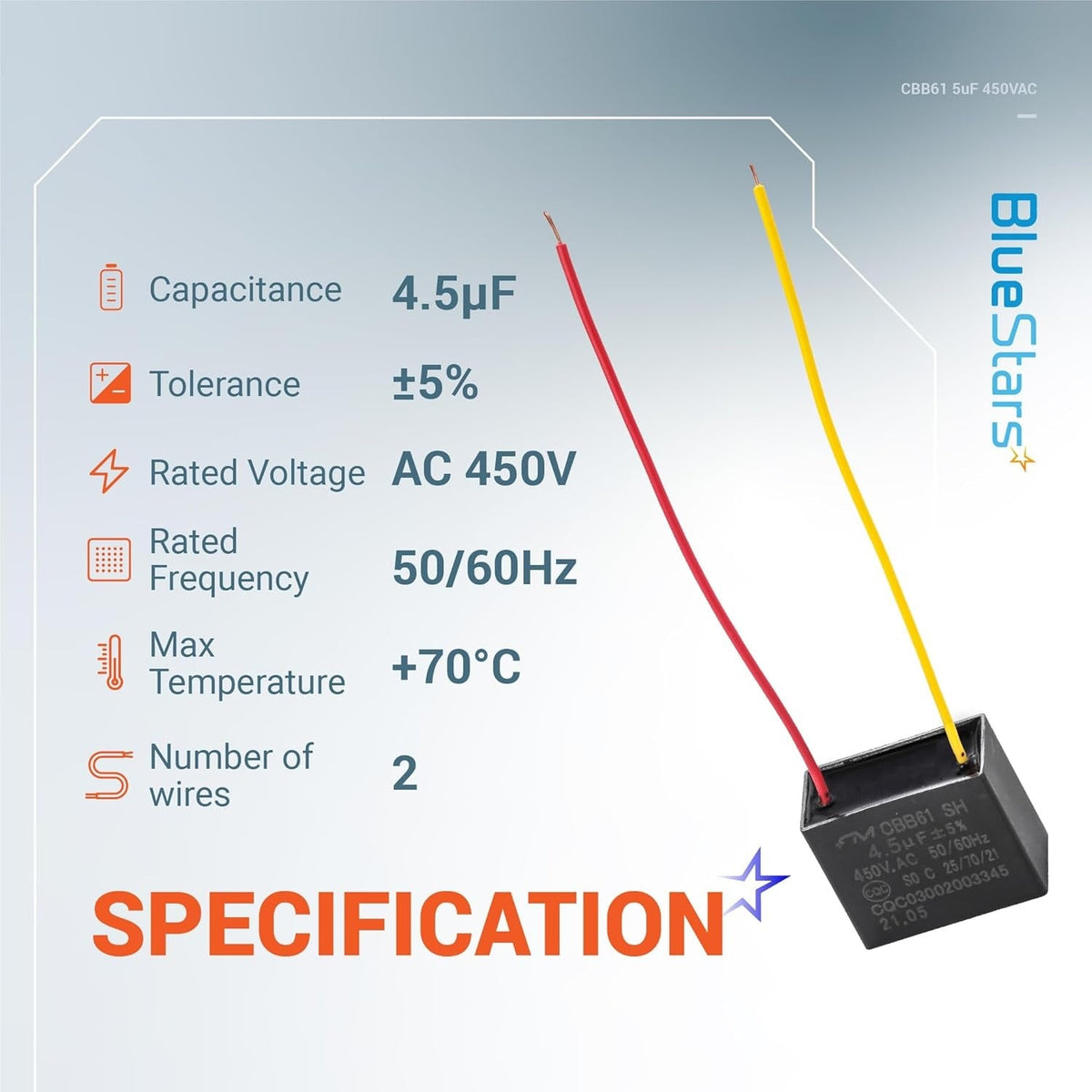

Key Features
- Model: CBB61
- Capacitance: 4.5µF
- Voltage Rating: 450V AC
- Frequency: 50/60Hz
- Wires: 2
- Tolerance: ±5%
- Material: Metallized polypropylene film encased in a plastic shell
- Function: Start and run capacitor for single-phase motors
Replaces / Cross-Reference Part Numbers
- Replaces any CBB61 series capacitor with the same 4.5µF capacitance and a 450V or lower voltage rating. The voltage rating must be equal to or greater than the original capacitor.
Compatibility & Fitment
- Designed for single-phase motors found in a variety of appliances, including:
- Ceiling fans
- Stand fans
- Wall fans
- Range hoods
- Small water pumps
- Generators

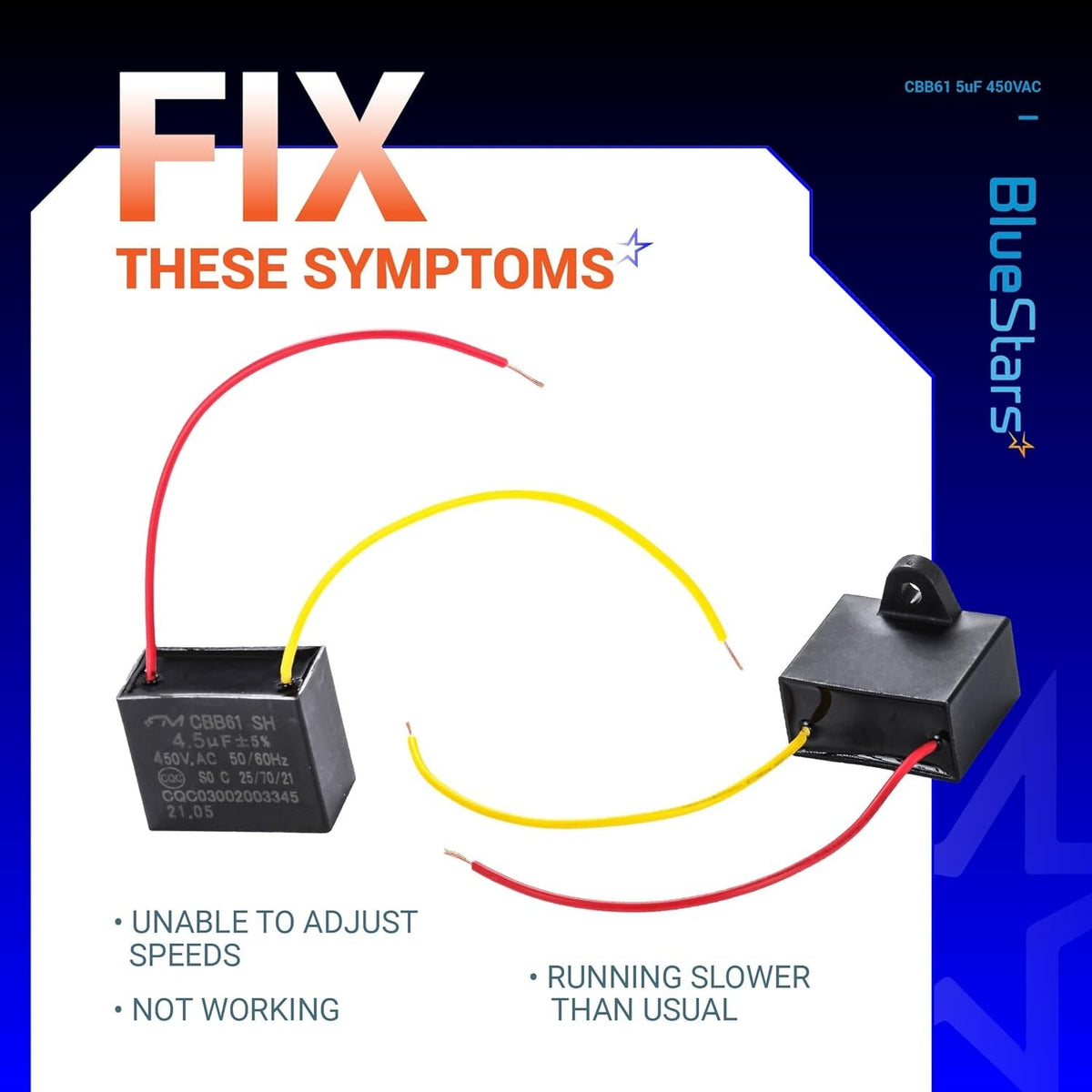

When to Replace
- Fan motor hums but blades do not spin.
- Fan requires a manual push to start rotating.
- Fan speeds are noticeably slower than normal or do not change.
- Visible damage, such as bulging or leaking, on the existing capacitor.
Installation Tips
- Disconnect all electrical power to the appliance before servicing.
- Safely discharge the old capacitor before handling.
- Confirm the capacitance (µF) and voltage (V) of the new part match or exceed the specifications of the original.
- The two wires are non-polarized and can be connected in either position.
- Securely mount the new capacitor in the original housing.
-

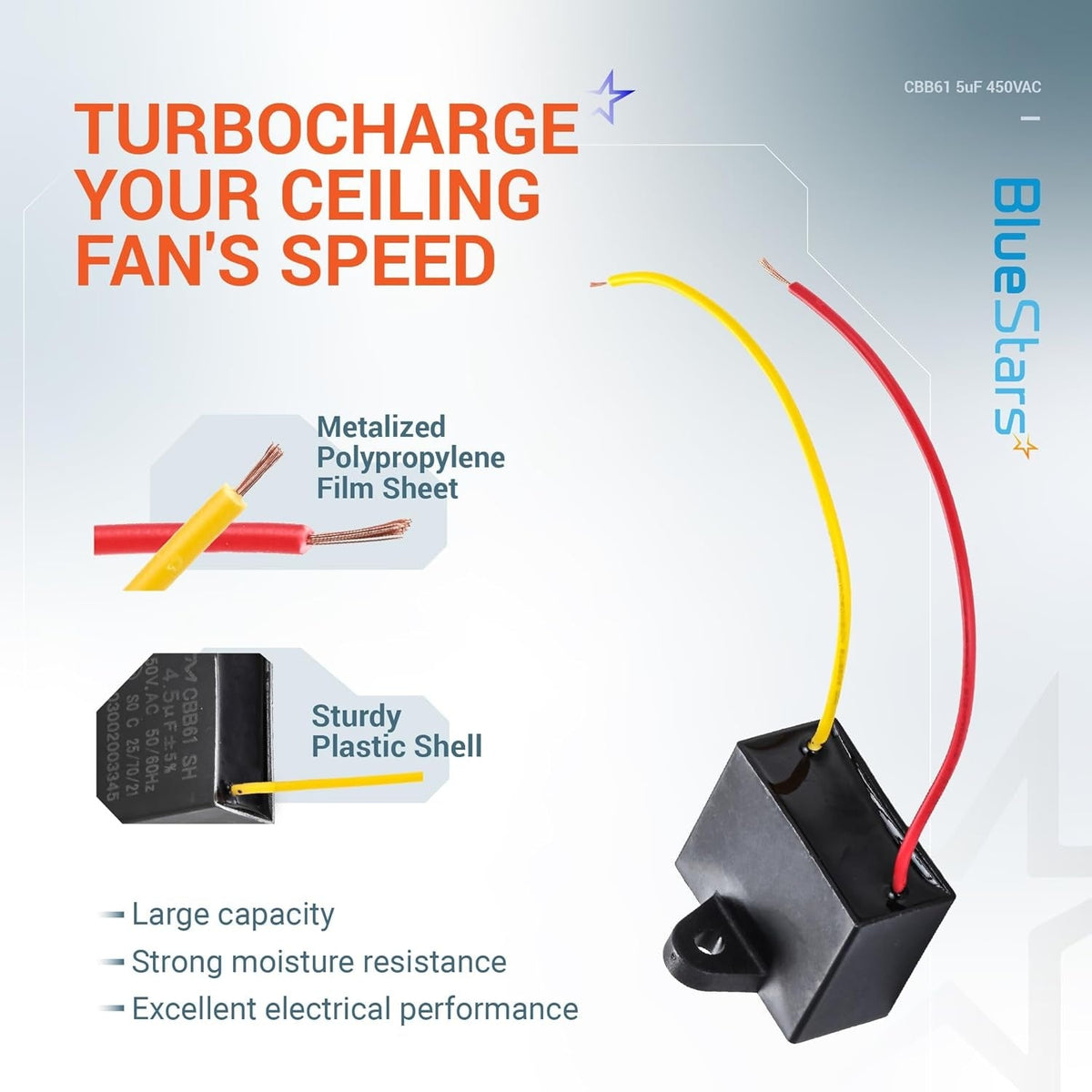

SUPERIOR QUALITY
Made of metalized polypropylene film sheet with plastic shell , which has strong moisture resistance & excellent electrical performance -
BEST SOLUTION
Enjoy the great feeling when your Ceiling Fan works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
STRONG & DURABLE
Made of metalized polypropylene film sheet with plastic shell, which is durable, has strong moisture resistance and excellent electrical performance -
SIMPLE INSTALLATION
Just 15 minutes of replacing the old capacitor to make the ceiling fan run like new!
MAKE IT COOL AGAIN
