DC64-00828B Dryer Door Switch - For Samsung and Kenmore Dryer

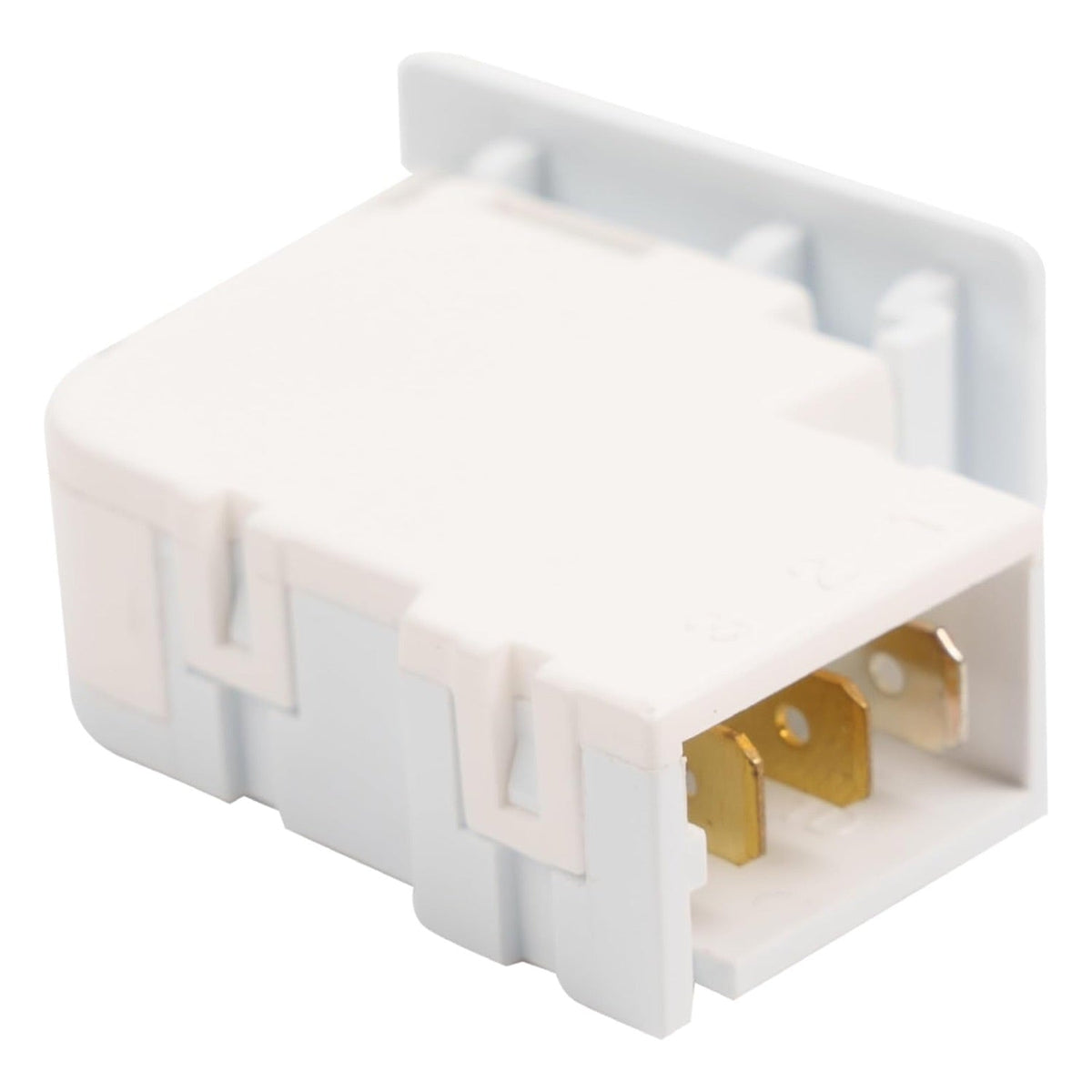

White DC64-00828B dryer door switch with metal terminal connectors for Samsung and Kenmore dryers.

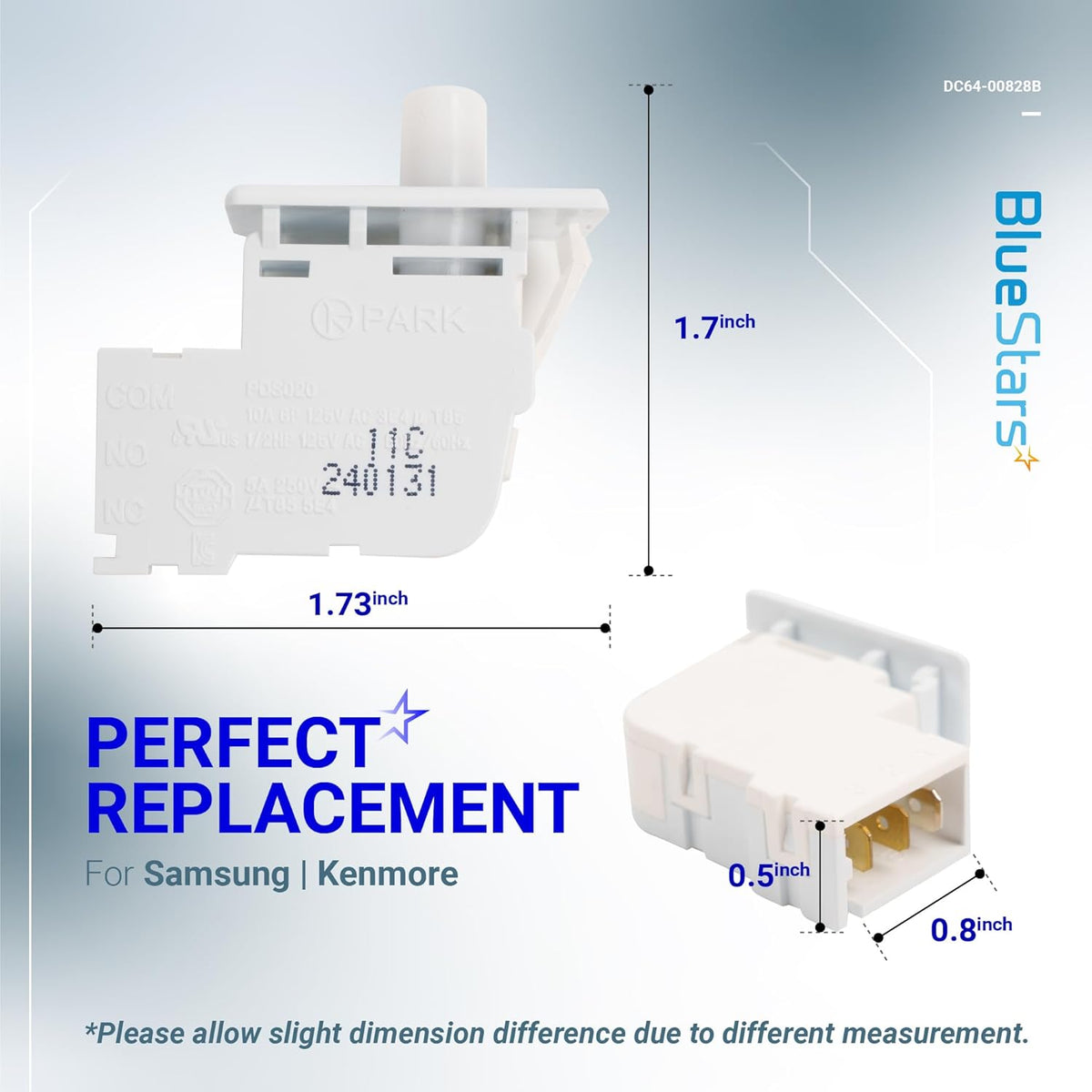

DC64-00828B dryer door switch for Samsung and Kenmore dryers showing dimensions and terminal view.

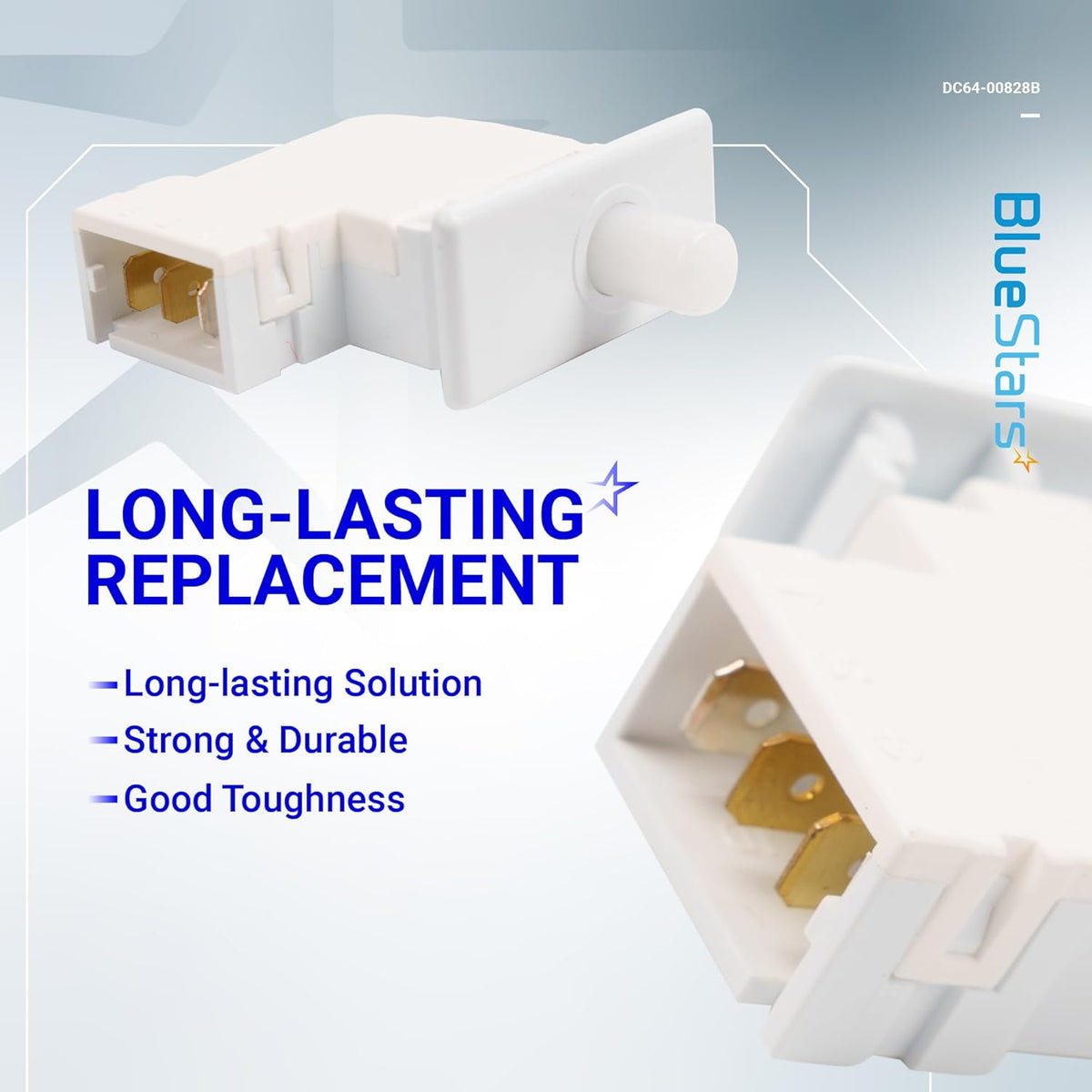

White DC64-00828B dryer door switch replacement showing side and terminal views for Samsung and Kenmore dryers.

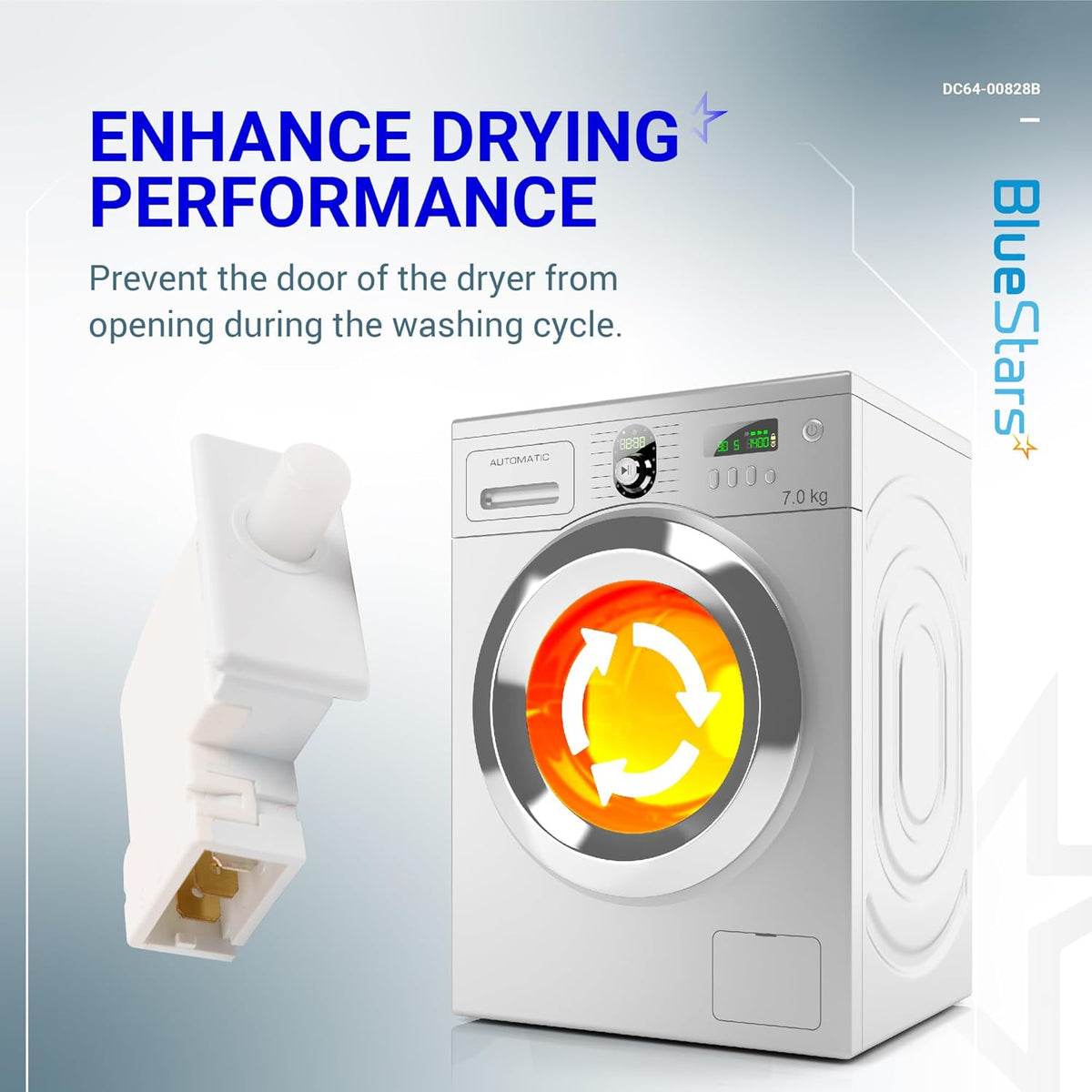

DC64-00828B dryer door switch shown next to a dryer illustration for Samsung and Kenmore compatibility.

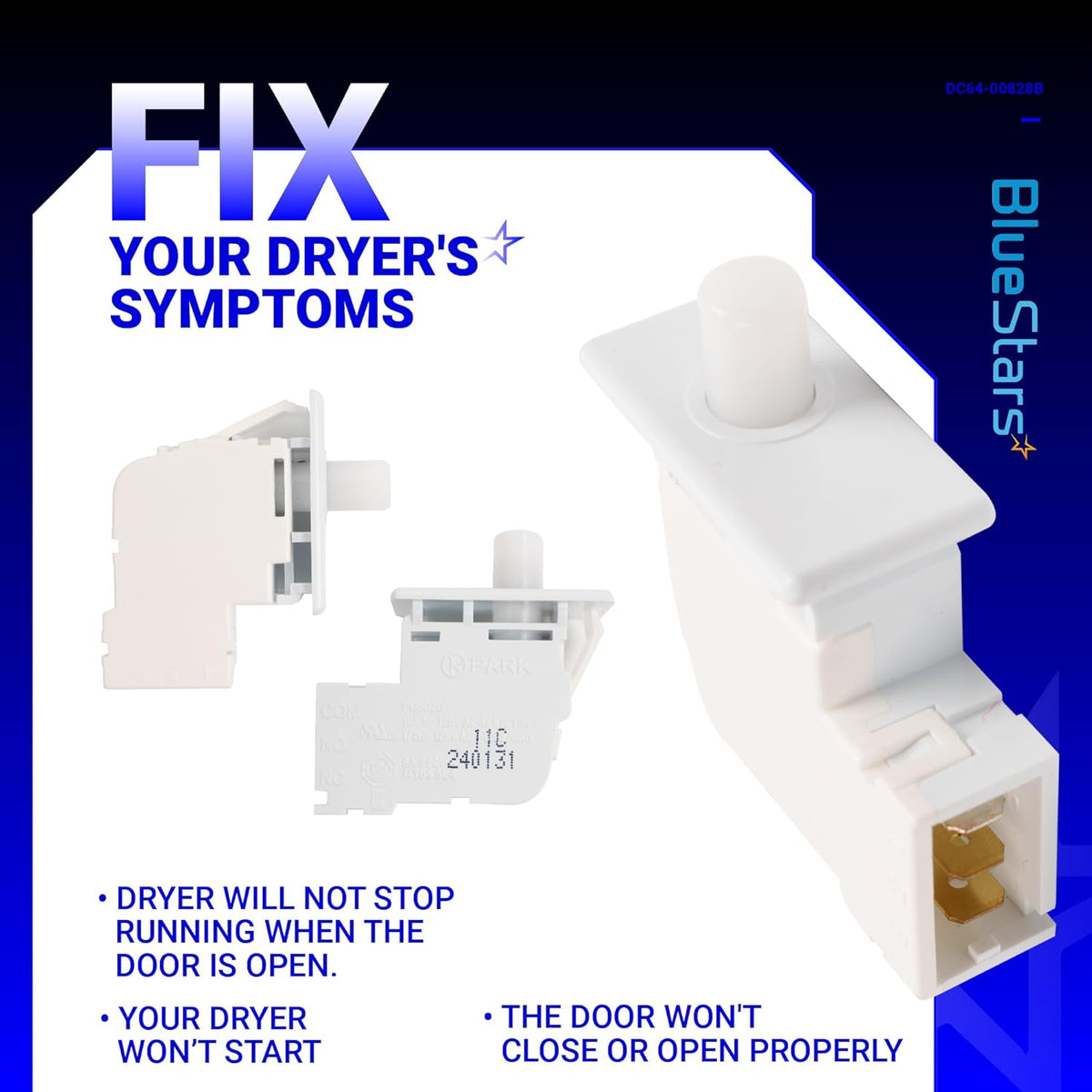

DC64-00828B dryer door switch for Samsung and Kenmore dryers, showing multiple angles of the white replacement part.
Technician installing a DC64-00828B dryer door switch with a four-step quick installation guide.
DC64-00828B dryer door switch replacement part shown in a promotional lifestyle graphic.
White DC64-00828B dryer door switch with metal terminal connectors for Samsung and Kenmore dryers.
DC64-00828B dryer door switch for Samsung and Kenmore dryers showing dimensions and terminal view.
White DC64-00828B dryer door switch replacement showing side and terminal views for Samsung and Kenmore dryers.
DC64-00828B dryer door switch shown next to a dryer illustration for Samsung and Kenmore compatibility.
DC64-00828B dryer door switch for Samsung and Kenmore dryers, showing multiple angles of the white replacement part.
Technician installing a DC64-00828B dryer door switch with a four-step quick installation guide.
DC64-00828B dryer door switch replacement part shown in a promotional lifestyle graphic.
Lifetime Warranty

DC64-00828B Dryer Door Switch - For Samsung and Kenmore Dryer

Save 13%
0.00
$16.55
$19.03
$16.55
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC64-00828B Dryer Door Switch

Key Features

  • Senses door closure to enable the start of a drying cycle
  • Operating Voltage: 250V
  • Contact Type: Normally Open
  • Prevents the appliance from operating when the door is ajar

Replaces / Cross-Reference Part Numbers

  • AP4578931
  • PS4210965
  • DC64-00828A
  • 2071595
  • EAP4210965
  • PD00028436
  • DC97-07509B
  • ERDC64-00828A
  • DC6400828B
  • AH4210965

Compatibility & Fitment

  • Designed for a wide range of Samsung brand clothes dryers.
  • Confirm fitment by cross-referencing your appliance's model number or the part number on the original switch.

When to Replace

  • Dryer will not start or turn on.
  • Dryer stops running when the start button is released.
  • Appliance displays door-related error codes such as dC, dE, dF, or d0.
  • Drum light stays on when the door is closed or does not turn on when the door is opened.

Installation Tips

  • Disconnect the dryer from its power source before starting the installation.
  • Access to the switch typically requires removing the dryer's top panel.
  • Take a photograph of the wire connections before removing the original part to ensure correct reassembly.
  • Ensure the new switch is securely mounted and that the actuator aligns properly with the door pin.
Product image 1
Product image 2
Product image
  • PERFECT MATCH

    PERFECT MATCH

    Our Drum Bearing Slides exactly fit various models of Samsung and Kenmore Dryer.
  • PREMIUM MATERIAL

    PREMIUM MATERIAL

    This part is made of high-quality ABS Plastic materials which is corrosion-resistant, enhancing durability.
  • SAVING SOLUTION

    SAVING SOLUTION

    Effortlessly repair your Dryer with our Door Switch - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    Just 5 minutes of replacing to make your Washer run like new!
DURABLE PERFORMANCE

DURABLE PERFORMANCE

The part is made of high-quality ABS Plastic material to prevent breaking during the installation and use process.
SIMPLE YOUR LAUNDRY EXPERIENCE

SIMPLE YOUR LAUNDRY EXPERIENCE

Our Door Switch works exactly like your original part
Brand Model Number
Replaces 2071595, AP4578931, EAP4210965, PS4210965
Kenmore 401.4100201, 401.4100211, 401.4100301, 401.4100311, 402.8903201, 402.9903201
Samsung DV203AEW/XAA, DV203AGS/XAA, DV203AGW/XAA, DV206AES/XAA, DV206AGS/XAA, DV209AEW/XAA, DV209AGW/XAA, DV210AEW/XAA, DV210AGW/XAA, DV218AEB/XAA, DV218AEW/XAA, DV218AGB/XAA, DV218AGW/XAA, DV219AEB/XAA, DV219AEW/XAA, DV219AGB/XAA, DV219AGW/XAA, DV220AEW/XAA, DV220AGW/XAA, DV22K6800EW/AC, DV22K6800EW/A1
Samsung DV306LEW/XAA, DV306LGW/XAA, DV316BEC/XAA, DV316BEW/XAA, DV316BGC/XAA, DV316BGW/XAA, DV316LEW/XAA, DV316LGS/XAA, DV316LGW/XAA, DV317AEG/XAA, DV317AES/XAA, DV317AEW/XAA, DV317AGG/XAA, DV317AGS/XAA, DV317AGW/XAA, DV328AEG/XAA, DV328AER/XAA, DV328AEW/XAA, DV328AGG/XAA, DV328AGR/XAA, DV328AGW/XAA, DV330AEB/XAA, DV330AEW/XAA, DV330AGB/XAA, DV330AGW/XAA, DV331AER/XAA, DV331AEW/XAA, DV331AGR/XAA, DV331AGW/XAA
Samsung DV337AEG/XAA, DV337AEL/XAA, DV337AER/XAA, DV337AEW/XAA, DV337AGG/XAA, DV337AGL/XAA, DV337AGR/XAA, DV337AGW/XAA, DV338AEB/XAA, DV338AEW/XAA, DV338AGB/XAA, DV338AGW/XAA, DV350AEP/XAA, DV350AER/XAA, DV350AEW/XAA, DV350AGP/XAA, DV350AGR/XAA, DV350AGW/XAA, DV393ETP/ASU, DV395ETP/ASU, DV3C6BEW/XAC, DV3C6BGW/XAC
Samsung DV400EWH/DWR, DV405ETP/ASU, DV405ETP/AWR, DV405GTP/ASU, DV405GTP/AWR, DV407AEW/XAA, DV407AGW/XAA, DV409AER/XAA, DV409AEW/XAA, DV409AGR/XAA, DV409AGW/XAA, DV410AER/XAA, DV410AEW/XAA, DV410AGR/XAA, DV410AGW/XAA, DV419AEU/XAA, DV419AGU/XAA, DV422EWH/DWR, DV431AEW/XAA, DV433ETG/JWR, DV433GTG/JWR, DV435GTG/JRA, DV438AEL/XAA, DV448AEP/XAA, DV448AEW/XAA, DV448AGE/XAA, DV448AGW/XAA
Samsung DV456EWH/DWR, DV457EVGS/GR, DV457EVGS/WR, DV476GTH/ASU, DV476GTH/AWR, DV484GTH/ASU, DV484GTH/AWR, DV484GTH/AWW, DV501AEW/XAA, DV511AEG/XAA, DV511AEW/XAA, DV511AGR/XAA, DV511AGW/XAA, DV520AEP/XAA, DV520AEW/XAA, DV520AGP/XAA, DV520AGW/XAA
Samsung DV42H5000EW/A3, DV42H5000GW/A3, DV42H5200EP/A3, DV42H5200EW/A3, DV42H5400EW/A3, DV42H5600EG/A3, DV42H5600EW/A3, DV45H6300EG/A3, DV45H6300EW/A3, DV45H6300GG/A3, DV45H6300GW/A3, DV45H7000EW/A2, DV45K6500EV/A3, DV45K6500GW/A3, DV48H7400EW/A2, DV48J7770EP/A2, DV48J7770EW/A2, DV48J7770GW/A2, DV50F9A6EVW/A2, DV50F9A6GVW/A2, DV50F9A7EVP/A2, DV50F9A7EVW/A2, DV50F9A7GVP/A2, DV50F9A7GVW/A2, DV50F9A8GVP/A2, DV50F9A8GVW/A2, DV50K7500EV/A3, DV50K7500EW/A3, DV50K8600EV/A3, DV50K8600EW/A3, DV52J8700EP/A2, DV52J8700EW/A2, DV52J8700GP/A2, DV52J8700GW/A2, DV5451AEW/XAA, DV5471AEP/XAA, DV5471AEW/XAA, DV56H9100EG/A2, DV56H9100GG/A2, DV56H9000EW/A2, DV56H9000GW/A2
Samsung DVE45M5500P/A3, DVE45M5500W/A3, DVE45M5500Z/A3, DVE45R6300C/A3, DVE45R6300V/A3, DVE45R6300W/A3, DVE45T3400V/A3, DVE45T6200W/A3, DVE50R8500V/A3, DVE50R8500W/A3, DVE52A5500C/A3, DVE52M7750V/A3, DVE52M7750W/A3, DVE52M8650V/A3, DVE52M8650W/A3, DVE54M8750V/A3, DVE54M8750W/A3, DVE54R7200V/A3, DVE54R7200W/A3, DVE54R7600C/A3, DVE54R7600V/A3, DVE54R7600W/A3, DVE60M9900V/A3, DVE60M9900W/A3, DVG45N5300V/A3, DVG45N5300W/A3, DVG50A8600V/A3, DVG50BG8300V/A3, DVG50R5200W/A3, DVG54R7200V/A3, DVG52A5500C/A3, DV25B6900EW/A1
Color
White
Material
Plastic / Alloy
Voltage
AC 125/250V
Current
7.5A / 5A
Product Dimensions
1.73 x 1.73 x 0.47 inches (4.4 x 4.4 x 1.2 cm)

FAQ

This switch is compatible with a wide range of Samsung and Kenmore dryers. It is designed to replace part number DC64-00828B and its predecessors.
This part directly replaces OEM part numbers DC64-00828A and DC64-00828B. It also cross-references with 2071595, AP4578931, PS4210965, EAP4210965, and PD00028436.
The most common symptom is that the dryer fails to start or the drum light does not turn on when the door is opened. If your dryer has power but does not respond when you press the start button, the door switch may be failing to signal that the door is securely closed.
Always disconnect the power supply to your dryer before beginning any repair. We also recommend wearing work gloves to protect your hands from sharp metal edges inside the dryer cabinet during the installation process.
The door switch acts as a safety mechanism that prevents the dryer from operating while the door is open. When the door is closed, the switch completes the electrical circuit, allowing the dryer to begin its cycle.
