DC96-00887A Dryer Assembly Bracket Thermostat Replacement - For Samsung Kenmore Dryers - 4 Pack

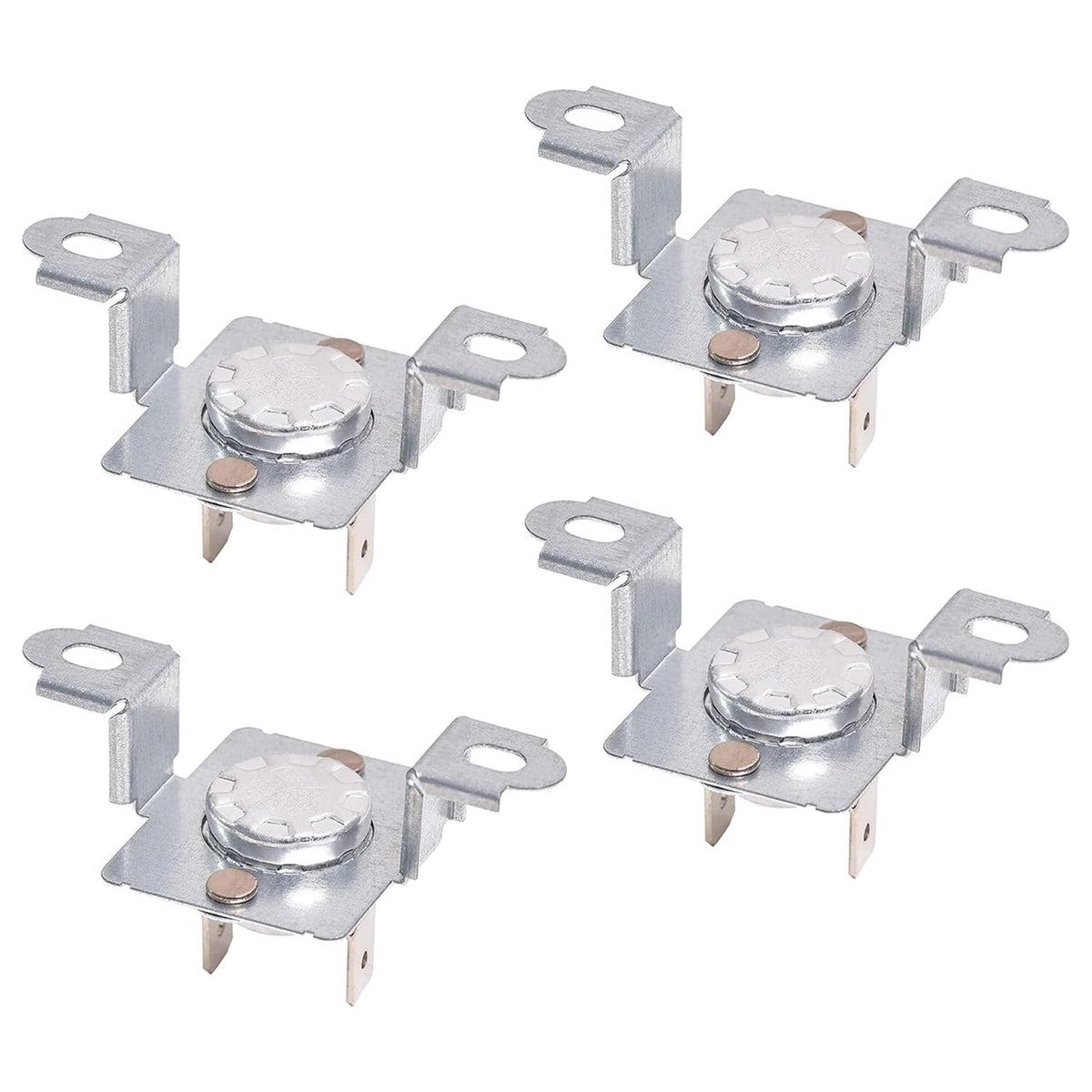

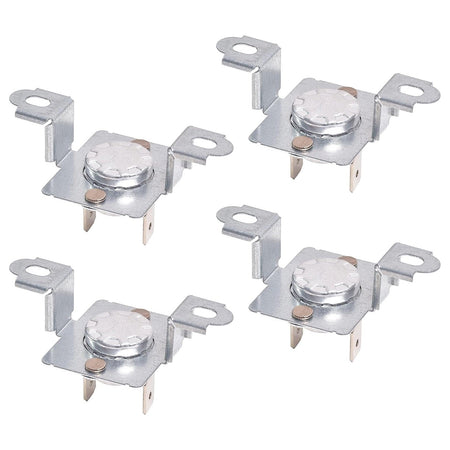

Set of four DC96-00887A dryer thermostat assembly brackets for Samsung and Kenmore dryers.

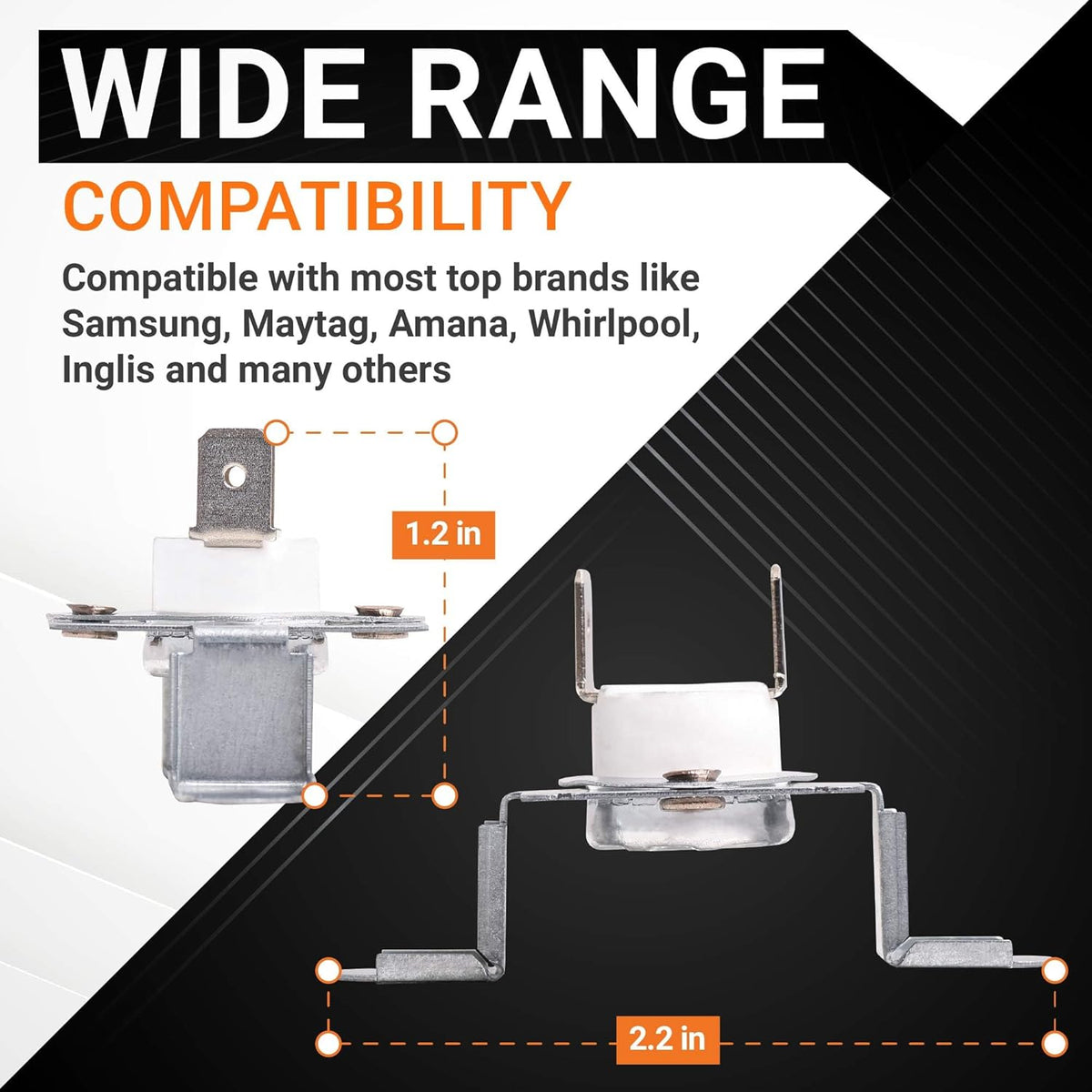

DC96-00887A dryer thermostat replacement showing dimensions and wide brand compatibility.
Samsung and Kenmore dryer showing common repair symptoms like not starting or no heat.

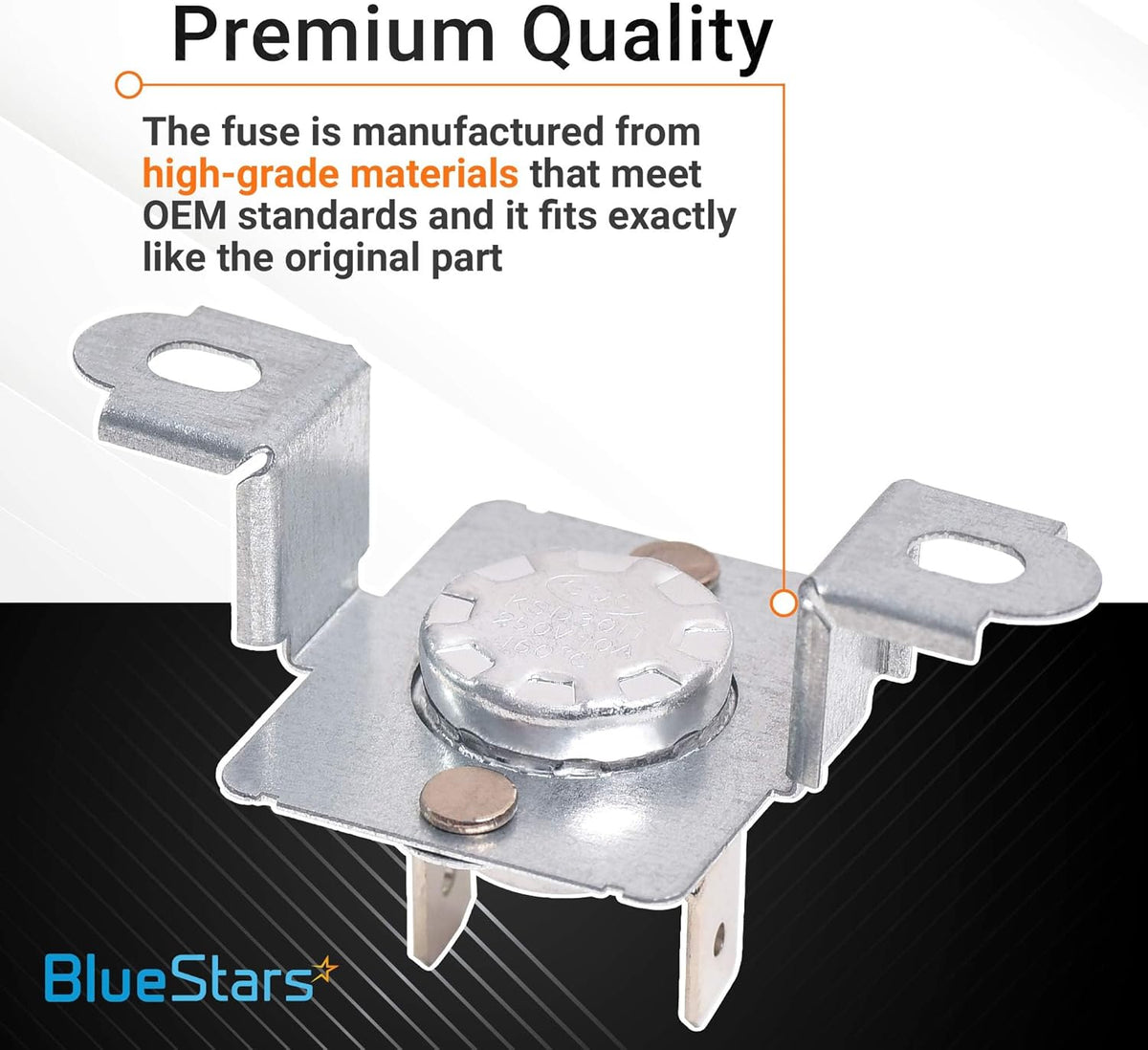

Close-up of DC96-00887A dryer thermostat assembly bracket for Samsung and Kenmore dryers.

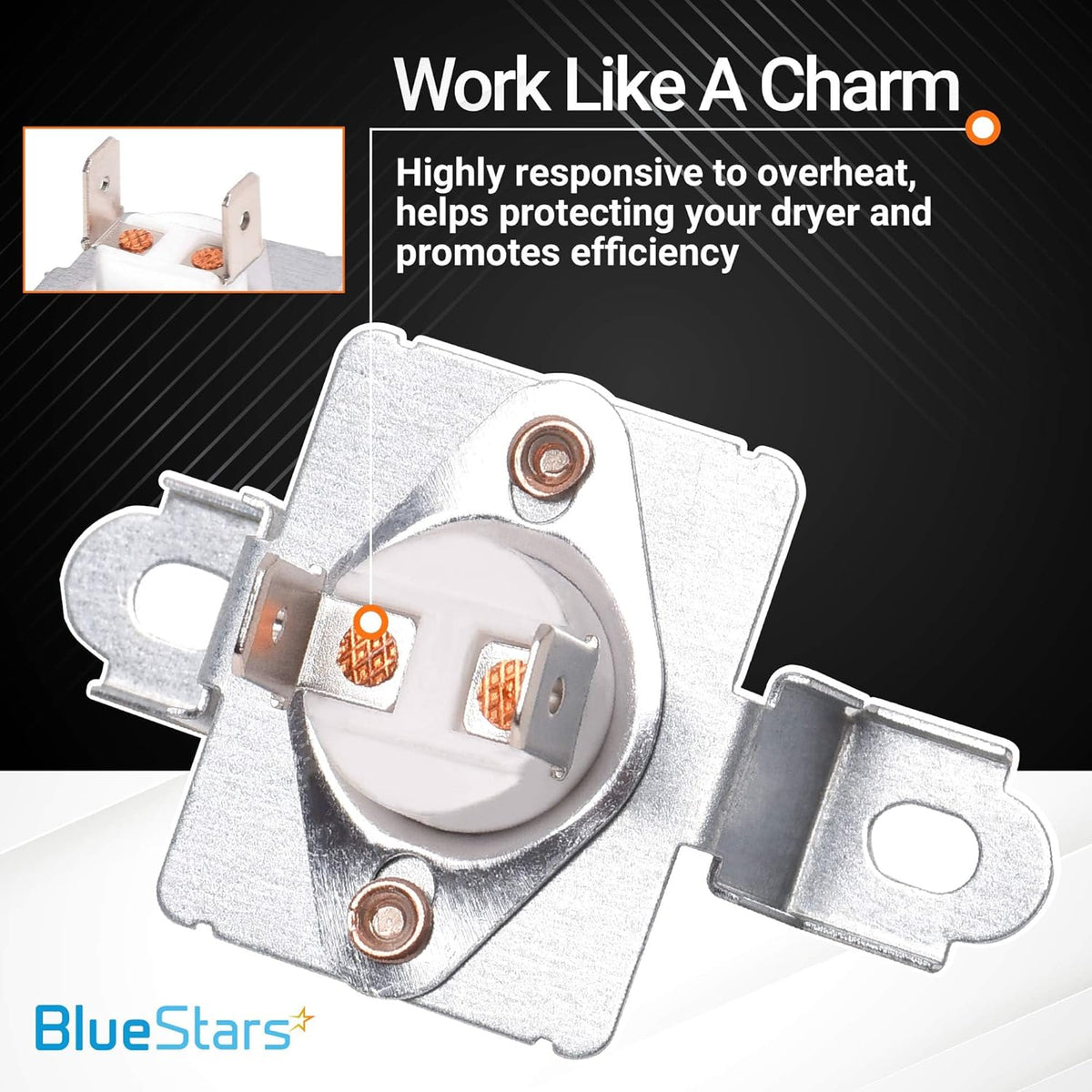

Close-up of DC96-00887A dryer thermostat assembly bracket with metal mounting plate and electrical terminals.
Woman holding a green towel in front of a dryer with BlueStars DIY repair promotional text overlay.
Set of four DC96-00887A dryer thermostat assembly brackets for Samsung and Kenmore dryers.
DC96-00887A dryer thermostat replacement showing dimensions and wide brand compatibility.
Samsung and Kenmore dryer showing common repair symptoms like not starting or no heat.
Close-up of DC96-00887A dryer thermostat assembly bracket for Samsung and Kenmore dryers.
Close-up of DC96-00887A dryer thermostat assembly bracket with metal mounting plate and electrical terminals.
Woman holding a green towel in front of a dryer with BlueStars DIY repair promotional text overlay.
Lifetime Warranty

DC96-00887A Dryer Assembly Bracket Thermostat Replacement - For Samsung Kenmore Dryers - 4 Pack

Save 13%
0.00
$20.40
$23.46
$20.40
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC96-00887A Dryer Assembly Bracket Thermostat

Key Features

  • Includes a high-limit thermostat and thermal cut-off fuse pre-mounted on a bracket.
  • Monitors and regulates temperature within the dryer to prevent overheating.
  • Acts as a safety mechanism by cutting power to the heating element if the dryer exceeds a safe temperature.
  • Direct-fit replacement part for specified models.

Replaces / Cross-Reference Part Numbers

  • DC96-00887A
  • DC96-00887C
  • 2074129
  • WP35001193
  • AP4207819
  • AP5966894
  • PS4276292
  • PS11741829

Compatibility & Fitment

  • Designed primarily for Samsung brand clothes dryers.
  • Compatible with select Kenmore and Whirlpool models.
  • Example Samsung models include DVE45T3400V/A3 and DVE55A7700V/A3.
  • Verify compatibility with your appliance's model number before ordering.

When to Replace

  • Dryer is running but not producing heat.
  • Dryer stops heating mid-cycle.
  • Dryer will not start.
  • The existing fuse fails a continuity test with a multimeter.

Installation Tips

  • Disconnect the dryer from its power source and gas supply before beginning installation.
  • The assembly is typically located on the heater box or element housing.
  • Before installing the new part, inspect and thoroughly clean the dryer's lint screen, trap, and exhaust vent to resolve the root cause of overheating.
  • A multimeter can be used to confirm the original fuse is faulty (a reading of infinity or O.L. indicates no continuity).
Brand Model Number
Replaces 3997478, AP5966894, DC96-00887C, PS4276292
Kenmore 40289032010, 40289032011, 40289032012
Samsung DV203AES/XAA, DV203AEW/XAA, DV209AEW/XAA, DV210AEW/XAA, DV218AEB/XAA, DV218AES/XAA, DV218AEW/XAA, DV220AEW/XAA, DV231AEW/XAA, DV306LEW/XAA, DV316BEC/XAA, DV316BEW/XAA, DV316LES/XAA, DV316LEW/XAA, DV317AES/XAA, DV317AEW/XAA, DV330AEB/XAA, DV330AEW/XAA, DV350AEP/XAA, DV350AEW/XAA, DV3C6BEW/XAA, DV395ETP/ASU, DV405ETP/ASU, DV405ETP/AWR, DV407AEW/XAA, DV409AEW/XAA
Samsung DV36J4000EW/A3, DV42H5200EW/A3, DV42H5400EW/A3, DV435ETG/JWR, DV455EVGS/WR, DV457EVGS/GR, DV5471AEP/XAA, DV5471AEW/XAA, DV511AER/XAA, DV511AEW/XAA, DV520AEW/XAA, DV2C6BEW/XAA, DV2C6BGW/XAC
Samsung DVE45A6400W/A3, DVE45M5500P/A3, DVE45M5500W/A3, DVE45R6100C/A3, DVE45R6300V/A3, DVE45R6300W/A3, DVE45T3400V/A3, DVE50A8500V/A3, DVE50A8600V/A3, DVE54M8750W/A3, DVE55A7300E/A3, DVE60A9900V/A3, DVE45M5500Z/A3, DVE50K7500EW/A3, DVE54R7200V/A3, DVE54R7200W/A3
Color
Silver / White
Material
Porcelain / Metal
Voltage
250V
Current
25A
Trip Temperature
320°F
Type
Non-Resettable Thermal Fuse
Product Dimensions
2-1/4 x 1-1/4 x 1-1/4 inches
Item Weight
0.1 lbs

FAQ

This assembly is designed for use in a wide range of Samsung and Kenmore dryers. It serves as a direct replacement for the thermostat and thermal fuse bracket housing.
This part replaces OEM numbers DC96-00887A and DC96-00887C. It also cross-references with part numbers PS4276292, AP5966894, 3997478, and AP6008689.
If your dryer is not heating, or if it stops mid-cycle and refuses to restart, the thermal fuse or thermostat assembly may have tripped or failed. If the dryer runs but produces no heat, this component is often the root cause.
Installation is generally straightforward for those comfortable with basic appliance repair. You will typically need a screwdriver to remove the dryer's top or front panel to access the heating element housing. Always ensure the power is completely disconnected before beginning the repair.
The most common cause of failure is restricted airflow, often due to a clogged dryer vent or a dirty lint screen. When air cannot escape, the dryer overheats, causing the thermal fuse to blow as a safety measure to prevent a fire. It is highly recommended to clean your entire vent system when replacing this part to prevent the new one from failing prematurely.
Before installing the new bracket, inspect your dryer's internal ductwork and the external vent hose for lint buildup. If the airflow remains restricted, the new thermal fuse will likely blow immediately upon the first use.
