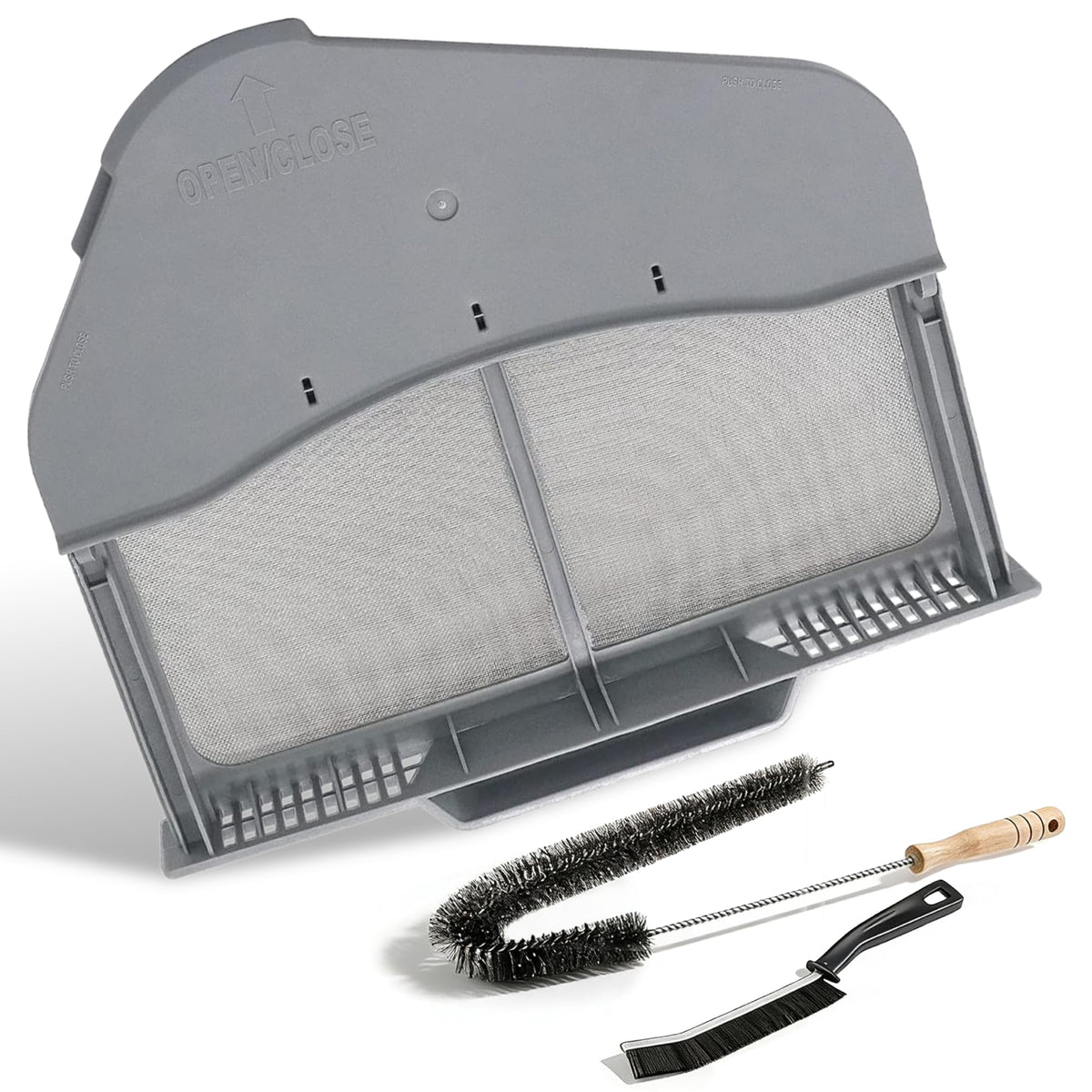

Samsung dryer lint filter replacement DC97-16742A with two cleaning brushes.
Woman holding a replacement dryer lint screen filter in a laundry room with efficiency icons.

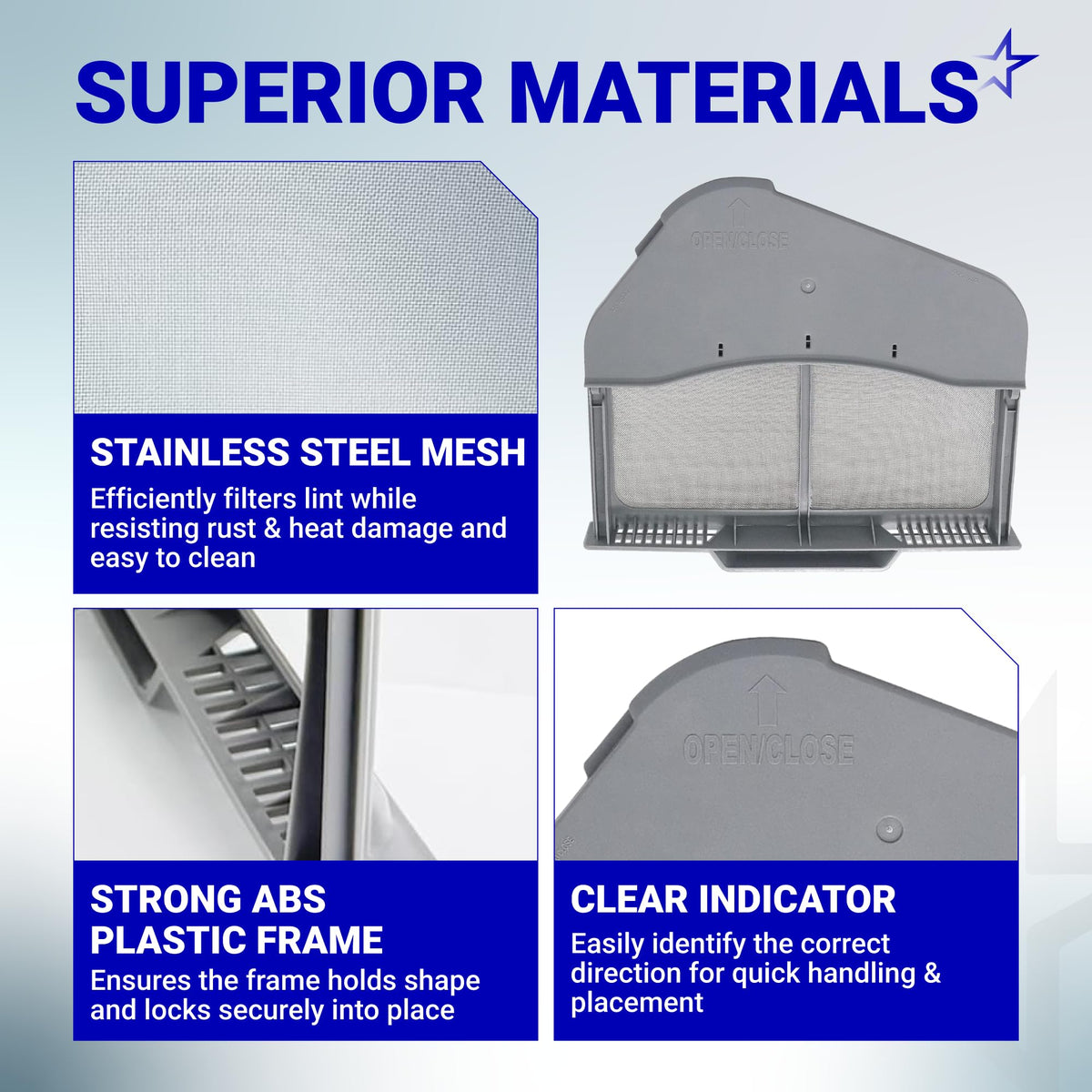

Dryer lint trap filter showing stainless steel mesh, durable ABS plastic frame, and open/close indicator markings.

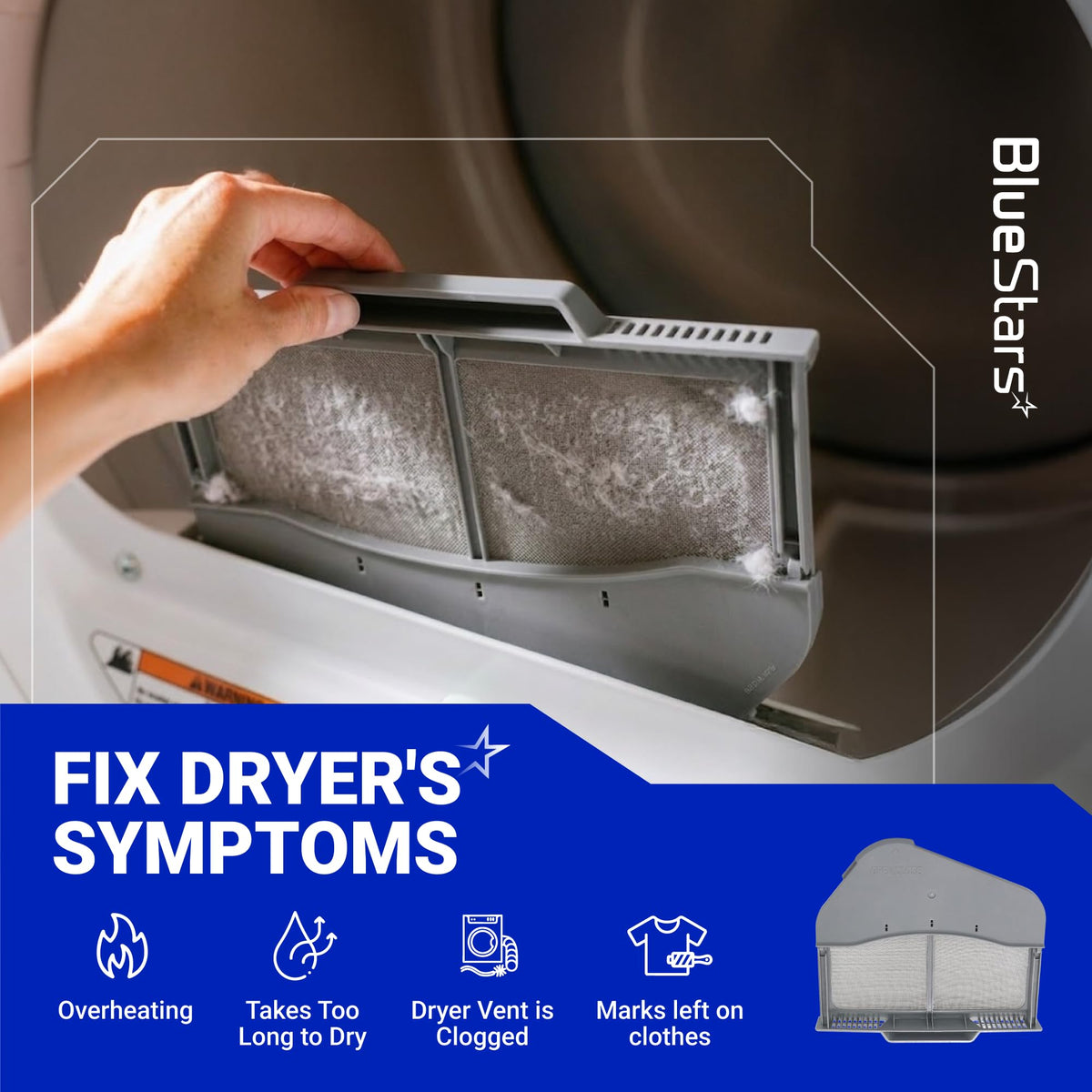

Hand removing a lint-clogged dryer filter to fix common dryer performance issues like overheating and long drying times.

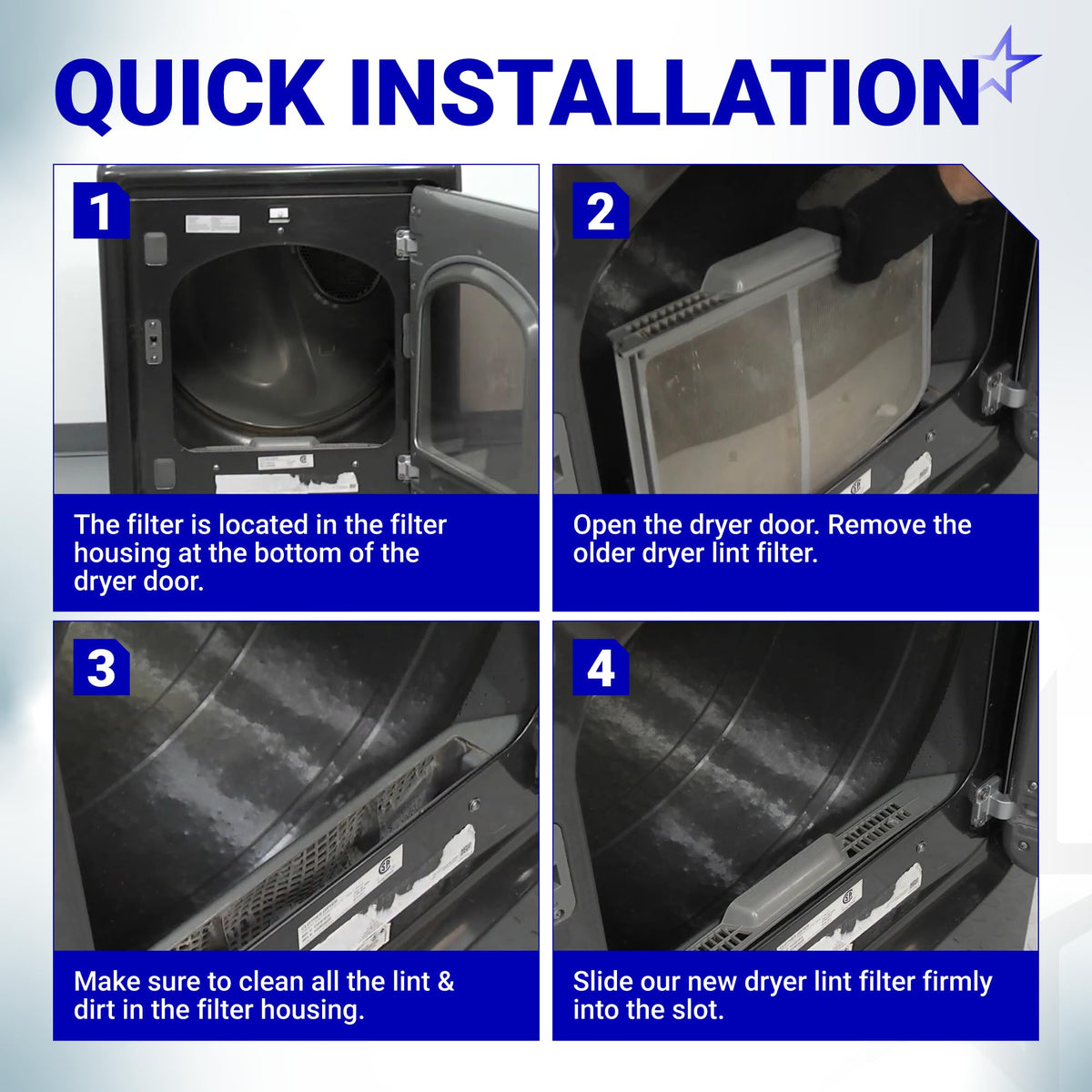

Four-step installation guide showing how to remove and replace a clothes dryer lint filter.

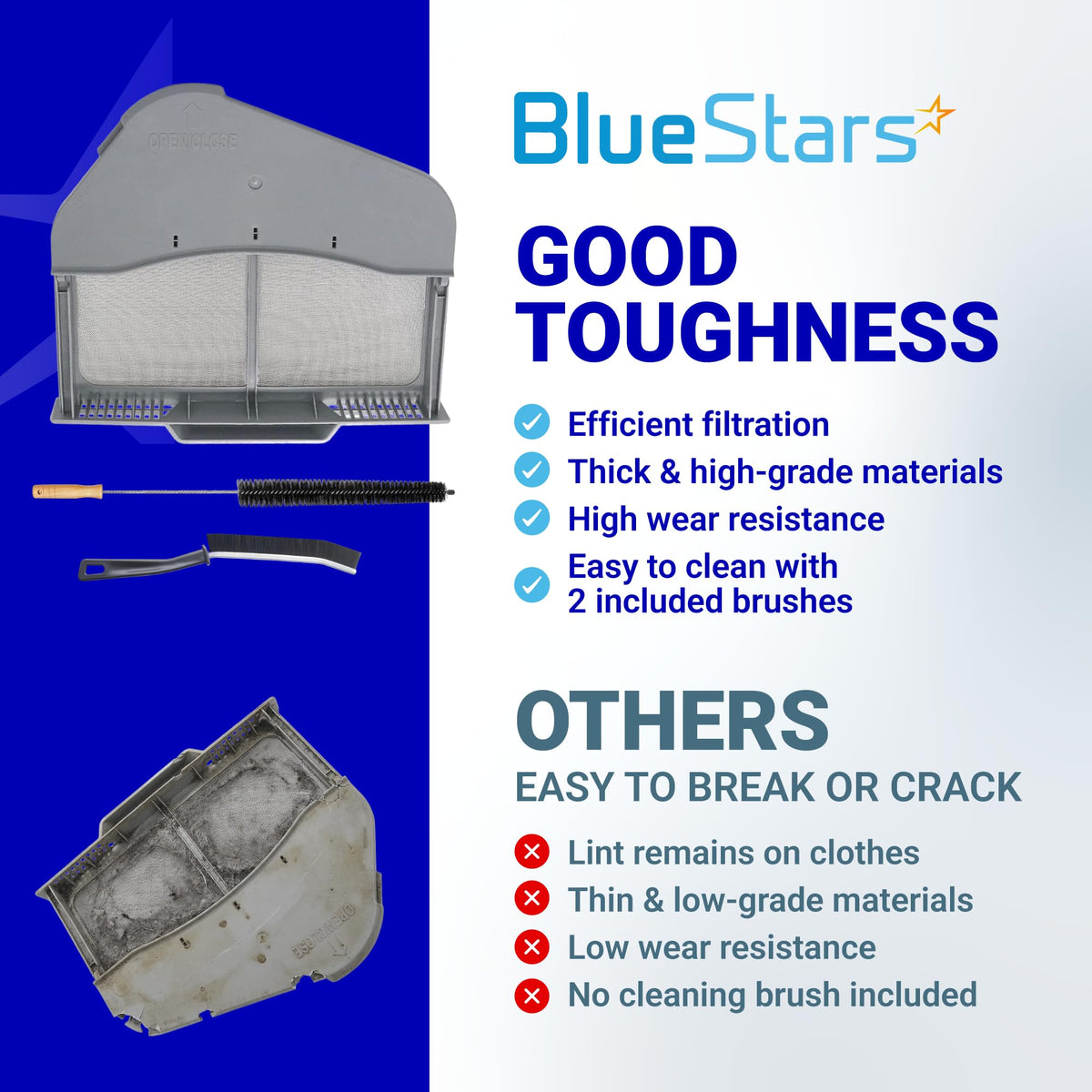

BlueStars dryer lint screen filter replacement with two cleaning brushes for improved filtration and durability.

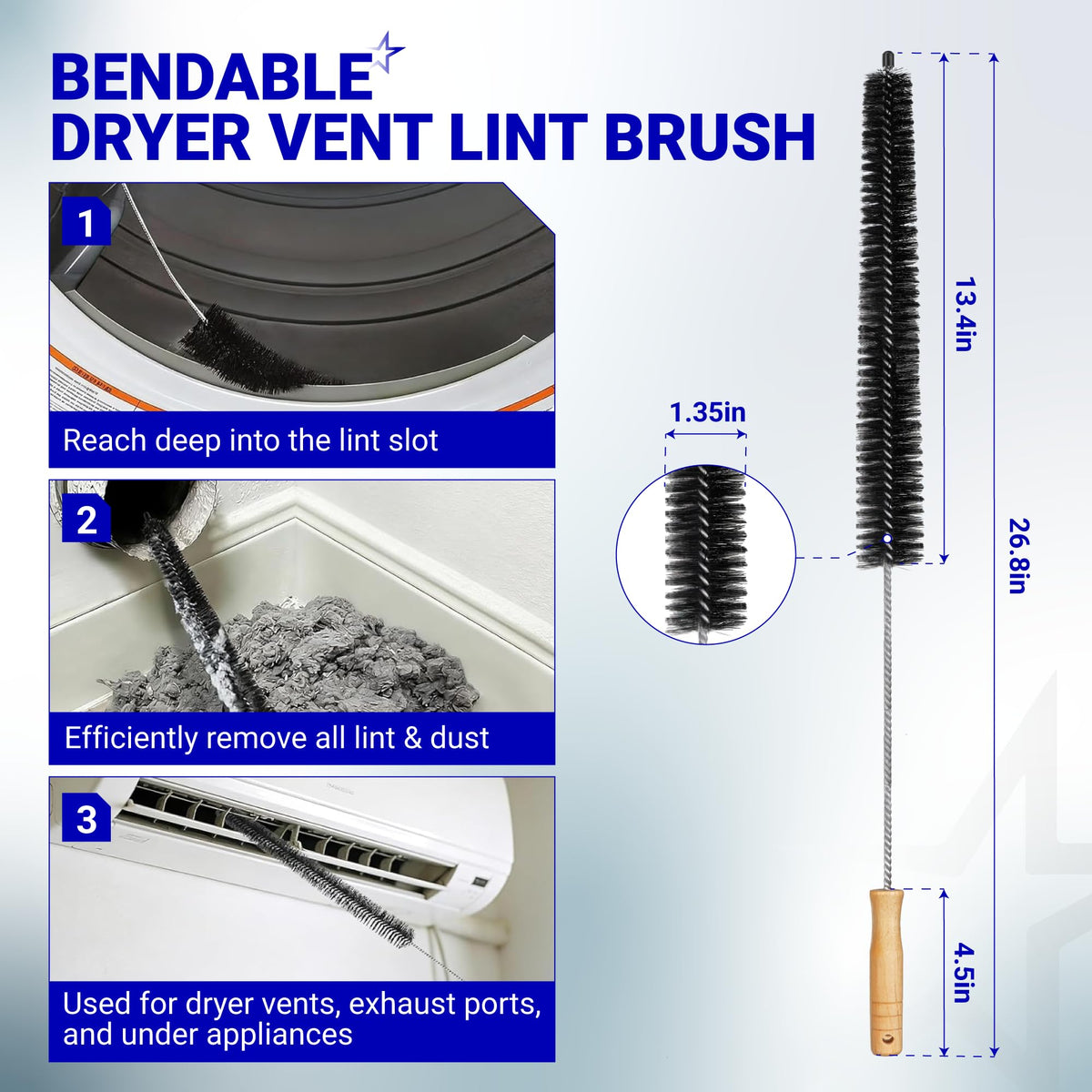

Bendable dryer vent lint brush with wooden handle showing dimensions and usage examples for cleaning vents and appliances.

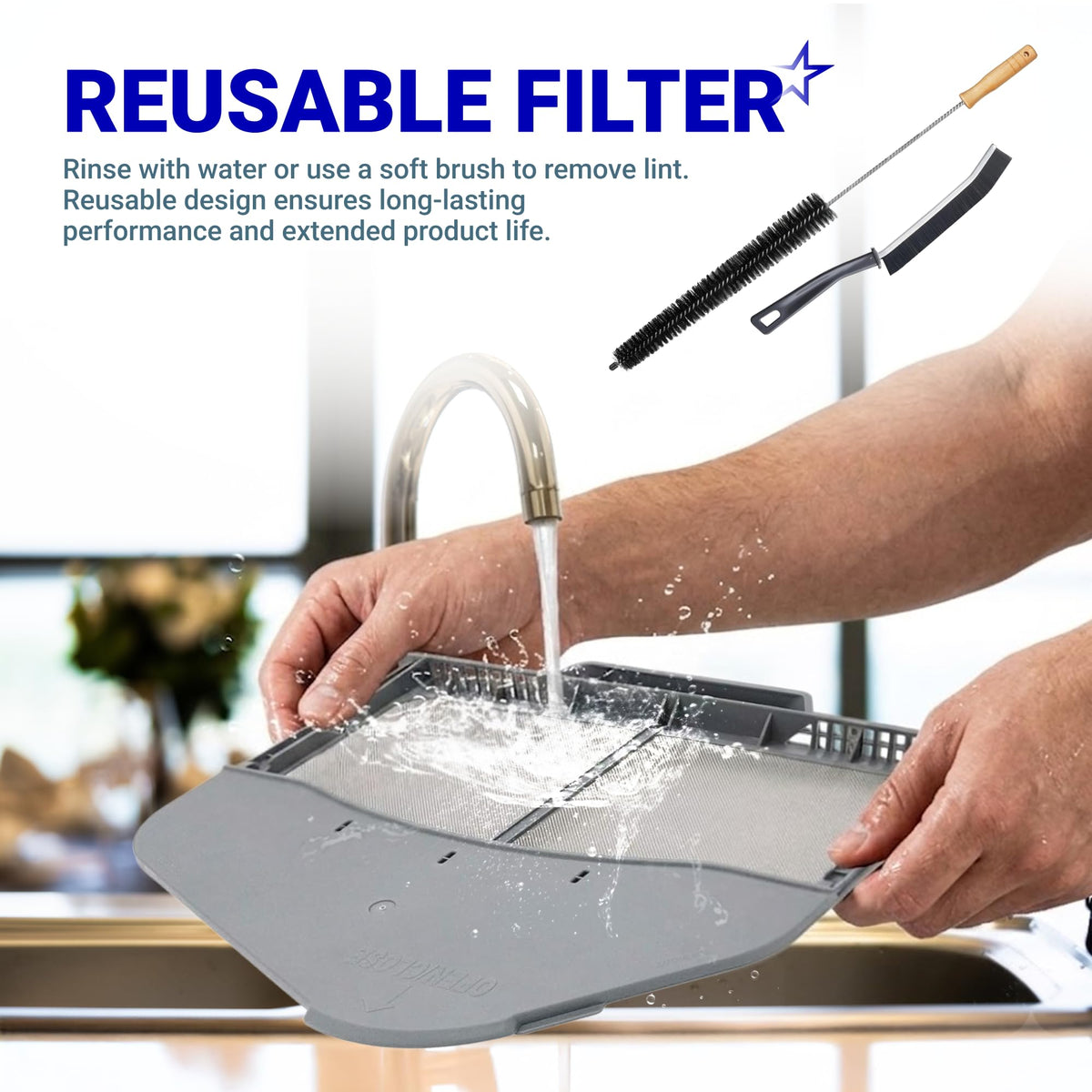

Person rinsing a reusable dryer lint filter under a kitchen faucet with cleaning brushes shown above.

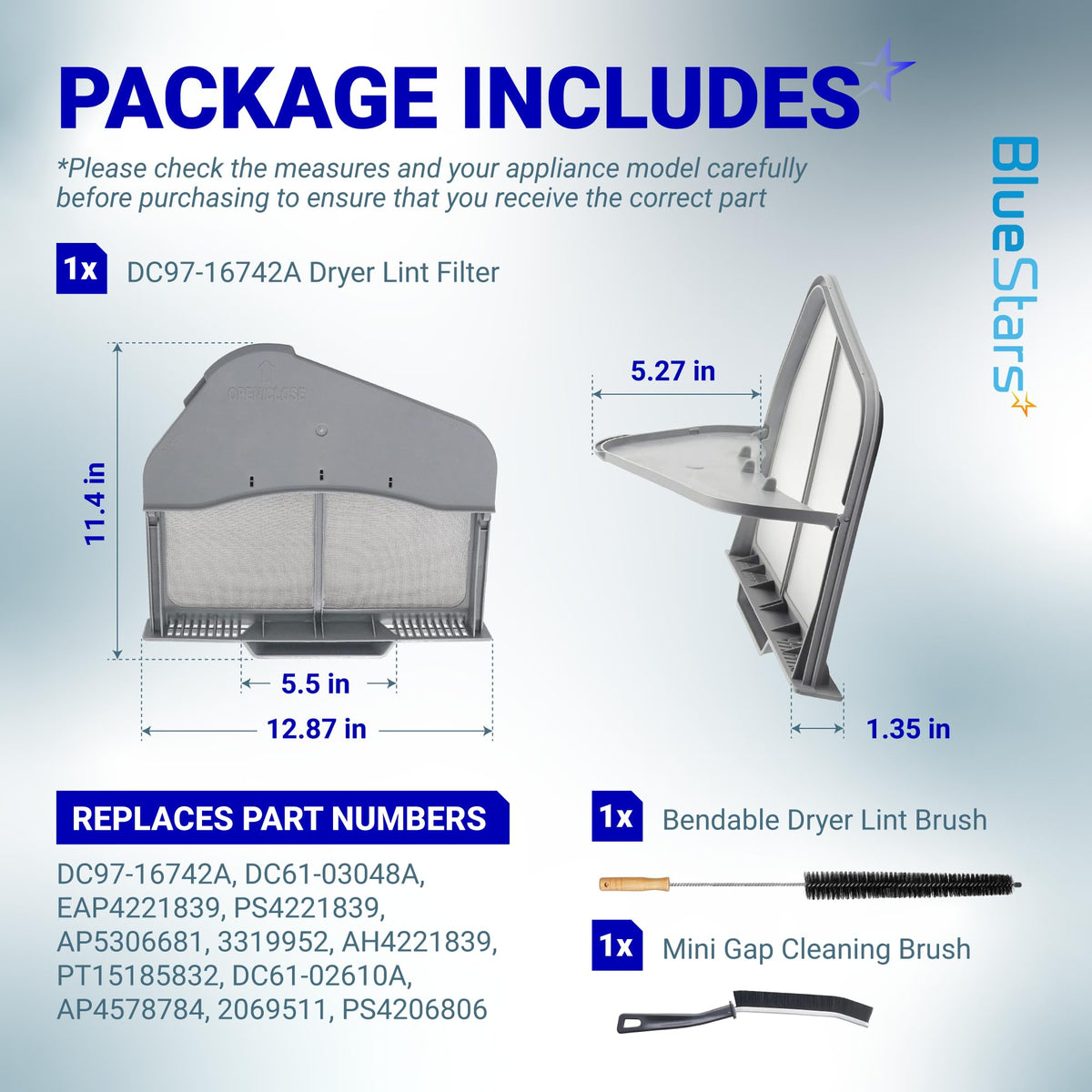

DC97-16742A dryer lint filter replacement kit with dimensions, lint brush, and mini gap cleaning brush.
Samsung dryer lint filter replacement DC97-16742A with two cleaning brushes.
Woman holding a replacement dryer lint screen filter in a laundry room with efficiency icons.
Dryer lint trap filter showing stainless steel mesh, durable ABS plastic frame, and open/close indicator markings.
Hand removing a lint-clogged dryer filter to fix common dryer performance issues like overheating and long drying times.
Four-step installation guide showing how to remove and replace a clothes dryer lint filter.
BlueStars dryer lint screen filter replacement with two cleaning brushes for improved filtration and durability.
Bendable dryer vent lint brush with wooden handle showing dimensions and usage examples for cleaning vents and appliances.
Person rinsing a reusable dryer lint filter under a kitchen faucet with cleaning brushes shown above.
DC97-16742A dryer lint filter replacement kit with dimensions, lint brush, and mini gap cleaning brush.
Lifetime Warranty

DC97-16742A Dryer Lint Filter Replacement - For Samsung Dryer - Includes Flap & Cleaning Brushes

Save 19%
0.00
$20.01
$24.69
$20.01
Only 1 left
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC97-16742A Dryer Lint Filter

Key Features

  • Includes replacement lint screen assembly with integrated flap mechanism.
  • Supplied with two cleaning brushes to assist in debris removal.
  • Constructed from heat-resistant, durable plastic and fine mesh screen.
  • Direct replacement for damaged or clogged original lint traps.

Replaces / Cross-Reference Part Numbers

  • DC97-16742A
  • DC61-03048A
  • AP5306681
  • PS4221839
  • AP5582036
  • 3319952
  • 2813244

Compatibility & Fitment

  • Compatible with various Samsung dryer models, including:
  • DV45H7000EW/A2
  • DV45H7000GW/A2
  • DV45H7000EP/A3
  • DV40J3000EW/A2
  • DV40J3000GW/A2
  • DV48H7400EW/A2
  • DV50F9A7E

When to Replace

  • Screen mesh is torn, punctured, or frayed.
  • Plastic housing is cracked or warped, preventing a proper seal.
  • The flap hinge is broken or fails to stay closed.
  • Excess lint bypasses the filter, indicating a compromised seal.

Installation Tips

  • Ensure the dryer is powered off and disconnected from the power source before starting.
  • Remove the existing lint trap by pulling it straight up and out of the housing located at the base of the dryer door.
  • Clean the lint trap housing cavity of any stray debris before inserting the new filter.
  • Verify the new assembly slides smoothly into the guide rails and sits flush with the dryer floor.
  • Perform a test cycle with a small load to confirm the filter is properly seated and the flap opens correctly.

FAQ

This filter replaces OEM part number DC97-16742A. It also cross-references with part numbers DC61-02610A, DC61-03048A, AP5306681, PS4221839, and EAP4221839.
This filter is designed to fit a wide range of Samsung dryers, including the DV400, DV450, DV480, DV50, DVE54, and DVG50 series, as well as models like the DV45H7000EW, DV40J3000GW, and DV52J8060EW/A2.
You should consider replacing your filter if the mesh screen is torn, frayed, or has holes, which allows lint to bypass the trap and accumulate in the dryer vent. Additionally, if the plastic frame is cracked or the flap mechanism no longer closes properly, it will not effectively capture debris.
A clean filter is essential for proper airflow. When lint builds up on the screen, the dryer has to work harder to push air out, which increases drying time, consumes more energy, and can cause the dryer to overheat or trigger a thermal fuse failure.
Installation is straightforward and requires no tools. Simply slide the old filter out of the housing slot at the front of the dryer drum, clear any loose debris from the housing cavity, and slide the new filter into place until it is fully seated.
To extend the life of your filter and maintain dryer efficiency, clean the lint off the screen after every single load. Periodically, use the included cleaning brushes to remove any waxy residue left behind by dryer sheets, which can clog the mesh even if it looks clean.
