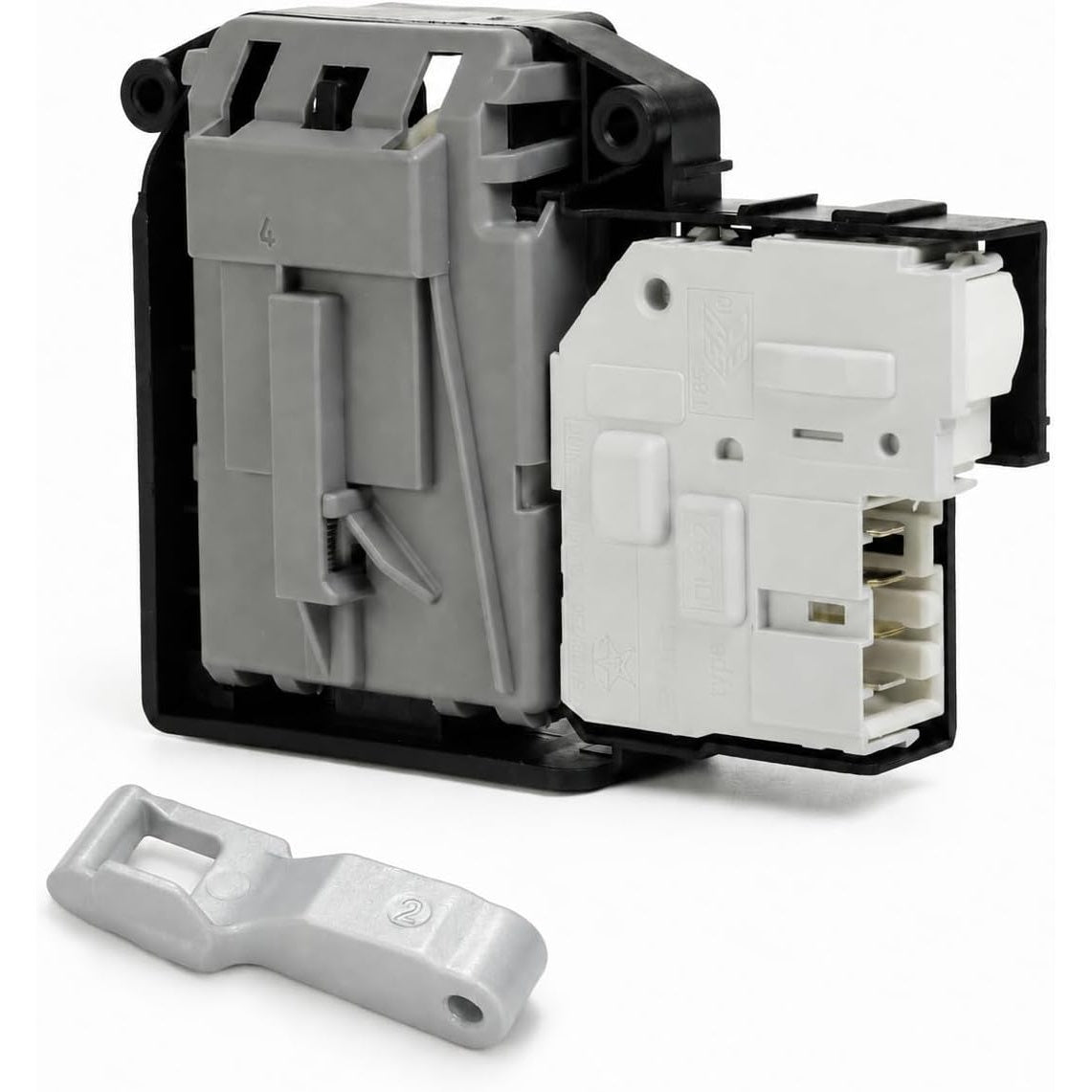

LG washer door lock switch assembly with separate plastic latch component.

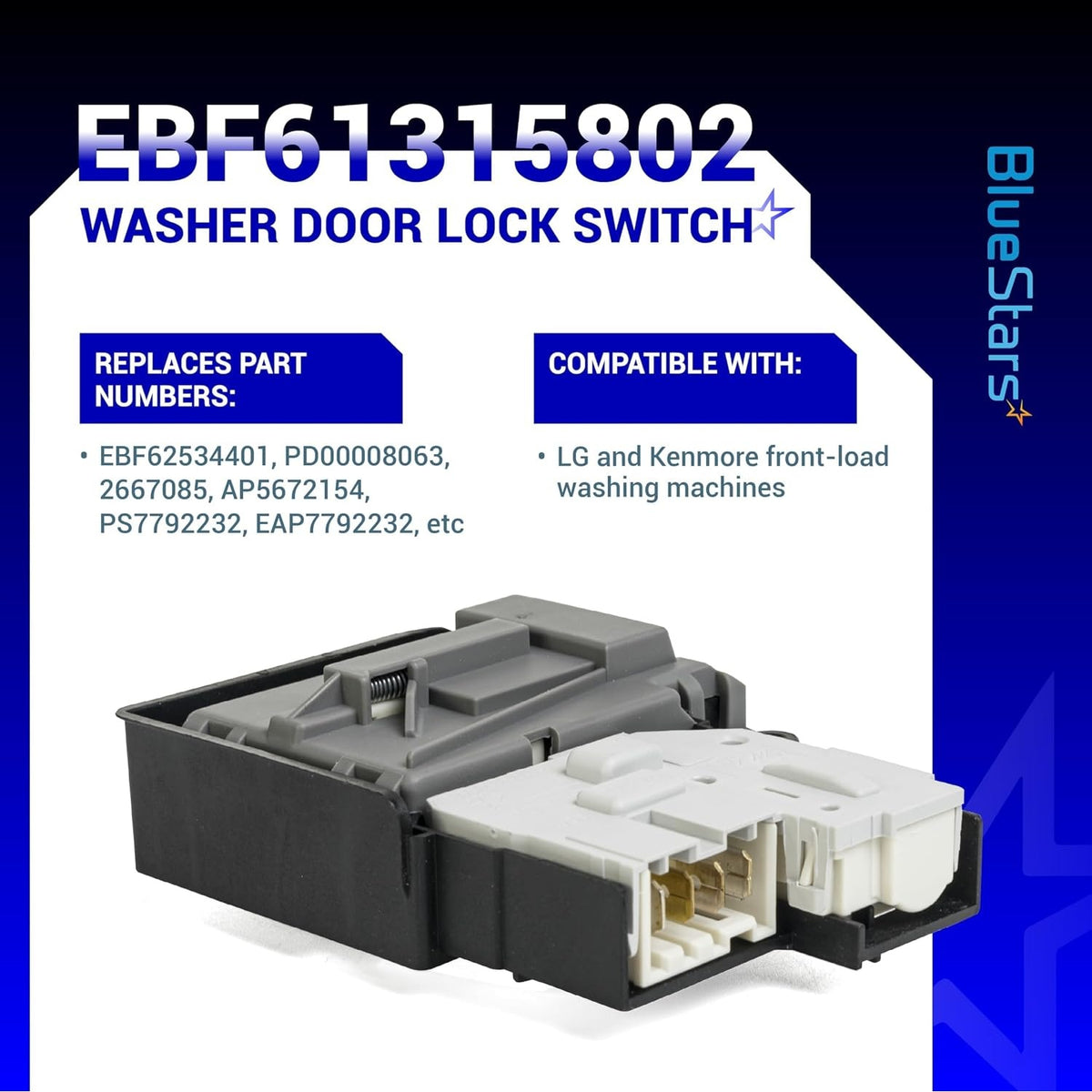

EBF61315802 washer door lock switch for LG and Kenmore front-load washing machines.

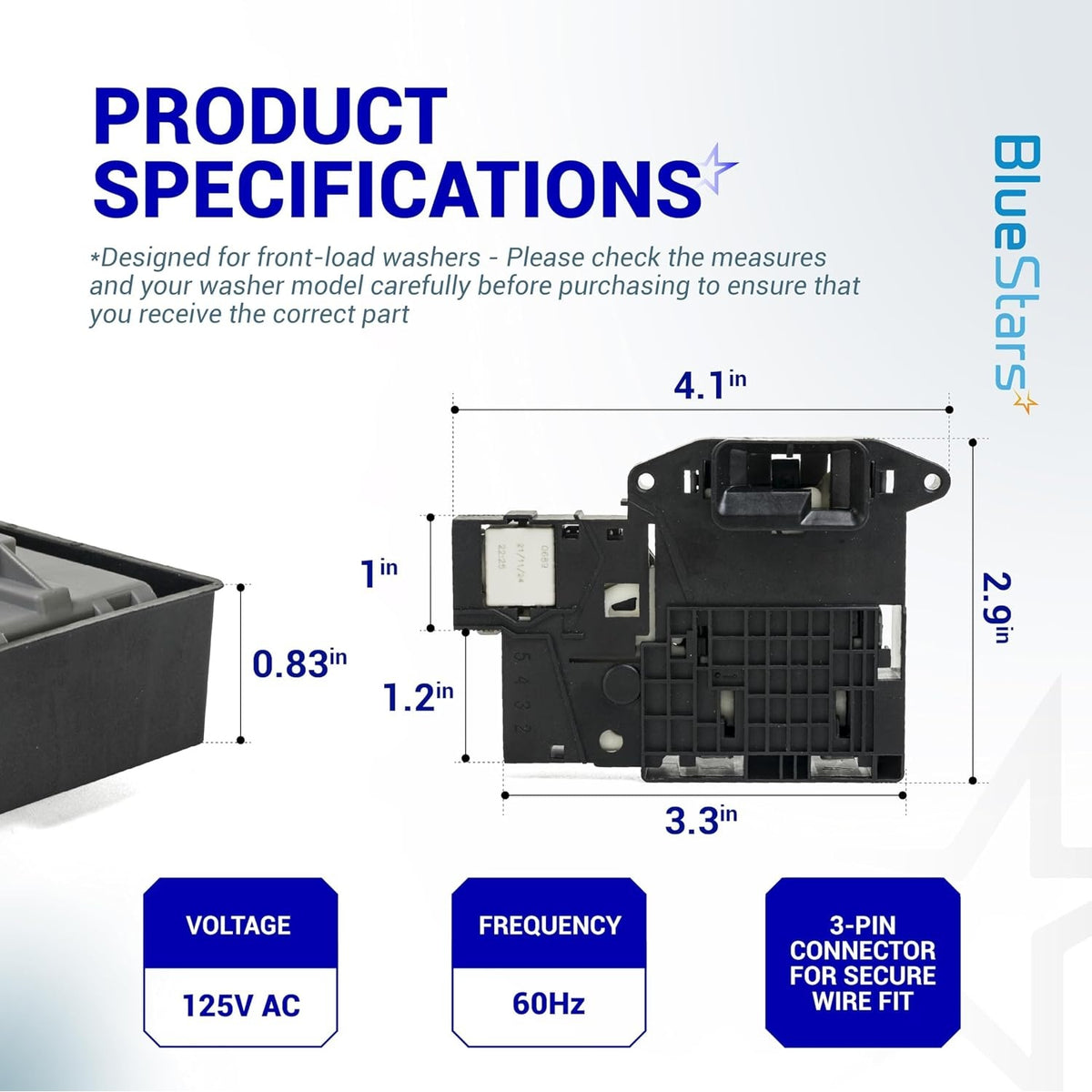

Dimensional diagram of front-load washer door lock assembly with 3-pin connector and technical specifications.

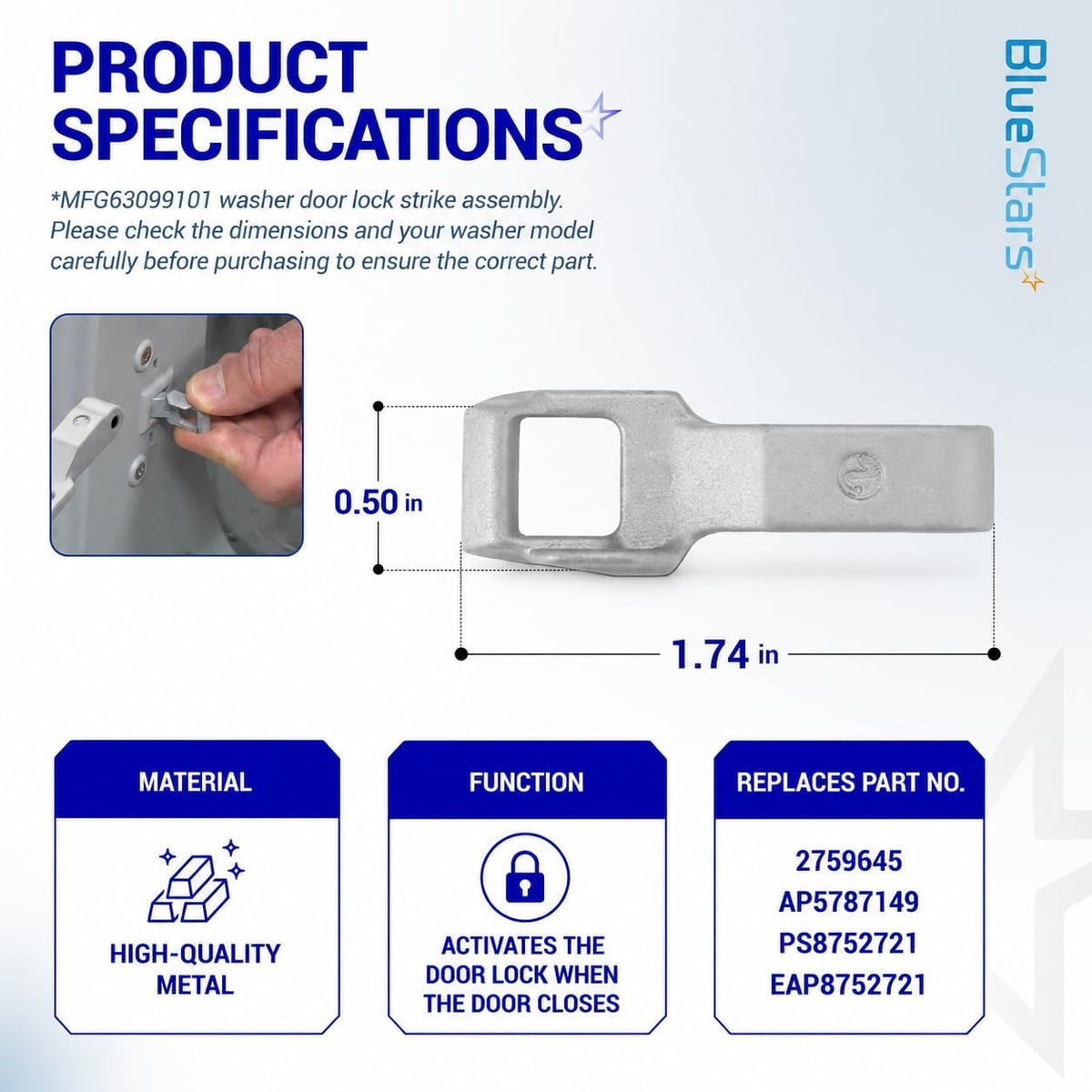

MFG63099101 washer door lock strike assembly with dimensions and installation reference image.

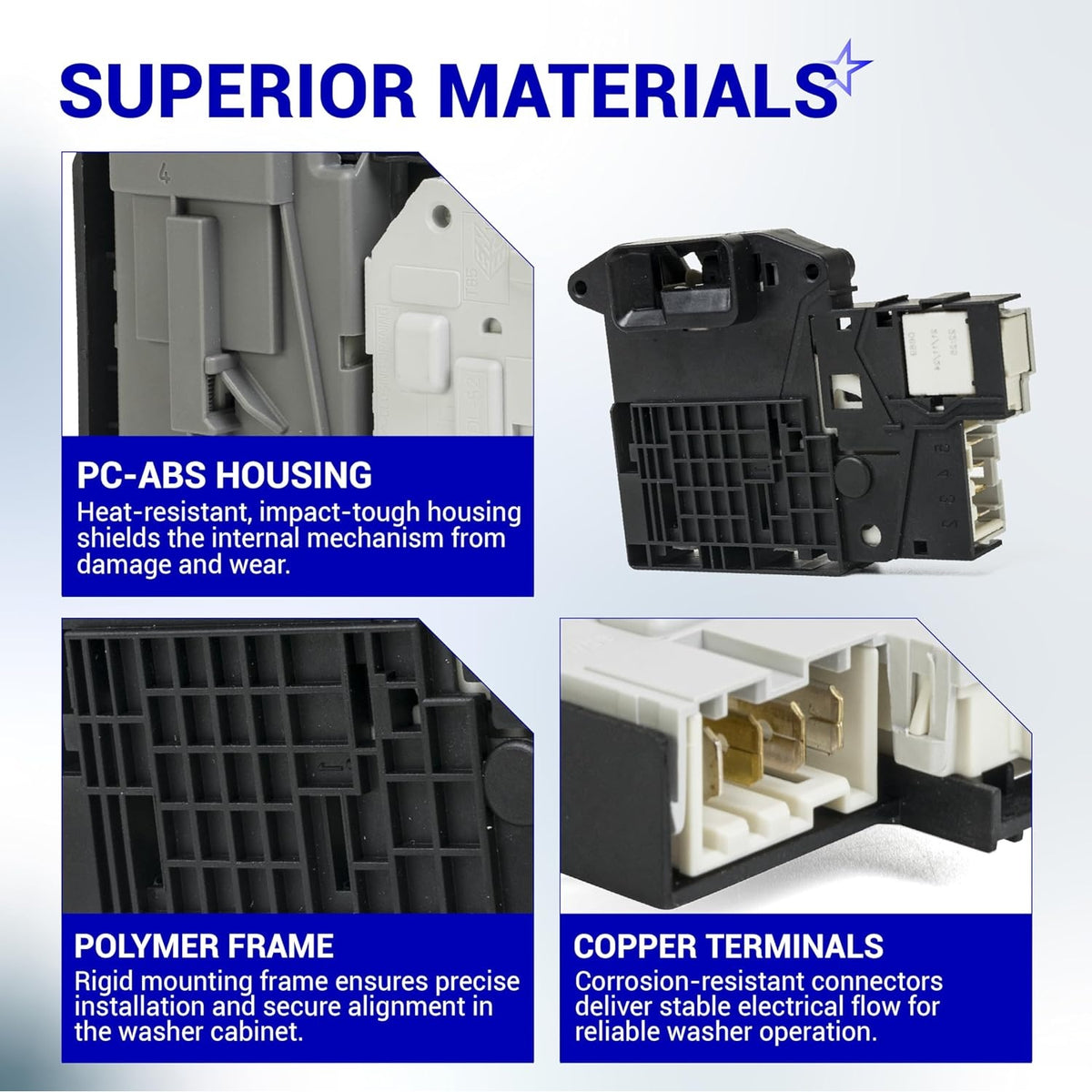

Infographic showing washer door lock assembly components including PC-ABS housing, polymer frame, and copper terminals.
EBF61315802 washer door lock switch assembly for front load washing machines.

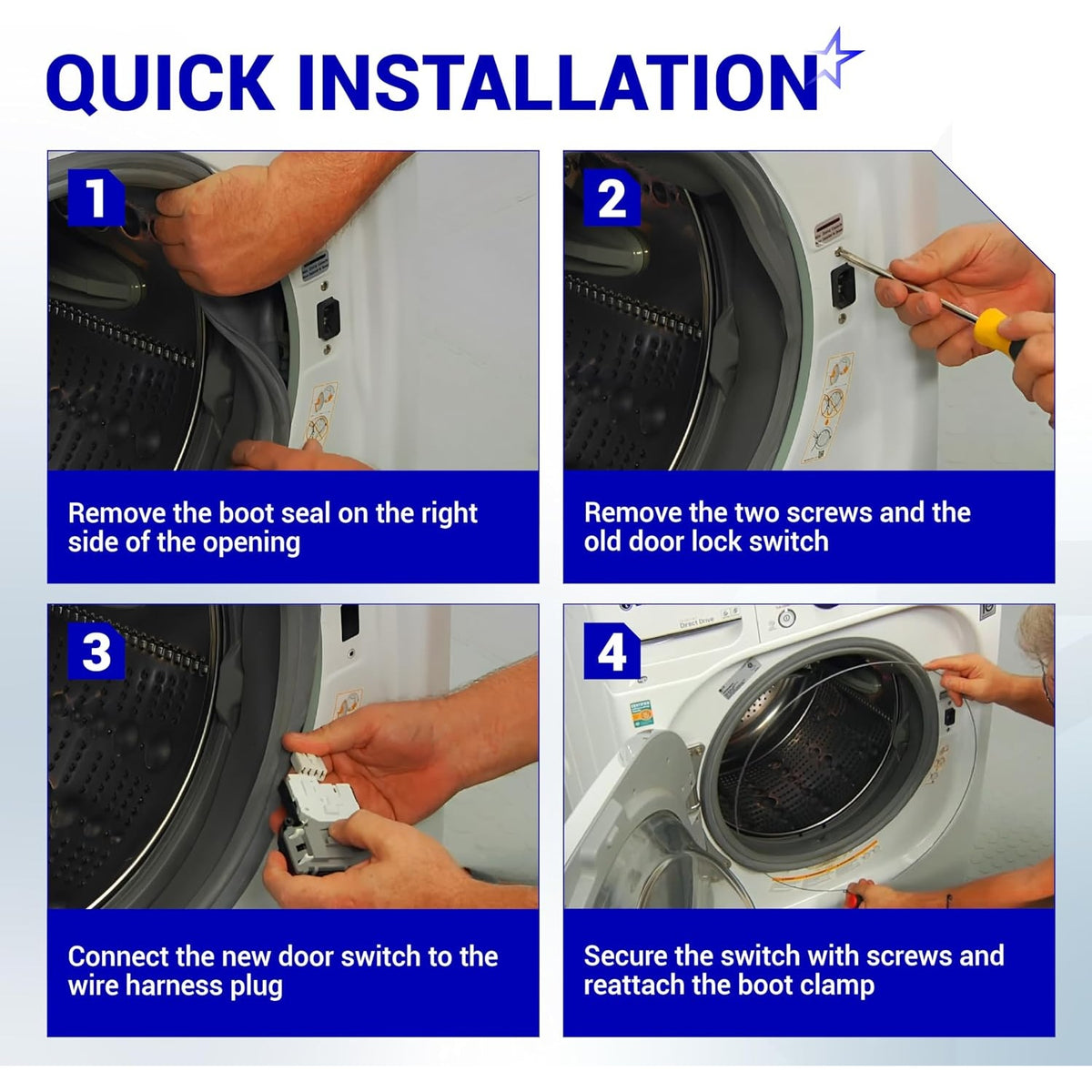

Four-step instructional guide showing how to replace a washing machine door lock switch and boot seal.
Washing machine door lock assembly and latch replacement part for fixing common washer error codes and locking issues.

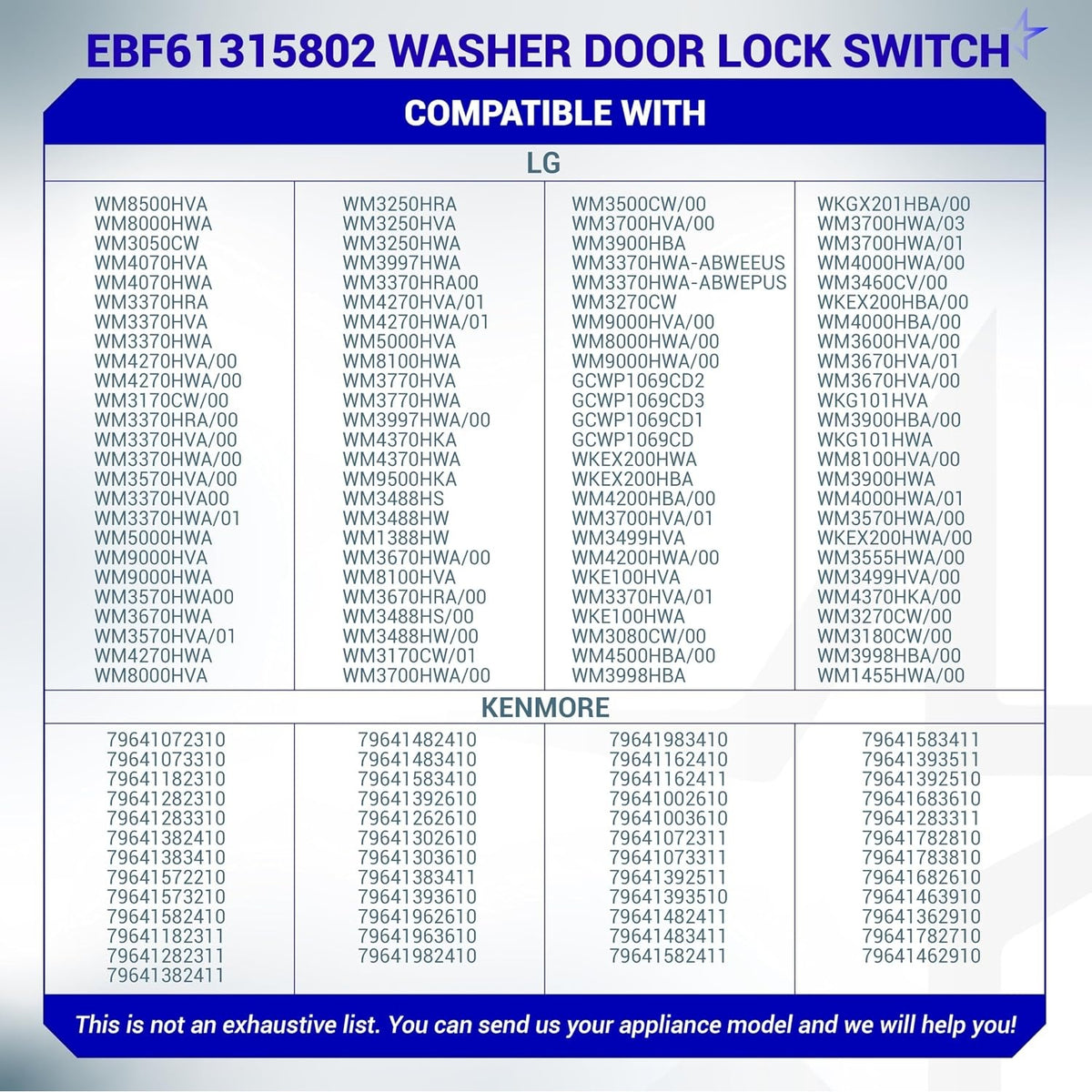

Compatibility chart for EBF61315802 washer door lock switch listing compatible LG and Kenmore appliance models.
LG washer door lock switch assembly with separate plastic latch component.
EBF61315802 washer door lock switch for LG and Kenmore front-load washing machines.
Dimensional diagram of front-load washer door lock assembly with 3-pin connector and technical specifications.
MFG63099101 washer door lock strike assembly with dimensions and installation reference image.
Infographic showing washer door lock assembly components including PC-ABS housing, polymer frame, and copper terminals.
EBF61315802 washer door lock switch assembly for front load washing machines.
Four-step instructional guide showing how to replace a washing machine door lock switch and boot seal.
Washing machine door lock assembly and latch replacement part for fixing common washer error codes and locking issues.
Compatibility chart for EBF61315802 washer door lock switch listing compatible LG and Kenmore appliance models.
Lifetime Warranty

EBF61315802 Washer Door Lock Switch for LG Kenmore Front-Load Washers

Save 19%
0.00
$23.55
$29.06
$23.55
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

EBF61315802 LG Washer Door Lock Switch

Key Features

  • Secures the washing machine door during operation to prevent accidental opening.
  • Ensures the wash cycle does not initiate unless the door is properly latched.
  • Integrated 3-pin connector for a secure electrical connection.
  • Electrical specifications: 125V AC, 60Hz.

Replaces / Cross-Reference Part Numbers

  • EBF61315802
  • EBF62534401
  • 2667085
  • AP5672154
  • PS7792232
  • EAP7792232
  • PD00008063

Compatibility & Fitment

  • Designed for specific LG and Kenmore front-load washing machines.
  • Compatible models include but are not limited to: WM1388HW, WM3050CW, and 79641002610.
  • Verify compatibility with your appliance model number prior to purchase.

When to Replace

  • The washing machine door fails to lock or unlock properly.
  • The washer displays error codes related to the door lock mechanism.
  • The cycle will not start despite the door being physically closed.
  • Visible damage or burning detected on the switch housing or electrical terminals.

Installation Tips

  • Disconnect the power supply and water source before beginning repairs.
  • The installation typically requires accessing the door boot seal; a spring tool may be necessary to remove and reinstall the retaining ring.
  • Take a photograph of the existing wiring configuration before disconnecting the old switch to ensure proper reconnection.
  • Ensure the new switch is firmly seated and that the wire connector clicks into place for a reliable connection.
  • Test the door lock functionality before fully reassembling the boot seal and front panel.

FAQ

If your washer fails to start, displays a door-related error code (such as dE, dE1, or dE2), or if the door remains locked after the cycle finishes, the door lock switch assembly is likely failing. This part is responsible for detecting that the door is securely closed and locked before the machine allows the wash or spin cycle to begin.
This assembly replaces EBF61315802 and is compatible with cross-reference numbers EBF62534401, 2667085, AP5672154, PS7792232, and EAP7792232.
Yes, this door lock switch is designed for use in both LG and Kenmore front-load washing machines, particularly those in the 796-series.
Installation typically requires a Phillips head screwdriver, a flat-head screwdriver or putty knife to remove the spring clamp on the door boot seal, and a pair of pliers. The process generally takes 30 to 45 minutes for an experienced DIYer. Always unplug your washer from the power source and turn off the water supply before beginning work.
When replacing the switch, you will need to carefully peel back the rubber door boot seal to access the lock assembly behind the front panel. Wearing work gloves is recommended, as the interior edges of the washer cabinet can be sharp. Be sure to securely reconnect the wire harness to the new switch before reassembling the door boot seal.
While not strictly required, if your door strike (part number MFG63099101) shows signs of wear, cracking, or misalignment, it is often a good practice to replace it alongside the lock switch to ensure a perfect fit and prevent future lock engagement issues.
